RICH SOLAR | 24V | 800Ah | 20.4kWh Lithium Battery Bank

SKU RS-B24100x8
$6,399.99

⭐ Authorized Rich Solar Dealer

⭐ Fast & Free Shipping with No Sales Tax

⭐ Easy 30-Day Returns & Price Beat Guarantee

⭐ Flexible Financing Options Available

⭐ Full Manufacturer Warranty Included

Notify me when back in stock

Estimated Delivery Between

and .

Order within to get it by the earliest date.

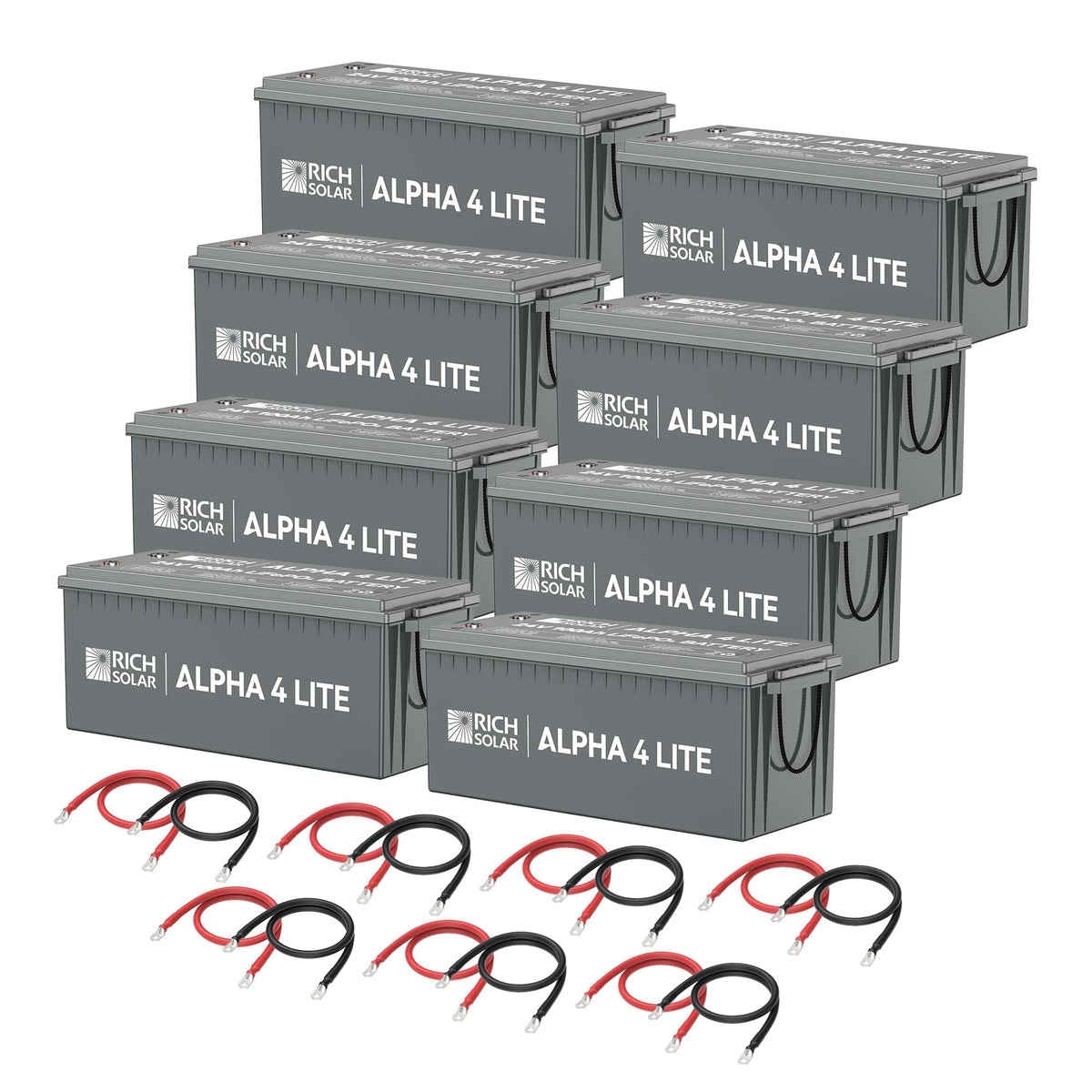

This 800AH 24V 10.2kWh Lithium Battery Bank comes with:

  • 8 x 24V 100AH ALPHA 4 LITE LiFePO4 Battery

  • 14 x 1ft 2 AWG Battery Cable



The ALPHA 4 LITE is a 24V 100 Ah lithium battery built and packed with RICH SOLAR’s premium LiFePO4 cells. Built to withstand extreme temperatures and handle deep discharges, this lithium battery is ready to be your go to battery for any off-grid needs.

Whether you’re looking to set up backup power for your family home or boondocking off-grid, you can be sure you have power available to you. With it’s low maintenance, lightweight build, and powerful discharge cycles, the ALPHA 4 LITE is the battery for you.

* Not intended to replace starting batteries.

Features:

  • Extremely high number of charge/discharge cycles

  • > 10 Year lifespan with proper maintenance

  • Built-in smart battery management system

  • Wide operating temperature range

  • Unsurpassed high temperature performance

  • Green energy without metal contaminant

  • Low maintenance

  • High amp capacity

  • Stable output voltage

  • Little self-discharge

  • Lifetime customer support

  • Over charging or discharging protection.

  • Over current & short circuit protection.

  • High & low temperature disconnects

  • Charge Voltage: 28.8V

  • Max Charge Current:  100A

  • Max Discharge Current: 100A

  • Battery Dimensions(L*W*H): 20.9x8.1x8.5 in

  • Weight: 52.9 lb

BMS Safety Protection

Every LiFePO4 cell is individually fused with safety and efficiency in mind. If any cells fail, the isolated fuse will prevent any damage to the other cells and allow the battery to function normally.

Other BMS Features include:

  • Convenient removable carry handle
  • Lightweight
  • Short circuit protection
  • Over-charge/discharge protection
  • Excessive heat protection

Specifications

BATTERY

Nominal Voltage:

25.6V

Nominal Capacity:

100Ah

Minimum Capacity:

99.5Ah

Cycle Life:

>4000 cycles

Operating Specifications

Capacity:

100 Ah

Energy:

2560 Watt Hours

Charge Voltage:

28.8V

Continuous Discharge Current:

100A

Self Discharge:

< 5%/month

Temperature Performance

Charge Temperature:

32℉ to 131℉ (0℃ to 55℃)

Discharge Temperature:

-4℉ to 140℉ (-20℃ to 60℃)

Storage Temperature:

14°F-113°F / -10℃~45℃ 90%RH Max (More than 3 months)

Physical Specifications

Battery Dimensions(L*W*H):

20.9x8.1x8.5 in

Weight:

52.9 lb

BMS Operation


Over Charge Protection

Over charge detection voltage:

3.75V±0.05V

Over charge detection delay time:

1000ms±500ms

Over charge recovery voltage:

33.55V±0.05V

Over Discharge Protection

Over discharge detection voltage:

2.20V±0.08V

Over discharge detection delay time:

1000ms±500ms

Over discharge recovery voltage:

2.70V±0.10V

Short Circuit Protection: Yes

Warranty: 5 years warranty
