RICH SOLAR 2500W 48VDC-120VAC Solar Kit

The RICH SOLAR 2500W 48VDC-120VAC Solar Kit is a reliable, scalable solution for off-grid living, mobile power needs, and backup systems. With high-efficiency solar panels, a robust inverter, and long-lasting lithium storage, this kit is designed to deliver dependable power where you need it most—whether for cabins, RVs, workshops, or remote homes.

RICH SOLAR 2500W 48VDC-120VAC Solar Kit Features

High-Output Solar Array

Includes 10 x 250W MEGA monocrystalline solar panels delivering a total of 2500W. Built for efficiency and durability.

Powerful Off-Grid Inverter

Comes with a 6500W 48V off-grid inverter that provides stable 120VAC output and supports various appliances, tools, and electronics.

Expandable Battery Storage

Pairs with a 5.12kWh ALPHA 5 PRO lithium server rack battery, offering over 7000 cycles. Modular design allows expansion to increase total capacity.

Simple Installation and Monitoring

Includes mounting brackets, cabling, and quick disconnects for streamlined setup. Inverter supports Wi-Fi monitoring via a mobile app.

Placeholder Image

RICH SOLAR 2500W 48VDC-120VAC Solar Kit Applications

  • Off-Grid Cabins – Supplies energy independence for lights, fridges, and electronics.
  • RVs & Vans – Provides extended travel energy freedom with rooftop installation potential.
  • Backup Power Systems – Keeps lights and essentials running during grid outages.
  • Mobile Worksites – Powers tools and equipment in remote locations.
  • Tiny Homes – Fits well in compact installations with efficient output.

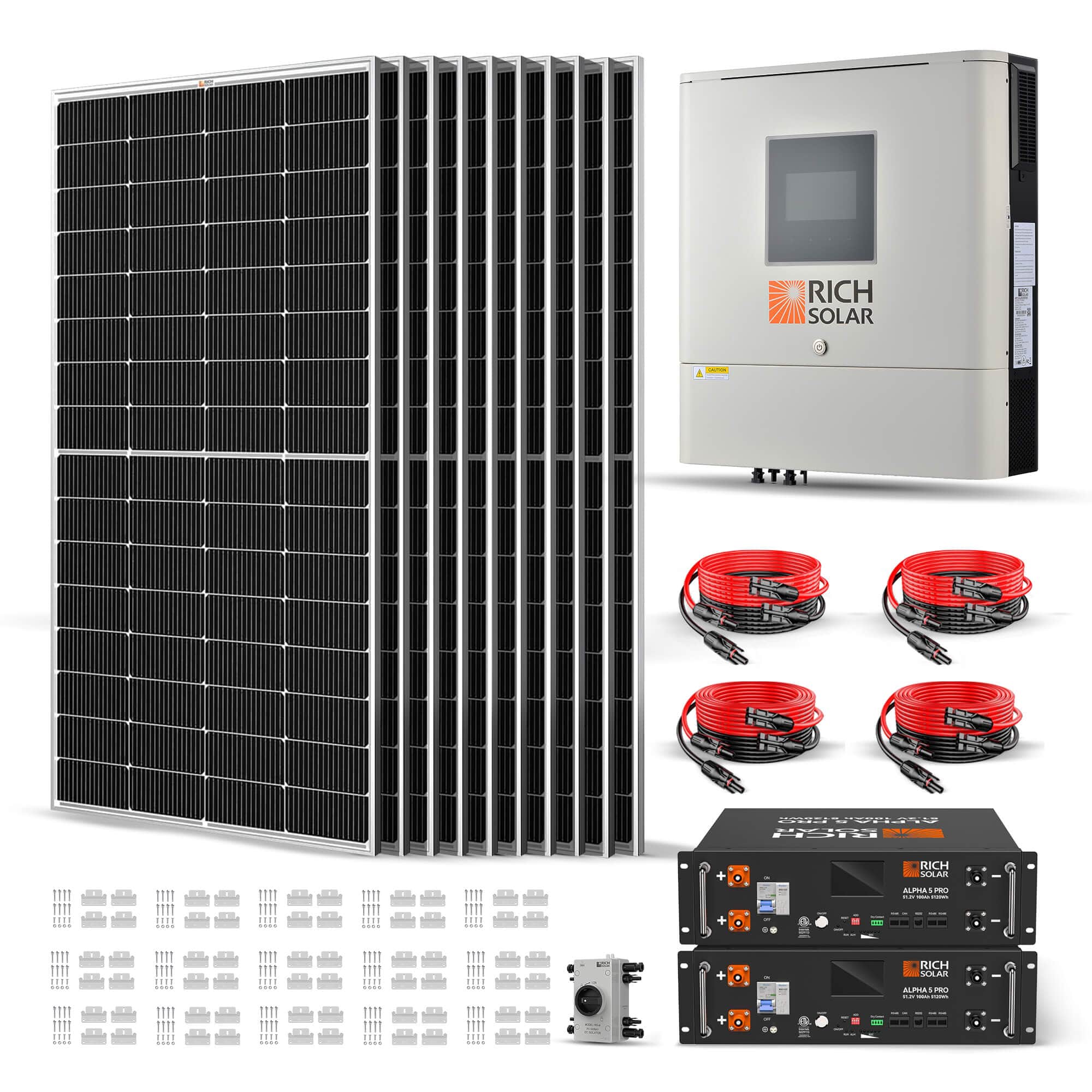

What's Included

Everything you need is included with your product.

  • 1x 6500W 48V Off-grid Solar Inverter (H6548S)
  • 10x MEGA 250W Monocrystalline Panel (RS-M250)
  • 2x ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter(RS-B5121P1)
  • 2x 10AWG 30FT Extension Cable (RS-30102)
  • 2x 10AWG 10FT Extension Cable (RS-10102)
  • 15x Z-Brackets (RS-ZB4C)
  • 1x PV DC Quick Disconnect (RS-i4)

RICH SOLAR 2500W 48VDC-120VAC Solar Kit Specifications

6500W 48V Off-Grid Hybrid Solar Inverter (RS-H6548)

Category Specifications
Rated Inverter Power 6500VA/6500W
Parallel Capability Yes, 6 Units
Input Voltage 120 VAC
Frequency Range 50 Hz/60 Hz (Auto Sensing)
Efficiency (Peak) 90% ~ 93%
Waveform Pure Sine Wave
Battery Voltage 48 VDC
Solar Charger Type MPPT
Maximum PV Array Power 8000W (4000W x 2)
MPPT Operating Voltage Range 90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage 250 VDC
Maximum Charge Current 120A
Dimension (DxWxH) 5.8 x 17.0 x 21.8 in
Net Weight 40.6 lb
Communication Interface USB/RS232/RS485/Wi-Fi/Dry-contact
Compliance Safety UL
Warranty 5 Years

ALPHA 5 PRO 5.12kWh Server Rack Lithium Battery (RS-B5121P)

Category Specifications
Nominal Voltage 51.2V
Nominal Capacity 100Ah
Minimum Capacity 99.5Ah
Nominal Capacity 5120Wh
Continuous Charge Current 100A
Continuous Discharge Current 100A
Dimensions 17.7″L x 17.8″W x 5.2″H
Battery Weight 99.2 lb
Warranty 10 Years Manufacturer Defect

MEGA 250W Monocrystalline Panel (RS-M250)

Category Specifications
Maximum Power(Pmax) 250W
Maximum Power Voltage(Vmp) 18.9V
Maximum Power Current(Imp) 13.2A
Open Circuit Voltage(Voc) 22.8V
Short Circuit Current(Isc) 13.7A
Maximum System Voltage(Vmax) 1500VDC
Temperature Range -40 ~ +185℉
Weight 26.9 lb
Dimensions 60.6 x 29.9 x 1.2 in

Frequently-Asked Questions

Can I add more panels or batteries to this system later?

Yes. This system is designed to be modular. You can expand by adding more panels or battery units as needed.

Is the inverter compatible with a generator?

Yes. The inverter can accept generator input, making it versatile for hybrid backup.

Does this kit power 240V appliances?

This version provides 120V AC output. If you need 240V, consider a dual-phase inverter or an upgraded kit with split-phase support.

What size home or cabin can this power?

This system is best for small cabins, off-grid offices, or tiny homes. For whole-home coverage, consider higher capacity kits.

Is the battery safe and certified?

Yes. The ALPHA 5 PRO battery is UL1973-certified, IP65-rated, and supports over 7000 cycles.
