RICH SOLAR | 30 Amp Flush Mount PWM Solar Charge Controller | 30A 12V/24V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Top Rated

SKU RS-PWM30RV
$79.99

⭐ Authorized Rich Solar Dealer

⭐ Fast & Free Shipping with No Sales Tax

⭐ Easy 30-Day Returns & Price Beat Guarantee

⭐ Flexible Financing Options Available

⭐ Full Manufacturer Warranty Included

Notify me when back in stock

Estimated Delivery Between

and .

Order within to get it by the earliest date.

The 30 Amp Flush Mount PWM Solar Charge Controller is a top-rated controller designed to regulate and manage the charging process of your solar panels. It's specifically designed for solar systems with a maximum current capacity of 30 amps, making it suitable for small to medium-sized solar installations.



FEATURES

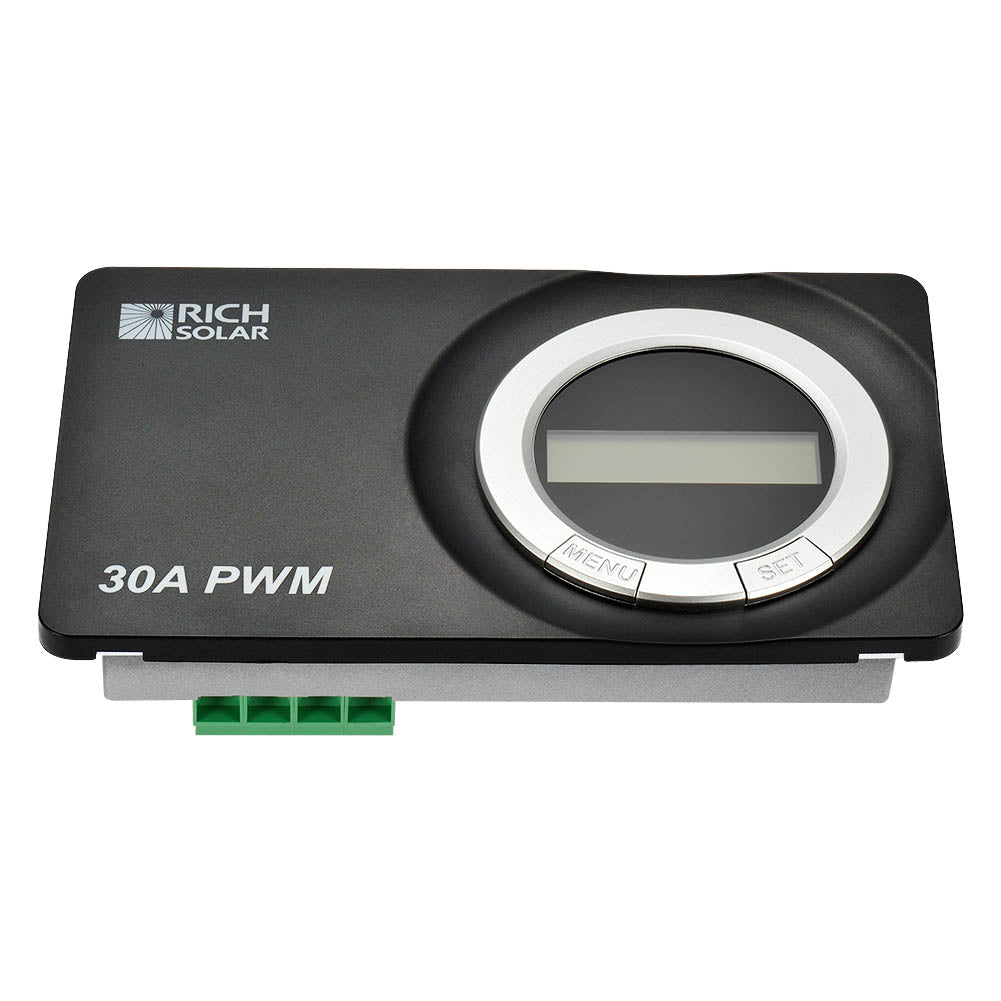

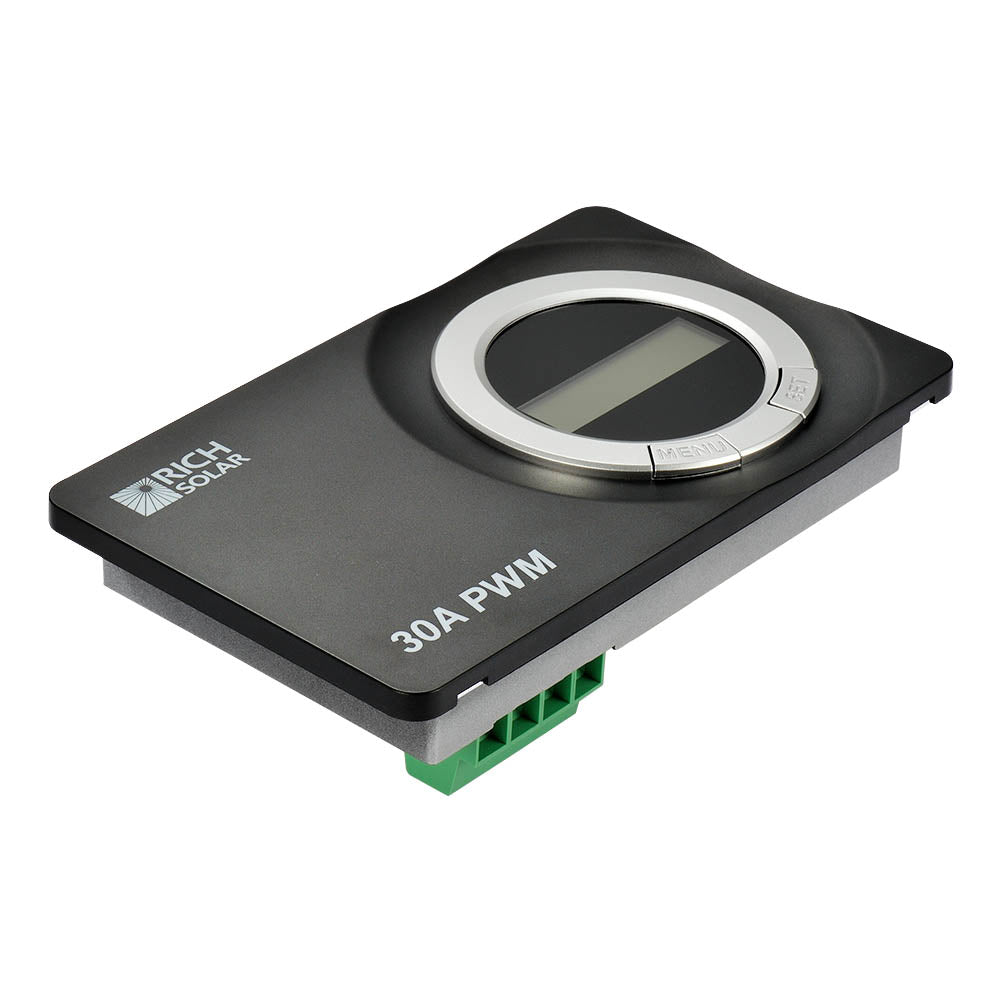

  • Flush mounted and embedded installation design
  • High quality and low failure rate components (ST/IR) to ensure the product lifetime
  • 3-Stage intelligent PWM charging: Bulk, Boost/Equalize and Float
  • Battery type: Sealed, Gel, Flooded
  • Real-time energy statistics feature

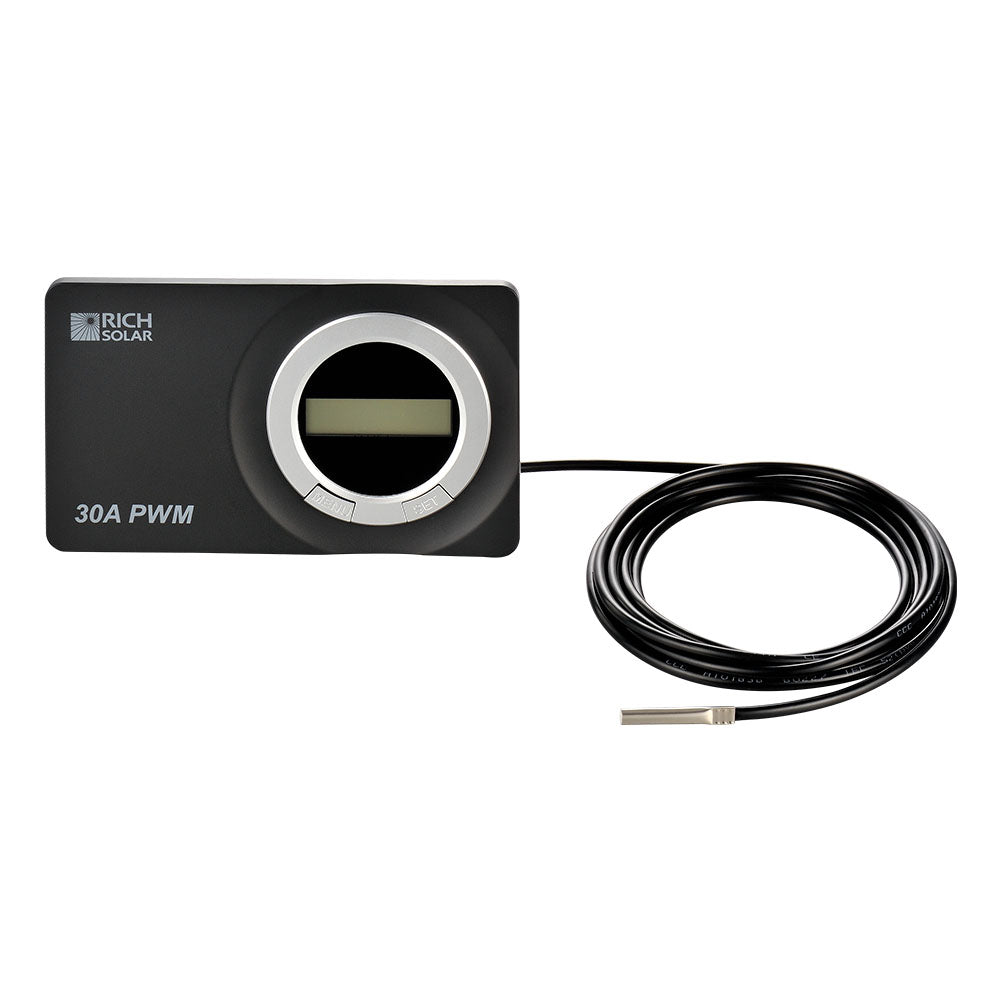

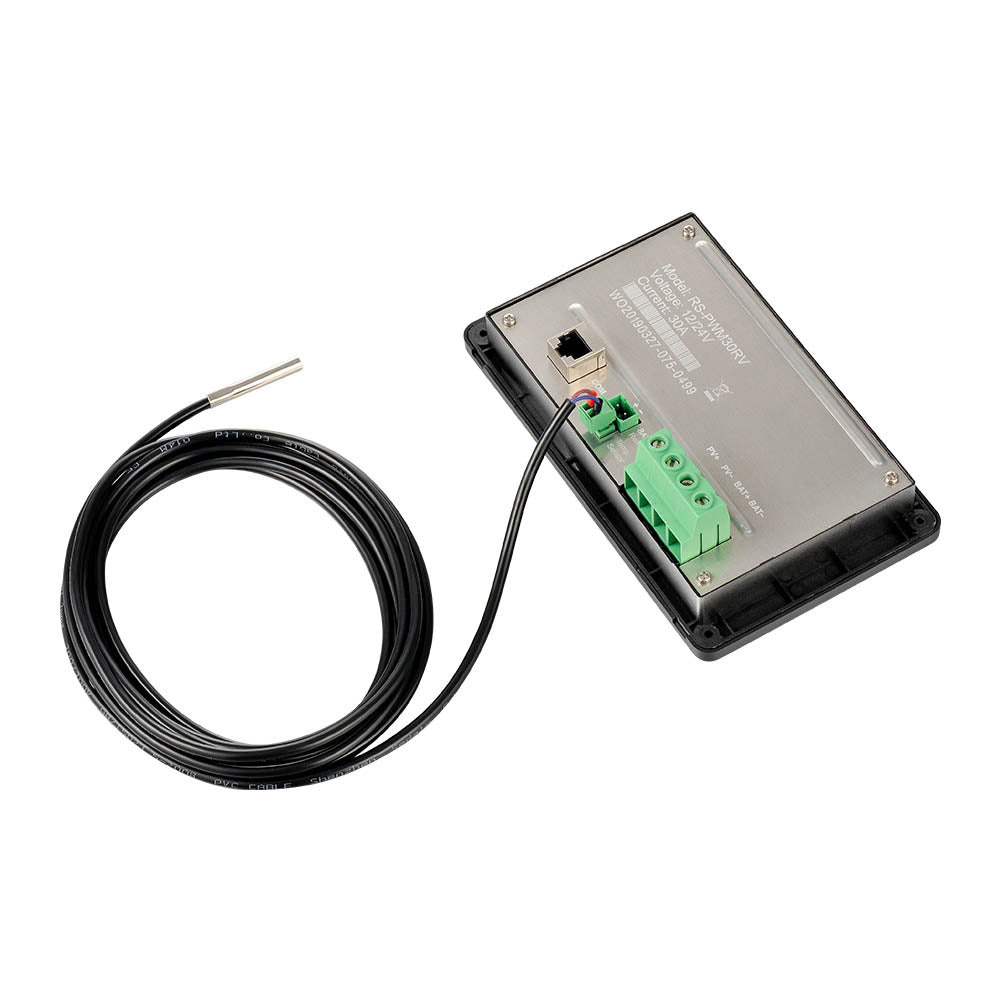

  • Battery temperature compensation feature

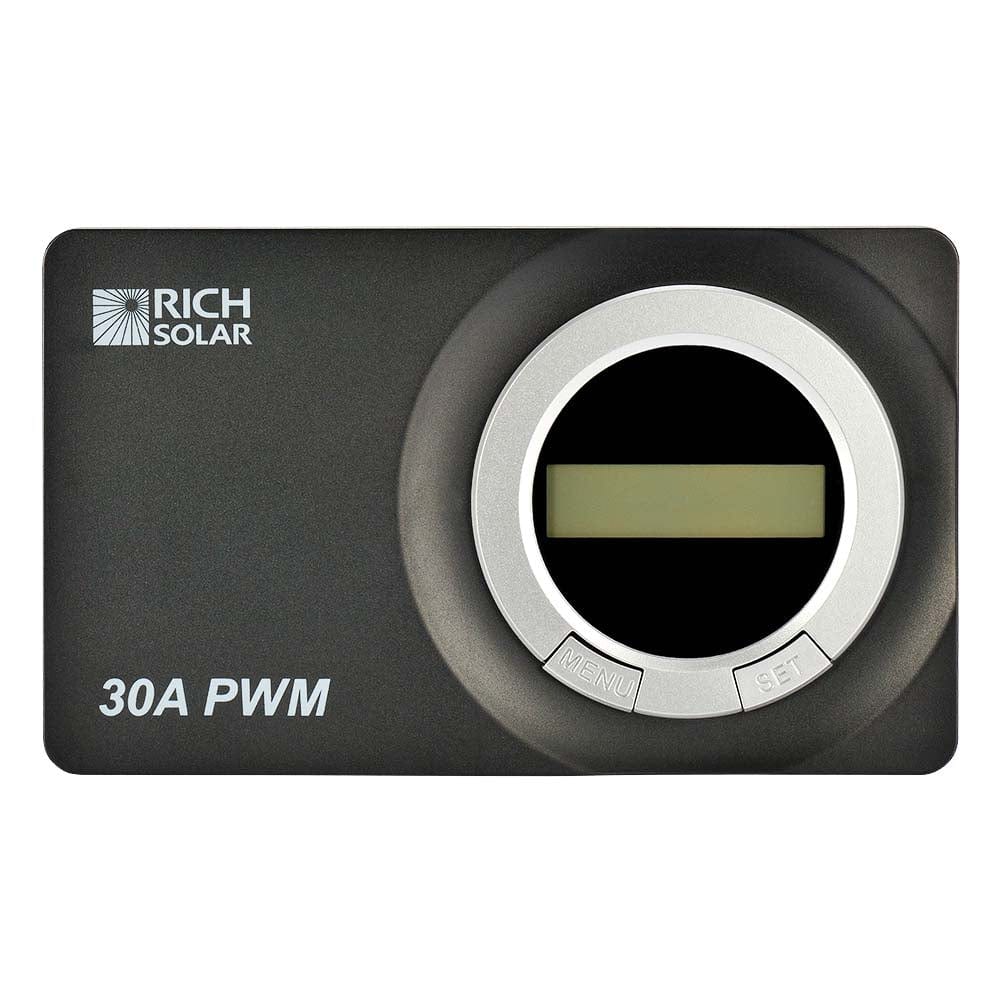

  • Digital LCD monitor for informative display of operational parameters and fault messages
  • Voltage drop and temperature compensation sampling interface design

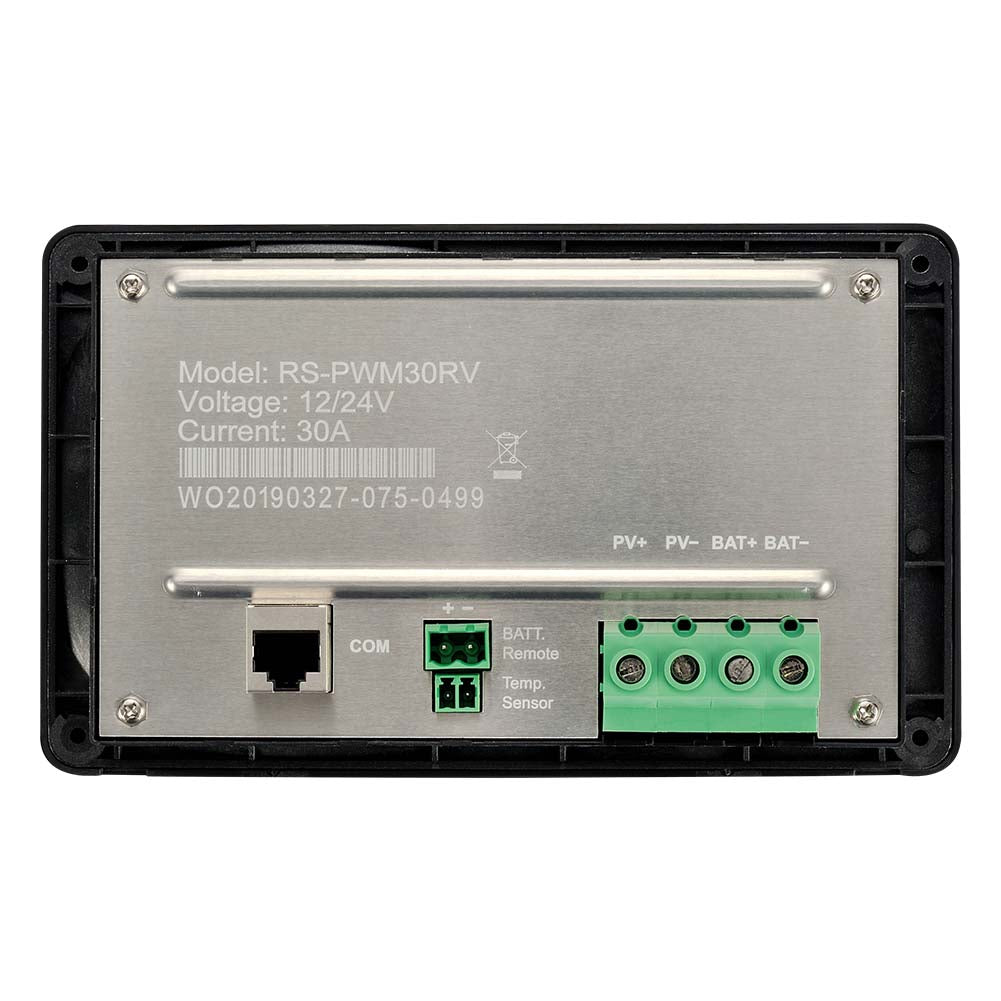

  • RS485 communication port with Modbus protocol, and short circuit protection for 5V/200mA power supply
  • Multiple communication peripherals
  • Rated charging current at working temperature without de-rating
  • Extensive electronic protections
  • Monitor and set the parameters via PC software or APP


Specifications

Electrical Specifications
Nominal Voltage: 12/24VDC or Auto
Battery Input Voltage Range: 8V~32V
Rated Charge Current: 30A
Max. PV Short Circuit Current: 30A
Max. PV Open Circuit Voltage: 50V
Battery Type: Sealed(default)/Gel/Flooded
Self-consumption: ≤4.2mA/12V;≤2.6mA/24V
Temperature Compensation Coefficient: -3mV/°C/2V(Default)
Charge Circuit Voltage Drop: 0.21V


Environmental Parameters
Storage Temperature Range: -30°C~+80°C
Working Environment Temperature: -20°C~+55°C(100% input and output)
Relative Humidity: ≤95%, N.C.
Enclosure: IP30
Grounding: Common negative
Altitude: 5000m
Pollution Degree: PD2


Mechanical Parameters
Dimension(L×W×H): 178.5×105.5×48.3mm
Mounting Dimension: 166.5×93.5mm
Mounting Hole Size: Φ5mm

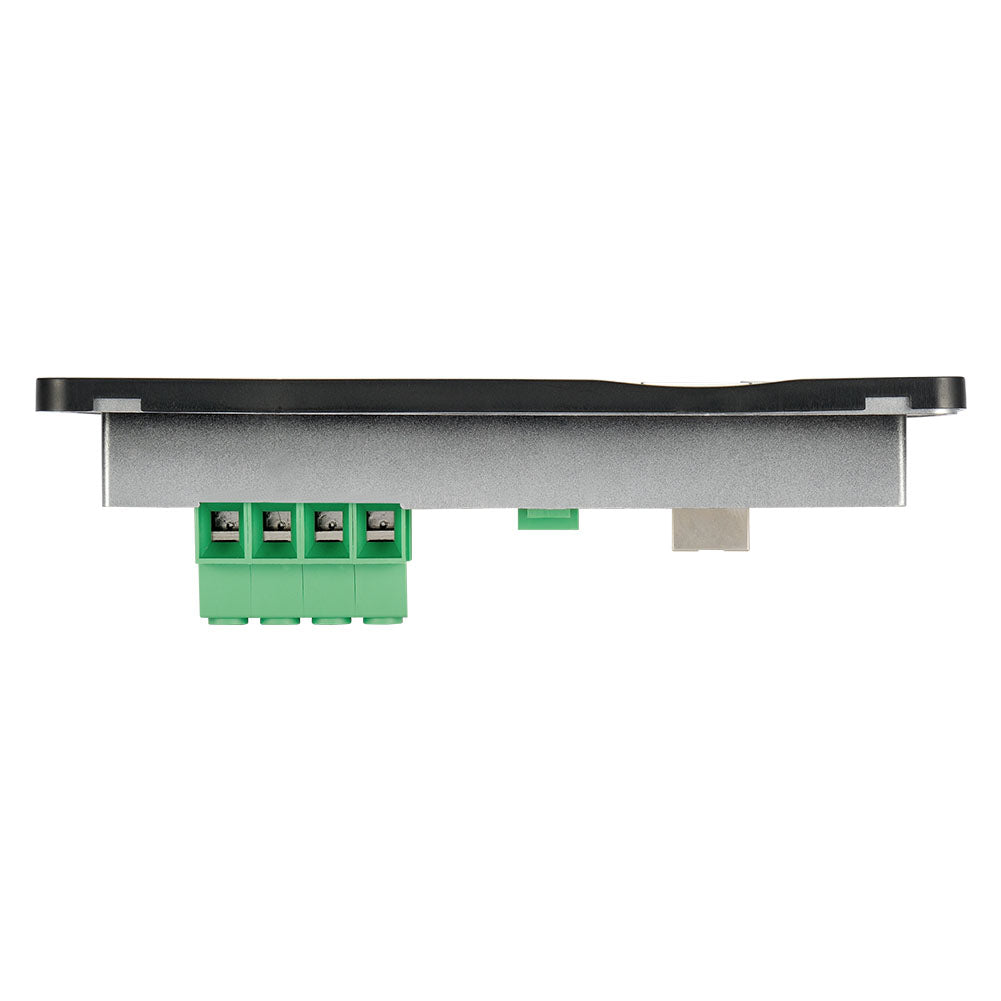

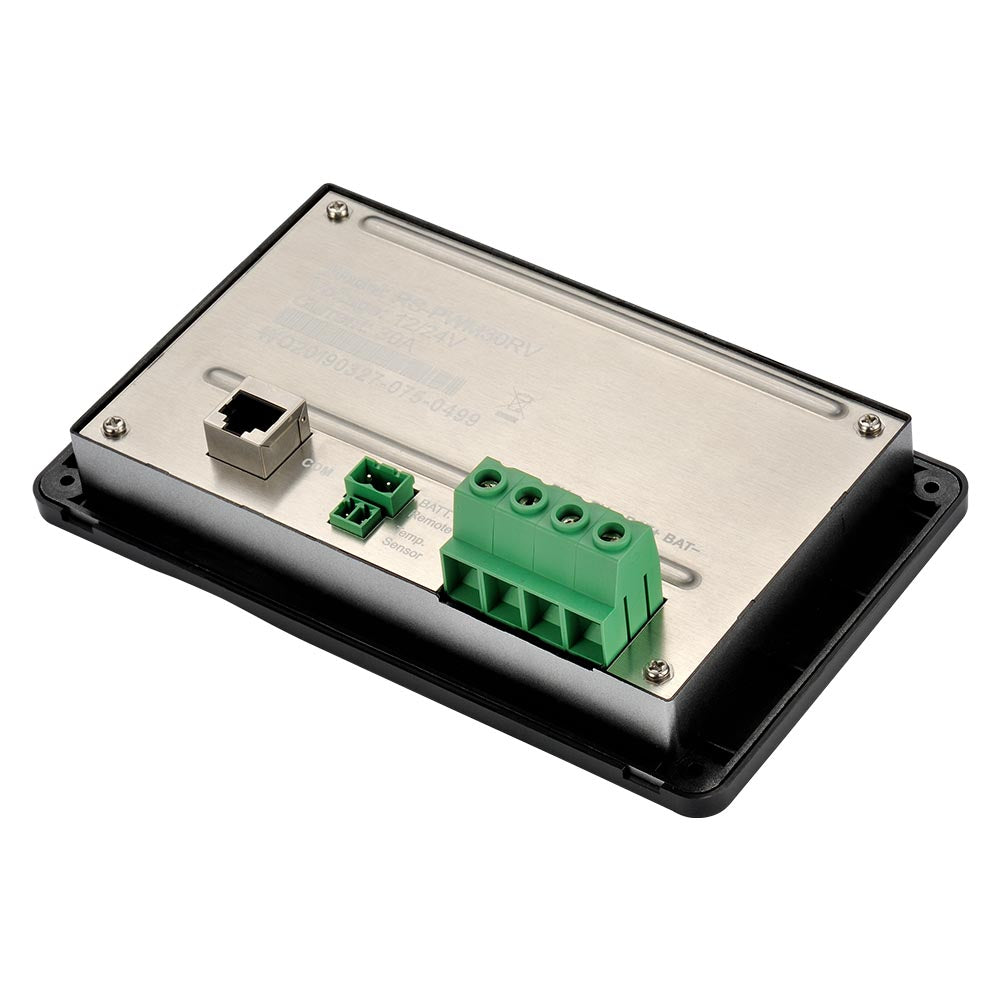

Terminal: 16mm2/6AWG
Recommended Cable: 6mm2/10AWG
Net Weight: 0.31kg


User Manual

Rich Solar 30 Amp Solar Charge Controller Flush Mount
30 Amp Solar Charge Controller Flush Mount
