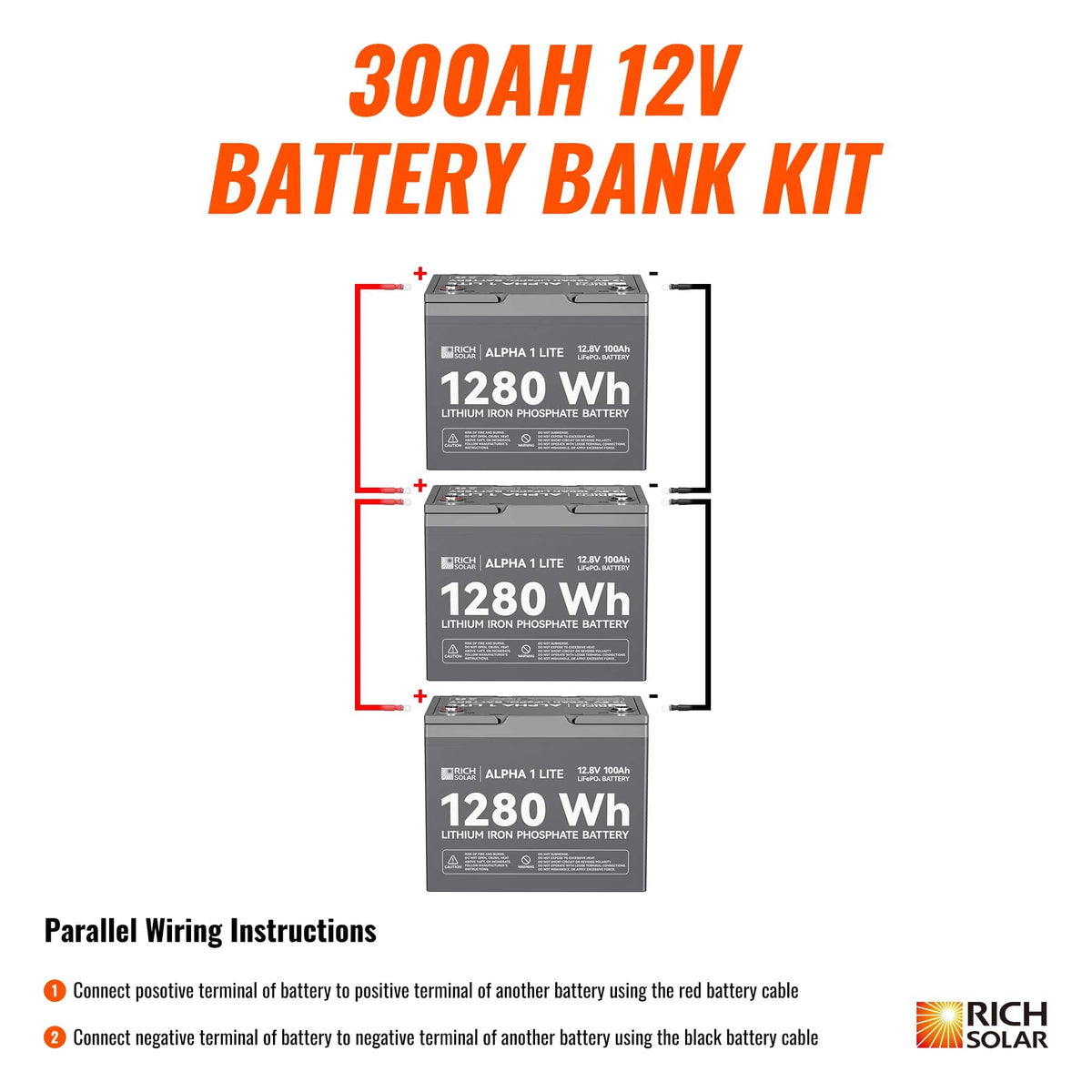

RICH SOLAR | 300Ah 12V LiFePO4 Off-Grid Battery Kit | 3.8kWh Deep Cycle Lithium Battery Bank | 3 X ALPHA 1 LITE in Parallel

SKU RS-B12100x3
$1,199.99

⭐ Authorized Rich Solar Dealer

⭐ Fast & Free Shipping with No Sales Tax

⭐ Easy 30-Day Returns & Price Beat Guarantee

⭐ Flexible Financing Options Available

⭐ Full Manufacturer Warranty Included

Notify me when back in stock

Estimated Delivery Between

and .

Order within to get it by the earliest date.

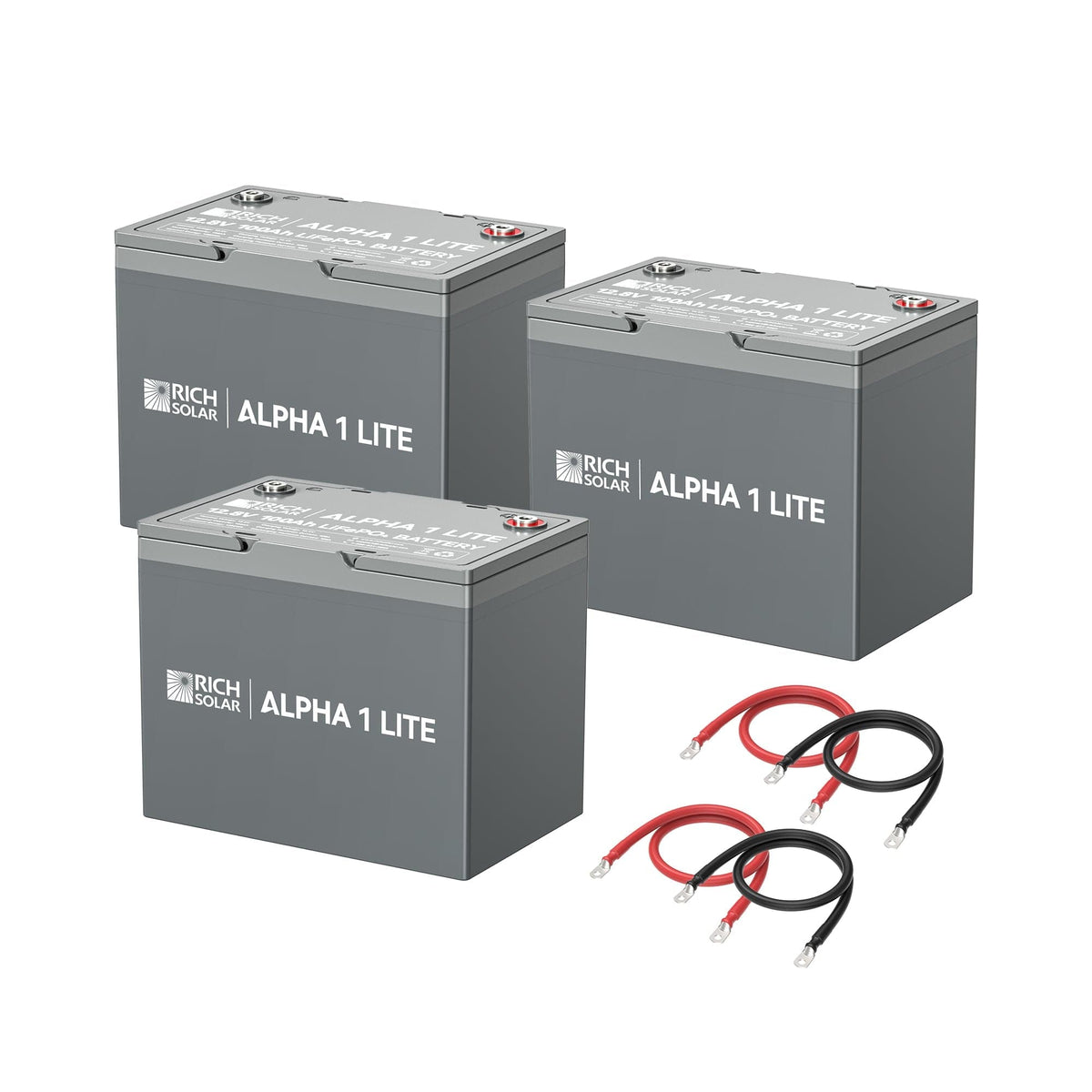

The 300AH 12V 3.8kWh Lithium Battery Bank comes with:

  • 3x 12V 100AH LiFePO4 Battery
  • 4x 1ft 2 AWG Battery Cable

4,000 Cycles. LiFePO4 Cells. 10+ Years Lifespan. Built with quality materials that are made to last, the ALPHA 1 LITE is a 12V 100Ah battery that is sure to leave its mark. Each ALPHA LITE Battery is packed to the brim with premium lithium-iron-phosphate (LiFePO4) technology to maintain energy efficiency while still in a compact and lightweight Group 24 battery size.

Experience a full day of high-quality power output with the ALPHA 1 LITE’s capacity of 100 amp hours, setting you up for a full day in the open road in your RV or van. With its low-maintenance, deep-cycle capabilities, and RICH SOLAR premium materials, you can store your energy with ease.

Features

  • Premium lithium-iron-phosphate cells

  • >10 Year lifespan with proper maintenance

  • Unsurpassed high-temperature performance

  • Group Size 24

  • Low maintenance

  • High amp capacity

  • Stable output voltage

  • Little self-discharge

  • Overcharge/discharge protection

  • Overcurrent & short circuit protection

  • High & low-temperature disconnects

  • Charge Voltage: 14.4V

  • Max Charge Current: 100 A

  • Max Discharge Current: 100 A

  • Battery Dimensions(L*W*H): 10.2*6.6*8.3 in

  • Weight: 24.3 lb



BMS Safety Protection

Every LiFePO4 cell is individually fused with safety and efficiency in mind. If any cells fail, the isolated fuse will prevent damage to the other cells and allow the battery to function normally.

Other BMS Features include:

  • Convenient removable carry handle
  • Lightweight
  • Short circuit protection
  • Over-charge/discharge protection
  • Excessive heat protection

Specifications


BATTERY

Nominal Voltage:

12.8V

Nominal Capacity:

100Ah

Minimum Capacity:

99.5Ah

Cycle Life:

>4000 cycles

Operating Specifications

Operating Voltage:

12.8 V

Capacity:

100 Ah

Energy:

1280 Watt Hours

Charge Voltage:

14.4V

Continuous Charge Current:

100A

Continuous Discharge Current:

100A

Self Discharge:

< 5%/month

Temperature

Charge Temperature:

32℉ to 131℉ (0℃ to 55℃)

Discharge Temperature:

-4℉ to 140℉ (-20℃ to 60℃)

Storage Temperature:

14°F-113°F / -10℃~45℃ 90%RH Max (More than 3 months)

Physical Specifications

Battery Dimensions(L*W*H):

10.2x6.6x8.3 in

Weight:

24.3 lb

BMS Operation


Overcharge Protection

Overcharge detection voltage:

3.75V±0.03V

Overcharge detection delay time:

1000ms±500ms

Overcharge recovery voltage:

3.55V (Min 3.40V, Max 3.60V)

Over-discharge Protection

Over-discharge detection voltage:

2.20V±0.08V

Over-discharge detection delay time:

1000ms±500ms

Over-discharge recovery voltage:

2.70V±0.10V

Warranty: 5 years
