RICH SOLAR 4000W 48VDC-240VAC Solar Kit

The RICH SOLAR 4000W 48VDC-240VAC Solar Kit is built for serious off-grid living and backup power. Designed to deliver stable 240V output from a 48VDC battery bank, this complete kit includes premium solar panels, a high-performance hybrid inverter, and a long-lasting lithium iron phosphate battery. It’s ideal for larger cabins, shops, mobile workstations, or any location needing reliable high-voltage power without connection to the grid.

RICH SOLAR 4000W 48VDC-240VAC Solar Kit Features

Powerful 240V Output

The 6500W hybrid inverter efficiently converts 48VDC to 240VAC, making it perfect for high-demand appliances like well pumps, dryers, or HVAC units.

4000W Solar Array

Comes with 10 x 400W MEGA monocrystalline solar panels that deliver efficient, high-yield charging even in less-than-ideal conditions.

Reliable Energy Storage

Includes a 5.12kWh ALPHA 5 PRO lithium iron phosphate battery with built-in BMS for reliable, long-term energy storage. Expandable if more capacity is needed.

Ready-to-Install Package

Includes all essential hardware: quick disconnect, Z-brackets, and PV extension cables. Everything you need to get powered up.

Placeholder Image

RICH SOLAR 4000W 48VDC-240VAC Solar Kit Applications

  • Off-grid homes – Ideal for residential setups needing reliable 240V output for essential appliances and comfort.
  • Remote cabins or barns – Perfect for powering tools, pumps, and utilities in locations without grid access.
  • Workshops and job sites – Supports high-load equipment like compressors, welders, and saws off the grid.
  • Emergency power backup – Ensures continued operation of critical systems during outages or grid failures.
  • Expandable solar systems – Flexible for future upgrades with more panels or additional battery storage.

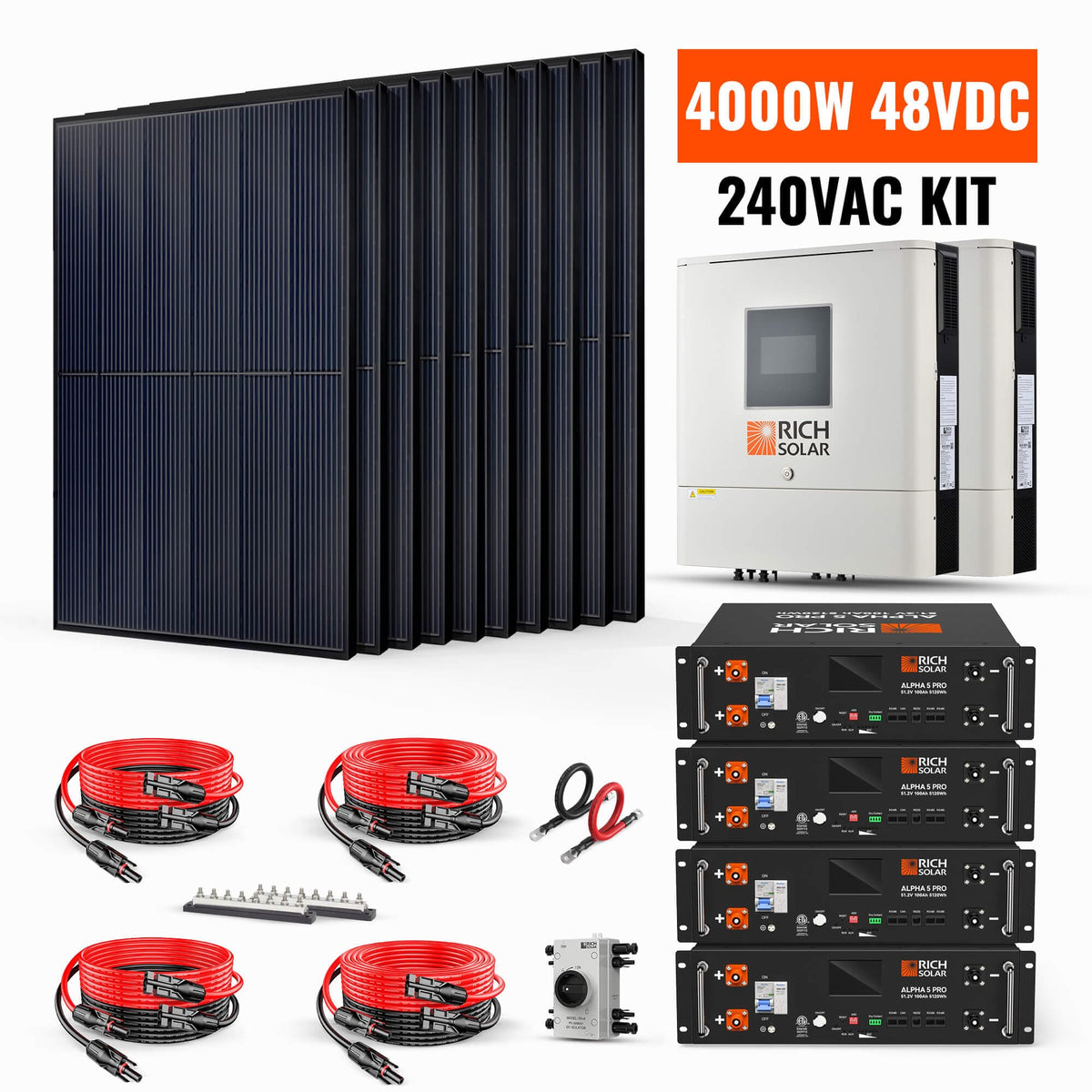

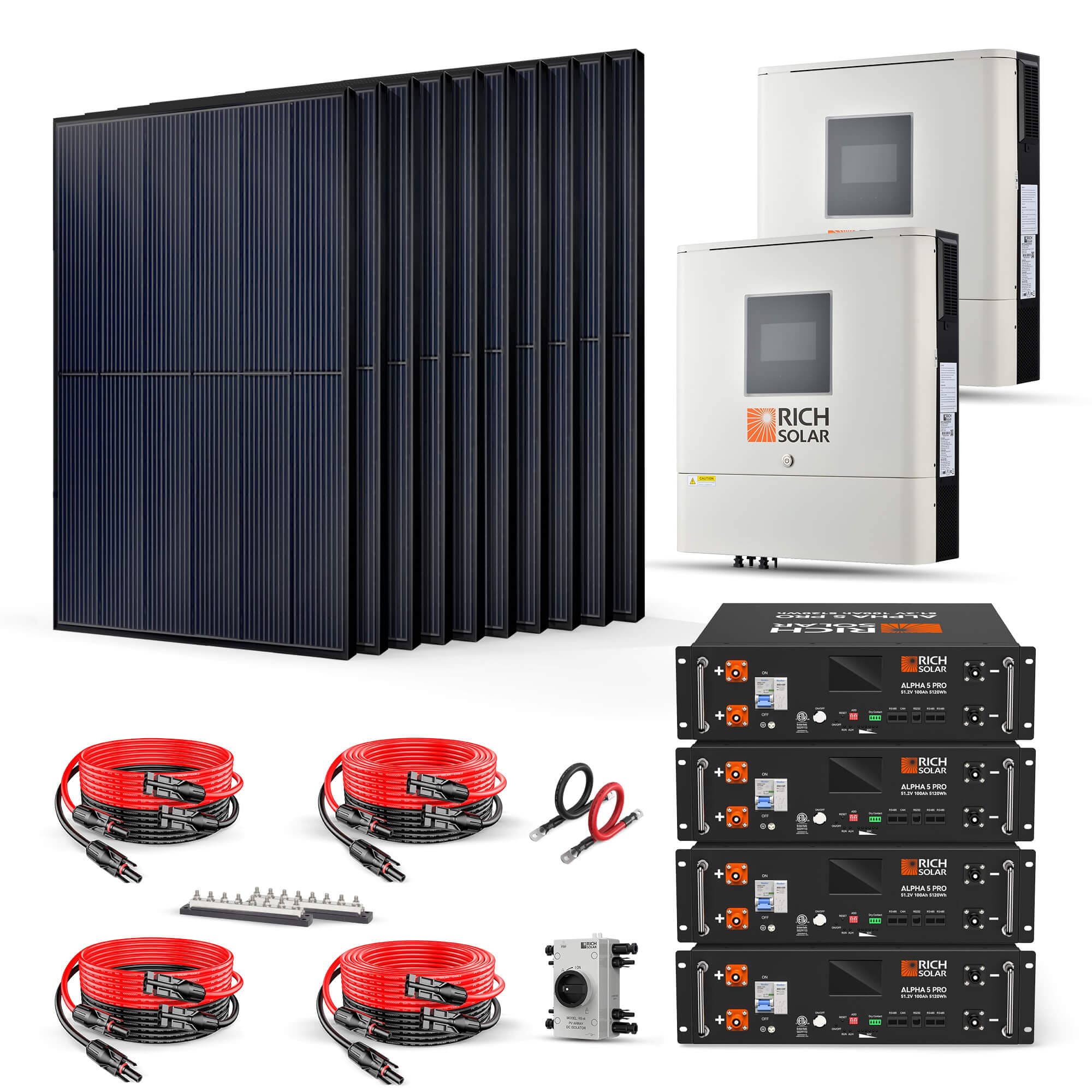

What's Included

Everything you need is included with your product.

  • 2x 6500W 48V Off-grid Solar Inverter (H6548S)
  • 10x MEGA 410W Solar Panel (RS-M410-10)
  • 4x ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter(RS-B5121P1)
  • 2 x Busbar 600 AMP
  • 10AWG 30FT Extension Cable (RS-30102)
  • 2x 10AWG 10FT Extension Cable (RS-10102)
  • 1x PV DC Quick Disconnect (RS-i4)
  • 1x 4/0 AWG Battery Cables 5FT (RS-4/0A5F3)

RICH SOLAR 4000W 48VDC-240VAC Solar Kit Specifications

6500W 48V Off-Grid Hybrid Solar Inverter (RS-H6548)

Category Specifications
Rated Inverter Power 6500VA/6500W
Parallel Capability Yes, 6 Units
Input Voltage 120 VAC
Frequency Range 50 Hz/60 Hz (Auto Sensing)
Efficiency (Peak) 90% ~ 93%
Waveform Pure Sine Wave
Battery Voltage 48 VDC
Solar Charger Type MPPT
Maximum PV Array Power 8000W (4000W x 2)
MPPT Operating Voltage Range 90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage 250 VDC
Maximum Charge Current 120A
Dimension (DxWxH) 5.8 x 17.0 x 21.8 in
Net Weight 40.6 lb
Communication Interface USB/RS232/RS485/Wi-Fi/Dry-contact
Compliance Safety UL
Warranty 5 Years

ALPHA 5 PRO 5.12kWh Server Rack Lithium Battery (RS-B5121P)

Category Specifications
Nominal Voltage 51.2V
Nominal Capacity 100Ah
Minimum Capacity 99.5Ah
Nominal Capacity 5120Wh
Continuous Charge Current 100A
Continuous Discharge Current 100A
Dimensions 17.7″L x 17.8″W x 5.2″H
Battery Weight 99.2 lb
Warranty 10 Years Manufacturer Defect

MEGA 410W Solar Panel (RS-M410-10)

Category Specifications
Maximum Power(Pmax) 410W
Maximum Power Voltage(Vmp) 31.3V
Maximum Power Current(Imp) 13.1A
Open Circuit Voltage(Voc) 37.5V
Short Circuit Current(Isc) 13.8A
Maximum System Voltage(Vmax) 1500VDC
Temperature Range -40°F ~ 185°F
Max Series Fuse Rating 25A
Weight 45.2 lb
Dimensions 67.9 x 44.6 x 1.2 in

Frequently-Asked Questions

Does this system support 240V tools or appliances?

Yes, the included inverter outputs 240VAC, which can support high-voltage loads like water pumps, dryers, and shop tools.

Can I add more solar panels or batteries later?

Yes. The system is expandable—just make sure to stay within the inverter’s and controller’s rated limits.

Can it be used as a home backup system?

Absolutely. It’s perfect for off-grid setups or as a backup power system for 240V circuits.

How many hours of power will I get from the battery?

That depends on your load. For example, a 1000W load would run for about 5 hours on the 5.12kWh battery.

Is it hard to install?

It comes pre-packaged with all key components and wiring. Experienced DIYers can set it up, though a licensed installer is recommended for full compliance and safety.
