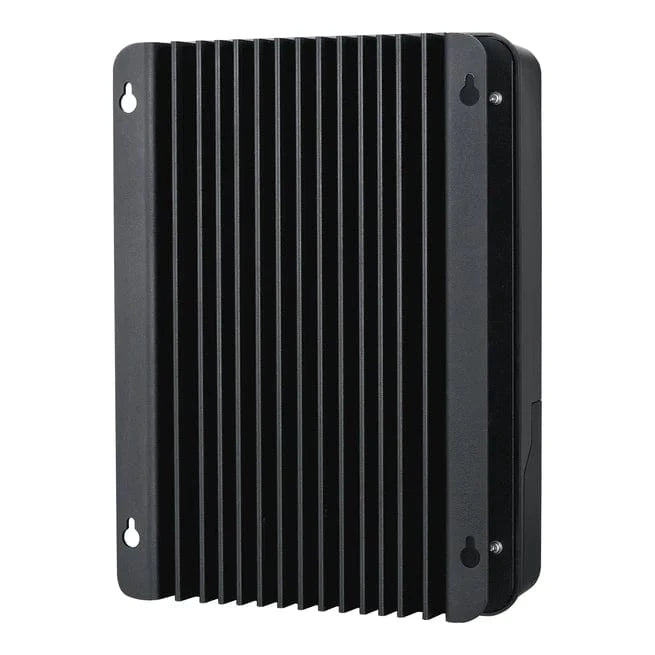

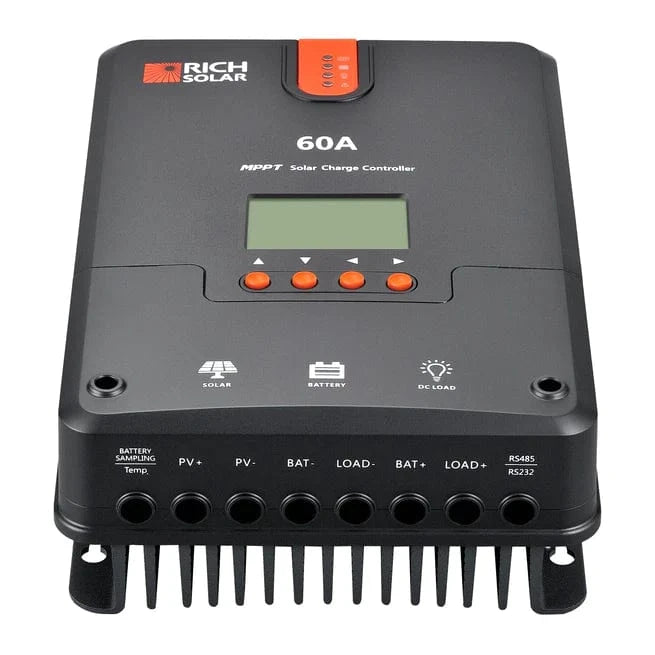

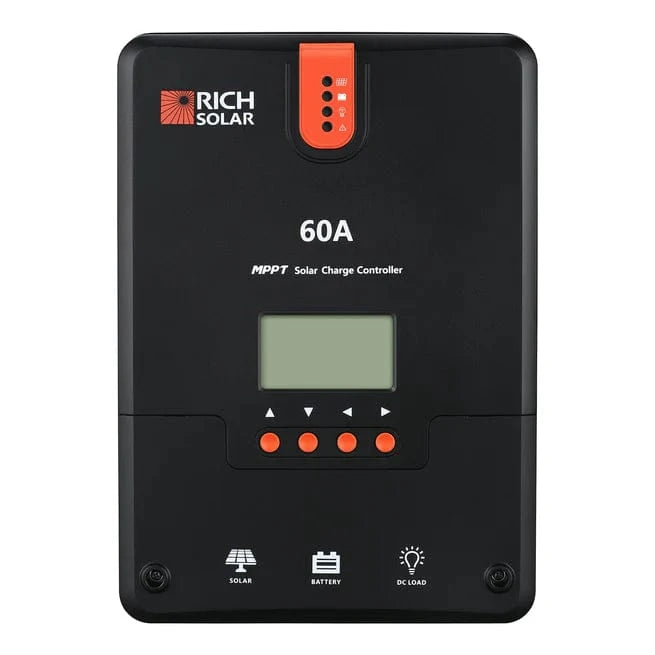

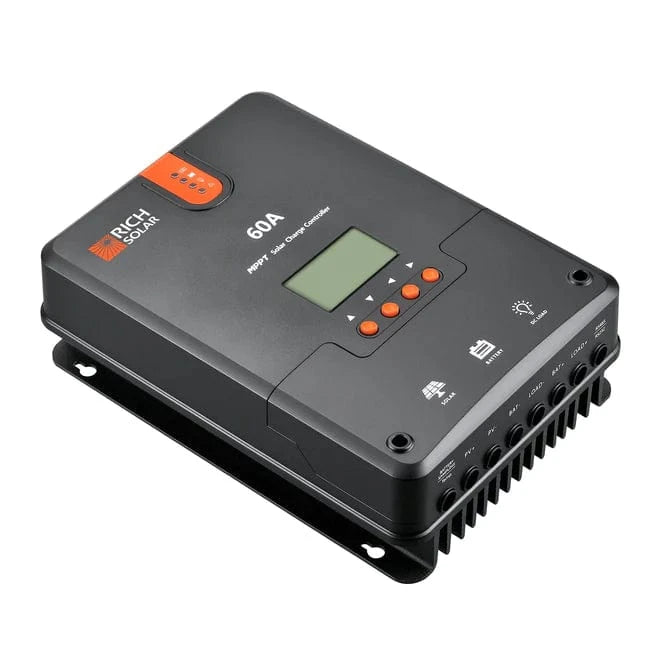

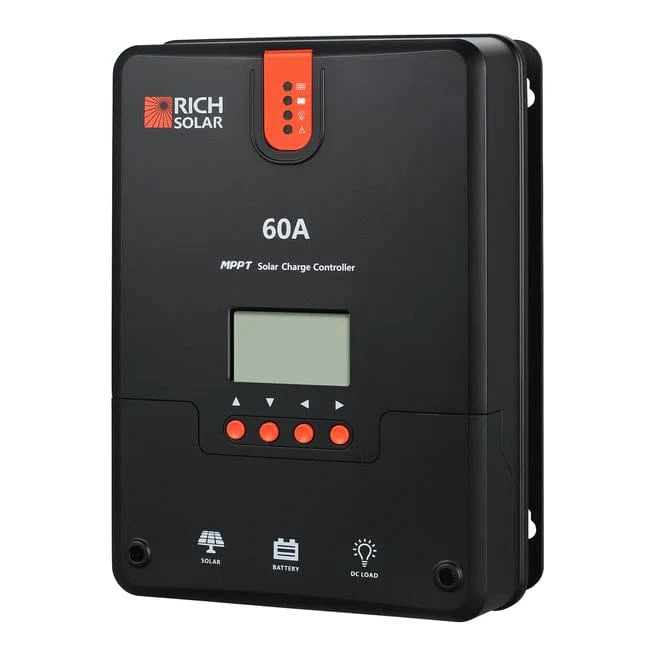

RICH SOLAR 60 Amp MPPT Solar Charge Controller - Black
Enhance your solar power system with the RICH SOLAR 60 Amp MPPT Solar Charge Controller in stylish black. This versatile controller simplifies your solar experience:
Auto Voltage Detection
It adapts seamlessly to 12V/24V/36V/48V DC systems, offering compatibility with various setups.
Battery Flexibility
Accommodating Sealed, Gel, Flooded, and Lithium batteries, it suits your unique power needs.
Innovative MPPT Technology
With MPPT technology, it achieves up to 99% tracking efficiency and 98% peak conversion efficiency, maximizing solar energy utilization.
Robust Safety Features
Enjoy peace of mind with protection against overcharging, reverse polarity, over-discharging, overload, short-circuits, and reverse current.
User-Friendly Interface
Monitor your system effortlessly with an LCD screen, LED indicators, and customizable parameters.
Load Control
Effortlessly manage your power usage and even charge over-discharged lithium batteries.

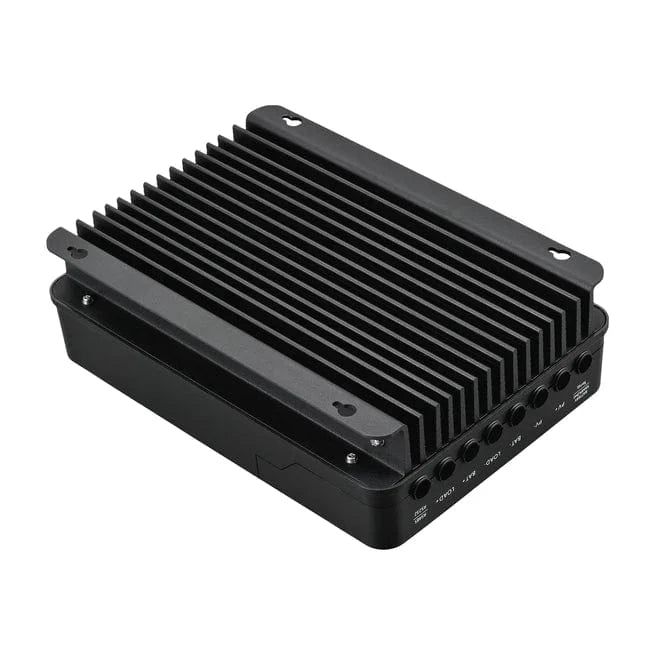

Efficient Heat Dissipation
Its die-cast aluminum design ensures efficient heat dissipation for reliable performance.
Stay Connected

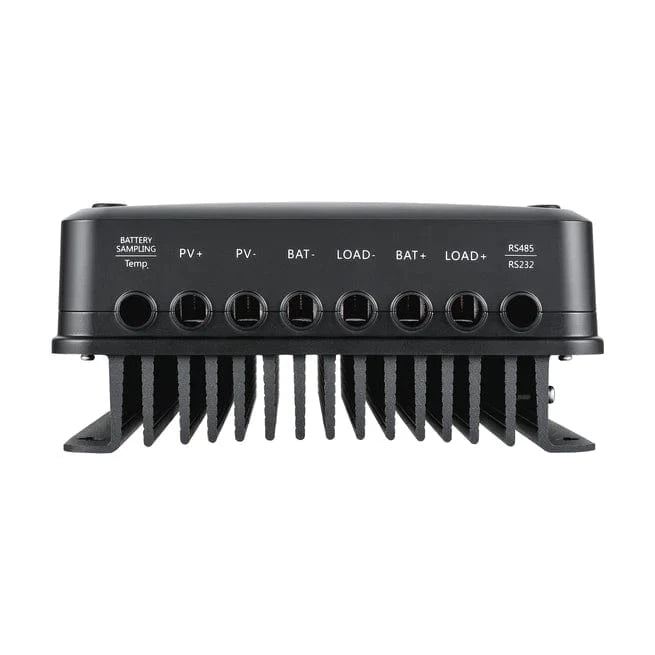

Communicate remotely with the RS232 port for use with the BT-1 Bluetooth module.
Elevate your solar control with the RICH SOLAR 60 Amp MPPT Solar Charge Controller, designed to simplify and optimize your solar power experience. Shop now!
Specs
SPECIFICATIONS
| Specification |
Details
|
| Rated Battery Current |
60A |
| Rated Load Current |
20A |
| Max Solar Input Voltage |
150V |
| Max Solar Input Power |
800W/12V; 1600W/24V; 2400W/36V; 3200W/48V |
| Charge Circuit Voltage Drop |
≤ 0.26V |
| Discharge Circuit Voltage Drop |
≤ 0.15V |
| Operating Temperature |
-31°F to 113°F (-35°C to 45°C) |
| Max Terminal Size |
4AWG |
| Overall Dimension |
11.2 x 8.1 x 4.0 inches |
| Net Weight |
7.9 lb |
