RICH SOLAR | 800Ah 12V LiFePO4 Off-Grid Battery Kit | 10.2kWh Deep Cycle Lithium Battery Bank | 4 X ALPHA 2 LITE in Parallel

SKU RS-B12800
$3,199.99

⭐ Authorized Rich Solar Dealer

⭐ Fast & Free Shipping with No Sales Tax

⭐ Easy 30-Day Returns & Price Beat Guarantee

⭐ Flexible Financing Options Available

⭐ Full Manufacturer Warranty Included

Notify me when back in stock

Estimated Delivery Between

and .

Order within to get it by the earliest date.

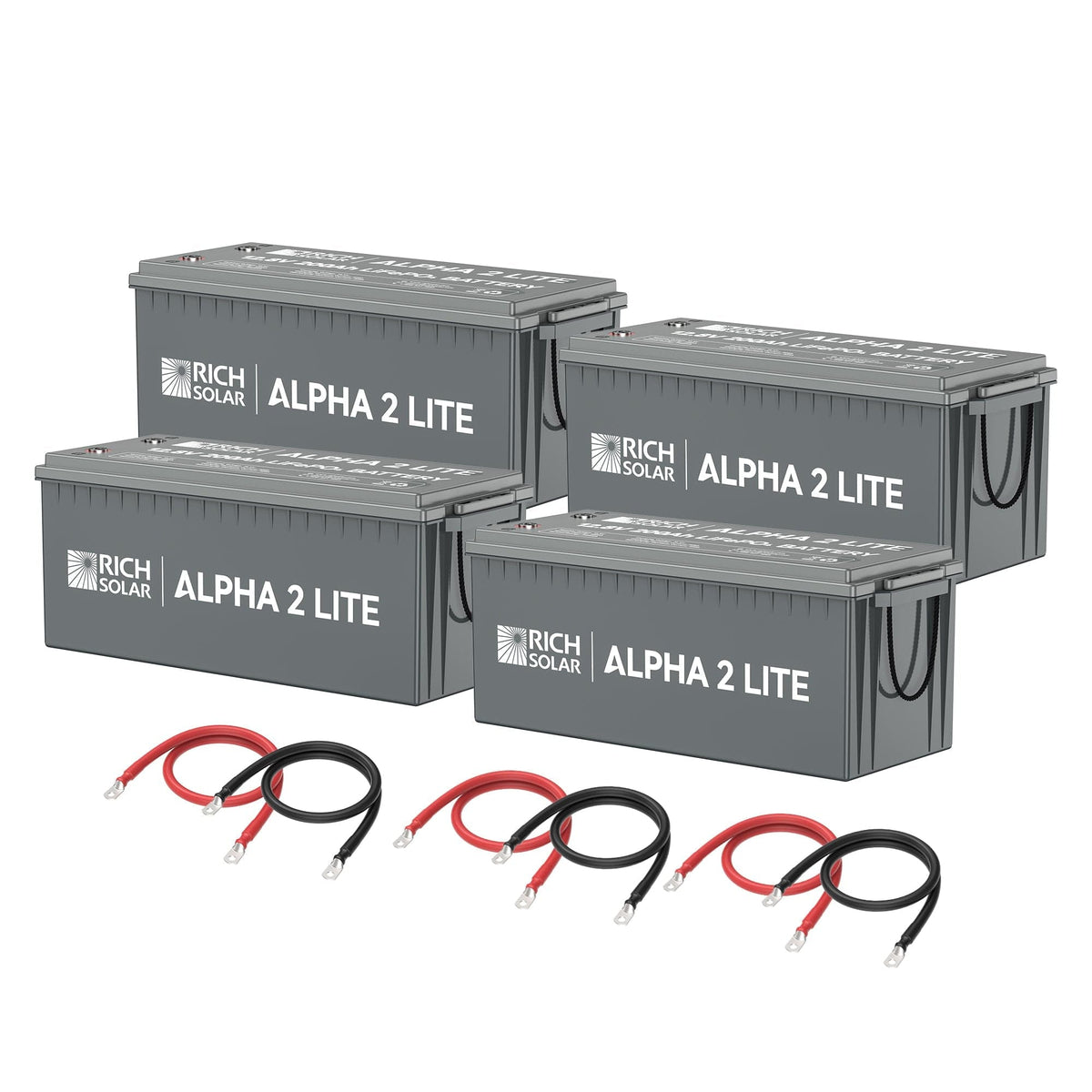

This 800AH 12V 10.2kWh Lithium Battery Bank comes with:

  • 4x 12V 200AH LiFePO4 Battery
  • 6x 1ft 2 AWG Battery Cable



The ALPHA 2 LITE is a 12V 200 Ah LiFePO4 battery built to be as tougher and more efficient than similar batteries on the market. Manufactured with the finest quality materials, the ALPHA 2 LITE is packed with lithium-iron-phosphate cells for maximum energy efficiency.

With its optimized construction and 200Ah, the ALPHA 2 LITE can provide the energy you need at a moment’s notice. Coupled with its security features and low-maintenance requirements, the ALPHA 2 LITE is the battery for people who need energy storage solutions without fuss.

Features:

  • Premium lithium-iron-phosphate cells

  • > 10 Year lifespan with proper maintenance

  • Unsurpassed high-temperature performance

  • Low maintenance

  • High amp capacity

  • Stable output voltage

  • Little self-discharge

  • Overcharging or discharging protection

  • Overcurrent & short circuit protection

  • High & low-temperature disconnects

  • Charge Voltage: 14.4V

  • Max Charge Current: 200A

  • Max Discharge Current: 200A

  • Battery Dimensions(L*W*H): 20.9x8.1x8.5 in

  • Weight: 52.9 lb

BMS Safety Protection

Every LiFePO4 cell is individually fused with safety and efficiency in mind. If any cells fail, the isolated fuse will prevent any damage to the other cells and allow the battery to function normally.

Other BMS Features include:

  • Convenient removable carry handle
  • Lightweight
  • Short circuit protection
  • Over-charge/discharge protection
  • Excessive heat protection

Specifications

BATTERY

Nominal Voltage:

12.8V

Nominal Capacity:

200Ah

Minimum Capacity:

199Ah

Cycle Life:

>4000 cycles

Operating Specifications

Capacity:

200Ah

Energy:

2560 Watt Hours

Charge Voltage:

14.4V

Continuous Discharge Current:

200A

Self Discharge:

< 5%/month

Temperature Performance

Charge Temperature:

32℉ to 131℉ (0℃ to 55℃)

Discharge Temperature:

-4℉ to 140℉ (-20℃ to 60℃)

Storage Temperature:

14°F-113°F / -10℃~45℃ 90%RH Max (More than 3 months)

Physical Specifications

Battery Dimensions(L*W*H):

20.9x8.1x8.5 in

Weight:

52.9 lb

BMS Operation


Over Charge Protection

Over charge detection voltage:

3.75V±0.03V

Over charge detection delay time:

1000ms±500ms

Over charge recovery voltage:

3.55V (Min 3.40V, Max 3.60V)

Over Discharge Protection

Over discharge detection voltage:

2.20V±0.08V

Over discharge detection delay time:

1000ms±500ms

Over discharge recovery voltage:

2.70V±0.10V

Short Circuit Protection: Yes

Warranty: 5 years warranty
