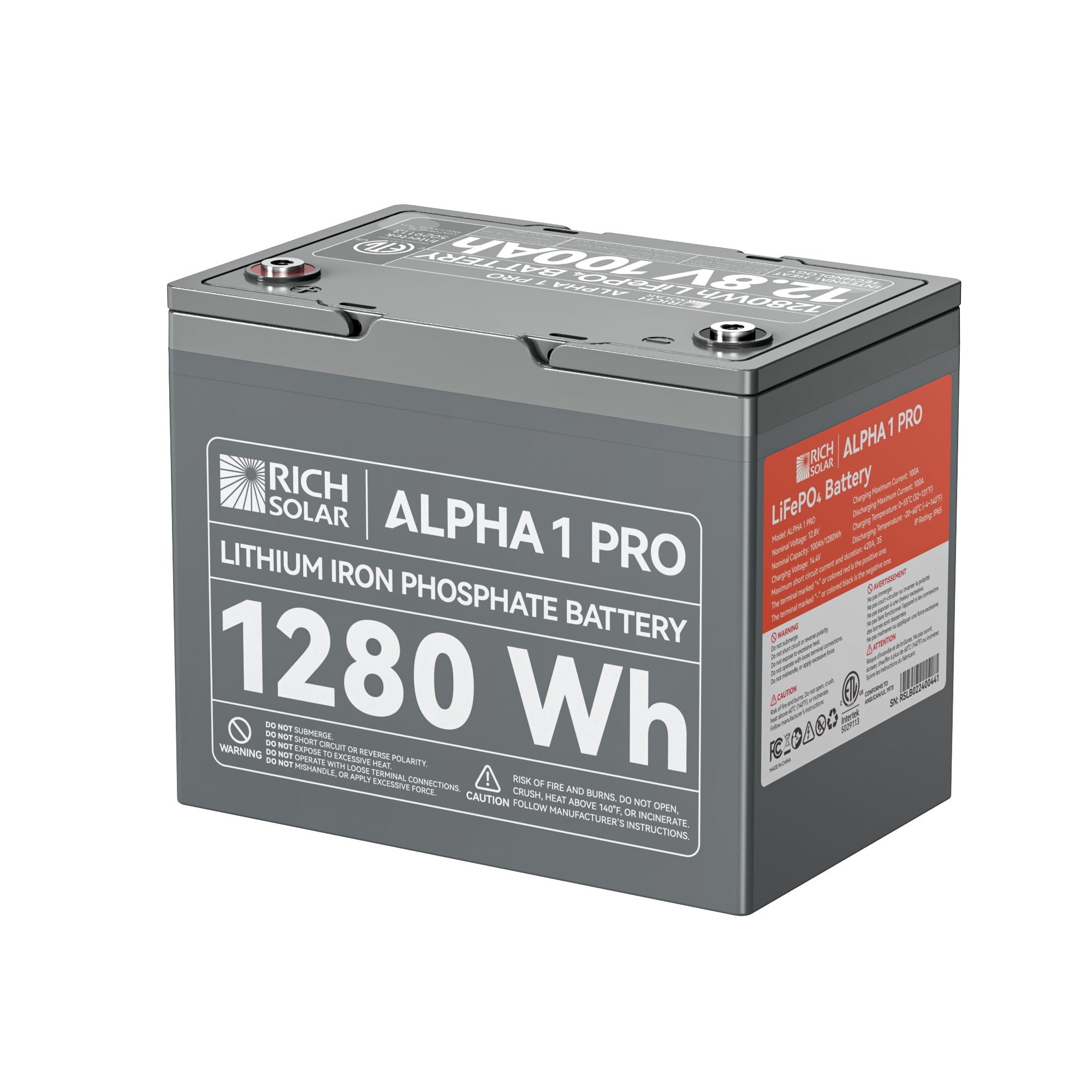

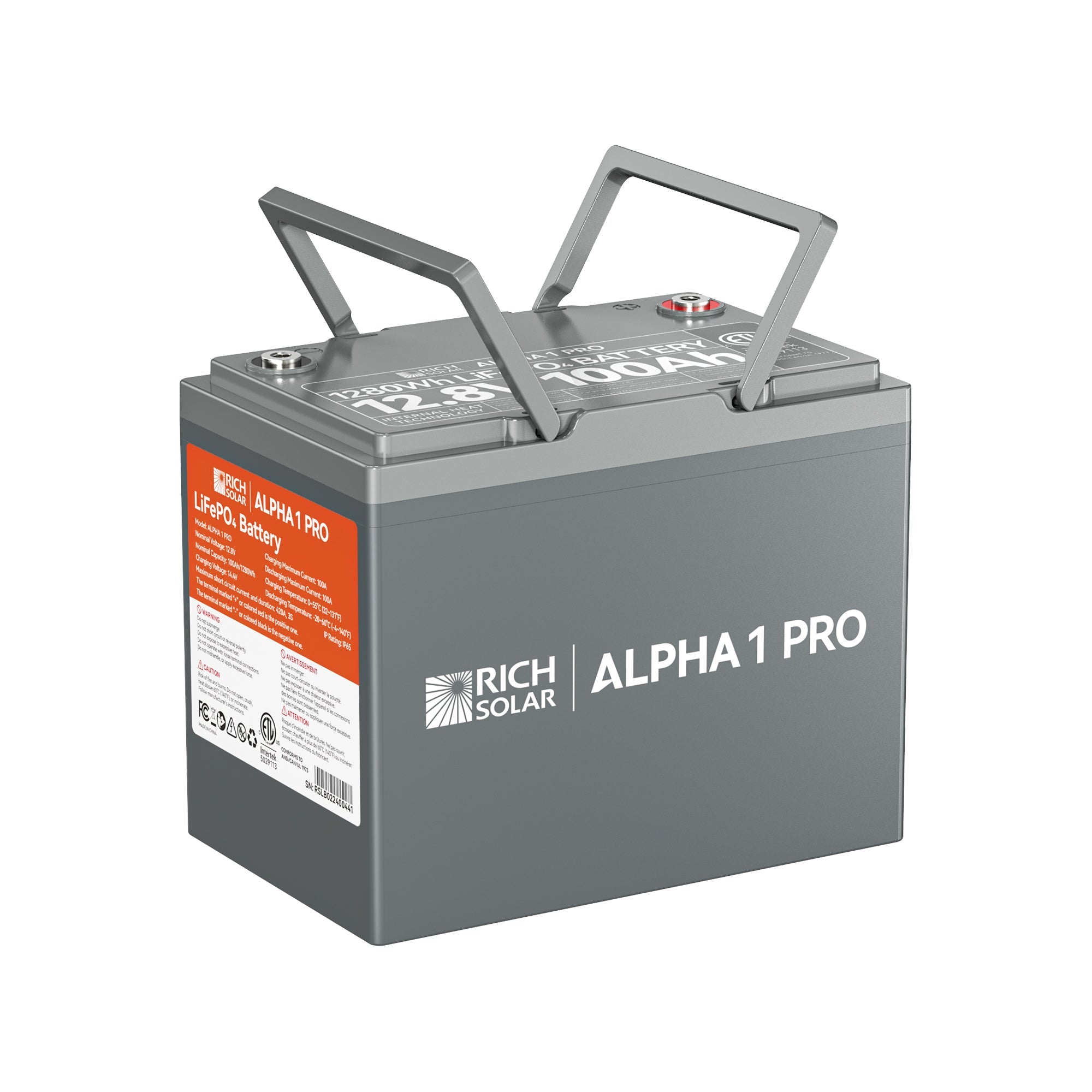

RICH SOLAR ALPHA 1 PRO - 12V 100Ah LiFePO4 Battery, 7,000 Cycles, 10-Year Warranty, UL1973 Certified

Cell Type:

LiFePO4 Battery

Nominal Voltage:

12.8V

Nominal Capacity:

100Ah

Nominal Energy:

1280Wh

Cycle Life:

7000 cycles

Maximum Expansion (Parallel & Series):

4P4S

BMS:

100A

Maximum Charging Current:

100A

Maximum Continuous Discharge Current:

100A

Maximum Discharge Current 10 Seconds:

110A

Charge Method:

CC/CV

Charge Voltage:

14.4V ± 0.2V

Recommend Charge Current:

50A (0.2C)

Charge Temperature:

32℉ to 131℉ (0℃ to 55℃)

Discharge Temperature:

-4℉ to 140℉ (-20℃ to 60℃)

Storage Temperature:

14℉ to 95℉ (-10℃ to 35℃)

External Power Draw:

100W

Internal Heating Starts:

< 41℉ (5℃)

Internal Heating Stops:

> 50℉ (10℃)

Net Battery Weight:

24.0lb

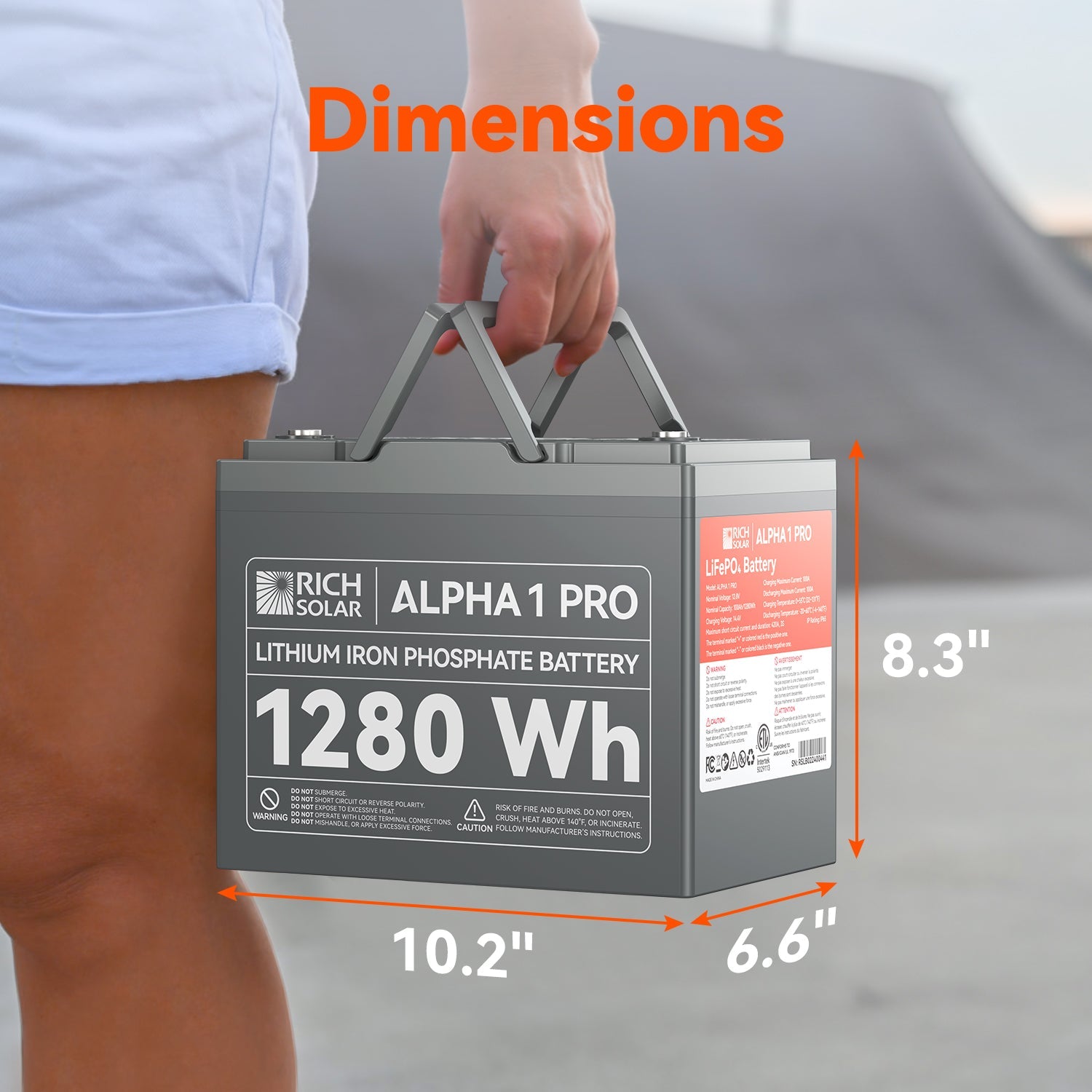

Size(L*W*H):

10.2x6.6x8.3in (Group 24 size)

Housing Material:

ABS (Flame Retardant Plastic)

Protection Class:

IP65

Warranty:

10 Years

Certifications:

UL1973, FCC, UN38.3, ETL
