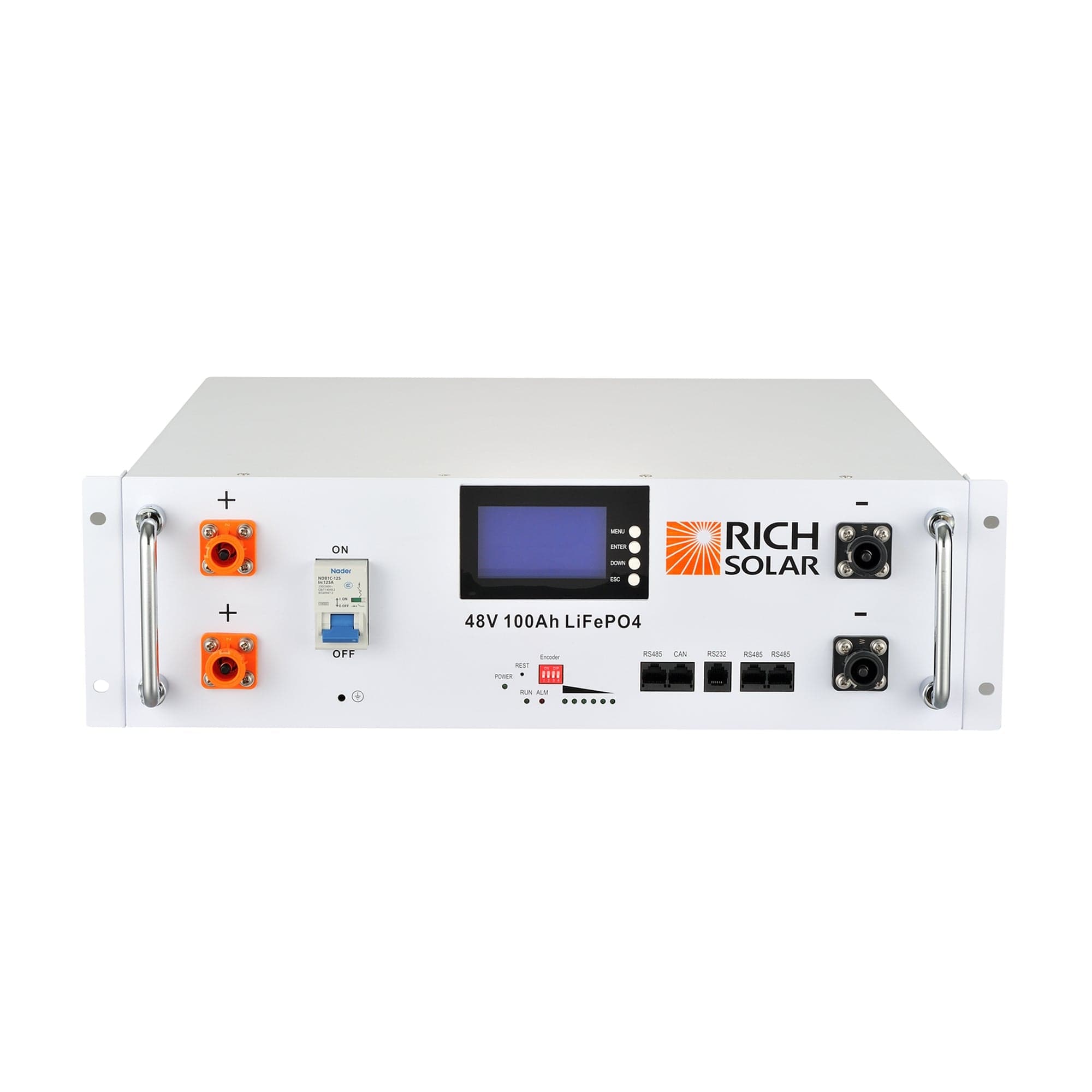

Alpha 5 Server Lithium Iron Phosphate Battery - RICH SOLAR

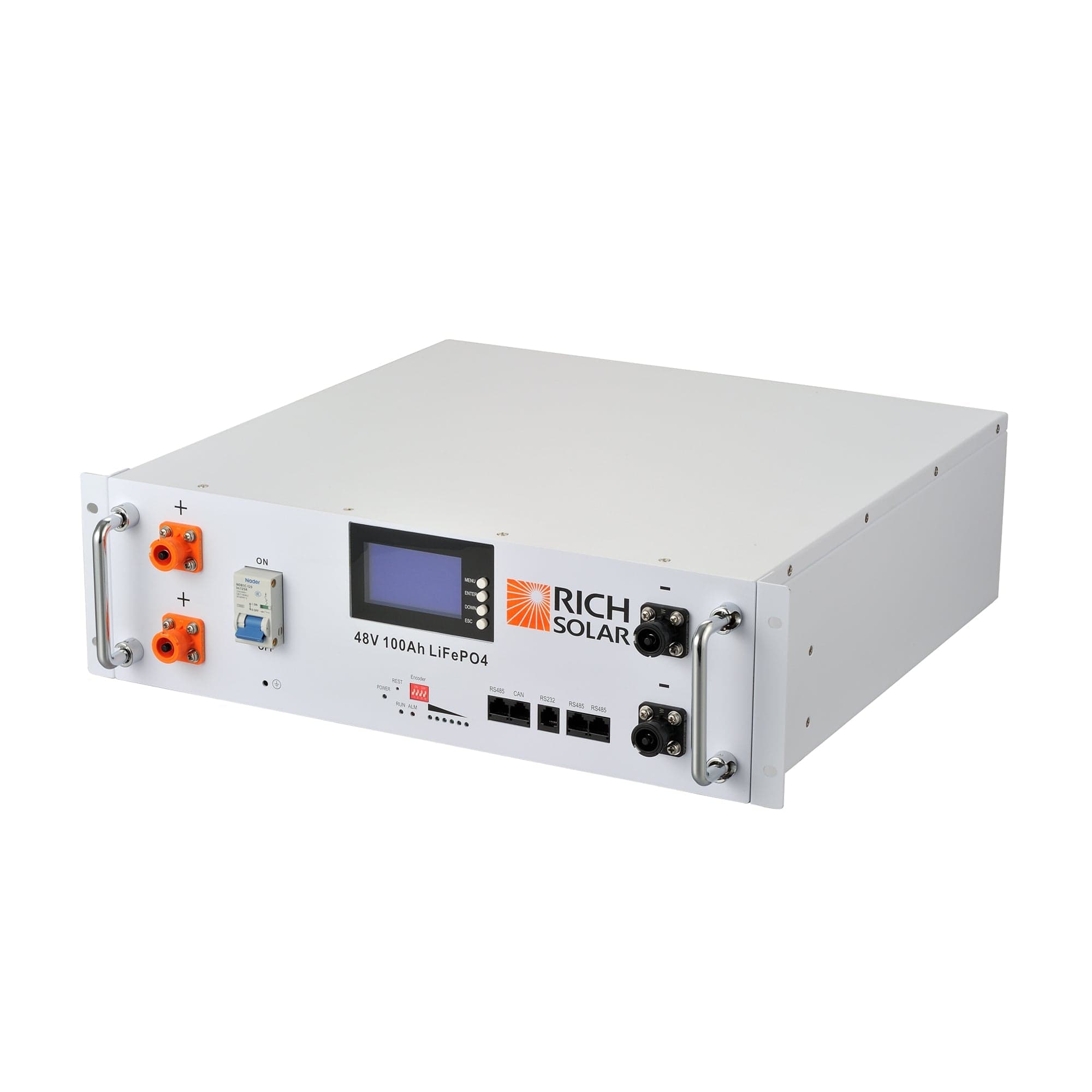

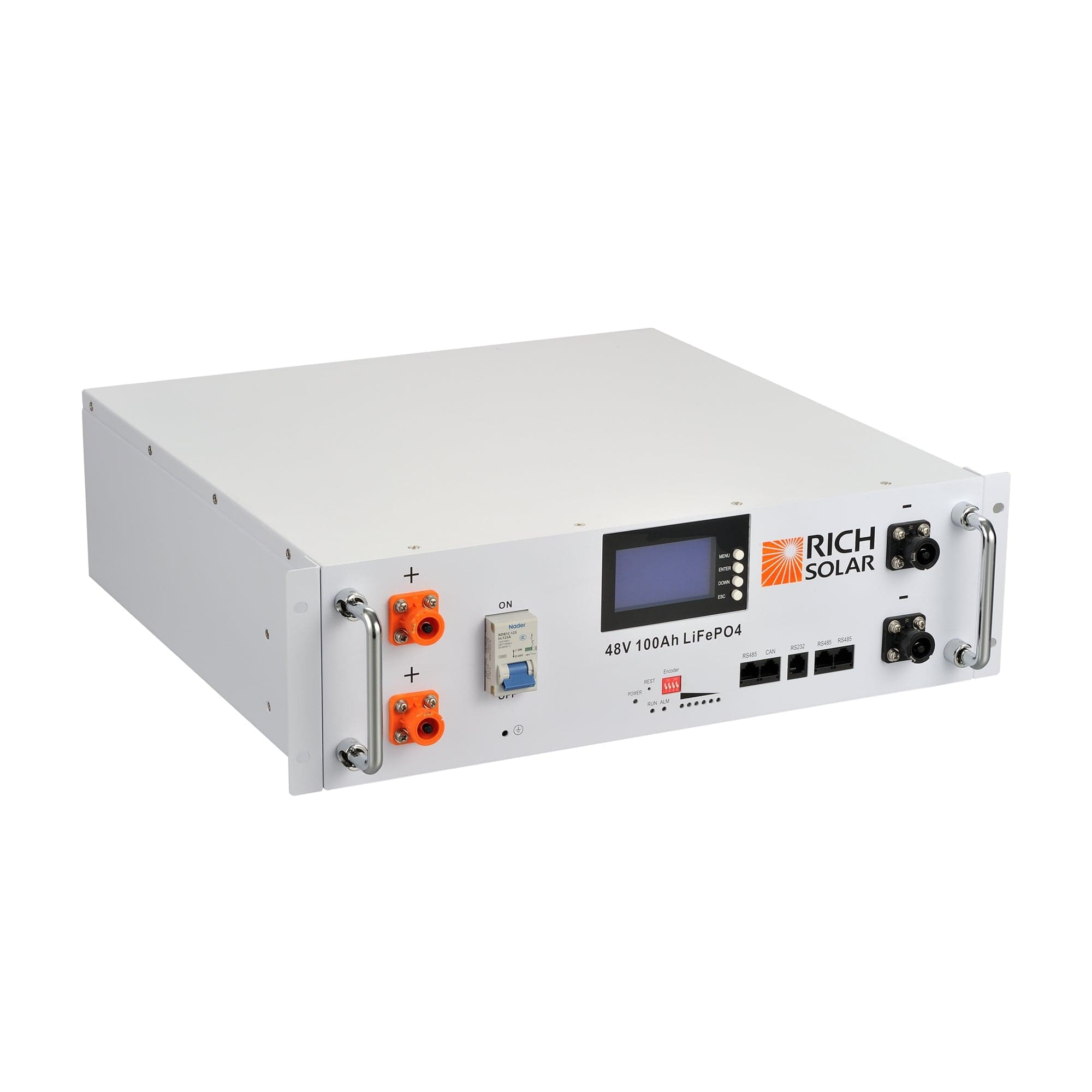

RICH SOLAR | ALPHA 5 | 48V 100Ah LiFePO4 Battery | Premium 48V Server Rack Lithium Battery for Residential, Commercial, Off-Grid | 7,000 Lifetime Cycles

Rich Solar
SKU RS-B4811
$1,599.99

⭐ Authorized Rich Solar Dealer

⭐ Fast & Free Shipping with No Sales Tax

⭐ Easy 30-Day Returns & Price Beat Guarantee

⭐ Flexible Financing Options Available

⭐ Full Manufacturer Warranty Included

Notify me when back in stock

Estimated Delivery Between

and .

Order within to get it by the earliest date.

PRE-ORDER ONLY

Available for pre-order only. Please allow up to 60 days for delivery, as we produce these batteries based on demand.

If you have any questions, please call us at 1-800-831-9889.



7,000 Cycles. LiFePO4 Lithium Battery. 20 Years Lifespan.

RICH SOLAR 48V 100Ah lithium iron phosphate battery has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies. The LiFePO4 technology has better thermal and chemical stability, which improves battery safety and packed with power in a small and lightweight footprint.

Features:

  • Extremely high number of charge/discharge cycles
  • 20 Year lifespan with proper maintenance
  • Built-in smart battery management system
  • Wide operating temperature range
  • Unsurpassed high temperature performance
  • Green energy without metal contaminant
  • Low maintenance
  • High amp capacity
  • Stable output voltage
  • Little self-discharge
  • Lifetime customer support
  • Over charging or discharging protection.
  • Over current & short circuit protection.
  • High & low temperature disconnects
  • Charge Voltage: 52.5V
  • Max Charge Current: 100 A
  • Max Discharge Current: 100 A
  • Battery Dimensions: 19"L x 18 3/4"W x 5 1/4"H
  • Weight: 92.6 lb

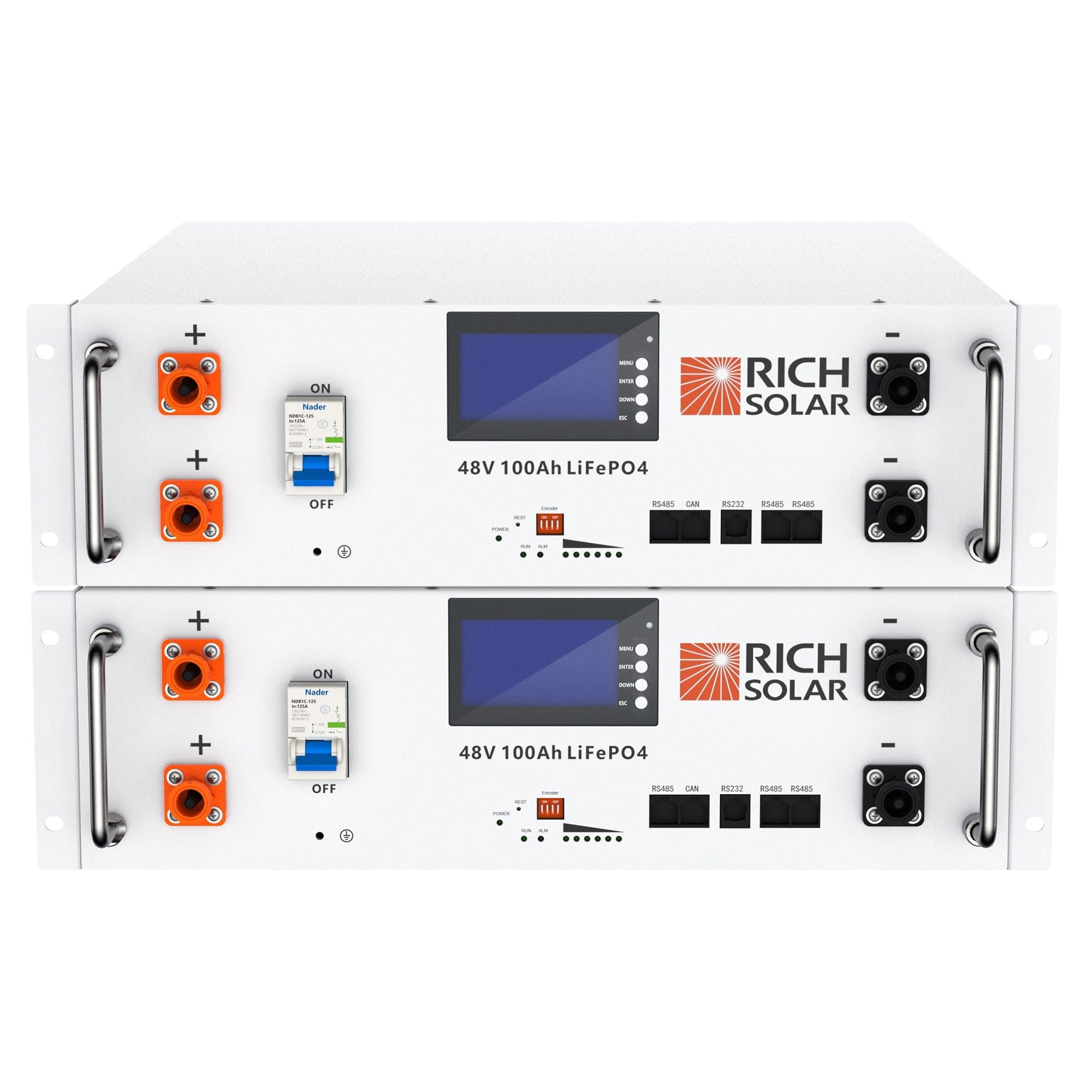

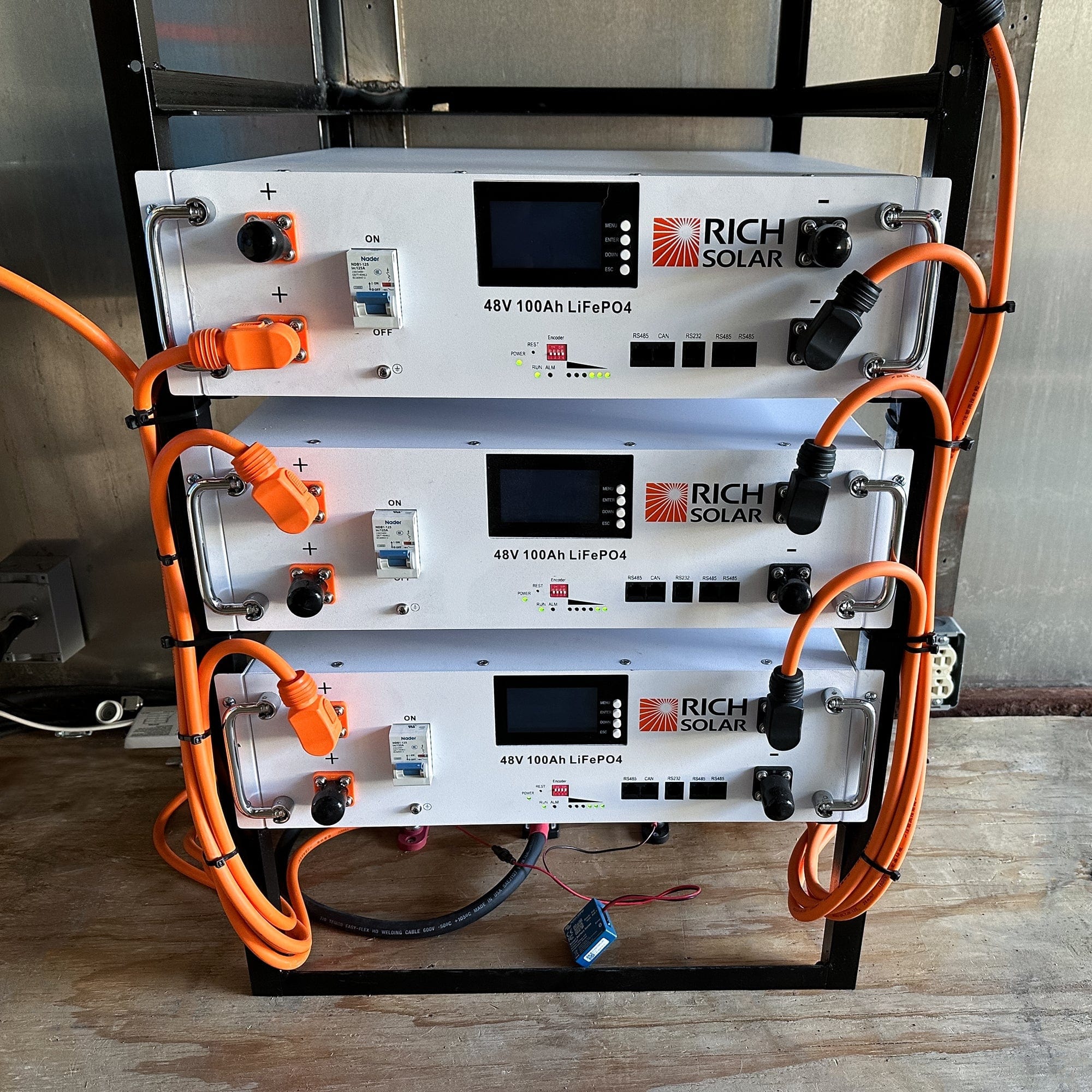

  • Connect in Parallel for Larger Capacity

BMS Safety Protection

  • Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
  • Convenient removable carry handle
  • Lightweight
  • Short circuit protected
  • Physical damage to battery case will not cause fire
  • Excessive thermal exposure will not cause a fire
  • Able to withstand over-charge/over-discharge without damage to the battery
  • Sophisticated Battery Management System (BMS)

Included:

  • 1 foot RS485 communication cable
  • Set of parallel cables per battery
  • 4.8kWh (48V 100Ah) lithium iron phosphate battery

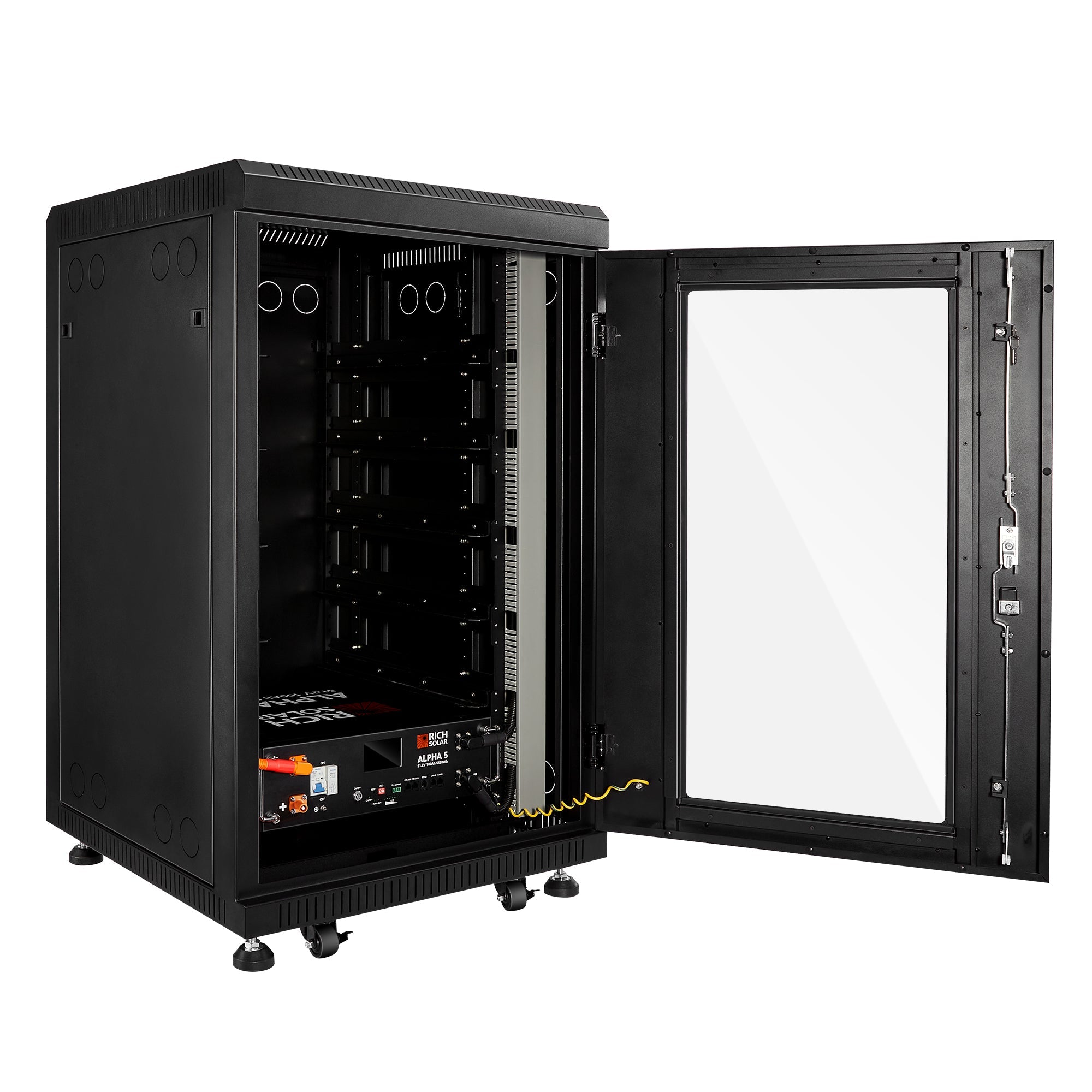

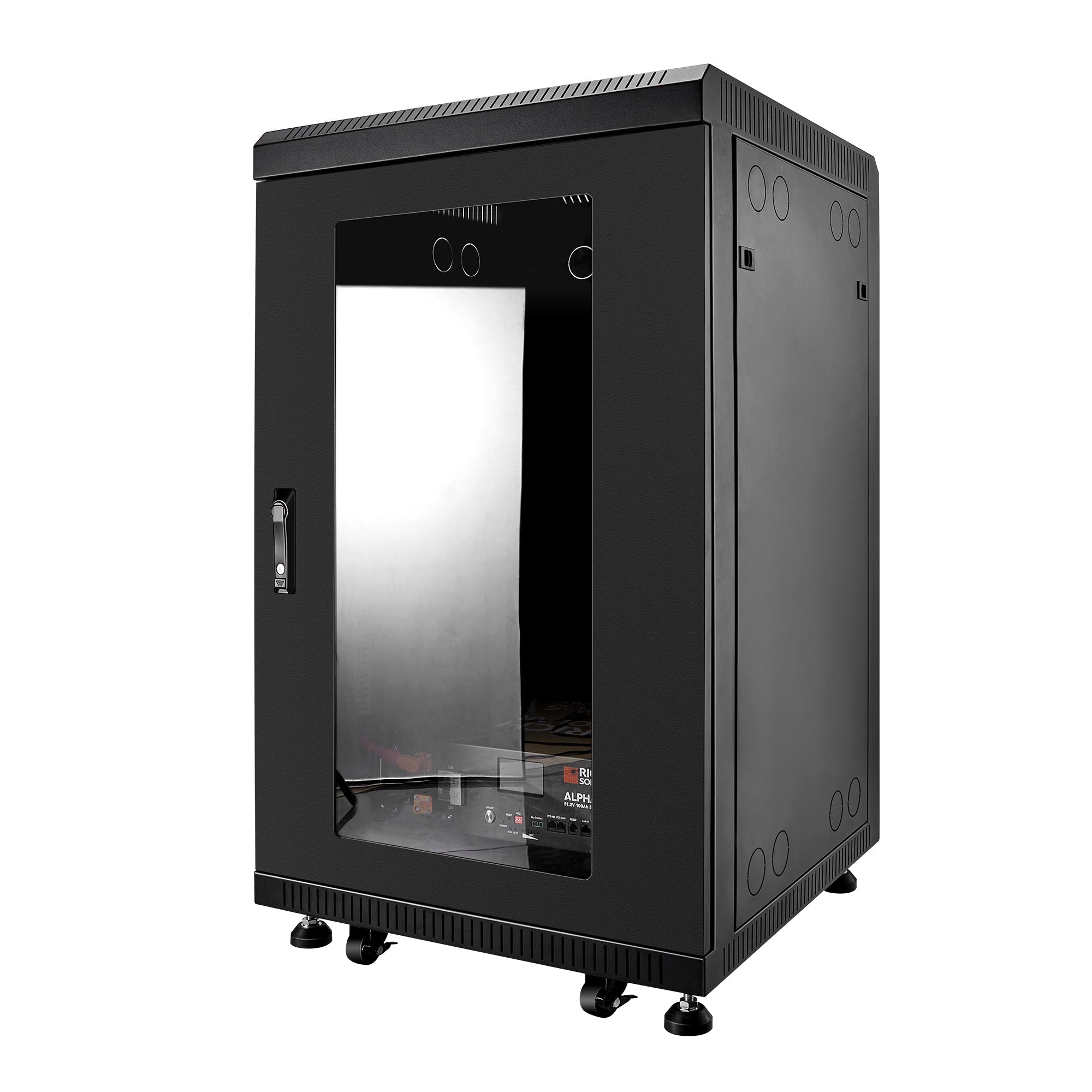

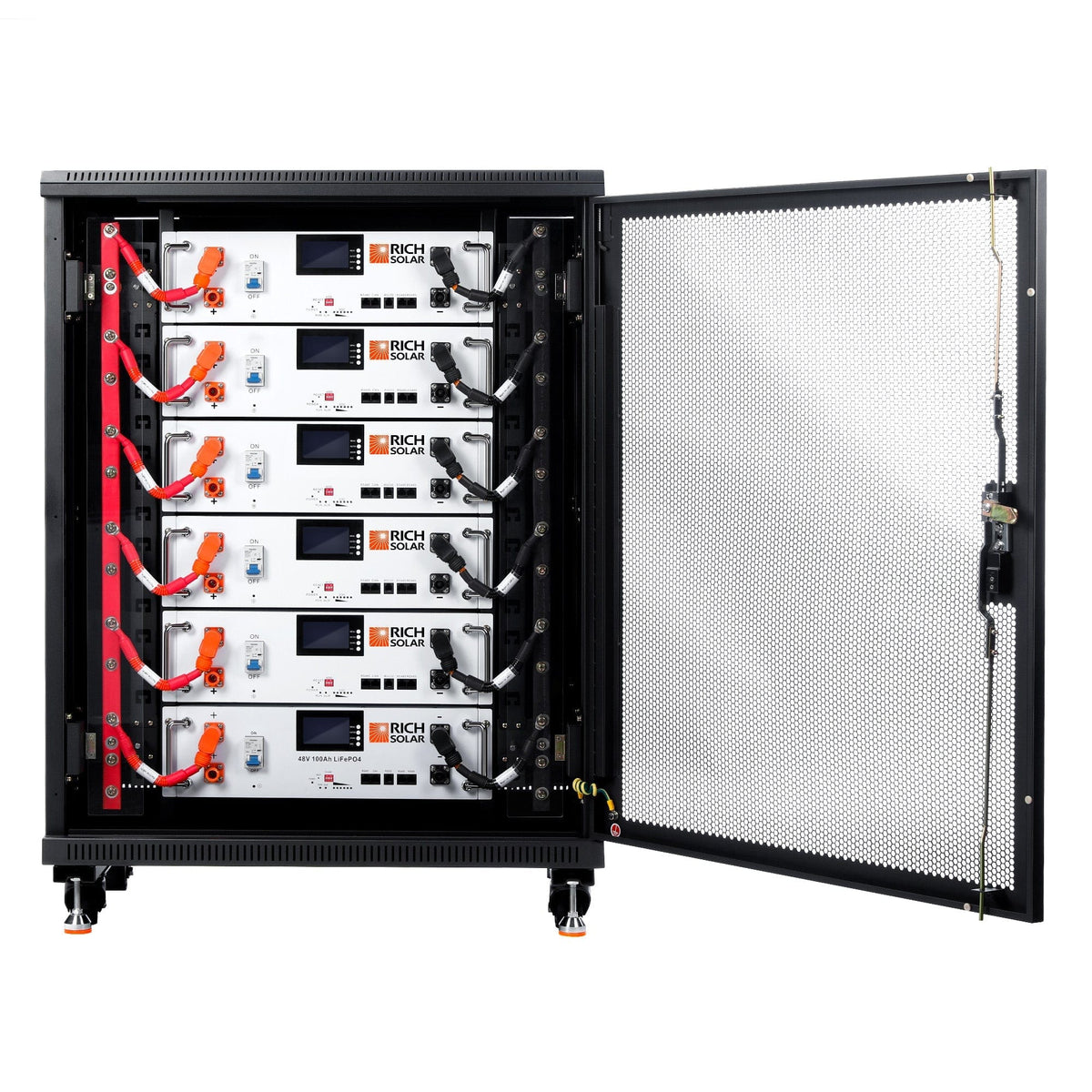

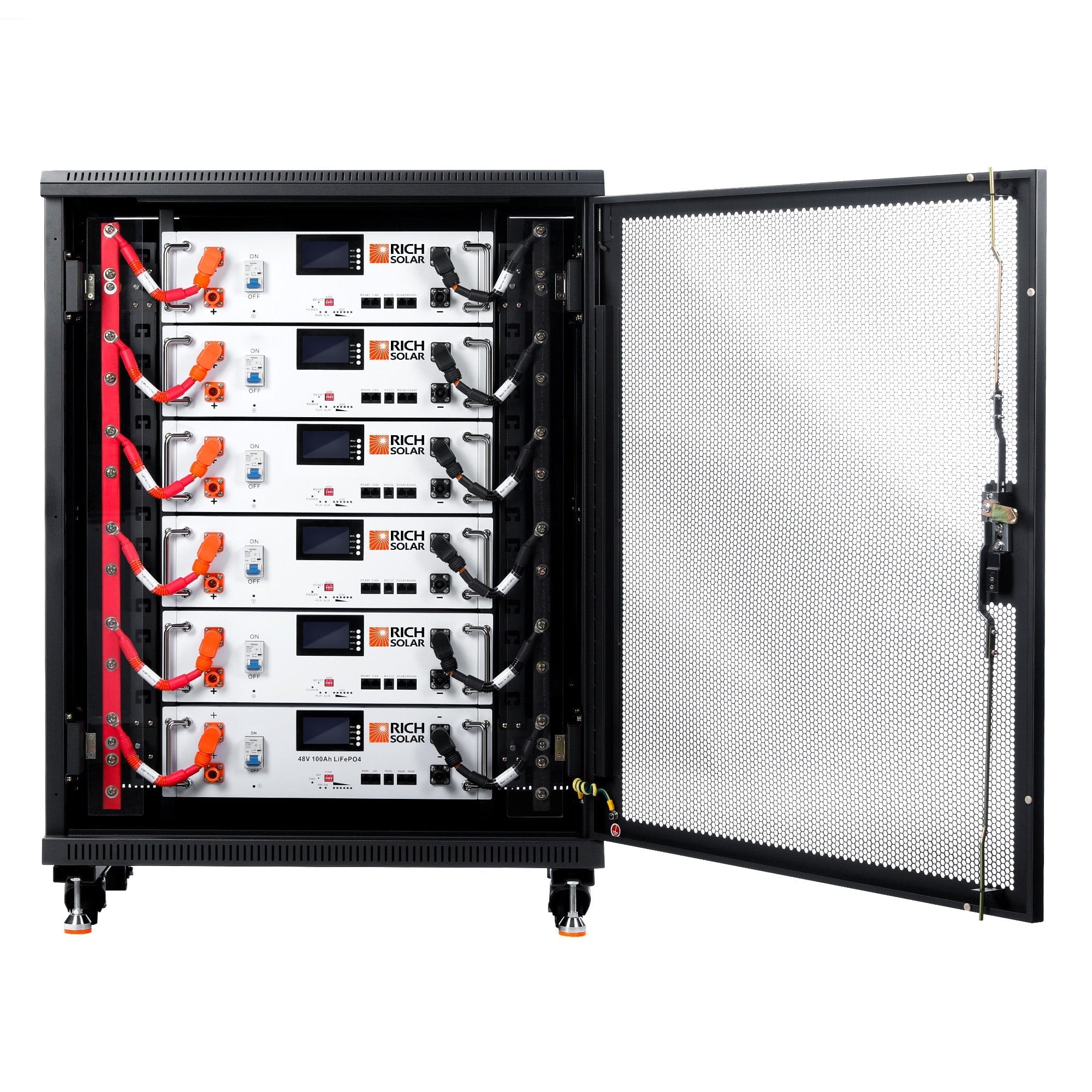

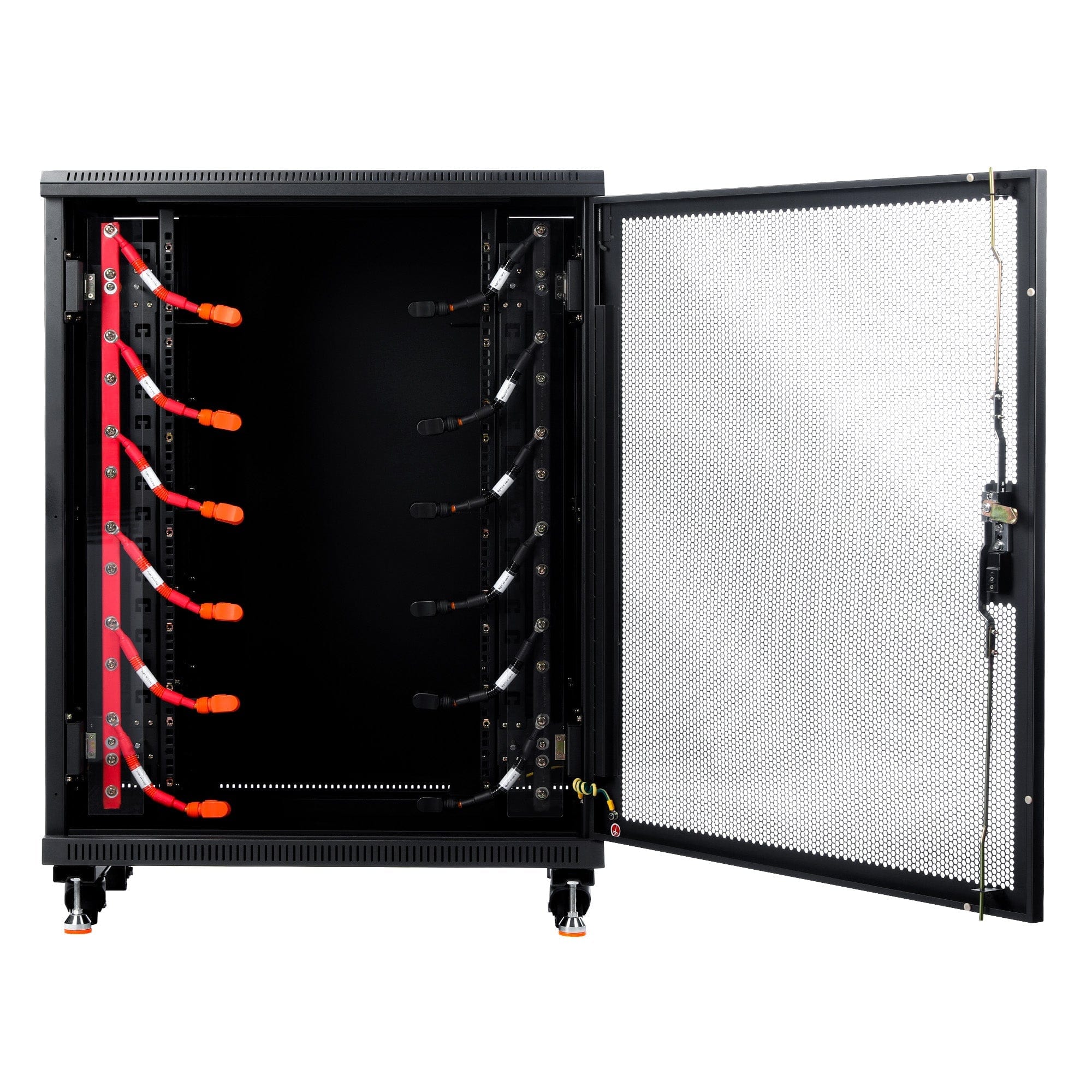

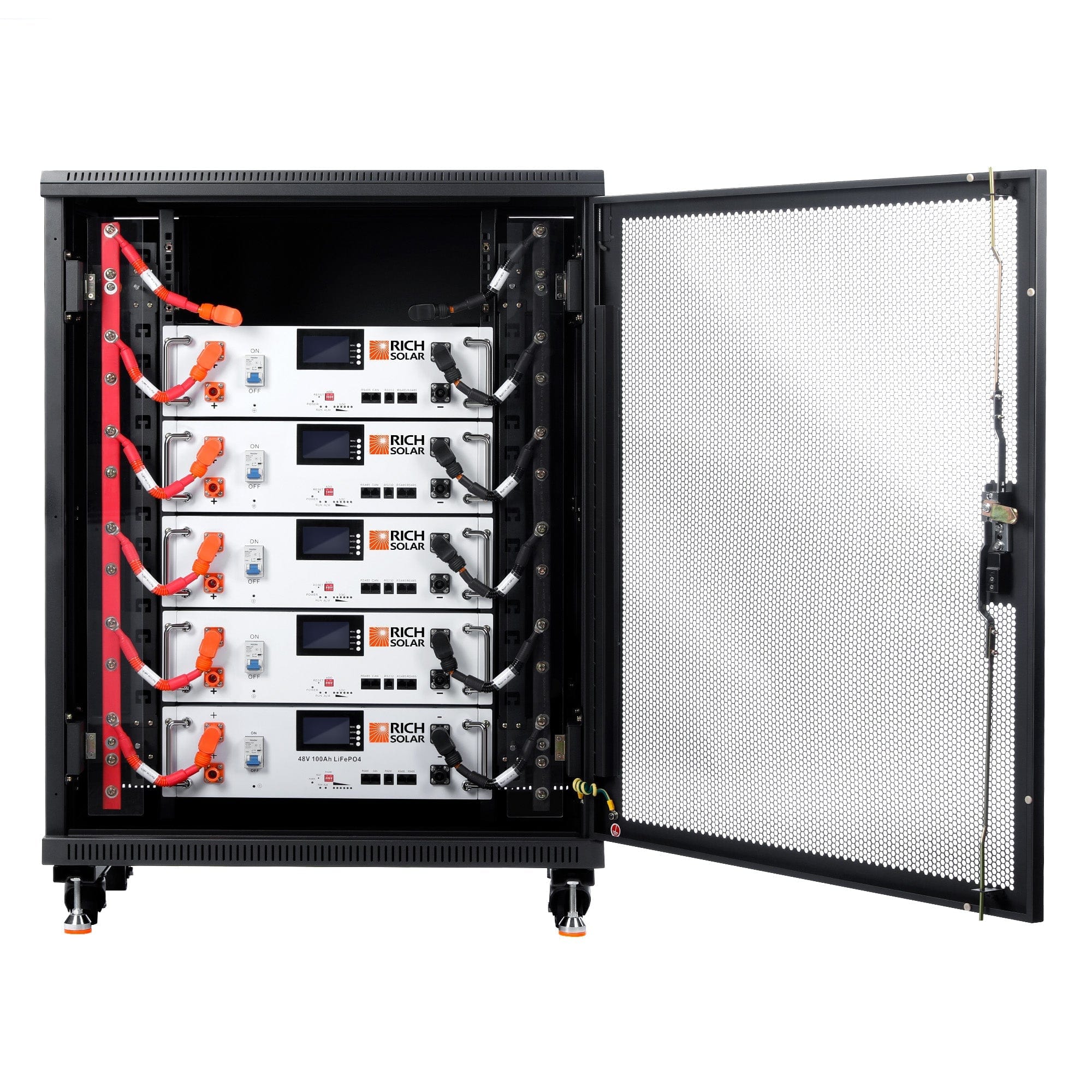

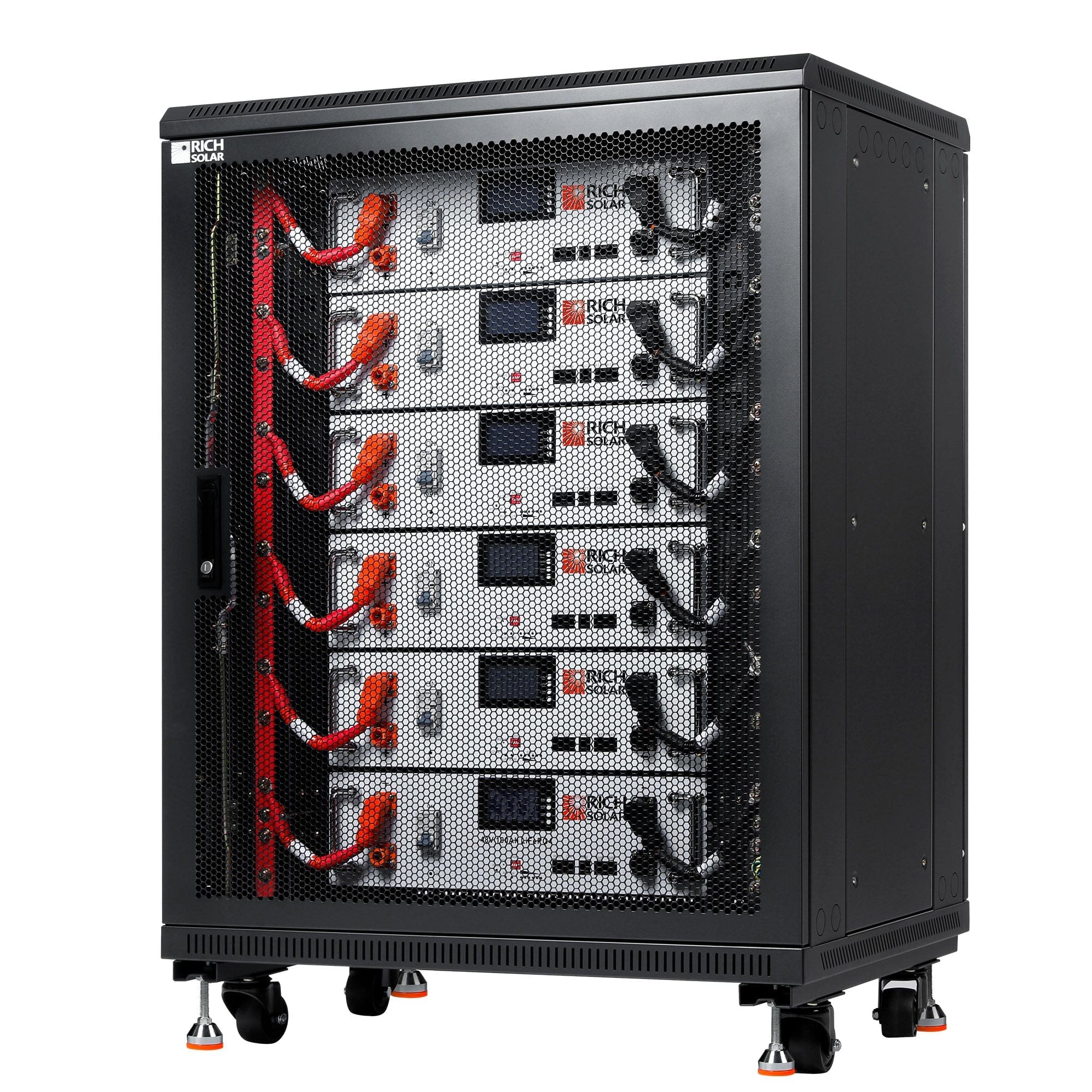

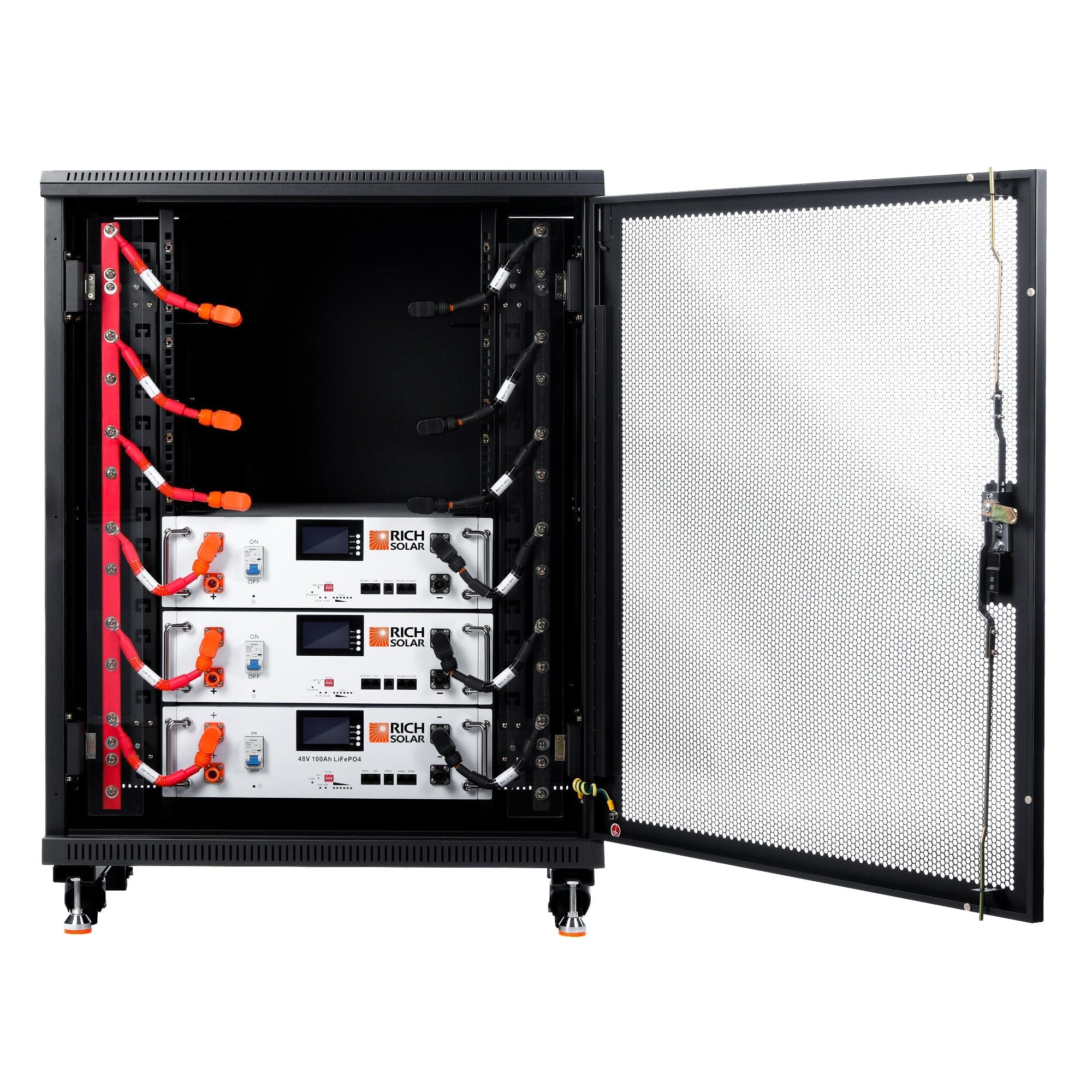

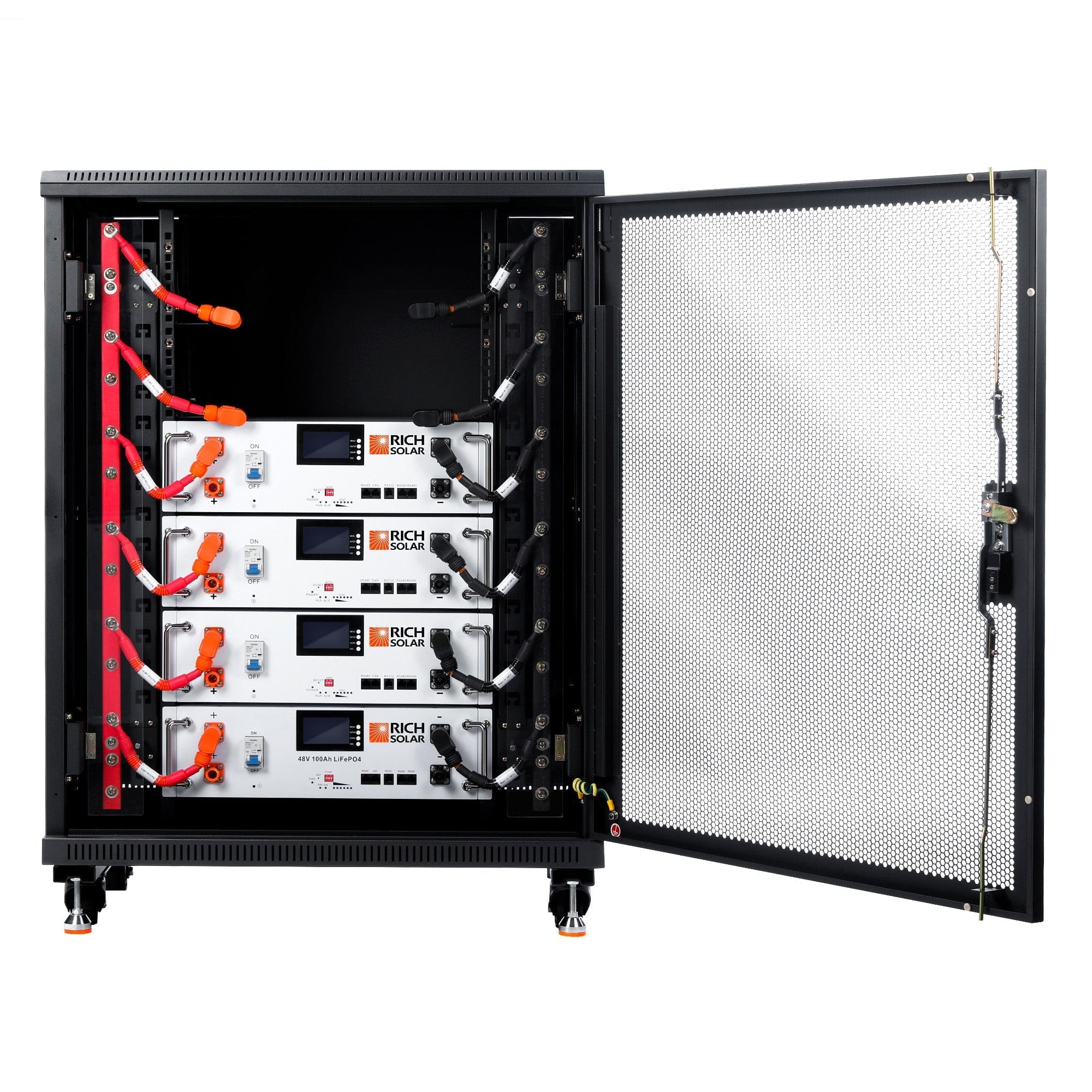

Battery Server Rack

  • Battery Server Rack Dimensions: 39"L x 32"W x 24"H
  • Weight: 159 lb
  • Material: High-quality cold-rolled steel plate
  • Protection level: IP20
  • Packaging: Carton + wooden pallet

Specifications

Electrical Specifications

Nominal Voltage:

48V

Nominal Capacity (at .5C, 77°F):

100Ah

Minimum Capacity (at .5C, 77°F):

99.5Ah

Expected Cycle Life:

>7000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD

Operating Specifications

Charge Method:

Smart charger, constant current, constant voltage

Operating Voltage:

48 V

Capacity:

100 Ah

Energy:

4800 Watt Hours

Charge Voltage Range (Max 52.5V):

52.0 -52.5V

Continuous Charge Current:

100A

Continuous Discharge Current:

100A

Over Voltage Shutdown:

52.5 +/-0.2V

Discharge Cut-off Voltage:

42V =/- 0.5V

Self Discharge (stored at 50% SOC):

<3%/month

Waterproof:

IP65

Temperature Performance

Charge Temperature:

32° F to 113° F

Discharge Temperature:

-4° F to 122° F

Storage Temperature:

-4° F to 122° F

BMS High Temperature Cut-off:

149°F

BMS Low Temperature Cut-off:

32°F

Physical Specifications

Battery Dimensions(L*W*H):

19x 17.7x 5.2 in

Weight:

42kg/92.6 lb

Battery Server Rack Specifications

Battery Server Rack Dimensions(L*W*H):

27.6 x 27.6 x 44 in

Weight:

196 lb

Thickness:

Frame 1.5mm, top/bottom plate 1.2mm, column 2.0mm, mesh door plate 1.2mm, side plate (screw fixed) 1.0mm, L-shaped bracket 2.0mm;

Material:

High-quality cold-rolled steel plate

Protection level:

IP20

BMS Operation


Over Charge Protection

Over charge detection voltage:

3.9 +/- 0.05V

Over charge detection delay time:

0.96 – 1.4s

Over charge release voltage:

3.80 +/-0.05V

Maximum charge voltage:

3.65 +/-0.05V

Over Discharge Protection

Over discharge detection voltage:

2.0V +/- 0.05V

Over discharge detection delay time:

115-173ms

Over discharge release voltage:

2.3V +/- 0.10V

Over Current Protection Over current detection delay time:

9 +/- 2ms

Over current release condition:

Cut load

Polarity Reverse Protection: Yes

Short Circuit Protection: Yes

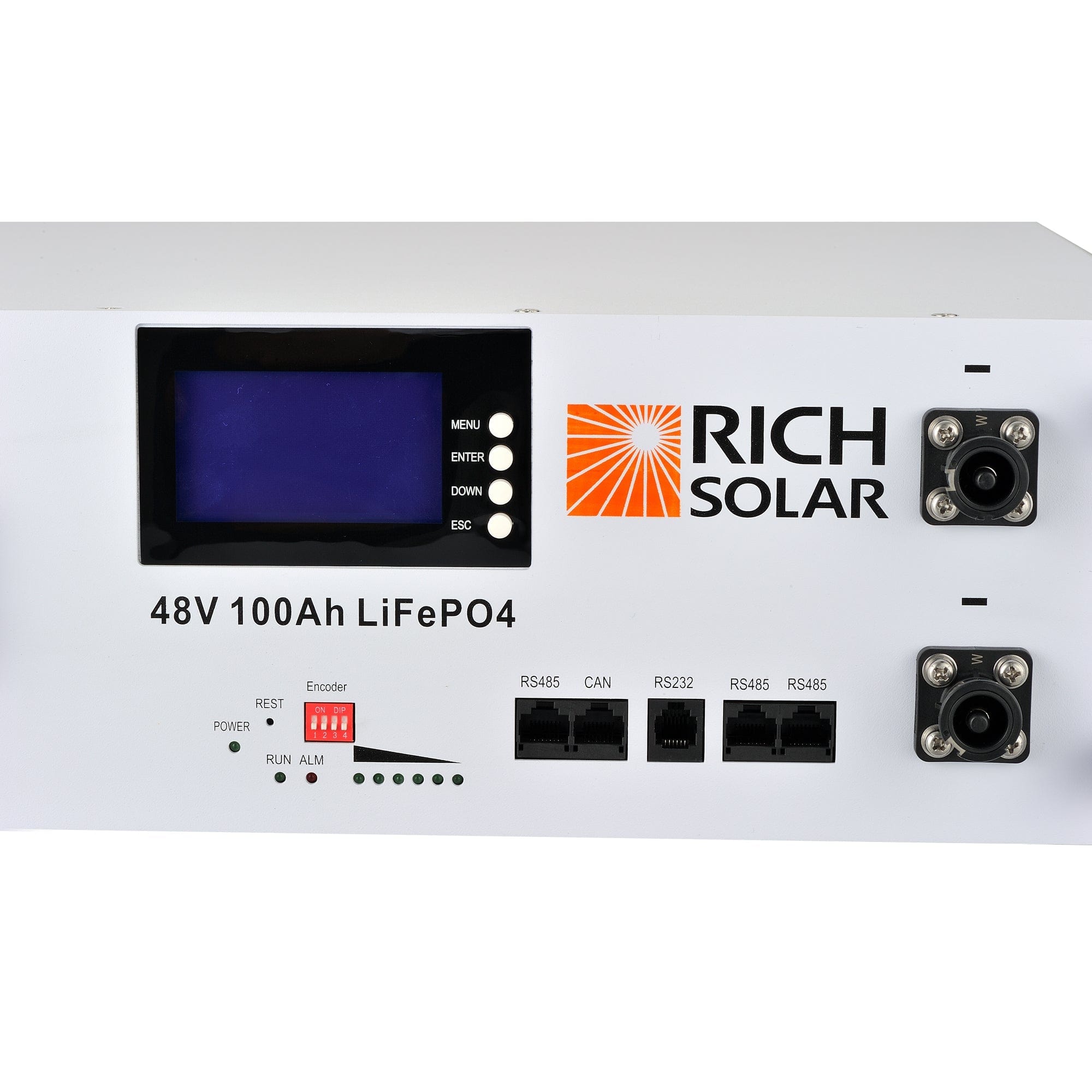

Communication Ports: RS485/CAN

Warranty: 10 Year Manufacturer Defect
