RICH SOLAR Basic 200 Watt Solar Kit | Solar Panel & Charge Controller Kit for RVs, Vans & Off-Grid Applications | Expandable Solar Charging

Name: RICH SOLAR Basic 200 Watt Solar Kit | Solar Panel & Charge Controller Kit for RVs, Vans & Off-Grid Applications | Expandable Solar Charging
Brand: RICH SOLAR
SKU: RS-K2002
Price: 549.99 USD
Availability: InStock

BY: RICH SOLAR

SKU: RS-K2002

| Availability: In stock

$549.99

Product Highlights

Built for off-grid power, RV travel, and marine systems
10 AWG conductors support dependable high-current connections
30 A MPPT control improves energy harvest from the solar array
200 W solar output for RV, cabin, and off-grid charging

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized RICH SOLAR Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

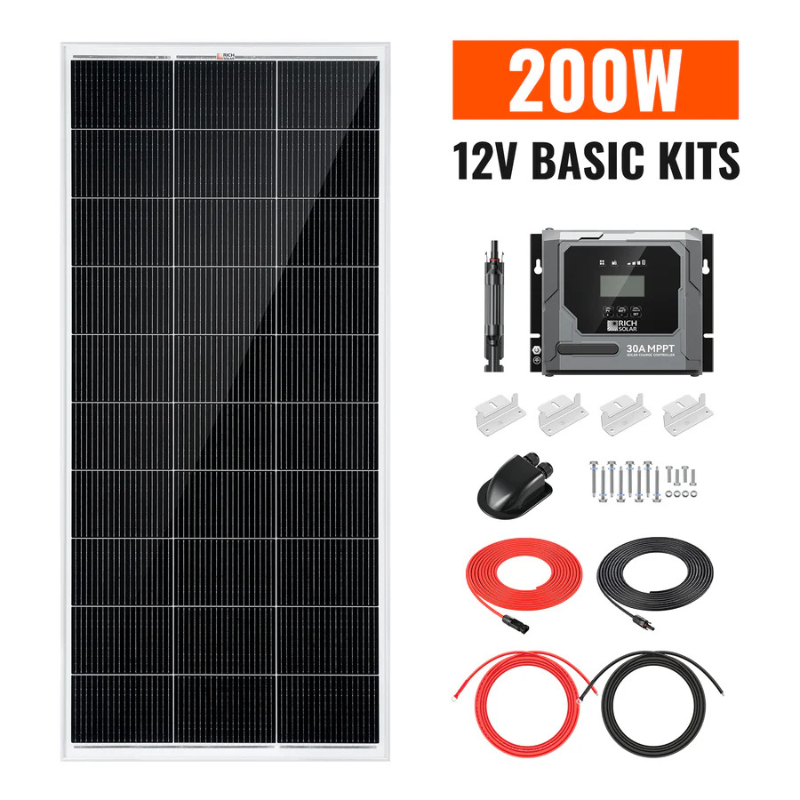

RICH SOLAR Basic 200 Watt Solar Kit

The RICH SOLAR Basic 200 Watt Solar Kit is a solar panel and charge controller kit for RVs, vans, and off-grid applications. It includes a 200W monocrystalline solar panel, Bravo 30A MPPT charge controller, mounting brackets, cables, fuse holder, and cable entry housing. The kit can be paired with a 100Ah 12V lithium battery and is designed to support expandable solar charging setups.

RICH SOLAR Basic 200 Watt Solar Kit Features

200W Monocrystalline Solar Panel - Includes a MEGA 200 12V 200W solar panel with premium solar production for RVs, boats, cabins, and other off-grid solar applications.

30A MPPT Charge Controller - Comes with a Bravo 30A MPPT solar charge controller for solar charging control.

High Solar Panel Output - The included 200W solar panel generates 10.9 amps of power and is designed for charging 12V batteries.

Advanced MPPT Technology - The included charge controller has 99.5% maximum MPPT tracking efficiency and 98% conversion efficiency.

Wide Battery Compatibility - The Bravo 30A controller supports multiple battery types, including GEL, AGM, WET, Crystal, Calcium, LiFePO4, LTO, LCO, and custom battery settings.

Weather-Resistant Controller Build - The charge controller is built with an IP43-rated PCBA and IP22 connectors.

LCD and LED Monitoring - The controller includes an LCD + LED display for real-time solar input, battery status, and customizable parameters.

Bluetooth App Monitoring - Built-in Bluetooth supports monitoring through the Rich Solar App.

RICH SOLAR Basic 200 Watt Solar Kit Applications

RV Solar Charging – Designed for RV solar power setups using the included 200W solar panel and 30A MPPT charge controller.
Van Solar Applications – Supports solar charging setups for vans and mobile power systems.
Off-Grid Power Systems – Built for off-grid solar applications with included mounting, wiring, and charge control components.
Cabin Solar Use – The MEGA 200 panel supports solar production for cabin applications.
Boat Solar Use – The included solar panel is listed for boat solar applications.
12V Battery Charging – Designed to charge 12V batteries using the included solar panel and MPPT controller.
Expandable Solar Charging – Supports expandable solar charging when paired with compatible system components.

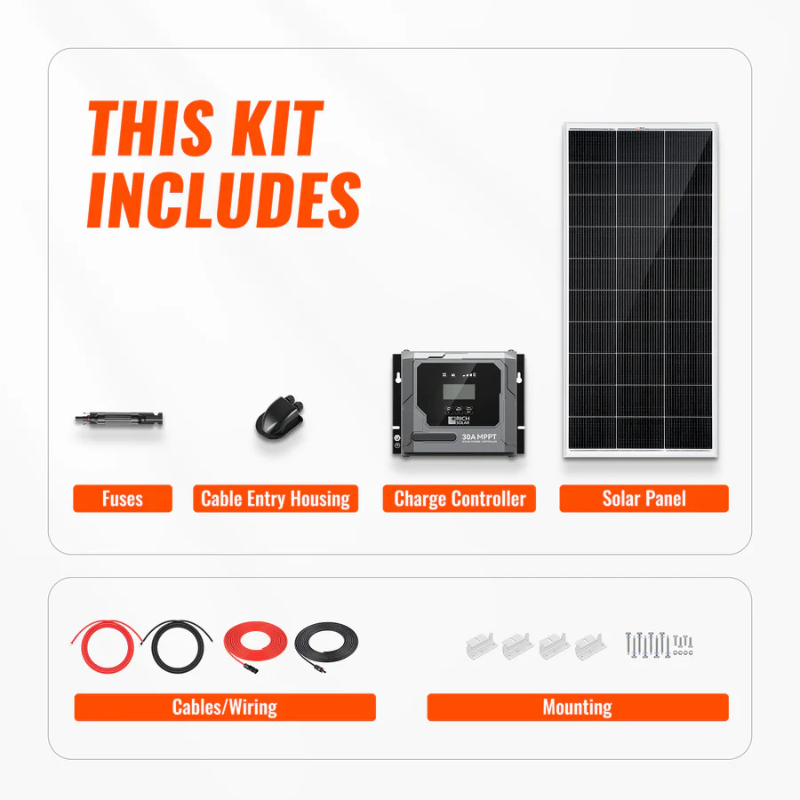

What's Included

Everything you need is included with your product.

1 x 200 Watt Monocrystalline Solar Panel(RS-M200)
1 x Bravo 30A MPPT Charge Controller (RS-MPPT30PB)
1 x Mounting Z Brackets (one set)(RS-ZB4C)
1 x Cable Entry Housing (RS-C2B)

1 x 15A Inline Fuse Holder with Fuse (RS-SC15F)
1 x 30' 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
1 x 10' 10 AWG Battery Cable Set (Controller to Battery) (RS-1010)

RICH SOLAR MEGA 200 12V 200W Watt Solar Panel

ELECTRICAL DATA (STC)

Category	Specifications
Peak Power Watts-PMAX (Wp)	200 W
Power Output Tolerance-PMAX (W)	0~+5 W
Maximum Power Voltage-VMPP (V)	18.4 V
Maximum Power Current-IMPP (A)	10.9 A
Open Circuit Voltage-VOC (V)	21.8 V
Short Circuit Current-ISC (A)	11.6 A
Maximum System Voltage	1000 VDC
Temperature Range	-40~+185°F
Maximum Series Fuse Rating	15 A
Module Efficiency η m (%)	20.2 %

MECHANICAL DATA

Category	Specifications
Solar Cells Type	N-Type TOPCon 8.3 × 5.5 in (210 × 140 mm)
Module Dimensions	58.7 × 26.8 × 1.2 in (1490 × 680 × 30 mm)
Cell Orientation	30 cells (3 × 10)
Weight	24.0 lb (10.9 kg)
Glass	3.2 mm (0.13 in), High Transmission, AR Coated Tempered Glass
Backsheet	White / Black
Connector	Solar Connectors
Frame	Anodized Aluminum Alloy
Junction Box	IP 67 rated
Cables	Photovoltaic Technology Cable 4.0 mm² (#12 gauge), 35.4 in (900 mm) Length

TEMPERATURE RATINGS

Category	Specifications
Nominal Module Operating Temperature (NMOT)	45°C ± 2°C
Temperature Coefficient of PMAX	-0.35%/°C
Temperature Coefficient of VOC	-0.28%/°C
Temperature Coefficient of ISC	0.045%/°C

RICH SOLAR Bravo 30A 30 Amp MPPT Solar Charge Controller

Category	Specifications
Maximum Solar Input Current	30A
Maximum Charging Current	30A
Recommended Solar Power	500W (12V) / 1000W (24V)
Nominal System Voltage	12V/24V Auto-Detect
Solar Input Voltage Range	8V-100V
MPPT Voltage Range	15V-72V
Maximum Conversion Efficiency	98%
Maximum MPPT Tracking Efficiency	99.5%
Battery Compatibility	GEL, AGM, WET. CRYSTAL, CALCIUM, LiFePO., LTO, LCO, Custom
Connectivity	Built-in Bluetooth (Optional Remote Meter & Temperature Sensor)
Protection Rating	IP43 PCBA, IP22 Connection
Net Weight	1.8 lb
Dimensions (LxWxH)	7.0 x 5.5 x 2.9 in

Frequently-Asked Questions

What is included in the RICH SOLAR Basic 200 Watt Solar Kit?

The kit includes a 200W monocrystalline solar panel, Bravo 30A MPPT charge controller, mounting brackets, cable entry housing, inline fuse holder, solar cable set, and battery cable set.

What solar panel is included in this kit?

The kit includes 1 x 200 Watt Monocrystalline Solar Panel, model RS-M200.

What charge controller is included?

The kit includes 1 x Bravo 30A MPPT Charge Controller, model RS-MPPT30PB.

What is the maximum power output of the solar panel?

The included solar panel has a 200W maximum power output.

What is the maximum charging current of the controller?

The Bravo 30A MPPT controller has a 30A maximum charging current.

What battery types are compatible with the controller?

The controller supports GEL, AGM, WET, Crystal, Calcium, LiFePO4, LTO, LCO, and custom battery settings.

Does the charge controller include Bluetooth?

Yes. The Bravo 30A controller includes built-in Bluetooth for monitoring through the Rich Solar App.

What mounting accessories are included?

The kit includes 1 set of Z mounting brackets.

What warranty does the solar panel include?

The solar panel includes a 25-year limited power output warranty and a 10-year workmanship warranty.
