RICH SOLAR BRAVO 30 | 30 Amp MPPT Solar Charge Controller
The BRAVO 30 is a premium-grade 30A MPPT solar charge controller built for 12V and 24V systems across RVs, campers, trailers, vans, boats, and off-grid power stations. Featuring ultra-fast maximum power point tracking (MPPT) with over 99.5% tracking efficiency and up to 98% energy conversion, this controller offers intelligent power regulation in a sleek, flush-mount design. Named the #1 Solar Controller of 2025, it’s a smart choice for mobile and off-grid solar enthusiasts.
RICH SOLAR BRAVO 30 | 30 Amp MPPT Solar Charge Controller Features
Ultra-Fast MPPT Performance
Tracks maximum power point with over 99.5% accuracy and delivers up to 98% conversion efficiency, maximizing energy harvest.
Auto-Detect 12V/24V Operation
Automatically adapts to either 12V or 24V battery systems, eliminating guesswork during setup.
Smart Bluetooth Monitoring
View real-time stats and adjust charging profiles via Bluetooth connection—fully customizable through your smartphone.
Wide Battery Compatibility
Supports multiple battery chemistries including LiFePO4, AGM, Gel, Flooded Lead-Acid, and LTO.
Advanced System Protections
Equipped with over-voltage, under-voltage, reverse polarity, short circuit, and over-temperature protection for worry-free use.

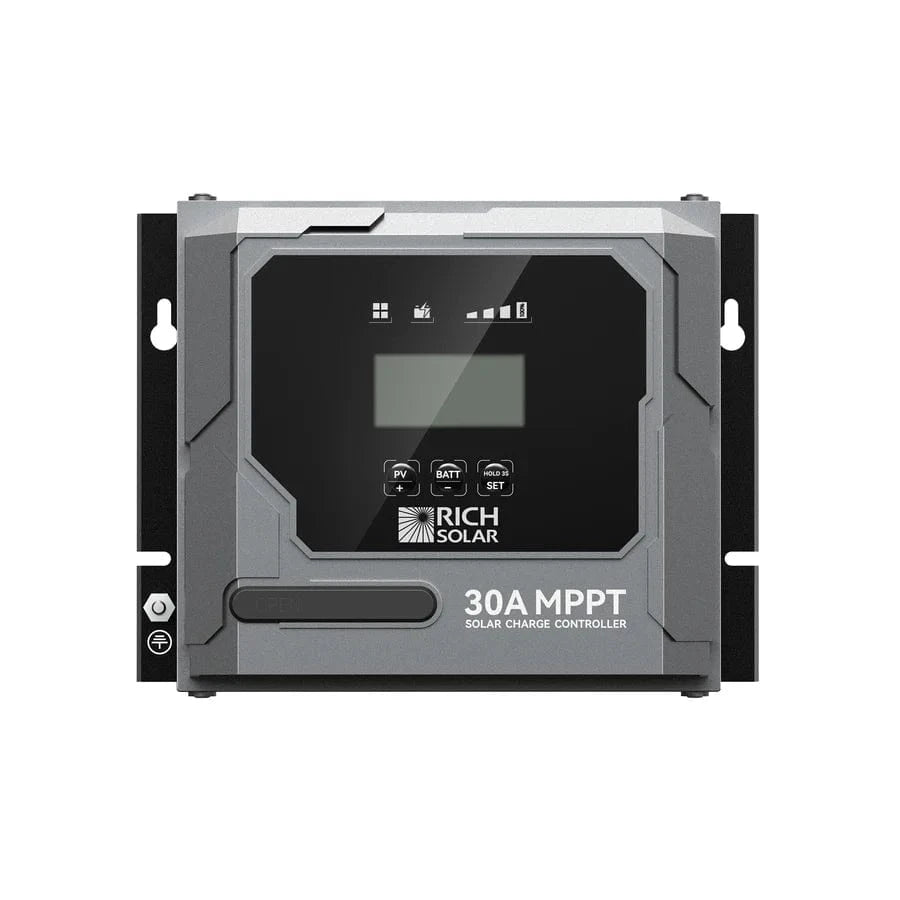

Flush-Mount LCD Display
Space-saving design with integrated LCD panel shows key charging info, status, and fault codes at a glance.
Low Standby Power Draw
Consumes less than 1.2W at night, preserving more energy for what matters most.
RICH SOLAR BRAVO 30 | 30 Amp MPPT Solar Charge Controller Applications
-
RVs & Campers: Perfect for keeping 12V or 24V battery banks topped off while traveling.
-
Trailers & Vans: Compact form factor fits tight control spaces in mobile living setups.
-
Marine Installations: Suitable for boats and dockside battery banks with moisture resistance.
-
Off-Grid Cabins: Reliable solar regulation for remote, self-sufficient power systems.
-
DIY Solar Kits: Great for pairing with 100W to 1000W solar arrays and lithium battery banks.

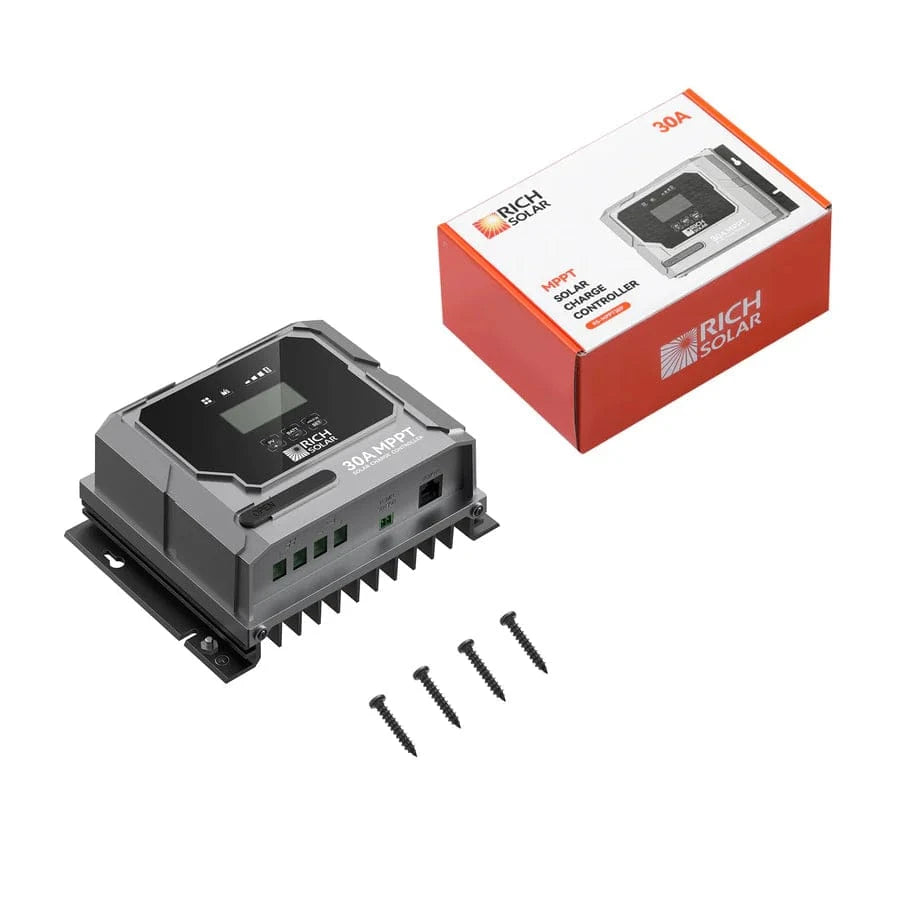

What’s Included?
-
BRAVO 30 | 30 Amp MPPT Solar Charge Controller | Premium 30A 12V/24V MPPT Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Awarded #1 Solar Controller 2025
RICH SOLAR BRAVO 30 | 30 Amp MPPT Solar Charge Controller Specifications
| Specification |
Details |
| System Nominal Voltage |
12V / 24V Auto |
| Max. PV Open Circuit Voltage |
100V DC |
| Charging Technology |
MPPT (Maximum Power Point Tracking) |
| Max PV Charging Current |
30A |
| Charge Conversion Efficiency |
≤98% |
| MPPT Tracking Efficiency |
>99.5% |
| Max. Recommended PV Input Power |
500W (12V system) / 1000W (24V system) |
| Battery Type Presets |
Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO |
| Housing Case Color |
Black / Grey |
| Protection Rating |
IP43 (Inside PCBA), IP22 (Connection Area) |
| Net Weight |
0.8 kg / 1.76 lb |
| Dimensions (L × W × H) |
180 × 140 × 73 mm / 7.0 × 5.5 × 2.9 in |
Frequently-Asked Questions
What solar panel wattage is this controller compatible with?
It supports up to 500W on 12V systems and 1000W on 24V systems. Total input must not exceed the 100V open-circuit input limit.
Can I use this with lithium batteries?
Yes. It fully supports LiFePO4 and LTO batteries, along with lead-acid types. You can also customize charging profiles via Bluetooth.
Does the controller include Bluetooth monitoring by default?
Yes, Bluetooth functionality is built-in or included via module depending on your configuration. Use it to monitor and configure from your phone.
How is it installed?
The BRAVO 30 is designed for flush-mounting and includes mounting screws. Wiring diagrams and setup instructions are in the manual.
