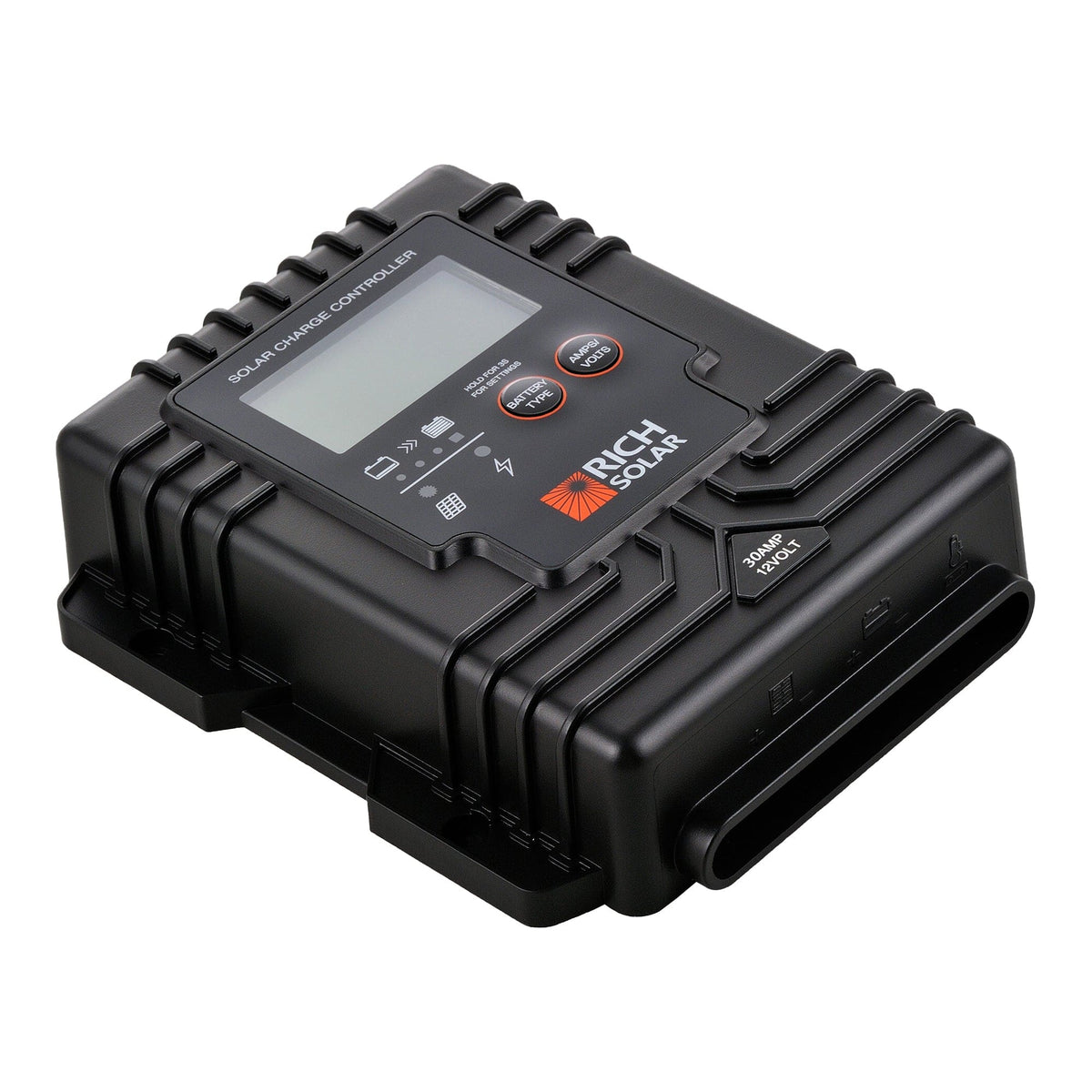

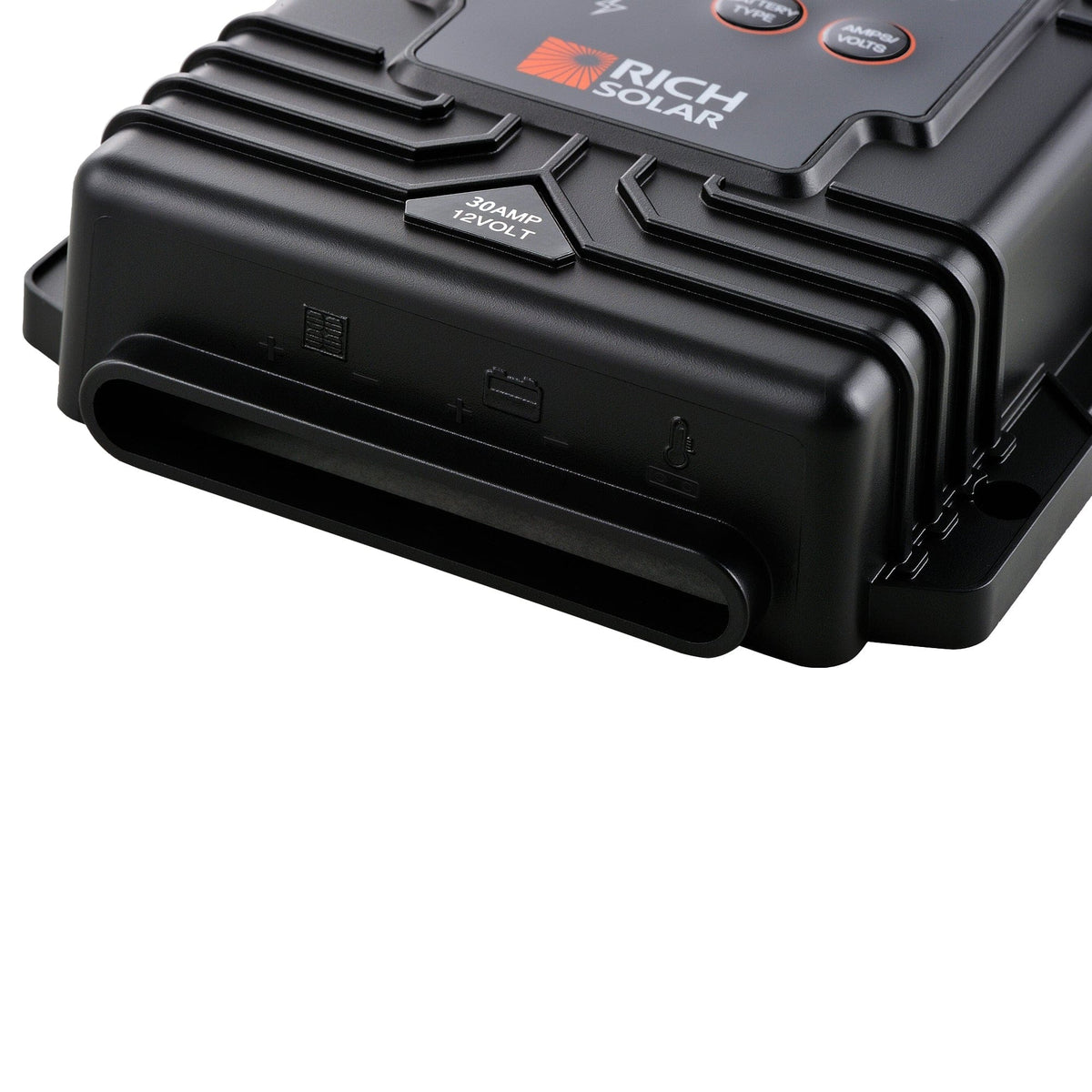

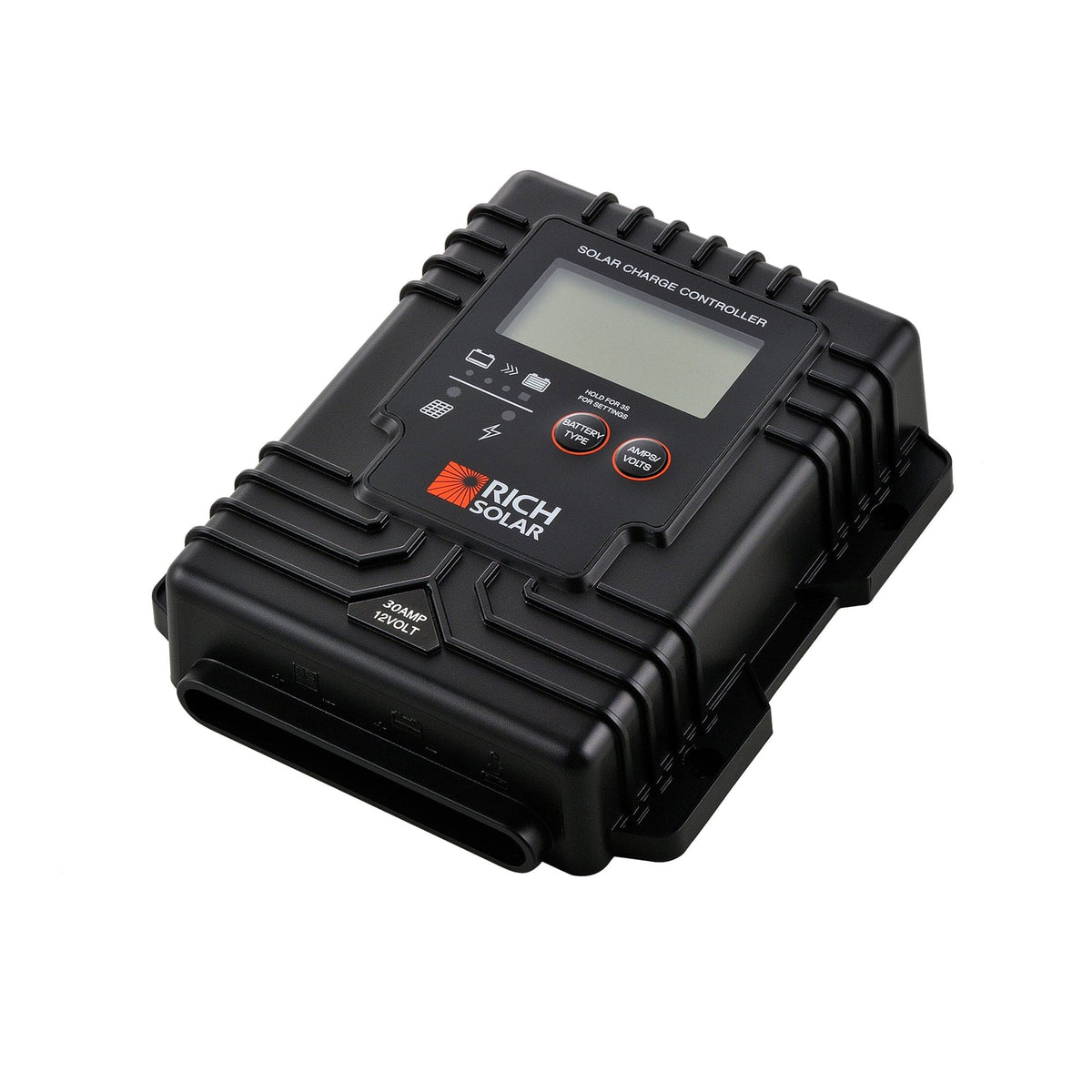

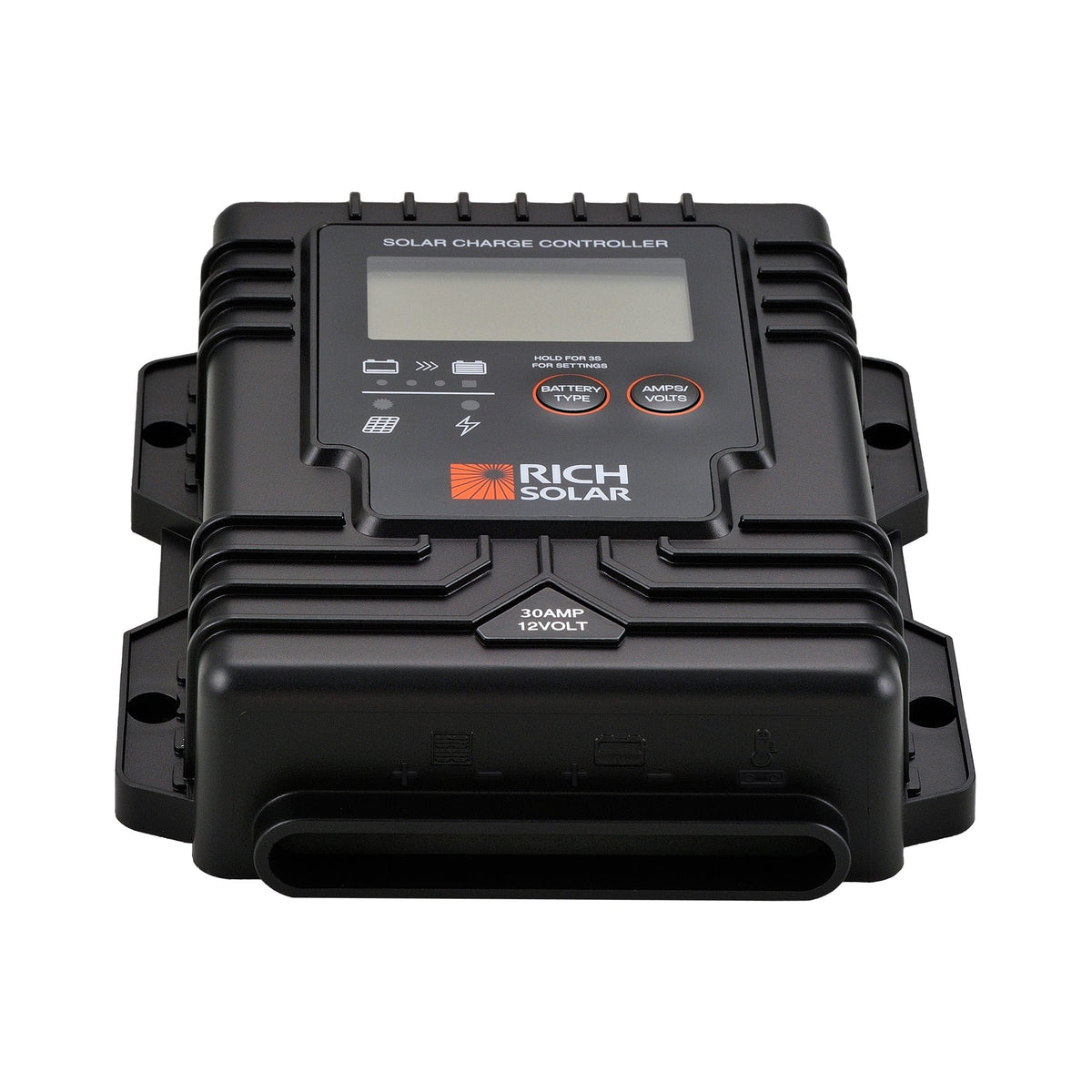

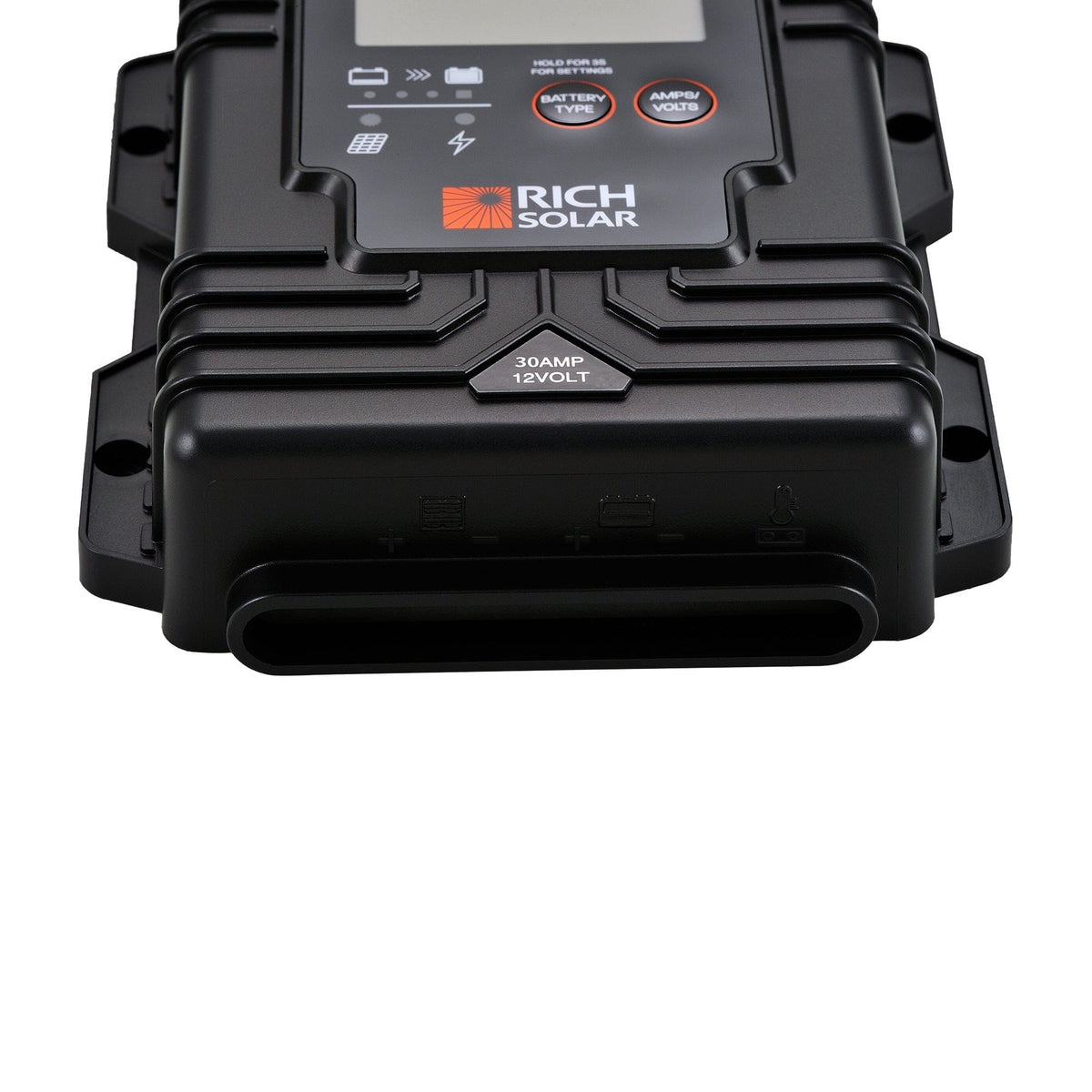

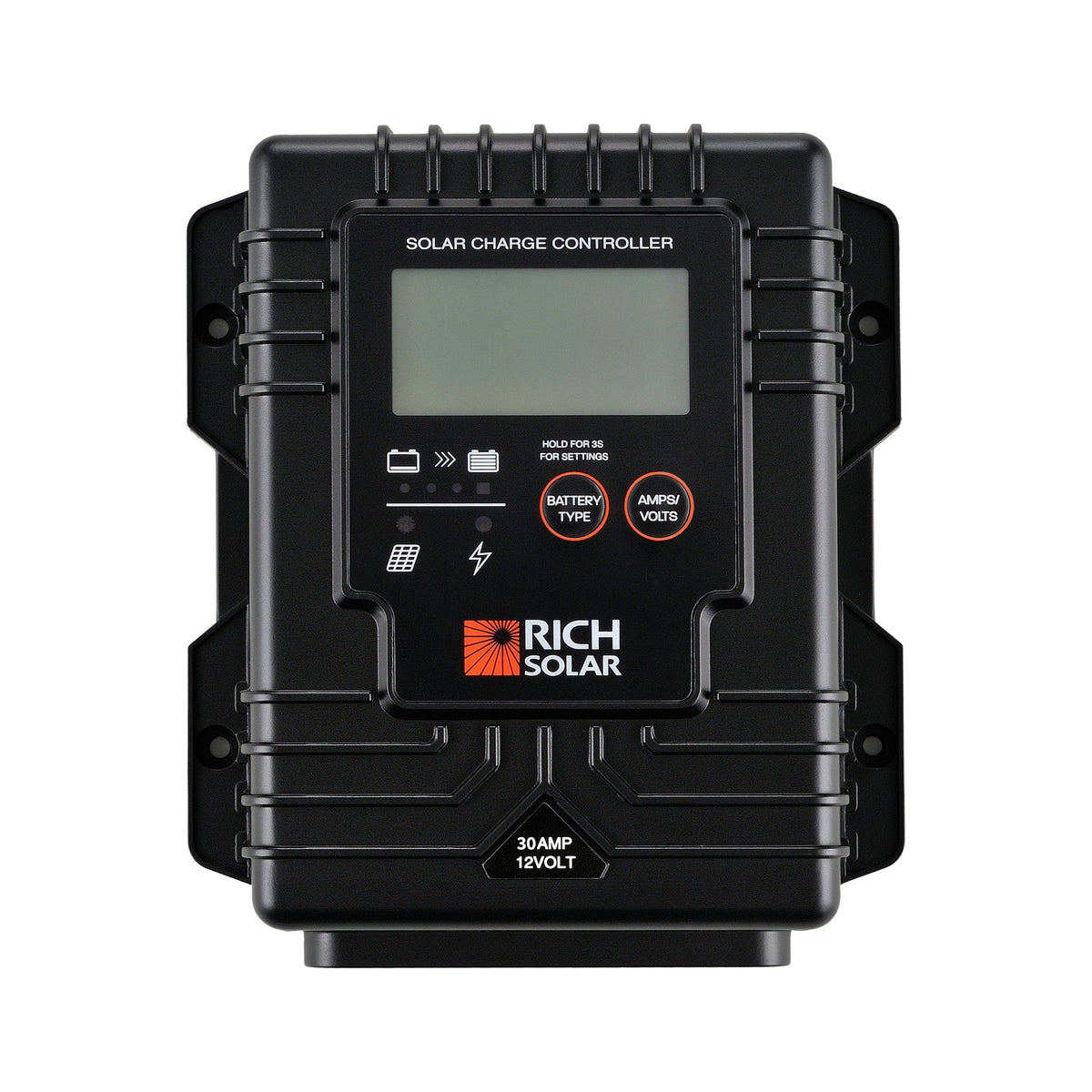

RICH SOLAR | BRAVO Waterproof 30 | 30 Amp PWM Solar Charge Controller | Waterproof

BY: Rich Solar | SKU: RS-PWM30WP Availability: In Stock

$79.99

Quantity

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347

Live Chat With an Expert

Authorized Rich Solar Dealer

Full manufacturer warranty included
Free Shipping + No Sales Tax

More savings on every purchase
Easy 30-Day Returns & Price Beat Guarantee

Risk-free shopping + best price guaranteed
Lifetime Expert Support

Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

FEATURES AND ADVANTAGES

PWM technology, switching control by MOSFET
Common Positive Grounding connection
High efficiency and low power consumption
Battery type setting via DIP switch
Smart charging control
Charging time management

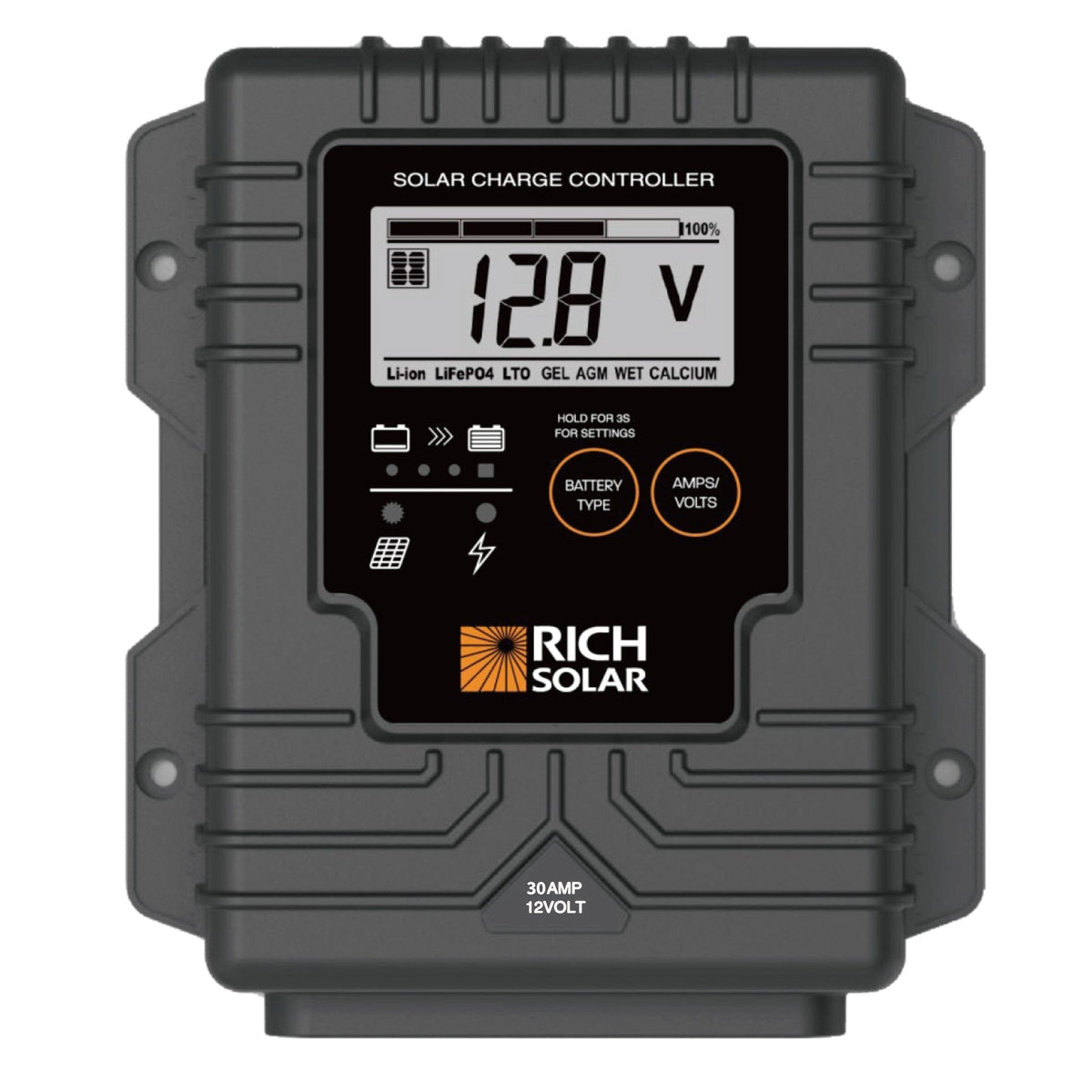

LED indication for the battery condition and charging status
Thermal protection
No sparks
Waterproof
Solid-duty cables
Corrosion-resistant terminals and connectors.
Conformal coating supplied to the inside board against moisture
Includes a port for an external battery temperature sensor (BTS - optional)
Suitable for most of the rechargeable Lead acid battery, including Flooded (WET), AGM, GEL, Lithium (LiFePO4) battery
Designed according to CE standard, EMC, FCC compliance
Overvoltage protection, short circuit protection, reverse polarity protection

MOUNTING THE DEVICE

The quickest and easiest way to mount the unit is to use the three plastic spacers and self-tapping screws supplied and mount

the unit to a flat surface.

Tech Specs

ELECTRICAL PARAMETERS

Rated solar panel amps:	30AMP Max.
Normal input Solar cell array voltage:	15-22VDC
Max. solar cell array voltage (output has no load):	25VDC Max.
The controller lowest operating voltage (at solar or battery side):	8VDC Min.
Standby current consumption at night	5mA Max.
Maximum voltage drop-Solar panel to battery:	0.25VDC Max.

CHARGING CHARACTERISTICS

Minimum battery start charging voltage:	3VDC Min.
Soft start charging voltage:	3-10±0.2VDC
Soft start charging current (50% PWM duty):	Up to 10AMP
Bulk charge voltage:	10-14±0.2VDC
Equalization charging voltage at 25 ℃	15.5±0.2VDC
Equalization charging timer timed out:	2 Hours
Battery temperature compensation coefficient	-24mV/°C
Temperature compensation range:	-20~+50°C

PROTECTION

Over temperature protection during charging:

65°C

ELECTRICAL PARTS

Input output terminal:

M5 terminals

PHYSICAL PARAMETERS

Controller material:	Plastic, Standard ABS
Power terminal maximum stranded wire size:	#10AWG stranded-5mm²
Mounting:	Vertical wall mounting
IP grade:	IP65
Net weight:	Approx. 0.3kg/0.66lb

ENVIRONMENTAL CHARACTERISTICS

Operating temperature:	-25~50°C(-13～122℉)
Storage temperature:	-40~85°C(-40～185℉)
Operating Humidity range:	100% no condensation

User Manual & Specification

30 Amp PWM Solar Charge Controller
