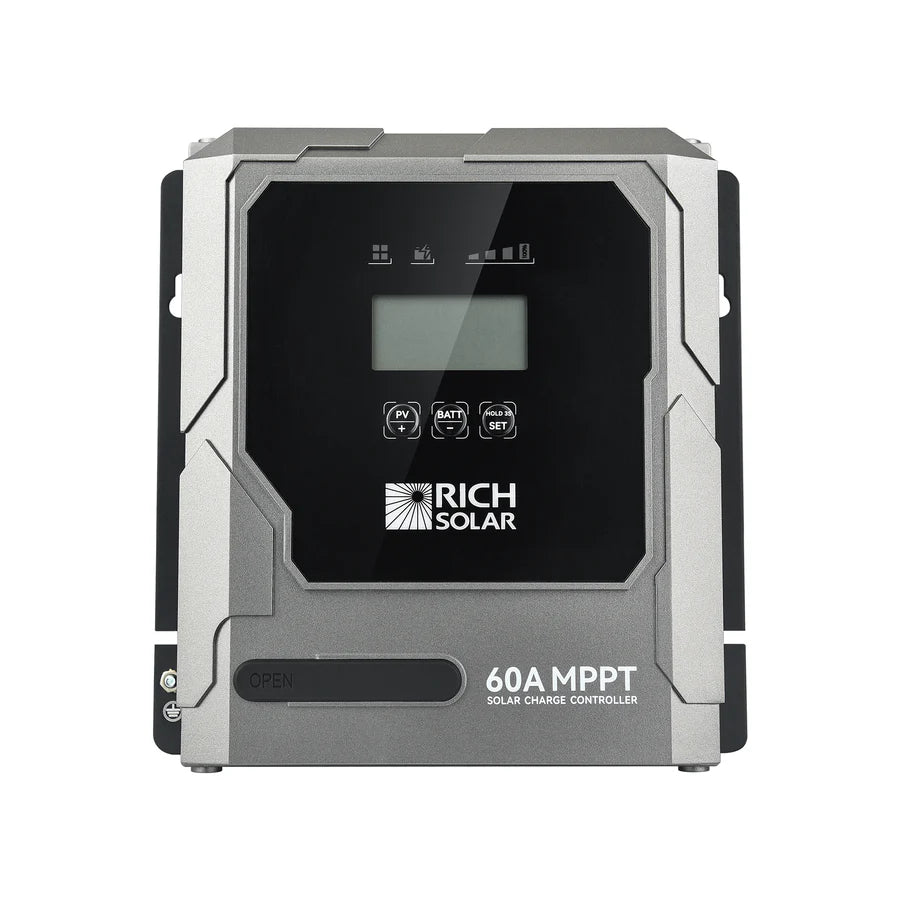

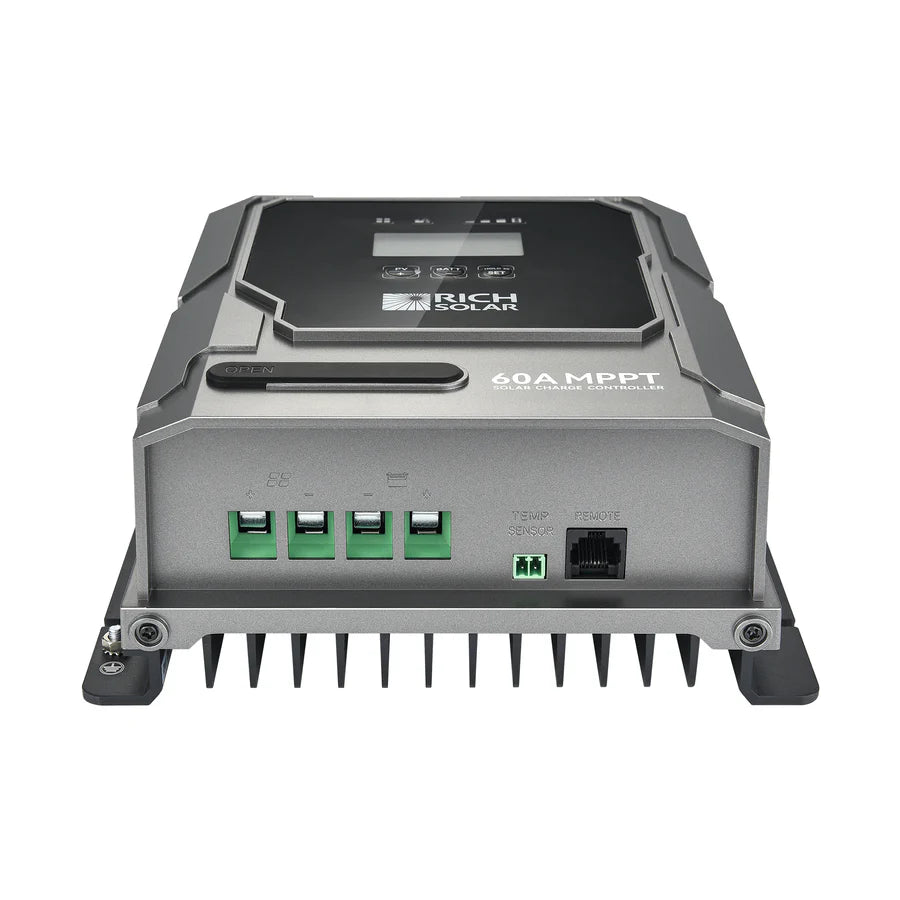

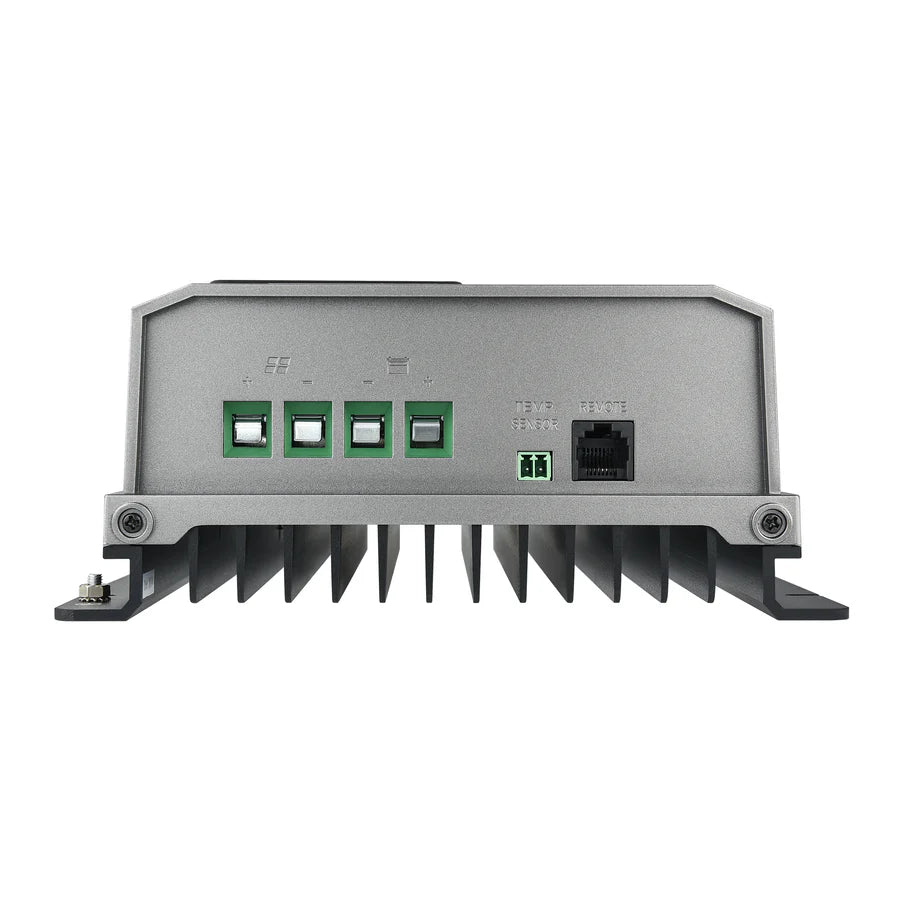

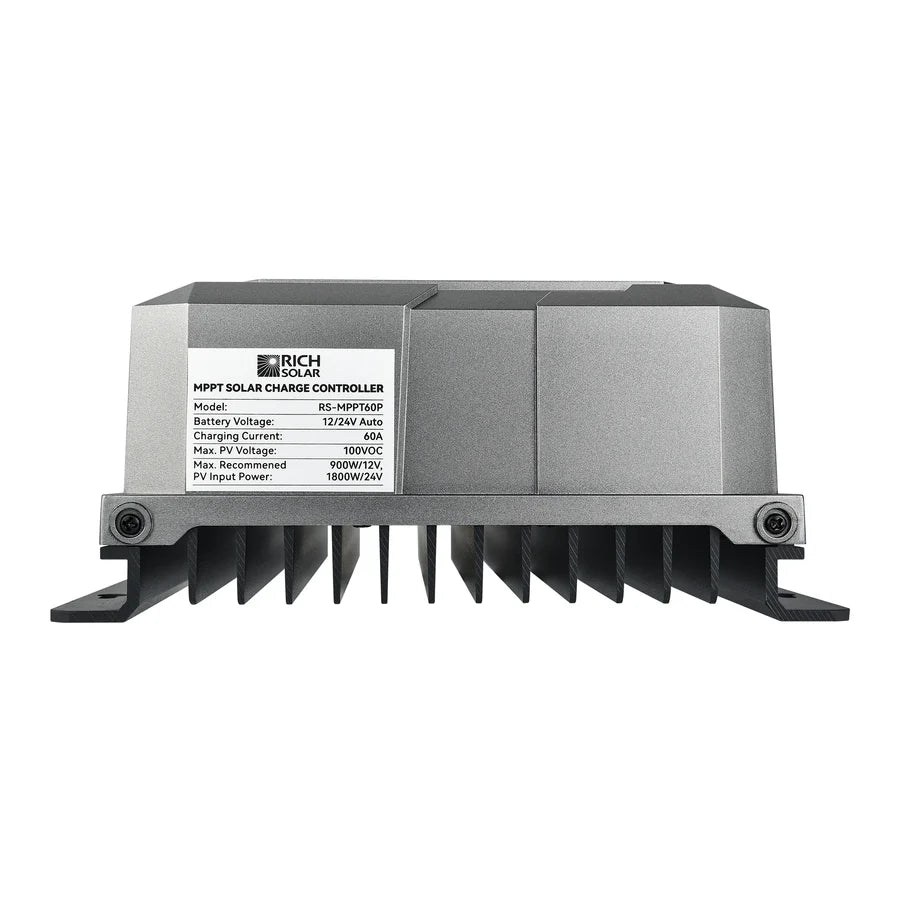

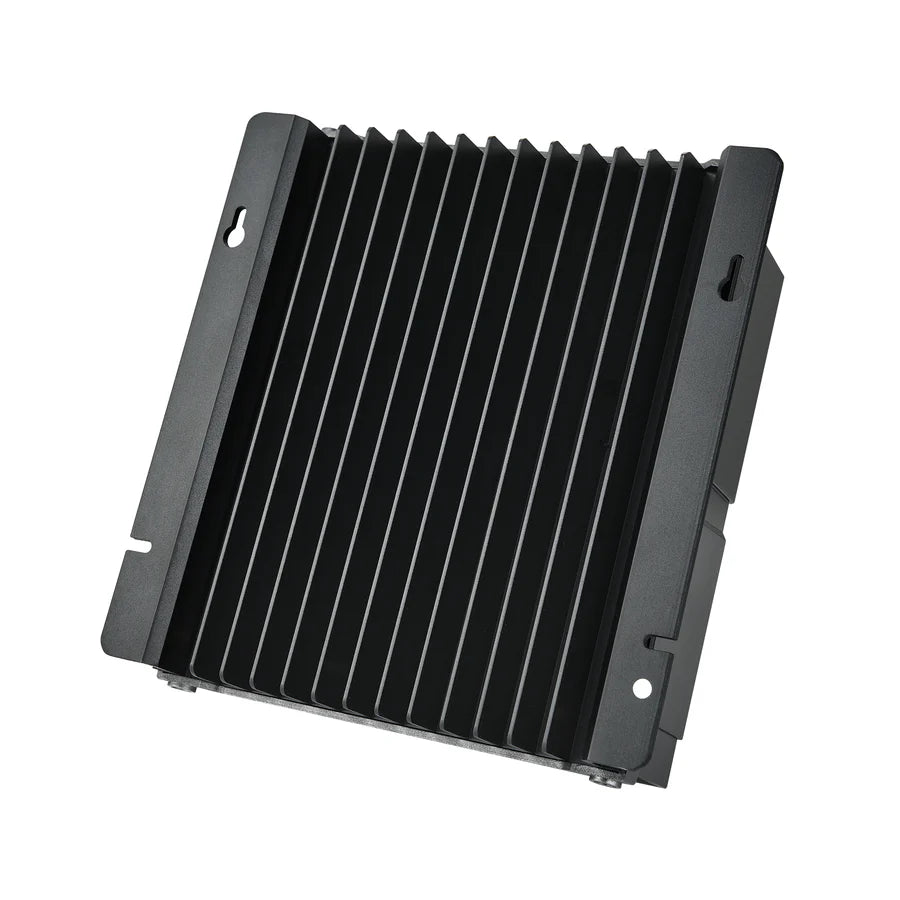

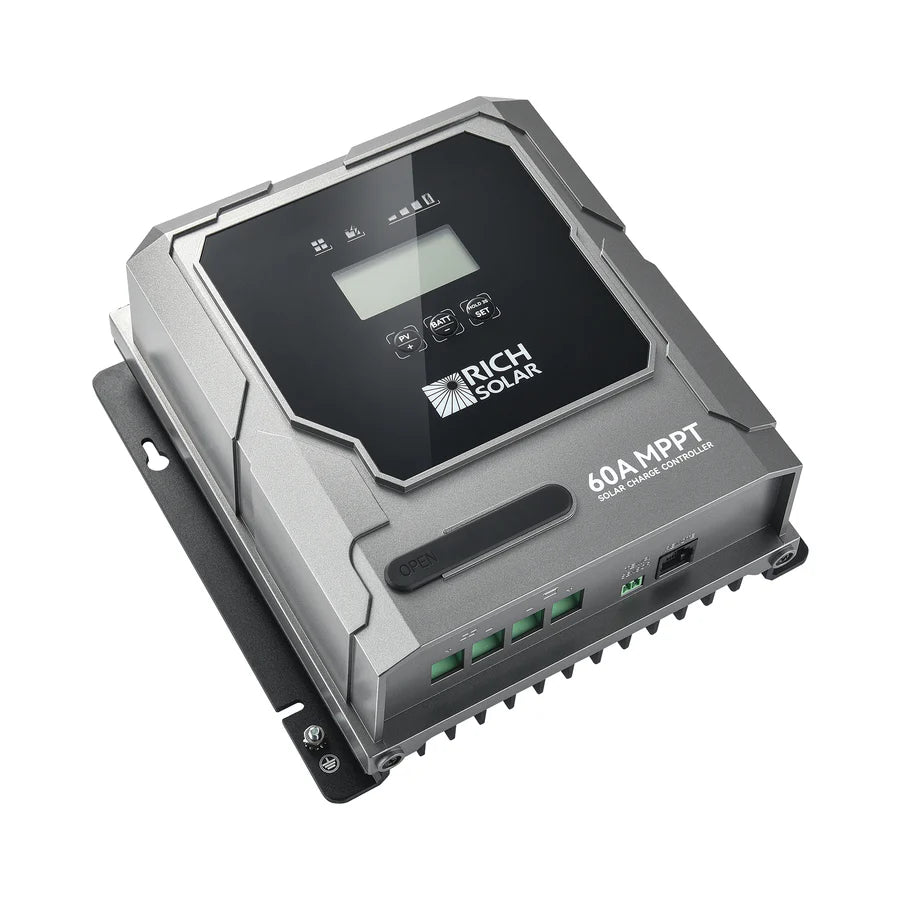

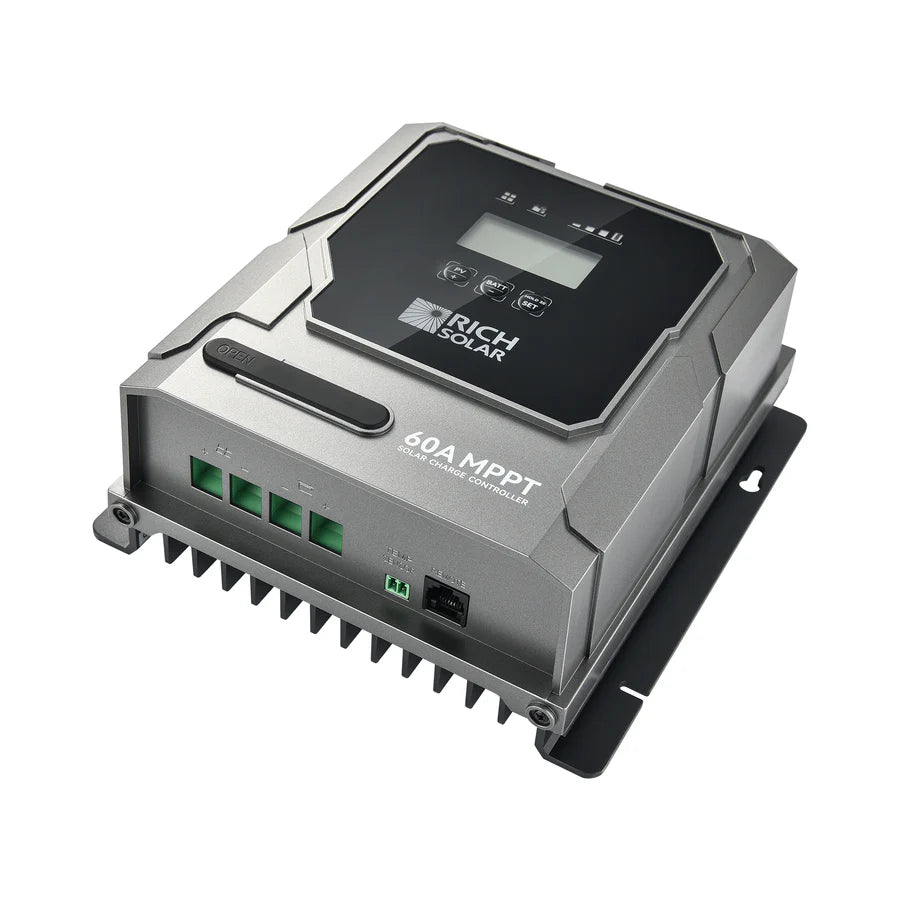

Rich Solar BRAVO 60 | 60A MPPT Solar Charge Controller
The BRAVO 60 MPPT Solar Charge Controller is an advanced and highly efficient power management solution designed for RVs, trailers, campers, vans, boats, and off-grid systems. Built with cutting-edge MPPT technology and an impressive tracking efficiency above 99.5%, this controller maximizes the power harvested from solar panels while protecting batteries with intelligent safety features. It’s engineered for durability and optimal performance in demanding outdoor environments.
Rich Solar BRAVO 60 | 60A MPPT Solar Charge Controller Features
-
True MPPT — Delivers maximum power point tracking for optimal solar charging performance.
-
High Tracking Efficiency — Achieves over 99.5% tracking efficiency to make the most of every ray of sunlight.
-
Ultra-High Conversion Efficiency — Converts solar energy with up to 98% efficiency, reducing power loss and improving output.
-
Reverse Discharge & Overvoltage Protection — Protects your batteries and electrical system from accidental reverse currents and damaging voltage spikes.
-
Versatile Battery Compatibility — Works with a wide range of battery types, including Gel, AGM, Wet, Crystal, Calcium, LiFePO4, LTO, and LCO.
Rich Solar BRAVO 60 | 60A MPPT Solar Charge Controller Applications
-
RV & Camper Power Systems — Keeps batteries fully charged for long off-grid trips.
-
Marine & Boats — Perfect for boat power systems needing reliable charging and safety.
-
Cabins & Tiny Homes — Optimizes solar power for small off-grid homes.
-
Trailers & Vans — Supports mobile living and professional off-grid work setups.
-
Outdoor Adventure & Expeditions — Durable and safe for extreme outdoor conditions.

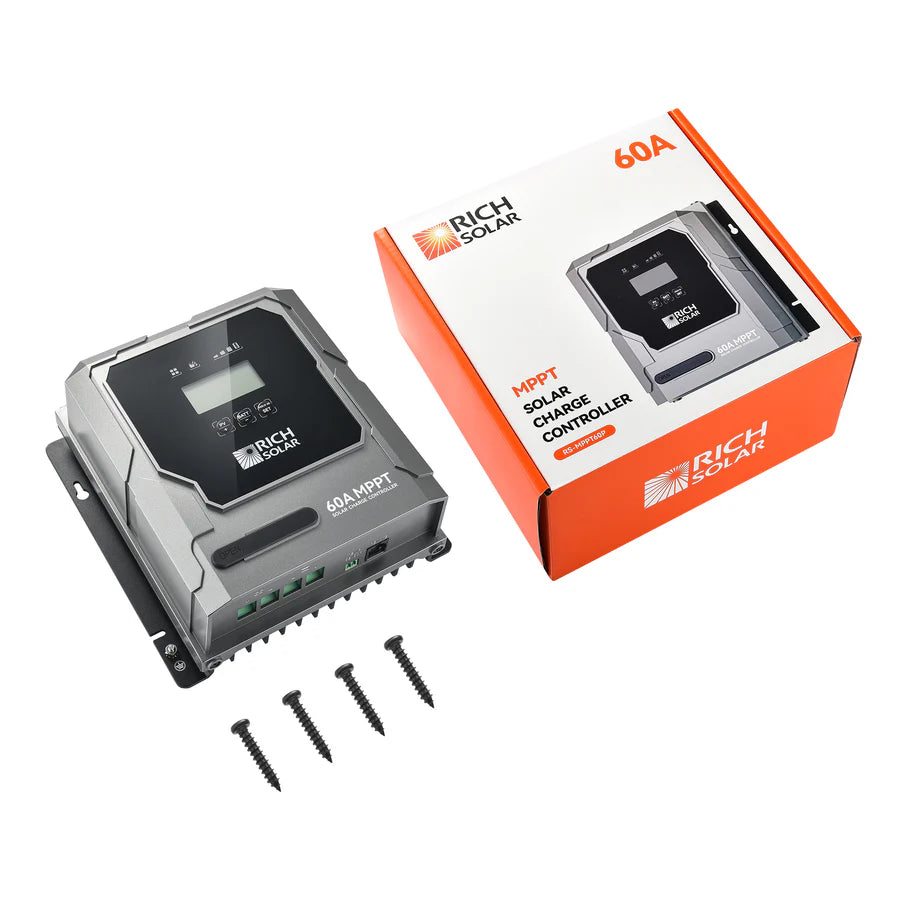

What’s Included
Warranty
Rich Solar BRAVO 60 | 60A MPPT Solar Charge Controller Specifications
| Specification |
Detail |
| System Nominal Voltage |
12/24V Auto |
| Max PV Open Circuit Voltage |
100V DC |
| Charging Technology |
MPPT |
| Max PV Charging Current |
60A |
| Max. Recommended PV Input Power |
900 Watt (12V) / 1800 Watt (24V) |
| Charge Conversion Efficiency |
≤98% |
| MPPT Tracking Efficiency |
>99.5% |
| Battery Type Preset |
Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO |
| Housing Case Color |
Black / Grey |
| IP Grade |
IP43 for Inside PCBA, IP22 for Connection Area |
| Net Weight |
1.90 kg / 4.18 lb |
| Dimensions (L×W×H) |
201 × 195 × 85 mm (7.9 × 7.7 × 3.3 in) |
Frequently-Asked Questions
Can I use the BRAVO 60 with lithium batteries?
Yes — the BRAVO 60 is fully compatible with multiple lithium battery chemistries, including LiFePO4, LTO, and LCO, in addition to lead acid options like AGM and Gel.
Does the BRAVO 60 support temperature compensation?
Yes, the BRAVO 60 offers an optional external battery temperature sensor to improve charging accuracy and battery life.
How do I install the BRAVO 60 in my system?
It features a simple, user-friendly installation with clear labeling, reverse polarity protection, and easy-to-connect terminals. The manual also provides step-by-step guidance.
Manual
