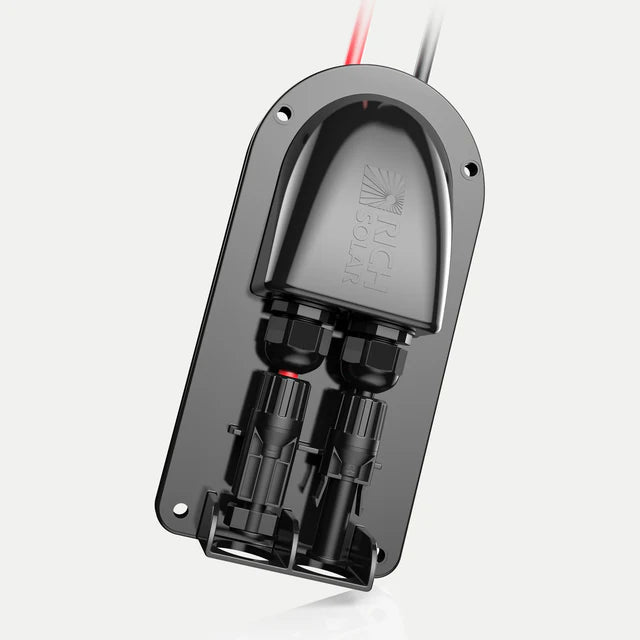

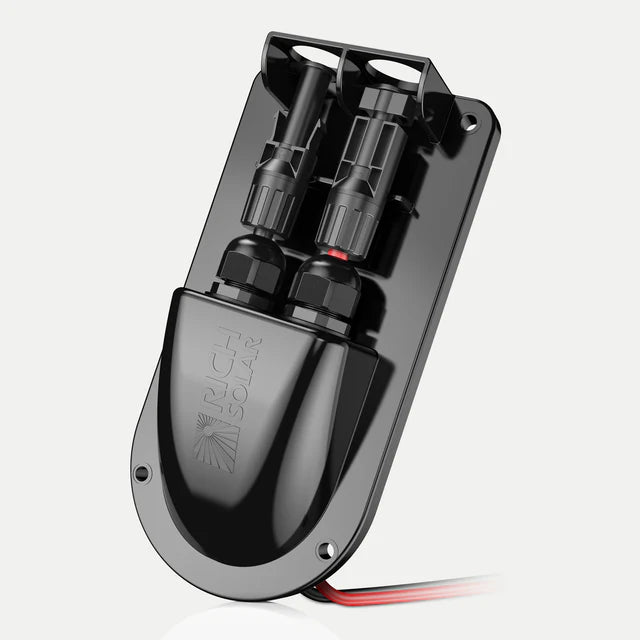

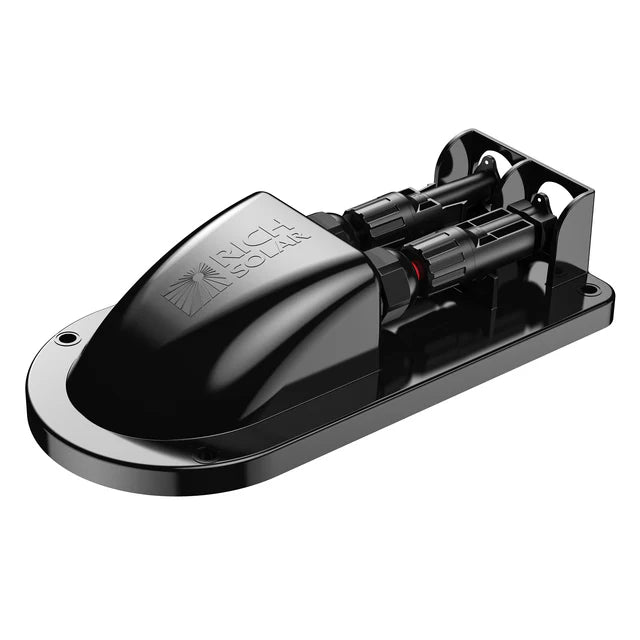

Rich Solar Cable Entry Plate | IP68 Waterproof Polypropylene Housing with UL 10AWG Wires and Solar Connectors
The Rich Solar Cable Entry Plate provides a clean, waterproof, and secure method for routing solar cables through rooftops, RVs, vans, boats, sheds, and off-grid structures. Built with flame-retardant polypropylene and equipped with UL-listed 10AWG tin-plated copper wires, this cable entry system ensures long-lasting durability and safe power transmission. Its IP68 waterproof rating protects your system against dust, rain, and harsh outdoor environments, making it ideal for both mobile and stationary solar installations.
Rich Solar Cable Entry Plate Features
IP68 Waterproof Protection
Designed to prevent water ingress, ensuring safe cable routing in harsh outdoor environments.
Durable Polypropylene Housing
Made from flame-retardant PP material for long-term environmental stability and safety.
Pre-Installed UL-Listed 10AWG Wires
High-quality tin-plated copper wires ensure reliable conductivity and reduced corrosion.
Wide Temperature Resistance
Operates from –40°F to 185°F, suitable for hot, cold, and extreme climates.
Easy Installation

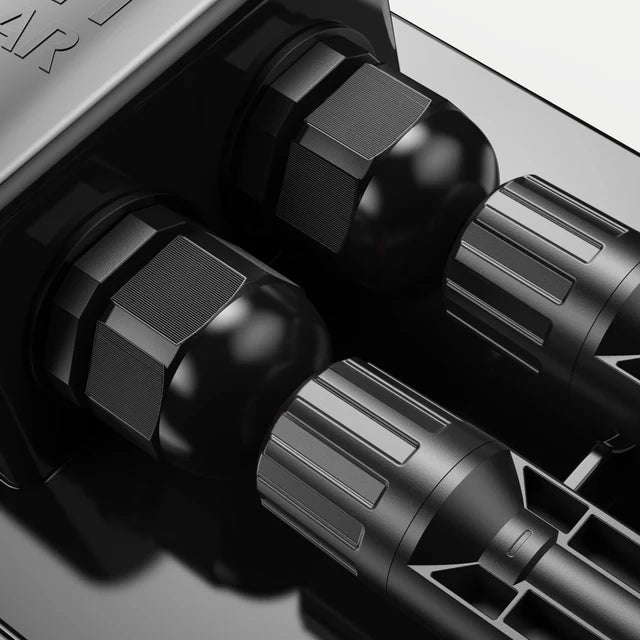

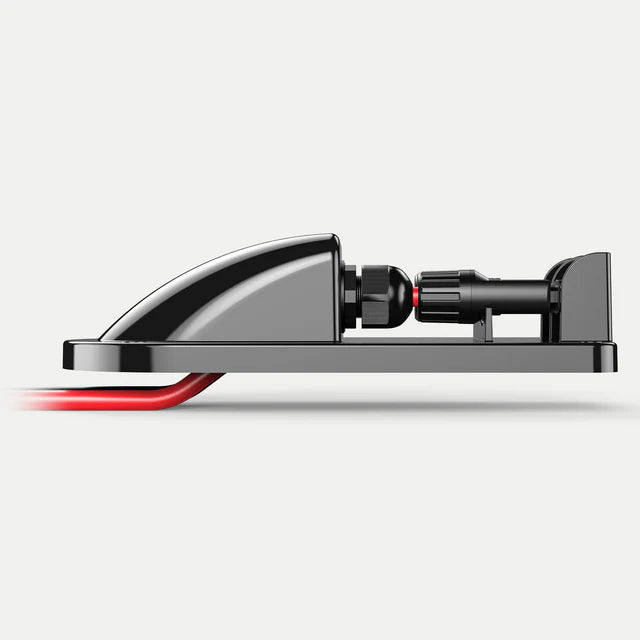

Low-profile design with PG9 cable glands simplifies mounting on flat or curved surfaces.
MC4-Compatible Connectors Included
Allows fast, secure connection to most solar panels and charge controllers.
Rich Solar Cable Entry Plate Applications
-

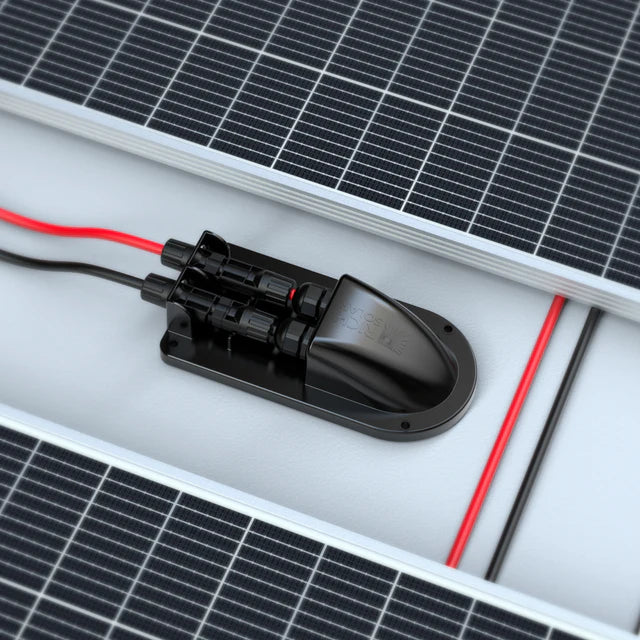

RVs & Campers – Simple roof pass-through for solar panel wiring
-
Vans & Skoolies – Ideal for van conversions & mobile power systems
-
Boats & Marine – Corrosion-resistant solution for marine environments
-
Sheds & Cabins – Clean cable routing for off-grid solar builds
-
Tiny Homes – Weatherproof entry point for roof-mounted solar systems
-
Commercial Installations – Suitable for small industrial energy setups
What’s Included?
Rich Solar Cable Entry Plate Specifications
General
| Specification |
Details |
| Model |
RS-G02 |
| Dimensions (L×W×H) |
7.2 × 3.8 × 2.0 in (183.8 × 96.7 × 51.3 mm) |
| Weight |
0.34 lb (156 g) |
| Material |
Flame-retardant Polypropylene (PP) |
| Color |
Black |
| Operating Temperature Range |
–40°C to 85°C (–40°F to 185°F) |
PG Head
| Specification |
Details |
| Model |
RNA-PG9 |
| Material |
PA6 |
| Waterproof Rating |
IP68 |
| Flame Retardant |
UL94V-2 Certified |
| Certification |
CE |
Electrical Ratings
| Specification |
Details |
| Maximum Current |
42A |
| Continuous Current |
30A |
| Maximum Voltage |
600V (Wire Rating) |
| Wire Standard |
UL 1015, 10AWG (Red/Black) |
| Wire Material |
Tin-plated copper |
| Wire Insulation |
PVC (VW-1 Fire Rated) |
| Wire Temperature Range |
–15°C to 105°C (5°F to 221°F) |
MC4 Connector
| Specification |
Details |
| Material |
PC |
| Certification |
TUV |
Frequently-Asked Questions
Is the entry plate fully waterproof?
Yes, it is IP68-rated, meaning it is fully dustproof and protects against prolonged water exposure.
Can this be used on curved surfaces?
Yes, the polypropylene housing and compact size allow installation on both flat and slightly curved surfaces.
Are the wires included?
Yes, pre-installed UL-listed 10AWG wires come attached for easy and secure connections.
Is this compatible with all MC4-style solar connectors?
Yes, it includes MC4 connectors that work with nearly all solar panels and controllers.
Can this be used for non-solar wiring?
Yes, as long as the wire size and current fall within the specifications.
