Rich Solar 13kW Complete Off-Grid Solar Kit, 12.3–12.8kW Solar, 20.48kWh Battery | 120/240V

Name: Rich Solar 13kW Complete Off-Grid Solar Kit, 12.3–12.8kW Solar, 20.48kWh Battery | 120/240V
Brand: RICH SOLAR
SKU: RS-CBK1301A
Price: 20999.99 USD
Availability: InStock

BY: RICH SOLAR

SKU: RS-CBK1301A

| Availability: In stock

$20,999.99

Panel Options:

Quantity

Product Highlights

Built for home backup, off-grid power, and job sites
19,200 Wh capacity for extended backup and off-grid runtime
12,800 W solar output for larger off-grid energy systems
13,000 W output to run high-demand appliances and equipment

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized RICH SOLAR Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

RICH SOLAR Complete Off-Grid Solar Kit | 13,000W 120/240V Output | 48VDC

The RICH SOLAR Complete Off-Grid Solar Kit delivers exceptional power for homes, cabins, or commercial setups needing full-scale energy independence. Featuring a powerful 13kW split-phase inverter system, this kit is designed to run everything from HVAC and appliances to heavy-duty power tools. With multiple panel configuration options and a massive 19.2kWh lithium battery bank included, this all-in-one solution is ideal for whole-home backup, off-grid construction, or remote energy systems. Engineered for reliability, expandability, and performance.

RICH SOLAR Complete Off-Grid Solar Kit | 13,000W 120/240V Output | 48VDC Features

13,000W Split-Phase Inverter System

Runs your entire home—true 120/240V output supports everything from kitchen appliances to power-hungry equipment.

Scalable Solar Panel Options (Up to 12.8kW)

Choose your configuration—supports up to 38 panels depending on your needs and available space.

Alpha 5 Server-Rack Lithium Battery (19.2kWh)

Massive storage—high-performance lithium iron phosphate battery with 6000+ cycles and server-grade integration.

All-in-One Off-Grid Power Solution

Everything you need—inverter, solar charge controller, battery system, monitoring, cabling, and mounting.

High-Efficiency MPPT Charge Controller

Captures more energy—intelligent power tracking for consistent performance in all lighting conditions.

RICH SOLAR Complete Off-Grid Solar Kit Applications

Whole-Home Off-Grid Power – Operate HVAC systems, refrigerators, laundry machines, and lighting across multiple rooms.
Remote Cabins or Farmhouses – Power even high-draw equipment in isolated areas without the grid.
Construction or Job Sites – Provide dependable, silent energy for heavy-duty tools and equipment.
Commercial Backup Systems – Avoid downtime and energy interruptions with scalable solar backup.
Grid-Independent Living – Perfect for homesteads, sustainable farms, or emergency-ready households.

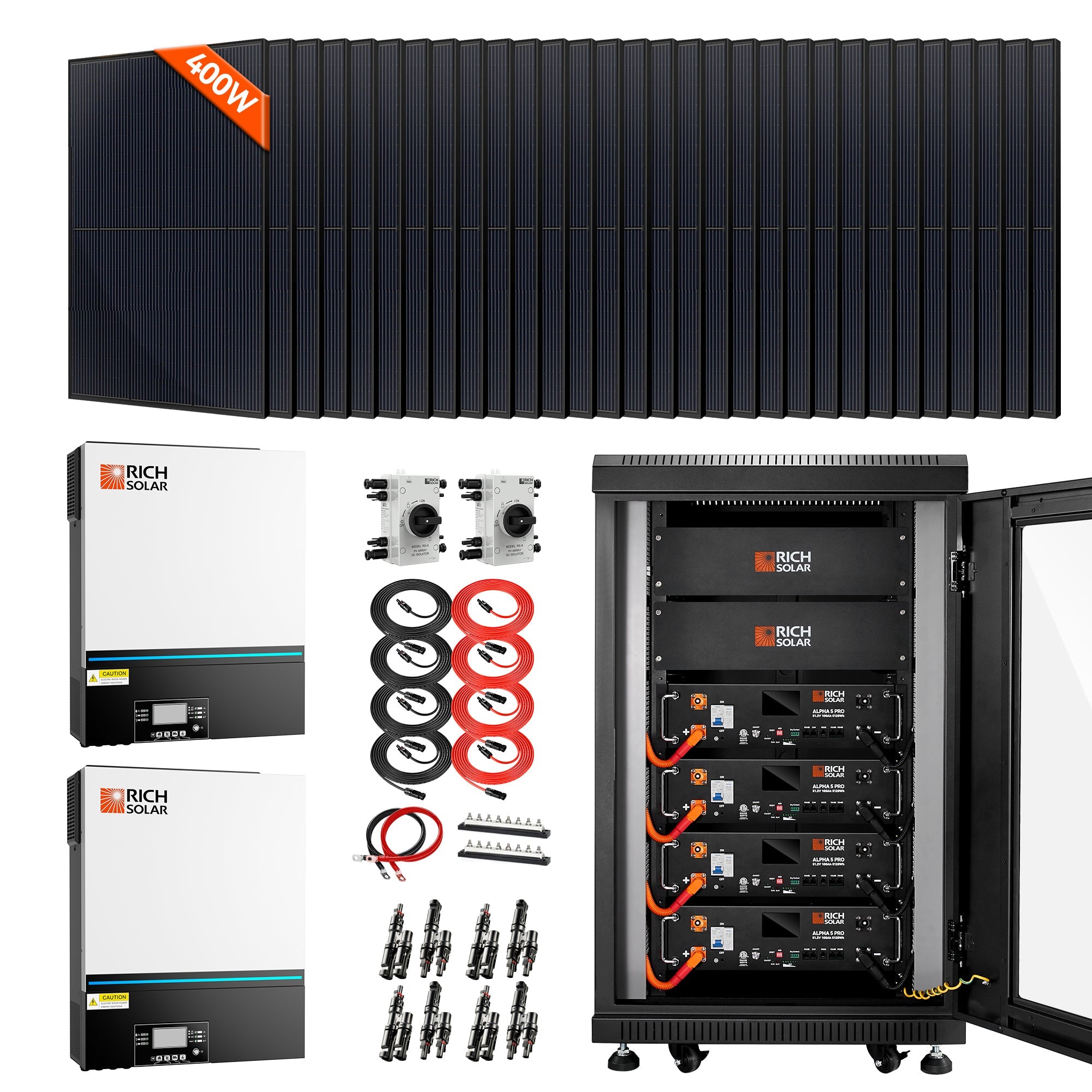

What's Included

Everything you need is included with your product.

2 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548)
4 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P1)
2 x Solar PV DC Quick Disconnect Switch (RS-i4)
2 x Busbar 600 AMP
4 x 4 Foot 2/0 Gauge AWG Wire Set 3/8"
8 x 10 Gauge 50 Feet Solar Extension Cable (RS-50102)
4 x 10 Gauge 30 Feet Solar Extension Cable (RS-30102-T2)
1 x Free Battery Rack

Solar Panel Options：

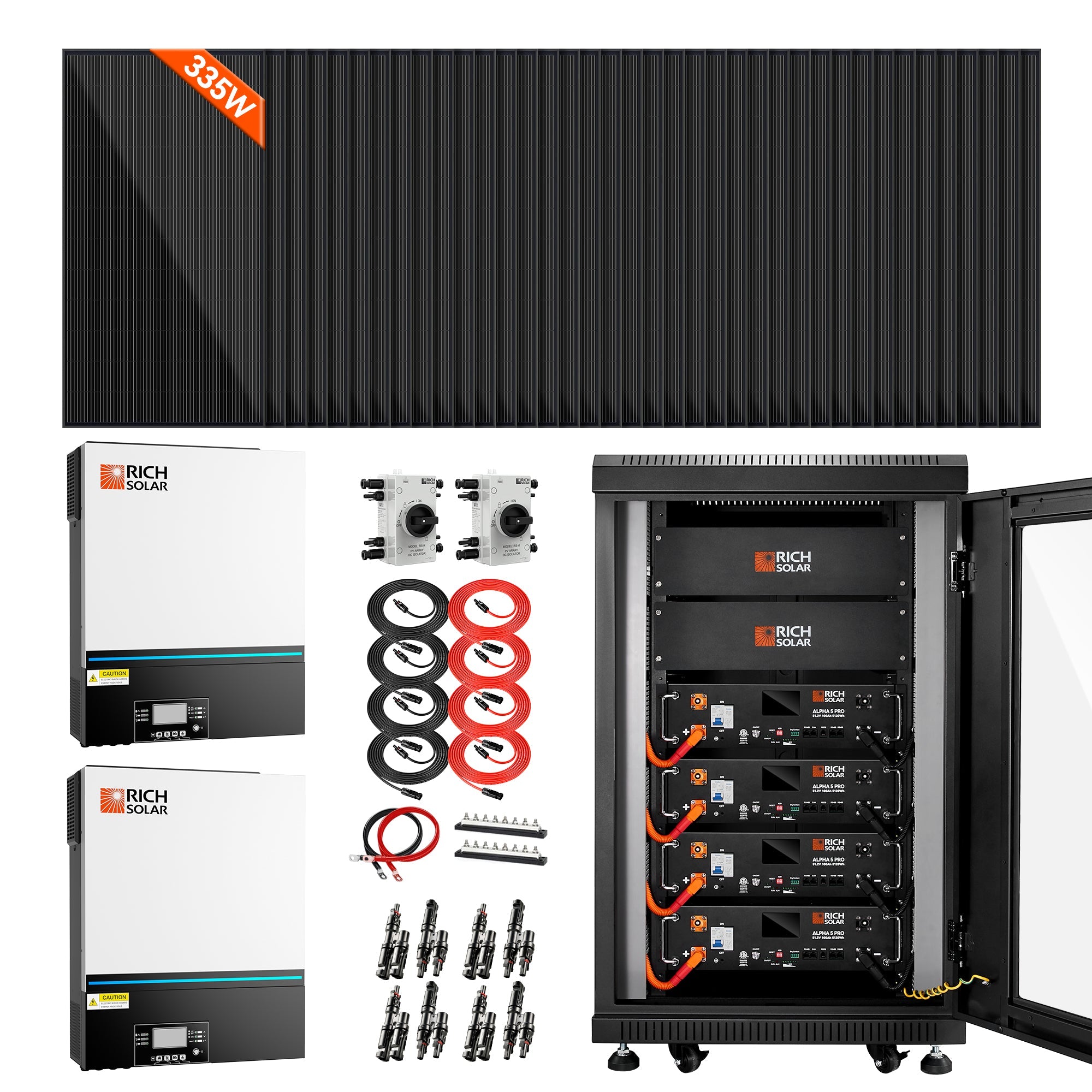

38 x MEGA 335 Watt Monocrystalline Solar Panel (RS-M335)
32 x MEGA 400 Watt Monocrystalline Solar Panel (RS-M400)
30 x MEGA 410 Watt Monocrystalline Solar Panel (RS-M410)
1 x User Manual

RICH SOLAR Complete Off-Grid Solar Kit Specifications

NOVA 6548 | 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter

Category	Specifications
Model	RS-H6548
Rated Inverter Power	6500VA/6500W
Parallel Capability	Yes, 6 units

INPUT

Category	Specifications
Voltage	120 VAC
Selectable Voltage Range	90–140 VAC (For Computers), 80–140 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto Sensing)

OUTPUT

Category	Specifications
AC Voltage Regulation (Batt. Mode)	120 VAC ± 5%
Surge Power	15000VA
Efficiency (Peak)	90% ~ 93%
Transfer Time	15 ms (For Personal Computers), 20 ms (For Home Appliances)
Waveform	Pure Sine Wave
No Load Power Consumption	<70W
Optional DC Voltage	12 VDC ± 5%, 100W
Dual Outputs	Yes

BATTERY

Category	Specifications
Battery Voltage	48 VDC
Float Charging Voltage	54 VDC
Overcharge Protection	66 VDC

SOLAR CHARGER & AC CHARGER

Category	Specifications
Solar Charger Type	MPPT
Maximum PV Array Power	8000W (4000W x 2)
MPPT Operating Voltage Range	90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage	250 VDC
Maximum Solar Charge Current	120A
Maximum AC Charge Current	120A
Maximum Charge Current	120A

PHYSICAL

Category	Specifications
Dimensions (D X W X H)	5.8 x 17.0 x 21.8 in
Net Weight	40.6 lb
Communication Interface	USB/RS232/RS485/WiFi/Dry-contact

OPERATING ENVIRONMENT

Category	Specifications
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-14°F to 122°F
Storage Temperature	5°F to 140°F

STANDARD

Category	Specifications
Compliance Safety	UL

ALPHA 5 PRO | 51.2V 100Ah LiFePO4 Battery

Category	Specifications
Nominal Voltage	51.2V
Nominal Capacity	100Ah
Minimum Capacity:	99.5Ah
Nominal Capacity	5120Wh

Operating Specifications

Category	Specifications
Charging Voltage	56V
Discharging Cutoff Voltage	44.8V
Maximum Charging Current	100A
Continuous Charge Current	100A
Maximum Discharge Current:	100A

Physical Specifications

Category	Specifications
Battery Dimensions	17.7"L x 17.8"W x 5.2"H
Battery Weight	99.2 lb
Server Rack Dimensions	27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)
Server Rack Weight	196.2 lb

BMS Operation

Category	Specifications
Operation Voltage	43.2~58.4V
Maximum Charging Current	100A
Maximum Discharging Current	100A
Maximum Charge Voltage (CC/CV)	57.6V
Overcharge Protection Voltage (Battery)	58.4V
Overcharge Protection Release Voltage (Battery)	54V
Over Discharge Protection Voltage (Battery)	43.2V
Over Discharge Protection Release Voltage (Battery)	47.2V
Over Discharge Primary Charge Overcurrent Protection Value	110A
First Stage Charge Over Current Delay	1s
Primary Discharge Overcurrent Protection Value	110A
Primary Discharge Overcurrent Protection Delay	1s
Secondary Discharge Overcurrent Protection Value	150A
Secondary Discharge Overcurrent Protection Delay	500ms

Temperature Performance

Category	Specifications
Charge Temperature	0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);
Discharge Temperature	-4℉~149℉ (The surface temperature of the cell should not exceed 149℉)
Storage Temperature	-4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)
Recommended Storage Temperature	32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

Others

Category	Specifications
Certification	UL1973, UL9540A, FCC
Max. Expansion	15 pcs in parallel
Communication Ports	RS485/RS232/CAN
Warranty	10 Years Manufacturer Defect

Frequently-Asked Questions

Is this suitable for complete home power?

Yes. With 13kW output and 19.2kWh storage, this system powers essential and high-load appliances with ease.

Can I add more panels or batteries later?

Absolutely. The system is designed to expand with additional PV and Alpha battery modules.

What if I already have solar panels?

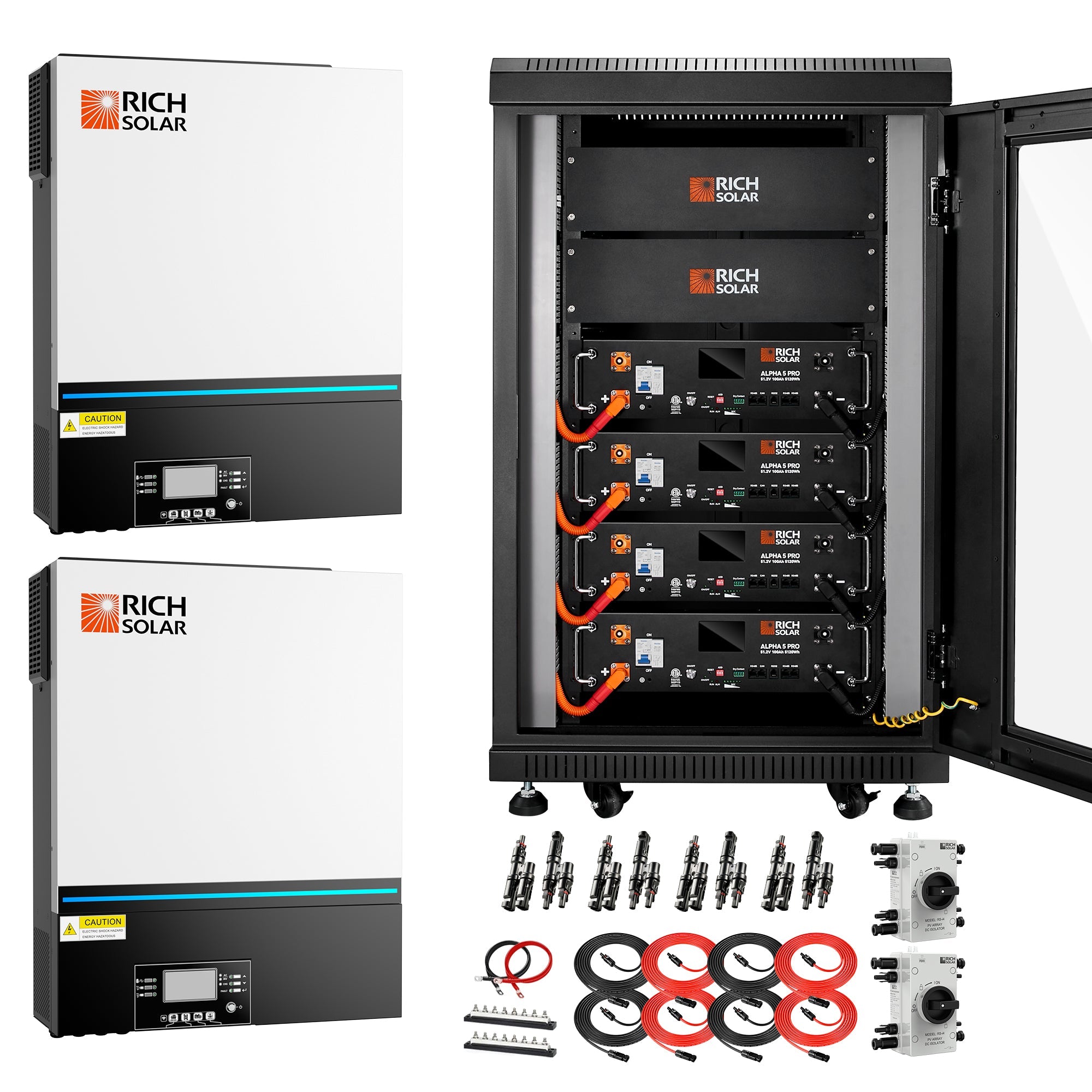

Select the “No Panel” option and integrate your existing array with the system.

Is it hard to install?

The system comes pre-configured with simplified wiring. Professional installation is recommended for safety and efficiency.

How long will the battery last?

With over 6000 charge cycles at 80% depth of discharge, the Alpha 5 battery can last 10+ years in normal conditions.
