RICH SOLAR | Complete Off-Grid Solar Kit RS-H6548 | 8000W PV Input | 48V 120VAC Output + 6560 (16x410) Watt Solar PV | [KIT-SR0001]

Everything you need to go completely Off-Grid!

This travel trailer solar system includes flexible solar panels for RV and tiny homes, so you can jumpstart your off-grid solar trailer adventure today.

Best value on the market! Ships from California! Call us for any questions! Free technical support!

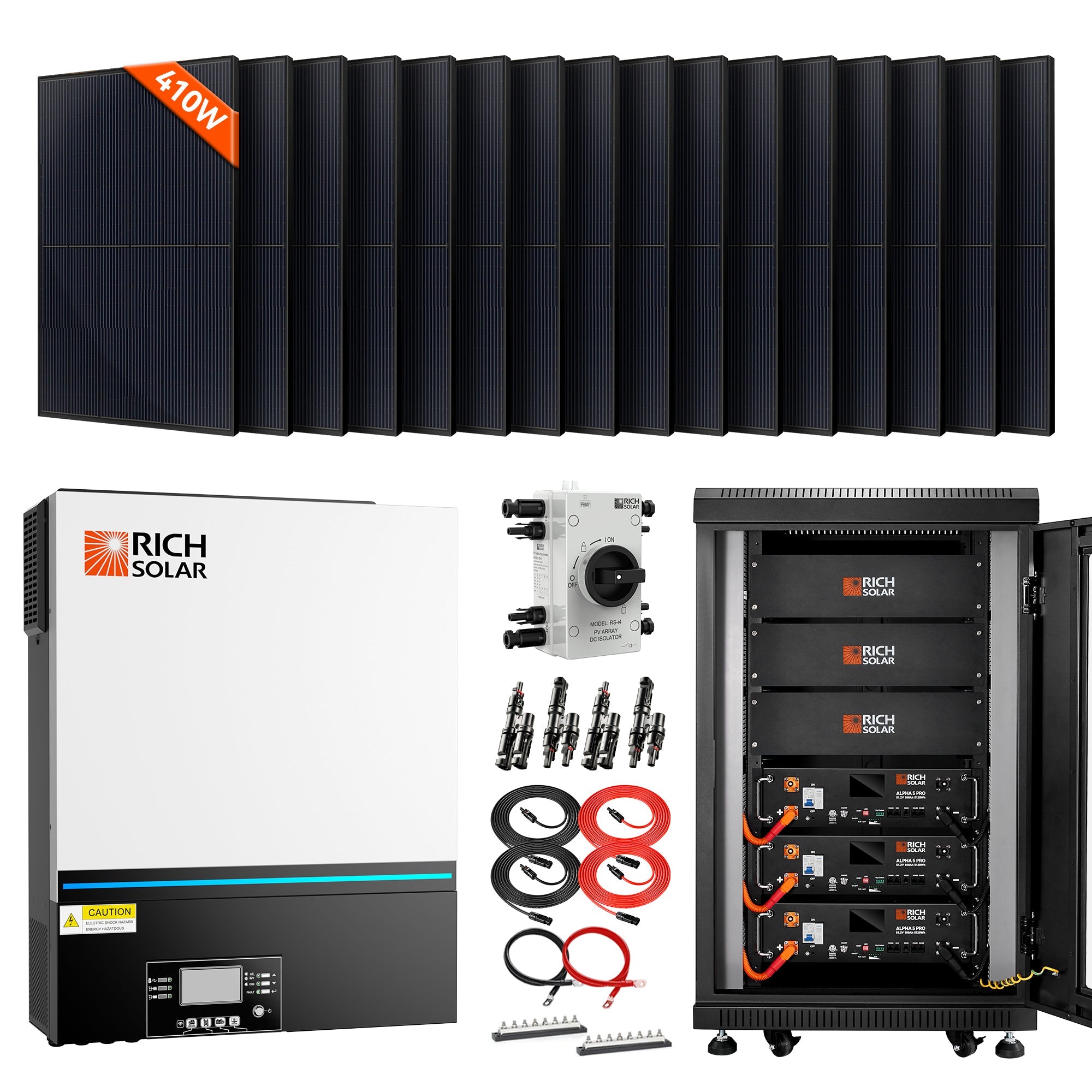

This kit includes:

Solar Panel Options：

🗹 16 x MEGA 410 Watt Monocrystalline Solar Panel (RS-M410)

🗹 1 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548)

🗹 3 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P1)

🗹 1 x Free Battery Rack (RS-RK)

🗹 1 x Solar PV DC Quick Disconnect Switch (RS-i4)

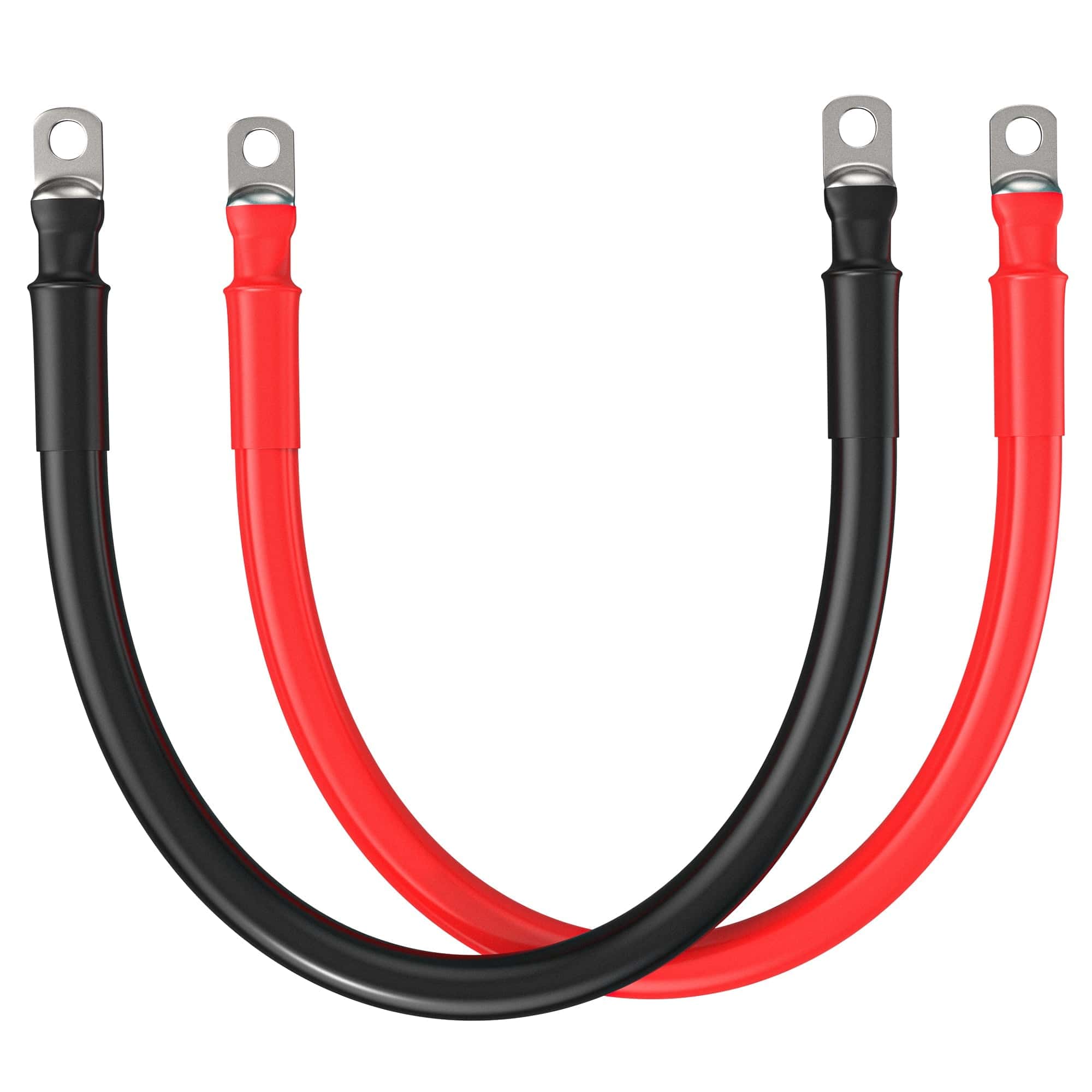

🗹 2 x 4 Foot 2/0 Gauge AWG Wire Set 3/8" (RS-2/0A4F3)

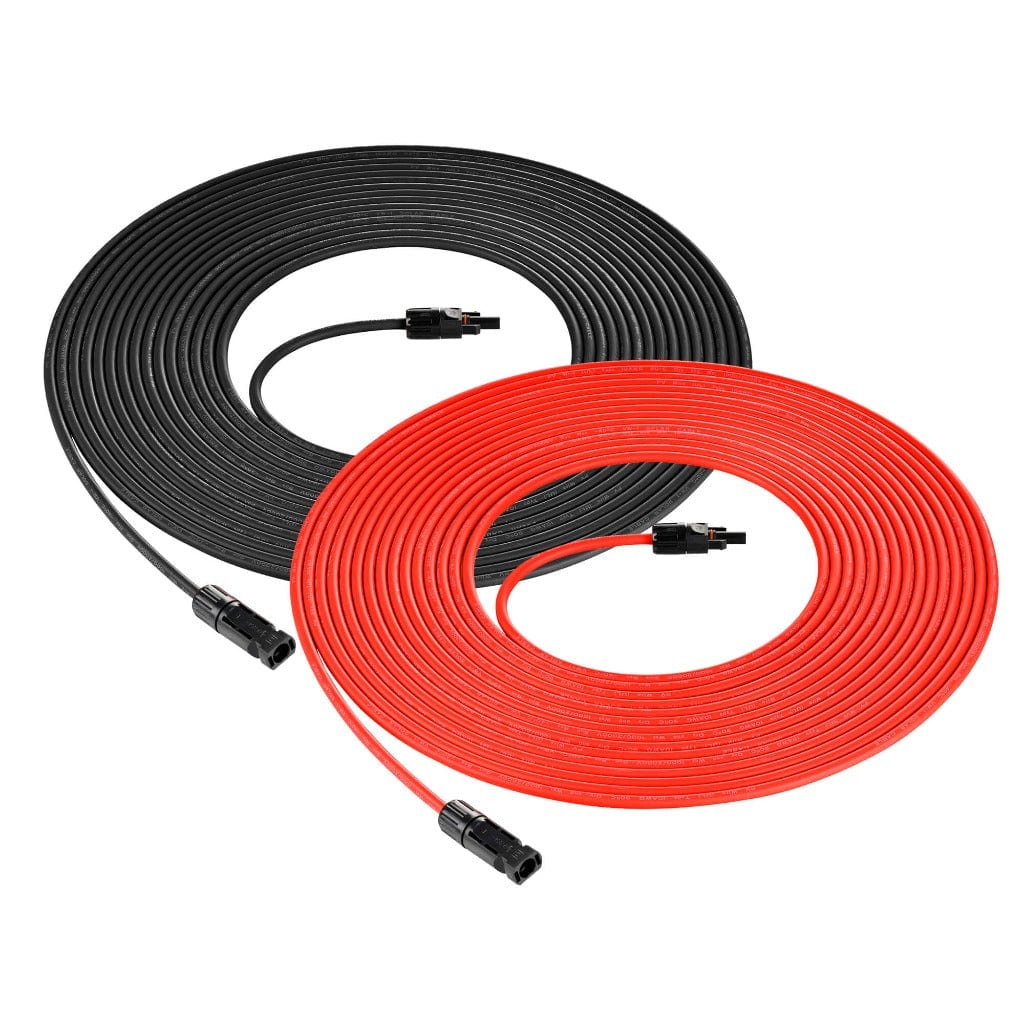

🗹 4 x 10 Gauge 50 Feet Solar Extension Cable (RS-50102)

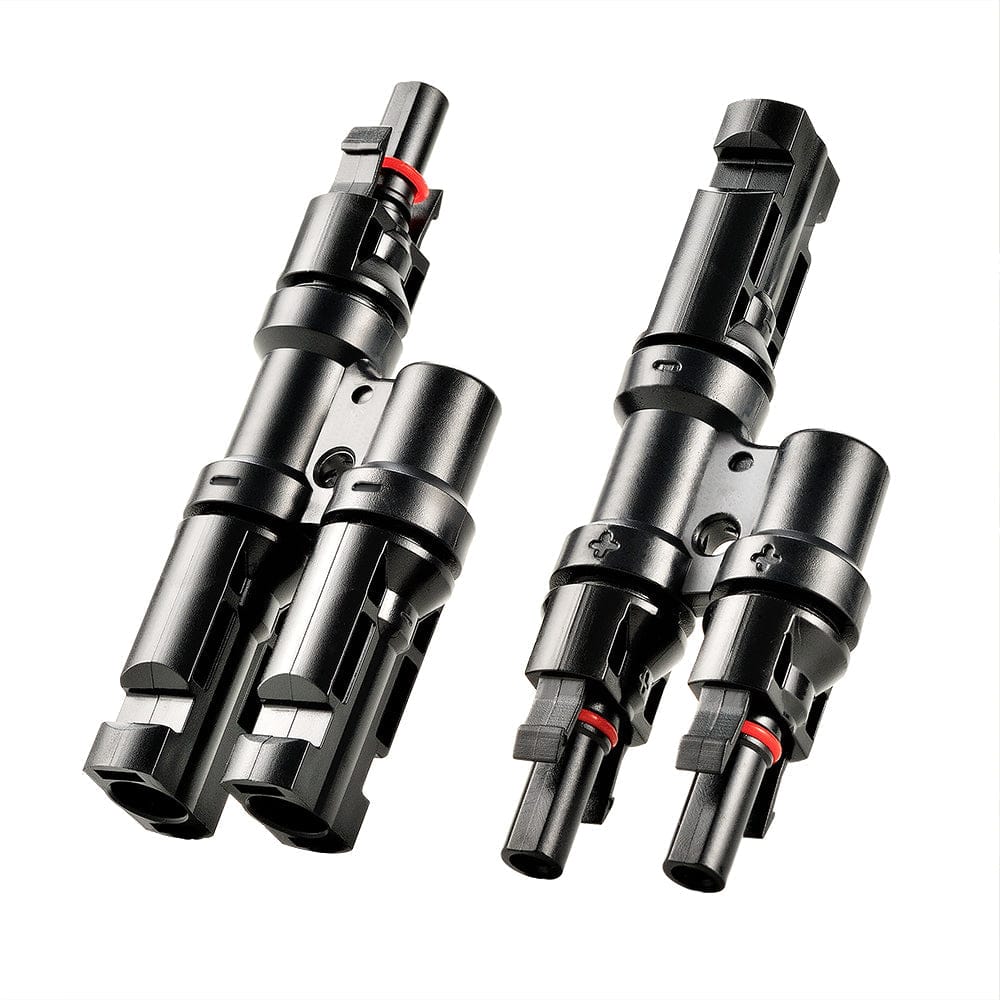

🗹 2 x Y Branch Parallel Connectors 2 to 1 (RS-T2)

🗹 2 x Busbar 600 AMP

How to Setup 6548 Hybrid Inverter in Split-Phase or Parallel Operations

When Not to Update the Firmware on the 6548 Hybrid Inverter

ALPHA 5 PRO | Overview, Unboxing, & Parallel Setup

Tech Specs

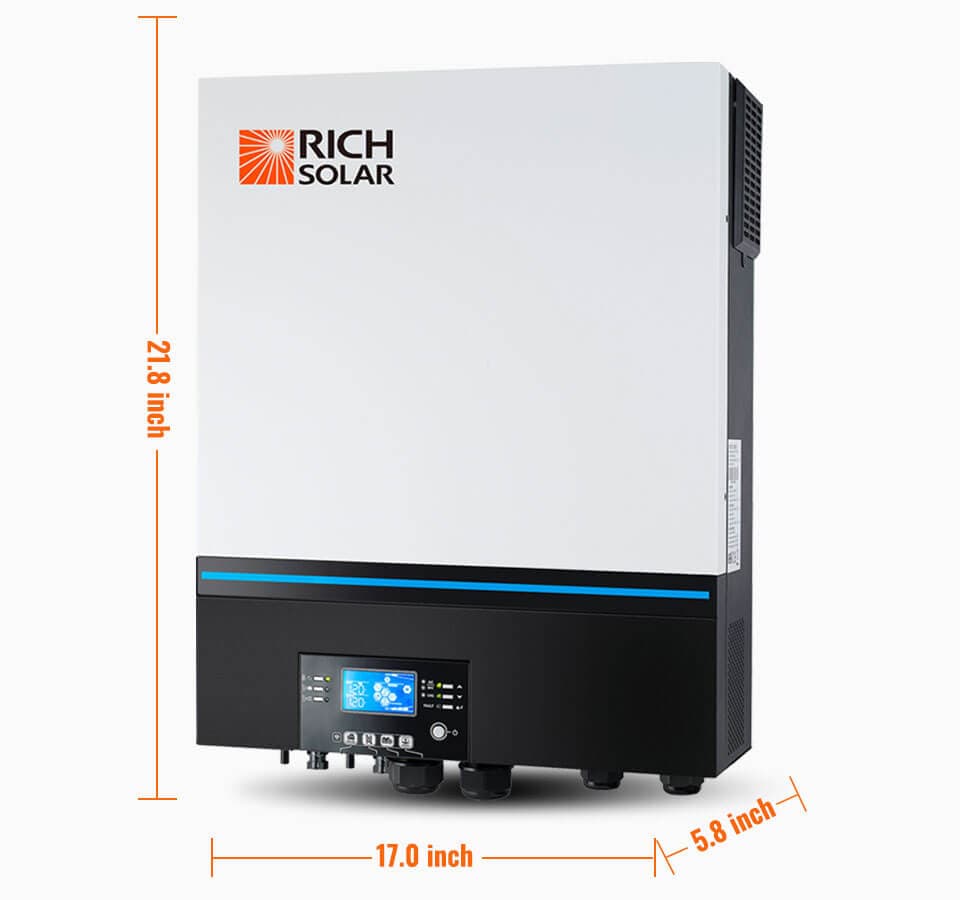

6500W 48V Off-Grid Hybrid Solar Inverter (RS-H6548)

• Rated Inverter Power: 6500VA/6500W
• Parallel Capability: Yes, 6 Units
• Input Voltage: 120 VAC
• Frequency Range: 50 Hz/60 Hz (Auto Sensing)
• Efficiency (Peak): 90% ~ 93%
• Waveform: Pure Sine Wave
• Battery Voltage: 48 VDC
• Solar Charger Type: MPPT
• Maximum PV Array Power: 8000W (4000W x 2)
• MPPT Operating Voltage Range: 90 ~ 230 VDC
• Maximum PV Array Open Circuit Voltage: 250 VDC
• Maximum Charge Current: 120A
• Dimension (DxWxH): 5.8 x 17.0 x 21.8 in
• Net Weight: 40.6 lb
• Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact
• Compliance Safety: UL
• Warranty: 5 Years

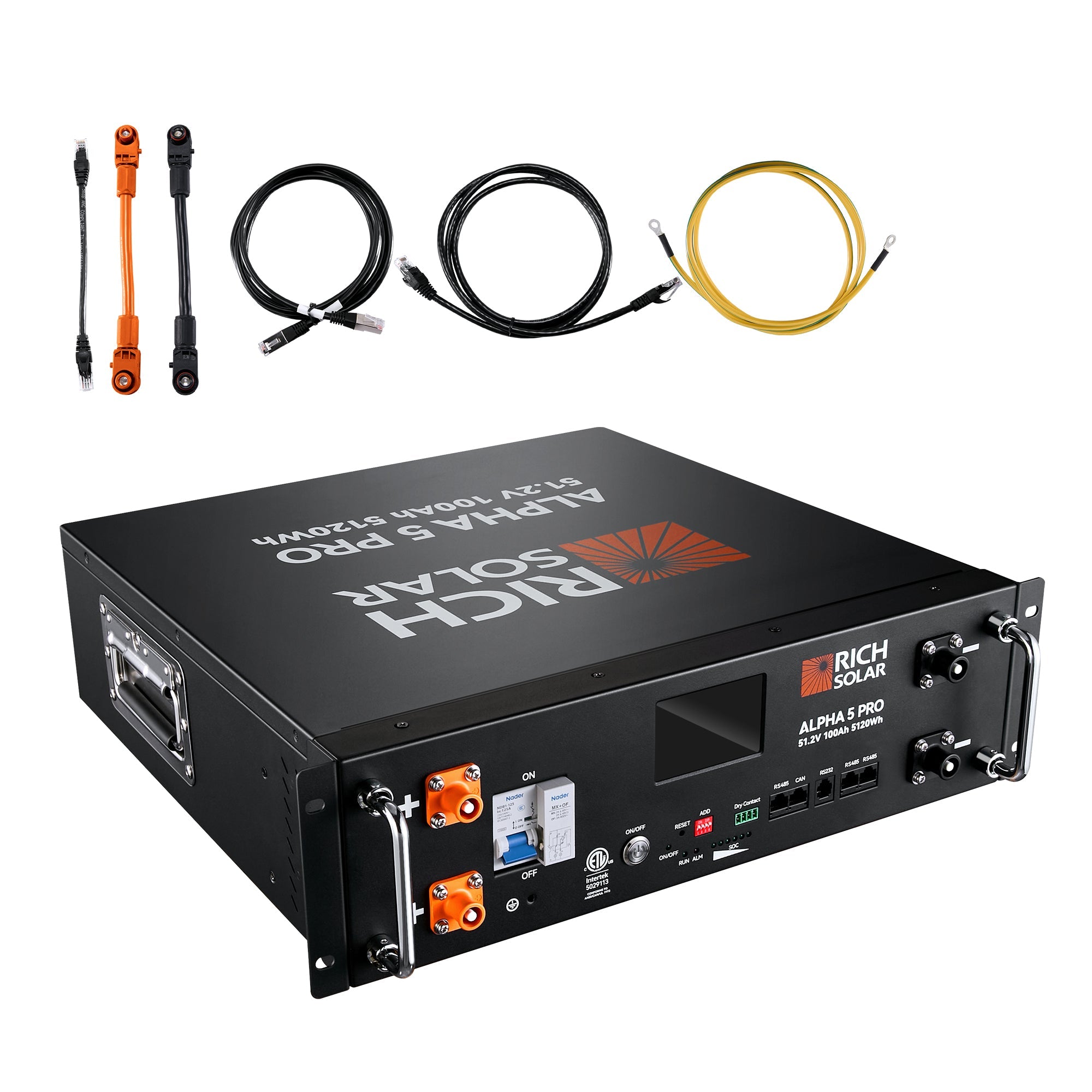

ALPHA 5 | 51.2V 100Ah Server Rack Lithium Iron Phosphate Battery (RS-B5121P1)

• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Expected Cycle Life: >7000 Cycles
• Energy: 5.12kWh
• Continuous Charge Current: 100A
• Continuous Discharge Current: 100A
• Waterproof: IP65
• Dimensions: 17.7″L x 17.8″W x 5.2″H
• Net Weight: 99.2 lb
• Warranty: 10 Years Manufacturer Defect

MEGA 410 Watt  Monocrystalline Solar Panel (RS-M410)

• Maximum Power(Pmax): 410W
• Maximum Power Voltage(Vmp): 31.3V
• Maximum Power Current(Imp): 13.1A
• Maximum System Voltage(Vmax): 1500VDC
• Module Efficiency: 20.97%
• Net Weight: 45.2 lb
• Dimensions: 67.9 x 44.6 x 1.2 in
• Warranty: 25 Years

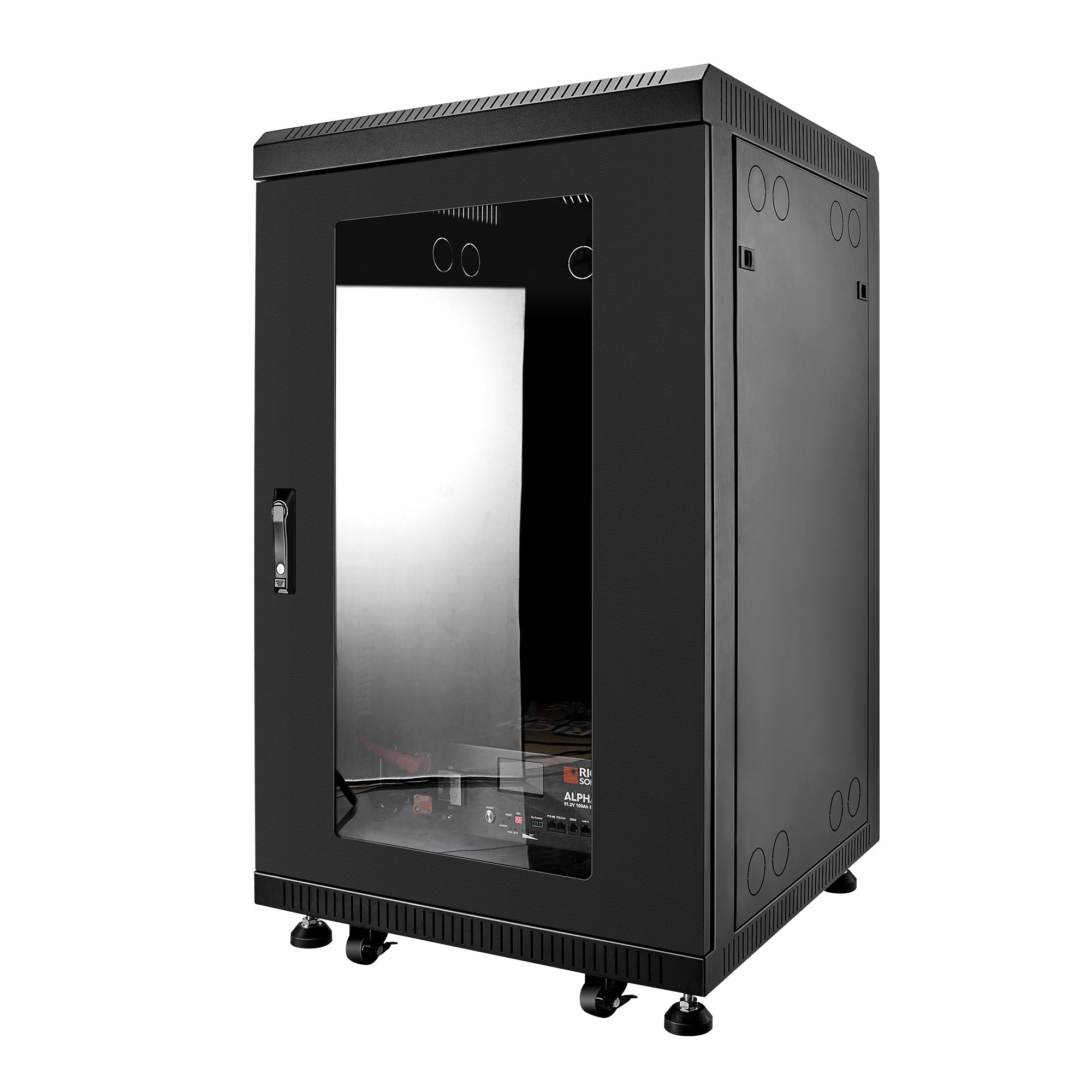

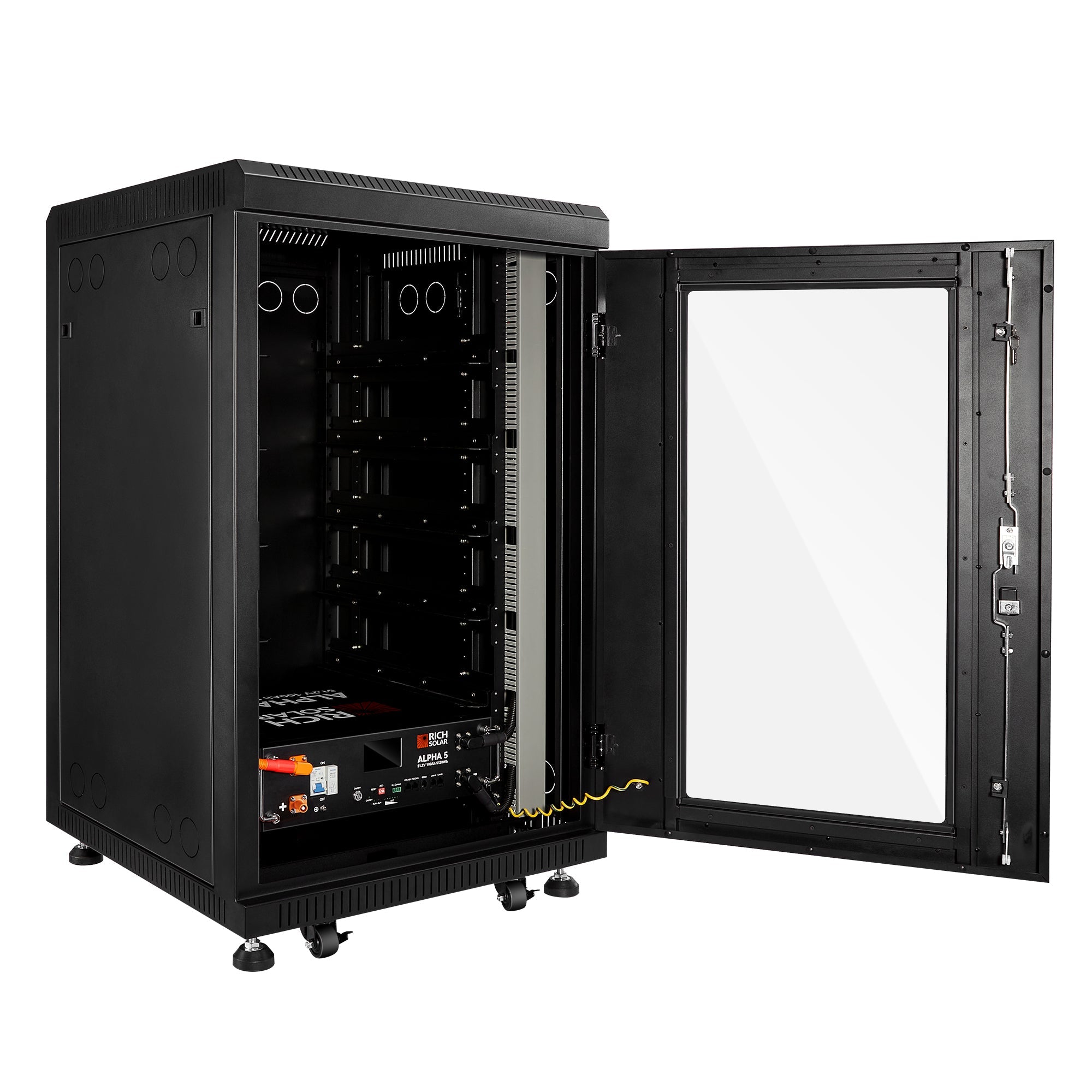

BATTERY SERVER RACK

• Dimensions (LxWxH): 27.6 x 27.6 x 44 in
• Net Weight: 196 lb

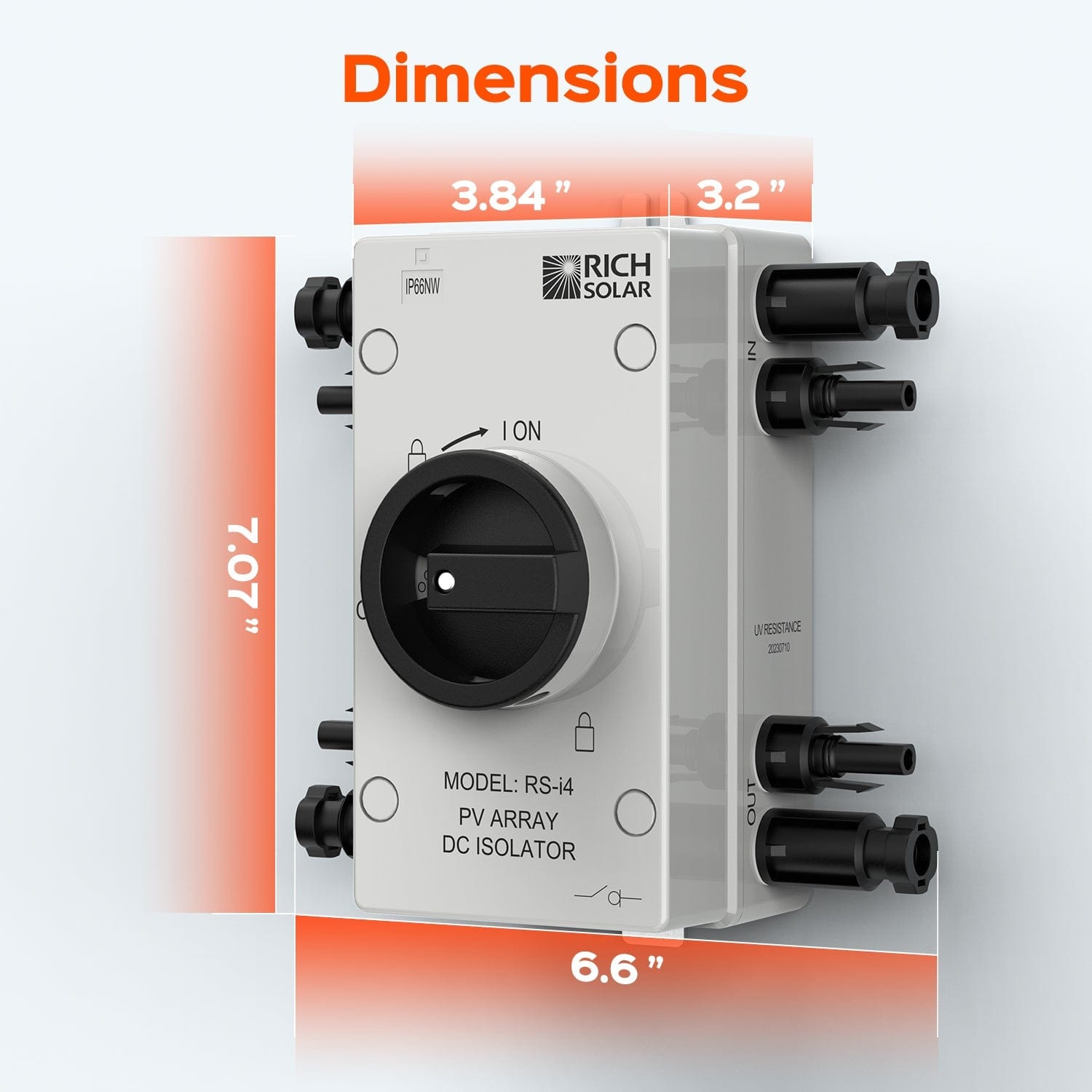

SOLAR PV DC Quick Disconnect Switch (RS-i4)

• 1500 Volts @ 32 Amps
• Waterproof: IP66NW

• Dimensions (HxWxD): 7.1 x 6.8 x 4.3 in
• Net Weight: 1.7lb
• Warranty:  10 Years
