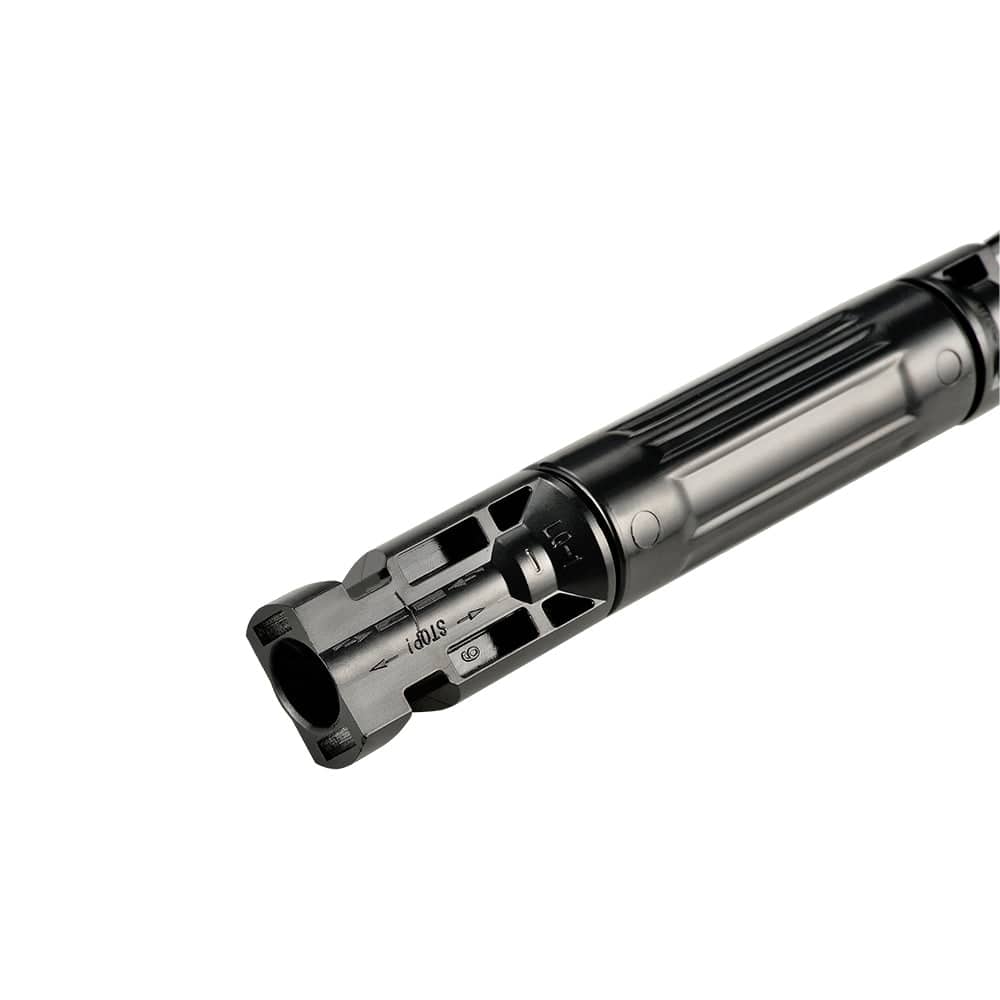

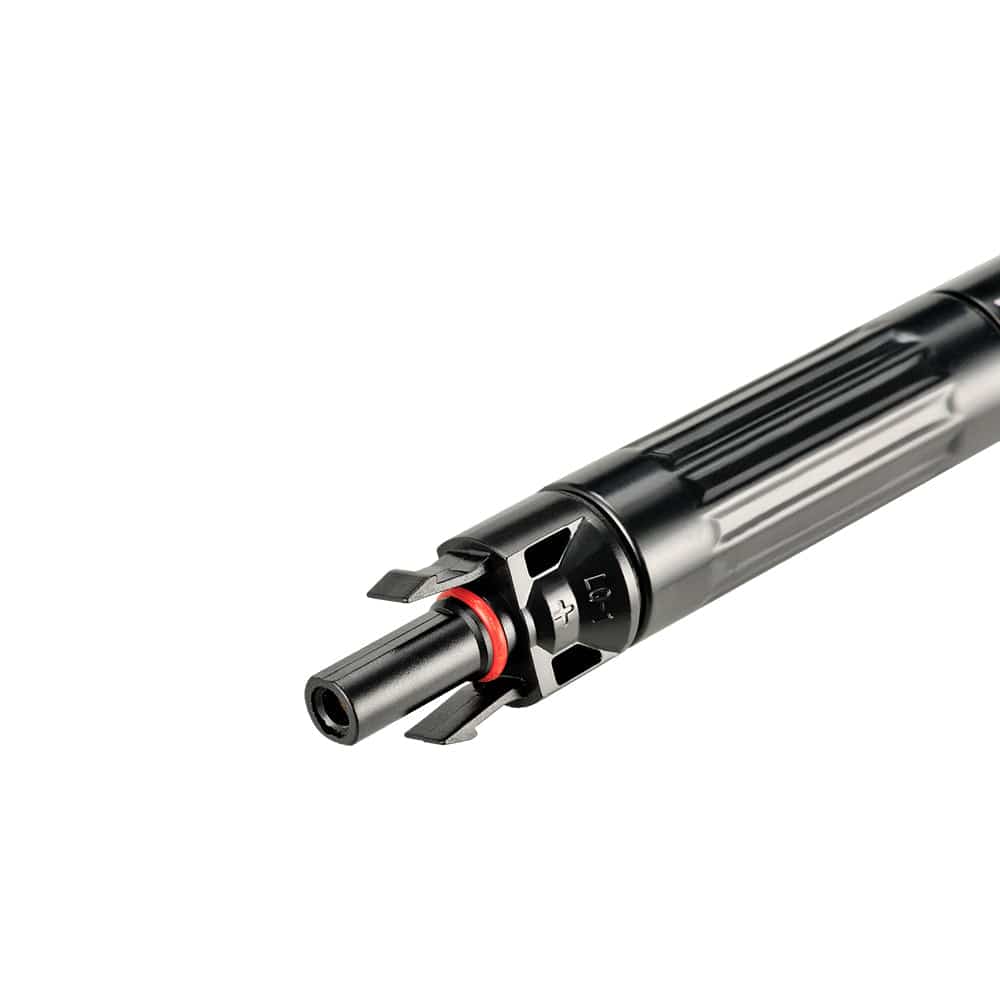

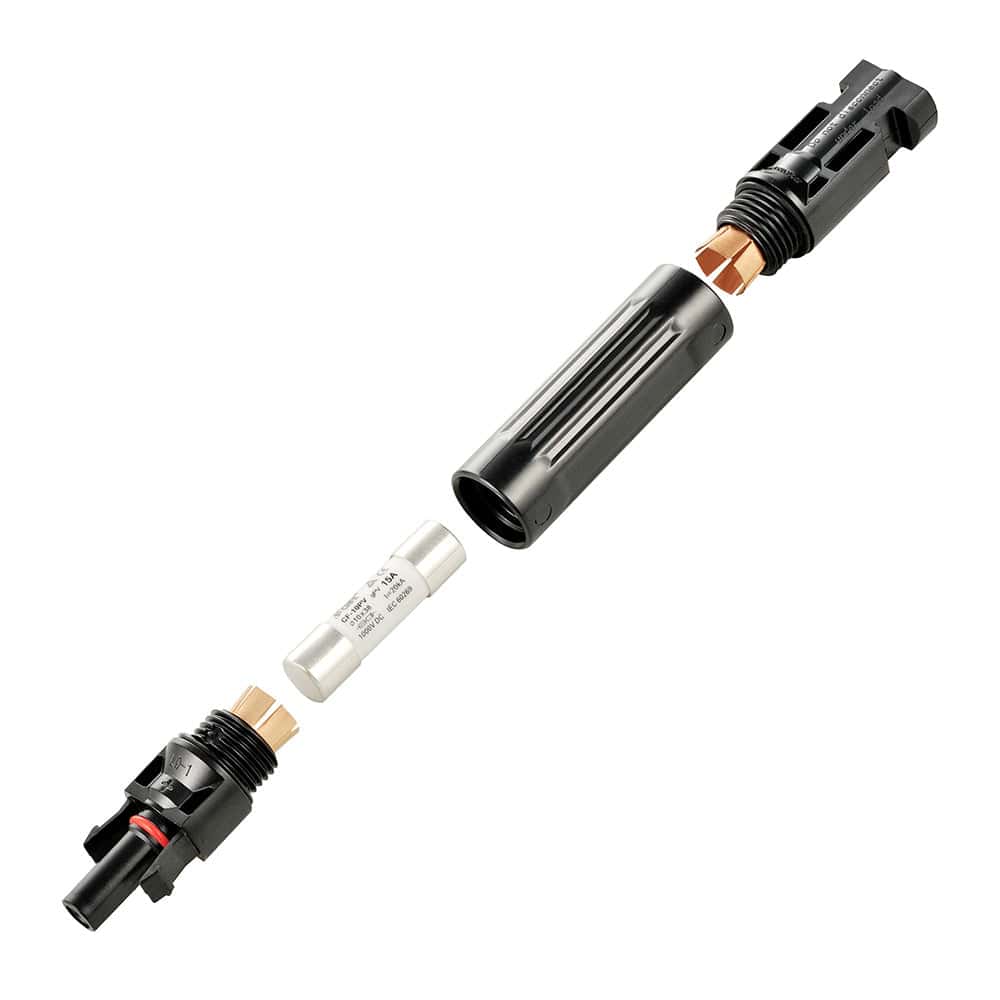

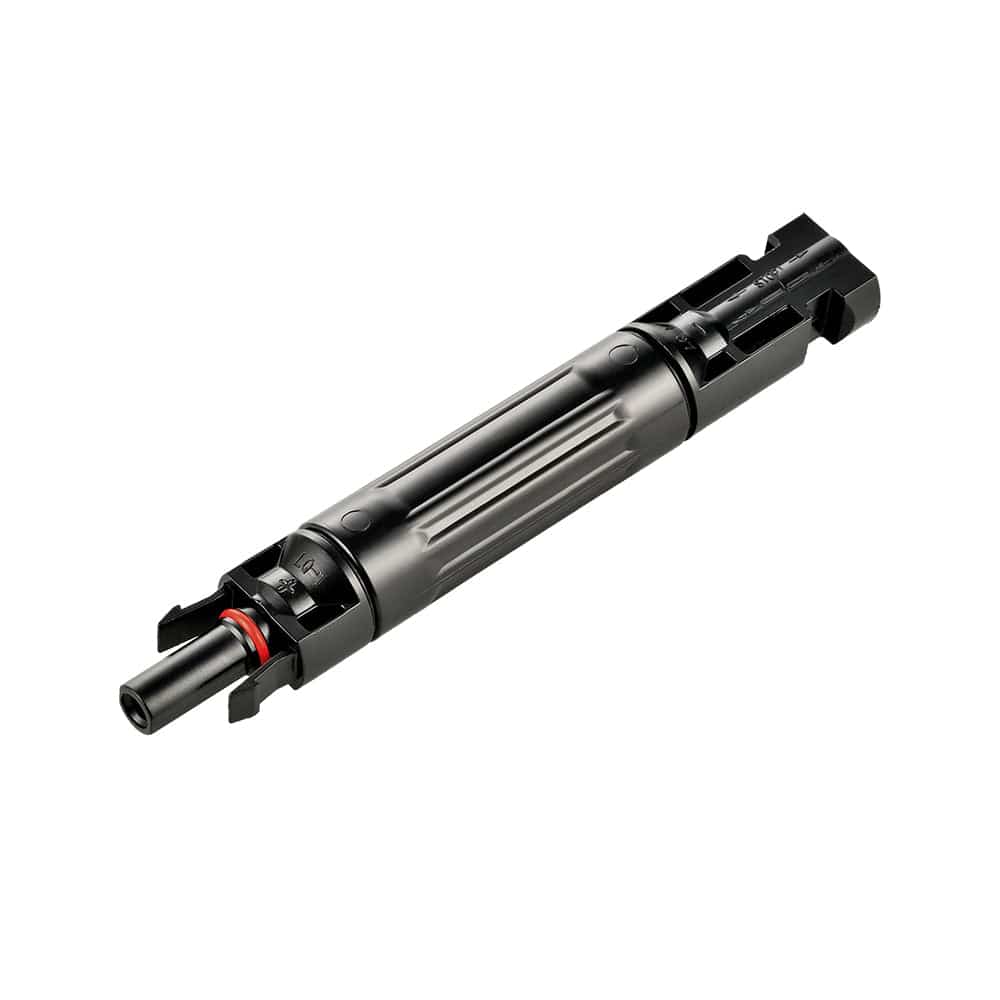

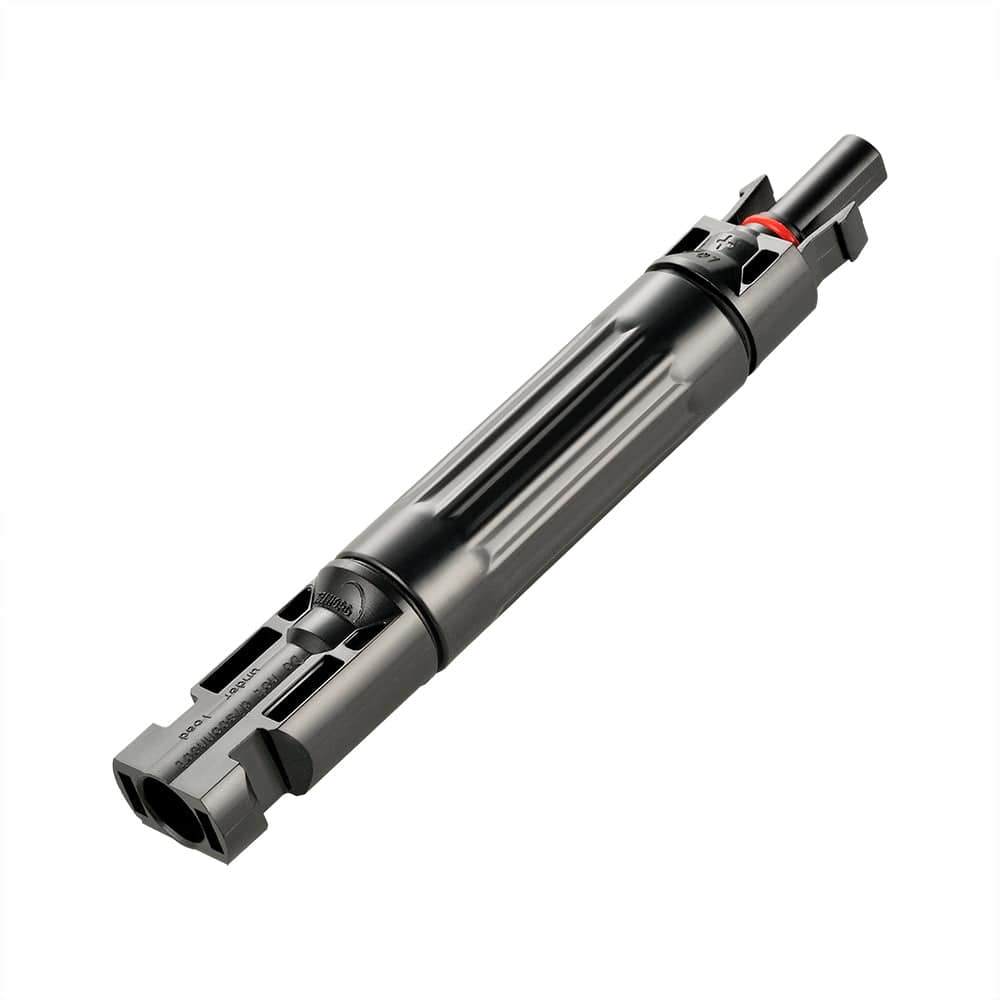

RICH SOLAR | Inline Fuse Holder | Waterproof Replacement Inline Fuse Holder | Choose Amp: 10A, 15A, 20A, 30A

BY: Rich Solar | SKU: RS-SC10F Availability: In Stock
$15.99

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

  • Authorized Rich Solar Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Features

  • Fuse Can Replace

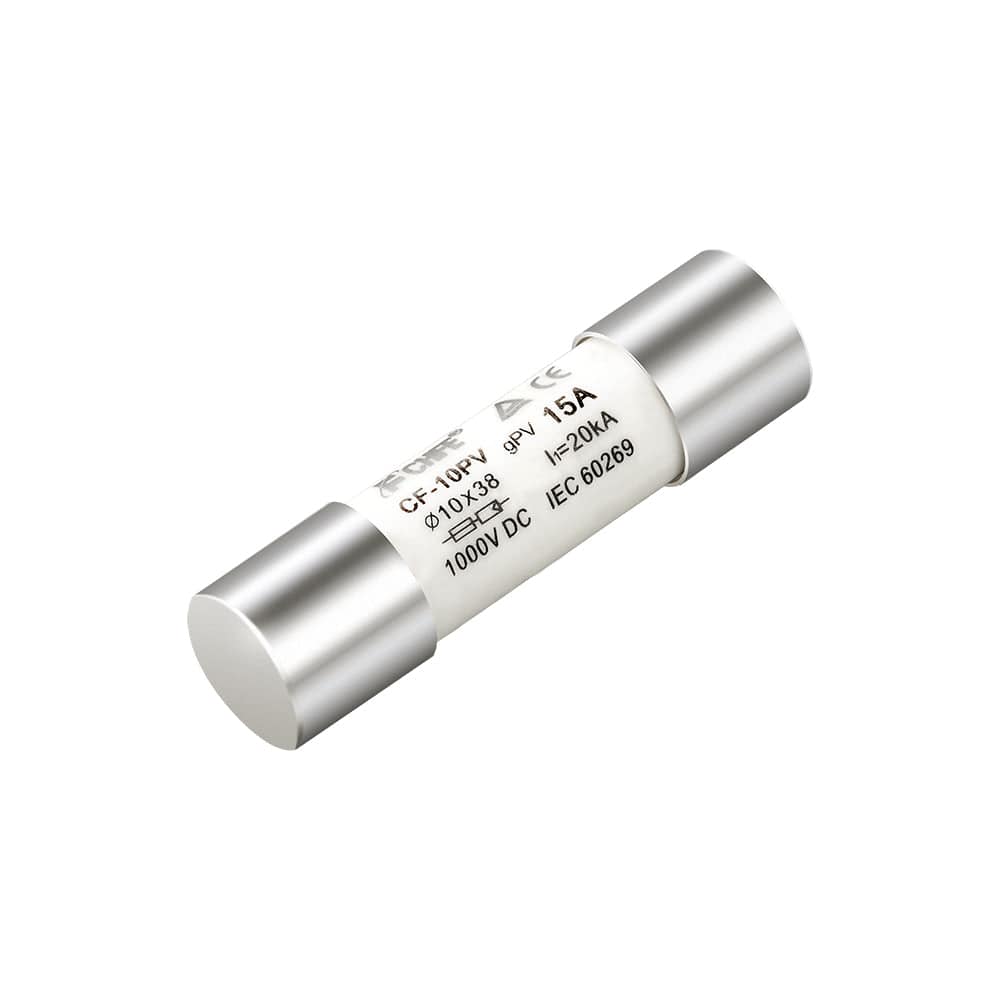

  • 10A/15A/20A/30A fuse embedded into a waterproof fuse holder, solar connector lead on each end.
  • Compatible with PV cables with different insulation diameters.
  • Designed for a wide range of DC applications.
  • Simple plug-and-play.
  • Auto-lock equipment of male and female points renders connections easy and reliable.
  • Waterproof fuse holder - IP67 Class Protection.
  • Insulation material PPO.
  • High current-carrying capacity.
  • Prevent large currents from damaging the solar panels.
  • Designed to provide complete single-circuit protection to your solar power array.
  • Protection Class II
  • Connector adopts touch and insertion of reed with inner-knob type.
  • Purchase this product for extra protection on your system.


Specifications

  • Rated Current: 10A/15A/20A/30A
  • Degree of Protection: IP2*/IP67
  • Rated Voltage: 1000 V DC
  • Flame Class: UL94-V0
  • Test Voltage: 6000V (50Hz,1 min)
  • Safety Class: II
  • Overvoltage Category: CATIII
  • Suitable Connector: Solar Connector
  • Contact Resistance of Plug Connector: 1mΩ
  • Insertion Force / Withdrawal Force: ≤50N / ≥50N
  • Contact Material: Copper, Silver Plated
  • Insulation Material: PPO
  • Temperature Range: -40 to +125°C
