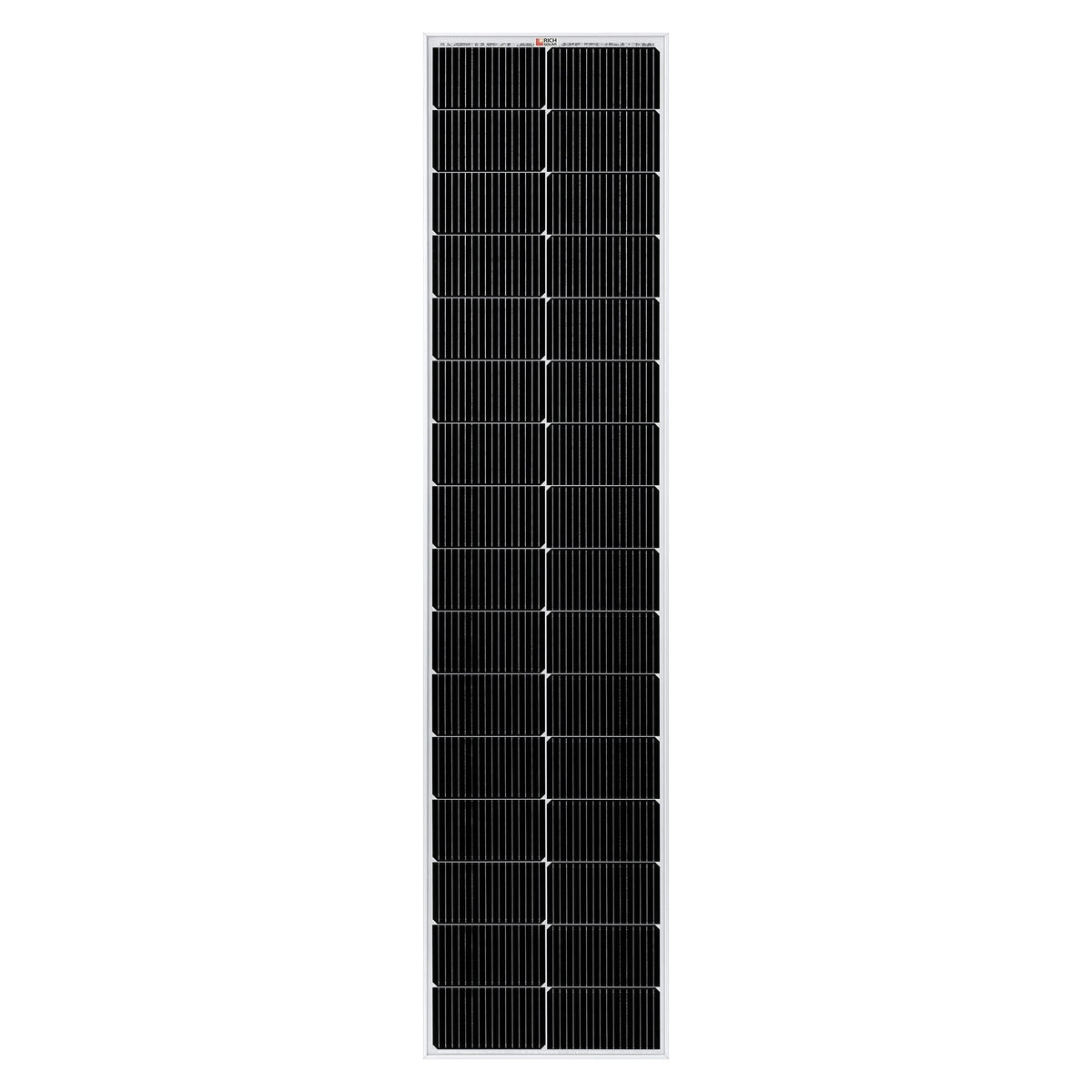

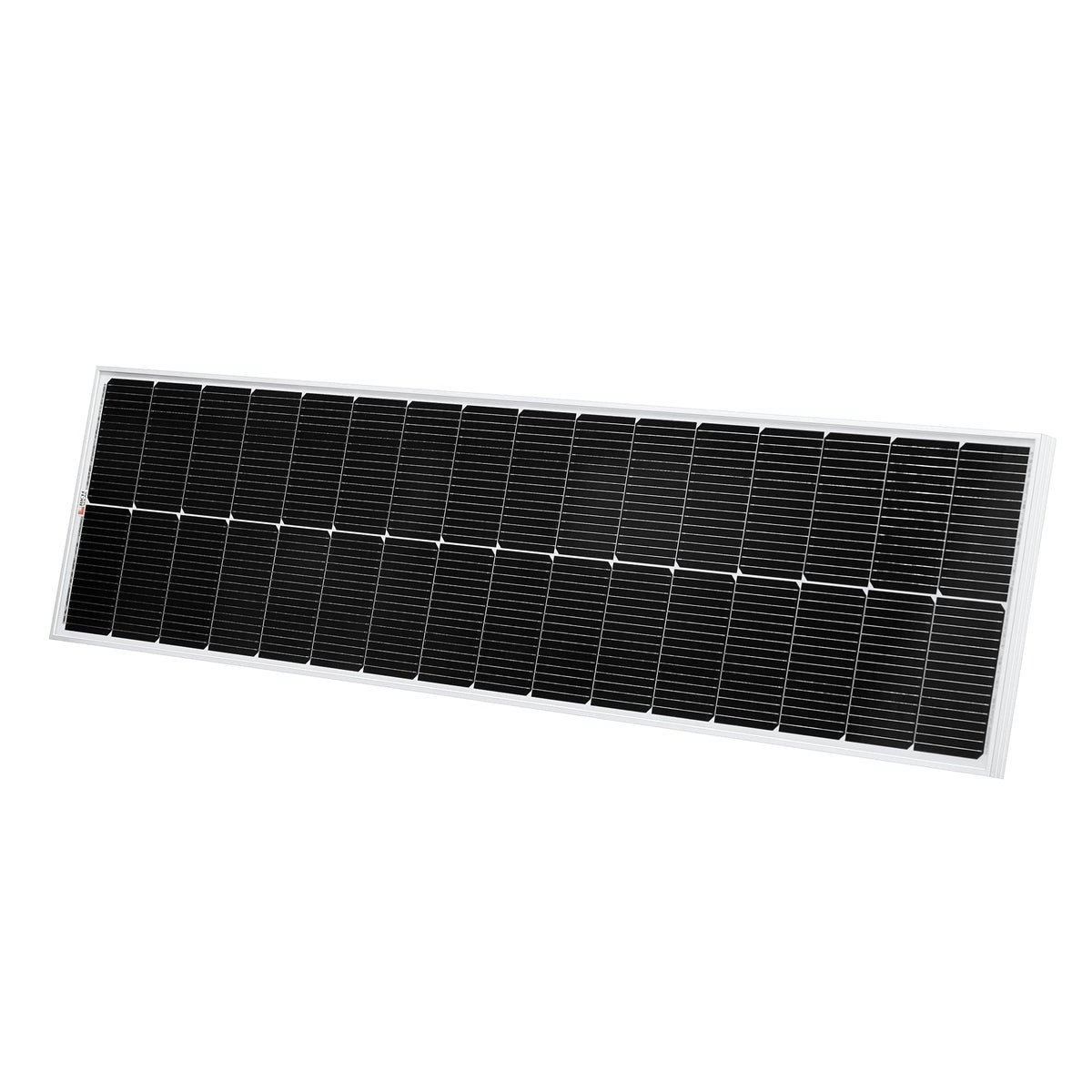

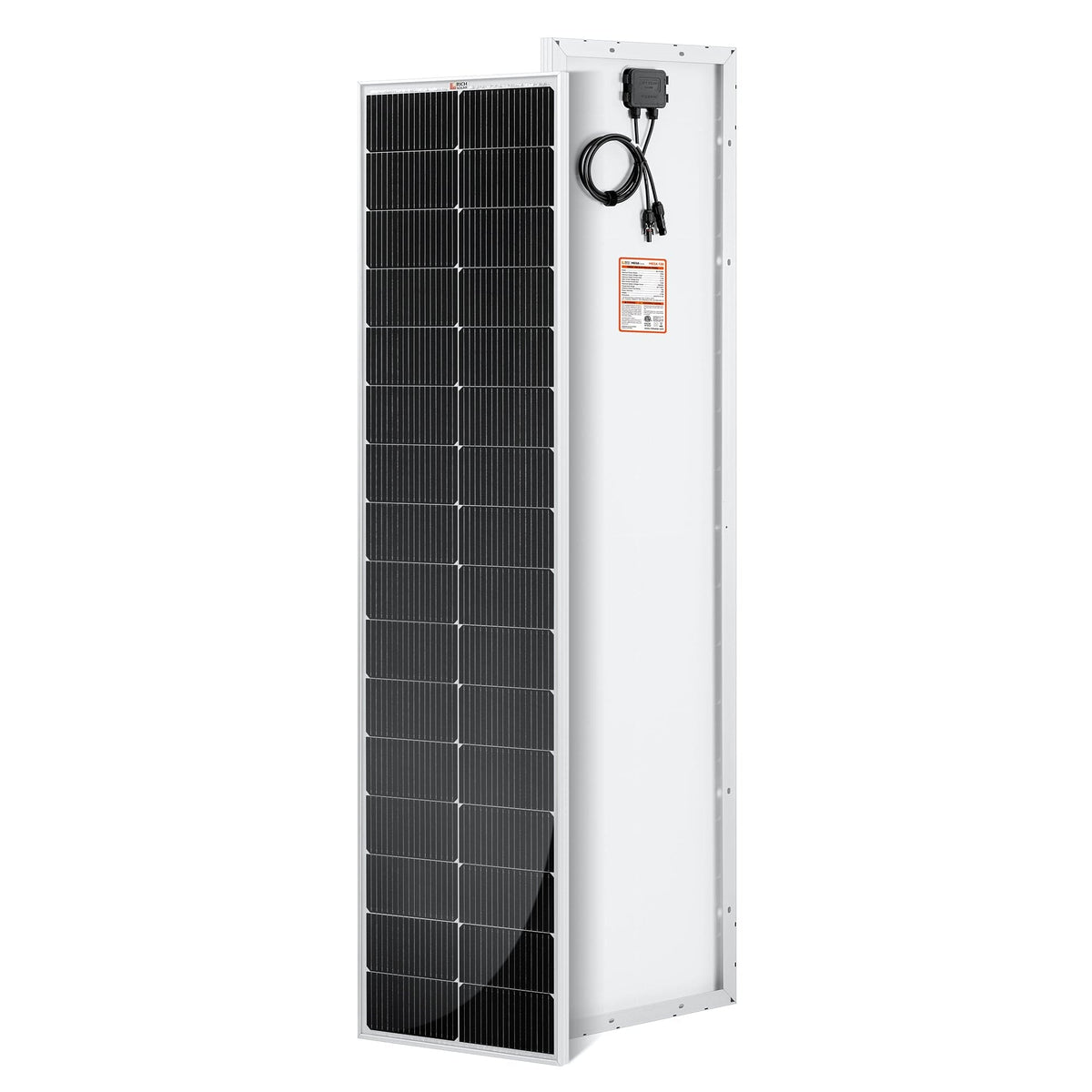

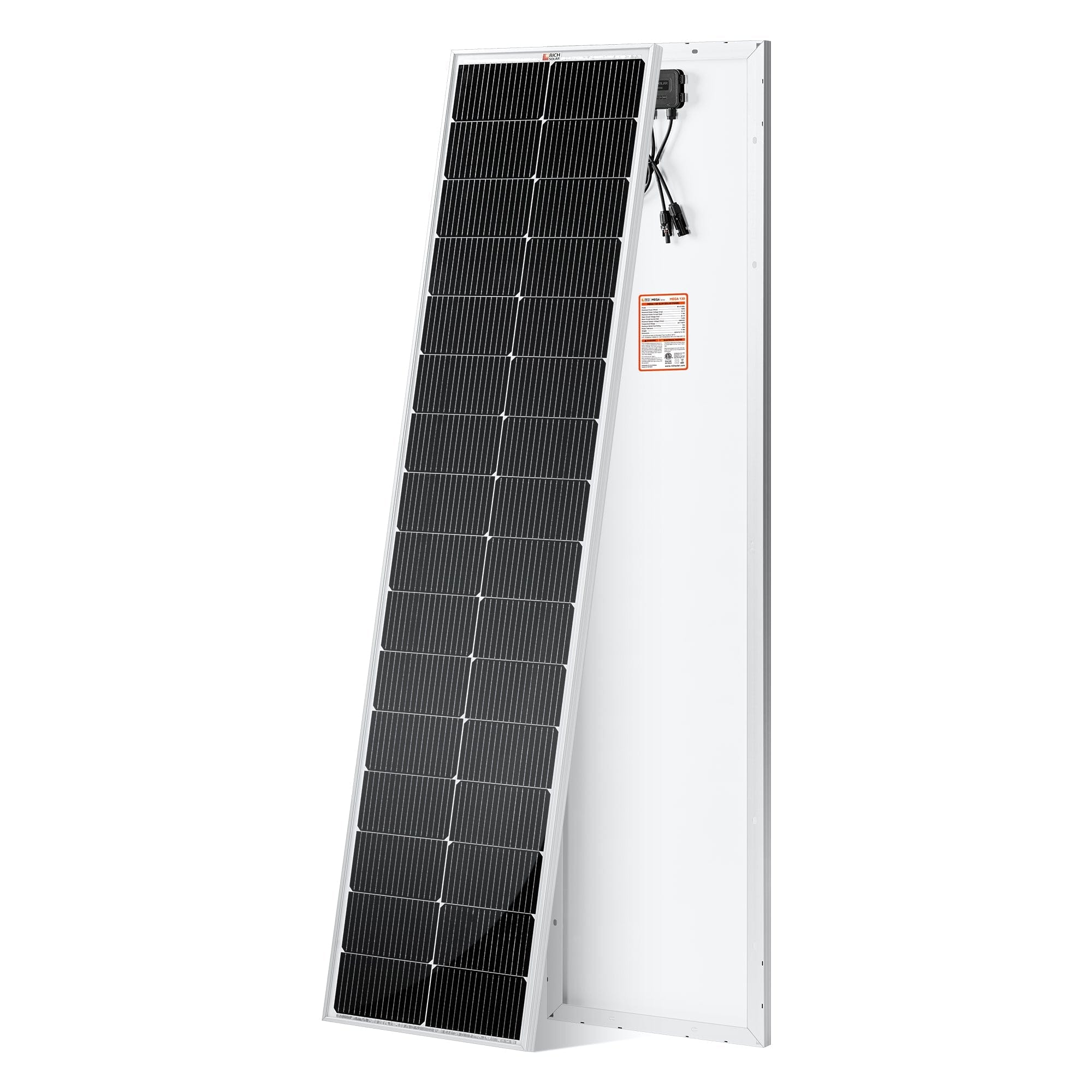

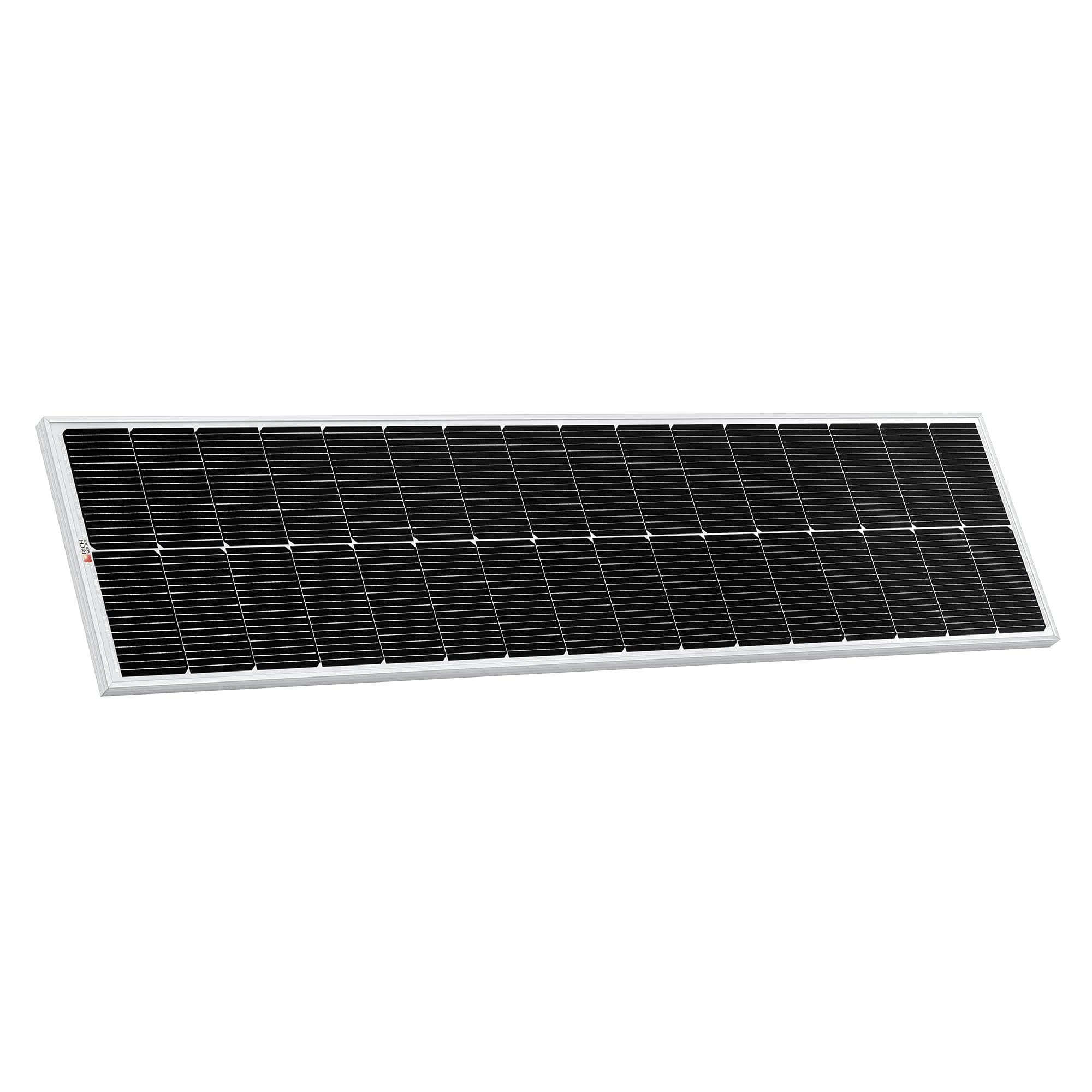

RICH SOLAR MEGA 130 SLIM 130 Watt Slim Solar Panel | Compact 12V Narrow Panel for Vans, Campers, Boats | UL Certified
The RICH SOLAR MEGA 130 SLIM is a compact, high-efficiency 12V solar panel designed for space-limited installations. Using N-Type TOPCon monocrystalline cells with up to 25.1% efficiency, this slim module delivers reliable 130W output in a lightweight and durable design. It’s ideal for RVs, boats, campers, and mobile power setups, ensuring consistent energy production even in low-light conditions.
RICH SOLAR MEGA 130 SLIM 130 Watt Slim Solar Panel Features
High-Efficiency Cells – 16-busbar N-Type TOPCon monocrystalline cells offer up to 25.1% efficiency for maximum energy capture.
Optimized 34-Cell Configuration – Provides a dependable 130W output, perfect for compact 12V systems.
Durable Construction – 3.2mm AR-coated tempered glass enhances light absorption and panel longevity.
Reliable Output – Power tolerance of 0 to +5W guarantees the rated output or better.
Low-Light Performance – Excellent results on cloudy days or during dawn/dusk conditions.
Extreme Weather Tested – Certified to withstand 2400 Pa wind and 5400 Pa snow load for rugged environments.
PID-Resistant Design – Double EL-inspected to prevent microcracks and maintain consistent performance.
Off-Grid Ready – Perfect for RVs, boats, mobile power setups, and remote systems.
RICH SOLAR MEGA 130 SLIM 130 Watt Slim Solar Panel Installation

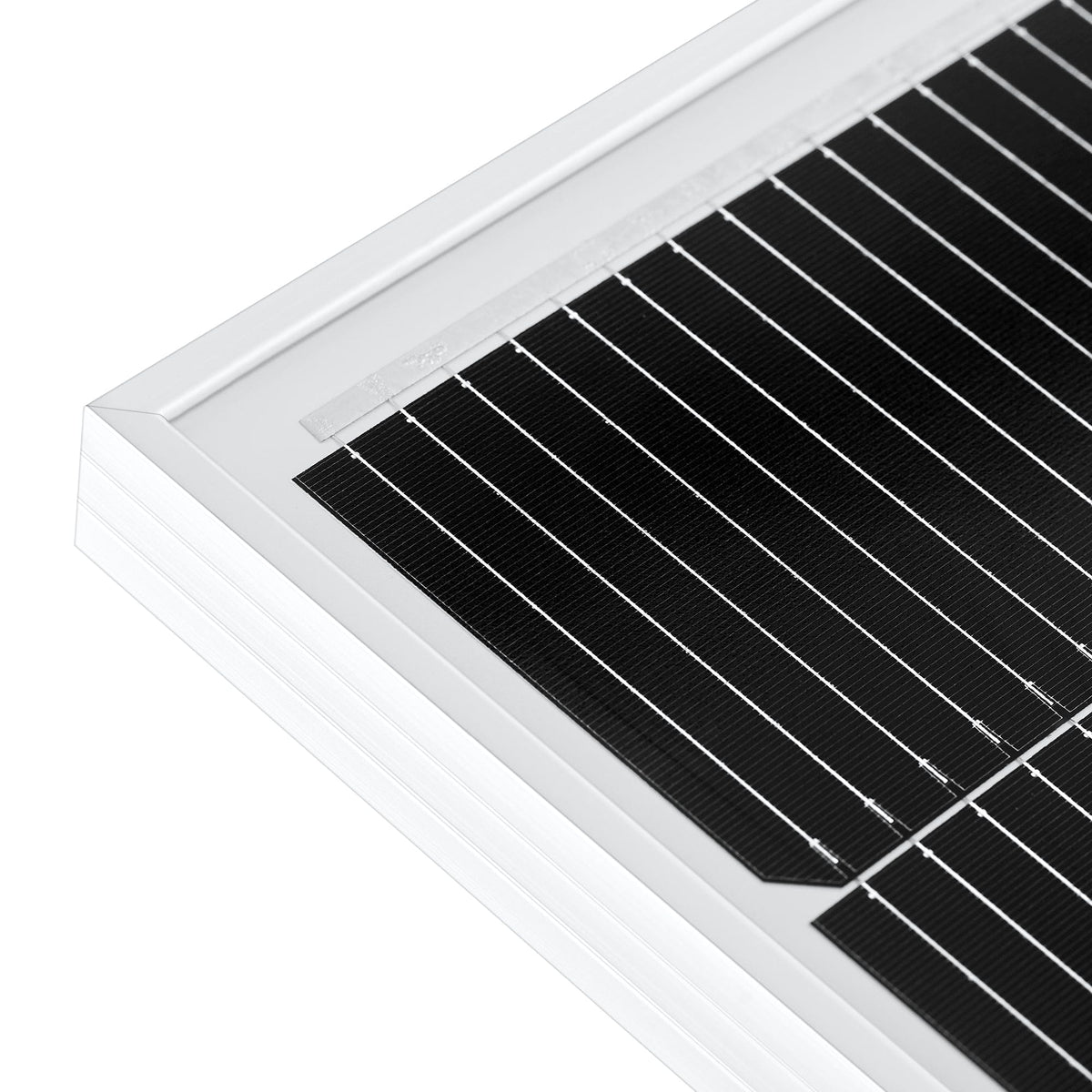

Strong Aluminum Frame – Lightweight, corrosion-resistant anodized frame for long-term outdoor use.
Pre-Drilled Mounting Holes – Includes 12 holes for easy installation on Z brackets, tilt mounts, poles, or ground systems.
Plug-and-Play Setup – Pre-attached 3 ft solar cables with connectors ensure quick connection.
System Compatibility – Works seamlessly with both on-grid and off-grid inverters.

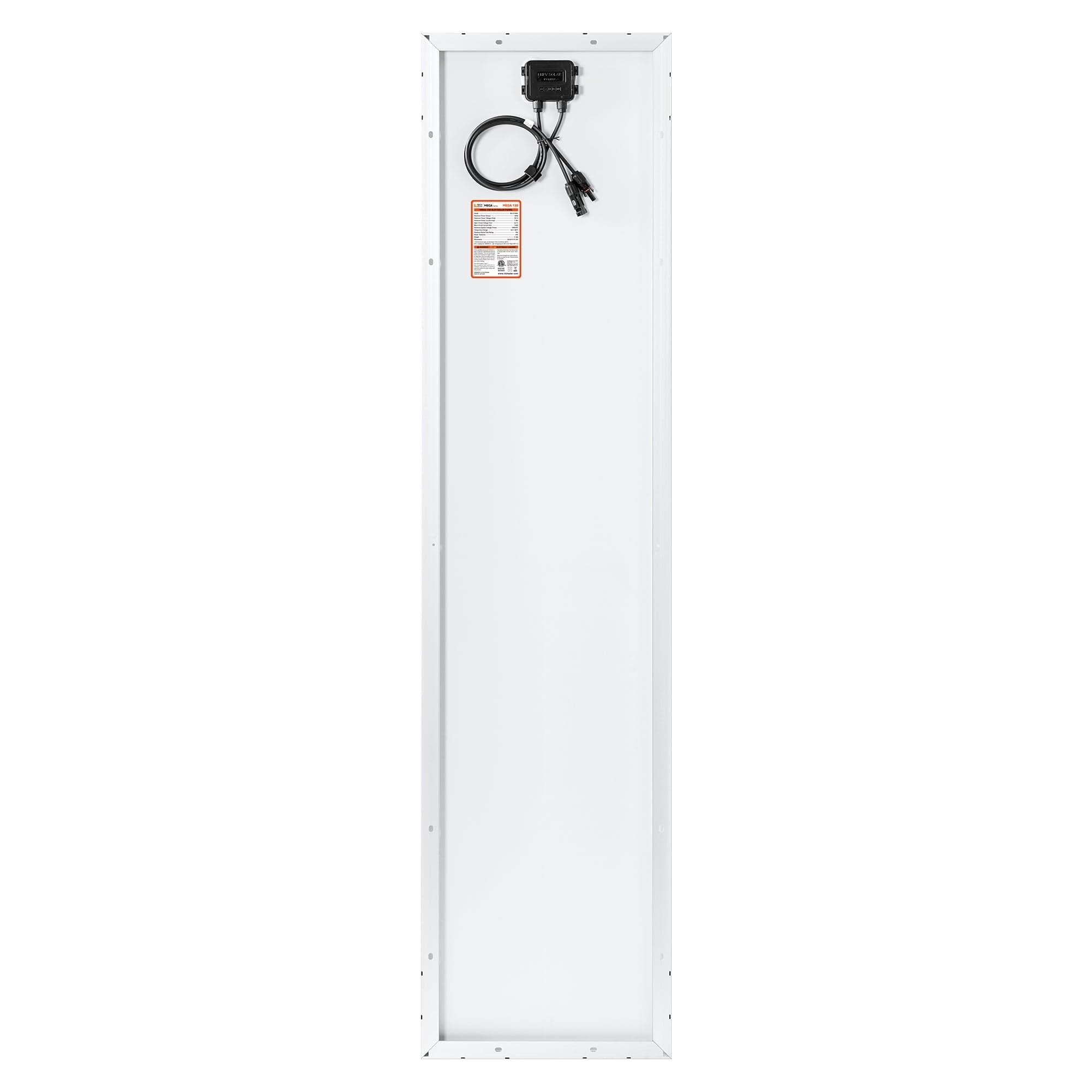

Built-in Components

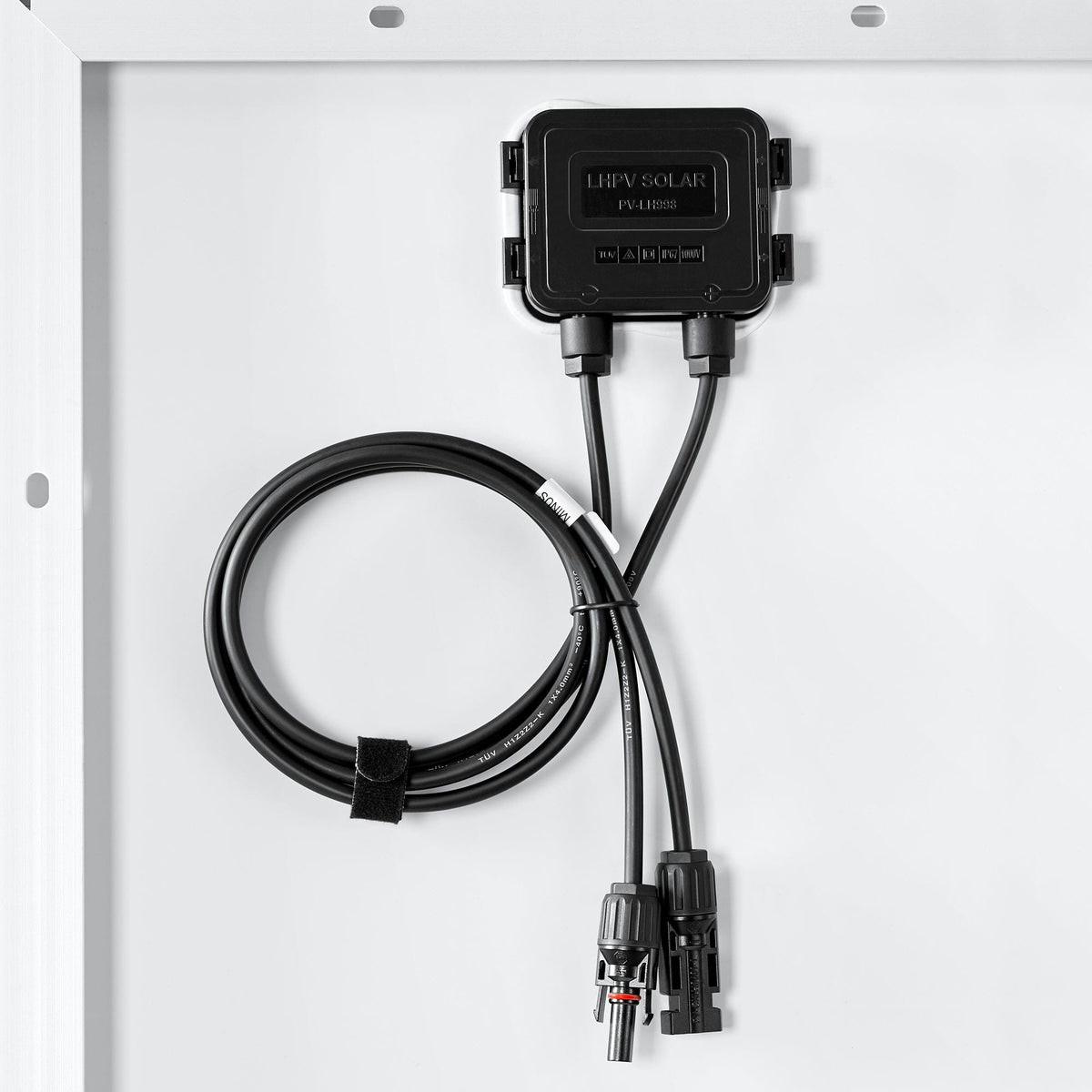

Panel Leads – Pair of 3 ft cables for fast connection.
Waterproof Junction Box – Rated IP67 for superior water and dust resistance.
Sealed Solar Connectors – IP67-rated connectors ensure secure, weatherproof links.
Integrated Bypass Diodes – Built into the junction box to minimize power drop during shading.
Warranty

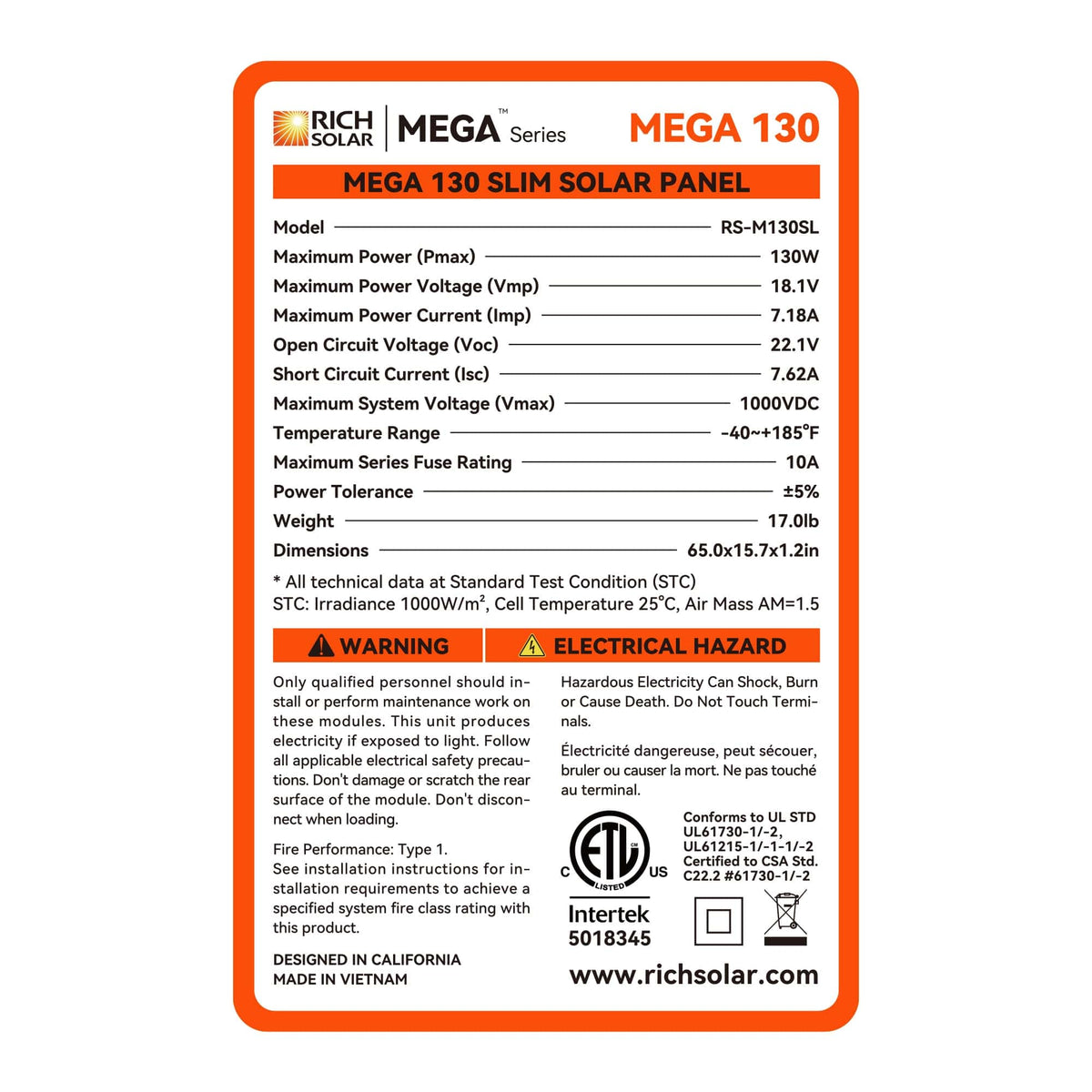

Specifications (H3)
| Specification |
Details |
| Model |
RS-M130SL |
| Maximum Power (Pmax) |
130W |
| Maximum Power Voltage (Vmp) |
19.6V |
| Maximum Power Current (Imp) |
6.63A |
| Open Circuit Voltage (Voc) |
23.6V |
| Short Circuit Current (Isc) |
6.92A |
| Maximum System Voltage (Vmax) |
1000V DC |
| Maximum Series Fuse Rating |
15A |
| Module Efficiency |
19.8% |
| Temperature Range |
-40°F to +185°F |
| Weight |
13.9 lb |

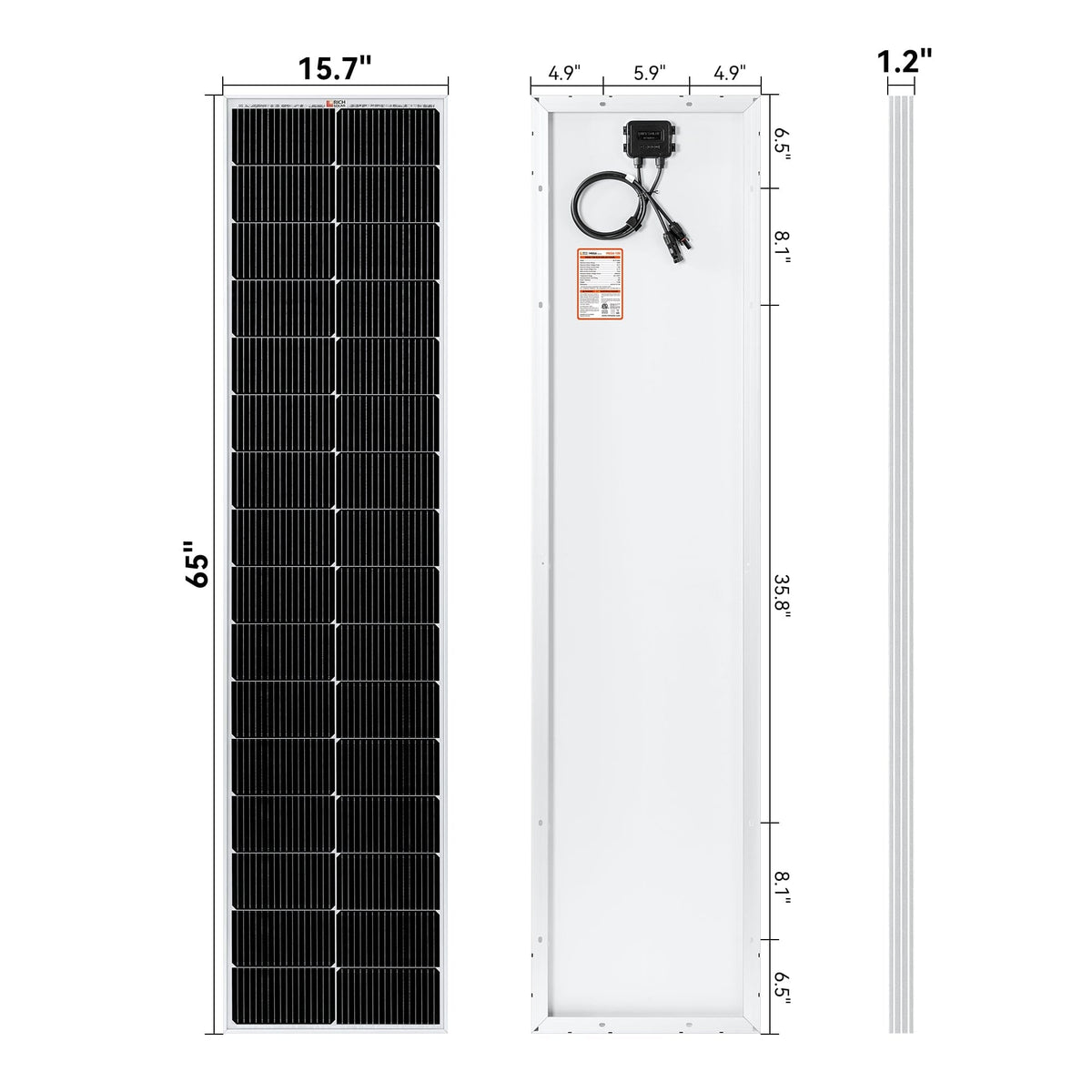

| Dimensions (L×W×H) |
65.0 × 15.8 × 1.2 in (1650 × 400 × 30 mm) |
RICH SOLAR MEGA 130 SLIM 130 Watt Slim Solar Panel Applications
-
RVs and Campers – Compact and lightweight for rooftop or portable installations.
-
Boats and Marine Use – Corrosion-resistant materials withstand salt and moisture.
-
Off-Grid Cabins – Reliable 130W generation for small-scale energy needs.
-
Mobile Power Systems – Perfect for backup and emergency use.
-
Ground Installations – Ideal for compact solar arrays.
Frequently-Asked Questions
Can the MEGA 130 SLIM panel be used in partial shade?
Yes, integrated bypass diodes reduce power loss caused by shading or debris.
Is this panel compatible with MPPT charge controllers?
Yes, it works efficiently with both MPPT and PWM charge controllers designed for 12V systems.
Can I connect multiple panels together?
Yes, you can wire panels in series or parallel to increase voltage or amperage output as needed.
Is it suitable for marine applications?
Yes, its corrosion-resistant aluminum frame and IP67 waterproof junction box make it ideal for marine and coastal use.
Does the panel require maintenance?
Minimal maintenance is needed — just clean the glass surface periodically to maintain optimal sunlight absorption.
