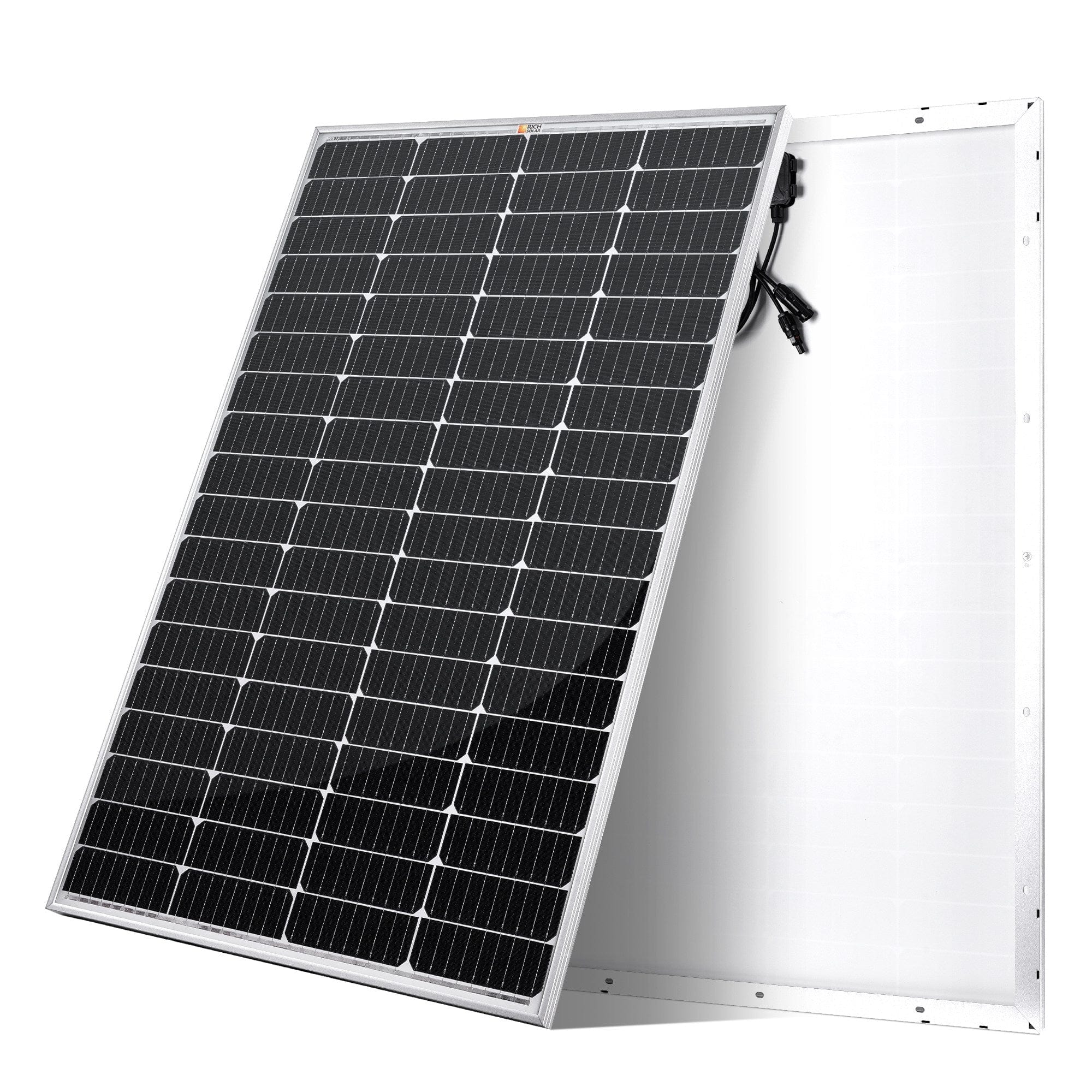

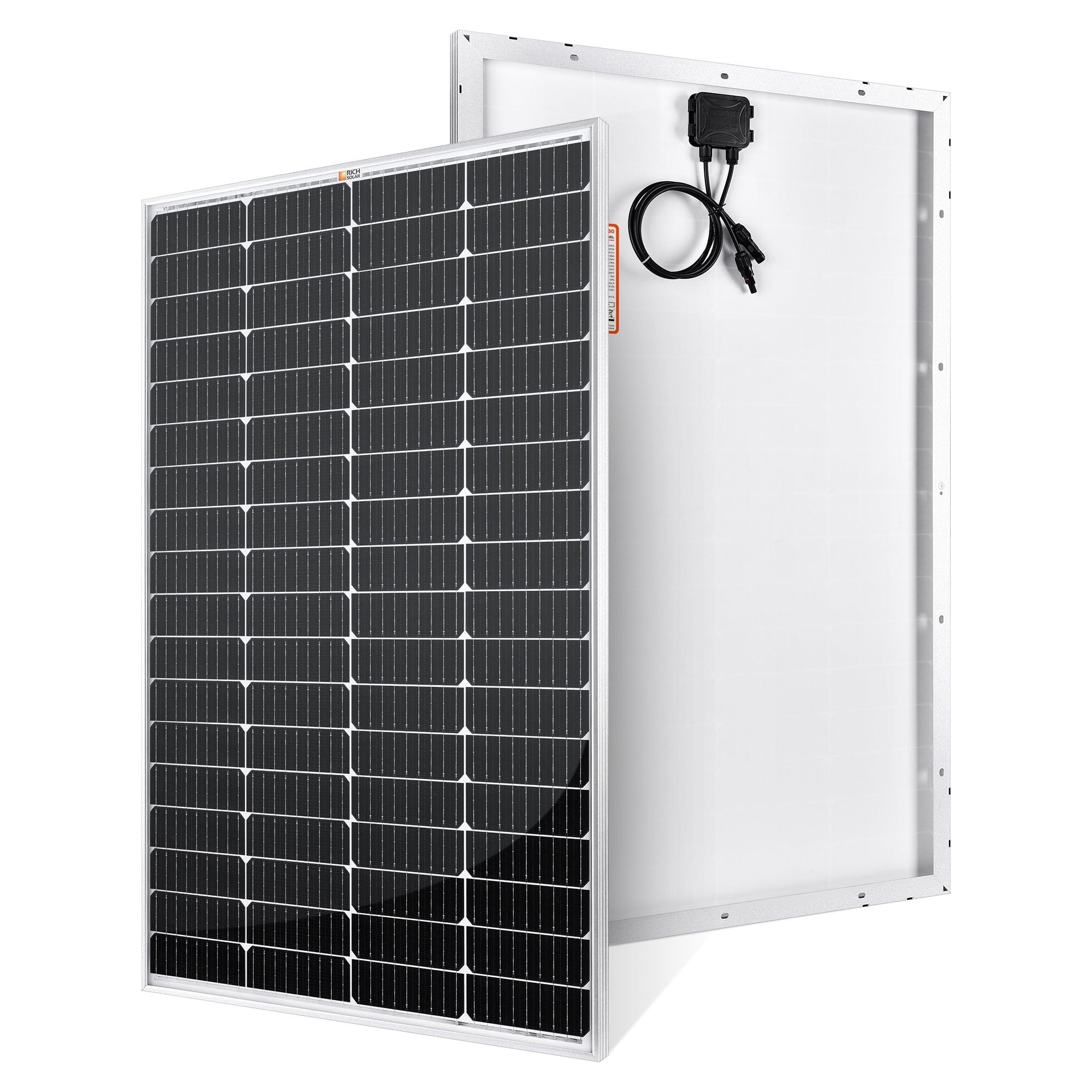

RICH SOLAR | MEGA 150 | 150 Watt Solar Panel | Lightweight 12V Off-Grid Solar Panel for RVs, Cabins, Boats | 25-Year Output Warranty | UL Certified

Combining high efficiency and a compact design, the MEGA 150 solar panel provides optimized solar energy for any off-grid application. Built with lightweight aluminum anodized frames and a 9-busbar solar cell configuration for durability and high efficiency for optimized performance.

Features

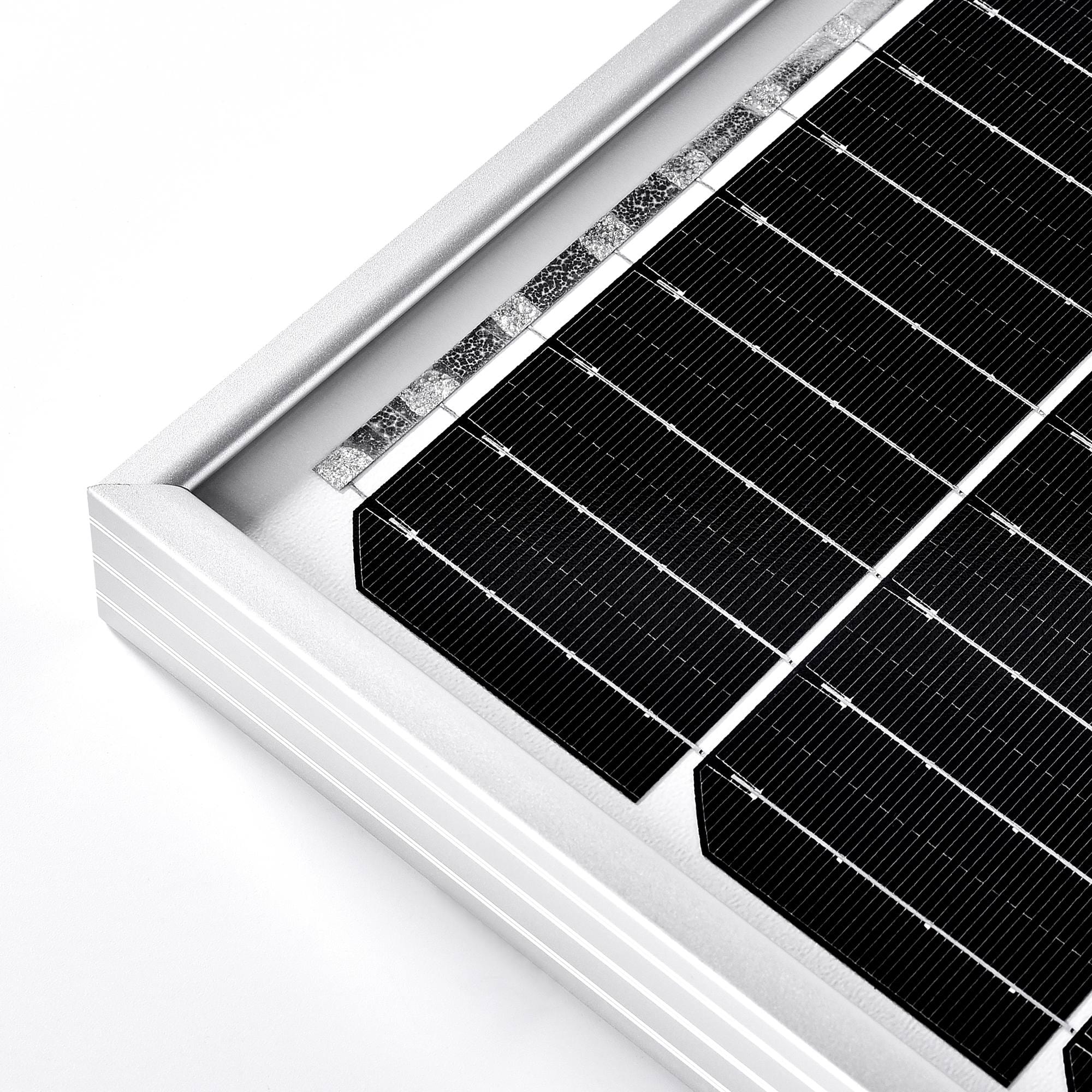

• 9 busbar solar cell configuration
• Lightweight anodized aluminum frame
• High Transmission, AR (anti-reflective) Coated Tempered Glass
• Plug-and-play junction box

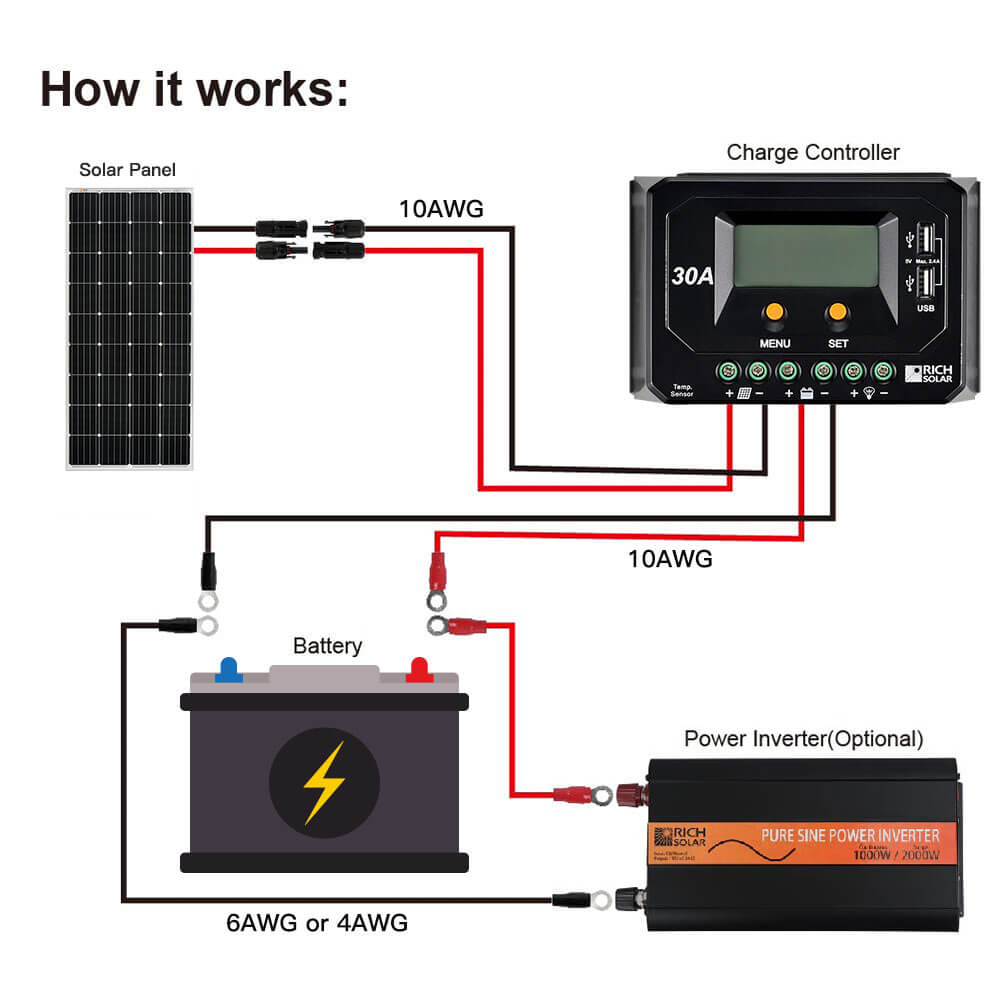

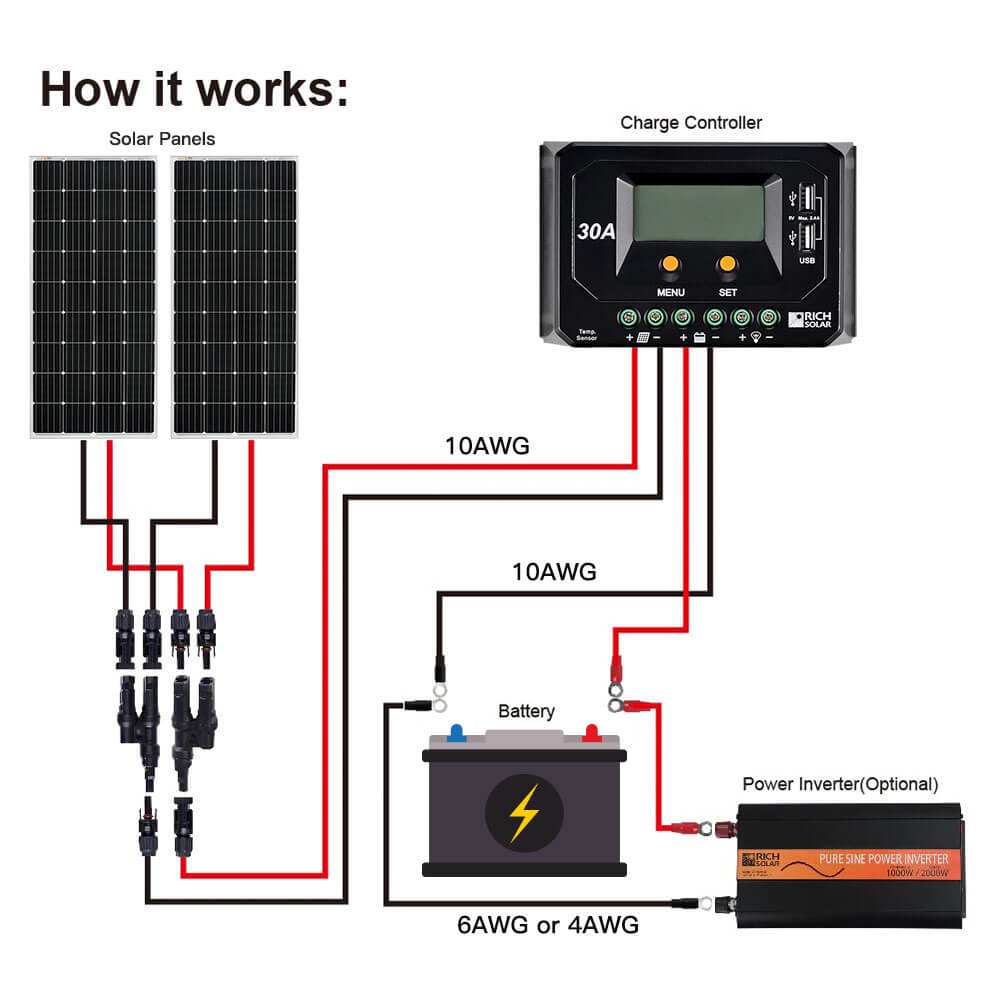

• Industry-standard quick-connect cables work in series or parallel
• Certified to withstand challenging environmental conditions
• Excellent low-light performance on cloudy days, mornings, and evenings

Installation

• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
• Compatible with on-grid and off-grid inverters

Built-in Components

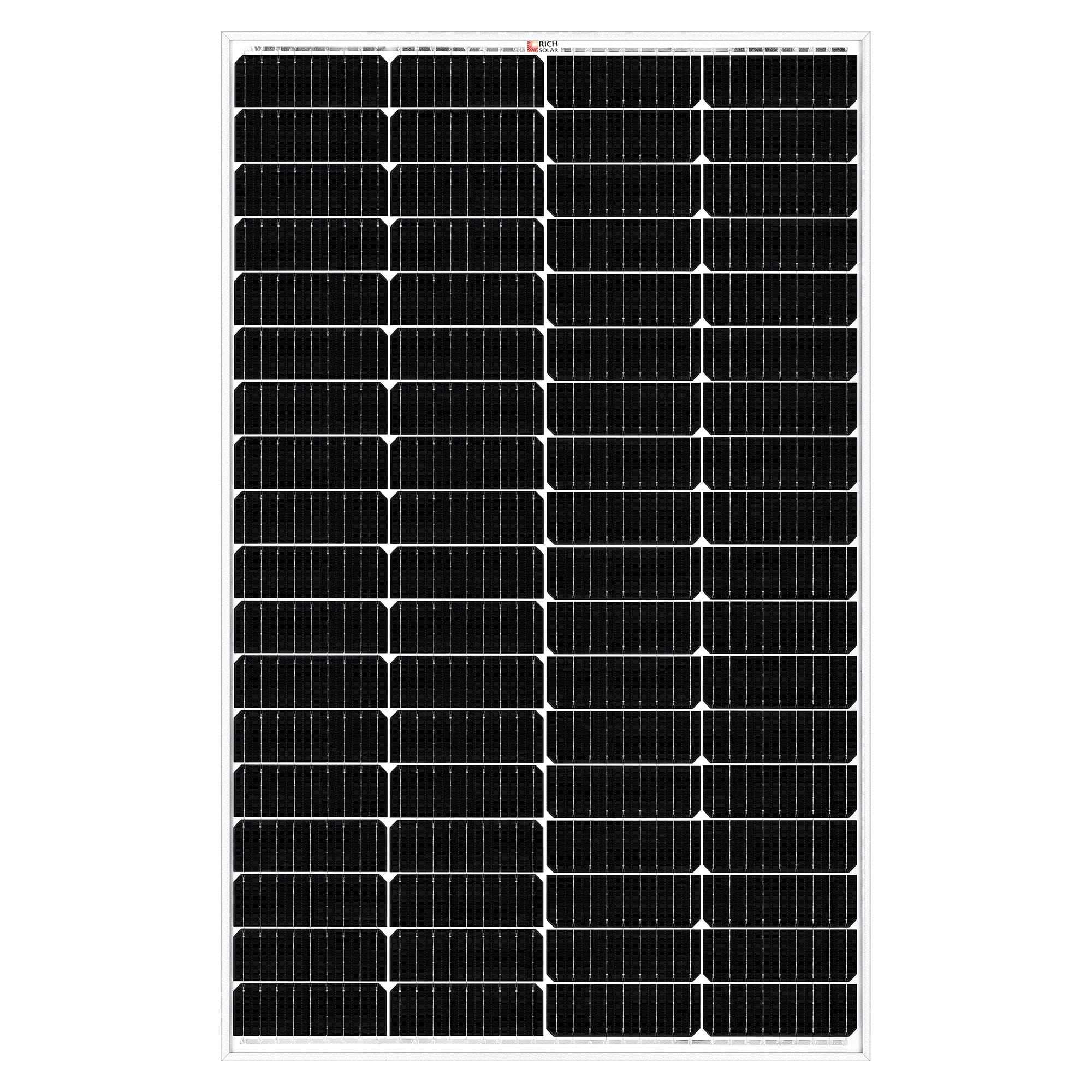

• RICH SOLAR 150-watt monocrystalline solar panel
• Panel leads (pair): 3 feet each

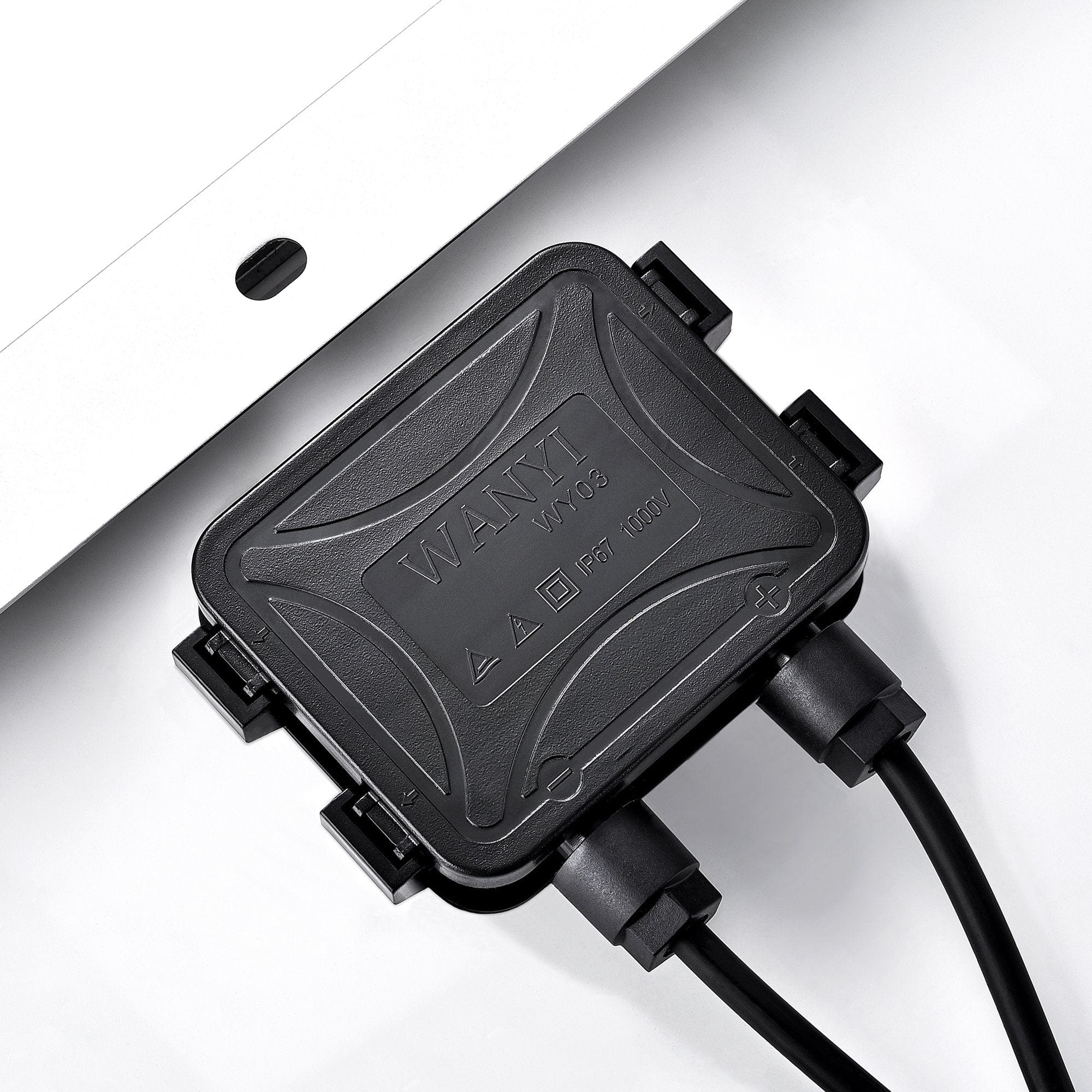

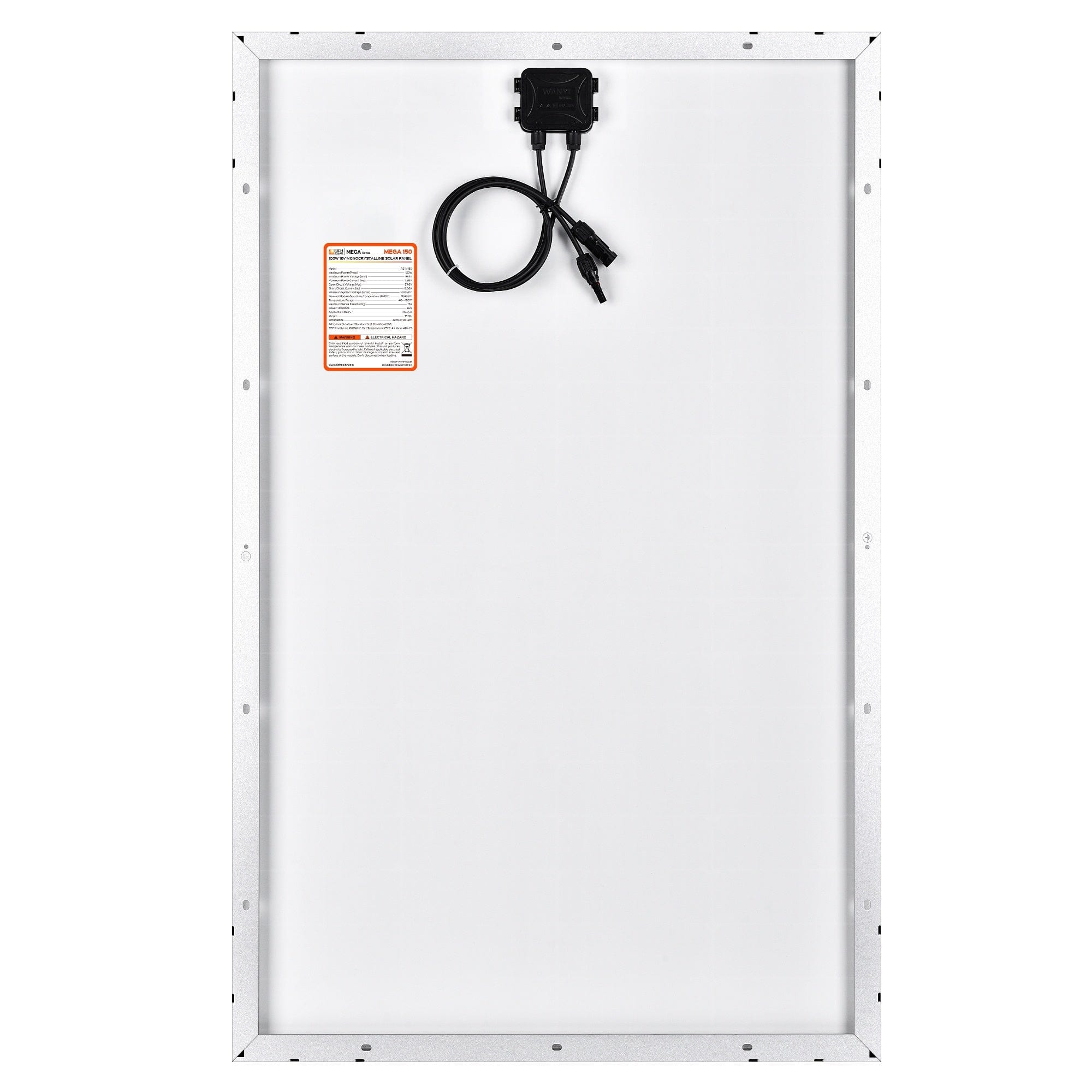

• IP67-rated waterproof junction box

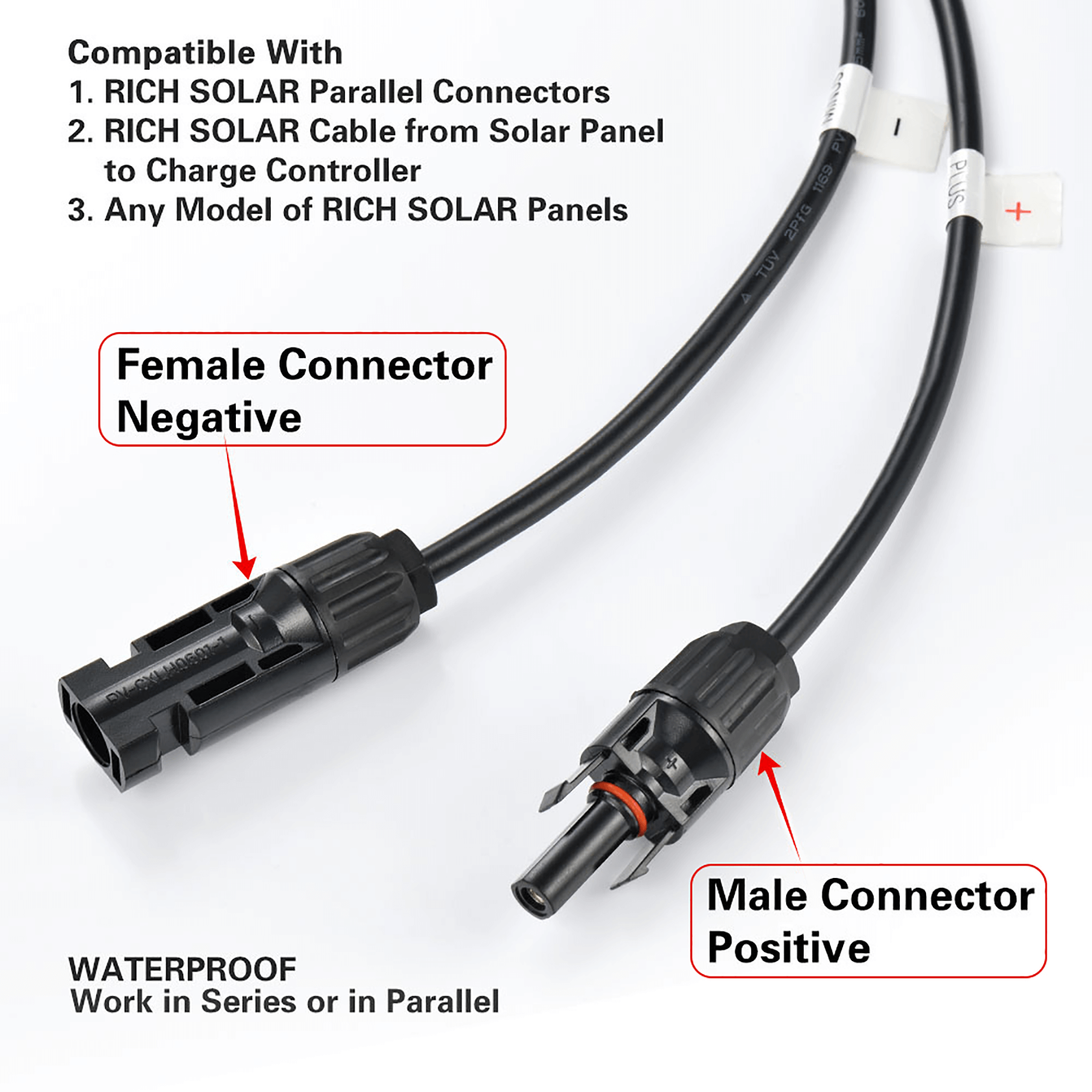

• IP67-rated waterproof solar connectors
• Bypass diodes built into the junction box

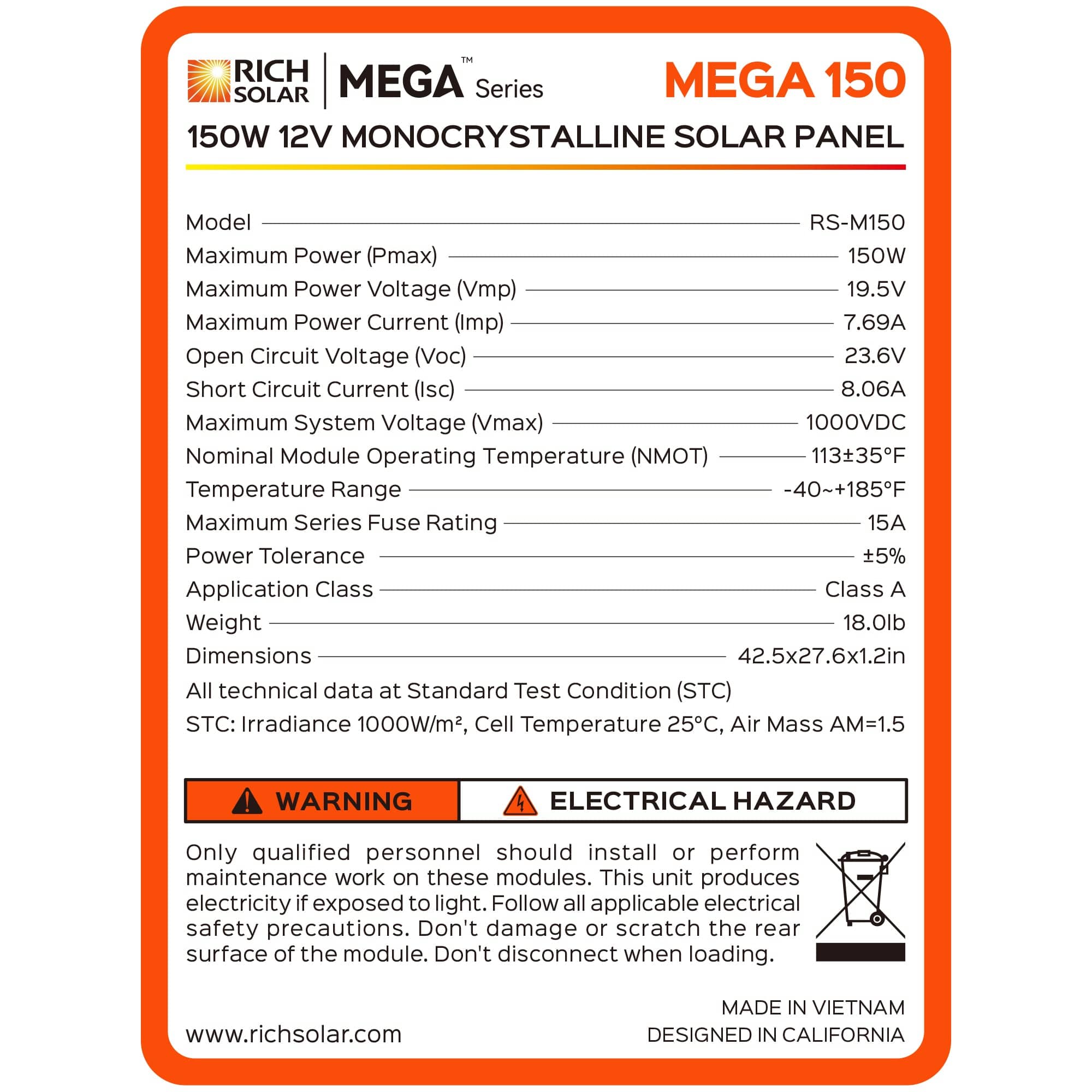

Specifications

• Model: RS-M150
• Maximum Power( Pmax): 150W
• Maximum Power Voltage (Vmp): 19.5V
• Maximum Power Current (Imp): 7.69A
• Open Circuit Voltage (Voc): 23.6V
• Short Circuit Current (Isc): 8.06A
• Maximum System Voltage(Vmax): 1000VDC
• Temperature Range: -40 ~ +185°F
• Weight: 18.0 lbs

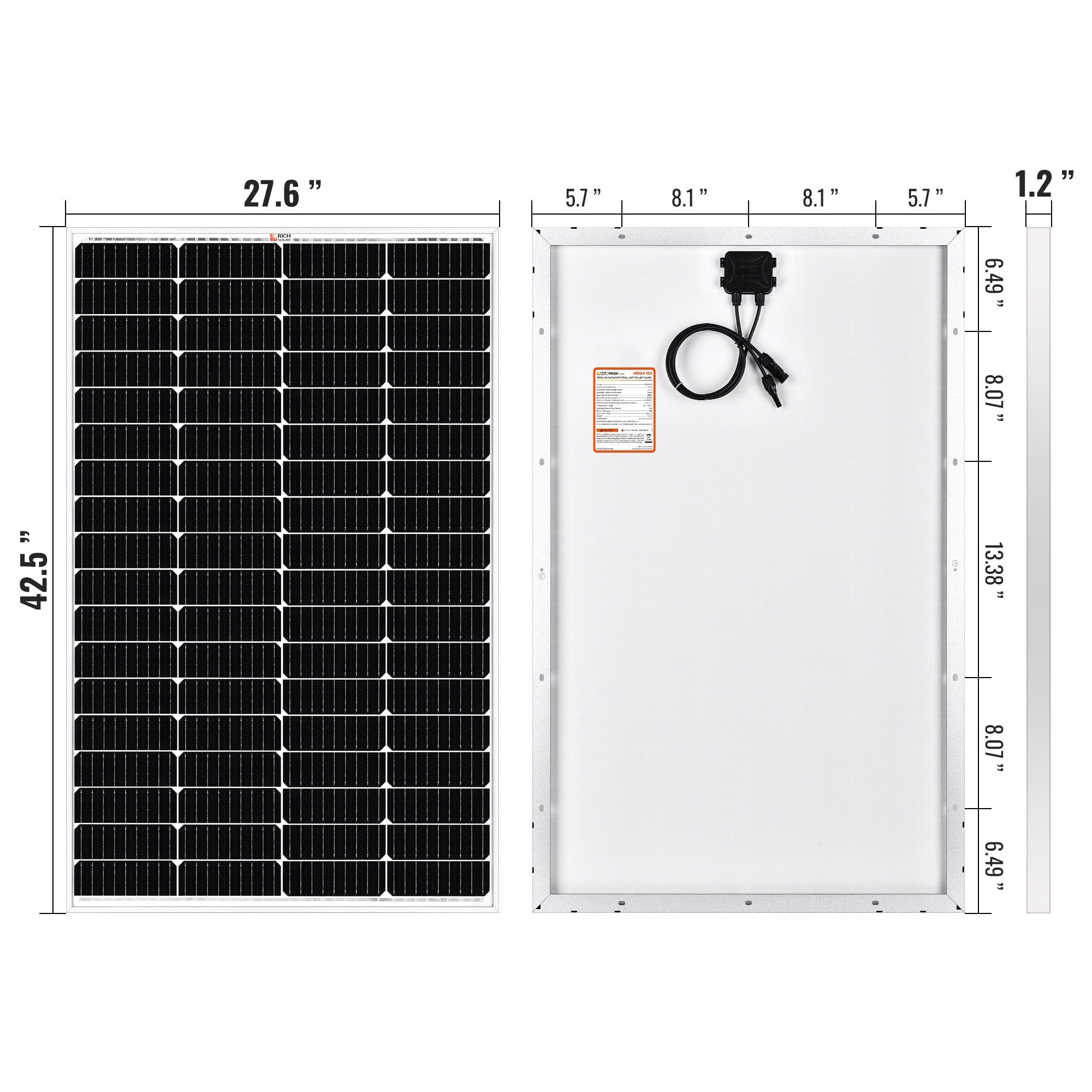

• Dimensions: 42.5 x 27.6 x 1.2 in
