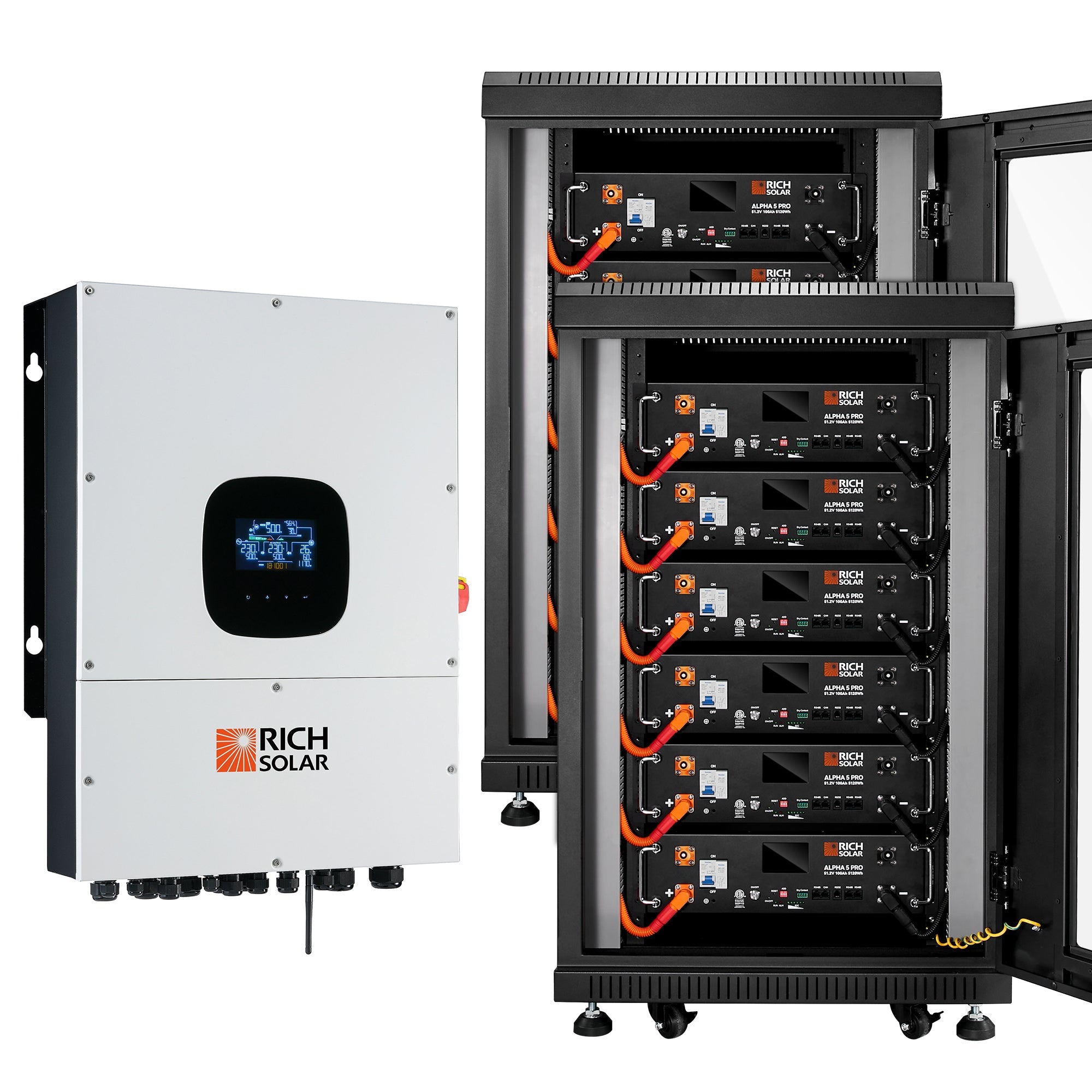

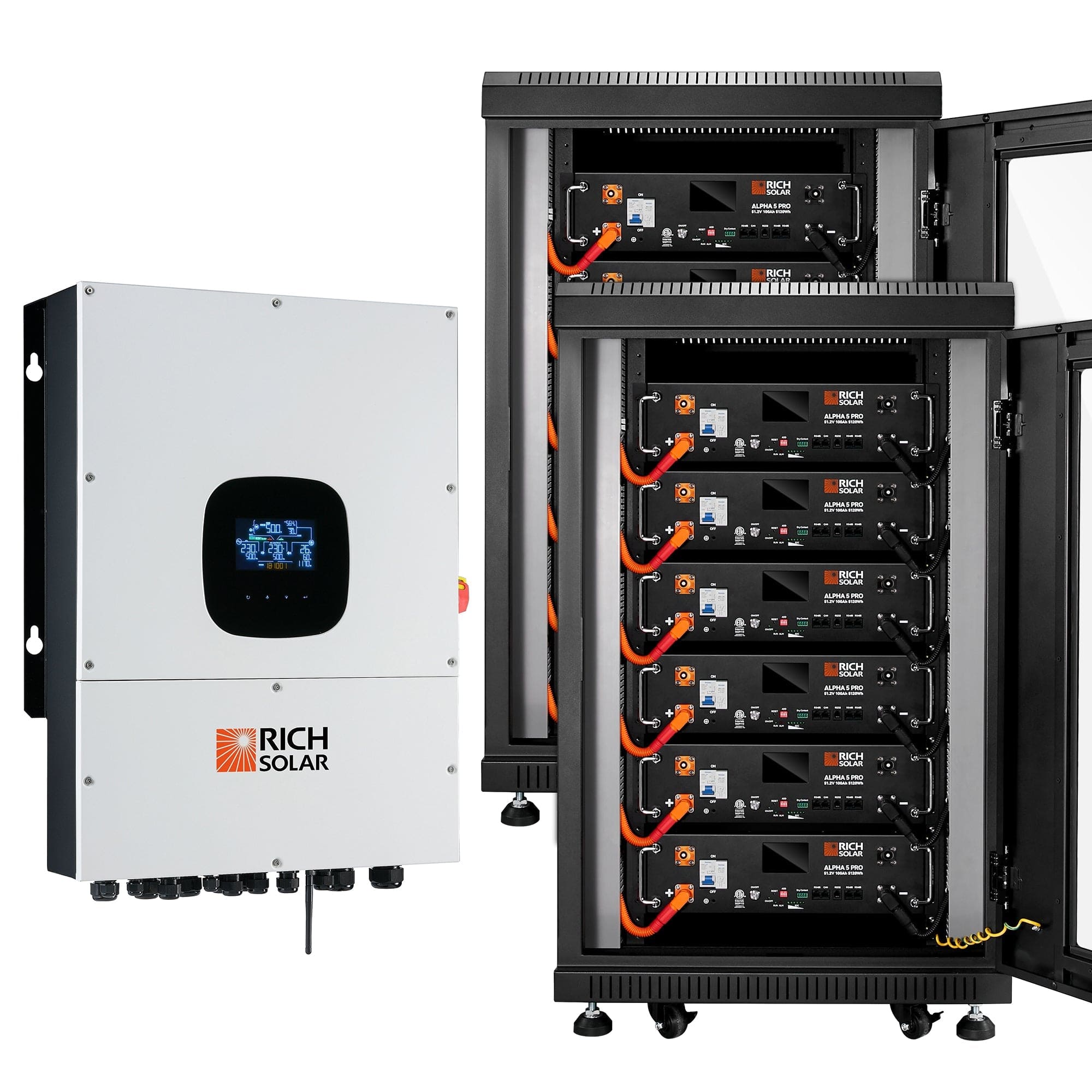

RICH SOLAR NOVA 12K PV Hybrid Inverter Solar Kit | 61.44kWH Server Lithium Battery [KIT-SR0002]

The RICH SOLAR NOVA 12K Hybrid Inverter Solar Kit is a powerful, all-in-one energy solution for off-grid or hybrid solar installations. Featuring the NOVA 12K hybrid inverter, paired with a massive 61.44kWh lithium server-rack battery bank, this kit delivers high-capacity energy storage, smart inverter management, and reliable AC output for residential or commercial applications. Designed for users who demand top-tier performance, robust expandability, and true energy independence.

RICH SOLAR NOVA 12K PV Hybrid Inverter Solar Kit Features

12,000W Hybrid Inverter (Split Phase)

Delivers both 120V and 240V power—ideal for whole-home backup or large off-grid systems.

Massive 61.44kWh Server Rack LiFePO4 Battery Bank

High-capacity storage—safely power your home through day and night with long-lasting lithium energy.

Integrated MPPT Solar Charge Controller

Optimized energy harvest—real-time solar tracking ensures you get the most out of your panels.

Hybrid Grid/Off-Grid Flexibility

Run independently or supplement grid power—smart switching and load management for ultimate versatility.

Built for Scalability

Easily expand with more batteries or panels—perfect for growing energy needs or phased installations.

RICH SOLAR NOVA 12K PV Hybrid Inverter Solar Kit Applications

Whole-Home Backup Systems – Keep your house running during outages with seamless power delivery.
Off-Grid Property Power – Support for HVAC, refrigerators, lighting, and tools on remote properties.
Commercial Backup Power – Ideal for small offices or retail needing reliable backup power.
Solar + Storage Energy Projects – Designed to integrate clean solar energy with efficient battery storage.
Smart Hybrid Energy Management – Automatically switch between solar, grid, and battery for maximum efficiency.

What's Included

Everything you need is included with your product.

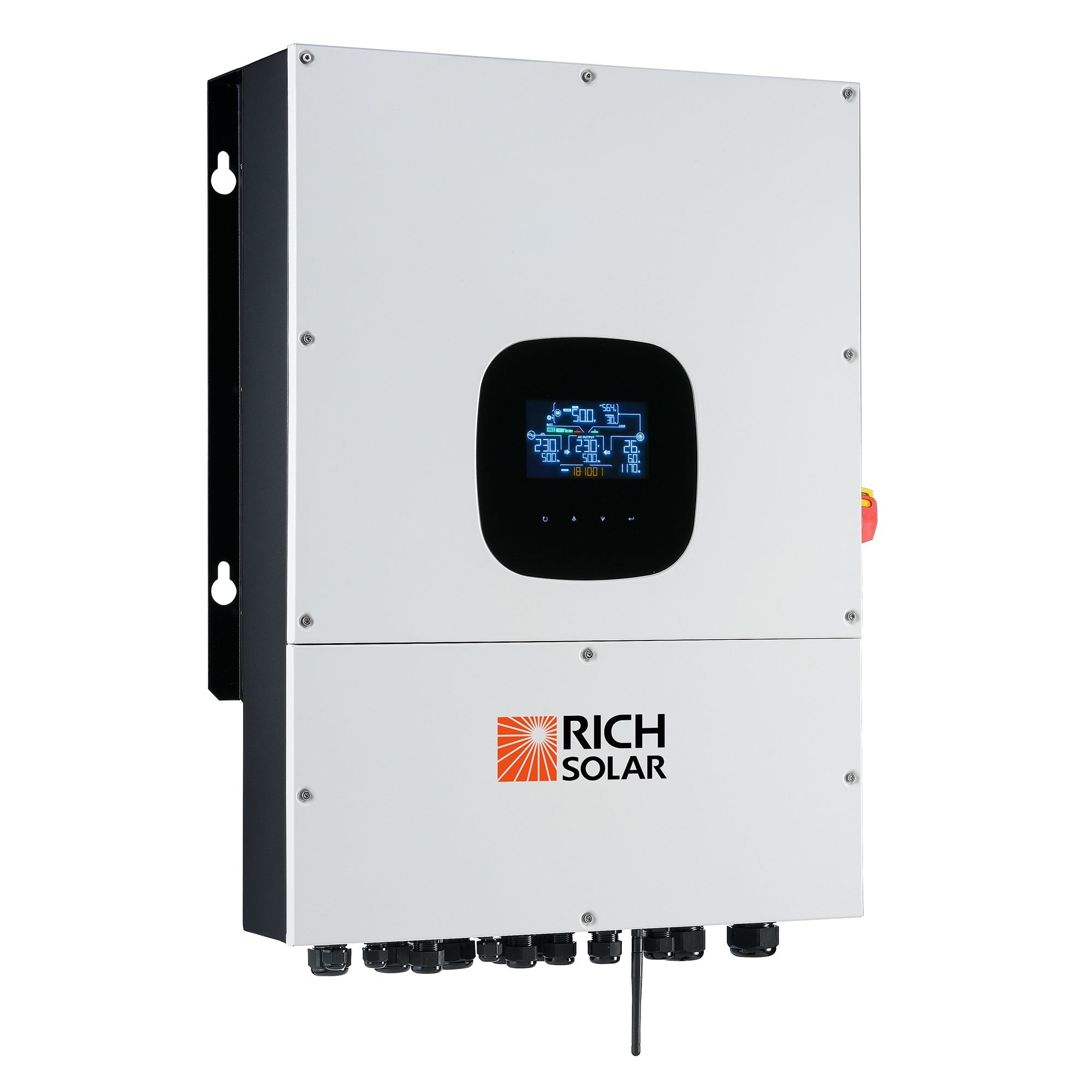

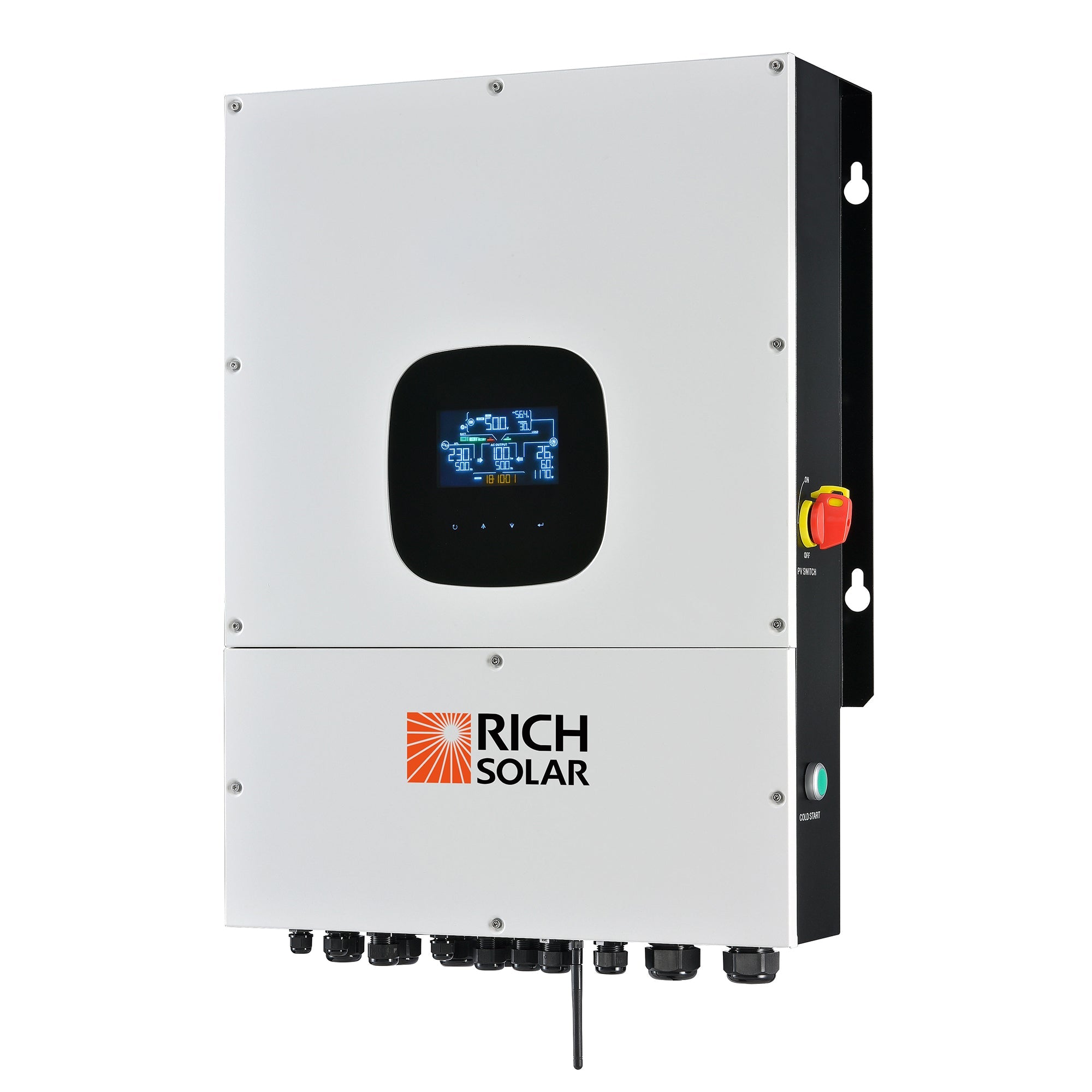

1 x NOVA 12K PV Hybrid Inverter 12000W PV Input | 10000W Output | 48V 120/240V Split Phase (RS-H12K)
12 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P1)

1 x Free Battery Pack
1 x User Manual

RICH SOLAR NOVA 12K PV Hybrid Inverter Solar Kit Specifications

Category	Specifications
Maximum PV Input Power	12000W
Parallel Capability	6 units

INPUT

Category	Specifications
Maximum PV Input Power	12000W
Maximum DC Voltage	600VDC
Start-up Voltage/Initial Feeding Voltage	125VDC/160VDC
MPPT Voltage Range	120VDC-550VDC
Number of MPPT Trackers/Maximum Input Current	2/18A

OUTPUT

Category	Specifications
Rated Output Power	10000VA/10000W
Nominal Output Voltage	120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
Output Voltage Range	105.5–132VAC per phase
Nominal Output Current	41.5A per phase

BATTERY

Category	Specifications
Battery DC Voltage Range	40–62VDC/48VDC
Maximum Solar Charging Current	200A
Maximum AC Charging Current	200A
Maximum Charging Current	200A

OPERATING ENVIRONMENT

Category	Specifications
Operating Temperature Range	-13°F to 140°F(>113°F derating)
Protection Degree	IP65
Communication Port	RS232, RS485, Wi-Fi, USB

PHYSICAL

Category	Specifications
Dimension (LxWxH)	8.5x20.3x28.1in/215.5x515x715mm
Net Weight	99.2lb/45kg

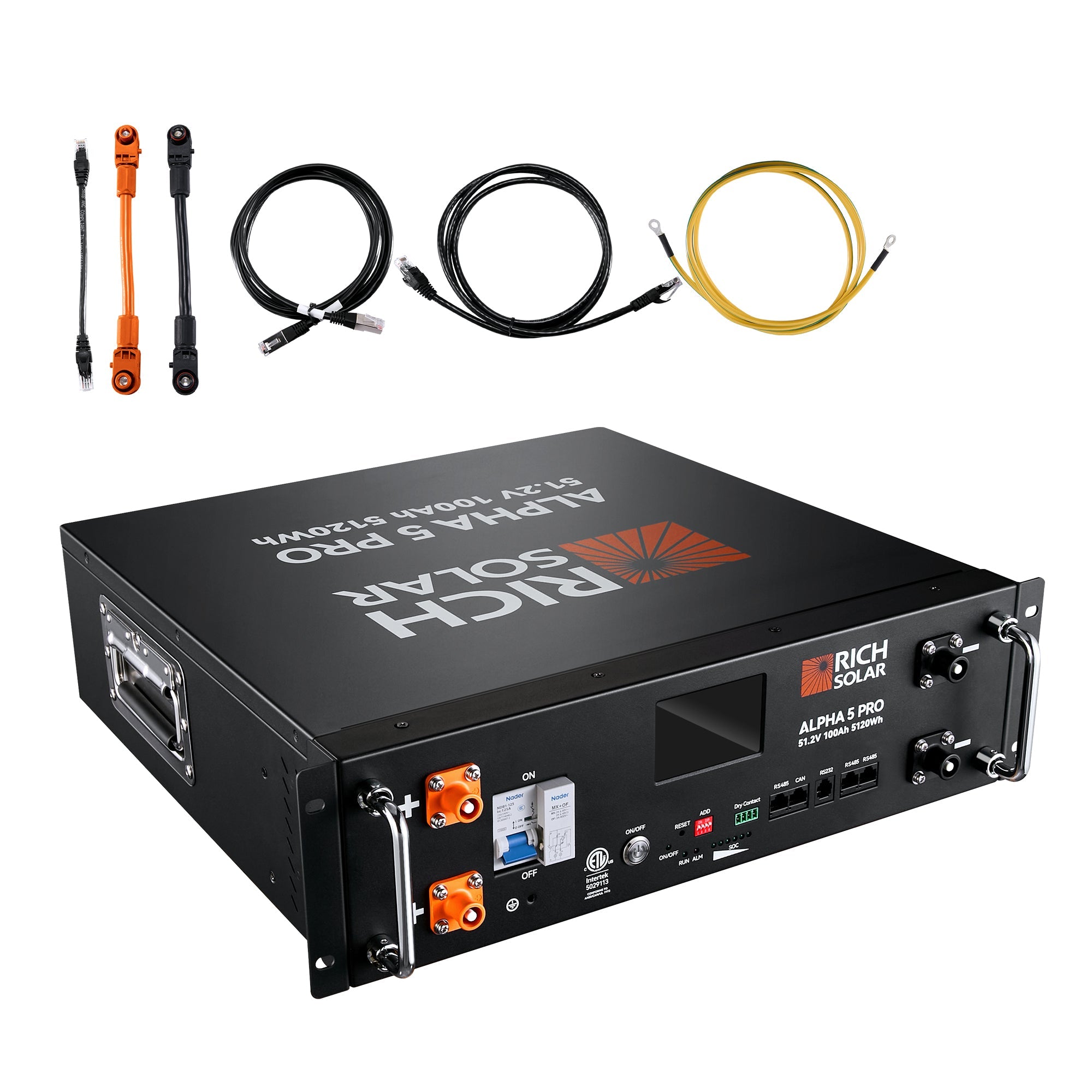

ALPHA 5 PRO | 51.2V 100Ah LiFePO4 Battery Specifications

Category	Specifications
Nominal Voltag	300 cm
Nominal Capacity	Yes
Minimum Capacity	4 Person
Nominal Capacity	Yes

Operating Specifications

Category	Specifications
Charging Voltage	56V
Discharging Cutoff Voltage	44.8V
Maximum Charging Current	100A
Continuous Charge Current	100A
Maximum Discharge Current	100A

Physical Specifications

Category	Specifications
Battery Dimensions	17.7"L x 17.8"W x 5.2"H
Battery Weight	99.2 lb

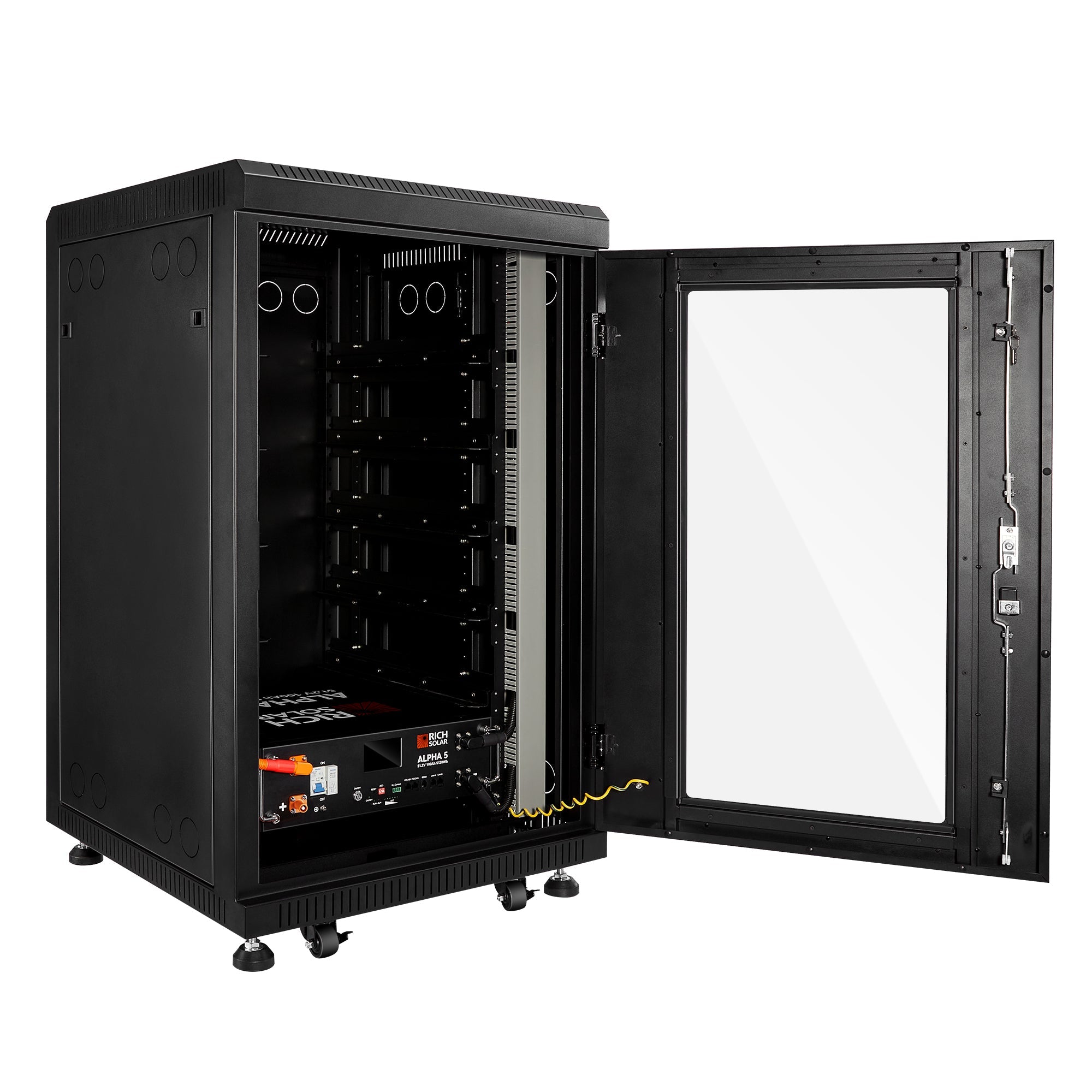

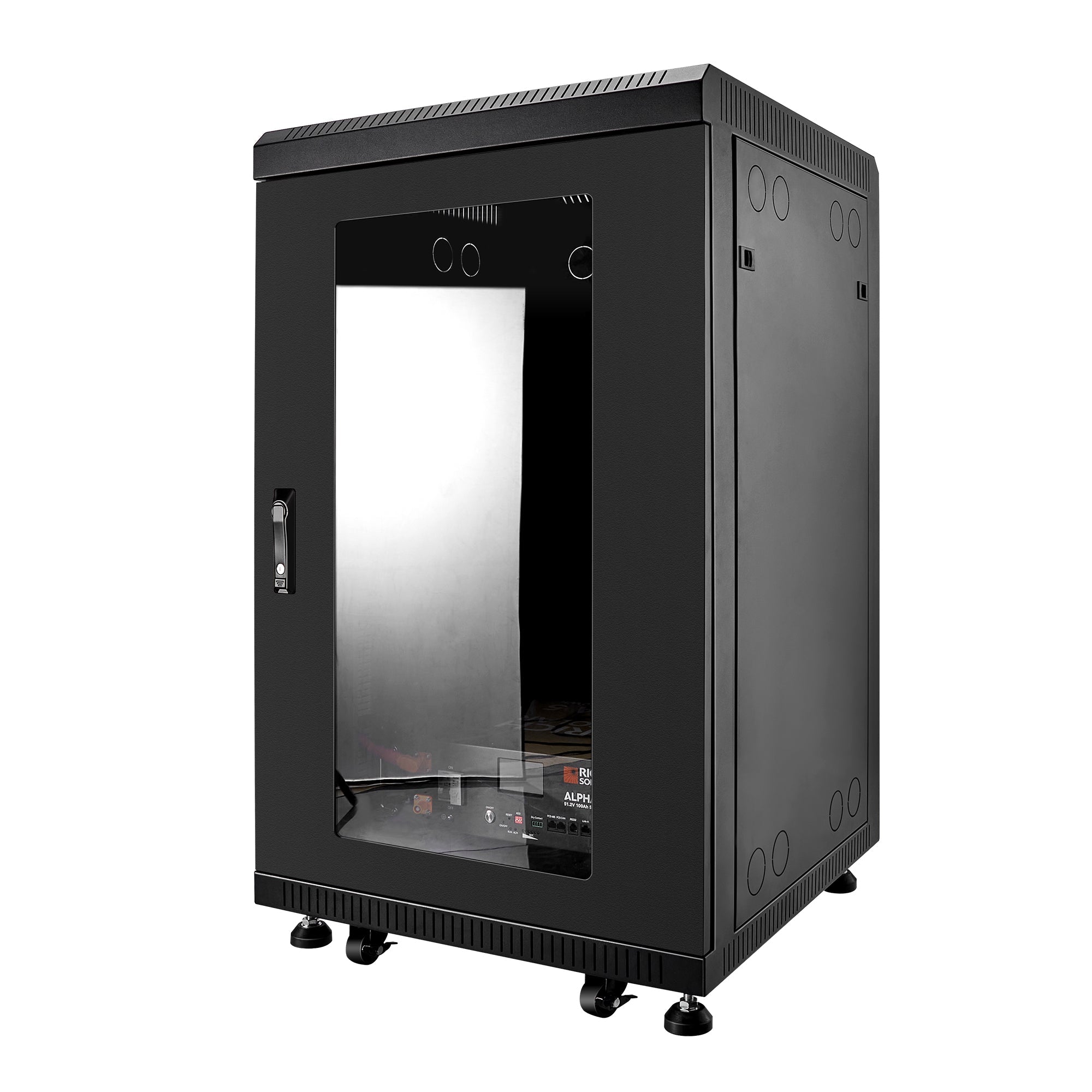

Server Rack Dimensions	27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)
Server Rack Weight	196.2 lb

BMS Operation

Category	Specifications
Operation Voltage	43.2~58.4V
Maximum Charging Current	100A
Maximum Discharging Current	100A
Maximum Charge Voltage (CC/CV)	57.6V
Overcharge Protection Voltage (Battery)	58.4V
Overcharge Protection Release Voltage (Battery)	54V
Over Discharge Protection Voltage (Battery)	43.2V
Over Discharge Protection Release Voltage (Battery)	47.2V
Over Discharge Primary Charge Overcurrent Protection Value	110A
First Stage Charge Over Current Delay	1s
Primary Discharge Overcurrent Protection Value	110A
Primary Discharge Overcurrent Protection Delay	1s
Secondary Discharge Overcurrent Protection Value	150A
Secondary Discharge Overcurrent Protection Delay	500ms

Temperature Performance

Category	Specifications
Charge Temperature	0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);
Discharge Temperature	-4℉~149℉ (The surface temperature of the cell should not exceed 149℉)
Storage Temperature	-4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)
Recommended Storage Temperature	32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

Others

Category	Specifications
Certification	UL1973, UL9540A, FCC
Max. Expansion	15 pcs in parallel
Communication Ports	RS485/RS232/CAN
Warranty	10 Years Manufacturer Defect

Frequently-Asked Questions

Can this run my entire house?

Yes. With 12,000W output and 61.44kWh battery storage, it can power essential and large loads like HVAC, laundry, and more.

Is this system expandable?

Yes. You can add more batteries or solar panels as your needs grow.

Does this work without grid power?

Yes. It operates fully off-grid and can also work in hybrid mode alongside grid utility.

Is the battery rack pre-configured?

Yes. The rack comes ready for plug-and-play installation, simplifying setup.

What type of solar panels are compatible?

It supports most 60-cell and 72-cell panels. Ideal configuration is 400W+ panels with compatible open circuit voltage.
