RICH SOLAR Off-Grid System Kit | 13,000W 120/240V Output, 48VDC(30.72kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery)

The RICH SOLAR Off-Grid System Kit is a comprehensive solution designed to provide reliable and sustainable energy for off-grid applications. With a powerful 13,000W output and a robust 30.72kWh lithium iron phosphate battery storage, this kit ensures uninterrupted power supply for your home, cabin, or remote facility.

RICH SOLAR Off-Grid System Kit Features

High-Capacity Power Output

Delivers up to 13,000W of continuous power, suitable for running multiple appliances and heavy-duty equipment simultaneously.

Advanced Battery Storage

Equipped with six 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Batteries, totaling 30.72kWh, offering long-lasting and efficient energy storage.

Dual 6.5kW Hybrid Inverters

Includes two 6.5kW 48V off-grid hybrid solar inverters (RS-H6548), providing seamless energy conversion and management.

Comprehensive Installation Kit

Comes with necessary components such as busbars and heavy-duty wire sets, facilitating a straightforward installation process.

Placeholder Image

RICH SOLAR Off-Grid System Kit Applications

  • Residential Homes – Power your entire household with renewable energy.
  • Cabins and Tiny Houses – Ideal for remote locations without grid access.
  • Recreational Vehicles (RVs) – Maintain comfort and convenience on the road.
  • Off-Grid Workshops – Supply energy to tools and equipment in remote workspaces.
  • Emergency Backup – Ensure uninterrupted power during outages.

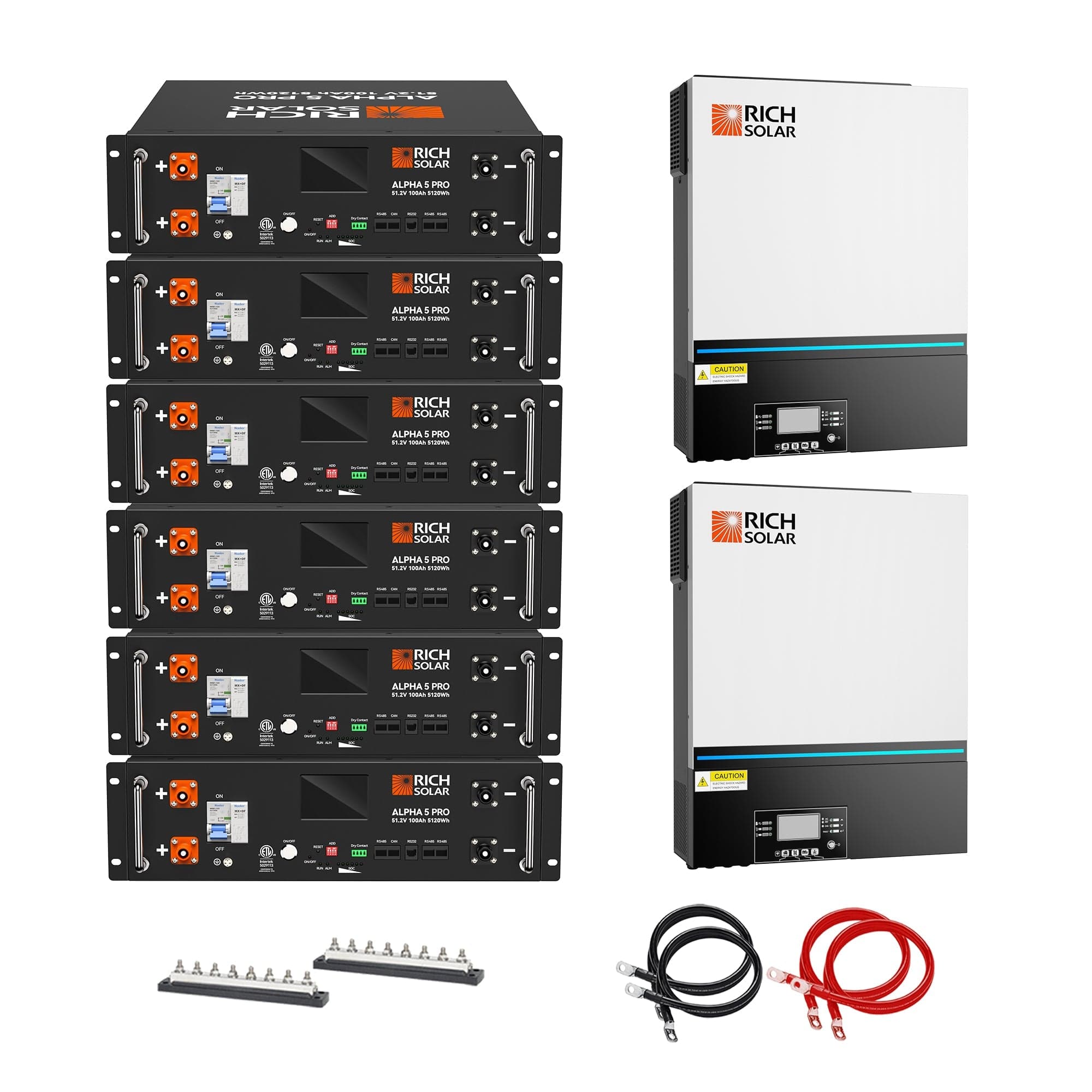

What's Included

Everything you need is included with your product.

  • 2x6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548)
  • 6x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P1)
  • 2x Busbar 600 AMP
  • 4x4 Foot 2/0 Gauge AWG Wire Set 3/8"

RICH SOLAR Off-Grid System Kit Specifications

6500W 48V Off-Grid Hybrid Solar Inverter (RS-H6548)

Category Specifications
Rated Inverter Power 6500VA/6500W
Parallel Capability Yes, 6 Units
Input Voltage 120 VAC
Frequency Range 50 Hz/60 Hz (Auto Sensing)
Efficiency (Peak) 90% ~ 93%
Waveform Pure Sine Wave
Battery Voltage 48 VDC
Solar Charger Type MPPT
Maximum PV Array Power 8000W (4000W x 2)
MPPT Operating Voltage Range 90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage 250 VDC
Maximum Charge Current 120A
Dimension (DxWxH) 5.8 x 17.0 x 21.8 in
Net Weight 40.6 lb
Communication Interface USB/RS232/RS485/Wi-Fi/Dry-contact
Compliance Safety UL
Warranty 5 Years

ALPHA 5 PRO | 51.2V 100Ah Server Rack Lithium Iron Phosphate Battery (RS-B5121P1)

Category Specifications
Nominal Voltage 51.2V
Nominal Capacity 100Ah
Expected Cycle Life >7000 Cycles
Energy 5.12kWh
Continuous Charge Current 100A
Continuous Discharge Current 100A
Dimensions 17.7″L x 17.8″W x 5.2″H
Net Weight 99.2 lb
Warranty 10 Years Manufacturer Defect

MEGA 410 Watt Monocrystalline Solar Panel (RS-M410)

Category Specifications
Maximum Power(Pmax) 410W
Maximum Power Voltage(Vmp) 31.3V
Maximum Power Current(Imp) 13.1A
Maximum System Voltage(Vmax) 1500 VDC
Module Efficiency 20.97%
Net Weight 45.2 lb
Dimensions 67.9 x 44.6 x 1.2 in
Warranty 25 Years

Frequently-Asked Questions

Can this system power my entire home?

Yes, with a 13,000W output and 30.72kWh battery storage, it can support most household appliances and electronics, depending on your energy consumption patterns.

Is the system expandable?

Yes, you can add more solar panels and batteries to increase capacity, ensuring the system grows with your energy needs.

Does the inverter support generator input?

Yes, the hybrid inverter can accept generator or shore power input for additional charging options.

Is professional installation required?

While the kit includes all necessary components for installation, professional installation is recommended to ensure safety and compliance with local regulations.

Can I monitor the system remotely?

Yes, the inverter features built-in Wi-Fi for mobile monitoring, allowing you to track performance in real-time.
