RICH SOLAR | Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 32 Amp | 4 Pole 2 Strings | Easy to Install Switch Rich Solar

RICH SOLAR Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 32 Amp | 4 Pole 2 Strings | Easy to Install

BY: Rich Solar | SKU: RS-i4 Availability: In Stock
$109.99
$87.99
You Save: $22.00

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized Rich Solar Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

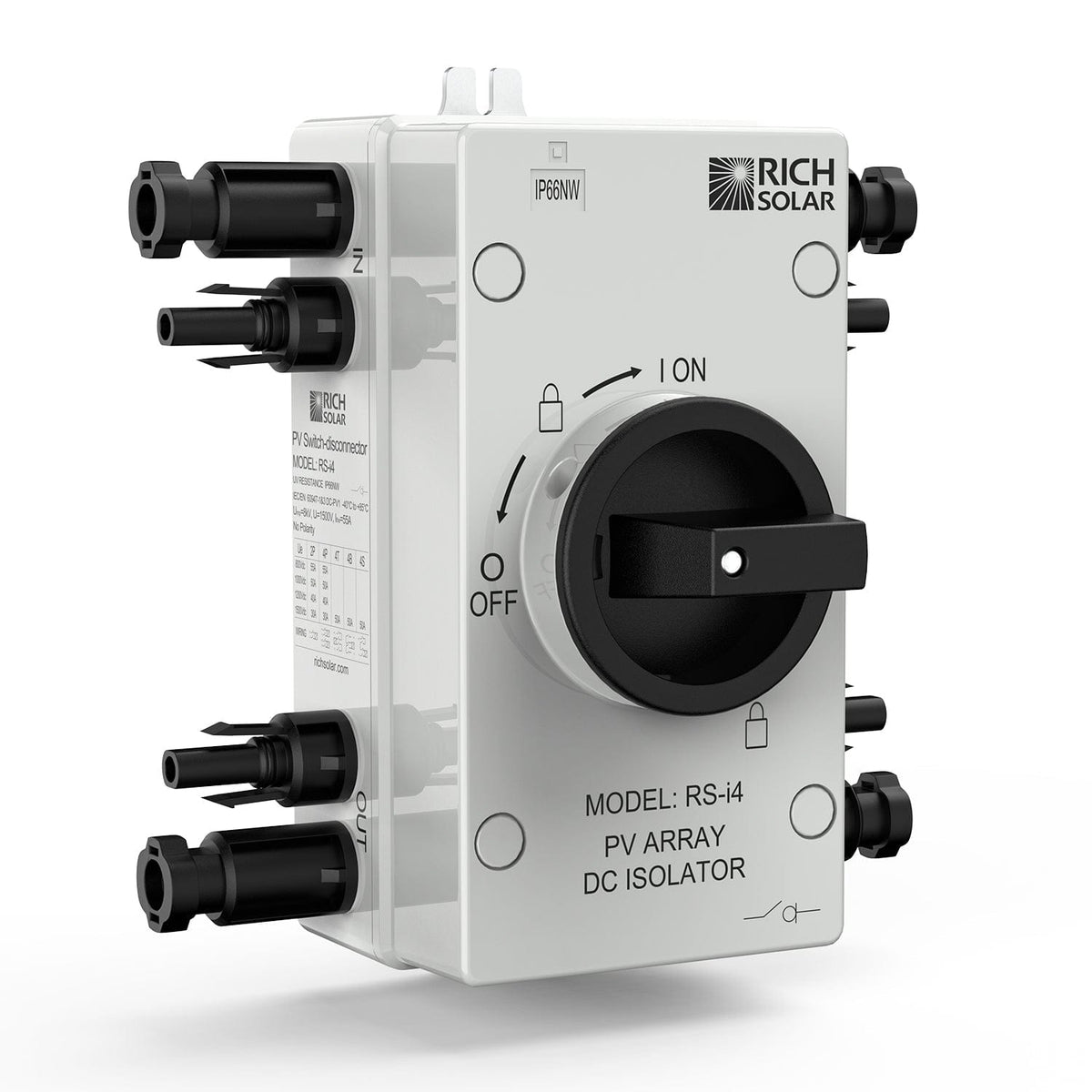

RICH SOLAR Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 32 Amp | 4 Pole 2 Strings | Easy to Install

The RICH SOLAR Solar PV DC Quick Disconnect Switch is engineered for safe and simple isolation of high-voltage solar array circuits. Rated for up to 1500V DC and 32A, this heavy-duty switch features a 4-pole, 2-string configuration—making it ideal for grid-tied or off-grid PV systems. With an easy-to-install design and reliable mechanical operation, it’s the perfect solution for installers who need a fast, code-compliant way to disconnect power from solar panels during maintenance or emergencies.

RICH SOLAR Solar PV DC Quick Disconnect Switch Features

Rated for 1500V DC / 32 Amps

Supports high-voltage solar arrays—safely isolates up to two strings under load.

4-Pole, 2-String Configuration

Dual-circuit design—ideal for managing two independent solar strings with one switch.

Robust and Compact Build

Durable, compact housing—resists heat and environmental wear in rooftop or outdoor installations.

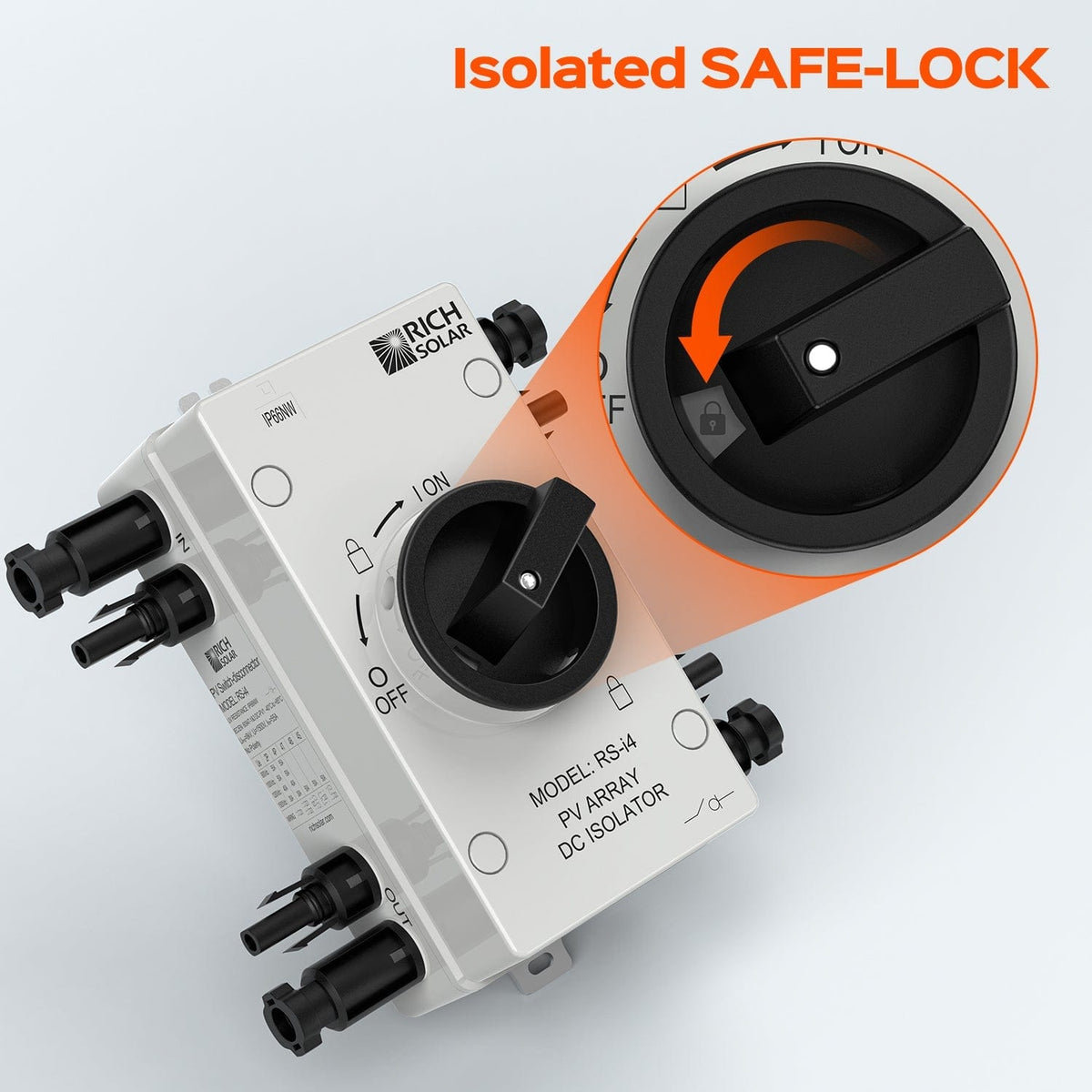

Quick Action Manual Operation

Simple rotary handle—provides immediate disconnection without additional tools or delay.

Mounting Flexibility

DIN rail and surface mountable—install in enclosures, combiner boxes, or distribution panels.

Placeholder Image

RICH SOLAR Solar PV DC Quick Disconnect Switch Applications

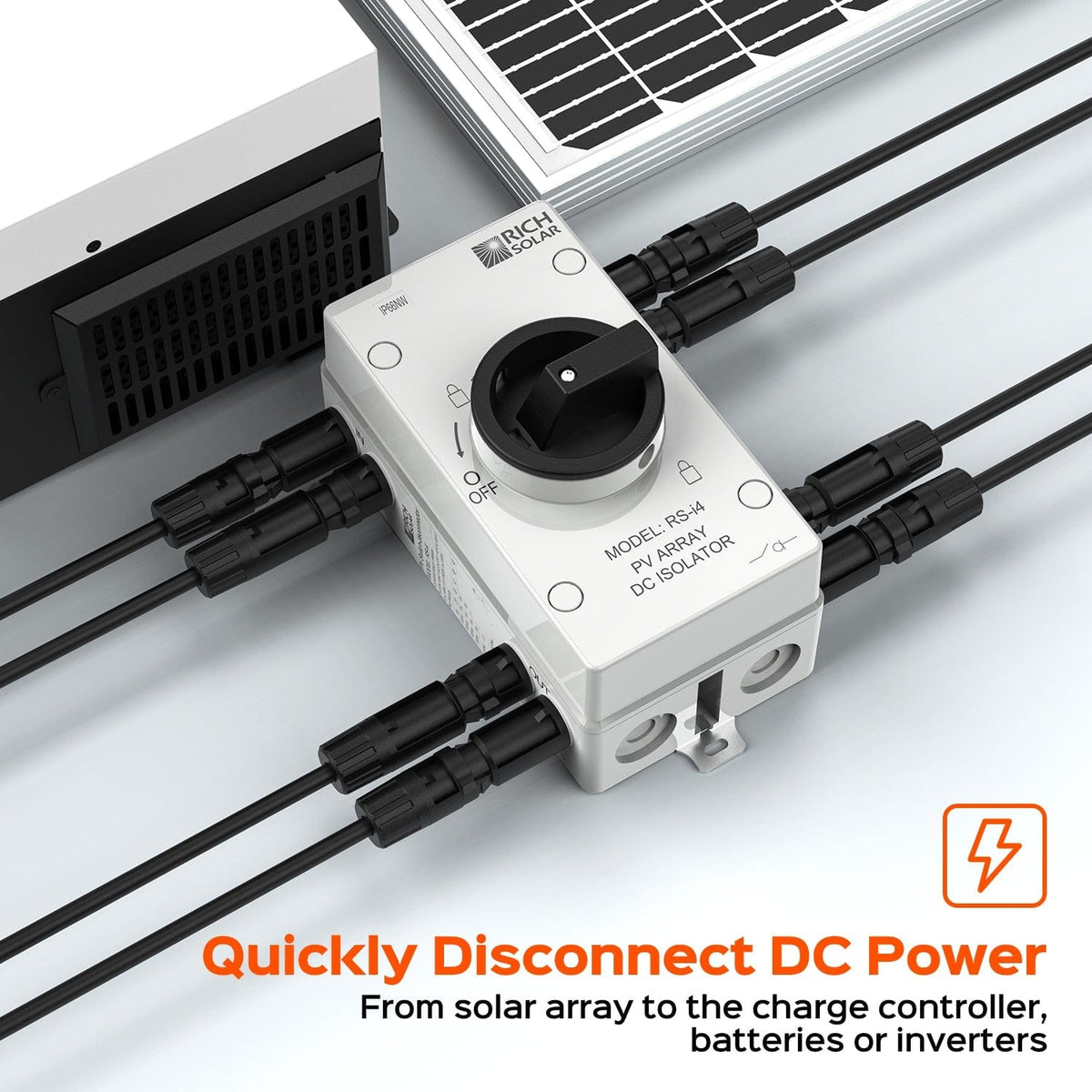

  • PV Array Safety Disconnection – Manually isolate solar arrays for safe service and inspections.

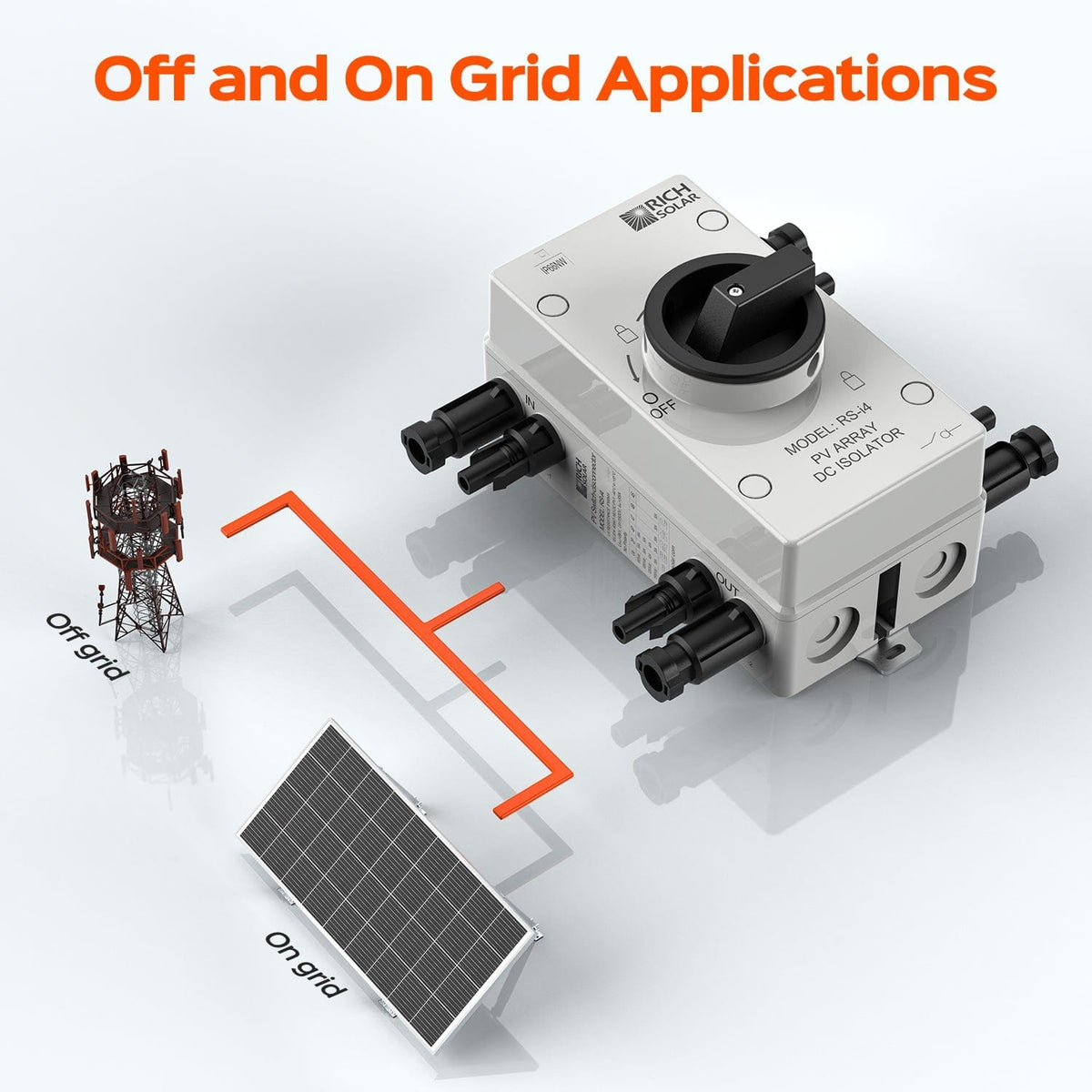

  • Off-Grid Solar Systems – Use as a master disconnect between panel strings and MPPT charge controllers.
  • Grid-Tied Installations – Complies with safety regulations for rooftop disconnects.
  • Commercial & Industrial PV Systems – Supports multiple high-voltage strings in a compact format.
  • Combiner or Junction Box Installations – Cleanly integrates into enclosures for string-level control.
Placeholder Image
Placeholder Image
Placeholder Image

What's Included

Everything you need is included with your product.

  • RICH SOLAR Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 32 Amp | 4 Pole 2 Strings
  • User Manual
Placeholder Image
Placeholder Image
Placeholder Image
Placeholder Image

RICH SOLAR Solar PV DC Quick Disconnect Switch Specifications

Category Specifications
Max. Rated Current 32A
Max. Rated Voltage 1500V
Circuit 4-pole and 2 string
Standard TUV, SAA, CE, IP certified & ROHS compliant
Waterproof IP66NW
Arc Time <3ms
Operating Temperature -40°F to +185°F (-40°C to +85°C)
Warranty 10 years

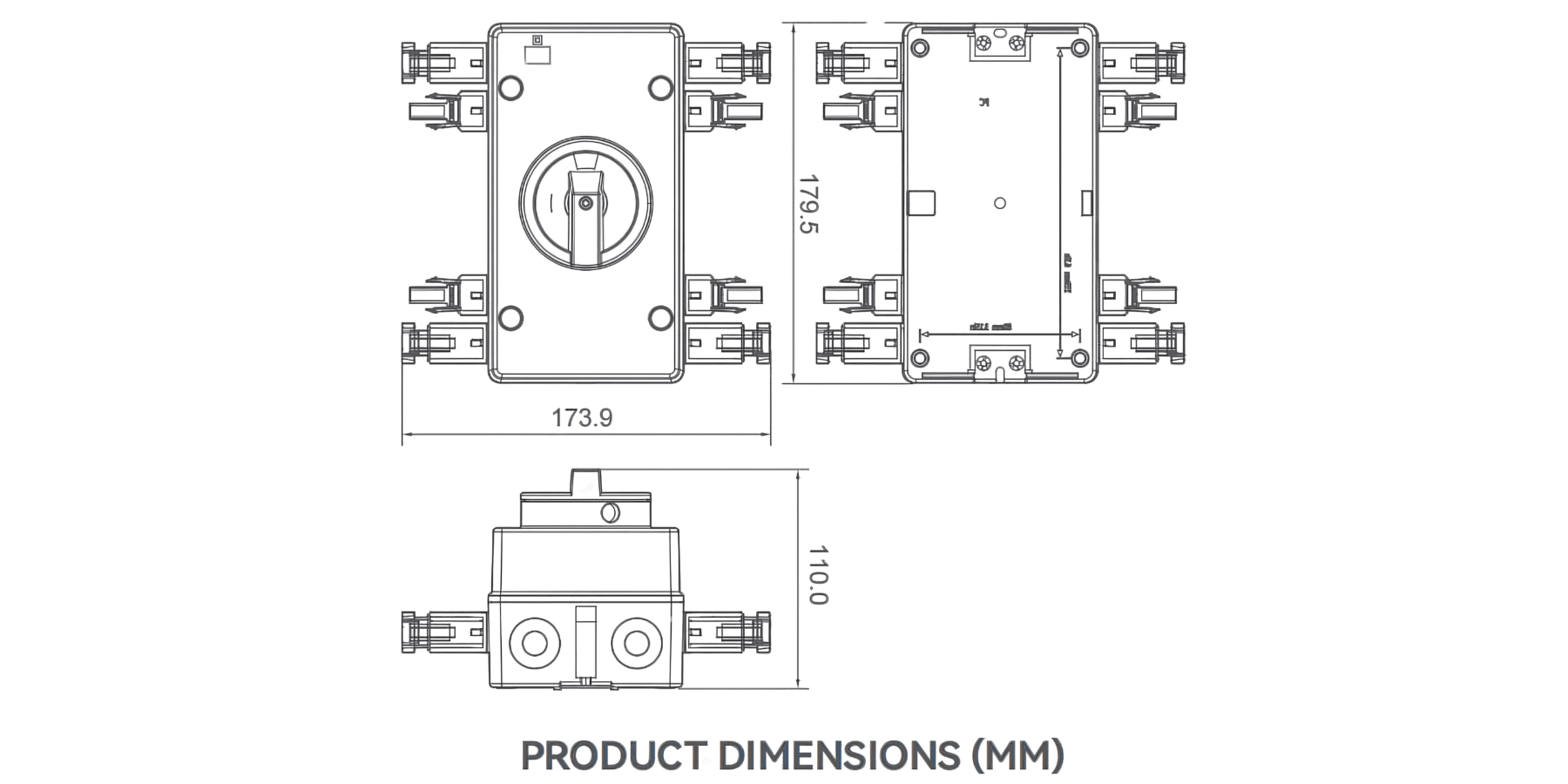

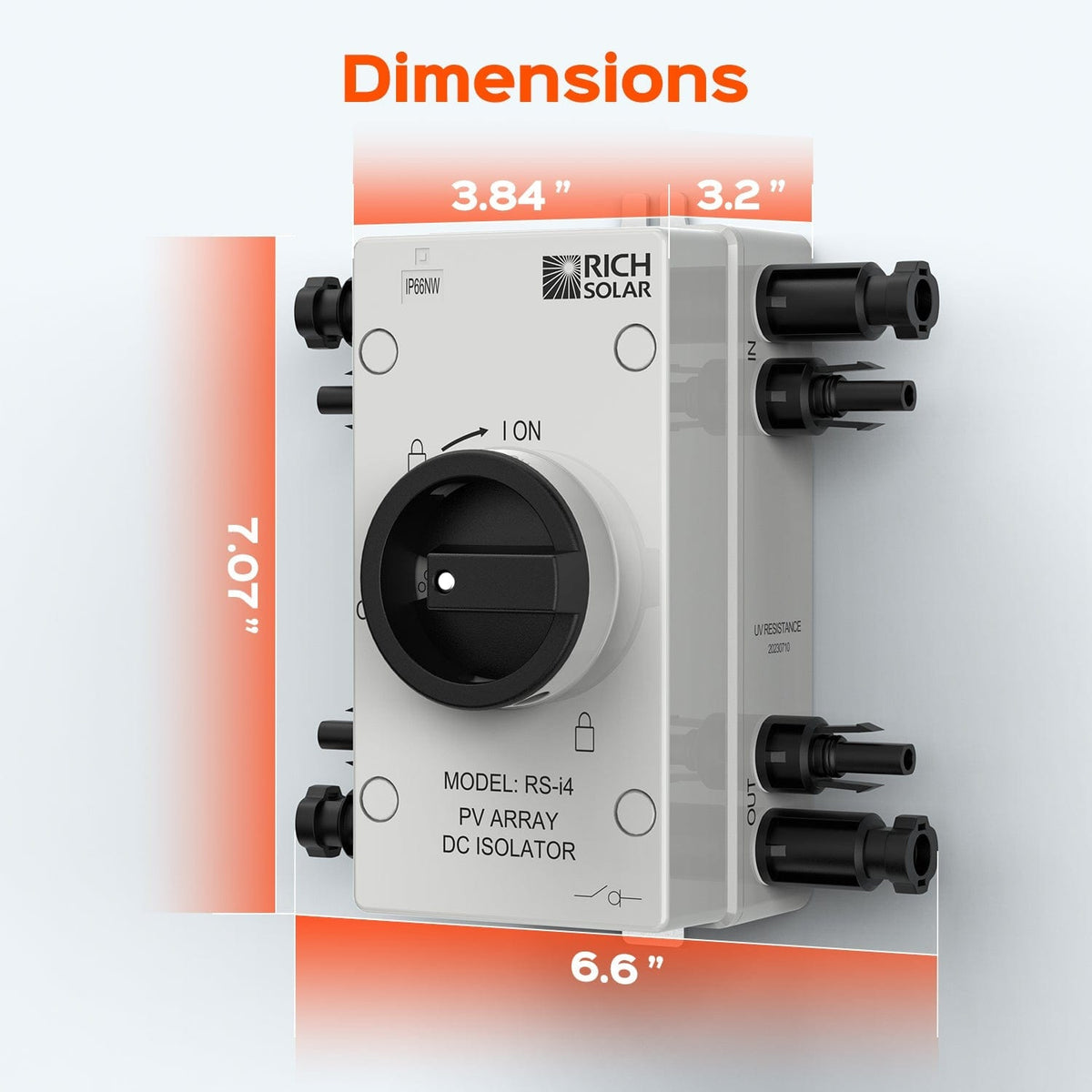

Dimensions (HxWxD) 7.1x6.8x4.3 in / 179.5x173.9x110 mm
Net Weight 1.7lb / 0.77kg

Frequently-Asked Questions

Is this switch outdoor rated?

While the switch itself is durable, it should be installed in a proper outdoor-rated enclosure for full weather protection.

Can this switch handle two MPPT inputs?

Yes. It’s designed for two-string management, so it’s compatible with dual MPPT charge controllers or string inputs.

Is this UL listed?

The switch meets industry standards for solar disconnects, but please verify specific UL certifications with the brand if required for your jurisdiction.

Can I mount this on a DIN rail?

Yes. It’s compatible with DIN rail or surface mount applications inside disconnect or combiner boxes.
