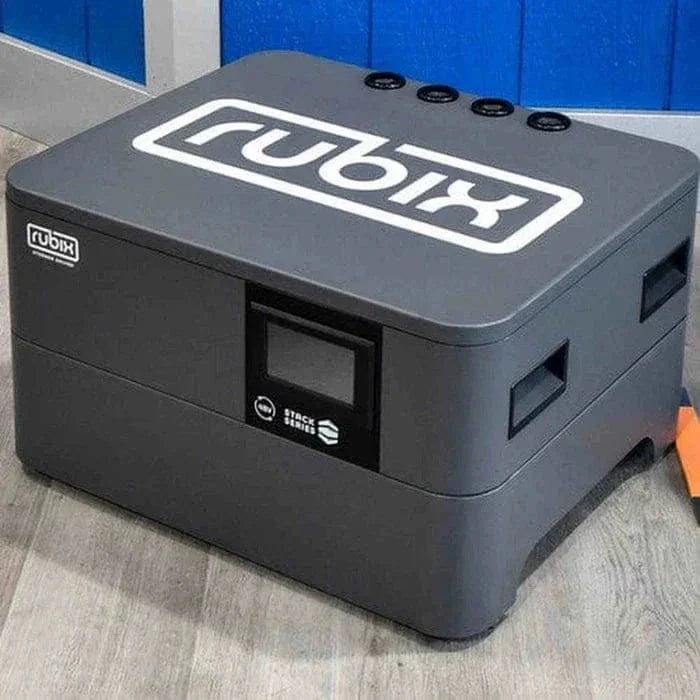

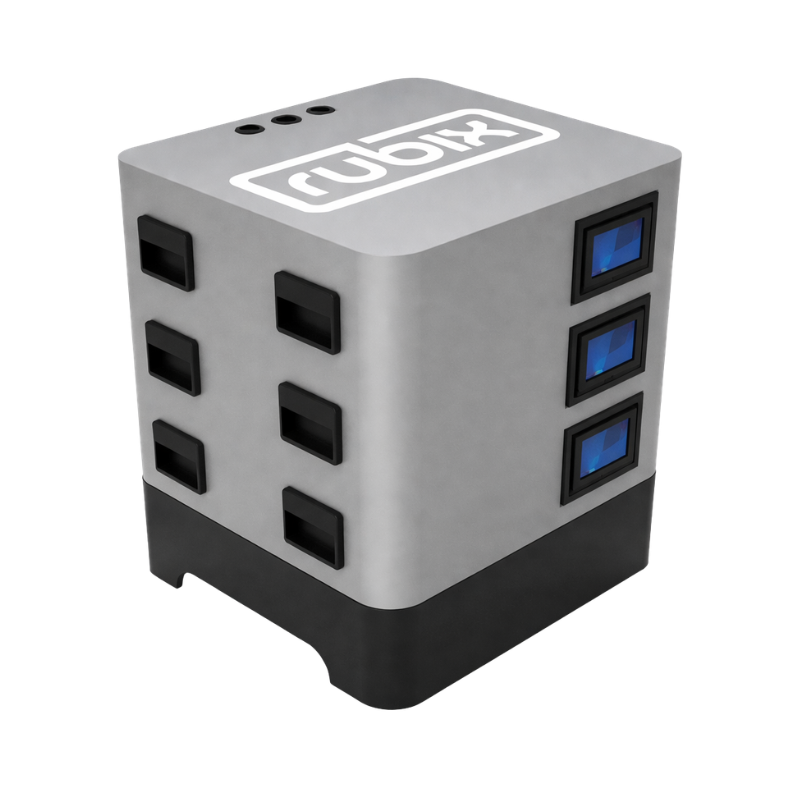

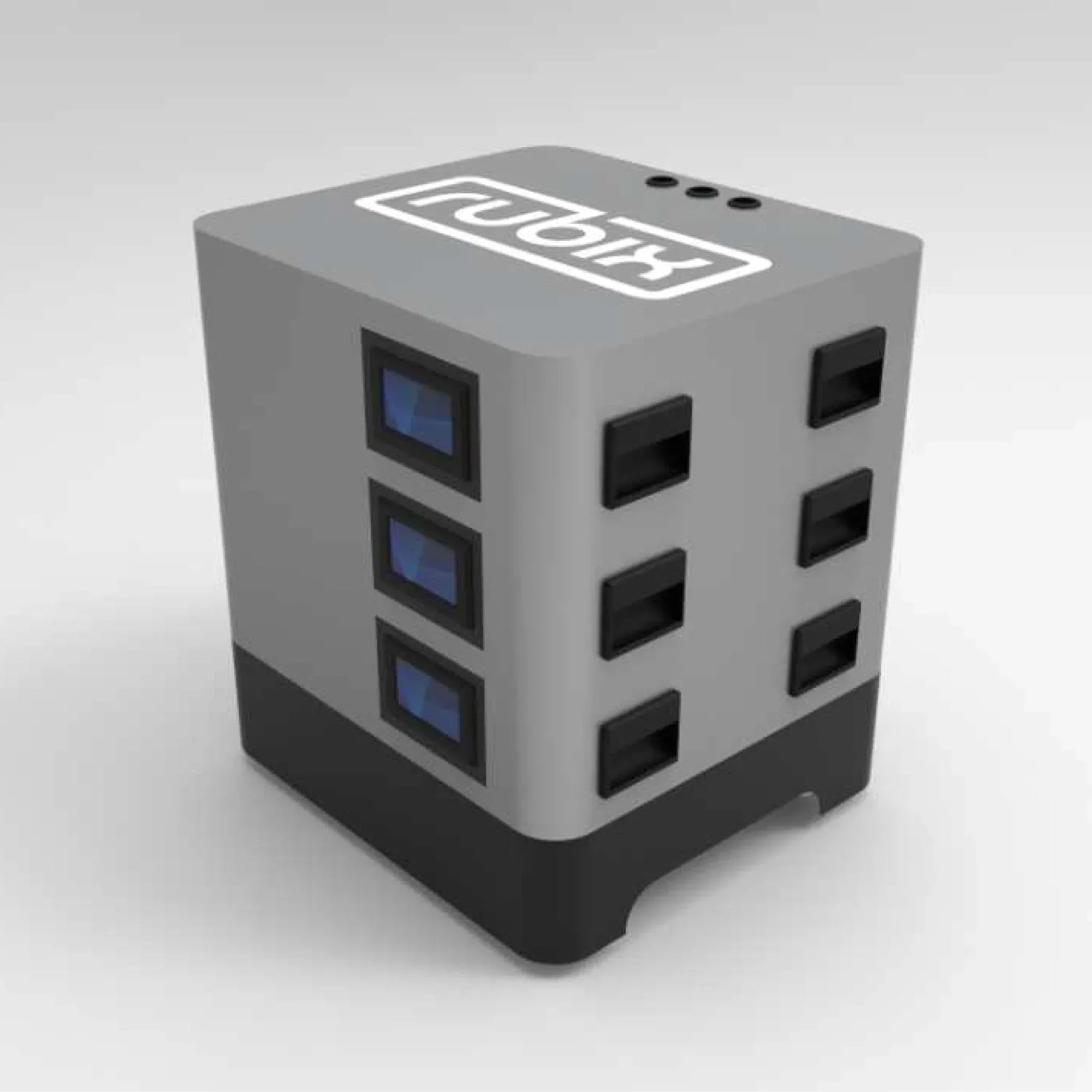

Rubix Battery 24 Volt 200 AH, Stack Series, Lithium Battery - Grey

Rubix Battery 24 Volt 200 AH, Stack Series, Lithium Battery - Grey

Name: Rubix Battery 24 Volt 200 AH, Stack Series, Lithium Battery - Grey
Brand: Rubix
SKU: RS-24200
Price: 1805.7 USD
Availability: InStock

BY: Rubix

SKU: RS-24200

| Availability: In stock

$1,805.70

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Rubix Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

Rubix Battery 24 Volt 200 AH, Stack Series, Lithium Battery – Grey

The Rubix Stack Series 24V 200Ah Lithium Battery (RS25200) is a modular LiFePO₄ energy storage solution designed for scalable residential and light commercial power systems. Delivering 25.6V nominal voltage and 200Ah capacity (5.12kWh), this stackable battery platform supports parallel expansion up to 32 units for large-scale energy storage applications. With integrated BMS protection, touchscreen LCD monitoring, and robust cycle life performance, the RS25200 provides dependable, high-efficiency lithium storage for solar, backup, and hybrid systems.

Rubix Battery 24 Volt 200 AH, Stack Series, Lithium Battery – Grey Features

5.12kWh Energy Capacity – 25.6V 200Ah lithium storage designed for 24V inverter systems.

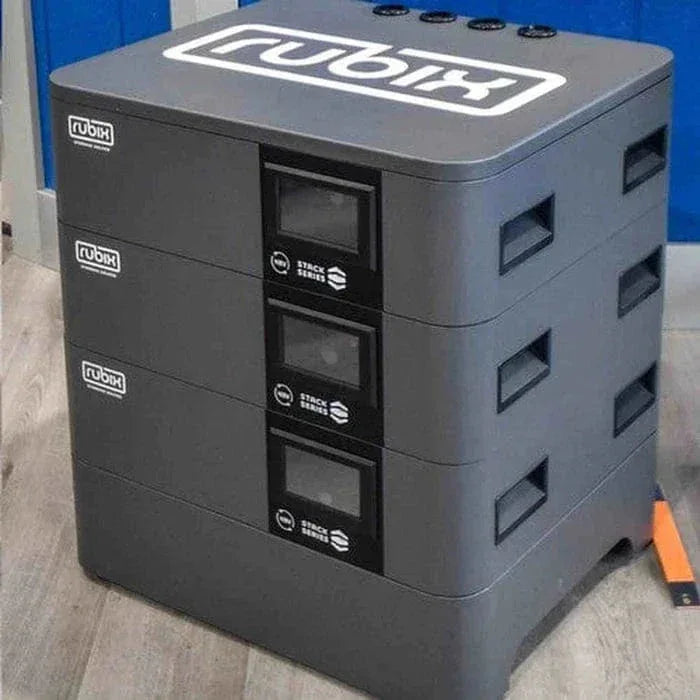

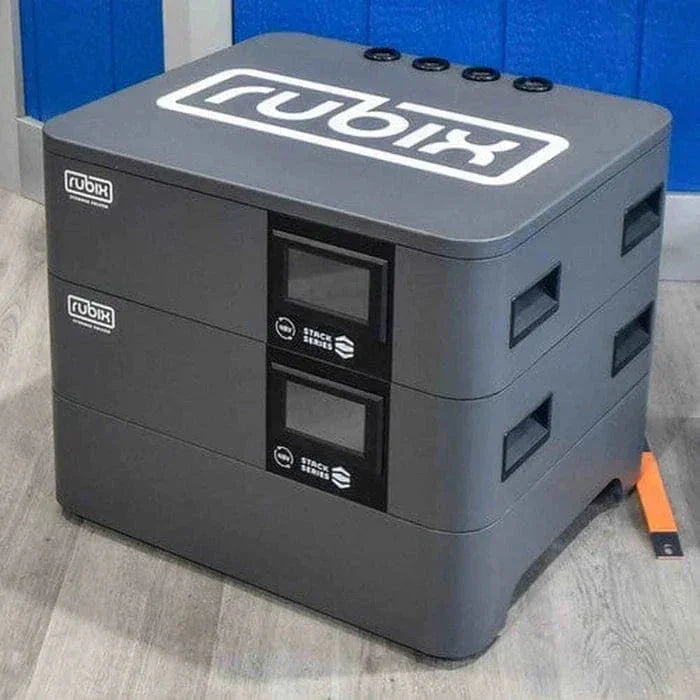

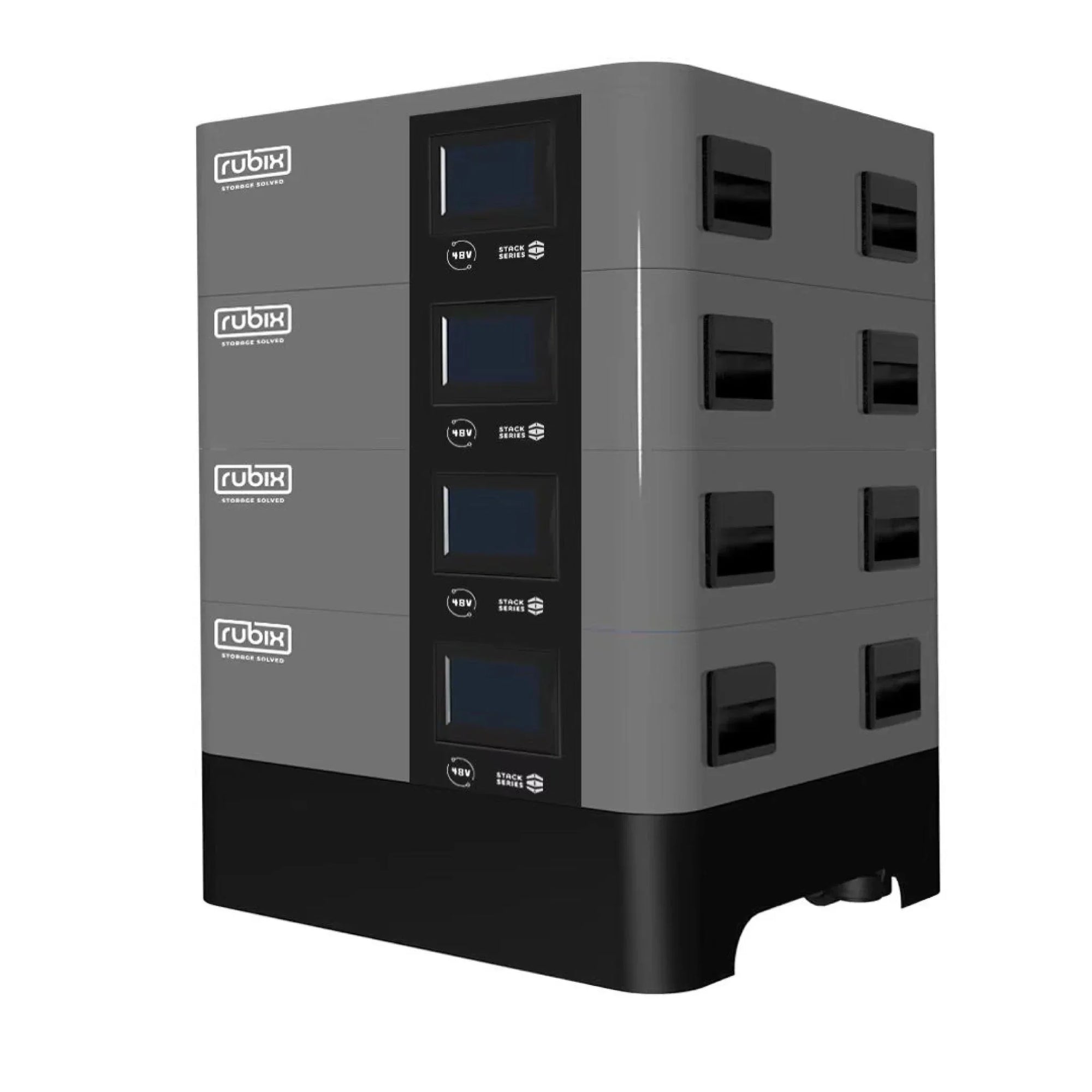

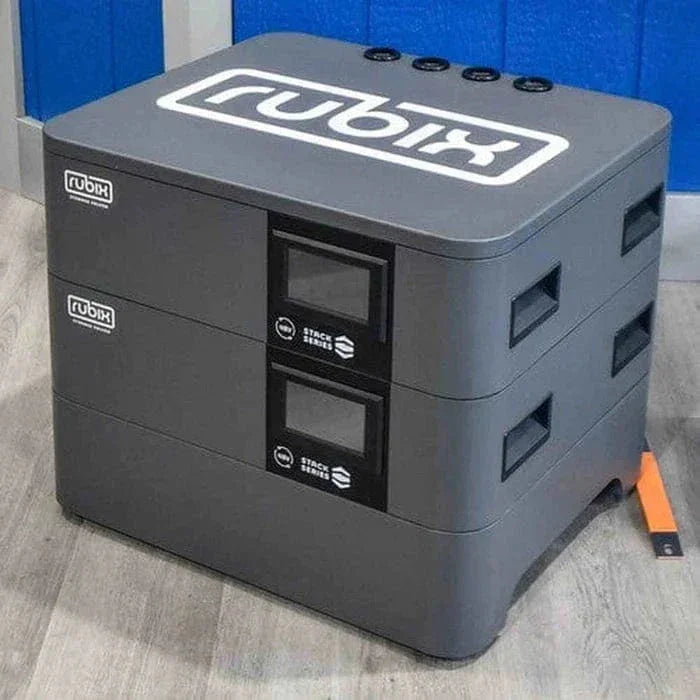

Stackable Modular Design – Supports up to 6 batteries per stack and 32 in parallel for system scalability.

LiFePO₄ Prismatic Cells – Stable lithium iron phosphate chemistry for long service life and safety.

Integrated BMS Protection – Over-voltage, under-voltage, temperature, and breaker protection built in.

Touchscreen LCD Display – Real-time monitoring of state-of-charge, voltage, current, and system status.

High Discharge Capability – 180A continuous discharge with 400A peak (3 seconds).

Rubix Battery 24 Volt 200 AH, Stack Series, Lithium Battery – Grey Applications

Off-Grid Solar Systems – Reliable lithium storage for 24V off-grid inverter setups.
Residential Energy Storage – Scalable home battery backup systems.
Hybrid Solar + Grid Systems – Ideal for inverter-based ESS installations.
Light Commercial Applications – Expandable storage platform for small business energy resilience.

What's Included

Everything you need is included with your product.

1 x Rubix Battery 24 Volt 200 AH, Stack Series, Lithium Battery
1 x Wiring Compartment Cover
2 x Paralleling Busbars

1 x Paralleling Network Cable
1 x Terminal Covers

Rubix Battery 24 Volt 200 AH, Stack Series, Lithium Battery – Grey Specifications

Model

Specifications	Value
Energy Rating	25.6V 200AHh (5.12kwh)
Energy Scalability	32 x Parallel (163.84kwh)

Charging/Discharging

Specifications	Value
Max Continuous Discharge power	180A (4.6kw)
Recommended Discharge power	150A (3.84kw)
Peak Discharge Power (3sec)	400A (10.2kw)
Max Continuous Charging Power	140A (3.58kw)
Peak Charging Power (30min)	160A (4kw)
Recommended Absorb Volts	28.4V
Max Absorb Volts (Solar Only)	28.8V
Absorb Done Amps (Per Battery)	5A
Absorb Done Time	10min
Float Voltage	27.2V
Temp Comp-MV Degrees Celsius	0
Max Recommended Discharge	25.5V (20%)
Inverter Low Battery Cutout	24V
Low Volts Cutout Wakeup	22V
High Volts Cutout Wakeup	27.5V

Installation Requirements

Specifications	Value
Ventilation Required	NO
Minimum Environment Temp	32° F
Maximum Environment Temp	120° F
IP Rating	IP50
Outdoor Rated	NO
Maximum Batteries Per Stack	6

Terminal Specs

Specifications	Value
M8 Stainless Stee	Bolt-on
Max Terminal Torque	20ft-LBS

Cycle Life Rating

Specifications	Value
Rated Cycle Life (100% DOD)	3000 cycles
Rated Cycle Life (80% DOD)	4500 cycles
Rated Cycle Life (50% DOD)	7000 cycles
Retained Capacity at end of Cycle Life	80%

Safety Features

Specifications	Value
Breaker Current Rating	250A
BMS Low Voltage Disconnect	20.5+/-1V
BMS High Voltage Disconnect	29.5+/-1V
BMS Low Temp Charging Disconnect	32° F
BMS Low Temp Discharging Disconnect	-0° F
BMS High Temp Disconnect	135° F
Pressure Vented Cells	Yes
Rapid Shut Down Function (RPSD)	Yes

Certifications

Specifications	Value
Transport	UN 38.3

Internal Components

Specifications	Value
Cell Chemistry	LiFePO4
Cell Format	Prismatic
Balancing Type	Impactive
Max Balancing Current	1.1A
Cell Connection	Welded Bus Bar

Touchscreen LCD Features

Specifications	Value
State－of－Charge	Yes
Pack Voltage	Yes
Charging/Discharging Current	Yes
Individual Cell Voltage	Yes
Fault Logging	Yes
Inverter Com. Selection	Yes

Physical Dimensions

Specifications	Value
Battery	22.6"x19.3"x6.2"
Base	22.6"x19.3"x6.8"
Lid	22.6"x19.3"x0.8"

Weight

Specifications	Value
Battery	108lb
Base	42lb
Lid	20.9lb

Frequently-Asked Questions

What is the total energy capacity?

The RS25200 provides 5.12 kWh of nominal energy.

How many batteries can be stacked?

Up to 6 batteries per stack and 32 in parallel.

What type of lithium cells are used?

Prismatic LiFePO₄ cells.

What is the continuous discharge rating?

180A continuous discharge.

Is the battery outdoor rated?

No. It carries an IP50 rating and is not outdoor rated.
