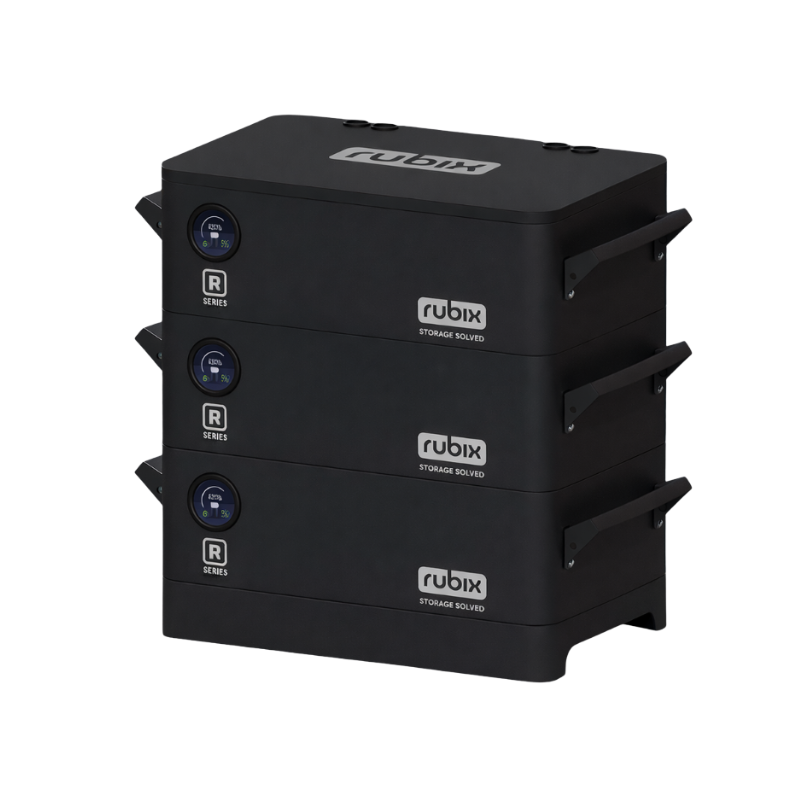

Rubix Battery 24 Volt 560 AH, R-Series, Lithium Battery - Black

Rubix Battery 24 Volt 560 AH, R-Series, Lithium Battery - Black

Name: Rubix Battery 24 Volt 560 AH, R-Series, Lithium Battery - Black
Brand: Rubix
SKU: RRS-25560
Price: 3770.0 USD
Availability: InStock

BY: Rubix

SKU: RRS-25560

| Availability: In stock

$3,770.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Rubix Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

Rubix Battery 24 Volt 560 AH, R-Series, Lithium Battery – Black

The Rubix R-Series 24V 560Ah Lithium Battery delivers high-capacity energy storage in a modular, scalable platform engineered for residential and commercial energy systems. With a nominal voltage of 25.6V and 560Ah capacity (14.336kWh), this LiFePO₄ battery supports large-scale parallel expansion up to 64 units. Featuring a 200A continuous charge and discharge rating, integrated BMS protections, UL1973 certification, and prismatic lithium cells with welded busbars, the R-Series platform is built for long service life, system stability, and dependable solar storage performance.

Rubix Battery 24 Volt 560 AH, R-Series, Lithium Battery – Black Features

14.336kWh Energy Capacity – 25.6V, 560Ah lithium storage per battery.

200A Continuous Output – Supports up to 5.12kW continuous charge and discharge.

Massive Parallel Scalability – Expandable up to 64 units (917.5kWh total system capacity).

LiFePO₄ Prismatic Cells – Safe, thermally stable lithium iron phosphate chemistry.

Active Cell Balancing – 2A active balancing for improved long-term cell performance.

Integrated 300A Breaker Protection – Built-in safety for high-current applications.

Touchscreen LCD Monitoring – Displays SOC, pack voltage, charge/discharge current, and internal data.

UL1973 Certified – Certified for stationary energy storage systems.

Rubix Battery 24 Volt 560 AH, R-Series, Lithium Battery – Black Applications

Residential Whole-Home Backup – High-capacity battery banks for large home systems.
Commercial Energy Storage – Scalable lithium platform for business resilience.
Off-Grid Solar Installations – Ideal for large off-grid inverter systems.
Hybrid Solar + Grid Systems – Integrates with compatible inverter platforms.

What's Included

Everything you need is included with your product.

Rubix Battery 24 Volt 560 AH, R-Series, Lithium Battery - Black

Rubix Battery 24 Volt 560 AH, R-Series, Lithium Battery – Black Specifications

Model

Specification	Value
Energy Rating	25.6V 560Ah (14.336kWh)
Energy Scalability	64 × Parallel (917.5kWh)

Charging/Discharging

Specification	Value
Max Continuous Discharge Power	200A (5.12kW)
Recommended Discharge Power	180A (5.12kW)
Inverter Start-Up Capability	PWM Technology Start-Up
Max Continuous Charging Power	200A (5.12kW)
Peak Charging Power (30 min)	240A (6.4kW)
Recommended Absorb Volts	28.4V
Max Absorb Volts (Solar Only)	28.8V
Absorb Done Amps (per Battery)	4% of capacity
Absorb Done Time	10 min
Float Voltage	27.2V
Temp Comp—mV Degrees Celsius	0
Max Recommended Discharge	25.5V (20%)
Inverter Low Battery Cutout	24V
Peukert Exponent	1.04

Installation Requirements

Specification	Value
Ventilation Required	No
Minimum Environment Temp	32 °F
Maximum Environment Temp	120 °F
IP Rating	IP50
Outdoor Rated	No
Installation Position	Horizontal with Base Unit Only

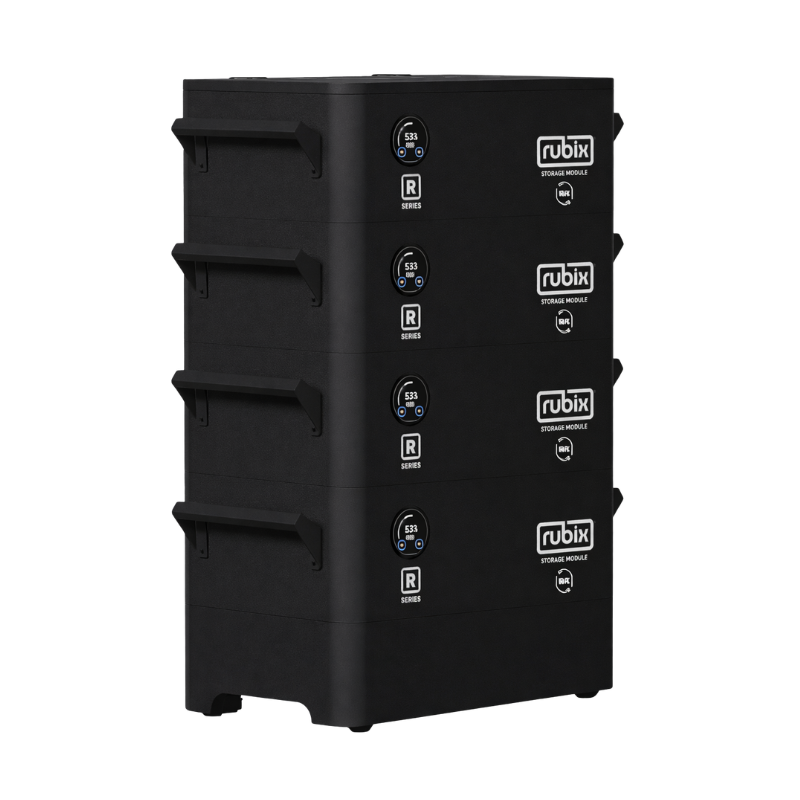

Maximum Batteries per Stack	4

Terminal Specs

Specification	Value
M8 Stainless Steel Dual	Bolt-On
Max Terminal Torque	18 ft-lbs

Cycle Life Rating

Specification	Value
Rated Cycle Life (100% DoD)	3,000 Cycles
Rated Cycle Life (80% DoD)	4,500 Cycles
Rated Cycle Life (50% DoD)	7,000 Cycles
Retained Capacity at End of Cycle Life	80%

Safety Features

Specification	Value
Breaker Current Rating	300A
BMS Low Voltage Disconnect	20.5 +/-1V
BMS High Voltage Disconnect	29.5 +/-1V
BMS Low Temp Charging Disconnect	32 °F
BMS Low Discharging Disconnect	0 °F
Low Volts Cutout Wakeup	22V
High Volts Cutout Wakeup	27.5V
BMS High Temp Disconnect	135 °F
Pressure Vented Cells	Yes
Rapid Shut Down Function (RPSD)	No, but supported

Certifications

Specification	Value
Cell Certification	UL 1973
Transport	UN 38.3

Internal Components

Specification	Value
Cell Chemistry	LiFePO4
Cell Format	Prismatic
Balancing Type	Active
Max Balancing Current	2A
Cell Connection	Welded busbar

Touchscreen LCD Features

Specification	Value
State-of-Charge (Pack Voltage)	Charging/Discharging Current
Event Log (Internet Cell Data)	Internal Temperatures

Dimensions

Specification	Value
Battery with Handles	35.94" × 19.53" × 9.45"
Base	30.28" × 19.53" × 6"
Lid	30.28" × 19.53" × 0.78"

Spacing

Specification	Value
Minimum Spacing between Batteries and Wall	1 inch
Minimum Spacing between Parallel Battery Stacks	1 inch
Minimum Spacing between Top of Battery Stack and Solar Equipment on Wall	6 inches
Minimum Spacing between Battery Bank and Water Sources/Conductors	4 feet

Weight

Specification	Value
Battery Weight	271 lb
Base Weight	66.6 lb
Lid Weight	20.8 lb

Frequently-Asked Questions

What is the energy capacity?

The battery provides 14.336kWh of nominal energy.

How many batteries can be connected in parallel?

Up to 64 batteries can be connected in parallel.

What is the continuous discharge rating?

200A continuous discharge (5.12kW).

What type of lithium cells are used?

Prismatic LiFePO₄ cells with welded busbar connections.

Is this battery outdoor rated?

No. It carries an IP50 rating and is intended for indoor installations.
