Rubix Battery 48 Volt 100 AH, Giga Stack Series, Lithium Battery – Blue

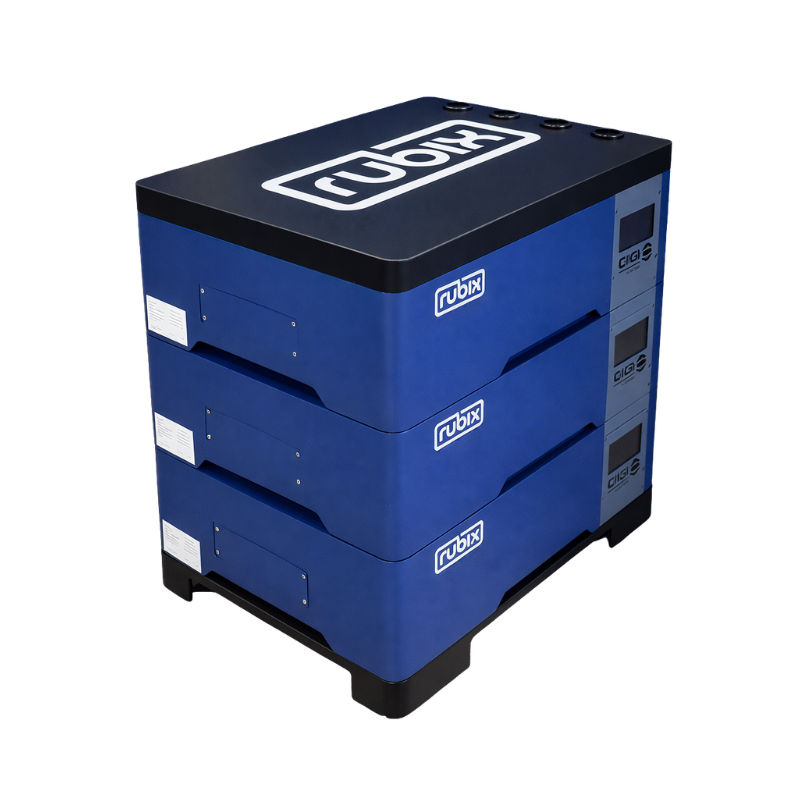

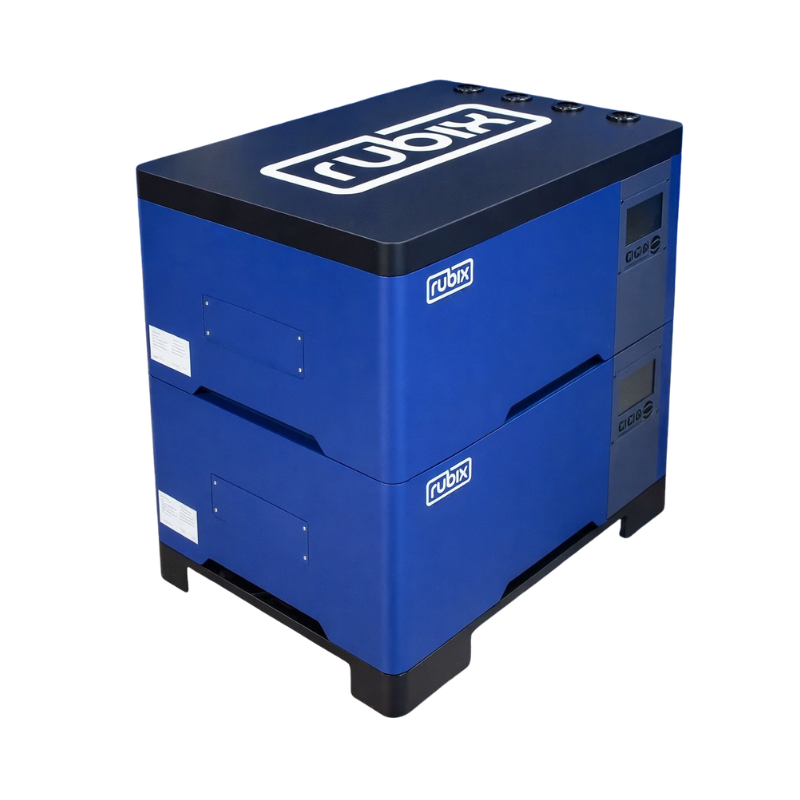

The Rubix Giga Stack Series 48V 100Ah Lithium Battery (RGS-48100) is a modular, stackable energy storage solution engineered for residential and light-commercial solar systems. Built with Lithium Iron Phosphate (LiFePO₄) chemistry, this battery delivers dependable performance, long cycle life, and advanced Battery Management System (BMS) protection. Its stackable architecture allows scalable expansion while maintaining a compact footprint, making it ideal for structured indoor energy storage installations.

Rubix Battery 48 Volt 100 AH, Giga Stack Series Features

48V Lithium Platform – Designed for 48V inverter systems requiring stable high-voltage battery input.

100Ah Capacity – Delivers reliable energy storage for daily cycling or backup applications.

LiFePO₄ Chemistry – Superior thermal stability, enhanced safety, and extended lifespan compared to traditional lithium chemistries.

Stackable Giga Architecture – Modular design allows vertical stacking for scalable system growth.

Integrated BMS Protection – Safeguards against over-voltage, under-voltage, overcurrent, and temperature extremes.

Indoor ESS Design – Engineered specifically for indoor energy storage installations.

Rubix Battery 48 Volt 100 AH, Giga Stack Series Applications

Residential Solar Storage – Store solar production for nighttime or outage use.
Whole-Home Backup Systems – Integrates with hybrid and off-grid inverters.
Commercial ESS Installations – Scalable solution for business energy resilience.
Energy Time-Shifting Systems – Store energy during off-peak hours for later use.

What's Included

Everything you need is included with your product.

1 x Rubix Battery 48 Volt 100 AH, Giga Stack Series, Lithium Battery - Blue

Rubix Battery 48 V 100 AH Giga Stack Series Specifications

Model

Specification	Value
Model number	RGS5100

Power Ratings

Specification	Value
Nominal voltage	48
Actual voltage @20% SOC	51.2
Amp-hrs	100
Nameplate capacity-kWh	5.12

Charging/Discharging

Specification	Value
Max continuous discharge amps	90
Recommended discharge (max amps)	75
Max cont. discharge kW	4.6
Surge discharge amps 0.5 (micro seconds)	1,000
Surge discharge 10ms	200
Max charging amps-continuous	70
Peak charging amps-30 minutes	80
Recommended voltage range (cycling)	51-56.5
Max voltage range (cycling)	48-57.6
Recommended absorb volts	56.8
Max absorb volts-solar only	57.6
Absorb done amps/per battery	5
Absorb done time (minutes)	10
Float volts	54.4
Temp comp-mV/degrees celsius	0

Operational

Specification	Value
Rated cycle life-100% DoD	4,000
Rated cycle life-80% DoD	6,000
Rated cycle life-50% DoD	8,500
Retained capacity at end of cycle life	80%
Max recommended discharge volts	51V (20%)
Inverter low battery cutout	48V
Low volt cutout wakeup	44
High volt cutout wakeup	55
High current cutout wakeup	Reverse direction of current

Certification

Specification	Value
Battery certification	UL9540A
Transport certification	UN38.3

External

Specification	Value
Handles	Indented handles
Terminal type	Bolt-on M8
Max torque	20 FT LBS

Environment/Installation

Specification	Value
Ventilation required	No
Minimum temp (degrees F)	32
Maximum temp (degrees F)	120
Maximum batteries per stack	6
IP rating	50
Outdoor rated	No
Installation position	Horizontal with base unit only

Safety

Specification	Value
Breaker size (amps)	125
BMS low volt cutout	41 +/-1VOLT
BMS high volt cutout	59 +/-1VOLT
BMS low temp cutout	32 F
BMS high temp cutout	135 F
Pressure vented cells	Yes

Internal

Specification	Value
Cell chemistry	LiFePO4
Cell format	Prismatic
BMS amp ratings	150
Balancing type	Impactive
Cell connection	Welded busbar
Max balancing current	1.1A

Touchscreen LCD Features

Specification	Value
SOC%	✓
Volts	✓
Charging/discharging amps	✓
Balancer status	✓
Cell voltages	✓
Faults	✓

Physical Dimensions & Weights

Specification	Value
Batteries per crate	4
Crate dimensions	40 x 30 x 22
Battery weight	117
Total crate weight	525

Frequently-Asked Questions

What is the nominal capacity of this battery?

It is rated at 48V and 100Ah.

Can this battery be stacked?

Yes. The Giga Stack Series is designed for modular stacking configurations.

What lithium chemistry is used?

It uses Lithium Iron Phosphate (LiFePO₄) cells.

Is this battery suitable for outdoor installation?

No. It is rated for indoor installations only.

Does it include an integrated BMS?

Yes. The battery includes a built-in Battery Management System for safety and performance monitoring.
