Rubix Battery 48 Volt 100 AH, Stack Series, Lithium Battery - Grey

Name: Rubix Battery 48 Volt 100 AH, Stack Series, Lithium Battery - Grey
Brand: Rubix
SKU: RS-48100
Price: 1805.7 USD
Availability: InStock

BY: Rubix

SKU: RS-48100

| Availability: In stock

$1,805.70

Product Highlights

Built for home backup and off-grid power
5,120 Wh capacity for extended backup and off-grid runtime
Expandable design lets stored power grow with future needs
LiFePO4 chemistry supports dependable long-term cycling

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Rubix Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

Rubix Battery 48 Volt 100 AH, Stack Series, Lithium Battery – Grey

The Rubix Stack Series 48V 100Ah Lithium Battery (RS-48100) is a modular lithium iron phosphate (LiFePO₄) energy storage solution designed for scalable residential and light commercial applications. With a 48V nominal platform and 100Ah capacity, this battery delivers dependable power for solar storage, backup systems, and hybrid inverter setups. Its stackable design enables flexible expansion, allowing multiple units to be configured in parallel for increased capacity. Engineered with integrated BMS protection and high-efficiency lithium chemistry, the RS-48100 provides long service life, stable performance, and reliable system integration.

Rubix Battery 48 Volt 100 AH, Stack Series, Lithium Battery – Grey Features

48V 100Ah Lithium Capacity – Delivers stable high-voltage storage ideal for modern inverter systems.

Stackable Modular Design – Expand capacity by stacking multiple units for scalable energy storage.

LiFePO₄ Chemistry – Provides enhanced thermal stability, safety, and extended cycle life.

Integrated Battery Management System (BMS) – Protects against overcharge, over-discharge, overcurrent, and temperature extremes.

Parallel Expansion Capability – Supports multi-battery configurations for larger residential ESS systems.

Grey Steel Enclosure – Durable housing designed for structured indoor energy storage installations.

Rubix Battery 48 Volt 100 AH, Stack Series, Lithium Battery – Grey Applications

Residential Solar Storage – Ideal for pairing with hybrid or off-grid solar inverters.
Home Backup Systems – Reliable backup power during grid outages.
Hybrid Energy Systems – Works with grid-tied + storage configurations.
Light Commercial ESS – Suitable for small business energy resilience systems.

What's Included

Everything you need is included with your product.

1 x Rubix Battery 48 Volt 100 AH, Stack Series, Lithium Battery - Grey
1 x Wiring Compartment Cover
2 x Paralleling Busbars

1 x Paralleling Network Cable
1 x Terminal Covers

Rubix Battery 48 Volt 100 AH, Stack Series, Lithium Battery – Grey Specifications

Model

Specifications	Value
Energy Rating	51.2V 100AHh (5.12kwh)
Energy Scalability	32 x Parallel (163.84kwh)

Charging/Discharging

Specifications	Value
Max Continuous Discharge power	90A (4.6kw)
Recommended Discharge power	75A (3.84kw)
Peak Discharge Power (3sec)	200A (10.2kw)
Max Continuous Charging Power	70A (3.58kw)
Peak Charging Power (30min)	80A (4kw)
Recommended Absorb Volts	56.8V
Max Absorb Volts (Solar Only)	57.6V
Absorb Done Amps (Per Battery)	5A
Absorb Done Time	10min
Float Voltage	54.4V
Temp Comp-MV Degrees Celsius	0
Max Recommended Discharge	51V (20%)
Inverter Low Battery Cutout	48V
Low Volts Cutout Wakeup	44V
High Volts Cutout Wakeup	55V

Installation Requirements

Specifications	Value
Ventilation Required	NO
Minimum Environment Temp	32° F
Maximum Environment Temp	120° F
IP Rating	IP50
Outdoor Rated	NO
Installation Position	Horizontal with base unit only
Maximum Batteries Per Stack	6

Terminal Specs

Specifications	Value
M8 Stainless Stee	Bolt-on
Max Terminal Torque	20ft-LBS

Cycle Life Rating

Specifications	Value
Rated Cycle Life (100% DOD)	3000 cycles
Rated Cycle Life (80% DOD)	4500 cycles
Rated Cycle Life (50% DOD)	7000 cycles
Retained Capacity at end of Cycle Life	80%

Safety Features

Specifications	Value
Breaker Current Rating	150A
BMS Low Voltage Disconnect	41+/-1V
BMS High Voltage Disconnect	59+/-1V
BMS Low Temp Charging Disconnect	32° F
BMS Low Temp Discharging Disconnect	-0° F
BMS High Temp Disconnect	135° F
Pressure Vented Cells	Yes
Rapid Shut Down Function (RPSD)	Yes

Certifications

Specifications	Value
Battery Certifications	UL 9540A
Transport	UN 38.3

Internal Components

Specifications	Value
Cell Chemistry	LiFePO4
Cell Format	Prismatic
Balancing Type	Impactive
Max Balancing Current	1.1A
Cell Connection	Welded Bus Bar

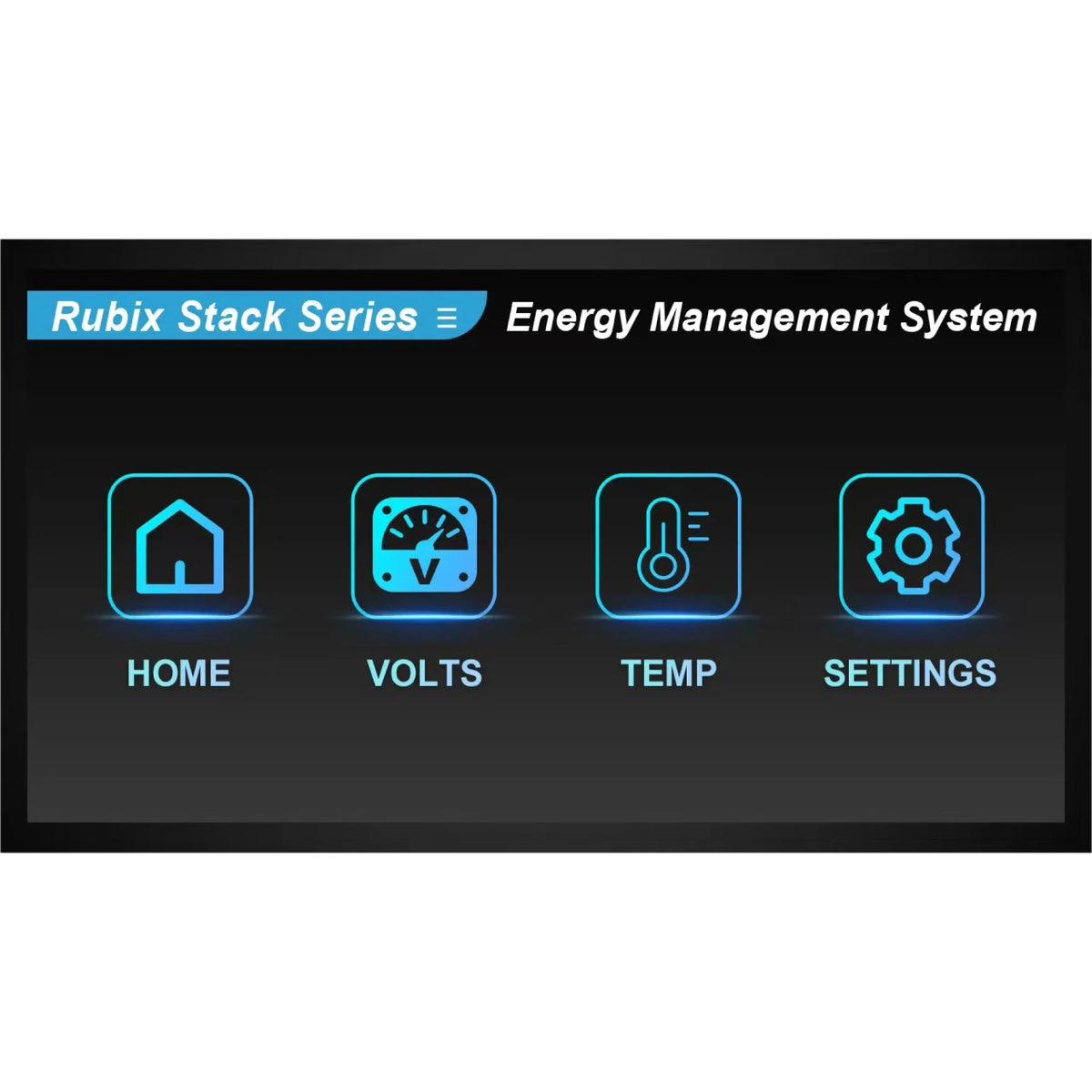

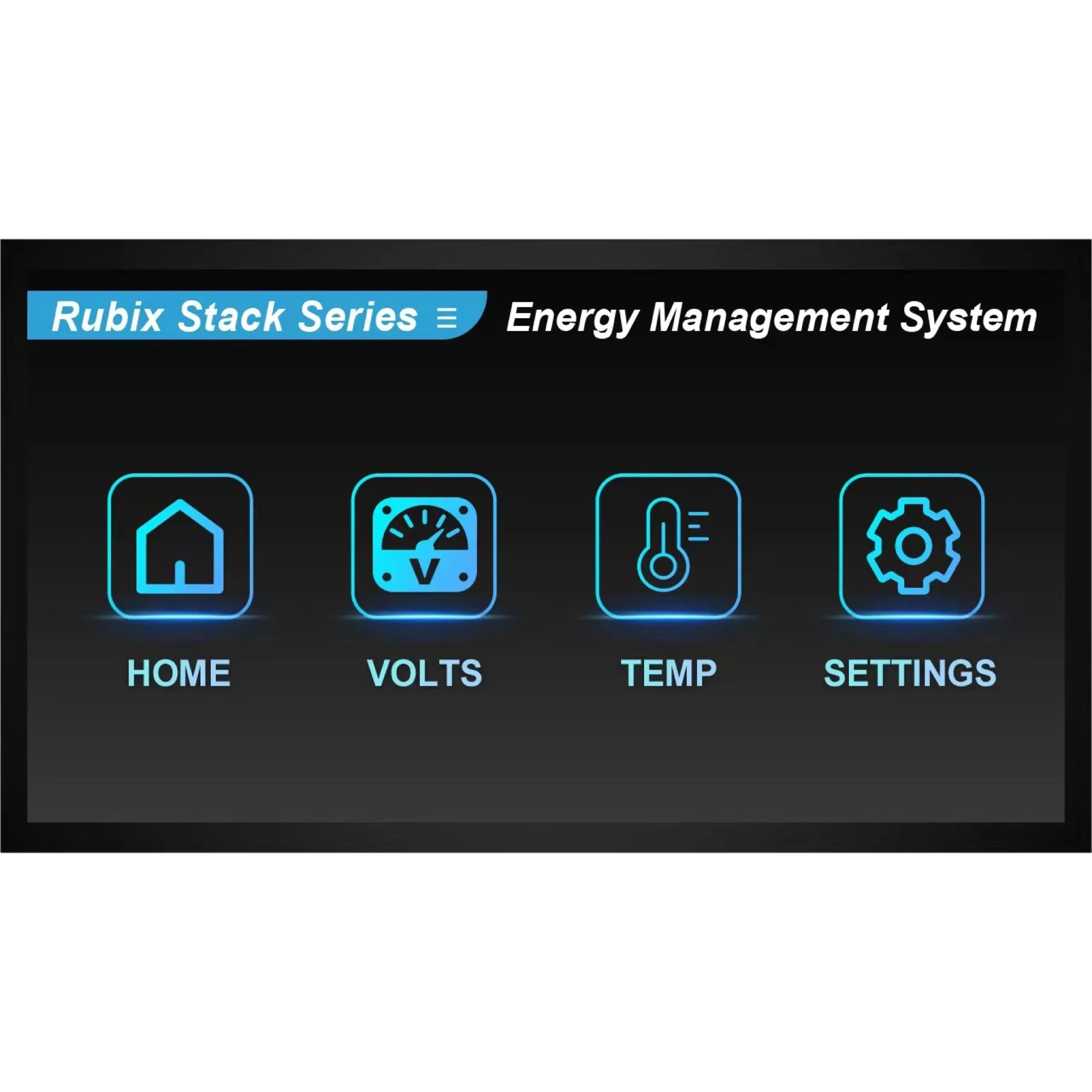

Touchscreen LCD Features

Specifications	Value
State－of－Charge	Yes
Pack Voltage	Yes
Charging/Discharging Current	Yes
Individual Cell Voltage	Yes
Fault Logging	Yes
Inverter Com. Selection	Yes

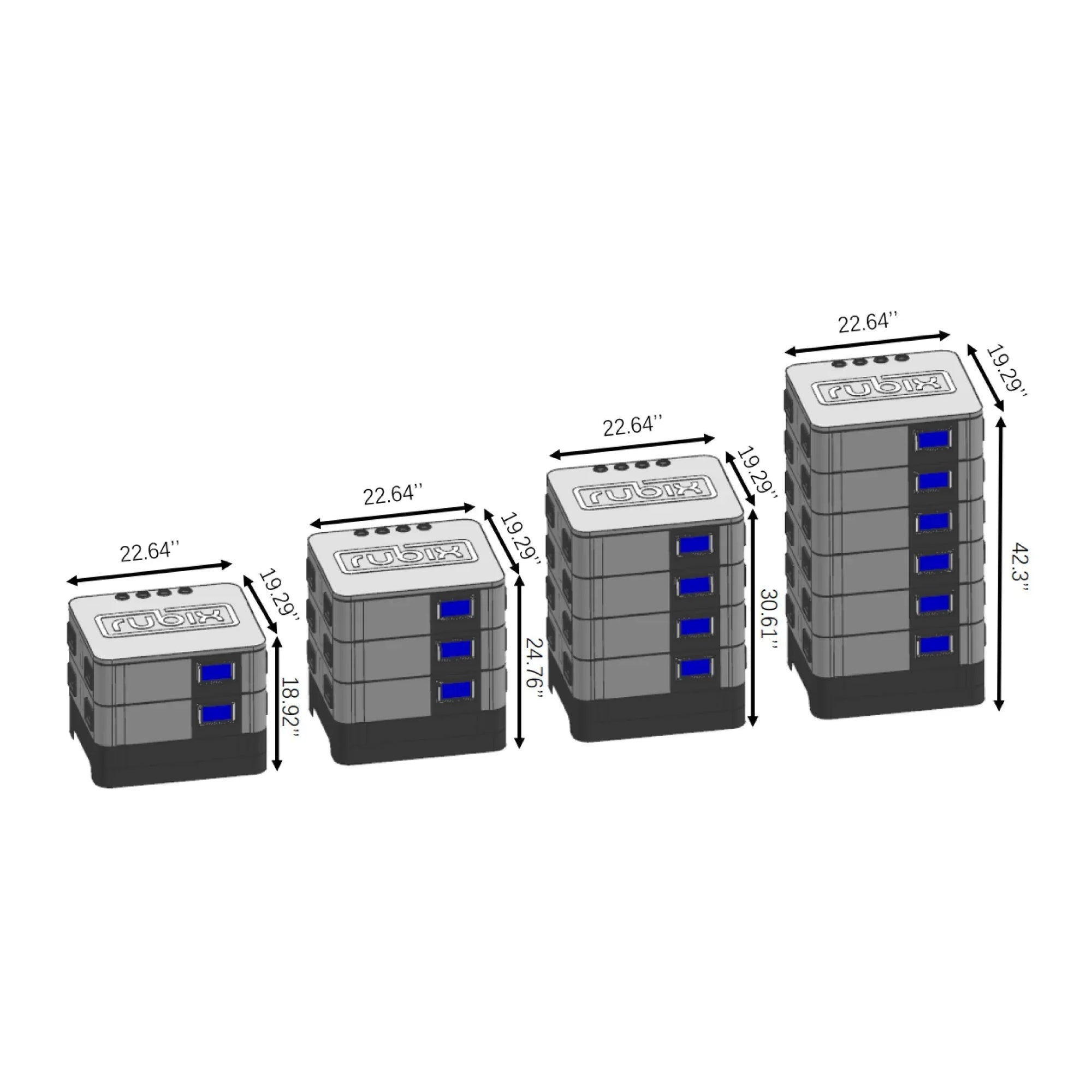

Physical Dimensions

Specifications	Value
Battery	22.6"x19.3"x6.2"
Base	22.6"x19.3"x6.8"
Lid	22.6"x19.3"x0.8"

Weight

Specifications	Value
Battery	108lb
Base	42lb
Lid	20.9lb

Frequently-Asked Questions

What is the total energy capacity of the RS-48100?

The battery provides approximately 4.8 kWh of nominal energy (48V × 100Ah).

Can this battery be expanded?

Yes. The Stack Series is designed for modular expansion through parallel configurations.

What type of lithium chemistry does this battery use?

It uses Lithium Iron Phosphate (LiFePO₄) cells.

Is this battery compatible with hybrid inverters?

Yes, it is designed for integration with compatible 48V inverter systems. Always verify inverter communication compatibility.

Is this battery suitable for outdoor installation?

Installation environment should follow manufacturer guidelines. Refer to official documentation for IP rating and environmental limits.
