RUiXU Lithi2-16 | 51.2V 314Ah | 16kWh LiFePO4 Battery Storage System Wall Mount Batteries Ruixu

RUiXU Lithi2-16 | 51.2V 314Ah | 16kWh LiFePO4 Battery Storage System

Name: RUiXU Lithi2-16 | 51.2V 314Ah | 16kWh LiFePO4 Battery Storage System
Brand: Ruixu
SKU: Lithi2-16
Price: 3299.0 USD
Availability: InStock
Rating: 4.5 (2 reviews)

BY: Ruixu

SKU: Lithi2-16

| Availability: In stock

$3,399.00

$3,299.00

You Save: $100.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Ruixu Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

RUiXU Lithi2-16 51.2V 314Ah 16kWh LiFePO4 Battery – IP65 Outdoor | Wall-Mount Energy Storage | 9500 Cycles | UL1973 & UL9540 Certified

The RUiXU Lithi2-16 is a high-performance 16kWh Lithium Iron Phosphate (LiFePO4) battery, designed for residential and commercial energy storage applications. Built with grade A brand-new cells, this system delivers reliable, long-lasting performance with 9500+ cycles at 80% Depth of Discharge (DOD).

Designed for seamless integration into solar and backup power systems, the Lithi2-16 operates at 48V and features a built-in Battery Management System (BMS) for safe and efficient energy storage. It is compatible with on-grid, backup, and off-grid inverters, making it a versatile energy solution.

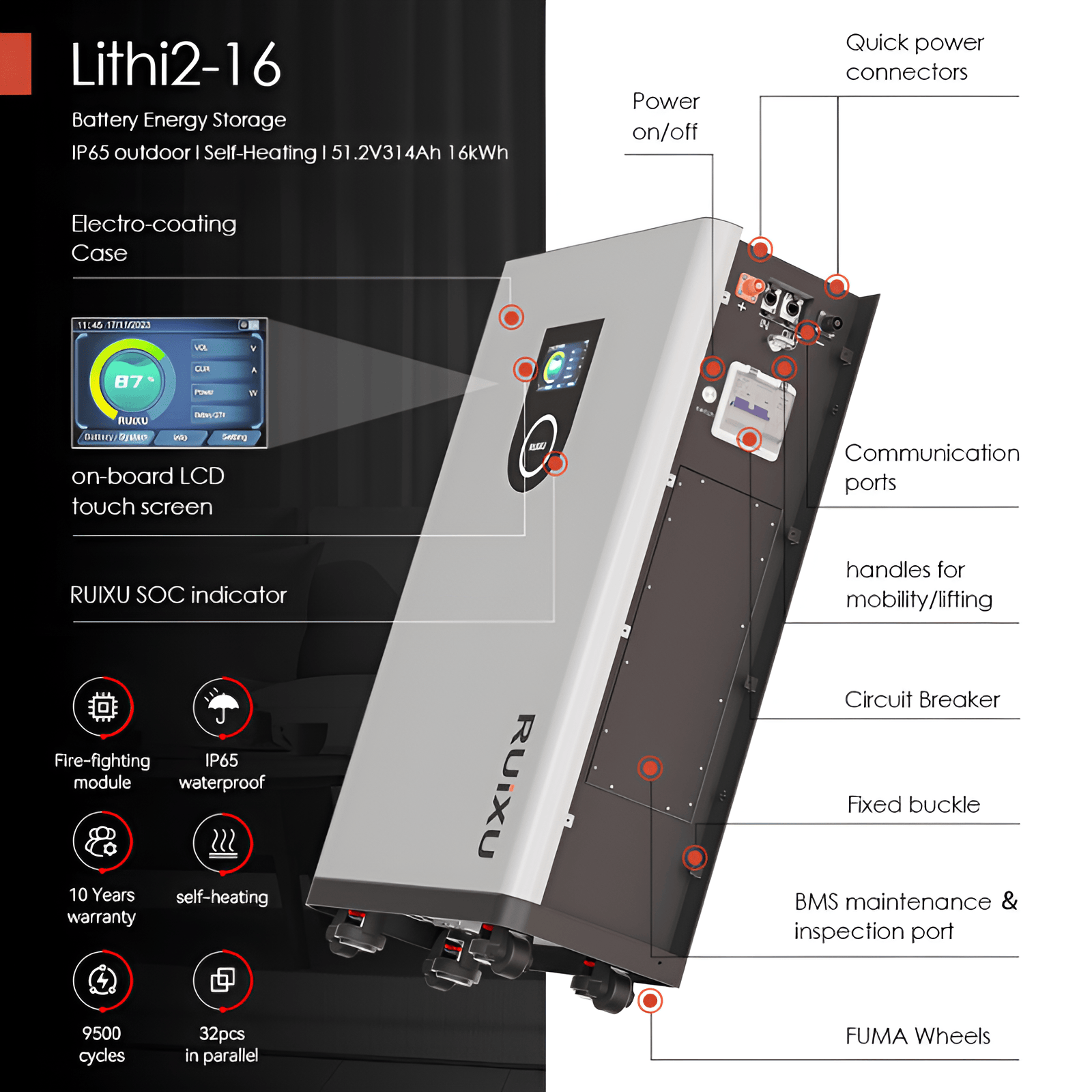

With IP65-rated weatherproofing, a durable electro-coated enclosure, and four concealed heavy-duty wheels, the Lithi2-16 is built for both indoor and outdoor use, offering mobility without compromising its compact design.

RUiXU Lithi2-16 | 51.2V 314Ah | 16kWh LiFePO4 Battery Storage System

High-Capacity, Long Life – Provides 16kWh of energy storage with 9500+ cycles at 80% DOD, ensuring a long service life.
Scalable and Expandable – Supports up to 32 batteries in parallel, expanding total capacity from 16kWh to 257kWh for residential and commercial applications.
Advanced Safety and Protection – Incorporates a perfluorohexane fire protection module, dual fuse and circuit breaker protection, and an intelligent balancing system for enhanced reliability.
Rust-Resistant and Outdoor-Ready – Electro-coating (e-coating) on the enclosure provides superior rust prevention, making it ideal for outdoor installations.
Quick and Secure Connections – Equipped with 250A-rated quick plugs for tool-less installation, anti-loosening protection, and high-current stability.
Wall-Mountable with Heavy-Duty Wheels – Four Fuma wheels allow for easy movement, while a built-in anti-tipping mount secures the battery to the wall for added safety.
Self-Heating for Cold Weather – Maintains optimal charging performance in low temperatures, ensuring year-round reliability.
On-Board LCD Touchscreen – A 5-inch capacitive touchscreen provides real-time battery data and allows for easy system adjustments.
User-Friendly Maintenance – Features an inspection port for BMS and fuse access, simplifying battery monitoring and servicing.

RUiXU Lithi2-16 | 51.2V 314Ah | 16kWh LiFePO4 Battery Storage System

Off-Grid Solar Systems – Reliable storage for remote and off-grid homes.
Residential Backup Power – Provides seamless power during outages.
Commercial & Industrial Energy Storage – Supports high-power demand applications.
Grid-Tied Hybrid Systems – Works with solar + grid for optimized energy savings.

What's Included

Everything you need is included with your product.

(1) RUiXU Lithi2-16
(1) RJ45/CAT5e Patch Cable
(1) Ground Cable

(1) Set of parallel 1/0 AWG OP140 or PP140 cable
(1) User Manual

Reliable Energy Storage with a Limited 10-Year Warranty

The RUiXU Lithi2-16 is engineered for durability, efficiency, and long-term reliability. Backed by a limited 10-year warranty, it is a dependable choice for homeowners, businesses, and off-grid energy systems seeking scalable and robust power storage.

RUiXU Lithi2-16 Specifications

Specification	Details
Nominal Voltage	51.2V
Capacity	314Ah (Min. Capacity @ 0.2C: 314Ah)
Nominal Energy	16.07kWh
Operating Voltage Range	44.8V - 56.0V
Charge Voltage	56.8V
Recommended Charge Current	140A
Max Charge Current	200A
Recommended Discharge Current	100A
Max Discharge Current	200A
Cycle Life (@ 80% DOD)	≥ 9500 cycles
Communication Protocols	RS485 / CAN
Dimensions (with Wheels)	36.3" x 21.3" x 10"
Weight	~320 lbs
Mounting Options	Wall-mounted with included screws and anti-tipping anchor
Certifications	UL1973, UL9540
IP Rating	IP65 (Outdoor-Ready)

Frequently-Asked Questions

Can I expand the battery storage?

Yes! The Lithi2-16 supports up to 32 batteries in parallel, allowing for a total of 257kWh storage capacity.

Is this battery compatible with my inverter?

This battery supports RS485 & CAN communication protocols, ensuring compatibility with most hybrid and off-grid inverters.

Does this battery work in cold weather?

Yes! It features self-heating technology, ensuring optimal performance even in freezing temperatures.

Can the battery be installed outdoors?

Absolutely! The IP65-rated enclosure provides dust and water resistance, making it suitable for outdoor use.

What is the lifespan of this battery?

With 9,500+ cycles at 80% DOD, this battery is designed to last over a decade with proper use.

Manual

RUiXU Lithi2-16 51.2V 314Ah 16kWh LiFePO4 Battery Manual
