Sol-Ark 12K Complete Hybrid Solar Kit | 7kW Solar | 20.48kWh Server Rack Batteries

The Sol-Ark 12K Complete Hybrid Solar Kit is a premium, all-in-one energy solution designed for homeowners seeking reliable grid-tied and backup power with battery storage. Built around the powerful Sol-Ark 12K hybrid inverter, this system seamlessly integrates solar production, battery storage, and grid interaction. With a 7kW solar array and 20.48kWh server rack battery options, this kit delivers dependable energy, intelligent load management, and long-term scalability for both everyday use and emergency backup.

Sol-Ark 12K Complete Hybrid Solar Kit Features

Powerful 12kW Hybrid Inverter - Delivers 12,000W output with 120/240V split-phase capability, supporting whole-home loads and seamless grid interaction.
Grid-Tied + Battery Backup Functionality - Operate in grid-tied, hybrid, or backup mode, ensuring power is always available—even during outages.
20.48kWh Server Rack Battery Options - Includes multiple battery choices with closed-loop communication compatibility for optimized performance and monitoring.
7kW High-Efficiency Solar Array - Equipped with 14 × 500W Mono PERC panels, providing reliable solar generation and strong daily output.
Advanced System Monitoring & Control - Smart inverter technology enables real-time monitoring, load prioritization, and energy optimization.
Expandable & Scalable Design - Add more batteries or solar panels as energy needs grow over time.

Sol-Ark 12K Complete Hybrid Solar Kit Applications

Whole-home backup power systems - Provides reliable, automatic backup power to keep essential appliances and circuits running during outages, ensuring comfort and continuity for your entire home.
Grid-tied homes with battery storage - Perfect for homeowners who want to stay connected to the grid while storing excess solar energy for use at night or during power interruptions.
Energy cost reduction and peak shaving - Helps reduce electricity bills by storing solar energy and using it during peak utility rate hours, maximizing savings and efficiency.
Rural and suburban residential properties - Ideal for homes in areas with unstable grids or higher energy costs, offering dependable and self-sufficient power.
Small businesses and workshops - Keeps critical equipment, tools, and operations running smoothly, minimizing downtime and protecting productivity.
Emergency power and resilience planning - A dependable solution for disaster preparedness, ensuring you have power during storms, outages, or other unexpected events.

What's Included

Everything you need is included with your product.

Inverter (Choose One):

1 x Sol-Ark 12K - 12000W Output - 13000W PV Input - 48V - 120/240V Split Phase - Hybrid
1 x Sol-Ark 12K - 12000W Output - 13000W PV Input - 48V - 120/240V Split Phase - Hybrid (EMP Hardended)

Battery Options (Choose One):

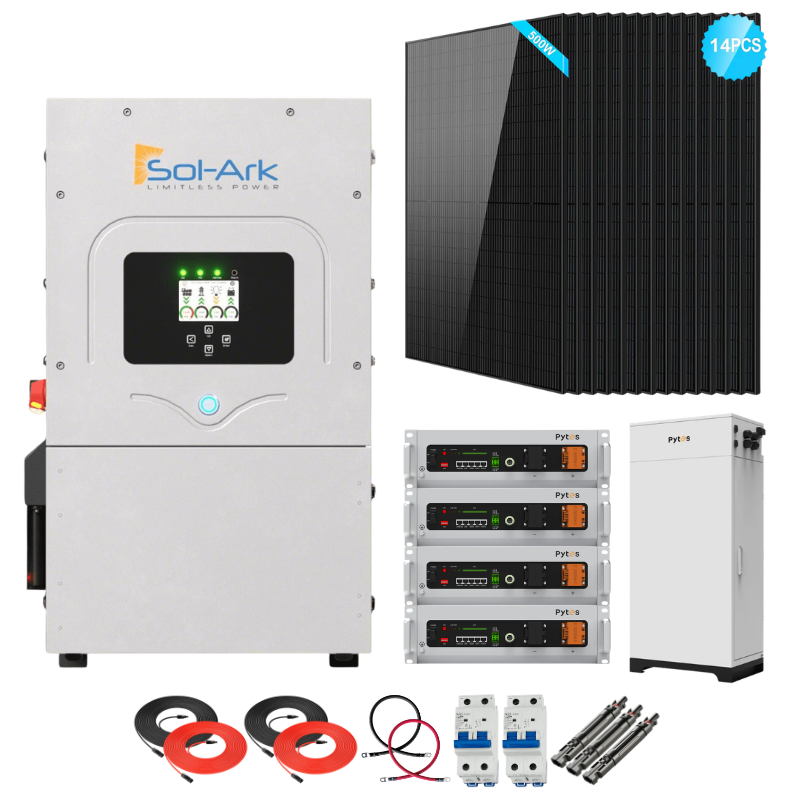

4 x Pytes V5 - 20.48kWh - Closed Loop
4 x Discover AES - 20.48kWh - Closed Loop

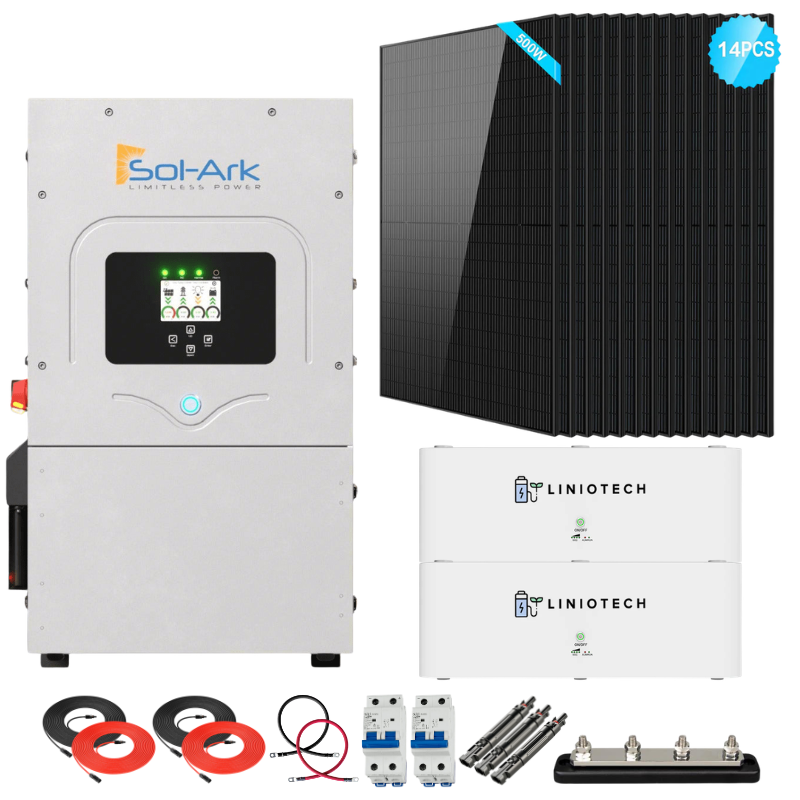

2 x LINIOTECH - 20.48kWh - Closed Loop

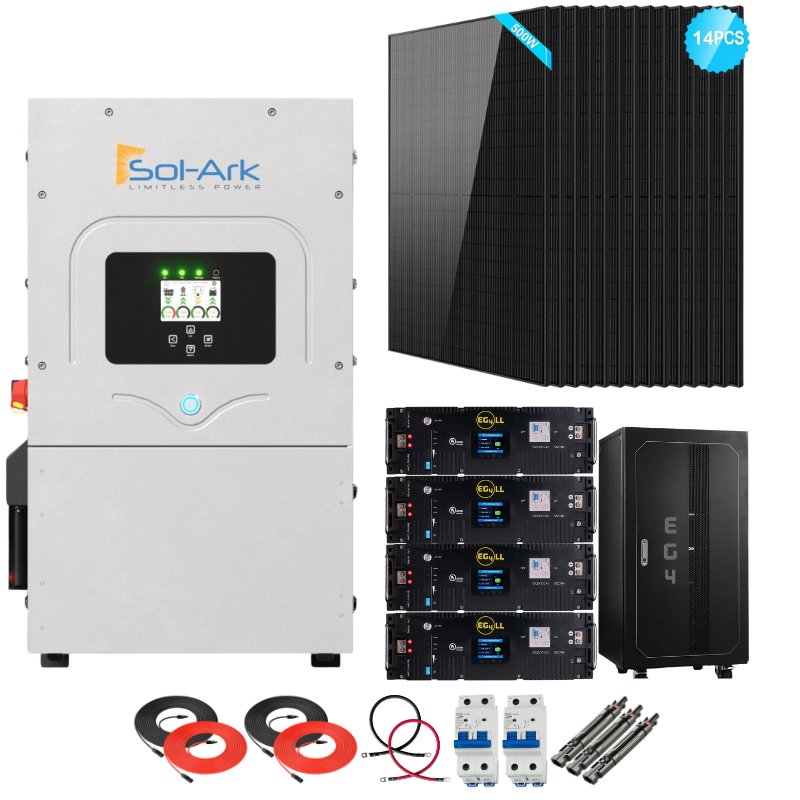

4 x EG4 LL-S - 20.48kWh - Open Loop

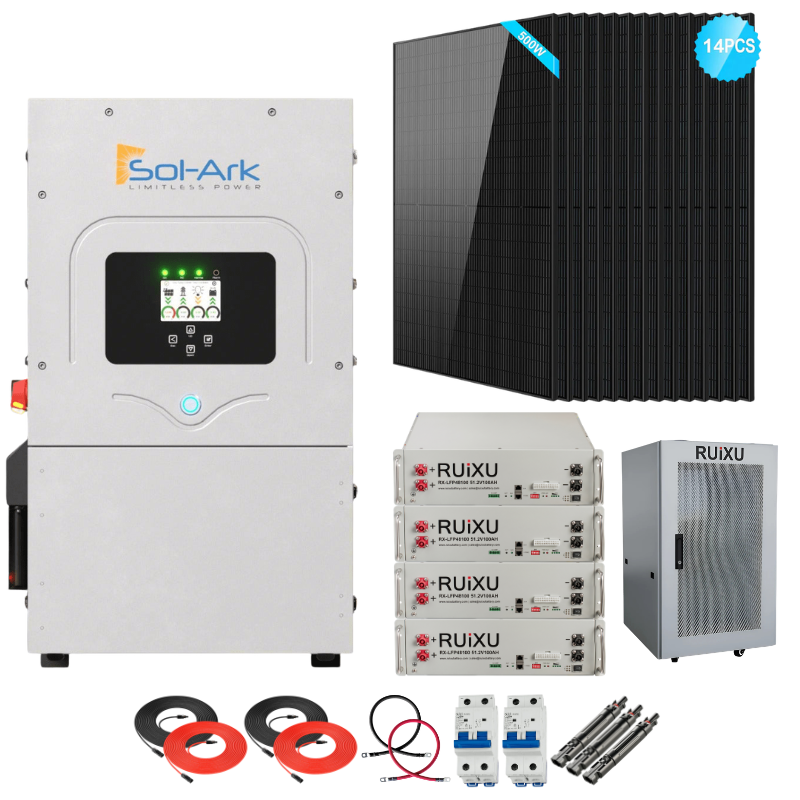

4 x RUiXU 51.2V - 20.48kWh - Open Loop

Solar Panel:

14 × SunGold Power 500W Mono Black PERC (7kW)

Accessories:

2 x 10AWG Solar Extension Cable - 50ft
4/0 AWG Battery Cable - 6ft - 5/16 Both Ends (Set Red & Black)
2 x 25A PV Breaker
3 x Replacement Inline Fuse Holder | Choose Amp: 10A, 15A, 20A, 30A

Accessory Based on Battery Choice:

1 x Pytes V-BOX-OC Outdoor Battery Cabinet (Comes with Pytes)
4 x Battery Cable Kit (Comes with Discover)
4 x AES Rackmount Quick Stack Rack (Comes with Discover)
1 x AES Rackmount Battery Module Combiner (Comes with Discover)
1 x Bussbar 600A 8P w/Cover (Comes with LINIOTECH))
1 x EG4 Pre-Assembled EG4 Enclosed Battery Rack | 6 Slot | Wheels Included | Bus Bar Covers | Welded (Comes with EG4)
1 x 6 Slot Battery Cabinet | Wheels & Busbar Included | Pre-Assembled (Comes with RUiXU)

Sol-Ark 12K Complete Hybrid Solar Kit Specifications

Sol-Ark 12K - 12000W Output - 13000W PV Input - 48V - 120/240V Split Phase - Hybrid Specifications

Input Data (PV)

Specification	Details
Max. Allowed PV Power (STC)	13,000W
Rated MPPT Operating Voltage Range	175 - 425V
MPPT Voltage Range	150 - 500V
Startup Voltage	125V
Max. Input Voltage	500V
Max. Operating Input Current per MPPT	20A (self-limiting)
No. of MPP Trackers	2
No. of PV Strings per MPPT	2
Max. AC Coupled Input	9,600W

Output Data (AC)

Specification	Details
Nominal AC Voltage	120/240V, 120/208V, 220V
Grid Frequency	50 / 60Hz
Real Power, max continuous	9,000W
Max. Output Current	37.5A
Peak Apparent Power (10s, off-grid)	16,000VA @ 240V
Peak Apparent Power (100ms, off-grid)	25,000VA @ 240V
Max Output Fault Current (100ms)	104A
Max. Grid Passthrough Current	63A
Power Factor Output Range	+/- 0.9 adjustable
Backup Transfer Time	4ms
CEC Efficiency	96.5%
Max Efficiency	97.5%
Design (DC to AC)	Transformerless DC
Stackable	Up to 9 in parallel

Battery Input Data (DC)

Specification	Details
Battery Technologies	Lithium / Lead Acid
Nominal DC Voltage	48V
Operating Voltage Range	43 - 63V
Capacity	50 — 9900Ah
Max. Battery Charge / Discharge Current	185A
Charging Controller	3-Stage with Equalization
Grid to Battery Charging Efficiency	96.0%
External Battery Temperature Sensor (BTS)	Included
Automatic Generator Start (AGS)	2 Wire Start - Integrated
BMS Communication	CANBus & RS485 MODBUS

General Data

Specification	Details
Dimensions (H x W x D)	750 x 450 x 254 mm (29.5 x 17.7 x 10 in)
Weight	35.4 kg / 78 lb.
Enclosure	IP65 / NEMA 3R
Ambient Temperature	-25~55°C, > 45°C Derating
Noise	< 30 dB @ 25°C (77°F)
Idle consumption	- No Load 60W
Communication and Monitoring	Wi-Fi & LAN Hardware Included
Standard Warranty	10 Years

Protection and Certifications

Specification	Details
Certifications and Listings	UL1741-2010/2018, IEEE1547a 2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H
PV DC Disconnect Switch — NEC 240.15	Integrated
Ground Fault Detection — NEC 690.5	Integrated
PV Rapid Shutdown Control — NEC 690.12	Integrated
PV Arc Fault Detection — NEC 690.11	Integrated
PV Input Lightning Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
AC Output Breaker - 63A	Integrated
250A Battery Breaker / Disconnect	Integrated
Surge Protection	DC Type II / AC Type II

Sol-Ark 12K - 12000W Output - 13000W PV Input - 48V - 120/240V Split Phase - Hybrid (EMP Hardended) Specifications

Input Data (PV)

Specification	Details
Max. Allowed PV Power (STC)	13,000W
Rated MPPT Operating Voltage Range	175 - 425V
MPPT Voltage Range	150 - 500V
Startup Voltage	125V
Max. Input Voltage	500V
Max. Operating Input Current per MPPT	20A (self-limiting)
No. of MPP Trackers	2
No. of PV Strings per MPPT	2
Max. AC Coupled Input	9,600W

Output Data (AC)

Specification	Details
Nominal AC Voltage	120/240V, 120/208V, 220V
Grid Frequency	50 / 60Hz
Real Power, max continuous	9,000W
Max. Output Current	37.5A
Peak Apparent Power (10s, off-grid)	16,000VA @ 240V
Peak Apparent Power (100ms, off-grid)	25,000VA @ 240V
Max Output Fault Current (100ms)	104A
Max. Grid Passthrough Current	63A
Power Factor Output Range	+/- 0.9 adjustable
Backup Transfer Time	4ms
CEC Efficiency	96.5%
Max Efficiency	97.5%
Design (DC to AC)	Transformerless DC
Stackable	Up to 9 in parallel

Battery Input Data (DC)

Specification	Details
Battery Technologies	Lithium / Lead Acid
Nominal DC Voltage	48V
Operating Voltage Range	43 - 63V
Capacity	50 — 9900Ah
Max. Battery Charge / Discharge Current	185A
Charging Controller	3-Stage with Equalization
Grid to Battery Charging Efficiency	96.0%
External Battery Temperature Sensor (BTS)	Included
Automatic Generator Start (AGS)	2 Wire Start - Integrated
BMS Communication	CANBus & RS485 MODBUS

General Data

Specification	Details
Dimensions (H x W x D)	750 x 450 x 254 mm (29.5 x 17.7 x 10 in)
Weight	35.4 kg / 78 lb.
Enclosure	IP65 / NEMA 3R
Ambient Temperature	-25~55°C, > 45°C Derating
Noise	< 30 dB @ 25°C (77°F)
Idle consumption	- No Load 60W
Communication and Monitoring	Wi-Fi & LAN Hardware Included
Standard Warranty	10 Years

Protection and Certifications

Specification	Details
Certifications and Listings	Certifications and Listings
PV DC Disconnect Switch — NEC 240.15	Integrated
Ground Fault Detection — NEC 690.5	Integrated
PV Rapid Shutdown Control — NEC 690.12	Integrated
PV Arc Fault Detection — NEC 690.11	Integrated
PV Input Lightning Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
AC Output Breaker - 63A	Integrated
250A Battery Breaker / Disconnect	Integrated
Surge Protection	DC Type II / AC Type II

Pytes V5 - 20.48kWh - Closed Loop Specifications

Electrical

Specification	Details
Nominal Voltage	51.2V
Voltage Range	47.5V–57.6V
Nominal Capacity	100Ah
Nominal Energy	5.12kWh
Recommended Charge/Discharge Current	75A (3.84kW DC)
Max Charge/Discharge Current	100A (5.12kW DC)
Peak Charge/Discharge Current	101A–120A (3min) \| 121A–180A (15sec)

General

Specification	Details
Chemistry	LFP
Communication Protocol	CAN/RS485
Dimensions	17.4 x 20.87 x 5.51 in (3.2U) \| 424 x 530 x 140 mm (3.2U)
Weight	97 lbs / 44 kg
Operating Temperature	Charge: 32°F–113°F / 0°C–45°C \| Discharge: -4°F–122°F / -10°C–50°C
Round-Trip Efficiency	> 95%
Cycle Life	≥ 6000 cycles
Altitude	< 13,123.35 ft / 4000 m
Warranty	10 years
Scalability	16 pcs (81.92 kWh) in a group \| 6 groups (491.52 kWh) in a system w/ a Hub

Discover AES - 20.48kWh - Closed Loop Specifications

Electrical Specifications

Specification	Details
Open Circuit Voltage (V)	51.2
Charge Voltage (Bulk Vdc)	55.2
Max Absorption Voltage (U1 Vdc)	55.2
Float Voltage (U2 Vdc)	53.6
Suggested Low Voltage Cutoff (Vdc)	48
Max Continuous Charge Current - 1 Hour	95 A
Max. Continuous Charge Current (I Max. Adc)	53.6 V
Charge Termination Current	5 A
Recommended High Voltage Disconnect	70 A
Min. Finishing Charge Current (I Min. Adc)	2.5 A
Max Continuous Discharge Current - 1 Hour	95 A
Max Continuous Discharge Current (Adc)	70 A
Max Continuous Discharge Rate (kW)	5.12
Max Peak Current (Adc)	218 A RMS
Self-Discharge (25°C / 77°F)	< 3% per month
Charge Temperature	Min: 4°C (39.2°F) \| Max: 52°C (125.6°F)
Discharge Temperature	Min: -17°C (1.4°F) \| Max: 52°C (125.6°F)
Storage Temperature	Min: -20°C (-4°F) \| Max: 55°C (131°F)

Mechanical Specifications

Specification	Details
Industry Reference	19 Inch Rackmount 3U
Length A (in/mm)	19.6 \| 497.3
Width B (in/mm)	17.3 \| 439.2
Height C (in/mm)	5.3 \| 133.5
Total Height D (in/mm)	5.3 \| 133.5
Weight (lbs/kgs)	97 \| 44
Terminal *	Amphenol SurLok Plus
Cell(s)	16S1P
Case Material	Galvanized Steel Sheet
IP Rating	20
Electrolyte	LiFePO4

LINIOTECH - 20.48kWh - Closed Loop Specifications

Specifications	Details
Voltage	51.2V
Capacity	200Ah
Energy	10.24Kwh
Opertion Voltage	46-56Vdc
Max Charging Voltage	56Vdc
Max Charging Current	100A
Max Discharging Current	150A
Max Power	7680W
Dimension(L×W×H)	685435231mm
Weight	100.5kg

EG4 LL-S - 20.48kWh - Open Loop Specifications

Module Operating Parameters

Specifications	Details
Voltage	51.2V
Capacity	100AH
Charging Voltage (Bulk/Absorb)	56.8V \| 56.2V (+/-0.2V)
Float	54V (+/-0.2V)
Low DC Cutoff	44.8V \| 47-45.6V (start high, lower as needed)
Charging Current	100A (Max. continuous) \| 30-50A
Discharging Current	100A (Max. continuous) \| 90A

Environmental Parameters

Specifications	Details
Charging Range	32° ‒ 113°F (0°C to 45°C)
Discharging Range	-4°F ‒ 122°F (-20°C to 50°C)
Storage Range	-4°F ‒ 122°F (-20°C to 50°C)
Ingress Protection	IP20

Charging/ Discharging Parameters (Charge)

Specifications	Details
Cell Voltage Protection	3.8V \| 1 sec \| 3.45V
Module Voltage Protection	60.0V \| 1 sec \| 55.2V
Over Charging Current 1	>102A \| 20 sec
Over Charging Current 2	>120A \| 3 sec
Temperature Protection	<23°F or >158°F <-5°C or >70°C \| 1 sec \| >32°F or <140°F >0°C or 60°C

Charging/ Discharging Parameters (Discharge)

Specifications	Details
Cell Voltage Protection	2.3V \| 1 sec \| 3.1V
Module Voltage Protection	44.8V \| 1 sec \| 48V
Over-Charging Current 1	>102A \| 30 sec \| 60 sec
Over-Charging Current 2	>150A \| 3 sec \| 60 sec
Short Circuit	>300A \| <0.1 mS
Temperature Protection	<-4°F or >167°F <-20°C or >75°C \| 1 sec \| >14°F or <149°F >-10°C or <65°C
PCB Temp Protection	>221°F (>105°C) \| 1 sec \| @ <176°F (<80°C)

General Specifications

Specifications	Details
Cell Balance	120mA \| Passive Balance \| Cell Voltage Difference >40mV
Temperature Accuracy	3% \| Cycle Measurement \| Measuring Range: 40°F ‒ 212°F (-4°C ‒ 100°C)
Voltage Accuracy	0.5% \| Cycle Measurement \| For Cells/Module
Current Accuracy	3% \| Cycle Measurement \| Measurement Range: +/-200A
SOC	5% \| Integral Calculation
Power Consumption	Sleep & Off Mode \| <300uA \| Storage/Transport/ Standby
Power Consumption	Operating Mode \| <25mA \| Charging/Discharging
Communication Ports	RS485/CAN \| Customizable
Maximum Modules in Series	1
Maximum Modules in Parallel	64
Dimensions (H×W×D)	6.1in×19in×17.4in (15.5cm×48.2cm×44.2cm)
Weight	99.6 lbs. (45.2 kg)
Module	ETL Listed to UL Standard 9540A:2019
Cell	UL:1973

RUiXU 51.2V - 20.48kWh - Open Loop Specification

Specifications	Details
Nominal Voltage	51.2V
Nominal Capacity	100Ah (Minimum Capacity @ 0.2C: 100Ah)
Nominal Energy	5120Wh (5.12kWh)
Dimensions (W x D x H)	9" x 18.1" x 5.23" (3U)
Weight	103.6 lbs
Operating Temperature	14°F to 122°F
Storage Temperature	14°F to 113°F
Shipping Restriction	Shipped with battery only, shipping fee if purchased alone, contact us for pricing.

FAQs

Can this system operate during a grid outage?

Yes, the hybrid inverter automatically switches to battery backup mode, keeping critical loads powered.

What is the benefit of closed-loop batteries?

Closed-loop communication allows the inverter and battery to communicate directly, improving efficiency, safety, and performance.

Is the EMP-hardened version necessary?

The EMP-hardened model provides additional protection against electromagnetic events, ideal for users prioritizing extreme resilience.

Can I expand battery capacity later?

Yes, additional compatible batteries can be added to increase storage capacity.

Manual

Shipping & Easy Returns

Shipping is FAST & FREE across the US. Read our full Shipping Policy here.

We offer market leading Easy 30 Day Returns. Read more about our Returns Policy here.

Why Buy From Us

We get it. You've got a lot of choices when it comes to online retailers. Here's why we think you should shop with us at Off-Grid Source.

Free Shipping: Absolutely no hidden charges, ever.
Guaranteed Best Prices: If you find a lower price elsewhere, we'll match it.
30-Day Easy Returns: Not Happy with your product? Return it, no questions asked.
Great Customer Service: It's rare to get a real person these days, but with us, you always will. Have questions? Call us at +1 (877)-556-3347.

FAST & FREE SHIPPING

From US-Based Warehouse

30-DAYS EASY RETURNS

Yes, Really.

GUARANTEED BEST PRICES

Find a Better Price? We’ll Match It.

GREAT CUSTOMER SERVICE

Call Us: (+1) 877-556-3347

Our Customers Tell It Better Than We Do

Excellent 4.9/5

Trusted By 10,000+ Customers. See All Reviews.

They Stood By Me

I was a DIY solar power wannabe... that is 'til I connected with Manny... The man's a prince! He not only knows his stuff; he walked me through all things electrical. To make sure I had all I needed... he gave me his cell phone # to text him anytime I got confused... nights and weekends included. The prices were very competitive... definitely go with Manny -- you won't go wrong!

Bruce D.

Awesome Service!

I am always hesitant to buy things at places I have never shopped... I want to give a shout out to Manny who with great patience and knowledge helped me get my orders... I felt valued as a customer and I will definitely be back in the future. I highly recommend them, they make you feel like family.

Jennene A.

Real Person, Honest Service.

I'm about to go off grid. I called Manny, he walked me through everything so I could truly understand what I needed and never tried to upsell me. He was honest and made a customer for life.

Ray B.

Easy Return

I would personally like to thank Manny... I purchased the inverter and decided I needed to return it... Manny was very understanding and went out of his way to help me return the product and not even have to pay for shipping return. He gives this company reputation, honor and quality customer service!

Roger V.

Totally Off Grid.

I have been talking with Manny the owner... He has not only helped me design a system but he's been assisting with the install and components. I am super pleased so far with the assistance.

Jeff S.

Great Product! Fast Shipping

We added 2 more batteries to our current set up. Pleased with the customer service from Off-Grid Source! Will be back!

Jason

Excellent Customer Service

Very fast response times. Very professional. I highly recommend!

Ray W.

Sol-Ark 12K Complete Hybrid Solar Kit | 7kW Solar | 20.48kWh Server Rack Batteries

Notify me when back in stock

Found A Better Price?

Estimated Delivery Between

Sol-Ark 12K Complete Hybrid Solar Kit | 7kW Solar | 20.48kWh Server Rack Batteries

Sol-Ark 12K Complete Hybrid Solar Kit Features

Sol-Ark 12K Complete Hybrid Solar Kit Applications

What's Included

Sol-Ark 12K Complete Hybrid Solar Kit Specifications

Sol-Ark 12K - 12000W Output - 13000W PV Input - 48V - 120/240V Split Phase - Hybrid Specifications

Input Data (PV)

Output Data (AC)

Battery Input Data (DC)

General Data

Protection and Certifications

Sol-Ark 12K - 12000W Output - 13000W PV Input - 48V - 120/240V Split Phase - Hybrid (EMP Hardended) Specifications

Battery Input Data (DC)

General Data

Protection and Certifications

Pytes V5 - 20.48kWh - Closed Loop Specifications

Discover AES - 20.48kWh - Closed Loop Specifications

LINIOTECH - 20.48kWh - Closed Loop Specifications

EG4 LL-S - 20.48kWh - Open Loop Specifications

Charging/ Discharging Parameters (Charge)

Charging/ Discharging Parameters (Discharge)

RUiXU 51.2V - 20.48kWh - Open Loop Specification

FAQs

Manual

Shipping & Easy Returns

Why Buy From Us

Why Choose Off Grid Source

FAST & FREE SHIPPING

30-DAYS EASY RETURNS

GUARANTEED BEST PRICES

GREAT CUSTOMER SERVICE

Our Customers Tell It Better Than We Do

They Stood By Me

Awesome Service!

Real Person, Honest Service.

Easy Return

Totally Off Grid.

Great Product! Fast Shipping

Excellent Customer Service

Get Off-Grid Tips, Deals & System Guides, Straight to Your Inbox. Plus, Unlock a Mystery Discount On Your First Order.
