Sol-Ark 15K Complete Hybrid Solar Kit | 10kW Solar | 20.48kWh Server Rack Batteries

The Sol-Ark 15K Complete Hybrid Solar Kit is a powerful, all-in-one energy solution designed for homeowners and small businesses seeking energy independence, backup power, and long-term savings. Featuring the industry-leading Sol-Ark 15K hybrid inverter, this system seamlessly integrates solar production, battery storage, and grid interaction into a single, efficient platform.

With 10kW of high-efficiency solar panels and 20.48kWh of scalable server rack battery storage, this kit delivers reliable power for daily use and critical backup during outages. Whether you're reducing utility bills, preparing for grid instability, or building a self-sufficient energy system, this kit provides flexibility with multiple battery brand options and closed-loop communication for optimized performance.

Sol-Ark 15K Complete Hybrid Solar Kit Features

High-Capacity Hybrid Inverter - Delivers 15,000W continuous output with 19,500W PV input, enabling whole-home backup and high-load handling with ease.
Flexible Battery Compatibility - Supports multiple premium battery brands (Pytes, Discover, EG4, RUiXU, LINIOTECH) with both closed-loop and open-loop communication options.
Scalable Energy Storage - Includes 20.48kWh of storage, expandable for future energy needs—perfect for growing households or increased usage.
Efficient Solar Production - Comes with 20 × 500W (10kW) Tier-1 solar panels, maximizing energy generation and reducing reliance on the grid.
Whole-Home Backup Capability - Automatically switches to battery power during outages, keeping essential appliances running without interruption.
Pre-Matched Components - All cables, breakers, racks, and accessories are pre-selected for compatibility, simplifying installation and reducing guesswork.

Sol-Ark 15K Complete Hybrid Solar Kit Applications

Whole-home backup power systems - Keep your entire home running during outages, including essential appliances like HVAC systems, refrigerators, and well pumps.
Grid-tied homes with battery storage - Maximize savings by using solar during the day and stored battery power at night, reducing reliance on utility companies.
Off-grid or partial off-grid setups - Ideal for remote locations or users looking to reduce or eliminate dependence on the grid while maintaining reliable power.
Energy cost reduction and peak shaving - Store energy when rates are low and use it during peak pricing hours to significantly cut electricity costs.
Small businesses, workshops, and farms - Power tools, equipment, and operations with a dependable energy system that minimizes downtime and operational risk.
Emergency preparedness and energy resilience - Ensure uninterrupted power during natural disasters, grid failures, or emergencies with a robust backup energy solution.

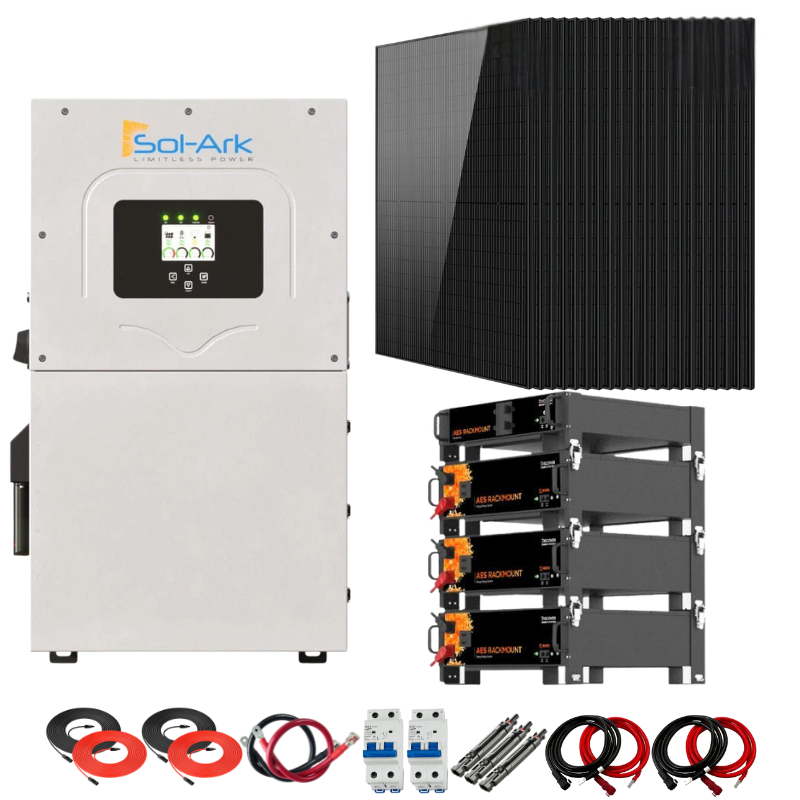

What's Included

Everything you need is included with your product.

Inverter (Choose One):

1 x Sol-Ark 15K - 15000W Output - 19500W PV Input - 48V - 120/240V Split Phase - Hybrid
1 x Sol-Ark 15K - 15000W Output - 19500W PV Input - 48V - 120/240V Split Phase - Hybrid (EMP Hardened)

Battery Options (Choose One):

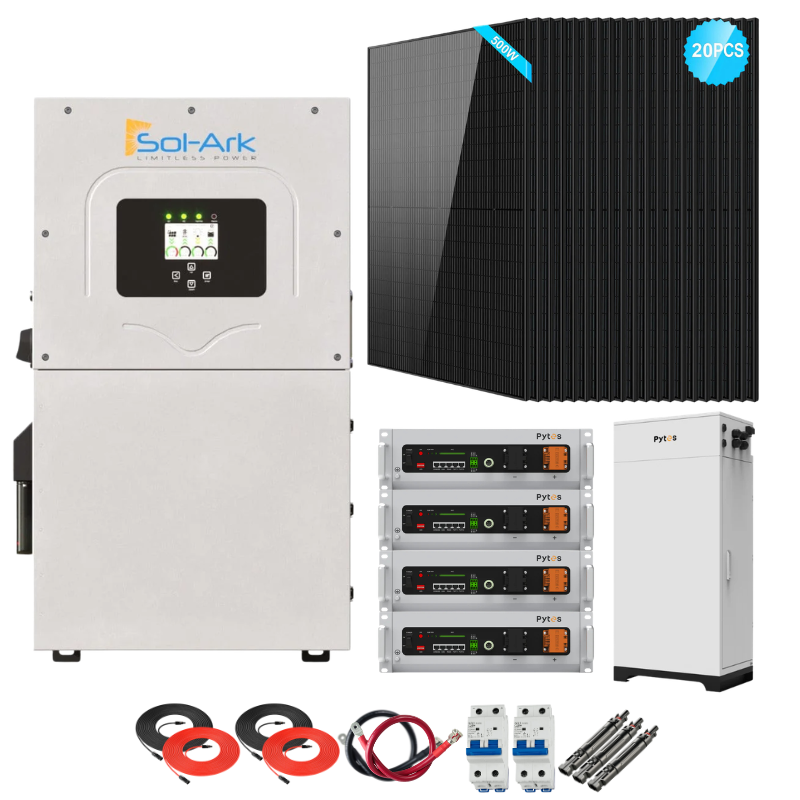

4 x Pytes V5 - 20.48kWh - Closed Loop

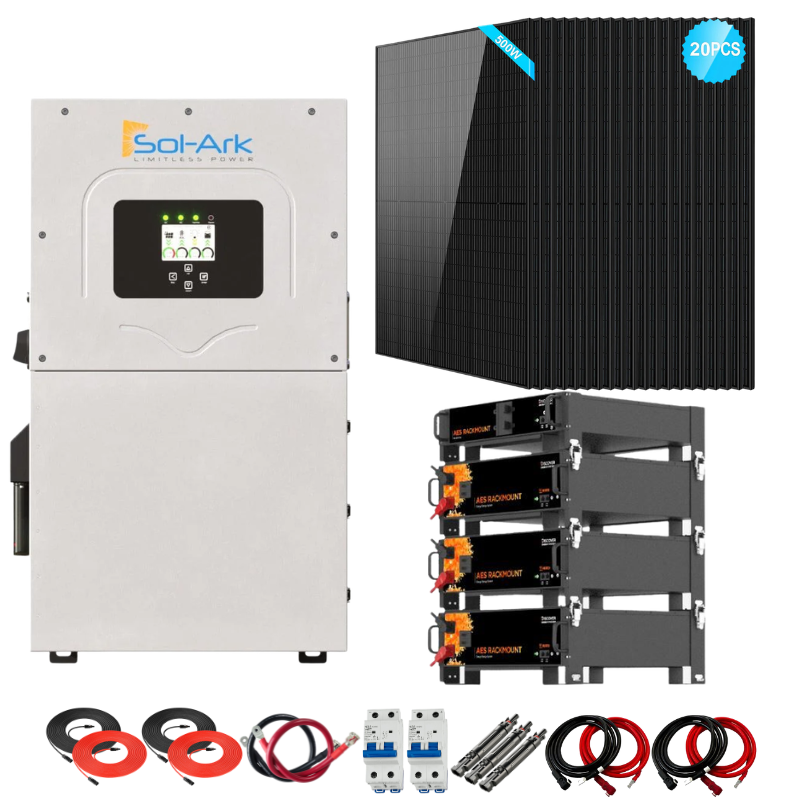

4 x Discover AES - 20.48kWh - Closed Loop

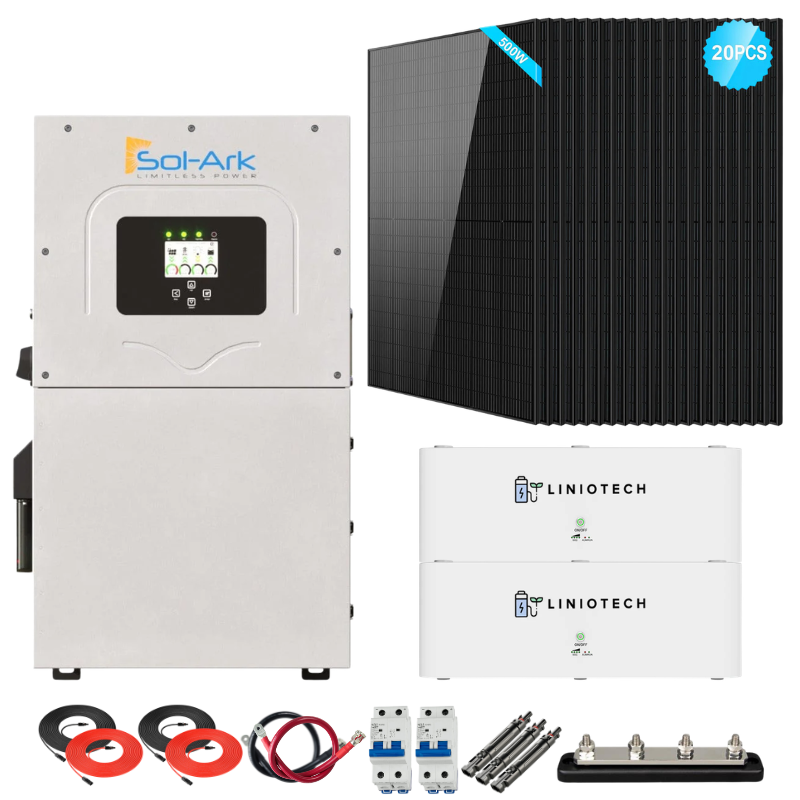

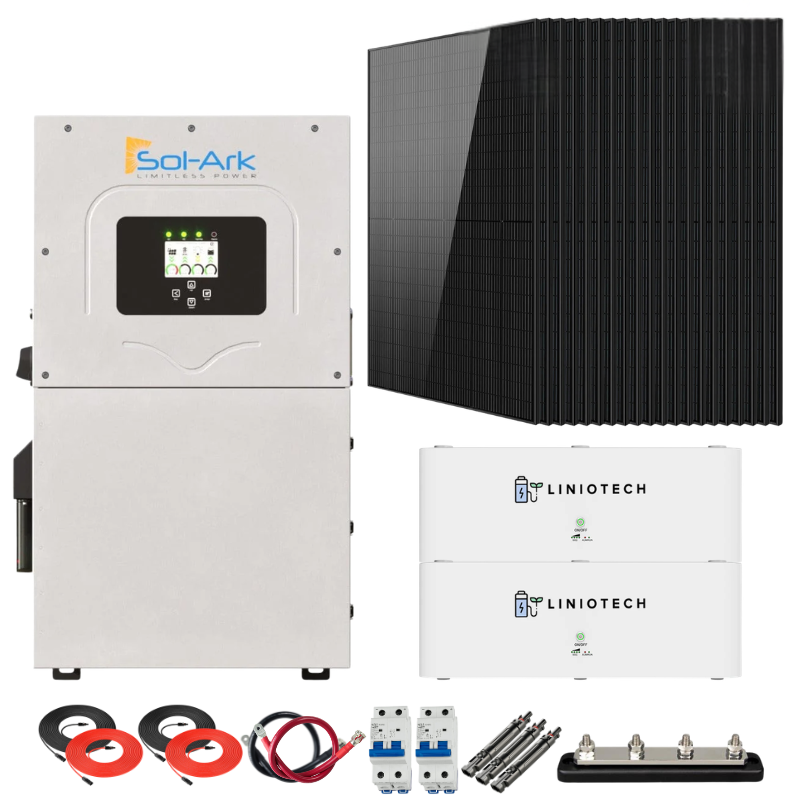

2 x LINIOTECH - 20.48kWh - Closed Loop

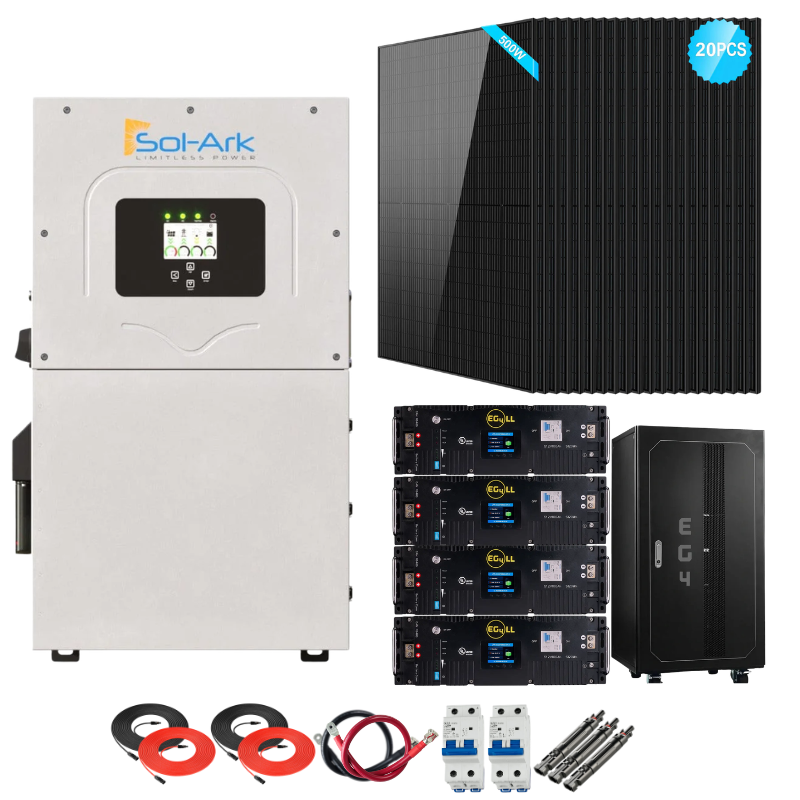

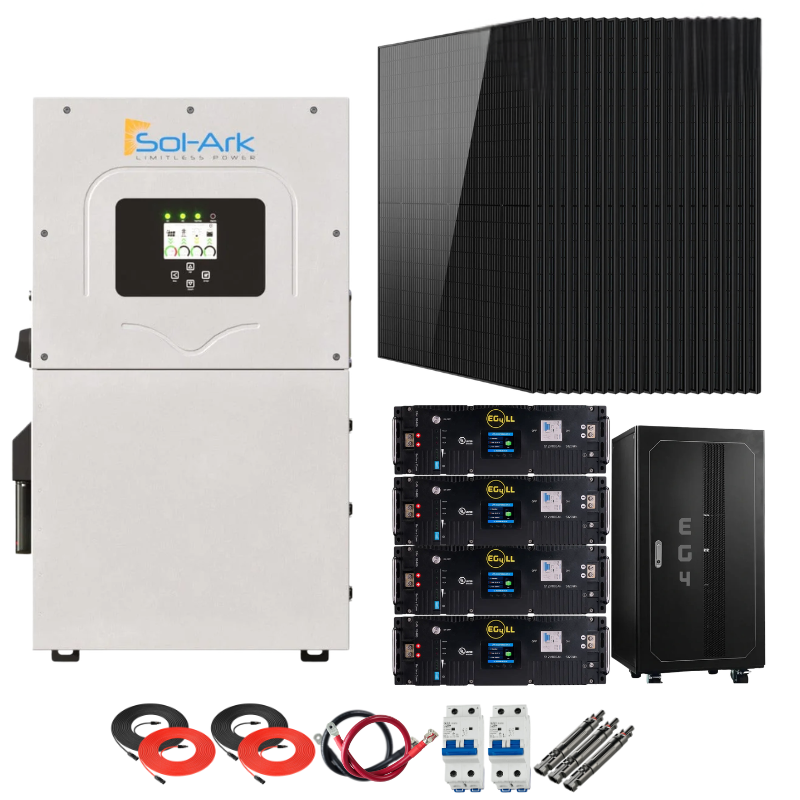

4 x EG4 LL-S - 20.48kWh - Open Loop

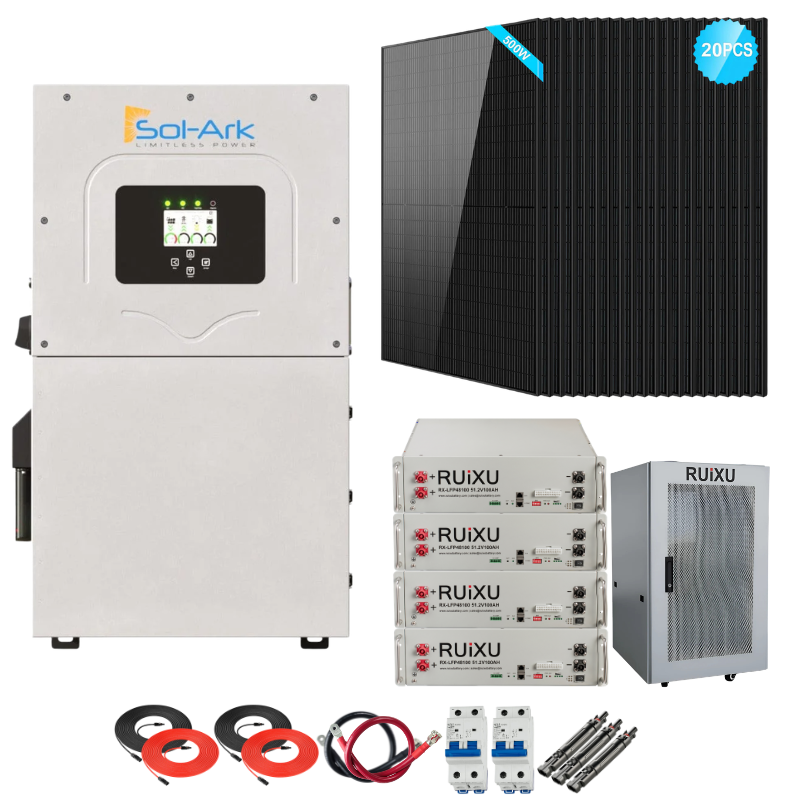

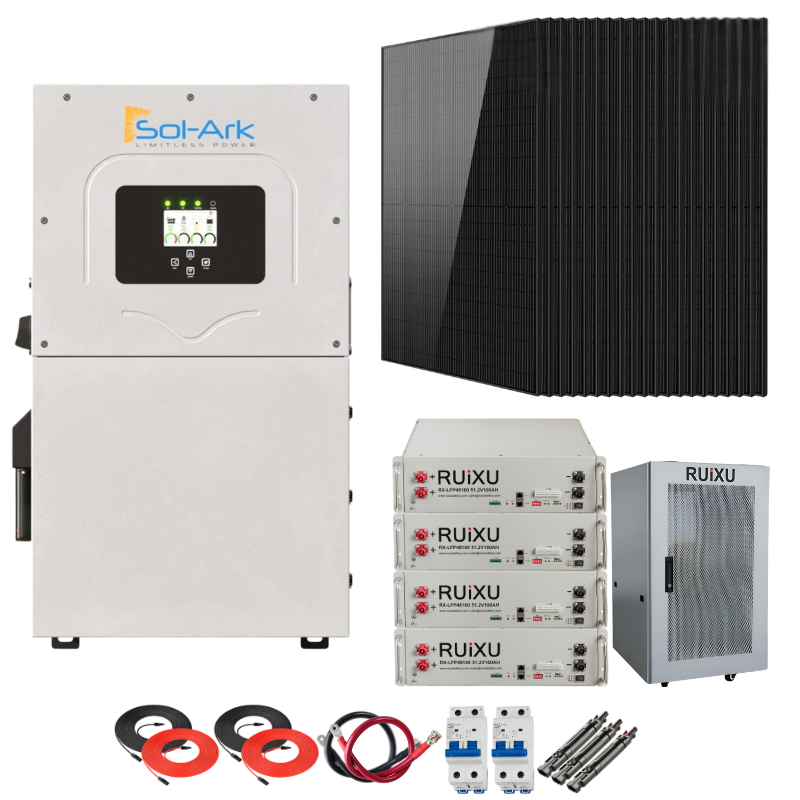

4 x RUiXU 51.2V - 20.48kWh - Open Loop

Solar Panel:

20 × SunGold Power 500W Mono Black PERC (10kW)

Accessories:

2 x 10AWG Solar Extension Cable - 50ft
4/0 AWG Battery Cable - 4ft - 5/16 Both Ends (Set Red & Black)
2 x 25A PV Breaker
3 x Replacement Inline Fuse Holder | Choose Amp: 10A, 15A, 20A, 30A

Accessory Based on Battery Choice:

1 x Pytes V-BOX-OC Outdoor Battery Cabinet (Comes with Pytes)
4 x Battery Cable Kit (Comes with Discover)
4 x AES Rackmount Quick Stack Rack (Comes with Discover)
1 x AES Rackmount Battery Module Combiner (Comes with Discover)
1 x Bussbar 600A 8P w/Cover (Comes with Liniotech)
1 x EG4 Pre-Assembled EG4 Enclosed Battery Rack | 6 Slot | Wheels Included | Bus Bar Covers | Welded (Grey)(Comes with EG4)
1 x 6 Slot Battery Cabinet | Wheels & Busbar Included | Pre-Assembled (Comes with RUiXU)

Sol-Ark 15K Complete Hybrid Solar Kit Specifications

Sol-Ark 15K - 15000W Output - 19500W PV Input - 48V - 120/240V Split Phase - Hybrid Specifications

Input Data (PV)

Specification	Details
Max. Allowed PV Power (STC)	19,500W
Rated MPPT Operating Voltage Range	175 - 425V
MPPT Voltage Range	150 - 500V
Startup Voltage	125V
Max. Input Voltage	500V
Max. Operating Input Current per MPPT	26A
Max. Short Circuit Current per MPPT	44A
No. of MPP Trackers	3
No. of PV Strings per MPPT	2
Max. AC Coupled Input	19,200W

Output Data (AC)

Specification	Details
Nominal AC Voltage	120/240V, 120/208V, 220V
Grid Frequency	50 / 60Hz
Real Power, max continuous	15,000W
Max. Output Current	62.5A
Real Power, max continuous (batteries only, no PV)	12,000W (50A @ 240V)
Peak Apparent Power (10s, off-grid)	24,000VA @ 240V
Peak Apparent Power (100ms, off-grid)	30,000VA @ 240V
Max Output Fault Current (5s)	94A with PV, 75A (batteries only)
Max Output Fault Current (100ms)	120A
Max. Grid Passthrough Current	200A
Power Factor Output Range	+/- 0.9 adjustable
Backup Transfer Time	5ms
CEC Efficiency	96.5%
Max Efficiency	97.5%
Design (DC to AC	Transformerless DC
Stackable	Up to 12 in parallel

Battery Input Data (DC)

Specification	Details
Battery Technologies	Lithium / Lead Acid
Nominal DC Voltage	48V
Operating Voltage Range	43 - 63V
Capacity	50 — 9900Ah
Max. Battery Charge / Discharge Current	275A
Charging Controller	3-Stage with Equalization
Grid to Battery Charging Efficiency	96.0%
External Battery Temperature Sensor (BTS)	Included
Automatic Generator Start (AGS)	2 Wire Start - Integrated
BMS Communication	CANBus & RS485 MODBUS

General Data

Specification	Details
Dimensions (H x W x D)	807 x 494 x 306 mm (31.8 x 19.4 x 12 in)
Weight	61.2 Kg / 135 lb.
Enclosure	IP65 / NEMA 3R
Ambient Temperature	-25~55°C, > 45°C Derating
Noise	< 30 dB @ 25°C (77°F)
Idle consumption	- No Load 60W
Communication and Monitoring	Wi-Fi & LAN Hardware Included
Standard Warranty	10 Years

Protection and Certifications

Specification	Details
Certifications and Listings	UL1741-2010/2018, IEEE1547a 2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H
PV DC Disconnect Switch — NEC 240.15	Integrated
Ground Fault Detection — NEC 690.5	Integrated
PV Rapid Shutdown Control — NEC 690.12	Integrated
PV Arc Fault Detection — NEC 690.11	Integrated
PV Input Lightning Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
AC Output Breaker - 63A	Integrated
250A Battery Breaker / Disconnect	Integrated
Surge Protection	DC Type II / AC Type II

Sol-Ark 15K - 15000W Output - 19500W PV Input - 48V - 120/240V Split Phase - Hybrid (EMP Hardened) Specifications

Input Data (PV)

Specification	Details
Max. Allowed PV Power (STC)	19,500W
Rated MPPT Operating Voltage Range	175 - 425V
MPPT Voltage Range	150 - 500V
Startup Voltage	125V
Max. Input Voltage	500V
Max. Operating Input Current per MPPT	26A
Max. Short Circuit Current per MPPT	44A
No. of MPP Trackers	3
No. of PV Strings per MPPT	2
Max. AC Coupled Input	19,200W

Output Data (AC)

Specification	Details
Nominal AC Voltage	120/240V, 120/208V, 220V
Grid Frequency	50 / 60Hz
Real Power, max continuous	15,000W
Max. Output Current	62.5A
Real Power, max continuous (batteries only, no PV)	12,000W (50A @ 240V)
Peak Apparent Power (10s, off-grid)	24,000VA @ 240V
Peak Apparent Power (100ms, off-grid)	30,000VA @ 240V
Max Output Fault Current (5s)	94A with PV, 75A (batteries only)
Max Output Fault Current (100ms)	120A
Max. Grid Passthrough Current	200A
Power Factor Output Range	+/- 0.9 adjustable
Backup Transfer Time	5ms
CEC Efficiency	96.5%
Max Efficiency	97.5%
Design (DC to AC)	Transformerless DC
Stackable	Up to 12 in parallel

Battery Input Data (DC)

Specification	Details
Battery Technologies	Lithium / Lead Acid
Nominal DC Voltage	48V
Operating Voltage Range	43 - 63V
Capacity	50 — 9900Ah
Max. Battery Charge / Discharge Current	275A
Charging Controller	3-Stage with Equalization
Grid to Battery Charging Efficiency	96.0%
External Battery Temperature Sensor (BTS)	Included
Automatic Generator Start (AGS)	2 Wire Start - Integrated
BMS Communication	CANBus & RS485 MODBUS

General Data

Specification	Details
Dimensions (H x W x D)	807 x 494 x 306 mm (31.8 x 19.4 x 12 in)
Weight	61.2 Kg / 135 lb.
Enclosure	IP65 / NEMA 3R
Ambient Temperature	-25~55°C, > 45°C Derating
Noise	< 30 dB @ 25°C (77°F)
Idle consumption	- No Load 90W
Communication and Monitoring	Wi-Fi & LAN Hardware Included
Standard Warranty	10 Years

Protection and Certifications

Specification	Details
Certifications and Listings	UL1741-2010/2018, IEEE1547a 2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H
PV DC Disconnect Switch — NEC 240.15	Integrated
Ground Fault Detection — NEC 690.5	Integrated
PV Rapid Shutdown Control — NEC 690.12	Integrated
PV Arc Fault Detection — NEC 690.11	Integrated
PV Input Lightning Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
AC Output Breaker - 63A	Integrated
250A Battery Breaker / Disconnect	Integrated
Surge Protection	DC Type II / AC Type II

Pytes V5 - 20.48kWh - Closed Loop Specifications

Specification	Details
Nominal Voltage	51.2V
Voltage Range	47.5V–57.6V
Nominal Capacity	100Ah
Nominal Energy	5.12kWh
Recommended Charge/Discharge Current	75A (3.84kW DC)
Max Charge/Discharge Current	100A (5.12kW DC)
Peak Charge/Discharge Current	101A–120A (3min) \| 121A–180A (15sec)

General

Specification	Details
Chemistry	LFP
Communication Protocol	CAN/RS485
Dimensions	17.4 x 20.87 x 5.51 in (3.2U) \| 424 x 530 x 140 mm (3.2U)
Weight	97 lbs / 44 kg
Operating Temperature	Charge: 32°F–113°F / 0°C–45°C \| Discharge: -4°F–122°F / -10°C–50°C
Round-Trip Efficiency	> 95%
Cycle Life	≥ 6000 cycles
Altitude	< 13,123.35 ft / 4000 m
Warranty	10 years
Scalability	16 pcs (81.92 kWh) in a group \| 6 groups (491.52 kWh) in a system w/ a Hub

Discover AES - 20.48kWh - Closed Loop Specifications

Electrical Specifications

Specification	Details
Open Circuit Voltage (V)	51.2
Charge Voltage (Bulk Vdc)	55.2
Max Absorption Voltage (U1 Vdc)	55.2
Float Voltage (U2 Vdc)	53.6
Suggested Low Voltage Cutoff (Vdc)	48
Max Continuous Charge Current - 1 Hour	95 A
Max. Continuous Charge Current (I Max. Adc)	70 A
Min. Finishing Charge Current (I Min. Adc)	2.5 A
Max Continuous Discharge Current - 1 Hour	95 A
Max Continuous Discharge Current (Adc)	70 A
Max Continuous Discharge Rate (kW)	5.12
Max Peak Current (Adc)	218 A RMS
Self-Discharge (25°C / 77°F)	< 3% per month
Charge Temperature	Min: 4°C (39.2°F) \| Max: 52°C (125.6°F)
Discharge Temperature	Min: -17°C (1.4°F) \| Max: 52°C (125.6°F)
Storage Temperature	Min: -20°C (-4°F) \| Max: 55°C (131°F)

Mechanical Specifications

Specification	Details
Industry Reference	19 Inch Rackmount 3U
Length A (in/mm)	19.6 \| 497.3
Width B (in/mm)	17.3 \| 439.2
Height C (in/mm)	5.3 \| 133.5
Total Height D (in/mm)	5.3 \| 133.5
Weight (lbs/kgs)	97 \| 44
Terminal *	Amphenol SurLok Plus
Cell(s)	16S1P
Case Material	Galvanized Steel Sheet
IP Rating	20
Electrolyte	LiFePO4

LINIOTECH - 20.48kWh - Closed Loop Specifications

Specifications	Details
Voltage	51.2V
Capacity	200Ah
Energy	10.24Kwh
Opertion Voltage	46-56Vdc
Max Charging Voltage	56Vdc
Max Charging Current	100A
Max Discharging Current	150A
Max Power	7680W
Dimension(L×W×H)	685435231mm
Weight	100.5kg

EG4 LL-S - 20.48kWh - Open Loop Specifications

Module Operating Parameters

Specifications	Details
Voltage	51.2V
Capacity	100AH
Charging Voltage (Bulk/Absorb)	56.8V \| 56.2V (+/-0.2V)
Float	54V (+/-0.2V)
Low DC Cutoff	44.8V \| 47-45.6V (start high, lower as needed)
Charging Current	100A (Max. continuous) \| 30-50A
Discharging Current	100A (Max. continuous) \| 90A

Environmental Parameters

Specifications	Details
Charging Range	32° ‒ 113°F (0°C to 45°C)
Discharging Range	-4°F ‒ 122°F (-20°C to 50°C)
Storage Range	-4°F ‒ 122°F (-20°C to 50°C)
Ingress Protection	IP20

Charging/ Discharging Parameters (Charge)

Specifications	Details
Cell Voltage Protection	3.8V \| 1 sec \| 3.45V
Module Voltage Protection	60.0V \| 1 sec \| 55.2V
Over Charging Current 1	>102A \| 20 sec
Over Charging Current 2	>120A \| 3 sec
Temperature Protection	<23°F or >158°F <-5°C or >70°C \| 1 sec \| >32°F or <140°F >0°C or 60°C

Charging/ Discharging Parameters (Discharge)

Specifications	Details
Cell Voltage Protection	2.3V \| 1 sec \| 3.1V
Module Voltage Protection	44.8V \| 1 sec \| 48V
Over-Charging Current 1	>102A \| 30 sec \| 60 sec
Over-Charging Current 2	>150A \| 3 sec \| 60 sec
Short Circuit	>300A \| <0.1 mS
Temperature Protection	<-4°F or >167°F <-20°C or >75°C \| 1 sec \| >14°F or <149°F >-10°C or <65°C
PCB Temp Protection	>221°F (>105°C) \| 1 sec \| @ <176°F (<80°C)

General Specifications

Specifications	Details
Cell Balance	120mA \| Passive Balance \| Cell Voltage Difference >40mV
Temperature Accuracy	3% \| Cycle Measurement \| Measuring Range: 40°F ‒ 212°F (-4°C ‒ 100°C)
Voltage Accuracy	0.5% \| Cycle Measurement \| For Cells/Module
Current Accuracy	3% \| Cycle Measurement \| Measurement Range: +/-200A
SOC	5% \| Integral Calculation
Power Consumption	Sleep & Off Mode \| <300uA \| Storage/Transport/ Standby
Power Consumption	Operating Mode \| <25mA \| Charging/Discharging
Communication Ports	RS485/CAN \| Customizable
Maximum Modules in Series	1
Maximum Modules in Parallel	64
Dimensions (H×W×D)	6.1in×19in×17.4in (15.5cm×48.2cm×44.2cm)
Weight	99.6 lbs. (45.2 kg)
Module	ETL Listed to UL Standard 9540A:2019
Cell	UL:1973

RUiXU 51.2V - 20.48kWh - Open Loop Specification

Specifications	Details
Nominal Voltage	51.2V
Nominal Capacity	100Ah (Minimum Capacity @ 0.2C: 100Ah)
Nominal Energy	5120Wh (5.12kWh)
Dimensions (W x D x H)	9" x 18.1" x 5.23" (3U)
Weight	103.6 lbs
Operating Temperature	14°F to 122°F
Storage Temperature	14°F to 113°F
Shipping Restriction	Shipped with battery only, shipping fee if purchased alone, contact us for pricing.

FAQs

Can this system power my entire home?

Yes, the Sol-Ark 15K is capable of powering most whole-home loads, depending on energy usage and battery capacity.

What is the difference between closed-loop and open-loop batteries?

Closed-loop batteries communicate directly with the inverter for optimized performance, while open-loop systems rely on manual settings.

Can I expand the battery capacity later?

Yes, the system is fully scalable, allowing you to add more batteries as your energy needs grow.

Is professional installation required?

Professional installation is highly recommended to ensure safety, compliance, and optimal system performance.

Does this system work during grid outages?

Yes, the system automatically switches to battery power during outages for uninterrupted backup.

Manual

Shipping & Easy Returns

Shipping is free across the Lower 48. No fuel surcharges, no residential fees, and no liftgate charge on freight orders. The price you see is the price you pay. Read our full Shipping Policy here.

Most orders leave the warehouse in 1 to 2 business days and arrive within 3 to 10 business days. We send tracking the moment it ships.

Anything that ships on a pallet goes freight with liftgate and pallet jack included, so the driver gets it off the truck and onto the ground at your address. The carrier will call you directly to schedule a delivery window.

Returns are 30 days from delivery. For freight deliveries, inspect the shipment before you sign for it. If something is damaged in transit, note it on the delivery receipt and we handle the freight claim, not you. Read more about our Returns Policy here.

Why Buy From Us

Buying solar online should not mean guessing your way through the install. Here’s what you get with Off-Grid Source.

We size the system, not just sell it. Call before you order and a sales engineer will check the kit against your actual loads, tell you if you’re buying too much or too little, and list the site-specific parts your install will need.
A+ rated by the Better Business Bureau. Another trust signal that you’re buying from a real company that stands behind the sale.
Free shipping across the Lower 48. No hidden freight charges, residential fees, or liftgate surprises at checkout.
Guaranteed best prices. Find the same product for less elsewhere and we’ll match it.
30-day easy returns. If it is not the right fit, we’ll help you get it sent back.
A real person on the phone. Product questions, sizing, install planning, warranty help: call us at +1 (877) 556-3347.

FAST & FREE SHIPPING

From US-Based Warehouse

30-DAYS EASY RETURNS

Yes, Really.

GUARANTEED BEST PRICES

Find a Better Price? We’ll Match It.

GREAT CUSTOMER SERVICE

Call Us: (+1) 877-556-3347

Our Customers Tell It Better Than We Do

Excellent 4.9/5

Trusted By 10,000+ Customers. See All Reviews.

They Stood By Me

I was a DIY solar power wannabe... that is 'til I connected with Manny... The man's a prince! He not only knows his stuff; he walked me through all things electrical. To make sure I had all I needed... he gave me his cell phone # to text him anytime I got confused... nights and weekends included. The prices were very competitive... definitely go with Manny -- you won't go wrong!

Bruce D.

Awesome Service!

I am always hesitant to buy things at places I have never shopped... I want to give a shout out to Manny who with great patience and knowledge helped me get my orders... I felt valued as a customer and I will definitely be back in the future. I highly recommend them, they make you feel like family.

Jennene A.

Real Person, Honest Service.

I'm about to go off grid. I called Manny, he walked me through everything so I could truly understand what I needed and never tried to upsell me. He was honest and made a customer for life.

Ray B.

Easy Return

I would personally like to thank Manny... I purchased the inverter and decided I needed to return it... Manny was very understanding and went out of his way to help me return the product and not even have to pay for shipping return. He gives this company reputation, honor and quality customer service!

Roger V.

Totally Off Grid.

I have been talking with Manny the owner... He has not only helped me design a system but he's been assisting with the install and components. I am super pleased so far with the assistance.

Jeff S.

Great Product! Fast Shipping

We added 2 more batteries to our current set up. Pleased with the customer service from Off-Grid Source! Will be back!

Jason

Excellent Customer Service

Very fast response times. Very professional. I highly recommend!

Ray W.

Sol-Ark 15K Complete Hybrid Solar Kit | 10kW Solar | 20.48kWh Server Rack Batteries

Product Highlights

Sol-Ark 15K Complete Hybrid Solar Kit | 10kW Solar | 20.48kWh Server Rack Batteries

Sol-Ark 15K Complete Hybrid Solar Kit Features

Sol-Ark 15K Complete Hybrid Solar Kit Applications

What's Included

Sol-Ark 15K Complete Hybrid Solar Kit Specifications

Sol-Ark 15K - 15000W Output - 19500W PV Input - 48V - 120/240V Split Phase - Hybrid Specifications

Input Data (PV)

Output Data (AC)

Battery Input Data (DC)

General Data

Protection and Certifications

Sol-Ark 15K - 15000W Output - 19500W PV Input - 48V - 120/240V Split Phase - Hybrid (EMP Hardened) Specifications

Input Data (PV)

Battery Input Data (DC)

Protection and Certifications

Pytes V5 - 20.48kWh - Closed Loop Specifications

Discover AES - 20.48kWh - Closed Loop Specifications

LINIOTECH - 20.48kWh - Closed Loop Specifications

EG4 LL-S - 20.48kWh - Open Loop Specifications

RUiXU 51.2V - 20.48kWh - Open Loop Specification

FAQs

Manual

Shipping & Easy Returns

Why Buy From Us

Why Choose Off Grid Source

Our Customers Tell It Better Than We Do

They Stood By Me

Awesome Service!

Real Person, Honest Service.

Easy Return

Totally Off Grid.

Great Product! Fast Shipping

Excellent Customer Service
