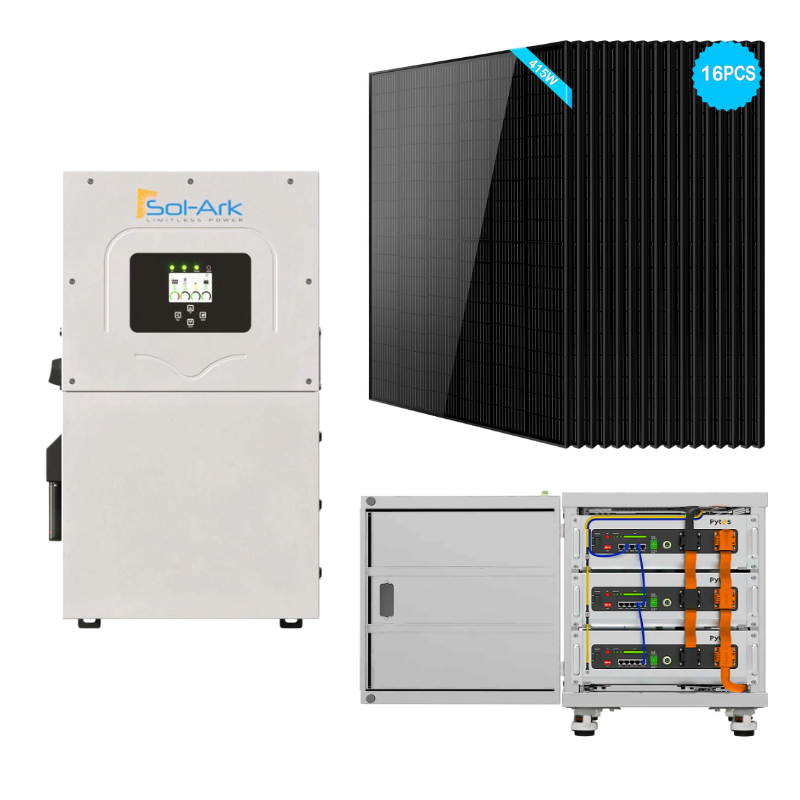

Sol-Ark 15kW Elite Solar Power Kit – 6.64kW / 15kW Inverter / 15.36kWh Battery Storage
This complete solar energy solution is built for high-performance residential and light commercial applications, delivering reliable power in both on-grid and off-grid environments. Featuring the powerful Sol-Ark 15kW Hybrid Inverter, scalable Pytes V5 LiFePO4 batteries housed in a premium V-BOX cabinet, and high-output SunGold Power 415W Mono Black PERC solar panels, this kit ensures energy independence, backup readiness, and long-term efficiency. Perfect for whole-home backup, peak shaving, and sustainable living.
Sol-Ark 15kW Elite Solar Power Kit Features
High-Capacity Hybrid Inverter – 15,000W continuous output with grid-tie, hybrid, and off-grid capabilities for maximum flexibility.
Advanced Energy Storage – Includes three Pytes V5 LiFePO4 batteries (total 15.36kWh) with a dedicated Pytes V-BOX 3-slot indoor cabinet for a safe, organized installation.
Premium Solar Array – Twelve SunGold Power 415W Mono Black PERC panels deliver 6.64kW of high-efficiency solar generation.
Durable & Reliable – PERC solar technology ensures strong performance even in low-light conditions.
Smart Energy Management – Sol-Ark’s advanced interface supports load shifting, generator integration, and full system monitoring.
Expandable Design – Easily increase storage or PV capacity as your energy demands grow.
Sol-Ark 15kW Elite Solar Power Kit Applications
-
Whole-Home Backup – Keep power flowing to both essential and high-demand appliances during outages.
-
Off-Grid Power – Perfect for cabins, rural homes, and remote properties needing continuous power.
-
Grid-Tied Savings – Use net metering and peak shaving to reduce utility costs.
-
Commercial Reliability – Provide power continuity for small business operations.
-
Sustainable Energy – Lower your carbon footprint while achieving energy independence.
What’s Included?
Inverter/Charger:
Battery:
Solar Panels:
Sol-Ark 15kW All-In-One Hybrid Inverter Kit Specifications
15kW Hybrid Inverter – Specification Table
| Specification |
Details |
| Max Allowed PV DC Capacity |
19,500W |
| Max PV Power to Battery & AC Outputs |
15,000W |
| Max PV Voltage / Current |
500V / 26A |
| MPPT Voltage Range |
125V – 425V |
| Max DC Current per MPPT |
26A (self-limiting) |
| Continuous AC Output (from PV) |
15,000W / 62.5A-L @ 240V |
| Continuous AC Output (from Battery) |
12,000W / 50A-L @ 240V |
| Battery Communication Protocols |
CANBus & RS485 |
| Nominal DC Input Voltage |
48V |
| Supported Battery Capacity Range |
50 – 9900Ah |
| Operating Voltage Range |
43.0V – 63.0V |
| Continuous Battery Charging Output |
275A |
| Dimensions (H × W × D) |
31.8 × 18.3 × 10.9 in (808 × 465 × 277 mm) |
| Weight |
135 lbs (61.2 kg) |
| Warranty |
10 Years |
48V 100Ah Lithium Battery – Specification Table
| Specification |
Details |
| Nominal Voltage |
48V |
| Capacity |
100Ah |
| Energy Storage |
5.12 kWh |
| Max Continuous Discharge/Charge |
100A |
| Peak Discharge (15 sec) |
180A |
| Communication Interfaces |
RS485, CAN, WiFi |
| Protection Features |
Overcharge & Over-discharge protection |
| Certifications |
UL9540, UL1973 |
| Weight |
97 lbs (44 kg) |
| Dimensions (L × W × H) |
17.32 × 20.87 × 5.51 in (440 × 530 × 140 mm approx) |
Solar Panel Specifications
| Specification |
Details |
| Model Type |
SG415WM |
| Peak Power (Pmax) |
415W |
| Production Tolerance |
±3% |
| Max Power Current (Imp) |
13.13 A |
| Max Power Voltage (Vmp) |
31.6V |
| Short Circuit Current (Isc) |
14.02 A |
| Open Circuit Voltage (Voc) |
37.50V |
| Max System Voltage |
1500V |
| Wind Resistance |
2400 Pa |
| Output Cables |
12 AWG (1ft per cable) |
| Number of Cells |
108 (6×18) |
| Cell Type |
Mono 182×91mm |
| Certifications |
UL 61730, CE, TUV |
| Product Weight |
45.8 lbs |
| Product Dimensions |
67.8" × 44.6" × 1.4" |
| Package Weight |
100.5 lbs (2 PCS) |
Frequently-Asked Questions
Can I add more batteries in the future?
Yes, the Pytes V-BOX enclosure is expandable, allowing for additional battery modules.
Is this kit suitable for complete off-grid setups?
Yes, the Sol-Ark 15kW supports full off-grid operation as well as hybrid and grid-tied setups.
How much power can I expect daily?
In optimal sun conditions, the system can generate 40–60 kWh daily depending on location and weather.
