Sol-Ark 18K Complete Hybrid Solar Kit | 16kW Solar | 28–32kWh Wall Mount Battery

The Sol-Ark 18K Complete Hybrid Solar Kit is a premium, high-capacity energy solution built for homeowners and businesses that require maximum power, reliability, and flexibility. Centered around the powerful Sol-Ark 18K hybrid inverter, this system seamlessly integrates solar production, battery storage, and grid interaction into one intelligent platform.

With a robust 16kW solar array and 28–32kWh wall-mounted battery options, this kit is designed to handle large energy demands while providing dependable backup power during outages. Whether you're aiming for energy independence, reducing utility costs, or powering a high-consumption property, this system delivers industry-leading performance and scalability.

Sol-Ark 18K Complete Hybrid Solar Kit Features

High-Performance 18K Hybrid Inverter - Delivers 18,000W continuous output with up to 28,800W PV input, enabling it to handle heavy residential and light commercial loads with ease.
Large 16kW Solar Array - Includes 32 × 500W Mono Black PERC panels, providing high-efficiency solar production to maximize energy generation and savings.
Flexible Wall-Mount Battery Options - Choose between top-tier brands like Pytes, Discover, LINIOTECH, EG4, and RUiXU, offering both closed-loop and open-loop communication for optimized system performance.
Space-Saving Wall-Mount Design - Wall-mounted batteries reduce footprint while maintaining high energy density, making them ideal for garages, utility rooms, or outdoor installations.
Whole-Home Backup Capability - Automatically supplies power during outages, supporting large loads such as HVAC systems, appliances, and essential circuits.
Complete System Integration - Includes all required cables, breakers, and battery accessories for a streamlined and efficient installation process.

Sol-Ark 18K Complete Hybrid Solar Kit Applications

Whole-home backup for high-demand properties - Designed to power entire homes with large electrical loads, including air conditioning, electric heating, and multiple appliances, ensuring uninterrupted comfort during outages.
Energy independence & off-grid capability - Ideal for homeowners looking to reduce or eliminate reliance on the grid, providing consistent solar generation and battery storage for day and night use.
High-consumption households - Perfect for homes with EV chargers, pools, workshops, or heavy daily usage, delivering the power needed without compromising performance.
Utility bill reduction & peak shaving - Store excess solar energy and use it during peak rate periods to significantly lower electricity costs and improve energy efficiency.
Small commercial & agricultural use - Reliable power solution for small businesses, farms, and outbuildings that require dependable energy for tools, equipment, and operations.
Emergency backup & preparedness - Keep critical systems running during grid failures, storms, or emergencies, ensuring safety and continuity when power is needed most.

What's Included

Everything you need is included with your product.

Inverter (Choose One):

1 x Sol-Ark 18K - 18000W Output - 28800W PV Input - 48V - 120/240V Split Phase - Hybrid

Battery Options (Choose One):

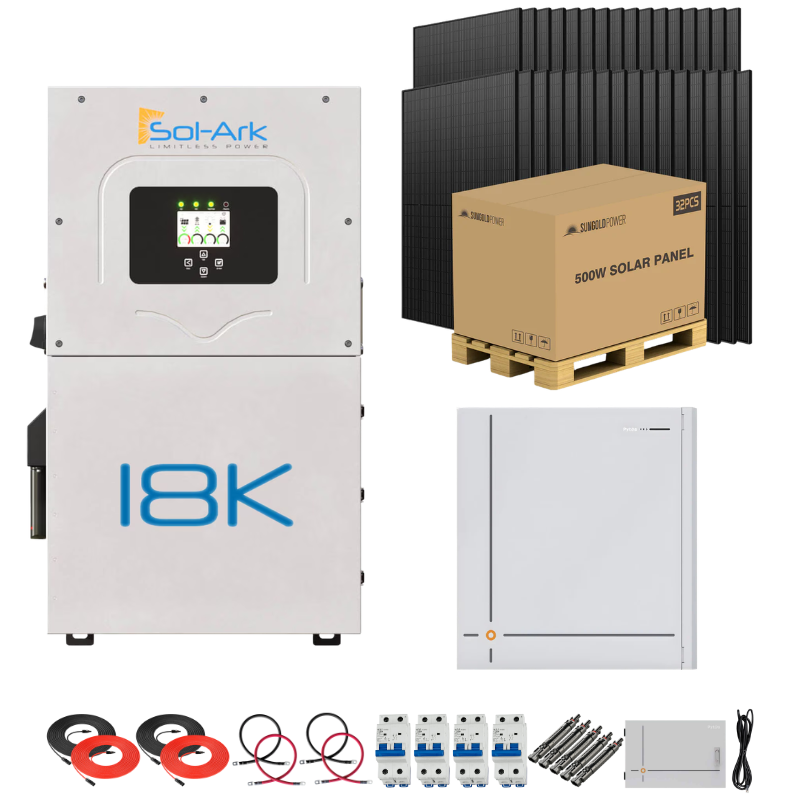

2 x Pytes V16 - 32kWh - Closed Loop

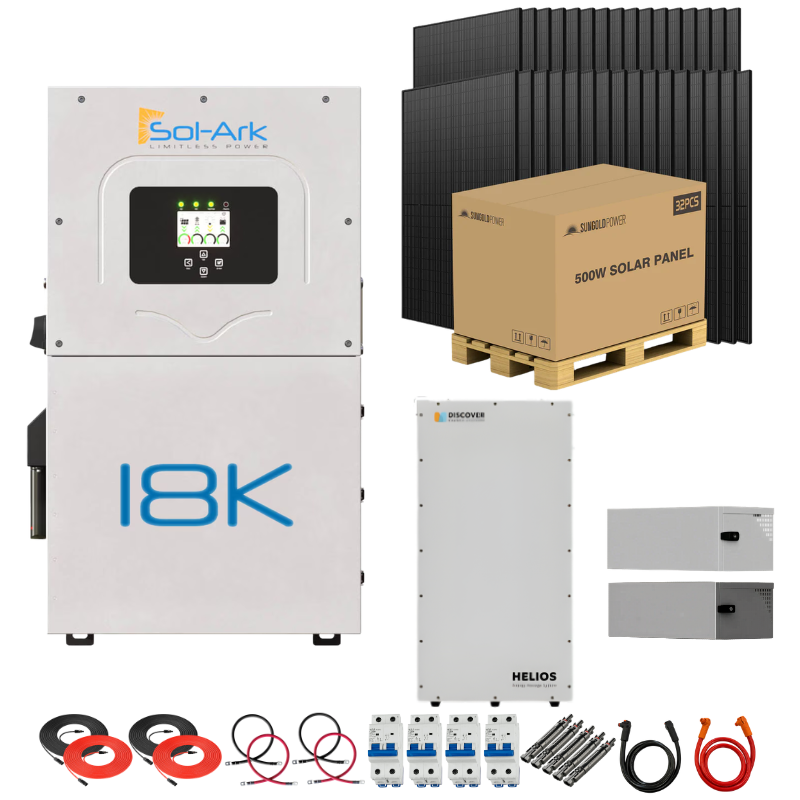

2 x Discover Helios - 32.2kWh - Closed Loop

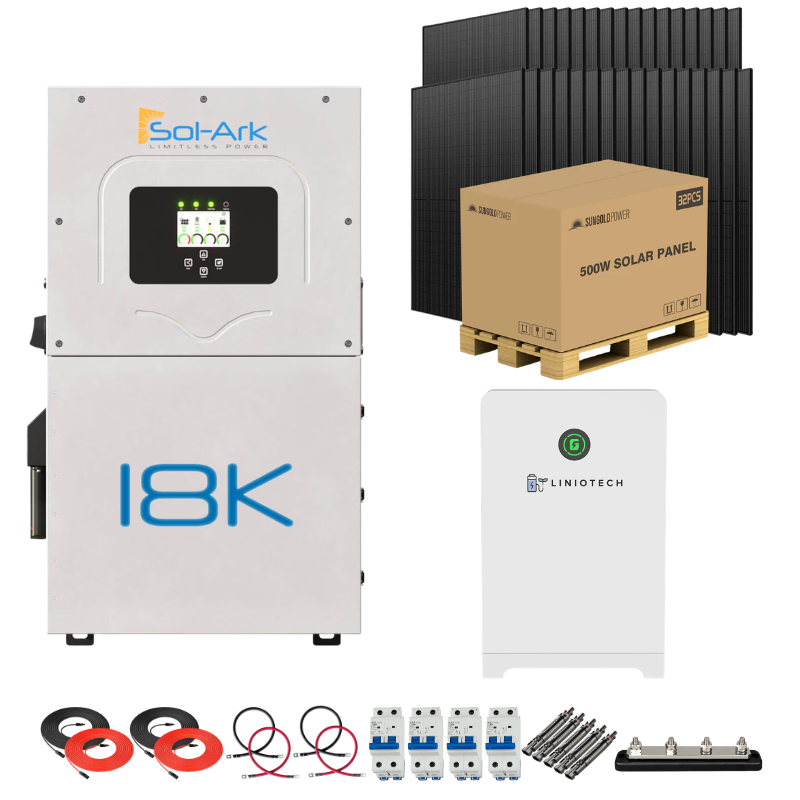

2 x LINIOTECH - 28.66kWh - Closed Loop

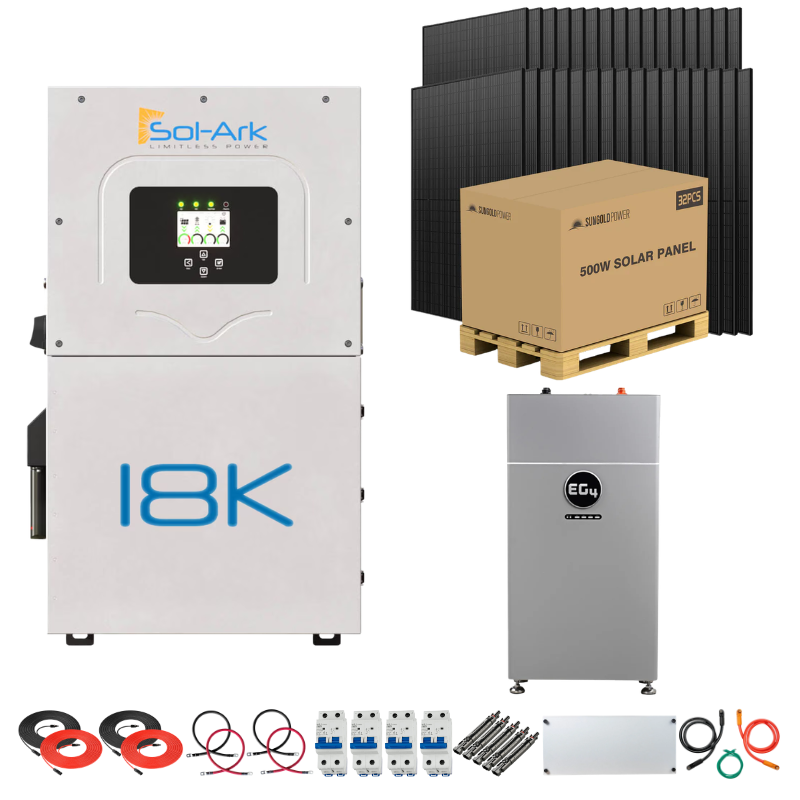

2 x EG4 WallMount Indoor - 32kWh - Open Loop

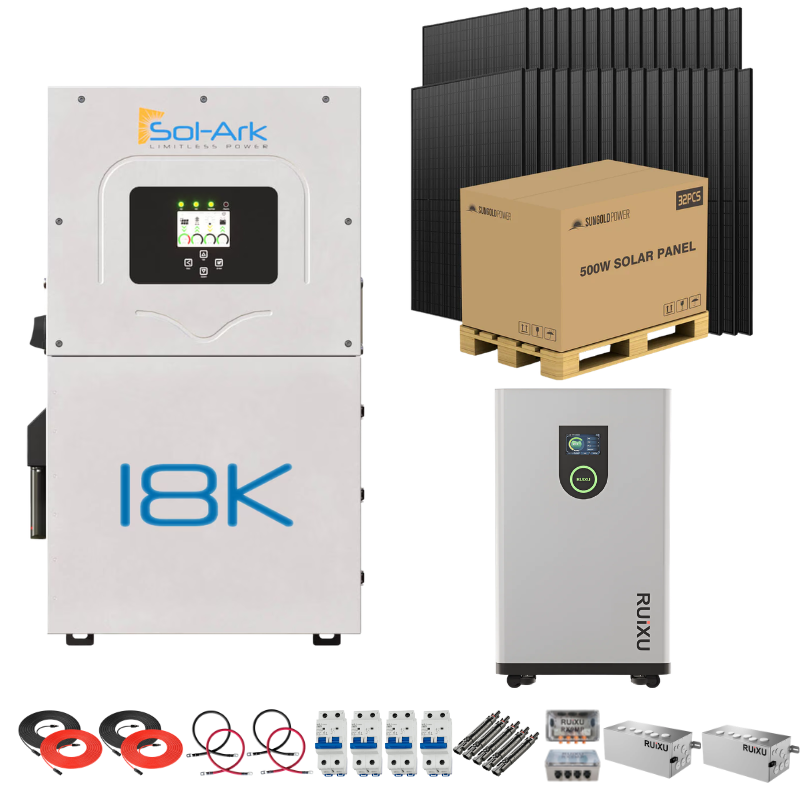

2 x RUiXU Lithi2-16 - 32kWh - Open Loop

Solar Panel:

32 × SunGold Power 500W Mono Black PERC (16kW)

Accessories:

4 x 10AWG Solar Extension Cable - 50ft
2 x 4/0 AWG Battery Cable - 4ft - 5/16 Both Ends (Set Red & Black)
4 x 25A PV Breaker
5 x Replacement Inline Fuse Holder | Choose Amp: 10A, 15A, 20A, 30A

Accessory Based on Battery Choice:

2 x C-BOX SE (Comes with Pytes)
1 x Parallel Cable (Comes with Pytes)
1 x Sol-Ark 15K Conduit Box (Comes with Discover)
1 x Generic Conduit Box - No Cables (Comes with Discover)
1 x Parallel Battery To Battery Cable Set - 1-Cat6 1.35m, 1-Pos, 1-Neg 2/0 1.35m (Comes with Discover)
1 x Bussbar 600A 8P w/Cover (Comes with LINIOTECH)
1 x EG4 PowerPro Battery Paralleling Cables (Comes with EG4)
1 x Indoor Buildable Conduit Box (Comes with EG4)
2 x RUiXU Conduit Box for Lithi2-16 with RX-12K or Sol-Ark 15K (Comes with RUiXU)
1 x RUiXU 800A Busbar Pair (Comes with RUiXU)

Sol-Ark 18K Complete Hybrid Solar Kit Specifications

Sol-Ark 18K - 18000W Output - 28800W PV Input - 48V - 120/240V Split Phase - Hybrid Specifications

Input Data (PV)

Specification	Details
Max. Supported PV Power	32,400W
Max. Usable PV Power	28,800W
Max. AC Coupled Input	19,200W
Rated MPPT Operating Voltage Range	150 - 425V
Startup Voltage	125V
Max. DC Input Voltage	500V
Max. Operating Input Current per MPPT	36A
Max. Short Circuit Current per MPPT	54A
No. of MPPT/Inputs	3/2

Output Data (AC)

Specification	Details
Continuous Power	18,000W
Surge Power (10s)	36,000W
Grid Voltage/ Frequency	120/240; 208 0.88Un＜U＜1.1Un / 55-65
Max. Output Current	75A
Max. Grid Passthrough Current	200A
Max Efficiency	97.6%
Stackable	Yes; Max 12

Battery Input Data (DC)

Specification	Details
Nominal DC Voltage	48V
Operating Voltage Range	40 - 60V
Capacity	50 — 9900Ah
Continuous Battery Charge / Discharge Current	350A
BMS Communication	CANBus & RS485 MODBUS

General Data

Specification	Details
Dimensions [H x W x D (mm)]	863 x 464 x 282 mm
Weight	62.4 Kg / 137 lb.
Enclosure	IP65 / NEMA 3R
Ambient Temperature	-40~+60°C, > 45°C Derating
Operating Altitude	3000 m (9843 ft)
Noise	< 50 dB
Standard Warranty	10 Years

Protection and Certifications

Specification	Details
Certifications and Listings	UL1741 3rd SB, UL1741 CRD-PCS, IEEE1547-2018 and interoperability using IEEE2030.5, Hawaiian Electric SRD V2.0, UL1699B PVDC AFCI, UL1998, CSA C22.2 No. 107
PV DC Disconnect Switch	Integrated
Ground Fault Detection — NEC 690.5	Integrated
AC Output Breaker - 200A	Integrated
Surge Protection	DC Type II / AC Type II

Pytes V16 - 32kWh - Closed Loop Specifications

Electrical

Specification	Details
Battery Chemistry	Lithium Iron Phosphate (LFP)
Rated Voltage	51.2 V
Rated Capacity	314 Ah
Rated Energy	16kWh
Recommended Continuous Charge / Discharge Current	125 A (6.4kW)
Max Charge / Discharge Current	200A (10.24kW)
Peak Discharge Current	300A (15.36kW) @15s

General

Specification	Details
Dimensions (W × D × H)	26.42 × 10.24 × 27.56 inch (671 × 260 × 700 mm)
Weight (lb / kg)	288 / 130.5
Ingress Protection Rating	IP66
Mounting Method	Wall / Ground
Terminal	Phoenix Plug & Play DC Connector
Communication Ports	CAN / RS485 / RS232 / Dry Contact / WiFi
Cycle Life	8000 cycles
Warranty	10 years

Internal Heating Film

Specification	Details
Rated Input Voltage	51.2 Vdc
Rated Power	500 W
Control Temperature	On: ≤41°F (5°C) / Off: ≥59°F (15°C)

Environmental

Environmental	Details
Charging Temperature	32°F ~ 131°F (0°C ~ 55°C)
Discharging Temperature	-4°F ~ 131°F (-20°C ~ 55°C)
Recommended Operating Altitude	≤ 9843 ft (3000 m)
Relative Humidity	0 ~ 95%, non-condensing

Compliance

Specification	Details
Certifications	UL 9540 Ed.3 (2023), UL 9540A, UL 1973, UN 38.3

Discover Helios - 32.2kWh - Closed Loop Specifications

Electrical Specifications

Specification	Details
Nominal Voltage	51.2 V
Nominal Capacity	314 Ah
Usable Energy	16,080 Wh
Depth of Discharge	100% (1)
Charge Bulk Voltage - Bulk Vdc	55.2 – 56.8 V
Charge Absorption Voltage - U1 MAX	55.2 – 56.8 V
Charge Float Voltage - U2	53.6 V
Charge Termination Current	5 A
Recommended High Voltage Disconnect	56.9 V
Overvoltage Disconnect (BMS)	58.0 V
Recommended Low Voltage Disconnect	48 V
Undervoltage Disconnect (BMS)	43.2 V
Max Continuous Charge Current	200 A
Max Continuous Discharge Current	200 A
Max Continuous Discharge Rate	10.24 kW
Peak Discharge Current (15 seconds)	300 A RMS
Self Discharge Current (operation)	≤ 25 mA
Self Discharge Current (battery OFF)	≤ 4 mA
Breaker	200 A breaker
Maximum short circuit fault current	7.16 kA (100 ms) / 3.58 kA (100 ms)
Arc Flash Incident Energy IEm	0.310 Cal/cm2
Arc Flash Incident Energy AFB	239 mm (9.41 in)

Mechanical Specifications

Specification	Details
Height	900 mm (35.3 in)
Width	465 mm (18.3 in)
Depth - body only	247 mm (9.7 in)
Depth (including Wall-Mount bracket)	271 mm (10.7 in)
Terminal	Quick Connect Plug and Pull Terminal
Weight	136 kg (299 lb)
IP Rating	IP65
Case Material	Galvanized Steel Sheet

LINIOTECH - 28.66kWh - Closed Loop Specifications

Specifications	Details
Battery Chemistry	LiFePO4
Capacity (Ah)	280Ah
Scalability	Max.16pcs in parallel (262kWh)
Voltage (V)	51.2V
Operating Voltage(V)	46-56V
Energy (kWh)	14.34kWh
Recommend Discharge Energy (80% DOD) (kWh)	11.47kWh
Recommend Charge/Discharge Current (A)	100A
Charge/Discharge Current (Max.)	150A
Peak Current (2 mins, 25°C)	200A
Recommend Depth of Discharge	90%
Dimension (W/H/D)	7001050200mm / 27.641.37.9 in
Weight Approximate	128.5kgs / 283 lbs
Master LED Indicator	4 LED (SOC:25%~100%) \| 2 LED (working, alarming, protecting)
IP Rating of Enclosure	IP65
Working Temperature	Charge:0℃～55℃ Discharge:-20℃～55℃
Storage Temperature	0℃～35℃
Humidity	5%~95%
Altitude	≤2000m
Cycle Life (25±2℃,0.5C/0.5C,80%EOL)	≥8500
Installation	Ground/Outdoor
Communication Port	CAN2.0, RS485, WiFi
Warranty Period	12 years
Certification	UL1973, UL9540A, UL9540, CB-IEC62619, CE-EMC, UN38.3, MSDS
Maximum Continuous Discharge Rate	7.68KW

EG4 WallMount Indoor - 32kWh - Open Loop Specifications

Specifications	Details
Product Type	LFP Battery
Battery Type	Lithium Iron Phosphate (LFP
Model Number	WM-48-314-IN-XX / WM48314INXX (XX is a number between 00 – 99

Electrical Characteristics

Specifications	Details
Nominal Energy Capacity	16 kWh
Usable Energy (DOD%)	12.86 kWh (80% recommended)
Recommended Voltage Range	47.5 – 57.6 VDC
Nominal Voltage	51.2 VDC
Capacity	314 Ah
Charging Voltage Range	56 – 57 VDC
Discharging Cut-Off Voltage	47.5 VDC
Max Continuous / Recommended Charge Current	157A / 157A
Max Continuous / Recommended Discharge Current	200A / 157A
Continuous Charge / Discharge Power	8 / 10.2 kW
Recommended Charging / Discharging Rate	0.5C
Short Circuit Current	1700A, 15 ms delay
Peak Power	12.8 kW (3 sec)
Round-Trip Efficiency	95%
Max Parallel Units	32
Protection Features	Over/Under Voltage, Over-Current, Short Circuit, High/Low Temp
Battery Management System (BMS)	Integrated, Active Balancing
Communication Protocols	RS485, CAN
Battery Breaker	250A

Battery Heater Specifications

Specifications	Details	Condition
Voltage	56V	-
Power Consumption	448W	-
Internal Battery Temperature	≤32°F (0°C) / ≥37°F (3°C)	Heat On / Heat Off

Environmental Specifications

Specifications	Details
Storage Temperature Range*	−4 – 131°F (−20 – 55°C)
Humidity Range	5% – 95% RH (non-condensing)
Altitude	9843 ft (<3000 m)
Cooling Method	Natural Convection
Dimensions (H × W × D)	34.1 in × 18.1 in × 9.6 in (865 mm × 460 mm × 245 mm)
Operating Temperature Range	Charge: 32 – 122°F (0 – 50°C) \| Discharging: −4 – 131°F (−20 – 55°C)

Mechanical Specifications

Specifications	Details
Weight	293.2 lbs (133 kg)
Enclosure Rating	IP20
Enclosure Rating	Floor mount / wall attached
Display / Indicators	LED Status
Connector Type	Degson quick connector / screw terminals

Certifications & Compliance

Specifications	Details
UL 1973	Yes
UL 9540	See https://eg4electronics.com/ for supported UL 9540 configurations
UL 9540A	Cell, Module (Pending), Unit Level (Pending)
UN 38.3	Yes

Warranty & Lifecycle

Specifications	Details
Cycle Life (70% EOL Capacity)*	10,000 cycles @ 0.5C, 25°C, 80% DOD
Design Life	15 years
Warranty	10 years or 10,000 cycles
Lifetime Production**	122.2 MWh
Application Type	Residential / Commercial / Off-Grid / Backup

RUiXU Lithi2-16 - 32kWh - Open Loop Specification

Specifications	Details
Nominal Voltage	51.2V
Capacity	314Ah (Min. Capacity @ 0.2C: 314Ah)
Nominal Energy	16.07kWh
Operating Voltage Range	44.8V - 56.0V
Charge Voltage	56.8V
Recommended Charge Current	140A
Max Charge Current	200A
Recommended Discharge Current	100A
Max Discharge Current	200A
Cycle Life (@ 80% DOD)	≥ 9500 cycles
Communication Protocols	RS485 / CAN
Dimensions (with Wheels)	36.3" x 21.3" x 10"
Weight	~320 lbs
Mounting Options	Wall-mounted with included screws and anti-tipping anchor
Certifications	UL1973, UL9540
IP Rating	IP65 (Outdoor-Ready)

FAQs

Can this system power my entire home?

Yes. The Sol-Ark 18K is designed to handle whole-home loads, including high-demand appliances and multiple circuits simultaneously.

What battery size is best for me?

28–32kWh is ideal for extended backup and full-home usage, especially for larger households or higher energy consumption.

Can I expand the system later?

Yes, both solar and battery capacity can be expanded to meet future needs.

Is this system suitable for off-grid use?

Yes, it’s an excellent solution for full off-grid applications or hybrid setups.

Do I need professional installation?

Professional installation is strongly recommended to ensure safety, code compliance, and optimal performance.

Manual

Shipping & Easy Returns

Shipping is free across the Lower 48. No fuel surcharges, no residential fees, and no liftgate charge on freight orders. The price you see is the price you pay. Read our full Shipping Policy here.

Most orders leave the warehouse in 1 to 2 business days and arrive within 3 to 10 business days. We send tracking the moment it ships.

Anything that ships on a pallet goes freight with liftgate and pallet jack included, so the driver gets it off the truck and onto the ground at your address. The carrier will call you directly to schedule a delivery window.

Returns are 30 days from delivery. For freight deliveries, inspect the shipment before you sign for it. If something is damaged in transit, note it on the delivery receipt and we handle the freight claim, not you. Read more about our Returns Policy here.

Why Buy From Us

Buying solar online should not mean guessing your way through the install. Here’s what you get with Off-Grid Source.

We size the system, not just sell it. Call before you order and a sales engineer will check the kit against your actual loads, tell you if you’re buying too much or too little, and list the site-specific parts your install will need.
A+ rated by the Better Business Bureau. Another trust signal that you’re buying from a real company that stands behind the sale.
Free shipping across the Lower 48. No hidden freight charges, residential fees, or liftgate surprises at checkout.
Guaranteed best prices. Find the same product for less elsewhere and we’ll match it.
30-day easy returns. If it is not the right fit, we’ll help you get it sent back.
A real person on the phone. Product questions, sizing, install planning, warranty help: call us at +1 (877) 556-3347.

FAST & FREE SHIPPING

From US-Based Warehouse

30-DAYS EASY RETURNS

Yes, Really.

GUARANTEED BEST PRICES

Find a Better Price? We’ll Match It.

GREAT CUSTOMER SERVICE

Call Us: (+1) 877-556-3347

Our Customers Tell It Better Than We Do

Excellent 4.9/5

Trusted By 10,000+ Customers. See All Reviews.

They Stood By Me

I was a DIY solar power wannabe... that is 'til I connected with Manny... The man's a prince! He not only knows his stuff; he walked me through all things electrical. To make sure I had all I needed... he gave me his cell phone # to text him anytime I got confused... nights and weekends included. The prices were very competitive... definitely go with Manny -- you won't go wrong!

Bruce D.

Awesome Service!

I am always hesitant to buy things at places I have never shopped... I want to give a shout out to Manny who with great patience and knowledge helped me get my orders... I felt valued as a customer and I will definitely be back in the future. I highly recommend them, they make you feel like family.

Jennene A.

Real Person, Honest Service.

I'm about to go off grid. I called Manny, he walked me through everything so I could truly understand what I needed and never tried to upsell me. He was honest and made a customer for life.

Ray B.

Easy Return

I would personally like to thank Manny... I purchased the inverter and decided I needed to return it... Manny was very understanding and went out of his way to help me return the product and not even have to pay for shipping return. He gives this company reputation, honor and quality customer service!

Roger V.

Totally Off Grid.

I have been talking with Manny the owner... He has not only helped me design a system but he's been assisting with the install and components. I am super pleased so far with the assistance.

Jeff S.

Great Product! Fast Shipping

We added 2 more batteries to our current set up. Pleased with the customer service from Off-Grid Source! Will be back!

Jason

Excellent Customer Service

Very fast response times. Very professional. I highly recommend!

Ray W.
