What inverter is this battery system compatible with?

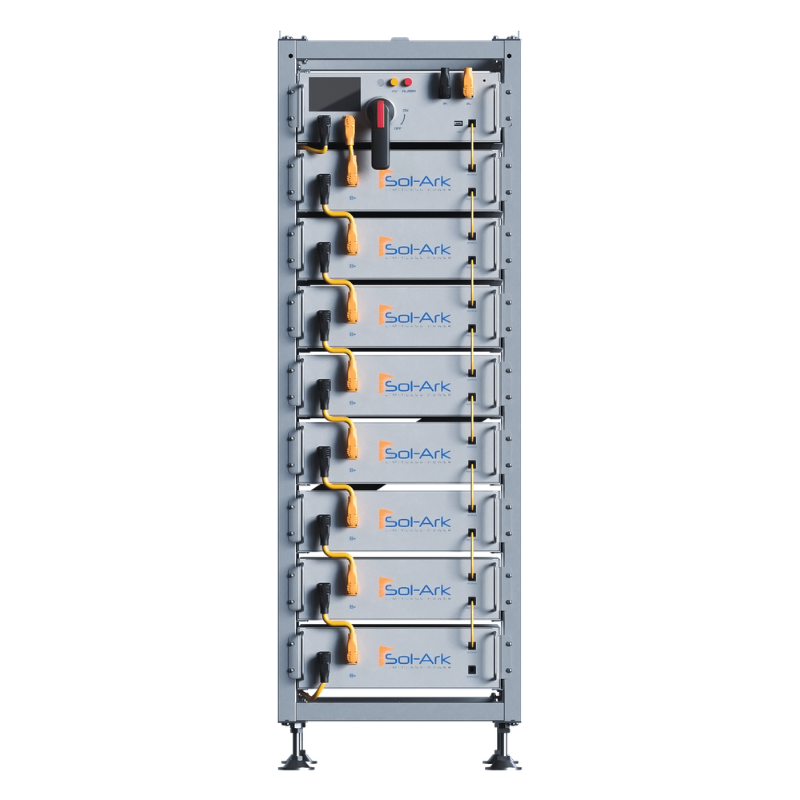

The Sol-Ark 40kWh Indoor Energy Storage System is designed for the Sol-Ark 30K-3P-208V inverter.
How much battery capacity does this system provide?
This system provides 40.96kWh nameplate energy capacity and 36.86kWh usable energy capacity.
What battery chemistry does it use?
The system uses Lithium Iron Phosphate (LFP) battery chemistry.
Is this an indoor or outdoor battery system?
This is an indoor battery energy storage system with an IP20 / NEMA 1 ingress rating.
What is the system nominal voltage?
The system nominal voltage is 410V DC.
How many battery units can be used per inverter?
The datasheet lists up to 16 battery units per inverter.
How many inverters can be used with this system?
The datasheet lists a maximum of 10 inverters.
What is the recommended depth of discharge?
The recommended depth of discharge is 90%.
What are the dimensions and weight?
The system measures 58 x 58 x 163 cm / 23 x 23 x 64 in and weighs 628 kg / 1,384 lb.
What certifications does it have?
The system is listed with UL1973, UL9540, UL9540A, UN38.3, FCC, and Prop 65 certifications.
