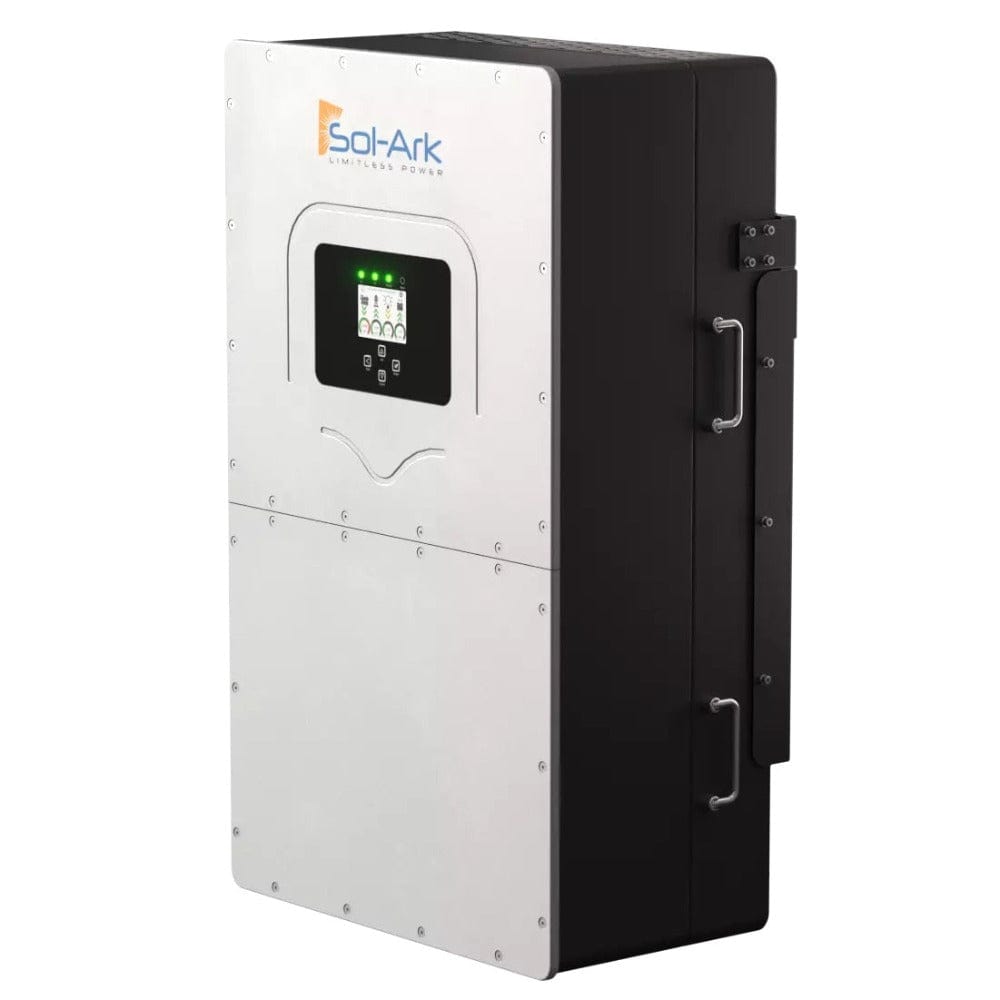

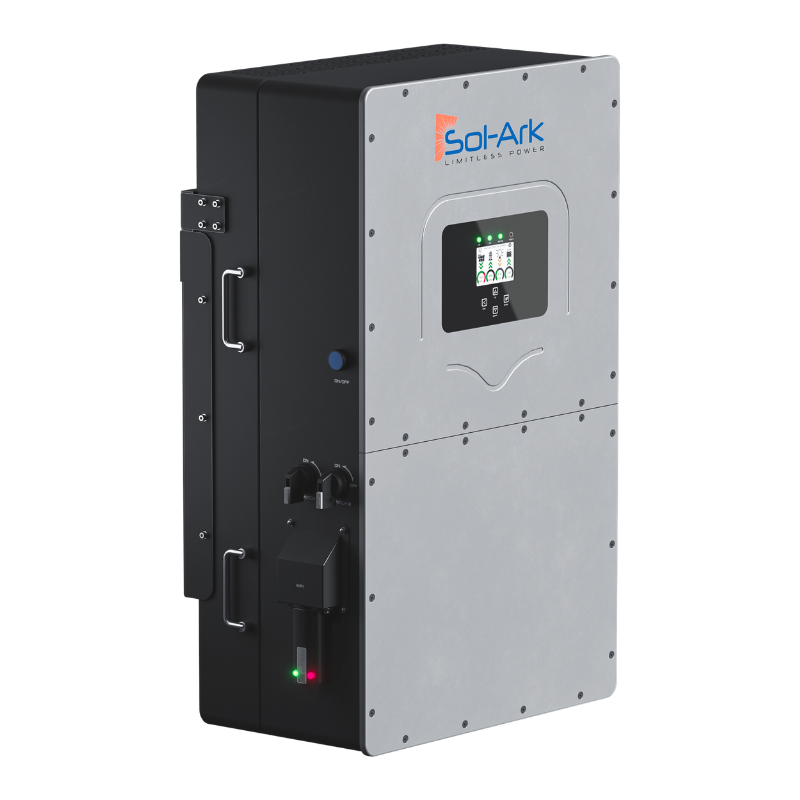

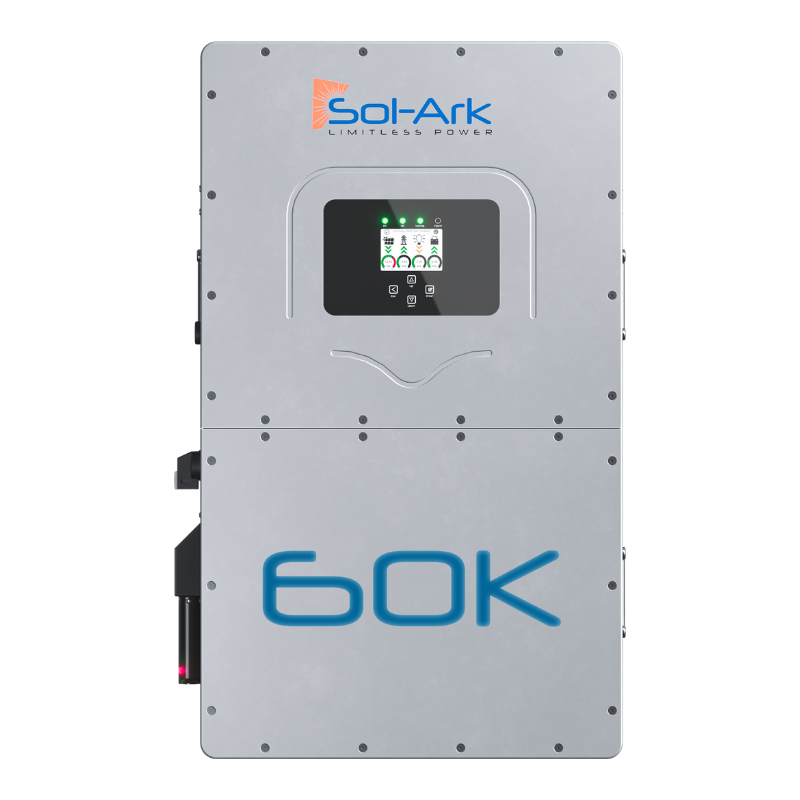

Sol-Ark 60K 3-Phase Hybrid Inverter

The Sol-Ark 60K 3-Phase Hybrid Inverter is a commercial-grade energy solution designed for large-scale applications, including industrial, commercial, and microgrid systems. With a robust 60kW power output, this inverter seamlessly integrates solar, battery storage, and the grid to deliver efficient energy management and backup power. Featuring advanced scalability, multi-unit stacking, and high efficiency, the Sol-Ark 60K ensures reliable performance for high-demand energy applications.

Sol-Ark 60K 3-Phase Hybrid Inverter Features

High-Power Output for Commercial Use

Delivers 60kW of continuous power, making it ideal for large-scale energy storage and industrial applications.

True 3-Phase Hybrid Functionality

Supports 120/208V and 277/480V 3-phase power, ensuring compatibility with commercial and industrial power systems.

Multi-Unit Stacking for Scalability

Stack up to 12 units to create a massive 720kW power system, providing flexibility for larger operations.

Peak Efficiency & Fast Transfer Time

Achieves an industry-leading 97.5% efficiency and features an ultra-fast <8ms transfer time for seamless power switching.

Multiple Battery & Energy Storage Options

Compatible with 48V, 240V, and high-voltage battery systems, allowing for diverse storage solutions.

Advanced Monitoring & Smart Controls

Remote monitoring and system control via the Sol-Ark web portal and mobile app, providing real-time energy management.

Placeholder Image

Sol-Ark 60K 3-Phase Hybrid Inverter Applications

  • Commercial & Industrial Facilities – Ideal for factories, data centers, warehouses, and corporate buildings requiring uninterrupted power supply.
  • Microgrids & Energy Independence – Supports large-scale microgrid installations, reducing dependency on the grid and optimizing renewable energy sources.
  • Solar-Plus-Storage Solutions – Seamlessly integrates with solar panels and battery storage to maximize energy efficiency.
  • EV Charging Stations – Powers large-scale EV charging infrastructures, ensuring high energy availability for fleet operations.
  • Emergency Backup for Large-Scale Operations – Delivers instant backup power for hospitals, government buildings, and critical infrastructure.
Placeholder Image

What's Included

Everything you need is included with your product.

  • Sol-Ark 60K 3-Phase Hybrid Inverter
  • User manual
Placeholder Image

SOL-ARK 60K-3P Hybrid Inverter Specifications

Input Data (PV)

Specification Details
Max. Allowed PV Power (STC) 78,000W
MPPT Voltage Range 150 - 850V
Startup Voltage 180V
Max. Input Voltage 1,000V
Max. Operating Input Current per MPPT 36A
Max. Short Circuit Current per MPPT 55A
No. of MPP Trackers 4
No. of PV Strings per MPPT 2
Max. AC Coupled Input 60,000W

Output Data (AC)

Specification Details
Nominal AC Voltage (3Φ) 277/480V
Grid Frequency 50 / 60Hz
Real Power, max continuous (3Φ) 60,000W
Max. Output Current 72.3A
Peak Apparent Power (10s, off-grid, 3Φ) 90,000VA
Max. Grid Passthrough Current (10min) 200A
Continuous Grid Passthrough Current 180A
Power Factor Output Range +/- 0.8 adjustable
Backup Transfer Time 5ms (adjustable)
CEC Efficiency 96.5%
Max Efficiency 97.5%
Design (DC to AC) Transformerless DC
Stackable Up to 10 in parallel

Battery Input Data (DC)

Specification Details
Battery Technologies Lithium iron phosphate
No. of Battery Inputs 2
Battery Input Terminal Rating 50A
Nominal DC Voltage ≥600V
Operating Voltage Range 160 - 800V
Capacity 50 — 9900Ah
Max. Battery Charge / Discharge Current 100A (50A per input)
Charging Controller Type 3-Stage with Equalization
Grid to Battery Charging Efficiency 96.0%
Automatic Generator Start (AGS) 2 Wire Start - Integrated
BMS Communication CANBus & RS485 MODBUS

General Data

Specification Details
Dimensions (H x W x D) 894 x 528 x 295 mm (35.2 x 20.8 x 11.6 in)
Weight 80 Kg / 176 lb.
Enclosure IP65 / NEMA 3R
Ambient Temperature -25~55°C, > 45°C Derating
Noise < 30 dB @ 25°C (77°F)
Idle consumption - No Load 60W
Communication and Monitoring Wi-Fi & LAN Hardware Included
Standard Warranty 10 Years (15 Years)

Protection and Certifications

Specification Details
Certifications and Listings UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16, IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP
PV DC Disconnect Switch — NEC 240.15 Integrated
Ground Fault Detection — NEC 690.5 Integrated
PV Rapid Shutdown Control — NEC 690.12 Integrated
PV Arc Fault Detection — NEC 690.11 Integrated
PV Input Lightning Protection Integrated
PV String Input Reverse Polarity Protection Integrated
Surge Protection DC Type II / AC Type II

FAQs

Can the Sol-Ark 60K work without a battery?

Yes, it can function as a grid-tied inverter without a battery, feeding excess solar power to the grid.

What battery brands are compatible with the Sol-Ark 60K?

The inverter supports most 48V, 240V, and high-voltage battery systems, including brands like Fortress Power, SimpliPhi, and Blue Planet Energy.

How many inverters can be stacked together?

Up to 12 Sol-Ark 60K units can be stacked for a total system capacity of 720kW.

Can this inverter function as a microgrid?

Yes, it can be used for large-scale microgrid applications, supporting both grid-connected and fully off-grid systems.

Does it support EV charging?

Yes, it can power Level 2 and Level 3 EV charging stations, making it ideal for commercial EV infrastructure.

Is remote monitoring available?

Yes, the Sol-Ark 60K features web-based and mobile app monitoring, allowing users to track energy usage and system performance in real-time.
