Sol-Ark 60kWh Indoor Energy Storage System for 60K Inverter

Name: Sol-Ark 60kWh Indoor Energy Storage System for 60K Inverter
Brand: Sol-Ark
SKU: L3-HV-60KWH
Price: 30700.0 USD
Availability: InStock

BY: Sol-Ark

SKU: L3-HV-60KWH

| Availability: In stock

$30,700.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Sol-Ark Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

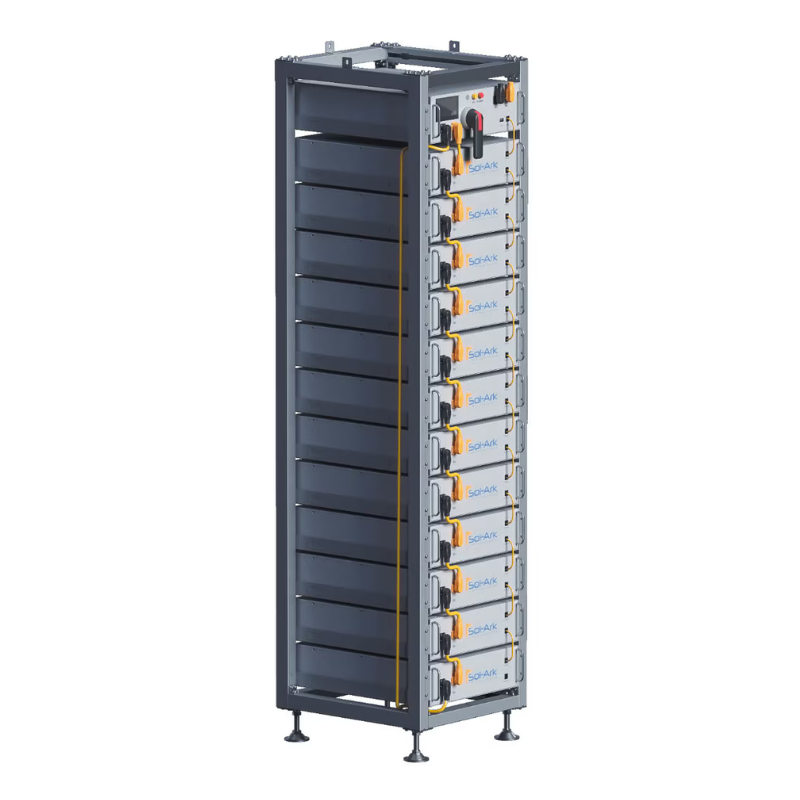

Sol-Ark 60kWh Indoor Energy Storage System for 60K Inverter

The Sol-Ark 60kWh Indoor Energy Storage System for 60K Inverter is a commercial indoor battery energy storage system designed for use with the Sol-Ark 60K-3P-480V inverter. Built with Lithium Iron Phosphate (LFP) chemistry, this system provides 61.44kWh nameplate energy capacity and 55.30kWh usable energy capacity for commercial backup power, peak shaving, time-of-use optimization, and energy resiliency. With a freestanding rack mount design, CAN2.0/RS485 communication, and a 10-year warranty, this system is built for indoor 480V commercial energy storage applications.

Sol-Ark 60kWh Indoor Energy Storage System for 60K Inverter Features

61.44kWh Nameplate Energy Capacity - The L3 HV-60 provides 61.44kWh nameplate energy capacity and 55.30kWh usable energy capacity, giving commercial sites a larger indoor storage option for backup and energy management.

Designed for Sol-Ark 60K-3P-480V Inverter - This indoor energy storage system is designed for the Sol-Ark 60K-3P-480V inverter, making it suitable for 480V commercial power applications.

Lithium Iron Phosphate Battery Chemistry - Built with Lithium Iron Phosphate (LFP) battery chemistry, the system supports stable, long-life performance for commercial and industrial energy storage.

Freestanding Indoor Rack Mount - The system uses a freestanding rack mount design with a steel powder-coated enclosure for indoor commercial battery installations.

Scalable Commercial Storage - The system supports up to 16 battery units per inverter and up to 10 inverters in parallel, allowing larger commercial energy storage systems to be built as project needs grow.

High Roundtrip Efficiency - The system delivers 94% roundtrip efficiency at 25°C and 0.5C, helping support efficient charge and discharge performance.

Integrated Protection and Communication - The system includes a 200A built-in DC disconnect rating, 160A internal fuse rating, and CAN2.0/RS485 communication ports for system integration.

Certified Commercial Battery System - The system is listed with certifications including UL1973, UL9540, UL9540A, UN38.3, FCC, and Prop 65.

Sol-Ark 60kWh Indoor Energy Storage System for 60K Inverter Applications

Commercial backup power – supports critical equipment and business continuity during outages.
Peak shaving – helps reduce demand charges by discharging stored energy during high-usage periods.
Time-of-use optimization – stores energy for later use during higher-cost utility rate periods.
Commercial solar storage – stores PV energy for use when solar production is low or demand is high.
Manufacturing facilities – supports energy resilience and load management for industrial operations.
Retail and commercial buildings – provides scalable indoor battery storage for larger energy needs.
EV charging support – helps manage high-demand charging loads when paired with the proper system design.
Microgrid systems – supports commercial microgrid and distributed energy storage applications.

What's Included

Everything you need is included with your product.

Sol-Ark 60kWh Indoor Energy Storage System for 60K Inverter

User Manual

Warranty

10-years of Warranty

Sol-Ark 60kWh Indoor Energy Storage System for 60K Inverter Specifications

System data

Specification	Details
Compatible inverter model	Sol-Ark 60K-3P-480V
Cell chemistry	Lithium Iron Phosphate
Nameplate energy capacity (DC)	61.44 kWh
Usable energy capacity (DC) ¹	55.30 kWh
Built-in DC disconnect rating	200A
Internal fuse rating	160A
Max. # battery units per inverter	16
Max. # inverters in parallel	10
Warranted Depth of Discharge	90%
Roundtrip Efficiency Charge/Discharge (DC)	94% (25C, 0.5C)
System Nominal Voltage (DC)	614.4V
System Operating Voltage (DC)	588V–672V
Battery Pack Internal Configuration	12s1p
Charge/Discharge current (DC) ² Recommended	50A
Charge/Discharge current (DC) ² Max. Continuous	100A
Charge/Discharge current (DC) ² Peak Discharge (60 sec @ 25°C)	125A
Battery max. Continuous Charge/Discharge Power (DC)	61.44kW
ESS Max. Cont. Charge/Discharge Power (AC)	60kW
Fault current contribution per battery	4,200A / 1.47ms

Mechanical specifications

Specification	Details
Product dimensions (WxDxH)	58x58x218 cm (23x23x86 in)
Net weight	773 kg (1,705lbs)
Mounting type	Freestanding Rack Mount
Material and finish	Steel — Powder Coated
Operating temperature and humidity	4°C — 43°C (40°F — 110°F) — 5%—85% RH
Operating altitude ⁴	3000m (9,843 ft)
Storage conditions ⁵	-4oF — 95oF up to 85% RH (non-condensing) — State of Charge (SOC) 30%
Ingress rating	IP20 (NEMA 1)
Noise level @ 1m	< 40 dBA at 30°C (86°F)
Seismic mounting	Up to Category F
Communication ports	CAN2.0/RS485

Battery module specifications

Specification	Details
Battery module nominal energy capacity	5.12kWh
Battery module nominal voltage & capacity	51.2V / 100Ah
Terminal type	Amphenol SurLok - Push Lock Connector

Warranty and certification

Specification	Details
Performance warranty ⁶	10 years or 130MWh Throughput
Product warranty	10 years
Certifications	UL1973, UL9540, UL9540a, UN38.3, FCC, Prop 65

Frequently-Asked Questions

What inverter is this battery system compatible with?

The Sol-Ark 60kWh Indoor Energy Storage System is designed for the Sol-Ark 60K-3P-480V inverter.

How much battery capacity does this system provide?

This system provides 61.44kWh nameplate energy capacity and 55.30kWh usable energy capacity.

What battery chemistry does it use?

The system uses Lithium Iron Phosphate (LFP) battery chemistry.

Is this an indoor or outdoor battery system?

This is an indoor battery energy storage system with an IP20 / NEMA 1 ingress rating.

What is the system nominal voltage?

The system nominal voltage is 614.4V DC.

How many battery units can be used per inverter?

The datasheet lists up to 16 battery units per inverter.

How many inverters can be used in parallel?

The datasheet lists up to 10 inverters in parallel.

What is the recommended depth of discharge?

The recommended depth of discharge is 90%.

What are the dimensions and weight?

The system measures 58 x 58 x 218 cm / 23 x 23 x 86 in and weighs 773 kg / 1,705 lb.

What certifications does it have?

The system is listed with UL1973, UL9540, UL9540A, UN38.3, FCC, and Prop 65 certifications.

User Manual

Shipping & Easy Returns

Shipping is FAST & FREE across the US. Read our full Shipping Policy here.

We offer market leading Easy 30 Day Returns. Read more about our Returns Policy here.

Why Buy From Us

We get it. You've got a lot of choices when it comes to online retailers. Here's why we think you should shop with us at Off-Grid Source.

Free Shipping: Absolutely no hidden charges, ever.
Guaranteed Best Prices: If you find a lower price elsewhere, we'll match it.
30-Day Easy Returns: Not Happy with your product? Return it, no questions asked.
Great Customer Service: It's rare to get a real person these days, but with us, you always will. Have questions? Call us at +1 (877)-556-3347.

FAST & FREE SHIPPING

From US-Based Warehouse

30-DAYS EASY RETURNS

Yes, Really.

GUARANTEED BEST PRICES

Find a Better Price? We’ll Match It.

GREAT CUSTOMER SERVICE

Call Us: (+1) 877-556-3347

Our Customers Tell It Better Than We Do

Excellent 4.9/5

Trusted By 10,000+ Customers. See All Reviews.

They Stood By Me

I was a DIY solar power wannabe... that is 'til I connected with Manny... The man's a prince! He not only knows his stuff; he walked me through all things electrical. To make sure I had all I needed... he gave me his cell phone # to text him anytime I got confused... nights and weekends included. The prices were very competitive... definitely go with Manny -- you won't go wrong!

Bruce D.

Awesome Service!

I am always hesitant to buy things at places I have never shopped... I want to give a shout out to Manny who with great patience and knowledge helped me get my orders... I felt valued as a customer and I will definitely be back in the future. I highly recommend them, they make you feel like family.

Jennene A.

Real Person, Honest Service.

I'm about to go off grid. I called Manny, he walked me through everything so I could truly understand what I needed and never tried to upsell me. He was honest and made a customer for life.

Ray B.

Easy Return

I would personally like to thank Manny... I purchased the inverter and decided I needed to return it... Manny was very understanding and went out of his way to help me return the product and not even have to pay for shipping return. He gives this company reputation, honor and quality customer service!

Roger V.

Totally Off Grid.

I have been talking with Manny the owner... He has not only helped me design a system but he's been assisting with the install and components. I am super pleased so far with the assistance.

Jeff S.

Great Product! Fast Shipping

We added 2 more batteries to our current set up. Pleased with the customer service from Off-Grid Source! Will be back!

Jason

Excellent Customer Service

Very fast response times. Very professional. I highly recommend!

Ray W.

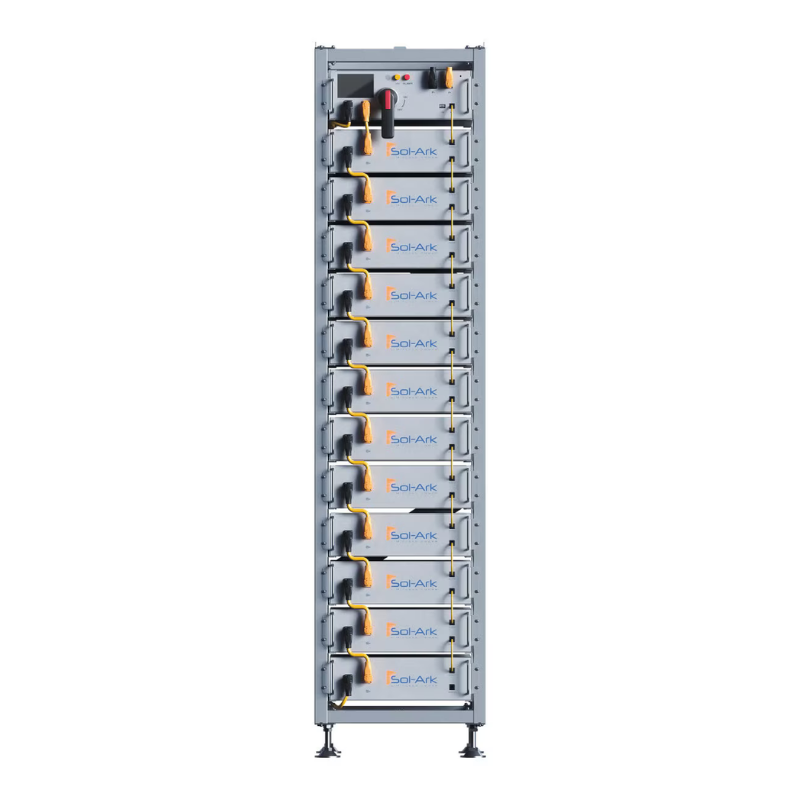

Sol-Ark 60kWh Indoor Energy Storage System for 60K Inverter image gallery
