Sol-Ark HVR 60kWh Outdoor Battery

Name: Sol-Ark HVR 60kWh Outdoor Battery
Brand: Sol-Ark
SKU: L3-HVR-60KWH
Price: 46695.0 USD
Availability: InStock

BY: Sol-Ark

SKU: L3-HVR-60KWH

| Availability: In stock

$46,695.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Sol-Ark Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

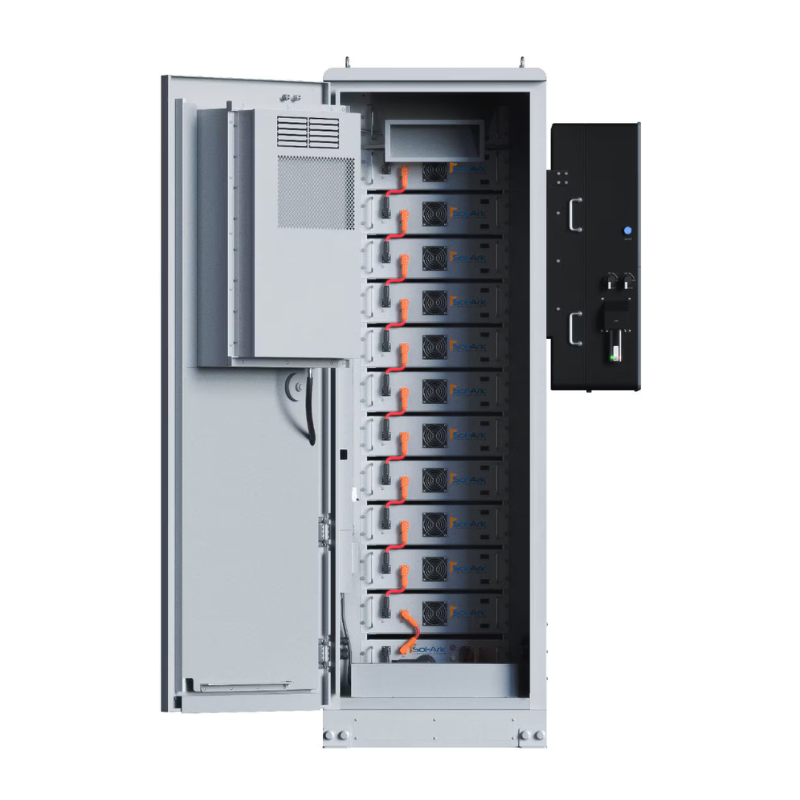

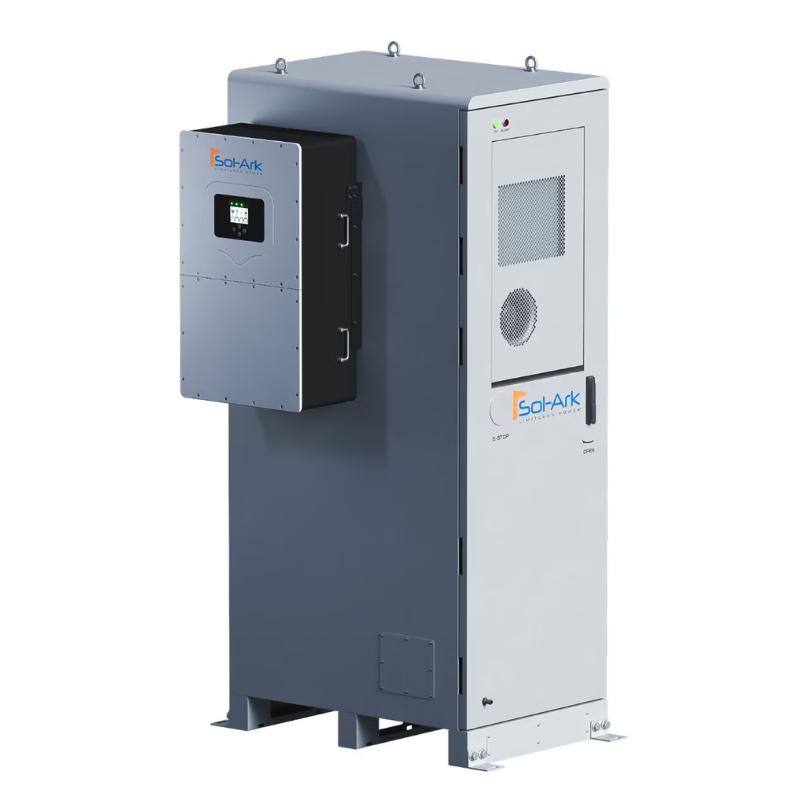

Sol-Ark L3 HVR 60kWh Outdoor Battery

The Sol-Ark L3 HVR 60kWh Outdoor Battery is a high-voltage, modular battery energy storage system (BESS) engineered for commercial and industrial applications requiring scalability, resilience, and high performance. Built with LiFePO4 chemistry and designed for seamless integration with the Sol-Ark 60K-3P inverter, this system delivers reliable backup power, peak shaving, and energy optimization. Its modular architecture allows expansion from smaller deployments up to multi-megawatt-hour systems, while integrated safety features like aerosol fire suppression and active thermal management ensure dependable operation in demanding environments.

Sol-Ark L3 HVR 60kWh Outdoor Battery Features

High-Voltage Modular Architecture - Built with a 614V nominal system voltage, enabling efficient power conversion and reduced system losses in large-scale installations.

Scalable Energy Storage - Expandable from ~40kWh up to 9.6MWh, making it ideal for growing commercial and industrial energy demands.

Integrated Safety Systems - Includes built-in fire suppression and thermal management, enhancing safety without requiring additional external systems.

Advanced Battery Management System (BMS) - Features automatic configuration and intelligent monitoring, ensuring optimal performance and longevity.

LiFePO4 Battery Chemistry - Utilizes Lithium Iron Phosphate cells, known for superior safety, long cycle life, and thermal stability.

Outdoor-Rated Enclosure (IP55) - Designed for indoor or outdoor deployment, with protection against dust and water ingress.

High Efficiency & Performance - Delivers up to 94% roundtrip efficiency, maximizing usable stored energy.

Flexible Communication & Upgrades - Supports CAN2.0/RS485 communication with optional WiFi/USB upgrades for remote monitoring and firmware updates.

Sol-Ark L3 HVR 60kWh Outdoor Battery Applications

High-Voltage Modular Architecture - Built with a 614V nominal system voltage, enabling efficient power conversion and reduced system losses in large-scale installations.
Scalable Energy Storage - Expandable from ~40kWh up to 9.6MWh, making it ideal for growing commercial and industrial energy demands.
Integrated Safety Systems - Includes built-in fire suppression and thermal management, enhancing safety without requiring additional external systems.
Advanced Battery Management System (BMS) - Features automatic configuration and intelligent monitoring, ensuring optimal performance and longevity.
LiFePO4 Battery Chemistry - Utilizes Lithium Iron Phosphate cells, known for superior safety, long cycle life, and thermal stability.
Outdoor-Rated Enclosure (IP55) - Designed for indoor or outdoor deployment, with protection against dust and water ingress.
High Efficiency & Performance - Delivers up to 94% roundtrip efficiency, maximizing usable stored energy.
Flexible Communication & Upgrades - Supports CAN2.0/RS485 communication with optional WiFi/USB upgrades for remote monitoring and firmware updates.

What's Included

Everything you need is included with your product.

8 x M10x25 mm Bolts for Mounting Feet
4 x M10 Battery mounting screws
Mounting Feet (2 Hole & 2 Slotted)
2 x R/L Cabinet Conduit Entry Knockout Box
2 x 9.8 ft (300 cm) P+ Inverter Cable (Red)
2 x 9.8 ft (300 cm) P- Inverter (Black)
1 x BMS-to-Battery Module Communication Cable
1 x 16 ft (500 cm) Cabinet-to-Cabinet Ethernet Communication Cable
1 x PCS Communication Port - 120 Ω Terminating Resistor

1 x BMS-to-Busbar P- Cable (Black)
1 x BMS-to-Busbar P+ Cable (Red)
1 x BMS-to-Battery Module B+ Cable
6 x Parallel Connection - Battery Module B- Cable (Black)Parallel Connection - Battery Module B- Cable (Black)
6 x Parallel Connection - Battery Module B+ Cable (Red)
11 x Series Connection - 4.3 in (110 mm) Battery Module Communication Cable
11 x Series Connection - 8.5 in (215 mm) Battery Module Power Cable
1 x Manual Service Disconnect (MSD) Plug for Battery Negative
User manual

Warranty

10 years of Warranty

Sol-Ark L3 HVR 60kWh Outdoor Battery Applications

System data

Specification	Details
Compatible inverter model	Sol-Ark 60K-3P-480V
Cell chemistry	Lithium Iron Phosphate
Nameplate energy capacity (DC)	61.44 kWh
Usable energy capacity (DC) ¹	55.30 kWh
Built-in DC disconnect rating	200A
Internal fuse rating	160A
Max. # battery units per inverter	6
Max. # inverters in parallel	6
Recommend depth of discharge	90%
Roundtrip efficiency charge/discharge (DC)	94% (25C, 0.5C)
System nominal voltage (DC)	614.4V
System operating voltage (DC)	588V-672V
Battery pack internal configuration	12s1p
Charge/Discharge current (DC) ² Recommended	100A
Charge/Discharge current (DC) ² Max. Continuous	100A
Charge/Discharge current (DC) ² Peak Discharge (60 sec @ 25°C)	125A
Battery max. Continuous Charge/Discharge Power (DC)	61.44kW
ESS Max. Cont. Charge/Discharge Power (AC)	60kW
Fault current contribution per battery	4,200A / 1.47ms

Mechanical specifications

Specification	Details
Product dimensions (WxDxH)	76x107x226 cm (30x42x89 in)
Net weight	950 kg (2095 lbs)
Mounting type	Outdoor Enclosure
Material and finish	Steel – Corrosion Resistant Powder Coat
Operating temperature and humidity	-20°C – 50°C (-4°F – 122°F) – 5%–85% RH
Operating altitude ⁴	3000m (9,843 ft)
Storage conditions ⁵	-4°F – 95°F – Up to 85% RH (non-condensing)
Ingress rating	IP55 (NEMA 3R)
Noise level @ 1m	75 dBA at 30°C (86°F)
Seismic mounting	Up to Category F
Communication ports	CAN2.0/RS485

Battery module specifications

Specification	Details
Battery module nominal energy capacity	5.12kWh
Battery module nominal voltage & capacity	51.2V / 100Ah
Terminal type	Amphenol SurLok - Push Lock Connector

Warranty and certification

Specification	Details
Performance warranty ⁶	10 years or 196MWh Throughput
Product warranty	10 years
Certifications	UL1973, UL9540, UL9540a, UN38.3, FCC, Prop 65

Frequently-Asked Questions

Is this battery compatible with all inverters?

No, this system is specifically designed to work with the Sol-Ark 60K-3P inverter for optimal performance and compatibility.

Can the system be expanded after installation?

Yes, the modular design allows for easy expansion by adding additional battery cabinets or modules as energy demands grow.

Is the battery suitable for outdoor use?

Yes, it features an IP55-rated enclosure and integrated climate control, making it suitable for outdoor installations.

What safety features are included?

The system includes built-in fire suppression, thermal management, and advanced BMS protections to ensure safe operation.

What is the expected lifespan?

With LiFePO4 chemistry and proper operation, the system offers long cycle life and a 10-year warranty, making it a durable long-term investment.

User Manual

Sol-Ark L3 HVR 60kWh Outdoor Battery Manual
