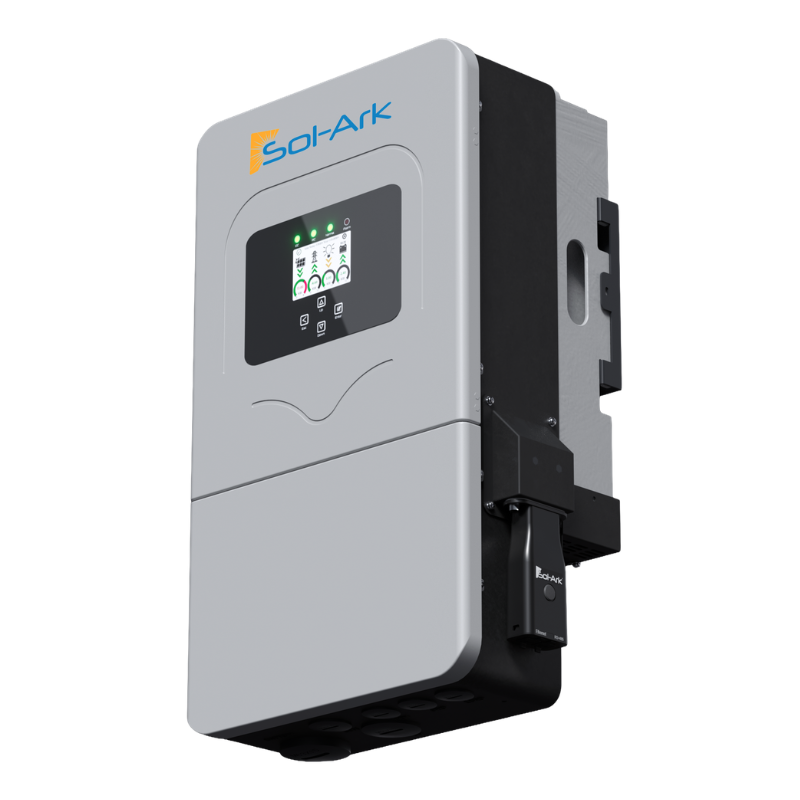

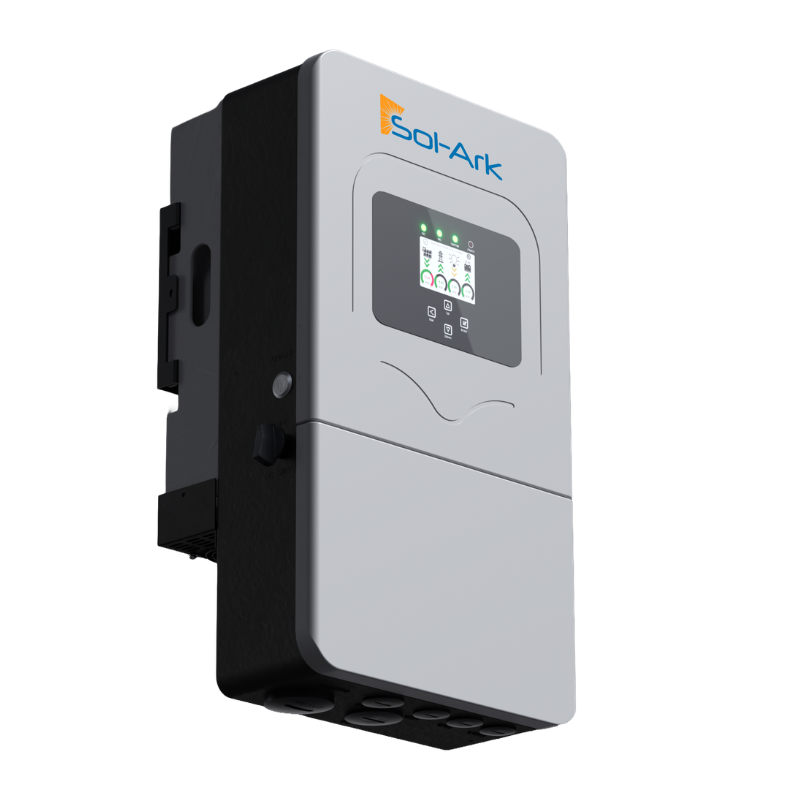

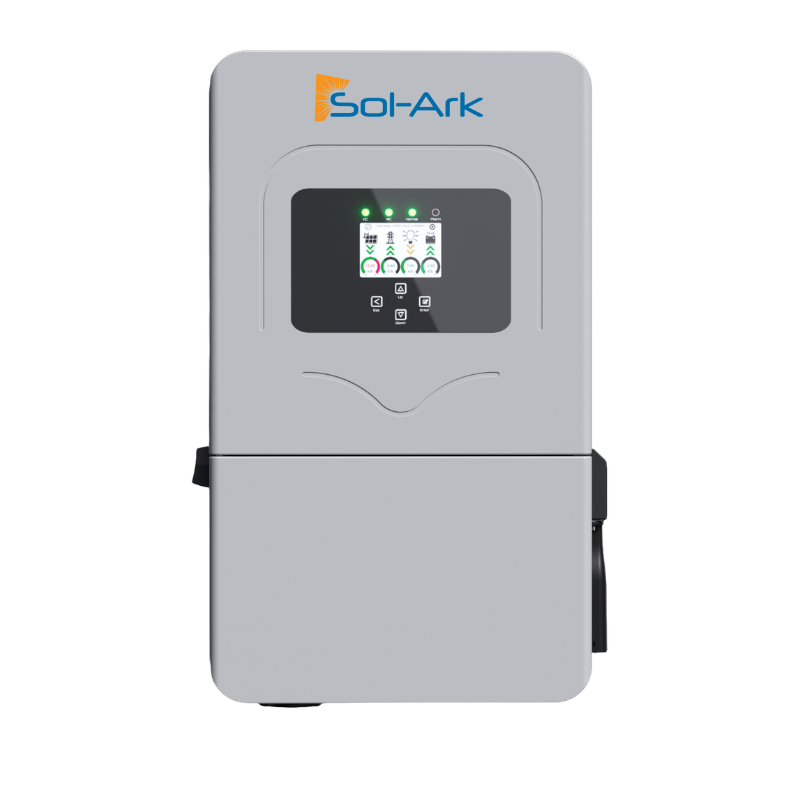

MICROMAX™ Compact Design - Delivers 12kW-class AC output in one of the most compact hybrid inverter enclosures available, reducing wall space requirements and simplifying installation.
MAXPV™ 19.2kW Solar Capacity - Supports up to 19,200W of PV input with three independent MPPTs, allowing larger solar arrays and improved production across multiple roof orientations.
FLEXPASS™ 100A Passthrough - Provides 100A continuous AC passthrough capability, enabling connection to larger backup load panels without requiring external contactors.
GENLINK™ Generator Integration - Supports up to 14kW of external AC power through the GEN port, allowing seamless integration with generators, microinverters, and AC-coupled energy sources without a transfer switch.
12kW Continuous Output - Provides dependable whole-home backup power capable of supporting HVAC systems, well pumps, refrigerators, kitchen appliances, lighting, and more.
24kW Surge Capability - Handles large startup loads and motor-driven equipment with up to 24,000W surge power for 10 seconds in off-grid operation.
Three Independent MPPTs - Features a 3-MPPT architecture with two strings per MPPT, maximizing solar harvest across multiple roof sections and array orientations.
Flexible Battery Compatibility - Supports both lithium-ion and lead-acid battery technologies with a 48V battery architecture and advanced BMS communication.
Rapid Backup Transfer - Provides seamless power transitions with a fast 5ms transfer time during grid outages.
Scalable Parallel Design - Supports up to 12 inverters operating in parallel for larger residential or commercial energy storage systems.
Advanced Monitoring & Connectivity - Integrated support for WiFi and LAN monitoring, with optional 4G communication capabilities.
Intelligent Cooling System - Utilizes intelligent air cooling technology to optimize thermal performance and inverter longevity.
