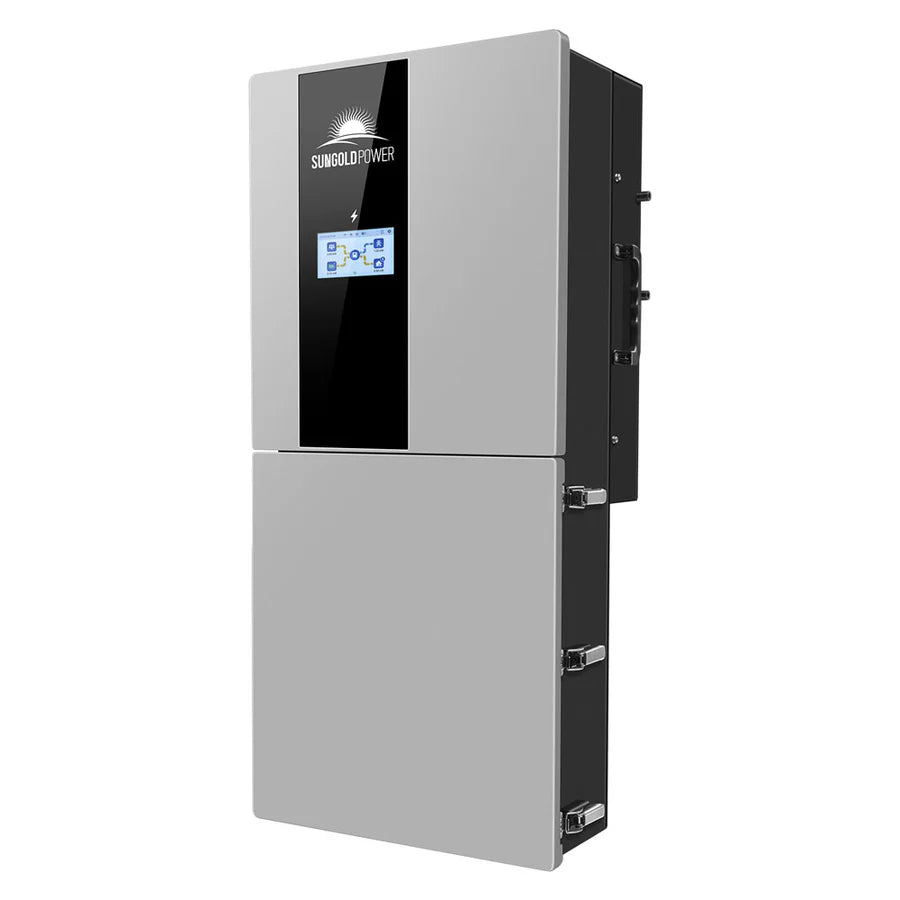

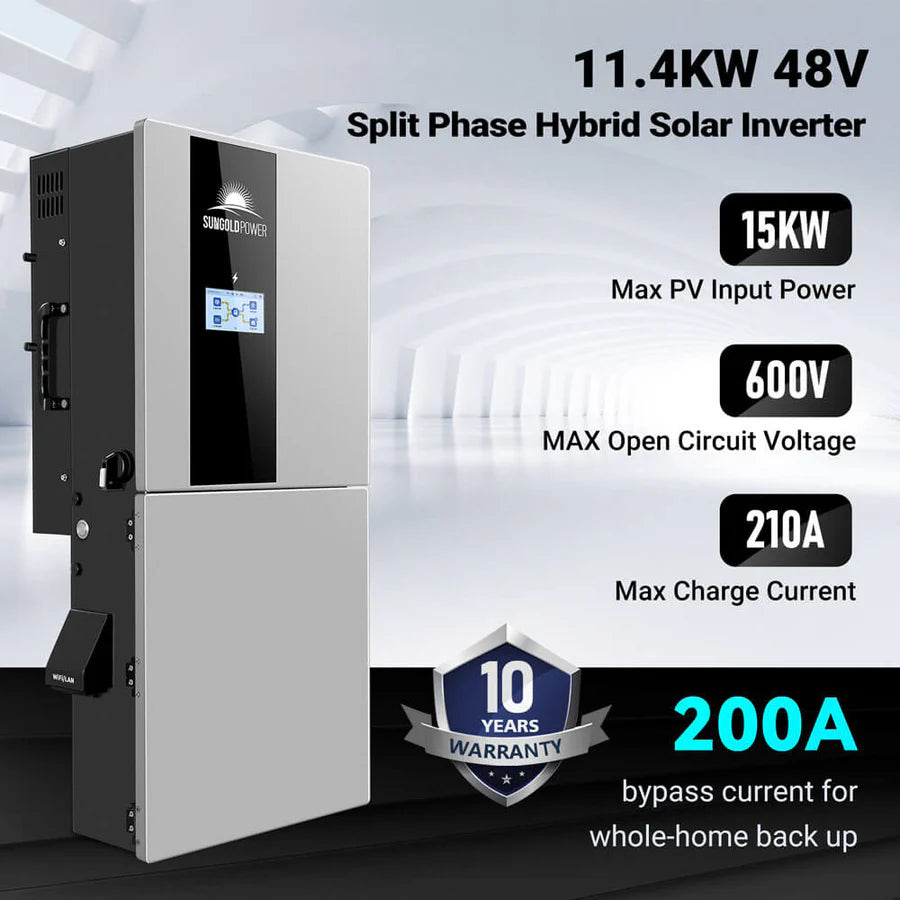

Request a Free Solar ProposalThe Sungold Power SGN-11K15PRO is a high-capacity, 48V split-phase hybrid solar inverter engineered for full home backup and advanced energy management. Offering up to 11.4kW of continuous output, dual MPPT solar charging, 200A whole-home pass-through capability, and intelligent grid/battery/solar blending, this inverter is a powerhouse for off-grid, grid-tied, and hybrid solar setups. With split-phase 120/240V output, the SGN-11K15PRO supports large loads like HVACs, EV chargers, and well pumps, all while integrating seamlessly with your battery bank, solar array, and the utility grid.

11.4kW Continuous Output – Run entire homes or commercial spaces with stable 120/240V split-phase power.
48V Battery Compatibility – Efficiently supports 48V lithium and lead-acid batteries with deep cycle reliability.
Dual MPPT Solar Inputs – Two independent MPPT trackers optimize solar harvesting from dual PV arrays up to 15kW total.
200A Whole-Home Backup – Integrated 200A pass-through allows direct home panel connection for seamless emergency power.

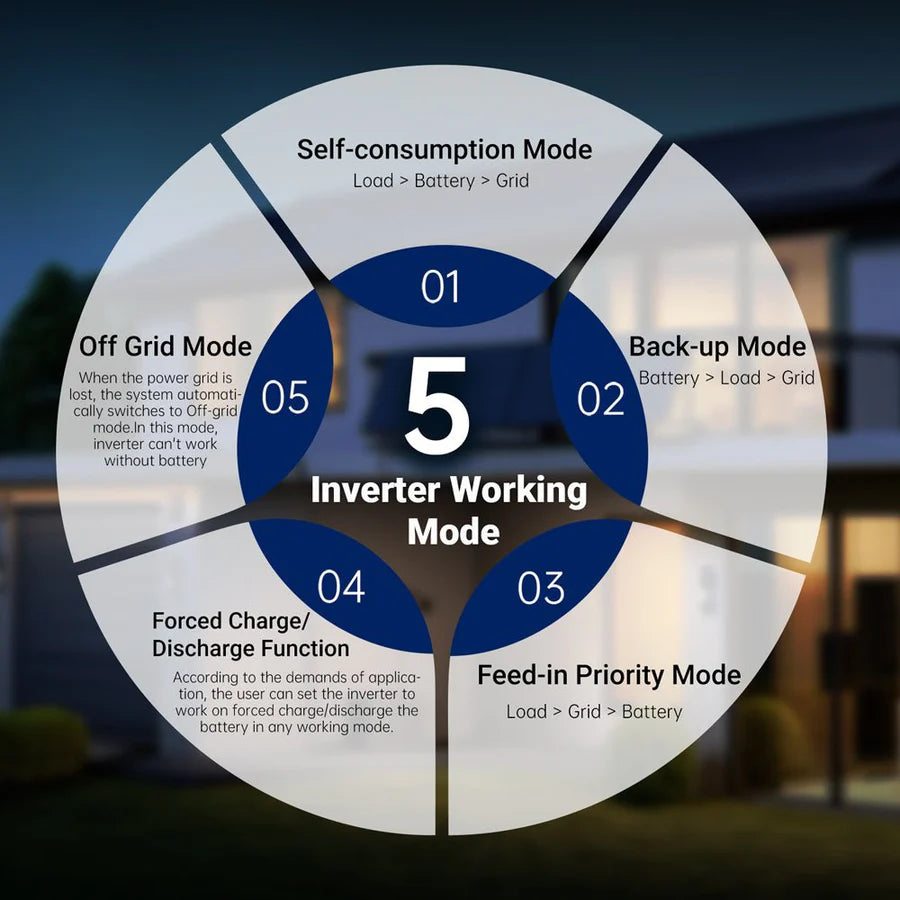

Grid + Solar + Battery Hybrid Mode – Automatically blends solar, grid, and battery input to maximize uptime and efficiency.
Auto Generator Start – Supports dry contact signal to auto-start generators when battery voltage dips too low.

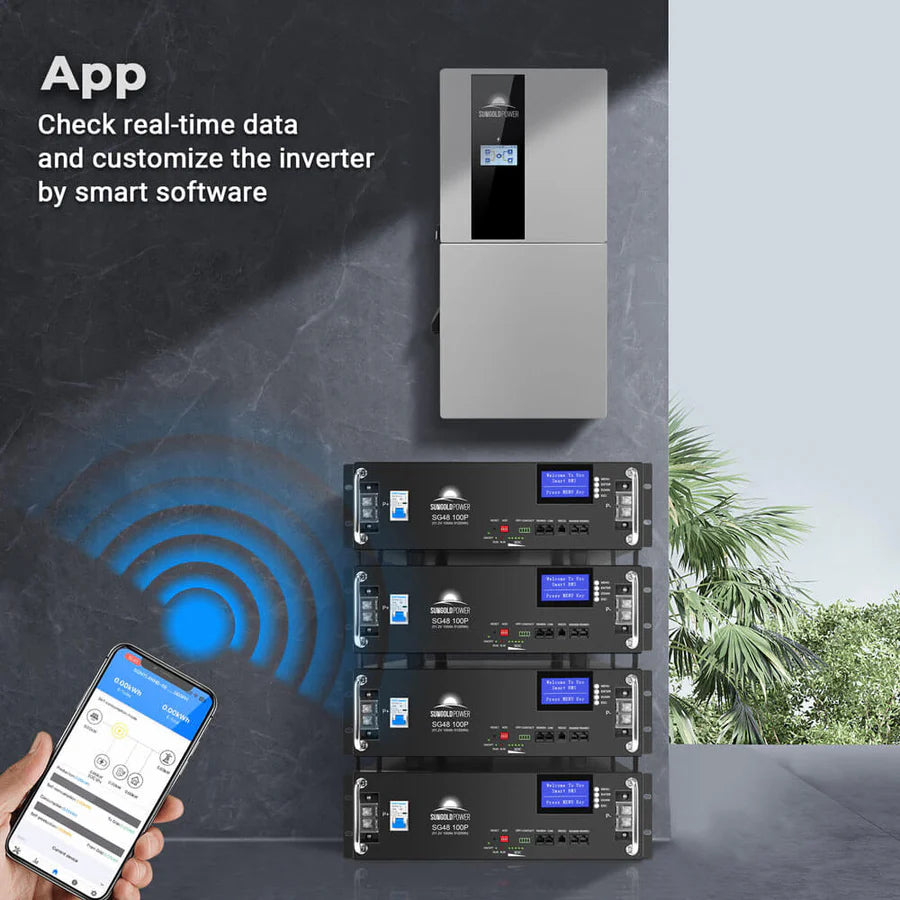

Built-in Wi-Fi Monitoring – Stay in control with real-time monitoring via smartphone or web dashboard.
Advanced Load Prioritization – Prioritize critical circuits like medical equipment or refrigeration during outages.
Quiet Fan-Cooled Design – High-performance cooling keeps the inverter operating efficiently under load.
Indoor/Outdoor Capable – Engineered with a durable enclosure suitable for wall-mounting in garages, utility rooms, or shelters.



Everything you need is included with your product.

Efficiency
| Specification | Details |
| CEC Efficiency | 96.50% |
Input (PV)
| Specification | Details |
| Max. PV Input Power | 15,000W |
| Max. PV Voltage | 600V |
| Start-up Voltage | 90V |
| MPPT Operating Voltage Range | 70V to 540V |
| Max. Input Current per MPPT | 30A/22A/22A |
| Nos. Of MPPT | 3 |
Input / Output (BAT)
| Specification | Details |
| Compatible Battery Type | Lithium-ion/Lead-acid |
| Battery Voltage Range | 40V to 64V |
| Max. Charge/Discharge Current | 210A/210A |
| Max. Charge/Discharge Power | 10,000W/10,000W |
Output (Grid)
| Specification | Details |
| Nominal AC Output Power | 11,400W |
| Max. AC Output Current | 47.5A |
| Max. Grid Passthrough Current | 200 A |
| Nominal Grid Voltage | 120 V /240 V (Split phase),120 V /208 V (2/3 phase) |
| Nominal Grid Frequency | 50Hz/60Hz |
| Power Factor | >0.99@rated power (Adjustable 0.8LG to 0.8LD) |
Output (Load)
| Specification | Details |
| Nominal Output Power | 11,400W |
| Nominal Output Current | 47.5A |
| Peak Output Apparent Power | 150 %,10 s |
| Nominal Output Voltage | 120 V /240 V (Split phase),120 V /208 V (2/3 phase) |
| Nominal Output Frequency | 50Hz/60Hz |
| Transfer Time | <10ms (typical) |
| THDV | <3% @100% R Load |
Protection
| Specification | Details |
| Protection Category | Class I |
| AC Overcurrent Protection | Yes |
| DC/AC Overvoltage Protection | DC Type II, AC Type III |
| AC Short Circuit Protection | Yes |
| DC Reverse Protection | Yes |
| Surge Arrester | DC Type II, AC Type III |
| RSD | Yes |
General
| Specification | Details |
| Ingress Protection Degree | IP65/NEMA 3R |
| Operating Temperature Range | -13°F to140°F (>113°F derating),-25°C to 60°C (>45°C derating) |

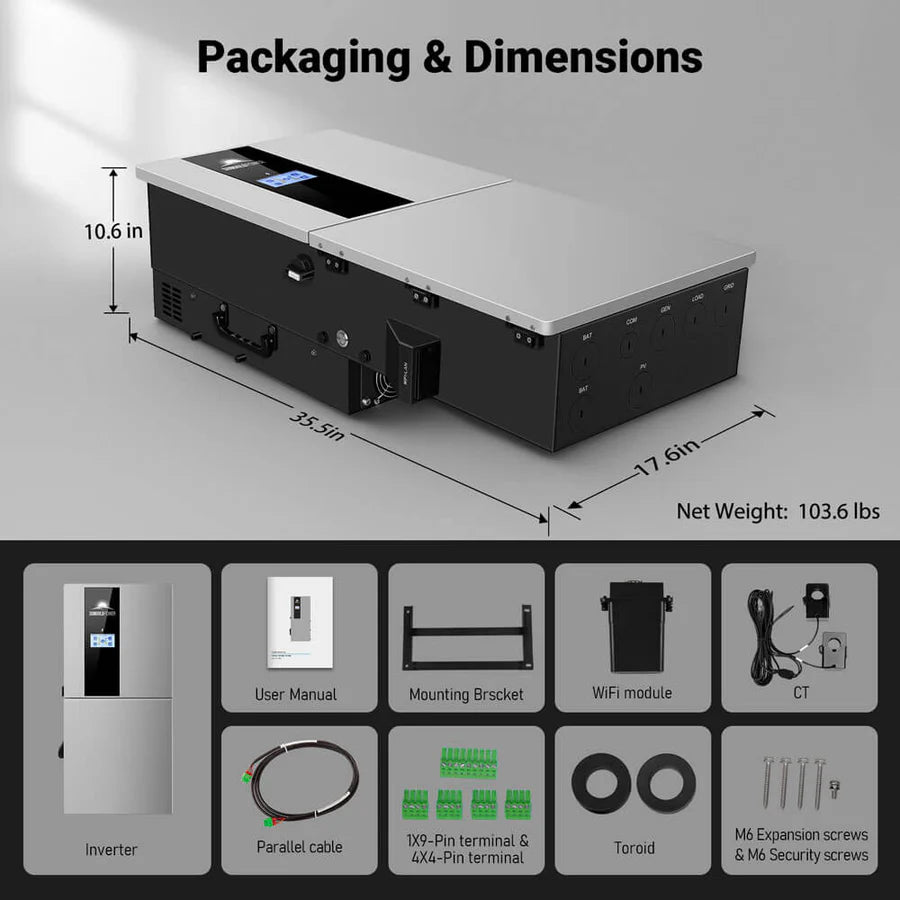

| Dimensions (WHD) | 17.635.510.6 inches(448*901*270 mm) |
| Weight | 103.6 lbs/47Kg |
HMI & COM
| Specification | Details |

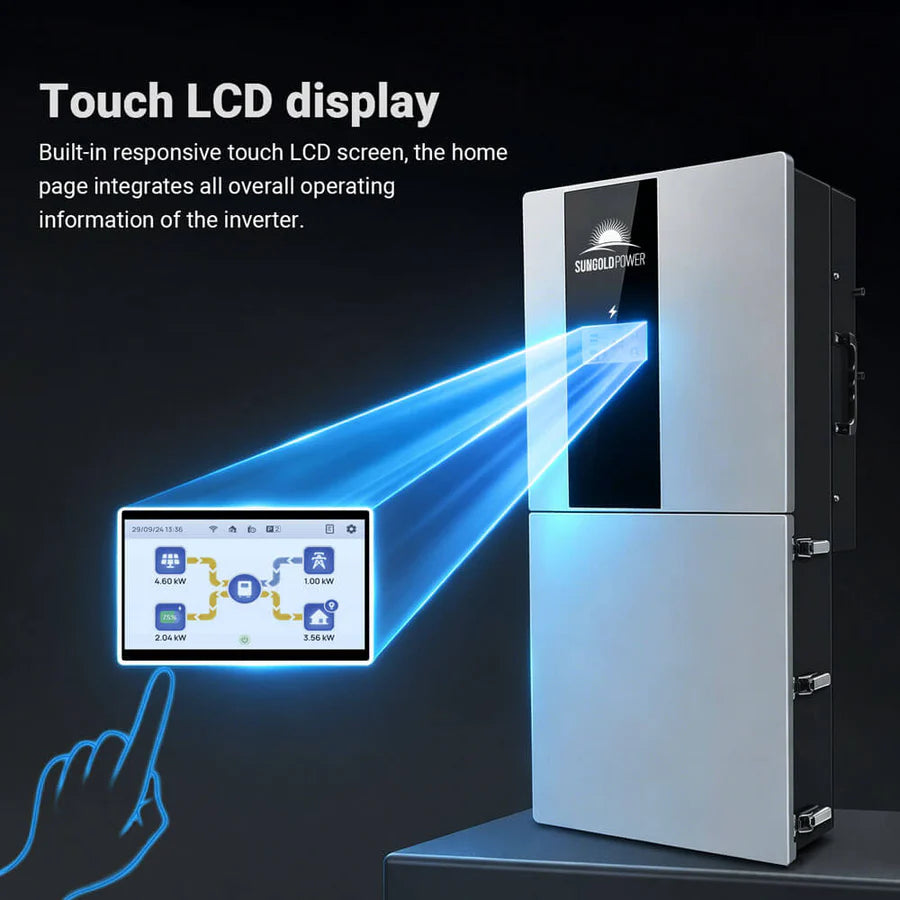

| Display | LED+ LCD |
| Communication | CAN (for BMS), RS485 (for meter), RS485, CAN (for parallel), Optional: WiFi /LAN |
Certification
| Specification | Details |
| Compliance | UL 1741/CSA C22.2/UL 1699B,UL1741SA, UL1741SB, UL 1741 PCS CRD, IEEE1547, HECO SRD 2.0, CSIP |
| Warranty | 10 Years |
Can this inverter power my entire home during a blackout?
Yes, with 11.4kW of continuous power and 200A backup pass-through, this inverter can support most home systems including HVACs, well pumps, and major appliances.
Do I need two inverters to get 240V output?
No, the SGN-11K15PRO outputs 120/240V split-phase natively—no additional inverters or transformers are needed.

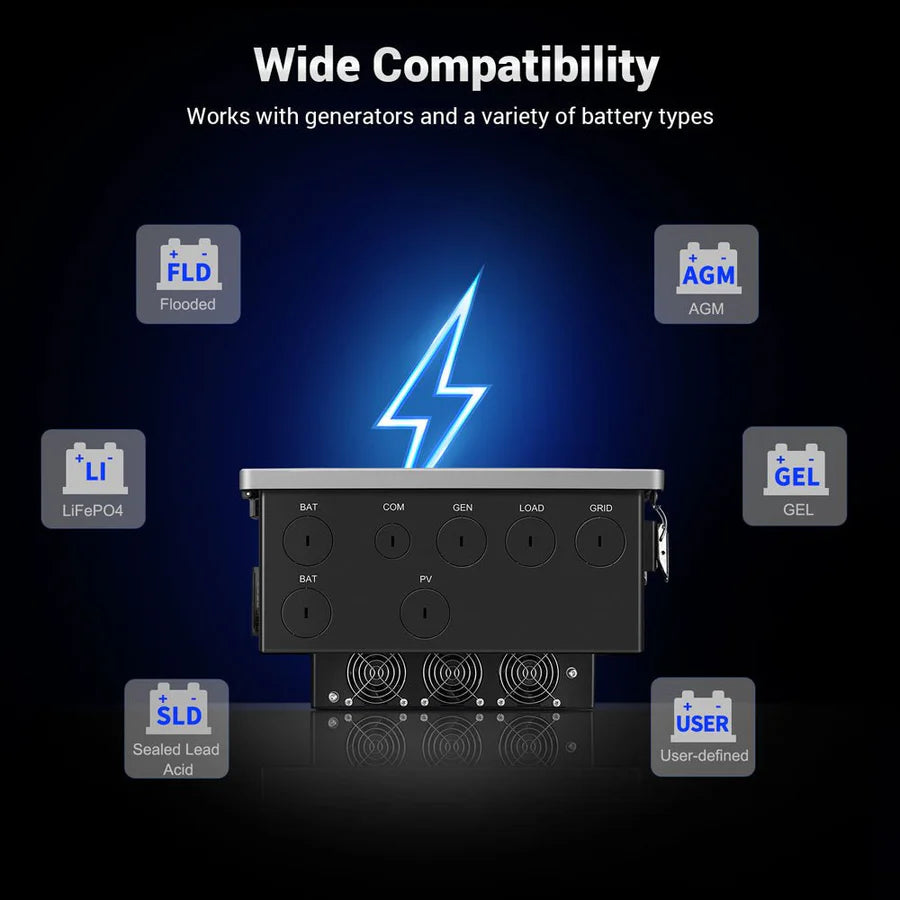

What kind of batteries can I use?
It supports 48V lithium (LiFePO4) and lead-acid battery banks, as long as voltage and charge settings are matched.
Can I use this with solar and the grid at the same time?
Yes, the system supports hybrid operation, combining solar, grid, and battery sources simultaneously and switching intelligently.
Does it support auto-starting a generator?
Yes, there's a dry contact port that allows connection to compatible generator auto-start controls.
Is it hard to install?
While installation should be done by a licensed professional, the inverter includes mounting hardware, wiring terminals, and Wi-Fi setup for easy integration.
