SunGold Power 11.4kW Hybrid Solar Kit, 12.6kW Solar, 30.72kWh Battery | 120/240V | SGH-11N3E-s

Name: SunGold Power 11.4kW Hybrid Solar Kit, 12.6kW Solar, 30.72kWh Battery | 120/240V | SGH-11N3E-s
Brand: SunGoldPower
SKU: SGH-11N3E-s
Price: 9457.0 USD
Availability: InStock

BY: SunGoldPower

SKU: SGH-11N3E-s

| Availability: In stock

$14,549.00

$9,457.00

You Save: $5,092.00

Product Highlights

30.72kWh of LiFePO4 storage for home backup and solar energy
120/240V split-phase power for compatible household equipment
Supports up to 15kW PV input from a compatible solar array
Three MPPT inputs help manage separate compatible solar strings

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized SunGoldPower Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

SunGold Power 11.4kW Hybrid Solar Kit, 12.6kW Solar, 30.72kWh Battery | 120/240V | SGH-11N3E-S

The SunGold Power 11.4kW Hybrid Solar Kit is a high-capacity solar energy solution designed for residential backup power, off-grid living, and hybrid solar applications. This system combines an 11,400W hybrid solar inverter with 30.72kWh of LiFePO4 battery storage, providing reliable energy for household appliances, electronics, and essential electrical equipment.

The inverter delivers 120/240V split-phase pure sine wave output and supports up to 15,000W of solar PV input, allowing it to accommodate a substantial solar array. Its advanced MPPT technology, long-lasting lithium batteries, and flexible charging capabilities make it suitable for homeowners seeking greater energy independence.

SunGold Power 11.4kW Hybrid Solar Kit Features

11.4kW Hybrid Solar Inverter

The system includes a powerful 11,400W hybrid inverter capable of delivering pure sine wave electricity. Its 120/240V split-phase output supports compatible residential appliances and electrical equipment.

30.72kWh LiFePO4 Battery Storage

The kit includes six SG48100P 51.2V 100Ah lithium batteries, each providing 5.12kWh of energy storage. Together, they deliver 30.72kWh of nominal battery capacity, offering substantial stored energy for backup and off-grid applications.

Up to 15,000W Solar PV Input

The hybrid inverter supports a maximum 15,000W PV input power, allowing customers to integrate a properly designed solar array. Solar panel compatibility depends on the inverter's voltage, current, and MPPT requirements.

Three MPPT Solar Charge Controllers

Equipped with three MPPT inputs, the inverter helps optimize energy collection from compatible solar panel strings under changing sunlight conditions.

High-Capacity Battery Charging

The inverter supports a maximum charging current of 210A, allowing high-capacity charging when configured with compatible batteries and supported charging sources.

Long-Lasting LiFePO4 Battery Technology

Each SG48100P battery is rated for 7,000 or more cycles, providing a durable energy storage solution for residential and off-grid applications.

SunGold Power 11.4kW Hybrid Solar Kit Applications

Residential Backup Power – Supplies stored energy to compatible household essentials such as refrigerators, lighting, internet equipment, televisions, and other appliances during outages.
Off-Grid Homes – Supports independent residential power systems when paired with a properly designed solar array and the necessary electrical equipment.
Hybrid Solar Installations – Combines compatible solar generation, battery storage, and supported AC power sources to improve energy availability.
Whole-Home Energy Storage – Provides 30.72kWh of nominal battery capacity for residential energy storage applications, subject to the home's electrical demand and system configuration.
Rural Properties – Offers a high-capacity power solution for remote homes, farms, and properties where utility electricity may be unreliable.

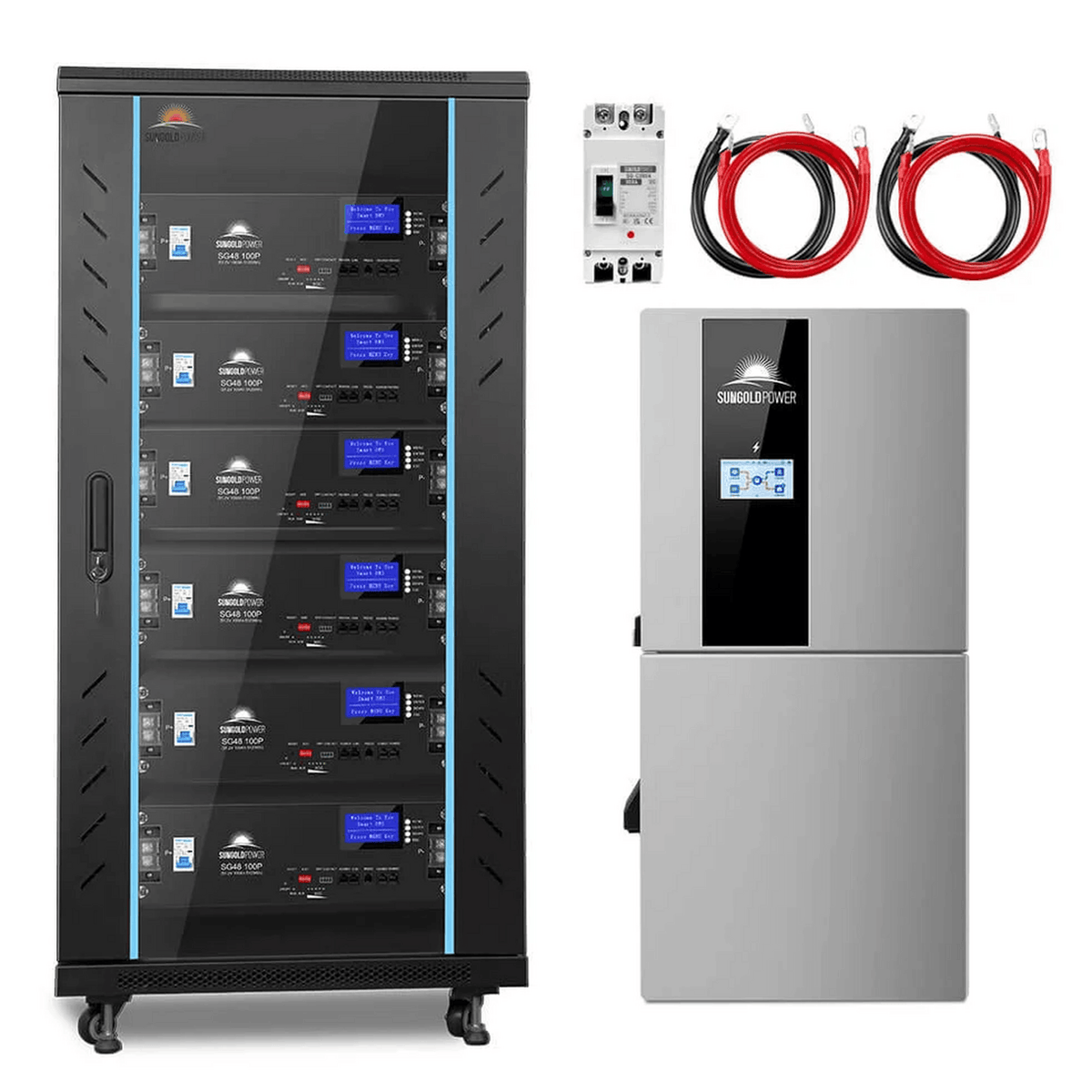

What's Included

Everything you need is included with your product.

1 X 11.4KW 48V Split Phase Hybrid Solar Inverter

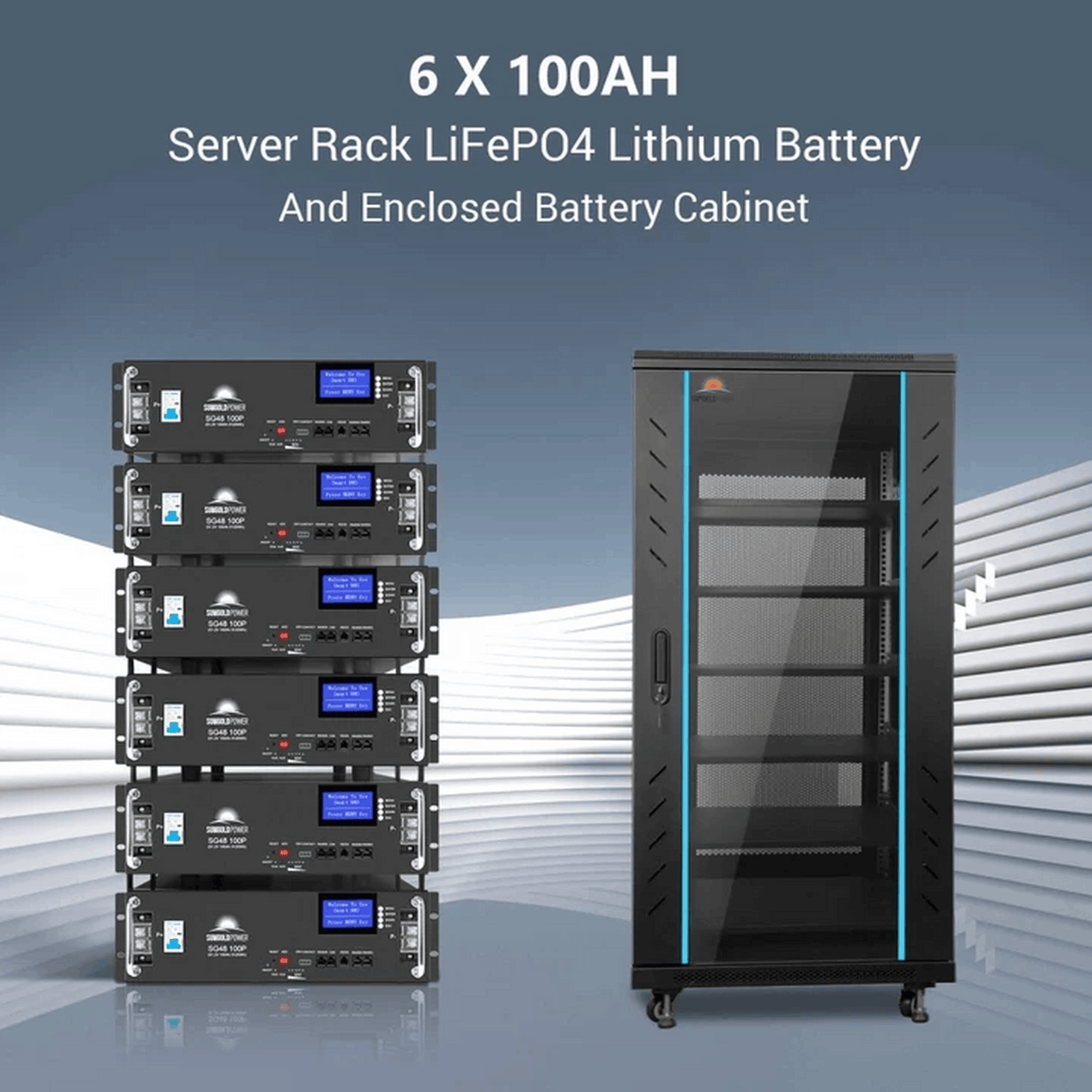

6 X 100AH 51.2V LiFePO4 Batteries
1 X Enclosed Battery Cabinet

2 Sets X 2/0 AWG Cables (Breaker to Battery or Inverter Connection)
1 X 300A DC Breaker
User Manual

SunGold Power 11.4kW Hybrid Solar Kit, 12.6kW Solar, 30.72kWh Battery Specifications

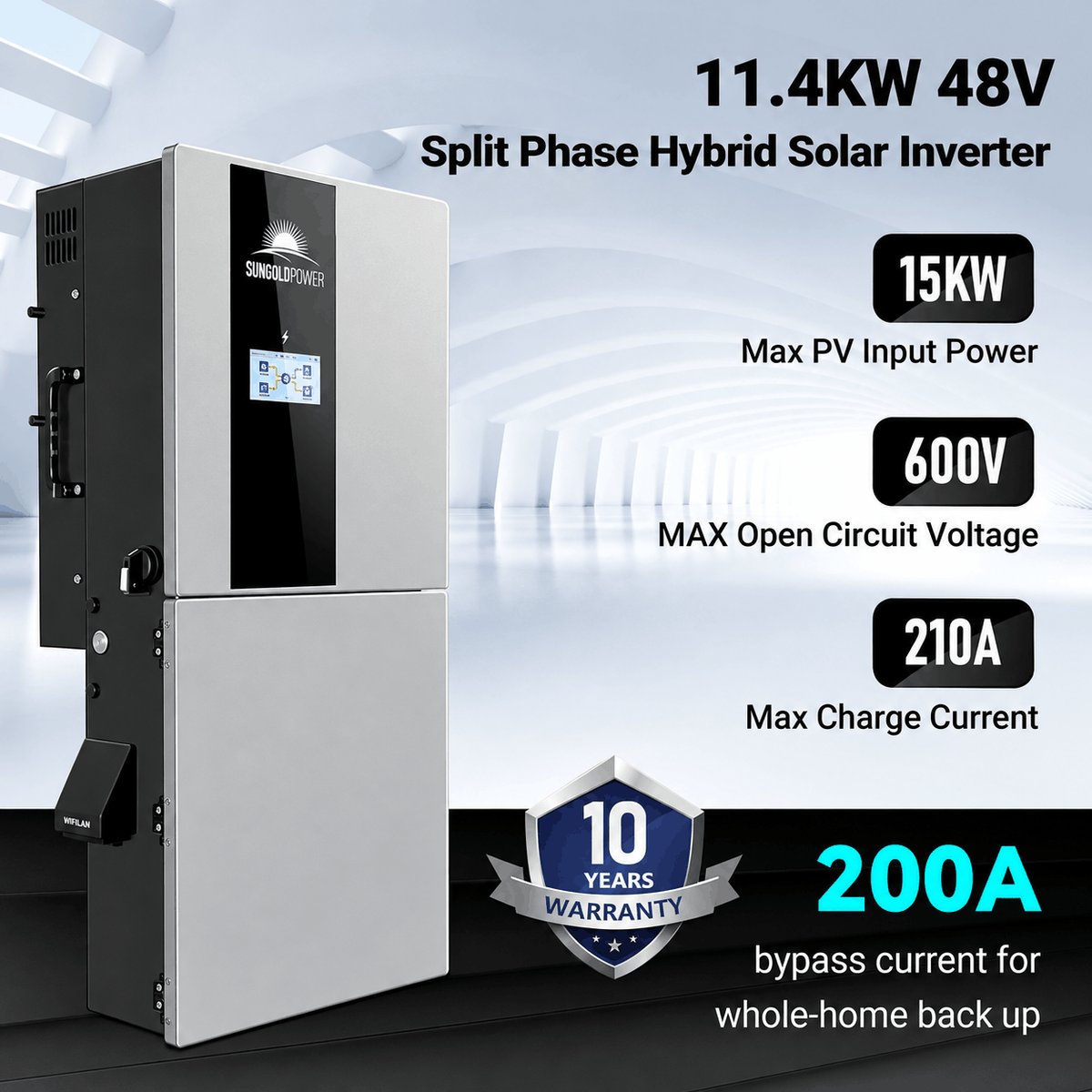

11.4KW Hybrid Solar Inverter

Specification	Details
AC Output	11,400W
Output Waveform	Pure Sine Wave
AC Output	120/240V (Split phase) / 208V (2/3 phase) VAC
Max PV Input	600VDC
Max PV Input Power	15,000W
Max Charging Current	210A
Max. Input Current per MPPT	30A / 22A / 22A
Nos. of MPPT	3
Dimension	170.5 × 35.5 × 10.6 inches
Weight	103.6 lbs
Warranty	10 Years
Certificate	UL1741 / CSA, C22.2 / UL1699B...

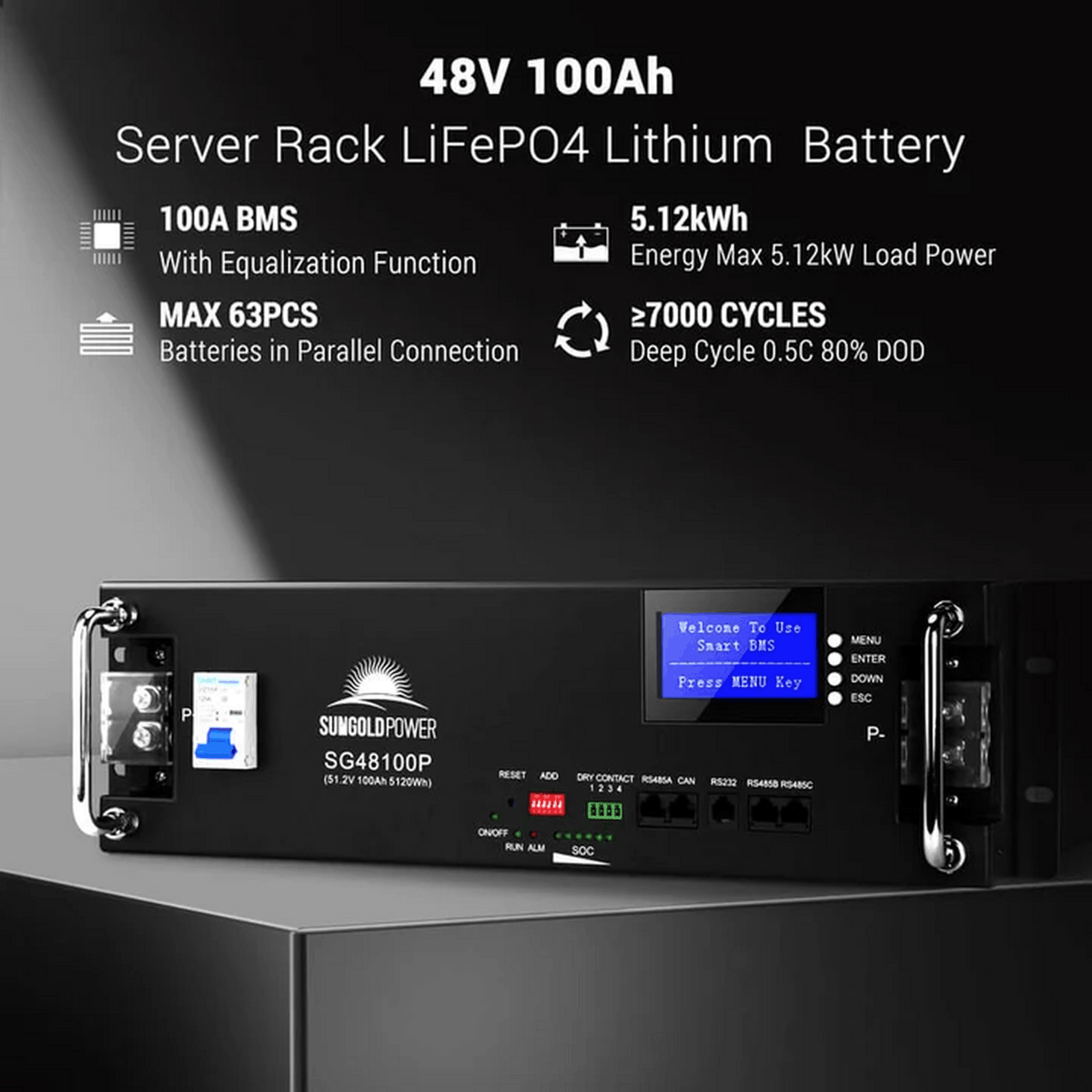

SG48100P LifePO4 Battery

Specification	Details
Nominal Voltage	51.2V
Nominal Capacity	100AH
Energy	5.12KWH
Charge cut-off current	5A
MAX Continuous Charge Current	100A
Discharge cut-off voltage	43.2V
Cycle Life	>7000
Communication Protocol	RS232/RS485/CAN Support multiple protocols
Storage Temperature	14~+113°F
Dimension	19.3 × 18.9 × 5.5 inches
Weight	93lbs
Warranty	10 Years
Certificates	UL1973, CE, UL9540A

Frequently-Asked Questions

How much battery storage does this kit provide?

The kit includes six 51.2V 100Ah LiFePO4 batteries, each rated at 5.12kWh, providing 30.72kWh of total nominal battery storage.

How much power can the inverter provide?

The hybrid inverter delivers 11,400W of rated AC output with pure sine wave electricity and 120/240V split-phase support.

Can I add solar panels later?

Yes. The inverter supports up to 15,000W of PV input, provided the array meets its voltage, current, and MPPT specifications. Solar panels, mounting hardware, and solar-side protection components must be selected separately.

Can this kit power an entire house?

It can support many residential loads, but whether it can power an entire home depends on the home's simultaneous demand, appliance startup requirements, and electrical installation.
