SunGold Power 11.4kW Hybrid Solar Kit, 20.48kWh Battery | 120/240V | SGH-11N2E-s

Name: SunGold Power 11.4kW Hybrid Solar Kit, 20.48kWh Battery | 120/240V | SGH-11N2E-s
Brand: SunGoldPower
SKU: SGH-11N2E-s
Price: 7498.0 USD
Availability: InStock

BY: SunGoldPower

SKU: SGH-11N2E-s

| Availability: In stock

$11,535.00

$7,498.00

You Save: $4,037.00

Product Highlights

20.48kWh of LiFePO4 storage for home backup and solar energy
120/240V split-phase power for compatible household equipment
Supports up to 15kW PV input; solar panels are not included
Three MPPT inputs help manage separate compatible solar strings

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized SunGoldPower Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

SunGold Power 11.4kW Hybrid Solar Kit | 20.48kWh Battery | 120/240V | SGH-11N2E-S

The SunGold Power 11.4kW Hybrid Solar Kit is a powerful energy storage solution designed for residential backup power, off-grid living, and hybrid solar applications. This configuration includes an 11,400W hybrid solar inverter and 20.48kWh of LiFePO4 battery storage, providing reliable power for essential household appliances and electrical equipment.

The system operates on a 48V battery platform and delivers 120/240V split-phase AC output, making it suitable for compatible residential electrical systems. Its hybrid inverter supports up to 15,000W of PV input, allowing homeowners to connect a properly designed solar array separately.

This package does not include solar panels, making it an excellent choice for customers who already have compatible panels or prefer to select their own solar array.

SunGold Power 11.4kW Hybrid Solar Kit Features

11.4kW Hybrid Solar Inverter

The included 11,400W hybrid inverter provides pure sine wave AC output for compatible household appliances and electrical equipment. Its 120/240V split-phase configuration supports residential applications requiring both 120V and 240V power.

20.48kWh LiFePO4 Battery Storage

The kit includes four 51.2V 100Ah LiFePO4 batteries, each providing 5.12kWh of nominal energy storage. Together, they deliver 20.48kWh of total battery capacity for backup and stored solar energy.

15,000W Maximum Solar Input

The inverter supports up to 15,000W of PV input power, allowing customers to build a substantial solar array. Since this configuration does not include solar panels, customers can select compatible panels according to their installation requirements.

Three MPPT Solar Charge Controllers

With three MPPT inputs, the inverter can manage compatible solar array configurations across multiple inputs. MPPT technology helps optimize solar energy collection as sunlight conditions change.

High-Capacity Battery Charging

The inverter supports a maximum charging current of 210A, allowing substantial charging capability when paired with an appropriately configured battery bank and charging sources.

SunGold Power 11.4kW Hybrid Solar Kit Applications

Residential Backup Power – Provides stored energy for compatible household essentials such as refrigerators, lighting, internet equipment, televisions, and other appliances during power outages.
Off-Grid Homes – Supports homes that operate independently of utility electricity when combined with a properly sized solar array and complete electrical system.
Hybrid Solar Systems – Allows homeowners to combine compatible solar generation, battery storage, and supported AC power sources to improve energy availability.
Existing Solar System Upgrades – Suitable for customers who already own compatible solar panels and want to add a hybrid inverter and lithium battery storage.
Rural Properties – Provides a high-capacity energy storage option for remote residences, farms, and properties where grid electricity may be limited or unreliable.

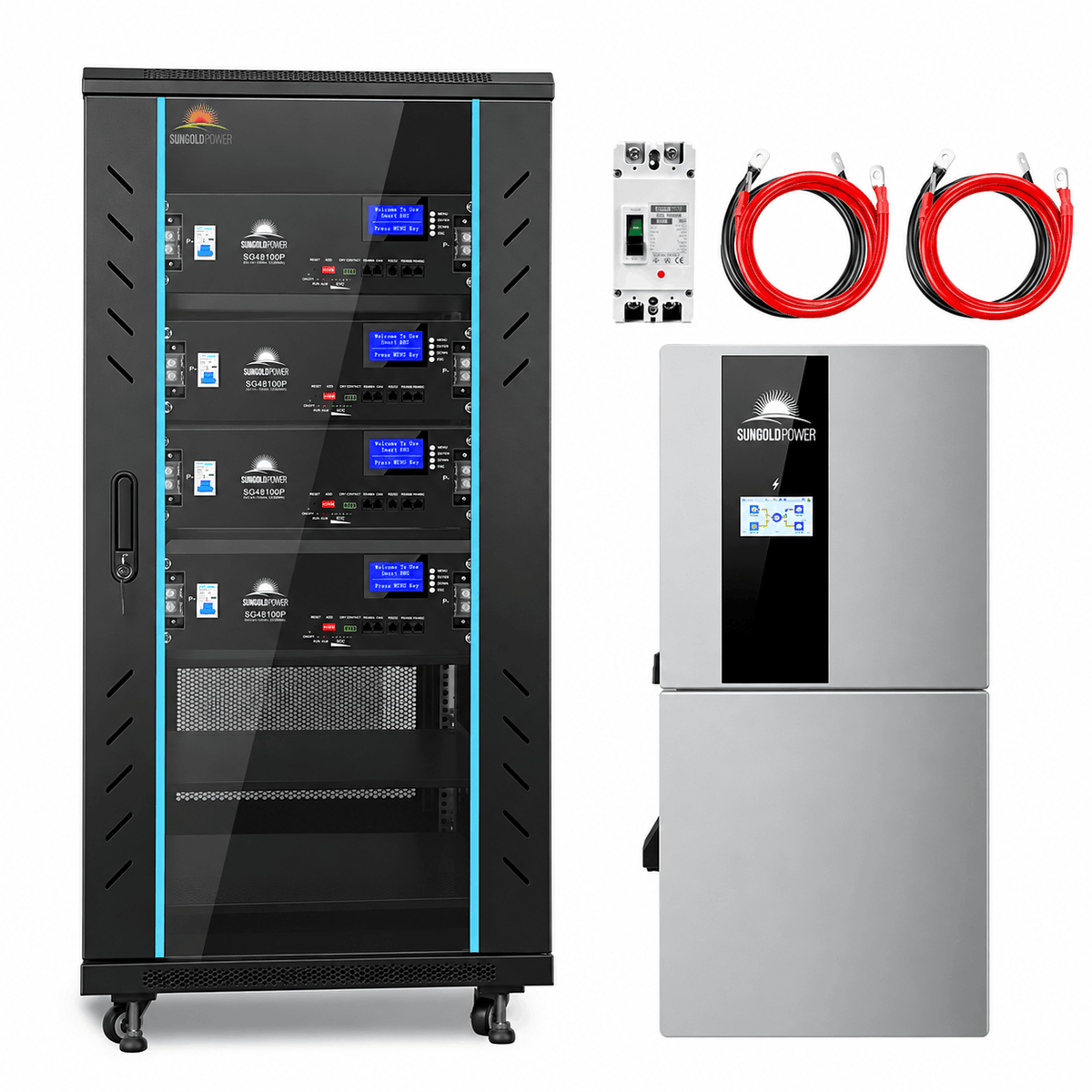

What's Included

Everything you need is included with your product.

1 X 11.4KW 48V Split Phase Hybrid Solar Inverter

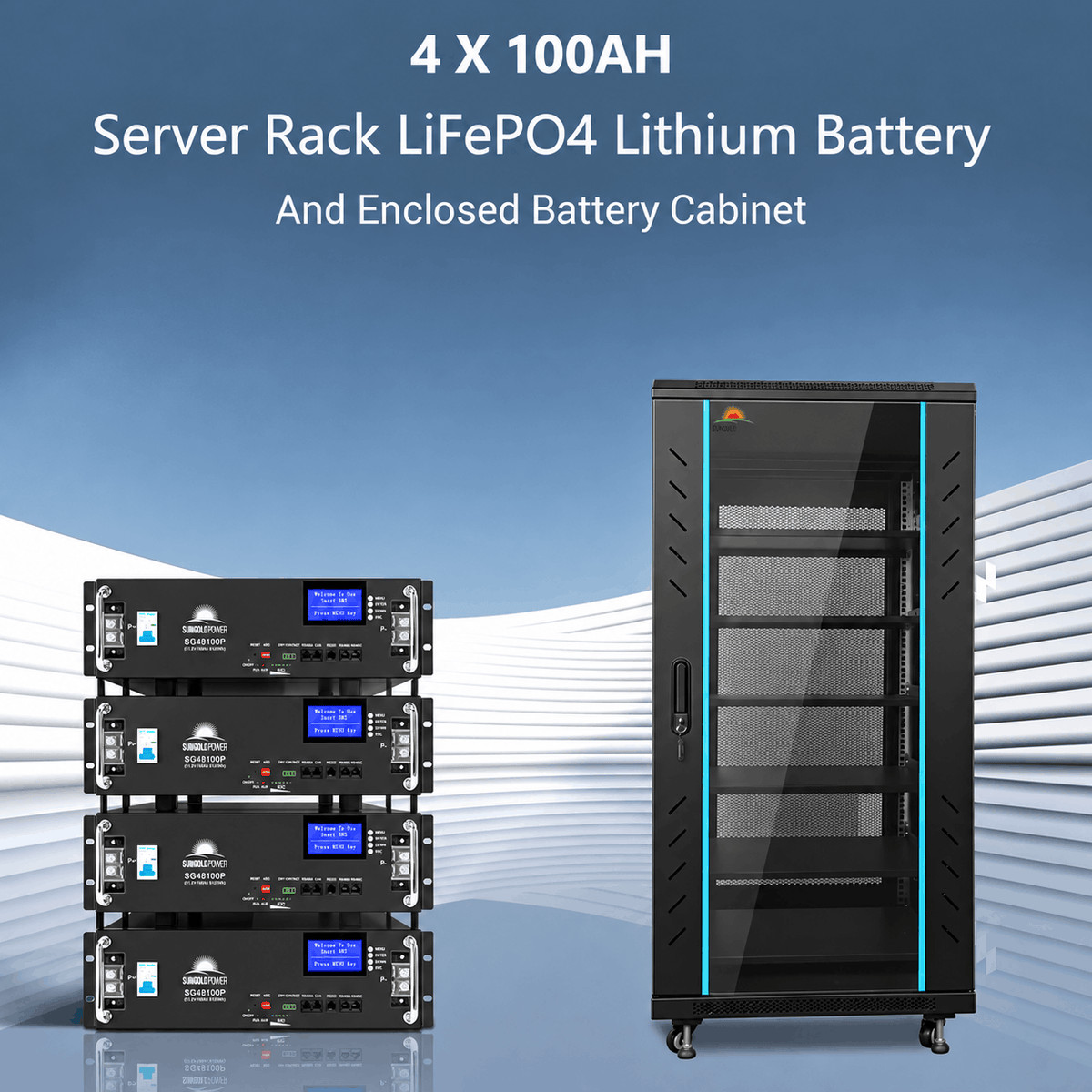

4 X 100AH 51.2V Lifepo4 Battery
2 Sets X 2/0 AWG Cables (Breaker to Battery or Inverter Connection)

1 X Enclosed Battery Cabinet for LiFePO4 Batteries
1 X 300A DC Breaker
User Manual

Sungold Power 11.4KW Hybrid Solar Inverter Specification

Category	Details
AC Output	11,400W
Output Waveform	Pure Sine Wave
AC Output	120/240V (Split phase) / 208V (2/3 phase) VAC
Max PV Input	600VDC
Max PV Input Power	15,000W
Max Charging Current	210A
Max Input Current per MPPT	30A / 22A / 22A
Nos. of MPPT	3
Dimension	17.6 X 35.5 X 10.6inch
Weight	103.6 lbs
Warranty	10 Years
Certificates	UL1741 / CSA, C22.2 / UL1699B...

SG48100P LifePO4 Battery Specification

Category	Details
Nominal Voltage	51.2V
Nominal Capacity	100AH
Energy	5.12KWH
Charge cut-off current	5A
MAX Continuous Charge Current	100A
Discharge cut-off voltage	43.2V
Cycle Life	≥7000
Communication Protocol	RS232 / RS485 / CAN Support multiple protocols
Storage Temperature	14° ~ 113°F
Dimension	19.3 x 18.9 x 5.5 inch
Weight	93 lbs
Warranty	10 Years
Certificates	UL1973, UL9540A

Frequently-Asked Questions

Does the SunGold Power SGH-11N2E-S include solar panels?

No. The SGH-11N2E-S is the configuration without solar panels. It includes the hybrid inverter, four lithium batteries, a battery cabinet, battery connection cables, and a DC breaker. Solar panels must be purchased separately.

How much battery storage does this kit provide?

The kit provides 20.48kWh of nominal battery storage through four SG48100P LiFePO4 batteries. Each battery has a capacity of 5.12kWh.

Can this system work without solar panels?

Yes. The hybrid inverter and battery bank can be used with compatible AC charging sources, subject to proper configuration. However, solar panels are required to generate electricity from sunlight.

How many solar panels can I connect?

The inverter supports up to 15,000W of PV input power. The actual number of panels depends on their wattage, voltage, current, and string configuration. A qualified installer should verify the array against all three MPPT inputs and the inverter's electrical limits.

Can this kit power an entire house?

The inverter provides 11,400W of rated AC output, which can support many residential appliances. Whether it can power an entire house depends on simultaneous electrical demand, appliance startup requirements, wiring, and system configuration.

How long will the 20.48kWh battery last?

Runtime depends on the total electrical load and system losses. The following are illustrative estimates using 85% of nominal battery energy delivered as usable AC power, without solar charging.
