SunGold Power 12K Complete Hybrid Solar Kit | 9kW Solar | 20–32kWh Batteries

SunGold Power 12K Complete Hybrid Solar Kit | 9kW Solar | 20–32kWh Batteries

Name: SunGold Power 12K Complete Hybrid Solar Kit | 9kW Solar | 20–32kWh Batteries
Brand: SunGoldPower
SKU: SGP-12K-9-32-PMAX
Price: 13829.0 USD
Availability: InStock

BY: SunGoldPower

SKU: SGP-12K-9-32-PMAX

| Availability: In stock

$15,899.00

$13,829.00

You Save: $2,070.00

Inverter:

Battery:

Solar Panel:

Quantity

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized SunGoldPower Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

SunGold Power 12K Complete Hybrid Solar Kit | 9kW Solar | 20–32kWh Batteries

The SunGold Power 12K Complete Hybrid Solar Kit is a powerful and flexible energy solution designed for homeowners seeking energy independence, reliable backup power, and reduced utility costs. Built around the SunGold Power 12K hybrid inverter, this system efficiently integrates solar production, battery storage, and grid interaction into one streamlined setup.

With a 9kW solar array and scalable 20–32kWh battery options, this kit is ideal for medium to large homes or off-grid applications. Whether you're preparing for outages or optimizing your solar usage, this system delivers dependable performance and long-term value.

SunGold Power 12K Complete Hybrid Solar Kit Features

All-in-One Hybrid Inverter - 12000W output with 120/240V split-phase capability allows seamless integration of solar, battery, and grid power.
Flexible Battery Storage (20–32kWh) - Choose from multiple LiFePO4 battery configurations, including wall-mount, server rack, and outdoor systems to fit your installation needs.
High-Efficiency 9kW Solar Array - Includes 18 × 500W Mono Black PERC panels, providing strong energy production and long-term reliability.
Scalable System Design - Expand battery storage or solar capacity as your energy needs grow.
Outdoor & Indoor Battery Options - Supports both indoor server rack batteries and outdoor-rated PowerMax systems for flexible installation.
Complete Installation Package - Includes cables, breakers, fuses, and mounting hardware for a streamlined and safer installation.

SunGold Power 12K Complete Hybrid Solar Kit Applications

Whole-Home Backup Power - Keeps essential and major appliances running during grid outages.
Hybrid Grid-Tied Systems - Store excess solar energy for nighttime use or peak rate periods.
Off-Grid Living - Ideal for remote homes, cabins, or areas without reliable utility service.
Energy Cost Reduction - Reduce reliance on utility power and lower monthly energy bills.
Medium to Large Residential Homes - Designed for homes with moderate to high energy usage.

What's Included

Everything you need is included with your product.

Inverter:

SunGold Power 12K - 12000W Output - 48V - 120/240V Split Phase - Hybrid

Battery Options (Choose One):

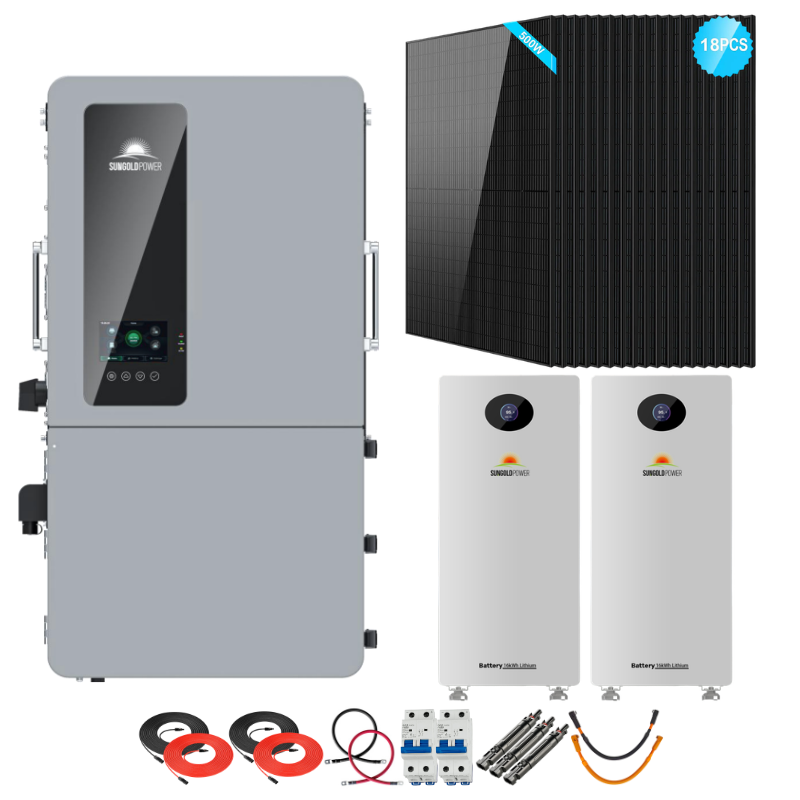

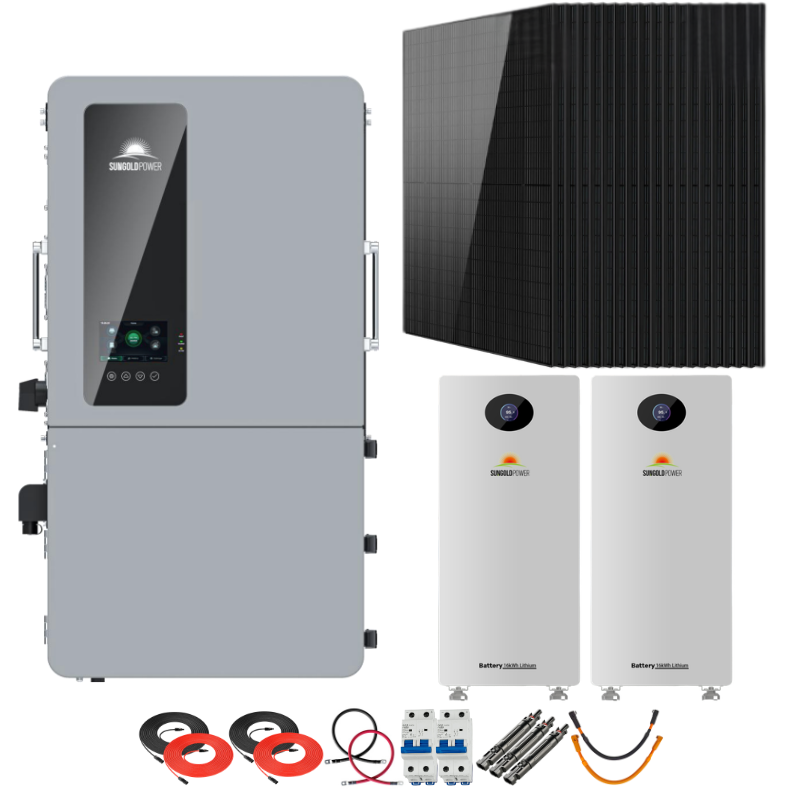

2 x SunGold PowerMax 51.2V 314Ah Outdoor Battery (32kWh)

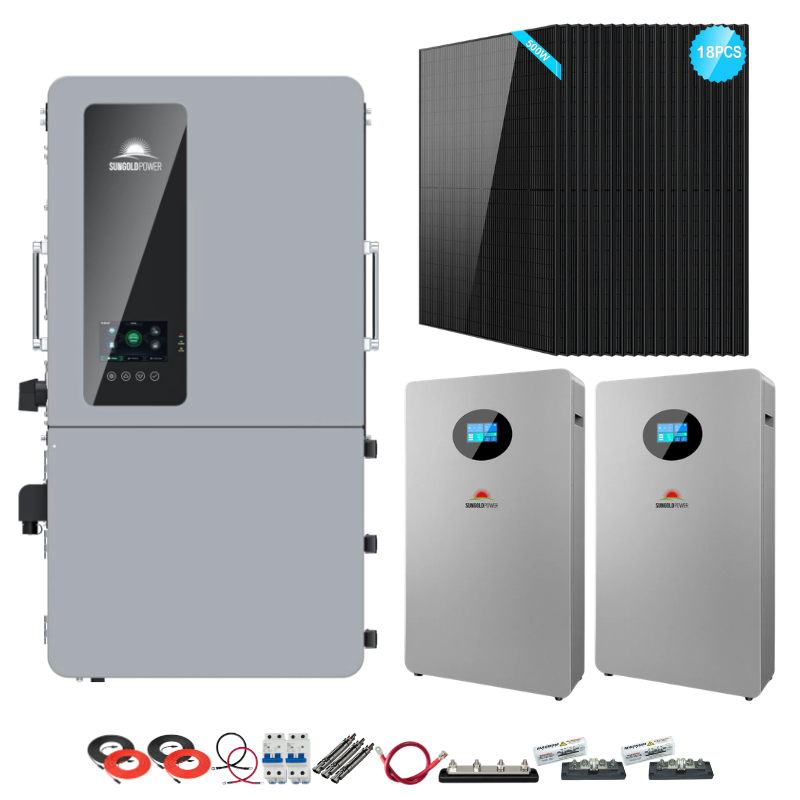

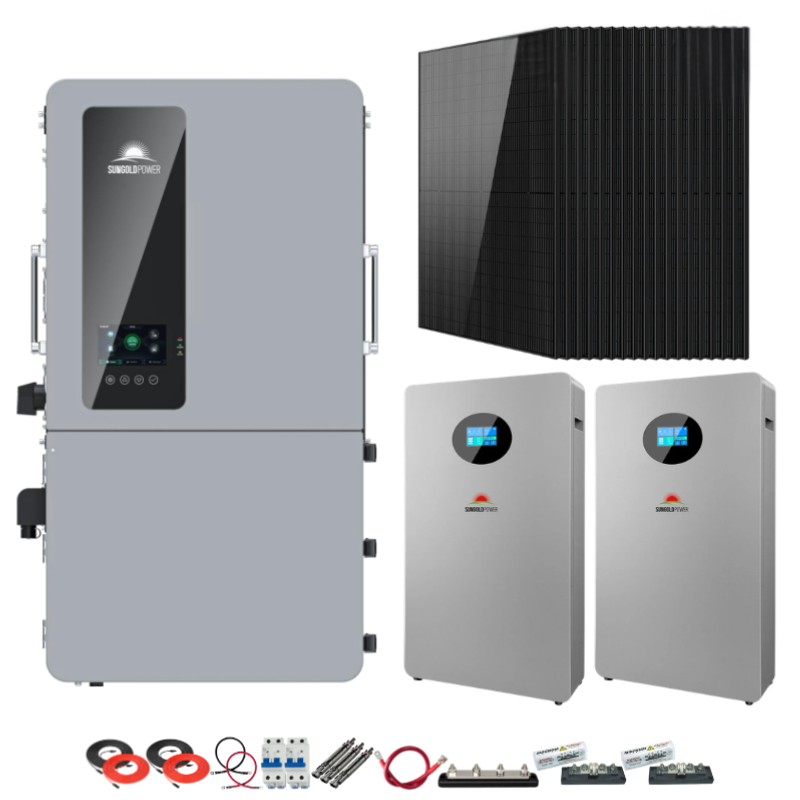

2 x SunGold PowerWall X 51.2V 200Ah Lithium Battery (20.48kWh)

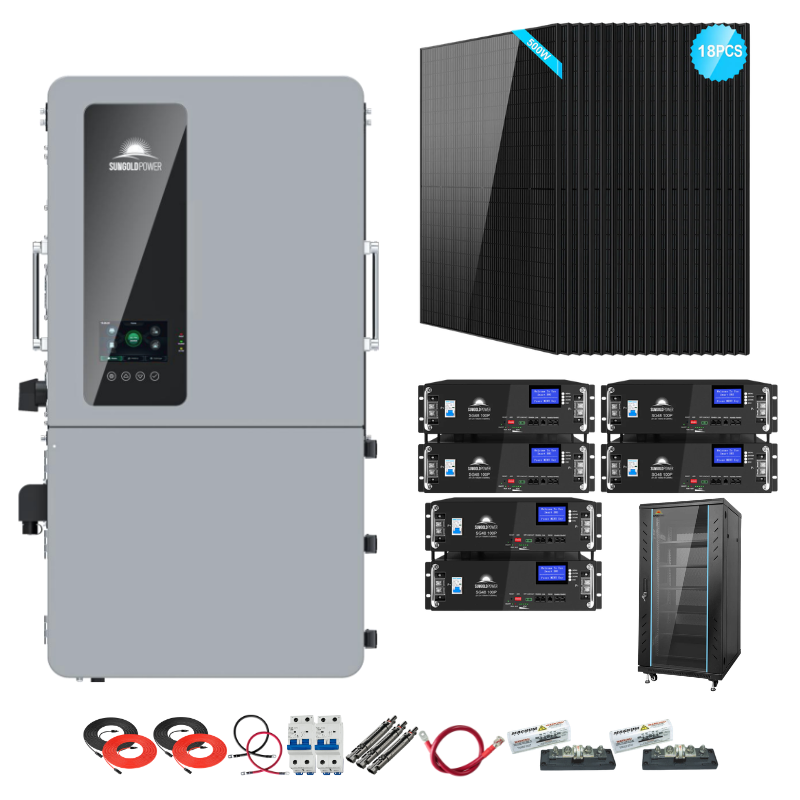

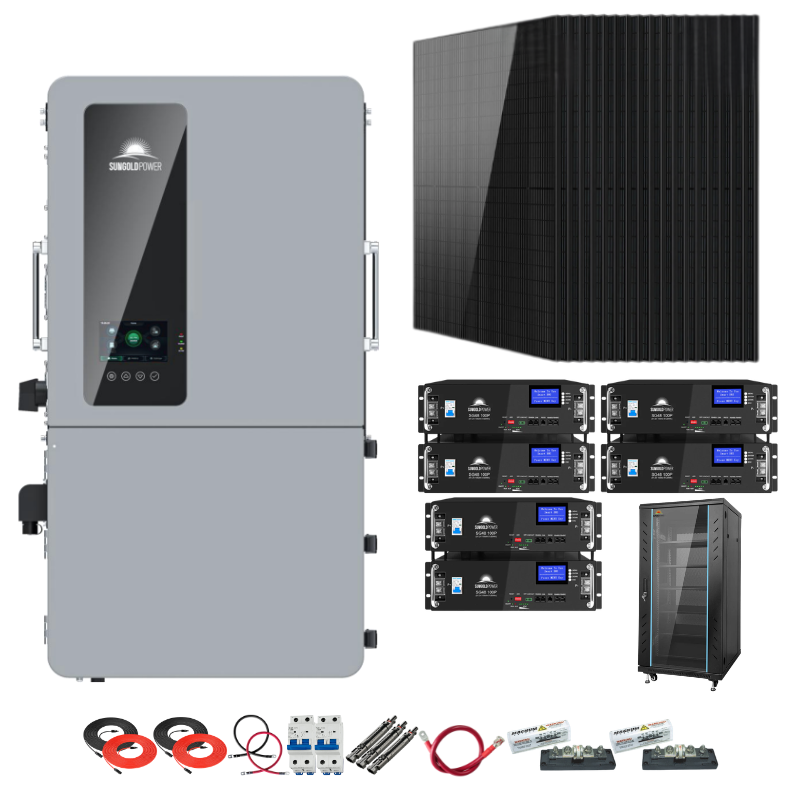

6 x SunGold 51.2V 100Ah Server Rack Battery (30.72kWh)

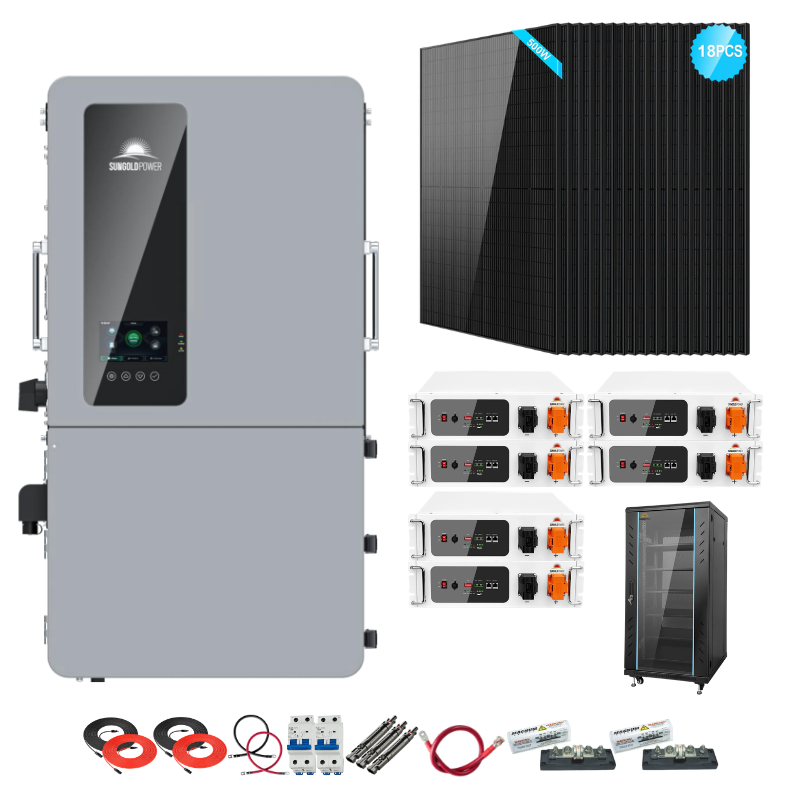

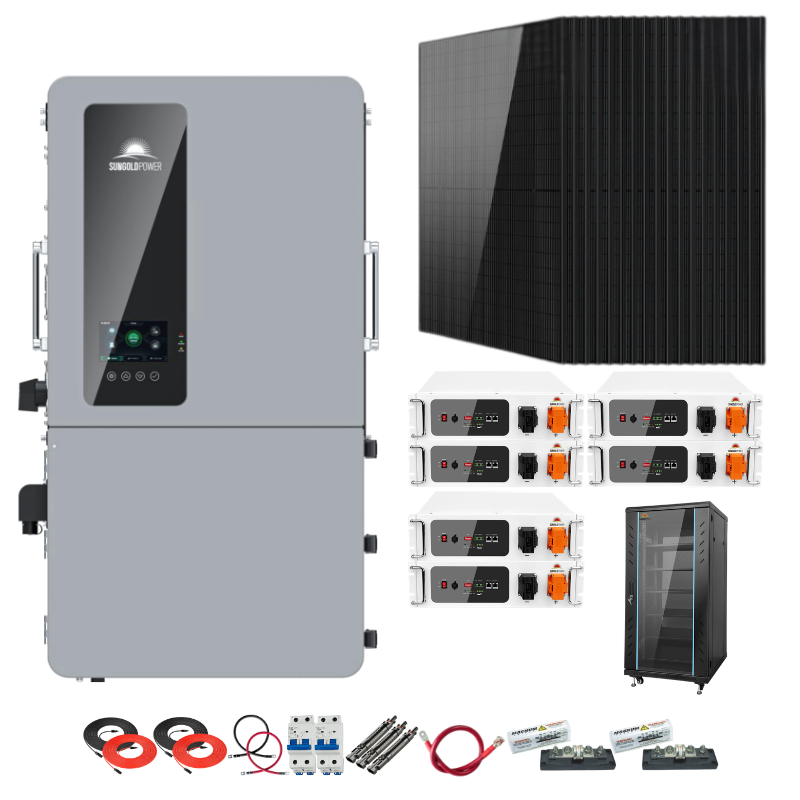

6 x SunGold 51.2V 100Ah Server Rack Battery Heated (30.72kWh)

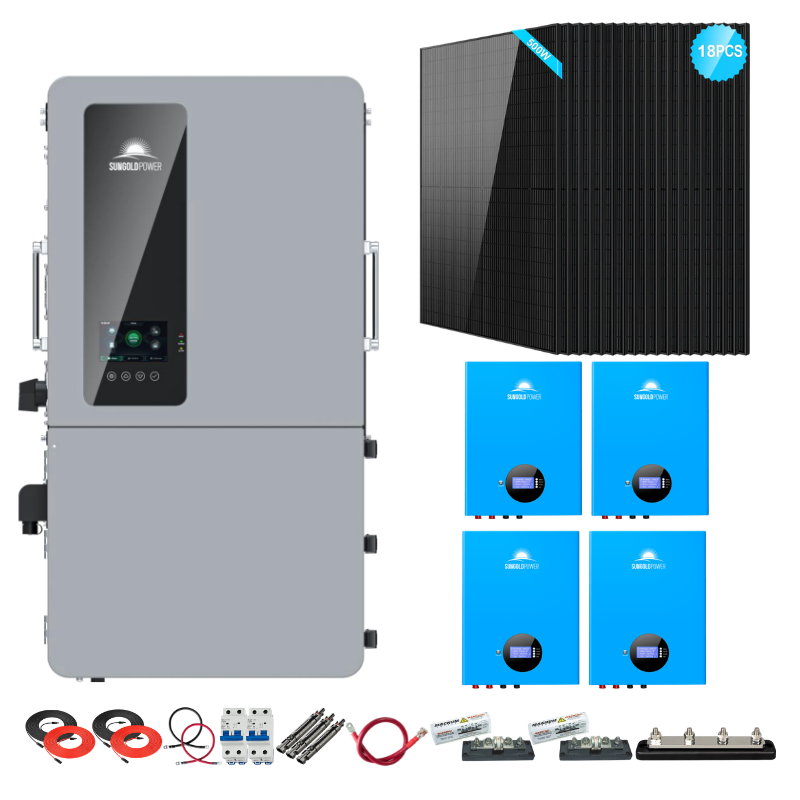

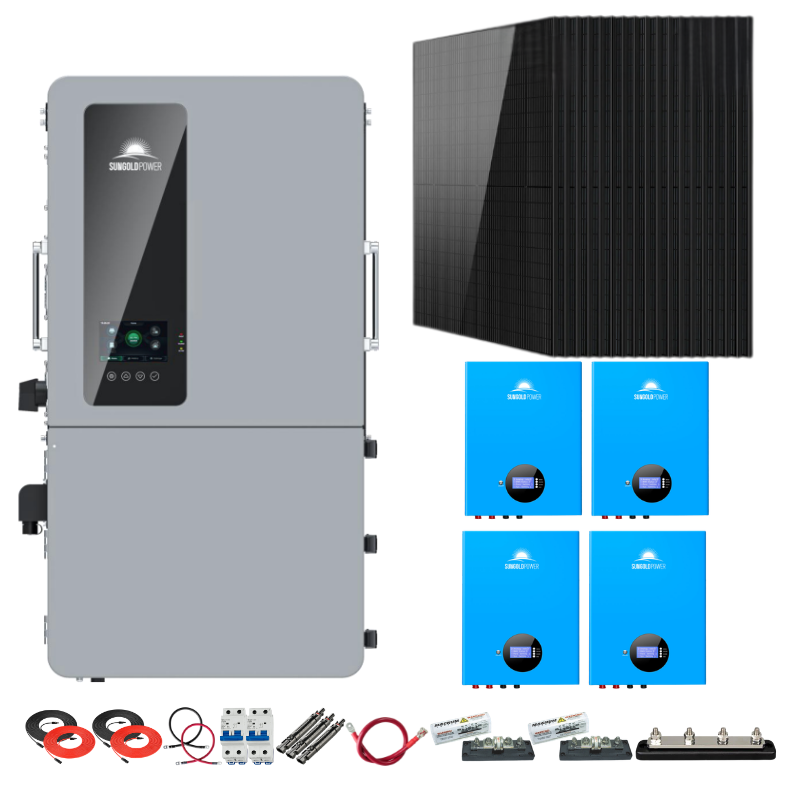

4 x SunGold 5.12kWh PowerWall LiFePO4 Lithium Battery (20.48kWh)

Solar Panels:

18 × SunGold Power 500W Mono Black PERC Solar Panel (9kW)

Accessories:

2 x 10AWG Solar Extension Cable - 50ft
4/0 AWG Battery Cable - 4ft - 5/16 Both Ends (Set Red & Black)
2 x 25A PV Breaker
3 x Replacement Inline Fuse Holder | Choose Amp: 10A, 15A, 20A, 30A

Accessories Based on Battery Choice:

Parallel & Communication Cable for PowerMax 314 Outdoor (SunGold PowerMax batteries)
Bussbar 600A 8P w/Cover (M10)
400A Class-T Fuse
4/0AWG Battery Cable - 6in - 5/16 Both Ends (Red Only)
SunGold Enclosed Battery Cabinet 6-Slot (SunGold Server Rack batteries)
SunGold Enclosed Battery Cabinet 6-Slot (SunGold Server Rack Heated batteries)

SunGold Power 12K Complete Hybrid Solar Kit Specifications

SunGold Power 12K - 12000W Output - 48V - 120/240V Split Phase - Hybrid Specification

Inverter (PV)

Specification	Details
Rated Output Power	@240V 12000W, @208V 10400W
Max. Peak Power	1.5 times rated power (10s)
Rated Output Voltage	120/240Vac (Split-phase), 120/208V (Three-phase)
Output Voltage Error	50A
Load Motor Capacity	6HP
Rated AC Frequency	50/60Hz
Waveform	Pure Sine Wave
Parallel Capacity	6

Battery

Specification	Details
Battery Type	Li-ion Battery / Lead-Acid Battery / User Defined
Rated Battery Voltage	48Vdc
Voltage Range	40-60Vdc
Max. Grid Charging Current	200A
Max. Generator Charging Current	200A
Max. Hybrid Charging Current	240A

PV Input

Specification	Details
Num. of MPP Trackers	2
Max. PV array power	9000W/9000W
Max. input current	32A/32A
Short Circuit (Isc)	40A/40A
Max. Open Circuit Voltage	550Vdc/550Vdc
MPPT Voltage Range	125–450Vdc/125–450Vdc
MPPT Tracking Efficiency	99.9%

Grid / Generator Input

Specification	Details
Input Voltage Range	90–140Vac
Frequency Range	50/60Hz
Continuous Grid Passthrough Current	200A

Protection

Specification	Details
Integrated Protection	Reverse polarity protection, DC switch rating for each MPPT, Output over-voltage protection varistor, Output over current protection, Ground fault monitoring, Grid monitoring, Pole sensitive leakage current monitoring unit AFCI, RSD

Interface

Specification	Details
Communication Port	RS485 / CAN / USB / Dry contact
External Modules (Optional)	Wi-Fi / GPRS

General Data

Specification	Details
Dimensions (W×H×D)	33.07 × 17.32 × 10.24 in (840 × 440 × 260 mm)
Weight	105.82 lbs (48 kg)
Protection Degree	IP65
Operating Temperature Range	13°F to 140°F, >113°F derated (-25°C to +60°C, >45°C derated)
Noise	<60 dB
Self-consumption	<100W
Cooling Method	Heat sink + intelligent fan cooling

Certified Specifications

Specification	Details
Safety Standards	UL1741 & IEEE1547.1-2020, CEC, RULE 21, HECO, CEC Listed
EMC	FCC 15 Class B
RoHS	Yes

SunGold PowerMax 51.2V 314Ah Outdoor Battery (32kWh) Specification

Specification	Details
Product Model	PowerMax 314 Outdoor
Battery Type	LiFePO₄ (Lithium Iron Phosphate)
Rated Voltage	51.2 V
Rated Capacity	314 Ah
Rated Energy	16.07 kWh
Max Continuous Current	Charge: 190 A, Discharge: 190 A
Max Charging Voltage	57.6 V
Over Discharge Voltage	44.8 V
Peak Charging Current	220 A (3S)
Dimension (H×W×D)	41.3 × 18.1 × 10.7 in
Weight	271.2 lbs
Max Parallel Number	Up to 16 pcs

SunGold PowerWall X 51.2V 200Ah Lithium Battery (20.48kWh) Specification

Specification	Details
Battery Type	LiFePO4
Rated Voltage	51.2V
Rated Capacity	200Ah
Total Energy	10.24kWh
Max Continuous Current	Charge: 140A, Discharge: 200A
Recommended Charge Voltage	56V
Recommended Discharge Voltage	48V
Max Short Circuit Duration	920A/300us
Dimensions	21.1x37.2X6.8inch
Weight	198.4 lbs
Max Parallel Units	32 pcs.

SunGold 51.2V 100Ah Server Rack Battery (30.72kWh) Specification

Specification	Details
Battery Model	SG48100P
Chemistry	Lithium iron phosphate battery
Nominal Voltage	51.2V
Maximum cut-off voltage for charging	57.6V
Charging Limited Voltage	42V
Nominal Capacity	100A
Nominal Energy	5.12kWh
*Unit Dimension (LWH)*	19.3 X 18.9 X 5.5 inch
Unit Weight	93lbs
Charge cut-off current	5A
Maximum cut-off voltage for charging	57.6V
Standard Continuous Charge/Discharge Rate	50A
Discharge cut-off voltage	43.2V
Communication Protocol	RS232/RS485/CAN Support multiple protocols
Cycle Life	≥7000
Calendar Life	>15 Year
Operating Temperature (Battery charging)	32°F~113°F
Operating Temperature (Battery discharging)	-4°F~140°F
Maximum Allowed Modules in Parallel	Supports up to 32 batteries in parallel
Storage Temperature	14°F~113°F
Certificates	CE UN38.3 UL1973 UL9540A

SunGold 51.2V 100Ah Server Rack Battery Heated (30.72kWh) Specification

Specification	Details
Battery Model	SGH48100T
Chemistry	Lithium iron phosphate battery
Nominal Voltage	51.2V
Max. Voltage Range	44.8~57.6V, Shipping Voltage> 51.2V
Charge Voltage	56.0V
Float Charge Voltage	54.6V
Nominal Energy @0.2C	5.12kWh
Nominal Capacity @0.2C	100Ah
Dimension	19.317.35.2 inch (490441133mm)
Weight	103lb(~47kg)
Standard Charge Current	<50A
Max. Charge Current	70A
Standard Discharge Current	<50A
Max. Discharge Current	100A (Initial Temp. <86°F (30°F))
Peak Discharge Current	101~119A@5mins \| 120~200A@15S
Communication	>15 Year
Max Parallel Number	32pcs
Operating Temperature 1	Charge: 14°F to 122°F (-10 to 50°C) \| Discharge: -4°F to 122°F (-20 to 50°C)
Heating Opening Condition 2	-13°F (-25°C) ≤ T ≤ 41°F (5°C) @ I ≥ 0.08C
Heating Opening Condition 3	T>53.6(12°C)
Storage Temperature @Off Mode	32°F (0°C) < T < 86°F (30°C): < 6 months \| 14°F (-10°C) < T < 113°F (45°C): < 3 months
Recommended Environment	59°F to 95°F (15°C to 35°C), 5–75% RH

SunGold 5.12kWh PowerWall LiFePO4 Lithium Battery (20.48kWh) Specification

Specification	Details
Battery Model	SG48100M
Chemistry	Lithium iron phosphate battery
Nominal Voltage	51.2V
Maximum cut-off voltage for charging	57.6V
Charging Limited Voltage	57.6 V
Nominal Capacity	100 Ah
Nominal Energy	5.12kWh
*Unit Dimension (LWH)*	23 × 16.5 × 6 in
Unit Weight	114.6lbs
Charge cut-off current	5A
Standard Continuous Charge/Discharge Rate	50A
Discharge cut-off voltage	43.2V
Communication Protocol	RS232 / RS485 / CAN (multiple protocols supported)
Cycle Life	≥ 7000 cycles
Calendar Life	≥ 15 years
Operating Temperature	Charging: 32°F ~ 113°F (0°C ~ 45°C) \| Discharging: -4°F ~ 140°F (-20°C ~ 60°C)
Maximum Allowed Modules in Parallel	Up to 32 batteries in parallel
Storage Temperature	14°F ~ 113°F (-10°C ~ 45°C)
Certificates	UL1973, CE, UN38.3

Frequently-Asked Questions

Can this system run a full home?

Yes, it is designed to support most residential loads, including essential appliances and larger systems depending on usage.

Is this system expandable?

Absolutely. You can increase both battery storage and solar capacity over time.

Can it be used off-grid?

Yes, this system is capable of off-grid operation with proper setup and sufficient battery storage.

What battery option is best?

It depends on your needs—PowerMax is great for outdoor installs, while server rack batteries offer modular indoor expansion.
