SunGold Power 12K Complete Off-Grid Solar Kit | 9kW Solar | 20–32kWh Batteries

The SunGold Power 12K Complete Off-Grid Solar Kit is a robust, high-capacity solution designed for homes and properties seeking full energy independence. Powered by the SunGold 12K off-grid inverter, this system delivers reliable 120/240V split-phase power, making it capable of running most residential loads without reliance on the utility grid.

Paired with a 9kW solar array and flexible 20–32kWh lithium battery storage options, this kit provides consistent power generation and long-duration energy storage. Whether for off-grid living, backup resilience, or remote installations, this system offers a dependable and scalable energy solution.

SunGold Power 12K Complete Off-Grid Solar Kit Features

High-Capacity Off-Grid Inverter - 12000W output with 120/240V split-phase power supports whole-home loads and critical appliances.
Flexible Battery Configurations (20–32kWh) - Multiple LiFePO4 battery options including outdoor, wall-mount, and server rack systems for customized installations.
9kW High-Efficiency Solar Array - Includes 18 × 500W Mono Black PERC panels for reliable solar production and strong daily output.
Designed for True Off-Grid Living - Operate completely independent of the grid with dependable solar generation and battery storage.
Cold-Weather Ready Options - Heated server rack batteries available for performance in low-temperature environments.
Complete System Kit - Comes with essential cables, breakers, fuses, busbars, and mounting hardware for a streamlined install.

SunGold Power 12K Complete Off-Grid Solar Kit Applications

Off-Grid Homes & Cabins - Designed for full-time off-grid living, this system delivers reliable, continuous power for homes, cabins, and tiny houses in remote locations without access to utility service.
Backup Power Systems - Provides dependable backup energy during outages, keeping essential appliances like refrigerators, well pumps, lighting, and communication devices running when the grid goes down.
Rural & Agricultural Use - Ideal for farms, barns, workshops, and agricultural operations that require consistent power for tools, equipment, water systems, and lighting in off-grid environments.
Energy Independence - Perfect for homeowners looking to reduce or eliminate reliance on the utility grid, lower energy costs, and gain long-term energy security with renewable solar power.
Mobile or Remote Installations - Well-suited for remote businesses, construction sites, lodges, and off-grid commercial applications where dependable power is needed without infrastructure.

What's Included

Everything you need is included with your product.

Inverter:

SunGold Power 12K - 12000W Output - 48V - 120/240V Split Phase - Off-Grid

Battery Options (Choose One):

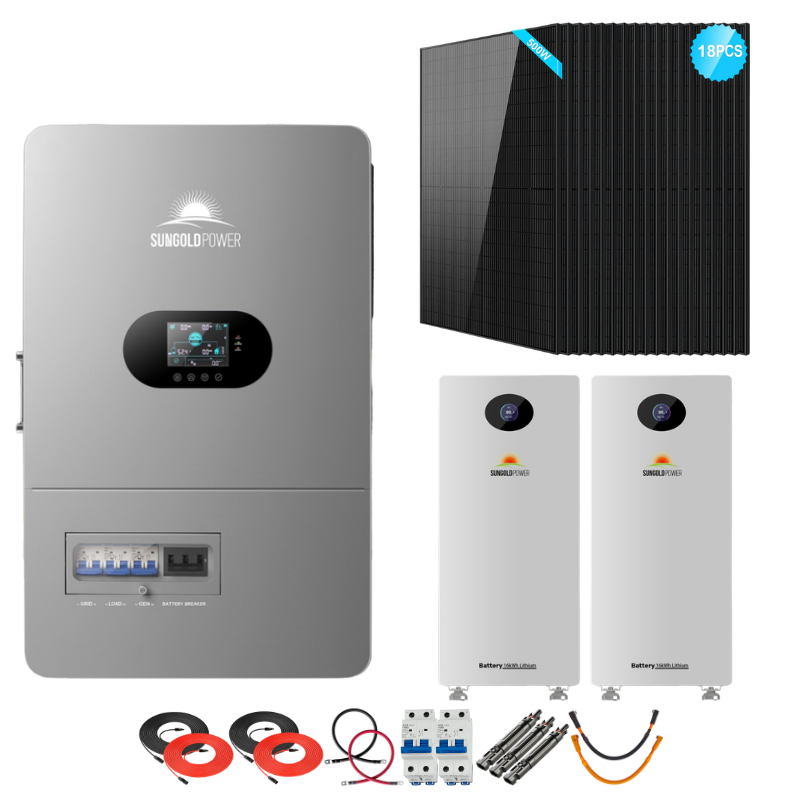

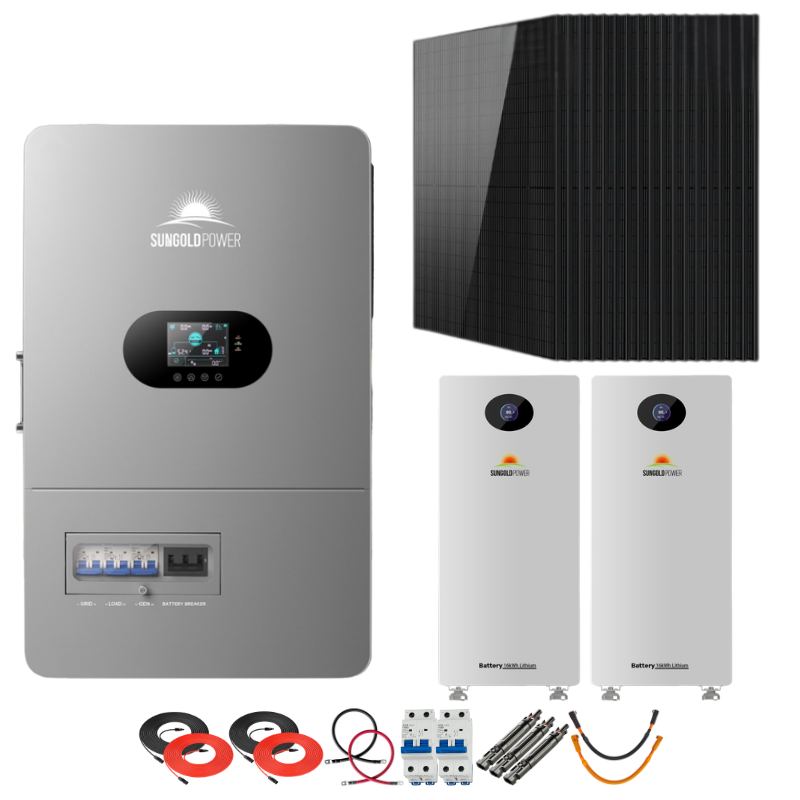

2 x SunGold PowerMax 51.2V 314Ah Outdoor Battery (32kWh)

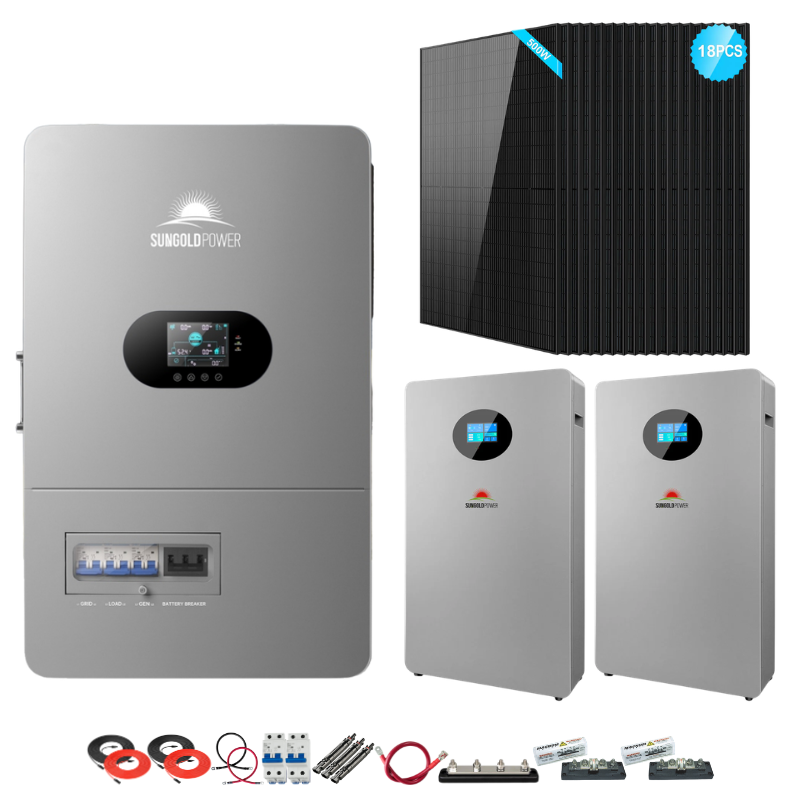

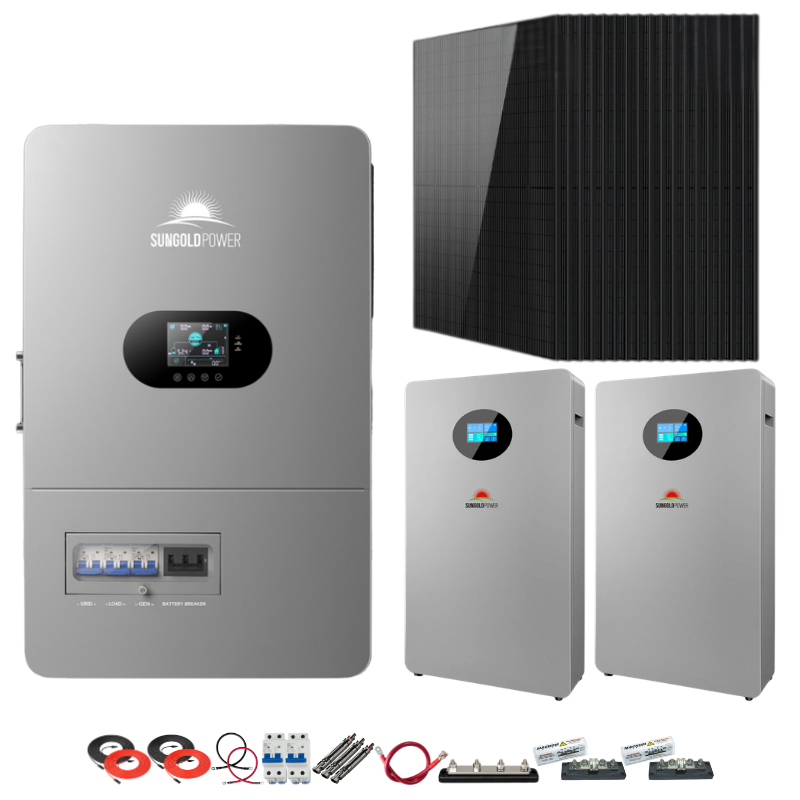

2 x SunGold PowerWall X 51.2V 200Ah Lithium Battery (20.48kWh)

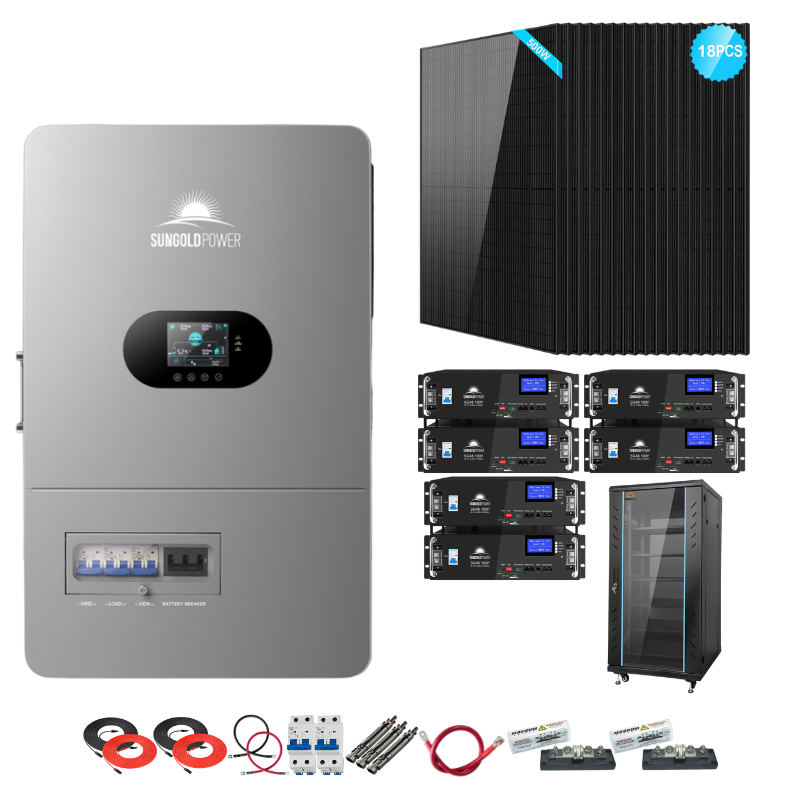

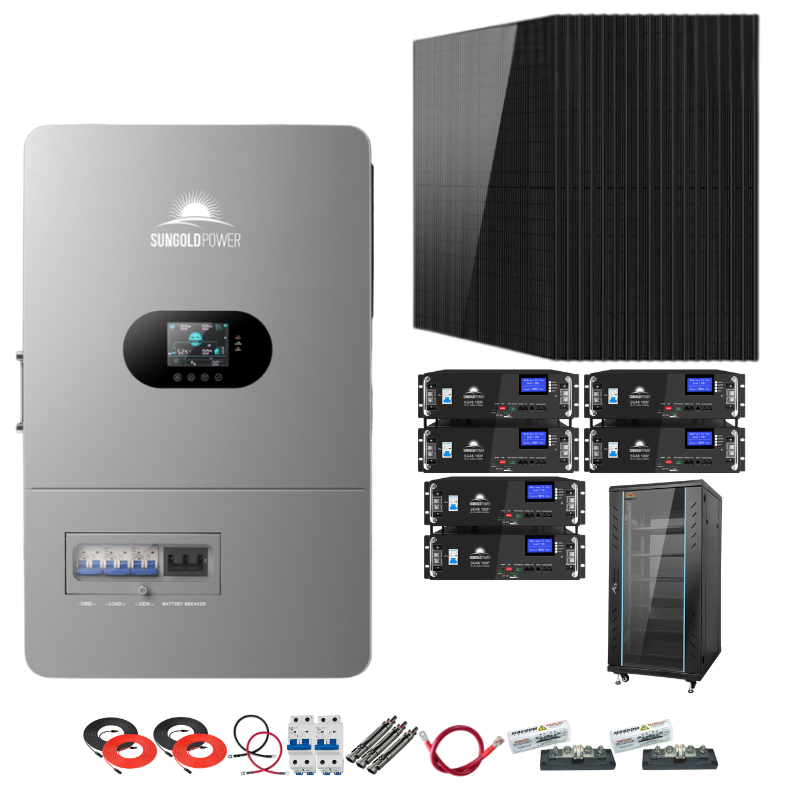

6 x SunGold 51.2V 100Ah Server Rack Battery (30.72kWh)

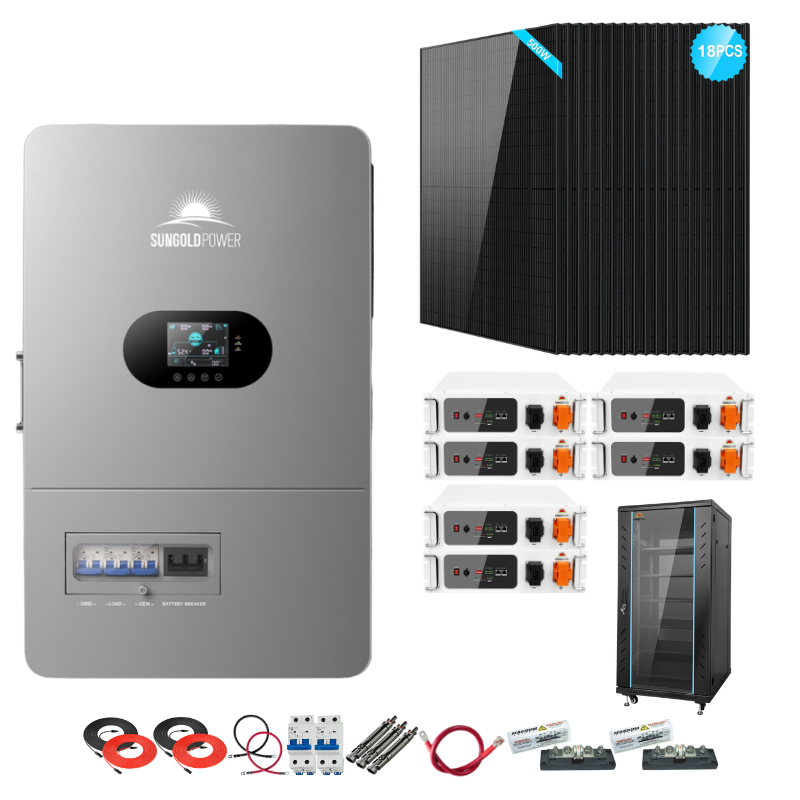

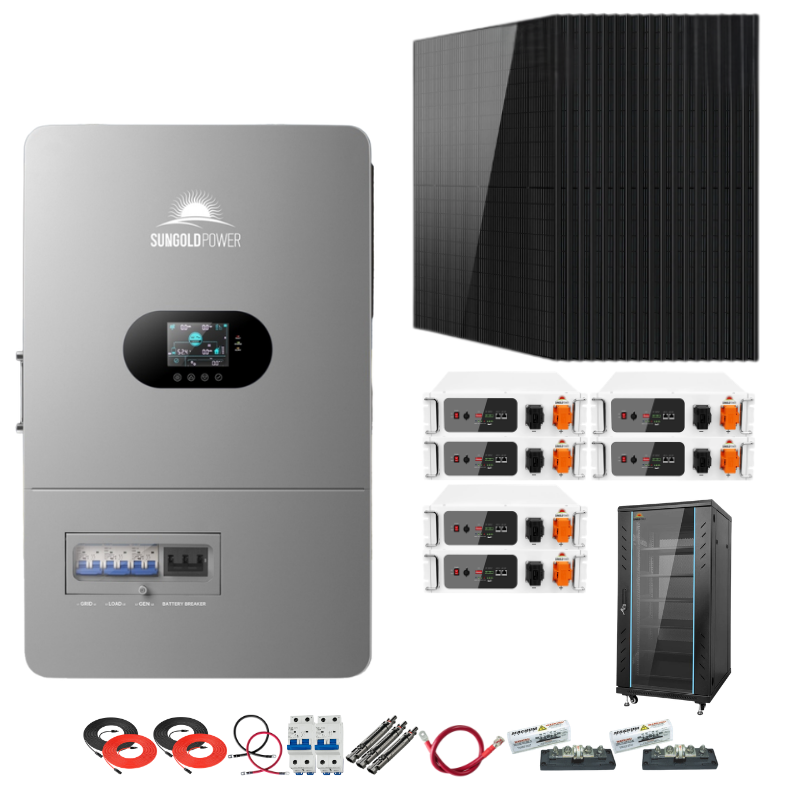

6 x SunGold 51.2V 100Ah Server Rack Battery Heated (30.72kWh)

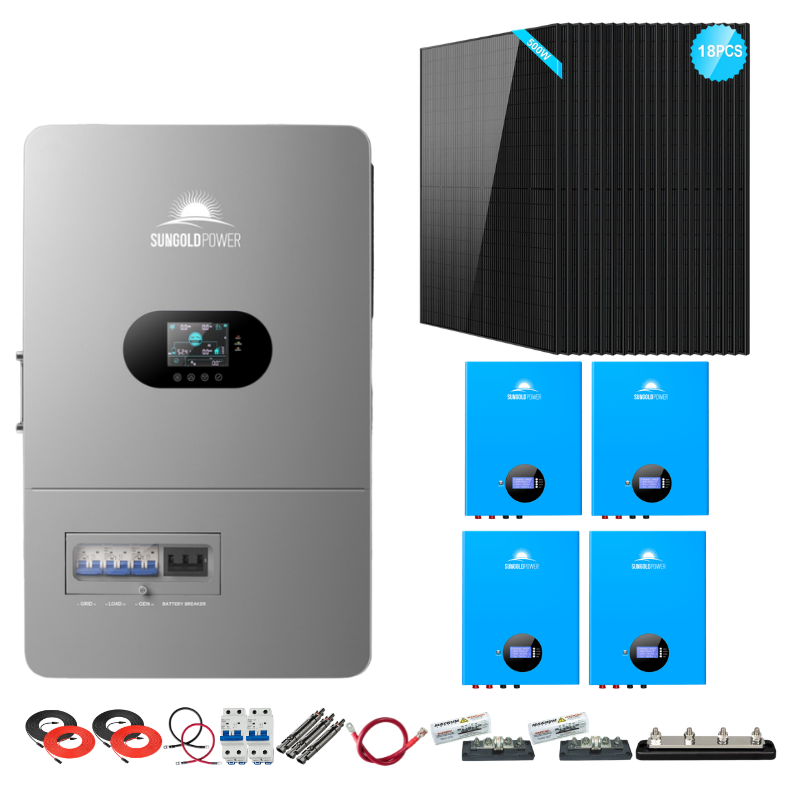

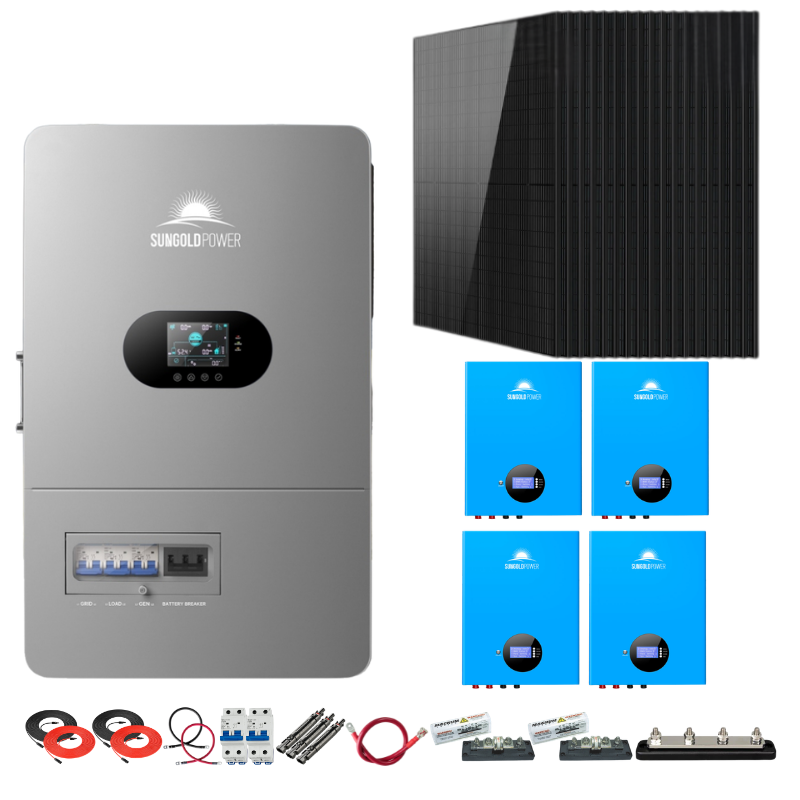

4 x SunGold 5.12kWh PowerWall LiFePO4 Lithium Battery (20.48kWh)

Solar Panels:

18 × SunGold Power 500W Mono Black PERC Solar Panel (9kW)

Accessories:

2 x 10AWG Solar Extension Cable - 50ft
4/0 AWG Battery Cable - 4ft - 5/16 Both Ends (Set Red & Black)
2 x 25A PV Breaker
3 x Replacement Inline Fuse Holder | Choose Amp: 10A, 15A, 20A, 30A

Accessories Based on Battery Choice:

Parallel & Communication Cable for PowerMax 314 Outdoor
Bussbar 600A 8P w/Cover
SunGold Enclosed Battery Cabinet 6-Slot
SunGold Enclosed Battery Cabinet 6-Slot

SunGold Power 12K Complete Off-Grid Solar Kit Specifications

SunGold Power 12K - 12000W Output - 48V - 120/240V Split Phase - Off-Grid Specification

Inverter

Specification	Details
Rated Output Power	12,000W
Max. Peak Power	24,000W
Rated Output Voltage	120/240Vac (split phase/single phase)
Load Capacity of Motors	6HP
Rated AC Frequency	50/60Hz
Waveform	Pure Sine Wave
Switch Time	10ms (typical)
Parallel Capacity	6
Overload	After triggering the overload protection the inverter will resume output after 3 minutes, 5 consecutive overloads will switch off the output until the inverter is restarted. (102% 125%±10%: error reported and output switched off after 5s.

Battery

Specification	Details
Battery Type	Lithium-ion battery / lead-acid battery / user-defined
Rated Battery Voltage	48Vdc
Voltage Range	40-60Vdc
Max. MPPT Charging Current	200A
Max. Mains/Generator Charging Current	120A
Max. Hybrid Charging Current	200A

PV Input

Specification	Details
MPPT Channel Number	2
Max. Input Power	6600W + 6600W
Max. Input Power	22A / 22A
Max. Open Circuit Voltage	500Vdc
MPPT Operating Voltage Range	125-425Vdc

Grid / Generator Input

Specification	Details
Input Voltage Range	90-140V (Single phase), 180-260V (Split phase)
Frequency Range	50/60Hz
Bypass Overload Current	63A

Efficiency

Specification	Details
MPPT Tracking Efficiency	99.9%
Max. Battery Inverter Efficiency	92%

General

Specification	Details
Dimensions (L × W × H)	28.7 × 19.1 × 6.7 inches
Weight	61.73 lbs (28 kg)
Protection Level	IP20 (for indoor use only)
Ambient Temperature	14–131°F (>113°F derated)
Noise	<60dB
Cooling Method	Intelligent Fan

Communication

Specification	Details
Built-in Interfaces	RS485 / CAN / USB / Dry Contact
External Modules (Optional)	Wi-Fi / GPRS
EMC	EN61000-6-1, EN61000-6-3, FCC15 Class B
RoHS	Yes

SunGold PowerMax 51.2V 314Ah Outdoor Battery (32kWh) Specification

Specification	Details
Product Model	PowerMax 314 Outdoor
Battery Type	LiFePO₄ (Lithium Iron Phosphate)
Rated Voltage	51.2 V
Rated Capacity	314 Ah
Rated Energy	16.07 kWh
Max Continuous Current	Charge: 190 A, Discharge: 190 A
Max Charging Voltage	57.6 V
Over Discharge Voltage	44.8 V
Peak Charging Current	220 A (3S)
Dimension (H×W×D)	41.3 × 18.1 × 10.7 in
Weight	271.2 lbs
Max Parallel Number	Up to 16 pcs

SunGold PowerWall X 51.2V 200Ah Lithium Battery (20.48kWh) Specification

Specification	Details
Battery Type	LiFePO4
Rated Voltage	51.2V
Rated Capacity	200Ah
Total Energy	10.24kWh
Max Continuous Current	Charge: 140A, Discharge: 200A
Recommended Charge Voltage	56V
Recommended Discharge Voltage	48V
Max Short Circuit Duration	920A/300us
Dimensions	21.1x37.2X6.8inch
Weight	198.4 lbs
Max Parallel Units	32 pcs.

SunGold 51.2V 100Ah Server Rack Battery (30.72kWh) Specification

Specification	Details
Battery Model	SG48100P
Chemistry	Lithium iron phosphate battery
Nominal Voltage	51.2V
Maximum cut-off voltage for charging	57.6V
Charging Limited Voltage	42V
Nominal Capacity	100A
Nominal Energy	5.12kWh
*Unit Dimension (LWH)*	19.3 X 18.9 X 5.5 inch
Unit Weight	93lbs
Charge cut-off current	5A
Maximum cut-off voltage for charging	57.6V
Standard Continuous Charge/Discharge Rate	50A
Discharge cut-off voltage	43.2V
Communication Protocol	RS232/RS485/CAN Support multiple protocols
Cycle Life	≥7000
Calendar Life	>15 Year
Operating Temperature (Battery charging)	32°F~113°F
Operating Temperature (Battery discharging)	-4°F~140°F
Maximum Allowed Modules in Parallel	Supports up to 32 batteries in parallel
Storage Temperature	14°F~113°F
Certificates	CE UN38.3 UL1973 UL9540A

SunGold 51.2V 100Ah Server Rack Battery Heated (30.72kWh) Specification

Specification	Details
Battery Model	SGH48100T
Chemistry	Lithium iron phosphate battery
Nominal Voltage	51.2V
Charge Voltage	56.0V
Float Charge Voltage	54.6V
Nominal Energy @0.2C	5.12kWh
Nominal Capacity @0.2C	100Ah
Dimension	19.317.35.2 inch (490441133mm)
Weight	103lb(~47kg)
Standard Charge Current	<50A
Max. Charge Current	70A
Standard Discharge Current	<50A
Max. Discharge Current	100A (Initial Temp. <86°F (30°F))
Peak Discharge Current	101~119A@5mins \| 120~200A@15S
Communication	>15 Year
Max Parallel Number	32pcs
Operating Temperature 1	Charge: 14°F to 122°F (-10 to 50°C) \| Discharge: -4°F to 122°F (-20 to 50°C)
Heating Opening Condition 2	-13°F (-25°C) ≤ T ≤ 41°F (5°C) @ I ≥ 0.08C
Heating Opening Condition 3	T>53.6(12°C)
Storage Temperature @Off Mode	32°F (0°C) < T < 86°F (30°C): < 6 months \| 14°F (-10°C) < T < 113°F (45°C): < 3 months
Recommended Environment	59°F to 95°F (15°C to 35°C), 5–75% RH

SunGold 5.12kWh PowerWall LiFePO4 Lithium Battery (20.48kWh) Specification

Specification	Details
Battery Model	SG48100M
Chemistry	Lithium iron phosphate battery
Nominal Voltage	51.2V
Maximum cut-off voltage for charging	57.6V
Charging Limited Voltage	57.6 V
Nominal Capacity	100 Ah
Nominal Energy	5.12kWh
*Unit Dimension (LWH)*	23 × 16.5 × 6 in
Unit Weight	114.6lbs
Charge cut-off current	5A
Standard Continuous Charge/Discharge Rate	50A
Discharge cut-off voltage	43.2V
Communication Protocol	RS232 / RS485 / CAN (multiple protocols supported)
Cycle Life	≥ 7000 cycles
Calendar Life	≥ 15 years
Operating Temperature	Charging: 32°F ~ 113°F (0°C ~ 45°C) \| Discharging: -4°F ~ 140°F (-20°C ~ 60°C)
Maximum Allowed Modules in Parallel	Up to 32 batteries in parallel
Storage Temperature	14°F ~ 113°F (-10°C ~ 45°C)
Certificates	UL1973, CE, UN38.3

Frequently-Asked Questions

Can this system power an entire home?

Yes, the 12kW inverter can support most residential loads, though total runtime depends on battery capacity and energy usage.

Is this truly off-grid capable?

Yes, this system is specifically designed for off-grid applications and does not require utility connection.

Can I expand the system later?

Yes, additional batteries and solar panels can be added as your energy needs grow.
