SunGold Power 12kW Hybrid Solar Kit | 18 x 590W Solar Panels + 16–48kWh PowerMax Battery

Name: SunGold Power 12kW Hybrid Solar Kit | 18 x 590W Solar Panels + 16–48kWh PowerMax Battery
Brand: SunGoldPower
SKU: SGS12K-PM1-590
Price: 9616.0 USD
Availability: InStock

BY: SunGoldPower

SKU: SGS12K-PM1-590

| Availability: In stock

$14,794.00

$9,616.00

You Save: $5,178.00

Battery Options:

Quantity

Product Highlights

Includes eighteen 590W bifacial panels for 10.62kW of rated solar
Choose 16.07kWh, 32.14kWh or 48.21kWh of PowerMax battery storage
120/240V split-phase power for compatible household equipment
IP65-rated inverter and batteries support suitable outdoor installation

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized SunGoldPower Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

SunGold Power 12kW Hybrid Solar Kit | 18 x 590W Solar Panels + 16–48kWh PowerMax Battery

Generate and store solar energy with the SunGold Power 12kW Hybrid Solar Kit. This system combines a SGS-12K18MAX hybrid inverter, 18 × 590W bifacial solar panels, and 16.07–48.21kWh of PowerMax battery storage. With 10,620W of rated solar array capacity and 120/240V split-phase output, it supports home backup, nighttime power, and off-grid applications.

SunGold Power 12kW Hybrid Solar Kit Features

12kW Hybrid Power Output - Provides 12,000W rated output at 240V for compatible household appliances. Available power depends on battery discharge limits and solar production.

10.62kW Bifacial Solar Array - Includes 18 × 590W N-Type bifacial panels, capturing sunlight from the front and reflected light from the rear. Actual production depends on sunlight and installation conditions.

Flexible Battery Storage - Choose one, two, or three PowerMax batteries for 16.07kWh, 32.14kWh, or 48.21kWh nominal storage.

200A Grid Pass-Through - Supports 200A continuous utility pass-through in bypass mode, separate from the inverter’s rated solar and battery output.

IP65-Rated Inverter and Batteries - Designed for indoor or suitable outdoor installation, following the manufacturer’s placement, ventilation, and temperature requirements.

SunGold Power 12kW Hybrid Solar Kit Applications

Home Backup — Support essential appliances during power outages.
Solar Energy Storage — Store daytime solar energy for later use.
Nighttime Power — Supply household loads with stored battery energy after sunset.
Off-Grid Homes and Cabins — Build an independent system sized for daily energy needs.
Residential Solar Systems — Combine solar generation, battery storage, and utility power.

What's Included

Everything you need is included with your product.

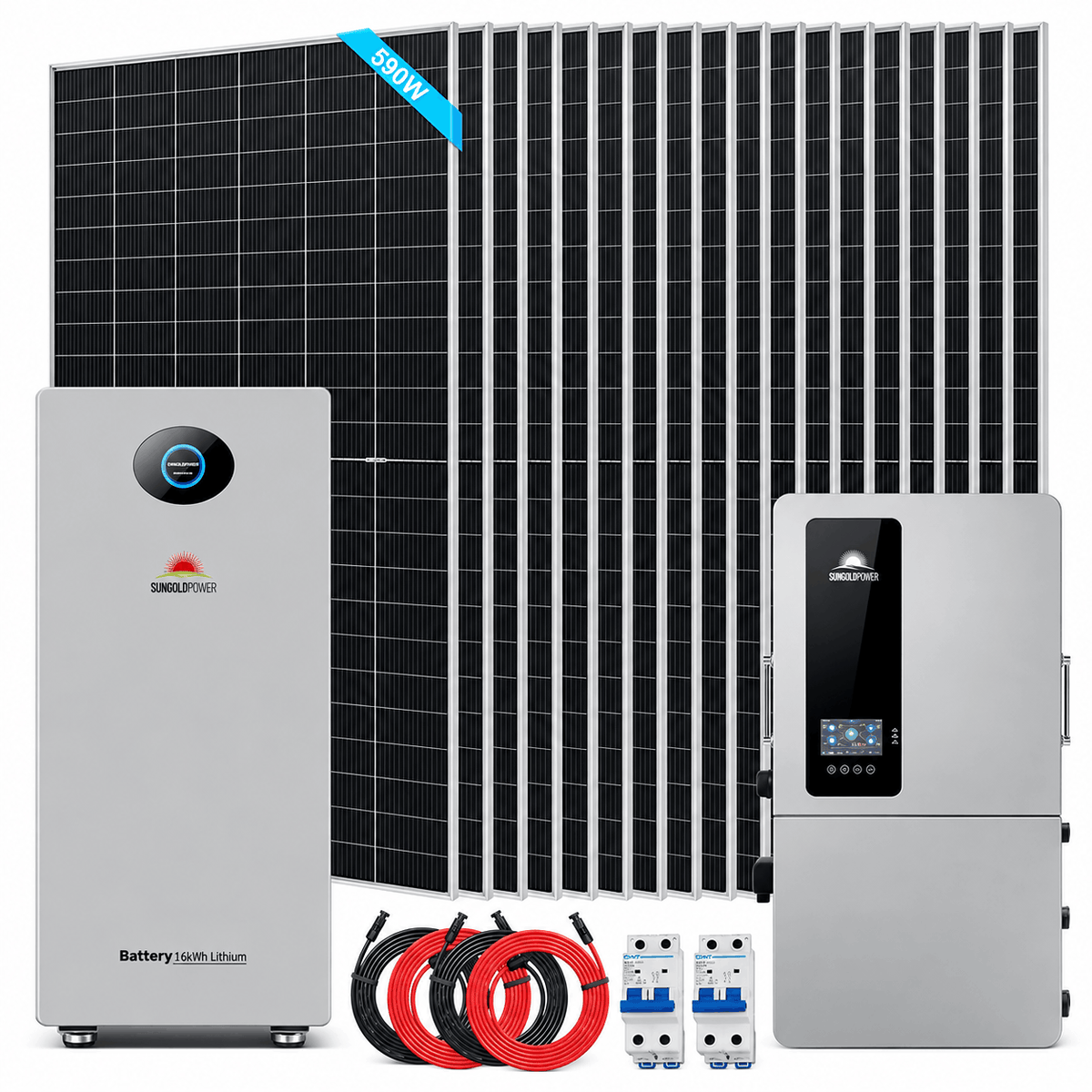

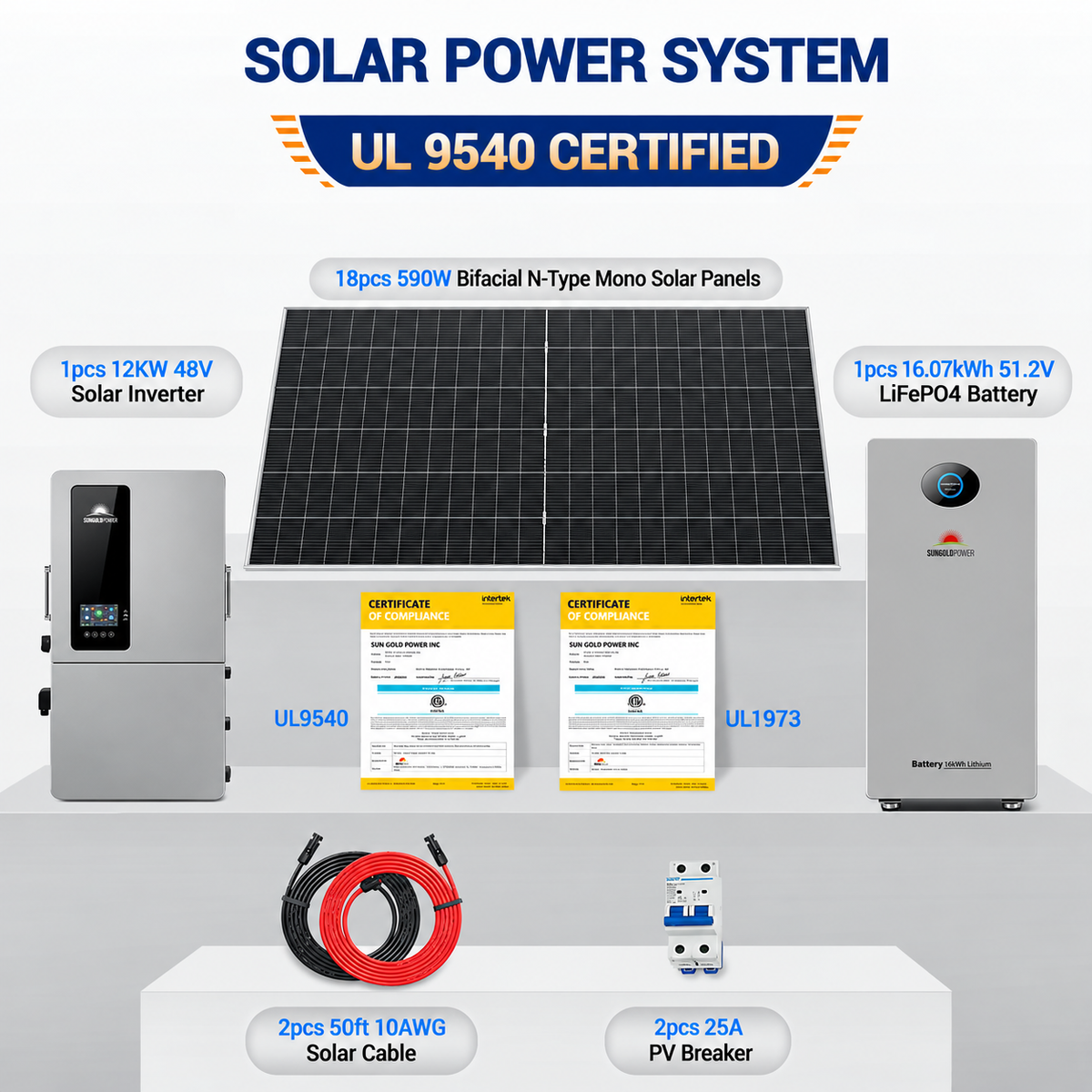

SGS12K-PM1-590

1 X 12kW 48V All-in-one Hybrid Solar inverter
18 X 590 Watt Bifacial N-Type Monocrystalline Solar Panels
1 X PowerMax 51.2V 314Ah 16.07kWh Outdoor LiFePO4 Battery
2 Sets X 50 Feet Solar Extension Cables-Inverter PV input
2 X 25A PV Breakers

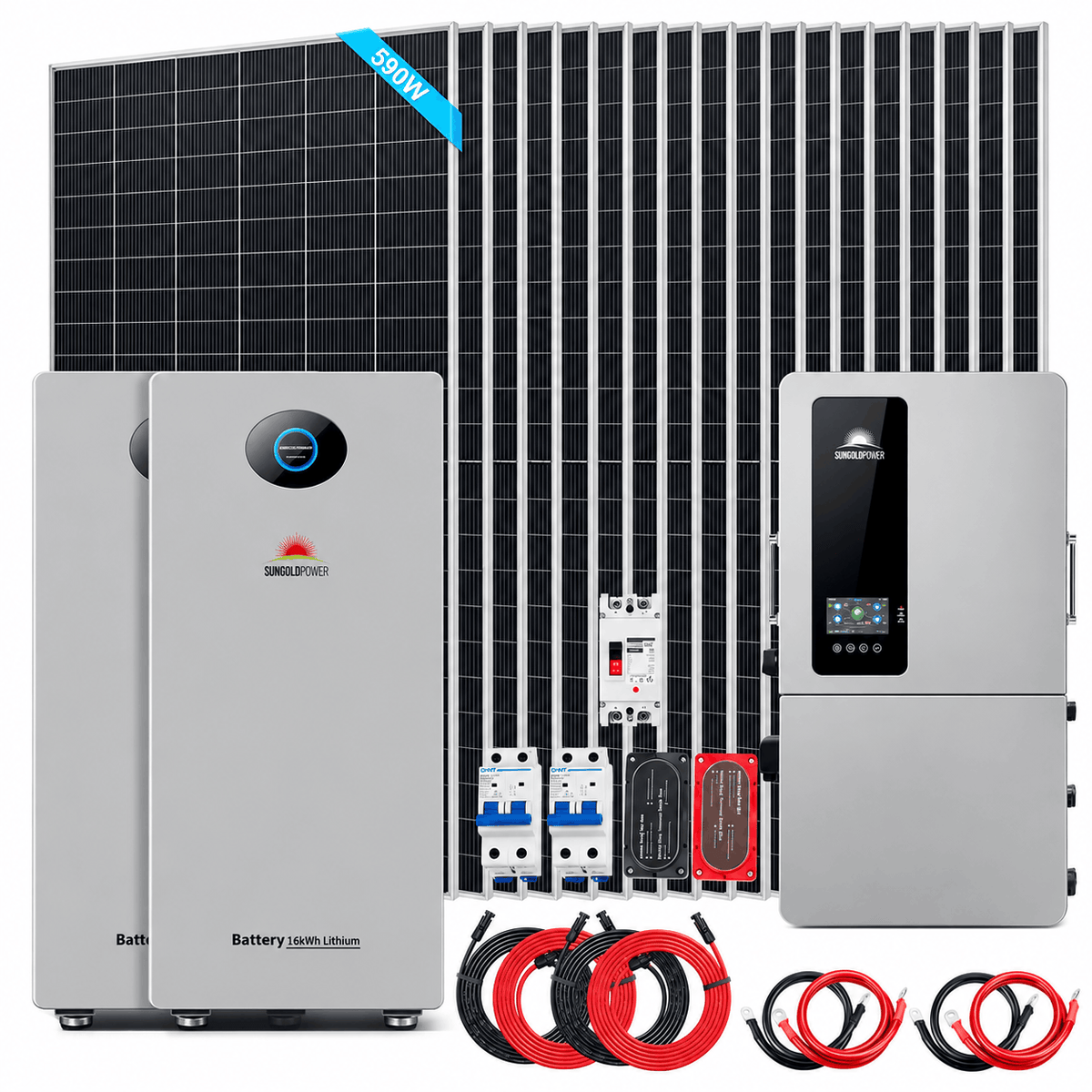

SGS12K-PM2-590

1 X 12kW 48V All-in-one Hybrid Solar inverter
18 X 590 Watt Bifacial N-Type Monocrystalline Solar Panels
2 X PowerMax 51.2V 314Ah 16.07kWh Outdoor LiFePO4 Battery
2 X 50 Feet Solar Extension Cables-Inverter PV input

2 X 4/0AWG Battery Cables
2 X 25A PV Breakers
1 X 300A DC Breaker
1 X 400A Bus Bar

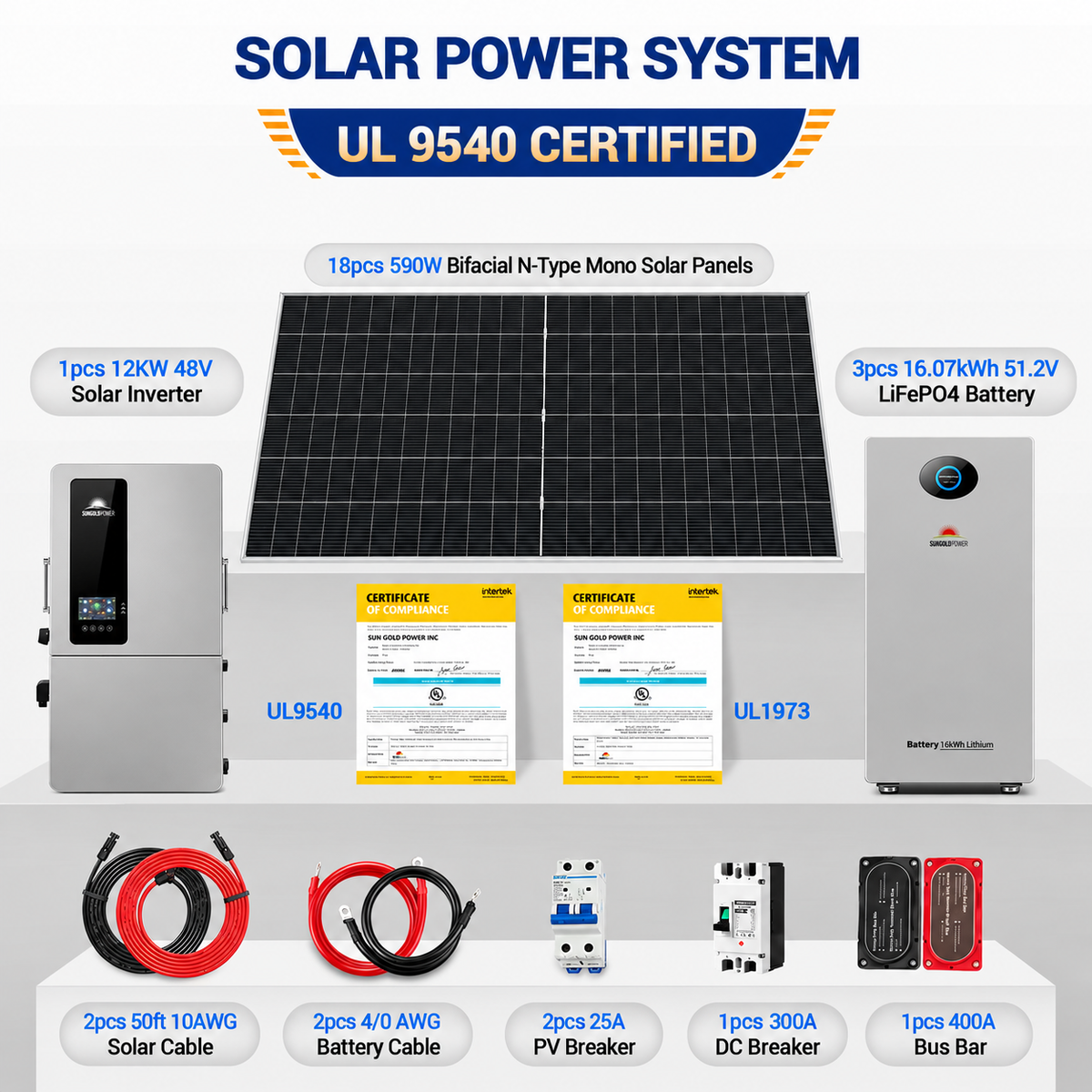

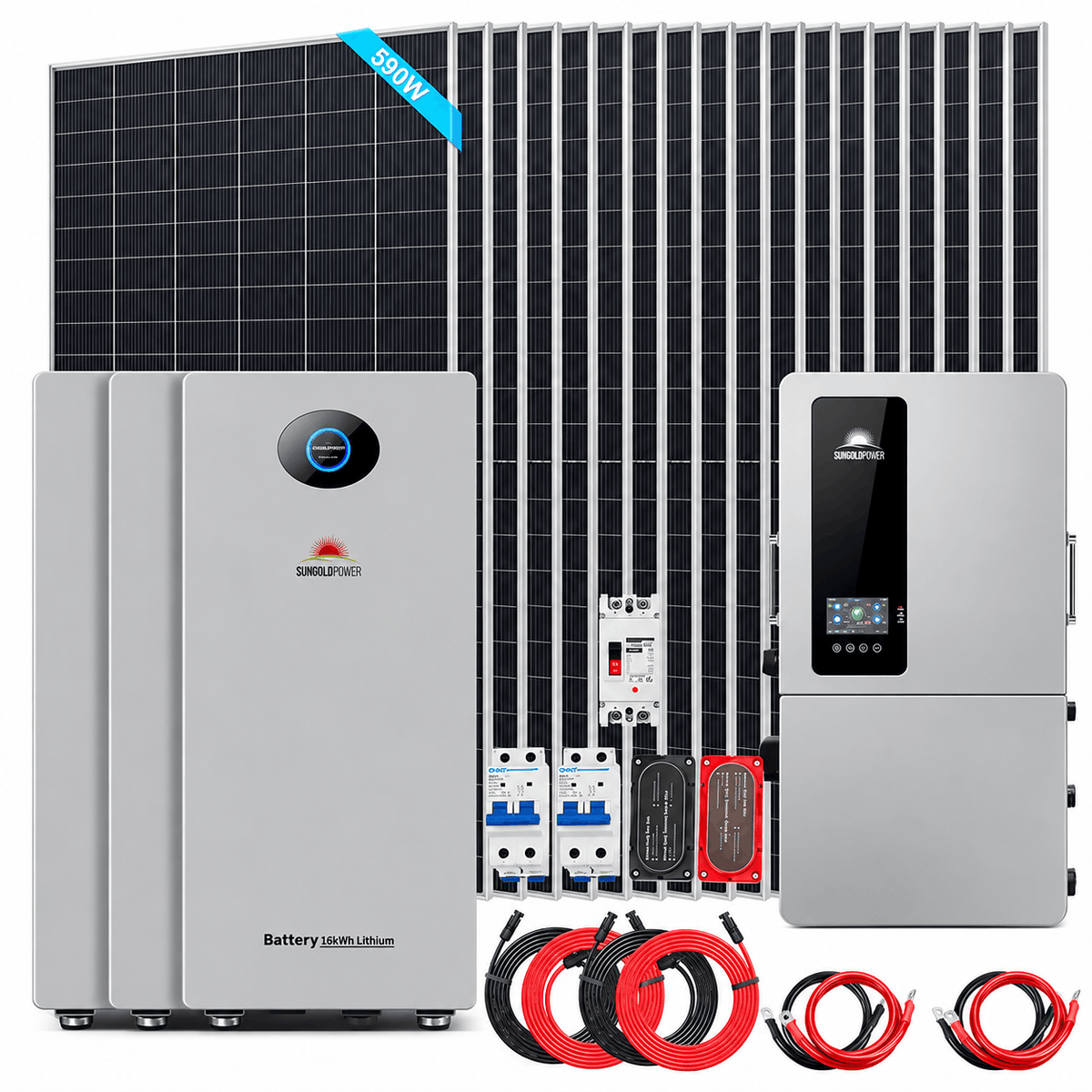

SGS12K-PM3-590

1 X 12kW 48V All-in-one Hybrid Solar inverter
18 X 590 Watt Bifacial N-Type Monocrystalline Solar Panels
3 X PowerMax 51.2V 314Ah 16.07kWh Outdoor LiFePO4 Battery
2 X 50 Feet Solar Extension Cables-Inverter PV input
2 X 4/0AWG Battery Cables
2 X 25A PV Breakers
1 X 300A DC Breaker
1 X 400A Bus Bar

Sungold Power 12KW 48V All-in-one Hybrid Solar Inverter Specification

Inverter (PV)

Specification	Details
Rated Output Power	@240V 12000W, @208V 10400W
Max. Peak Power	1.5 times rated power (10s)
Rated Output Voltage	120/240Vac (Split-phase), 120/208V (Three-phase)
Output Voltage Error	50A
Load Motor Capacity	6HP
Rated AC Frequency	50/60Hz
Waveform	Pure Sine Wave
Parallel Capacity	6

Battery

Specification	Details
Battery Type	Li-ion Battery / Lead-Acid Battery / User Defined
Rated Battery Voltage	48Vdc
Voltage Range	40-60Vdc
Max. Grid Charging Current	200A
Max. Generator Charging Current	200A
Max. Hybrid Charging Current	240A

PV Input

Specification	Details
Num. of MPP Trackers	2
Max. PV array power	9000W/9000W
Max. input current	32A/32A
Short Circuit (Isc)	40A/40A
Max. Open Circuit Voltage	550Vdc/550Vdc
MPPT Voltage Range	125–450Vdc/125–450Vdc
MPPT Tracking Efficiency	99.9%

Grid / Generator Input

Specification	Details
Input Voltage Range	90–140Vac
Frequency Range	50/60Hz
Continuous Grid Passthrough Current	200A

Protection

Specification	Details
Integrated Protection	Reverse polarity protection, DC switch rating for each MPPT, Output over-voltage protection varistor, Output over current protection, Ground fault monitoring, Grid monitoring, Pole sensitive leakage current monitoring unit AFCI, RSD

Interface

Specification	Details
Communication Port	RS485 / CAN / USB / Dry contact
External Modules (Optional)	Wi-Fi / GPRS

General Data

Specification	Details
Dimensions (W×H×D)	33.07 × 17.32 × 10.24 in (840 × 440 × 260 mm)
Weight	105.82 lbs (48 kg)
Protection Degree	IP65
Operating Temperature Range	13°F to 140°F, >113°F derated (-25°C to +60°C, >45°C derated)
Noise	<60 dB
Self-consumption	<100W
Cooling Method	Heat sink + intelligent fan cooling

Certified Specifications

Specification	Details
Safety Standards	UL1741 & IEEE1547.1-2020, CEC, RULE 21, HECO, CEC Listed
EMC	FCC 15 Class B
RoHS	Yes

SunGold Power PowerMax 16.07kWh 51.2V 314AH Outdoor Energy Storage Battery Specification

Specification	Details
Rated voltage	51.2V
Voltage Range	44.8~57.6Vdc
Rated capacity	314Ah
Rated energy	16.07kWh
Usable Energy	15.42kWh
Max.Depth of discharge	>96%
Rated DC power	7.68kW
Weight	271.17lbs(123kg)
*Dimensions(LWH)*	41.2618.1110.67inches(1048460271mm)
Standard charge current	150A
Standard discharge current	150A
Max. charging current	190A
Max. discharging current	190A
Peak charging current	220A(3S)
Peak discharging current	220A(3S)
Breaker Current	240A
Screen	Touch Screen
Life cycle(80% DOD,0.5C,25°C)	8000 Cycles
Max. charging voltage	57.6V
Over discharge voltage	44.8V
Max. number of parallel	16
Communication interfaces	CAN/RS485/USB/WIFI/Bluetooth
Lithium Battery Standard	UL1973,UL9540A,UN38.3, MSDS
Storage time /temperature	6 months @25°C;3 months @35°C;1 months @45°C;
Charging temperature range	32°F to 131°F (0~55°C)
Discharging temperature range	14°F to 131°F (-10~55°C)
Cooling method	Natural cooling
Enclosure protection rating	IP65
Operation Environment	Indoor & Outdoor

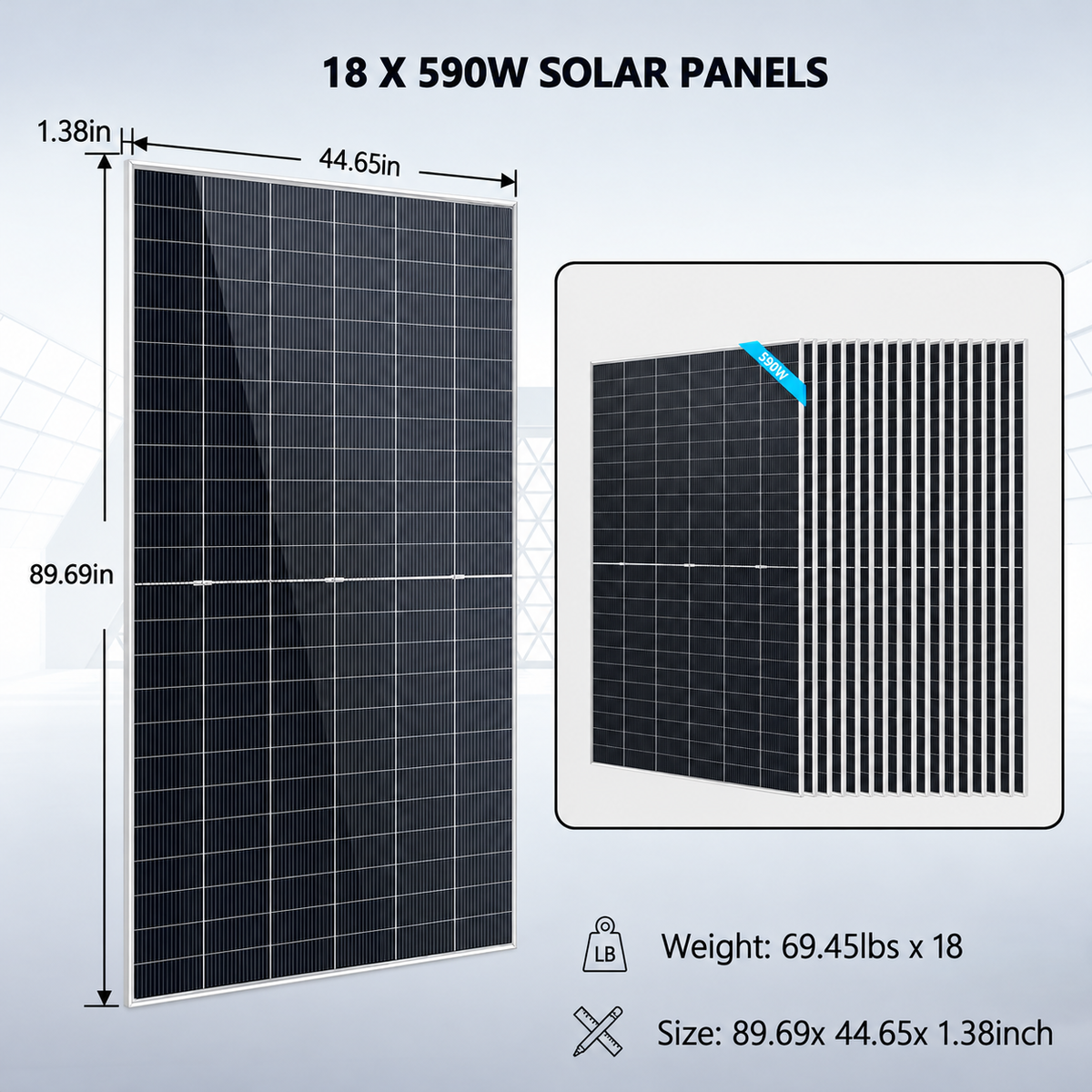

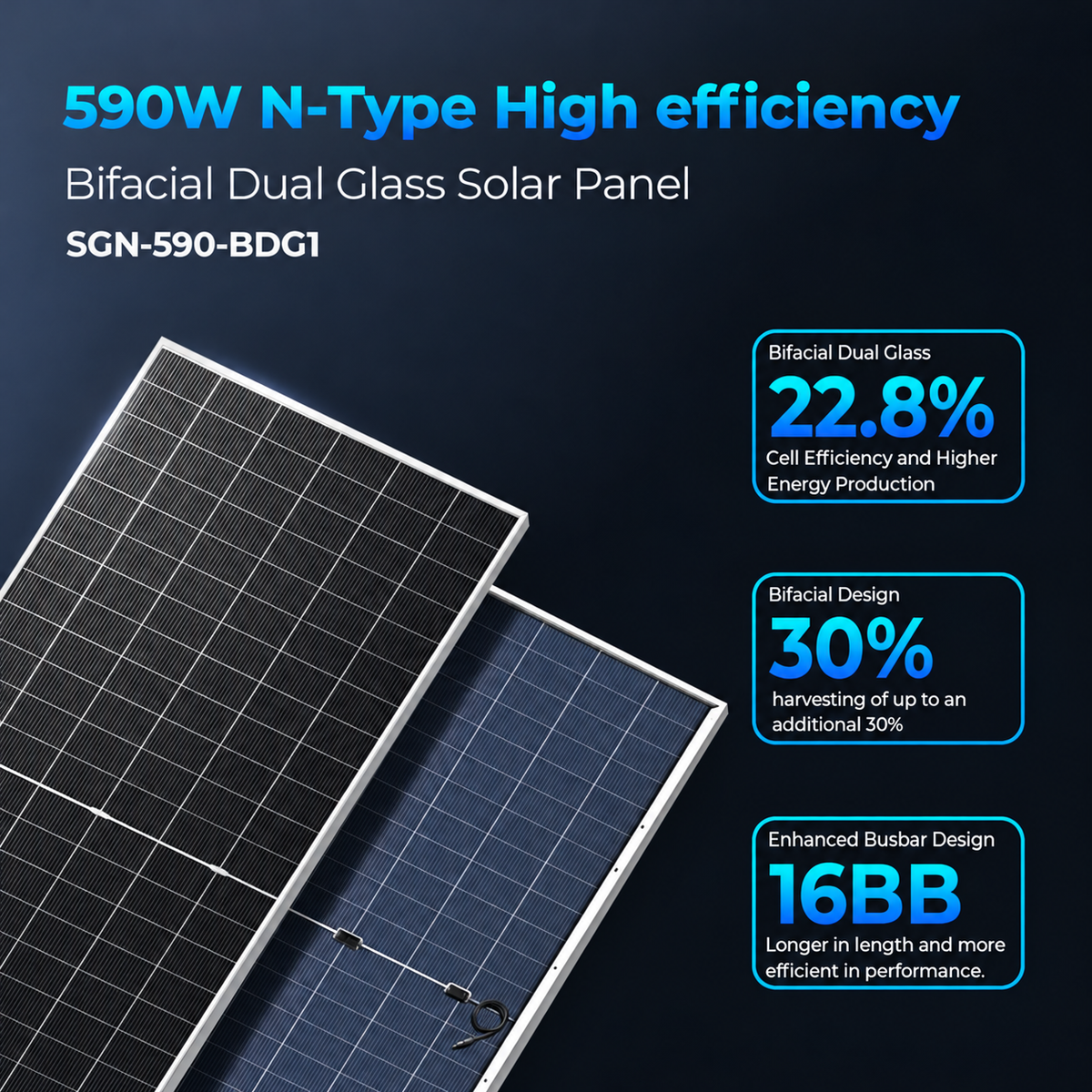

SunGold Power 590 Watt Bifacial N-Type Monocrystalline Solar Panel Specifications

Specification	Details
Peak Power (Pmax)	590W
Production tolerance	±3%
Maximum Power Current (Imp)	13.29A
Maximum Power Voltage (Vmp)	44.40V
Short Circuit Current (Isc)	13.90A
Open Circuit Voltage (Voc)	52.35V
Maximum System Voltage	1500V
Wind Resistance	2400Pa
Output Cables	12 AWG (1ft per cable)
Number of Cells	144 cells
Cell Type	N-type monocrystalline (M10)
Certifications	UL61730 Certified by ETL ，ISO 9001， ISO 14001， ISO 45001
Product Weight	69.45 lbs
Product Dimension	89.69 x 44.65 x 1.38 inch
Package Weight	140 lbs（2PCS）
Package Dimension	89.6947.653.1inch（2PCS）
Warranty	12 years material and workmanship warranty,30 years Linear power warranty
Operating Temperature Range	-40℉ to 185℉(-40℃~+85℃)
Maximum Permissible Module Temperature (T28 max):	185℉(85°C)
Module Fire Performance	Type 29 according to ANSI/UL 61730
Safety Class	Class II

Frequently-Asked Questions

Are solar panels included?

Yes. These 450W kit configurations include 20 panels, totaling 9,000W of rated solar capacity.

Which battery size should I choose?

Choose 16.07kWh, 32.14kWh, or 48.21kWh based on your daily energy use and desired backup time.

Can one battery supply the full 12kW continuously?

No. One battery is rated for 7.68kW continuous DC discharge, before inverter losses.

How long will the backup power last?

Runtime depends on battery quantity, charge level, appliance consumption, and available solar power.

Can I expand the system later?

Yes. Compatible batteries and inverters can be added with proper system design.

Is professional installation required?

Yes. Qualified electrical personnel must complete the electrical connections according to the manuals and local requirements.
