SunGold Power 12kW Hybrid Solar Kit | 20 x 450W Solar Panels + 16–48kWh PowerMax Battery
Estimated Delivery Between
and .
Order within to get it by the earliest date.
Free Shipping In The USA | Call Us: 877-556-3347
Free Shipping In The USA | Call Us: 877-556-3347
Found A Better Price?
Share it with us now and we will beat it. Get the best deal online, guaranteed!
Estimated Delivery Between
and .
Order within to get it by the earliest date.
Not Sure This Is The Right System?

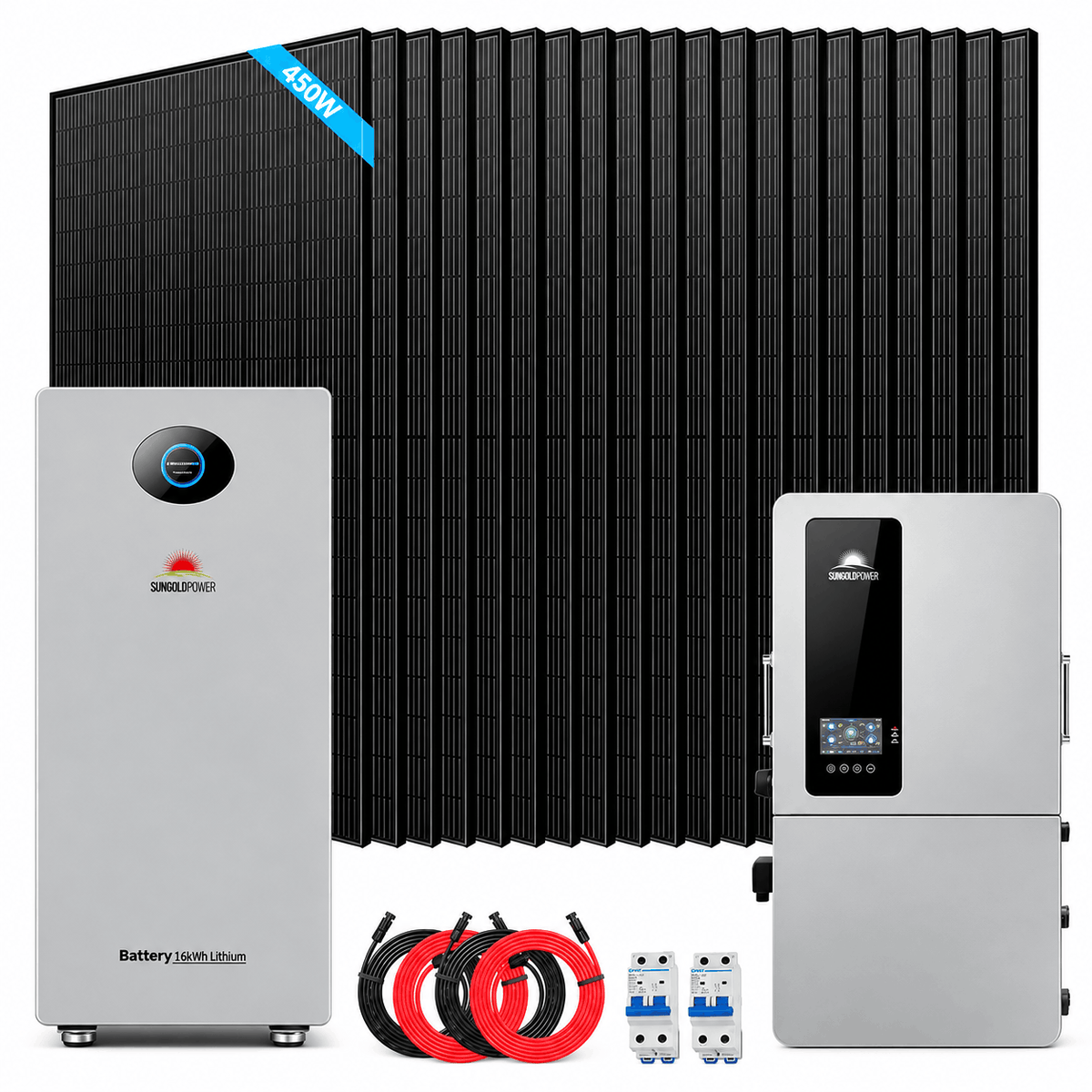

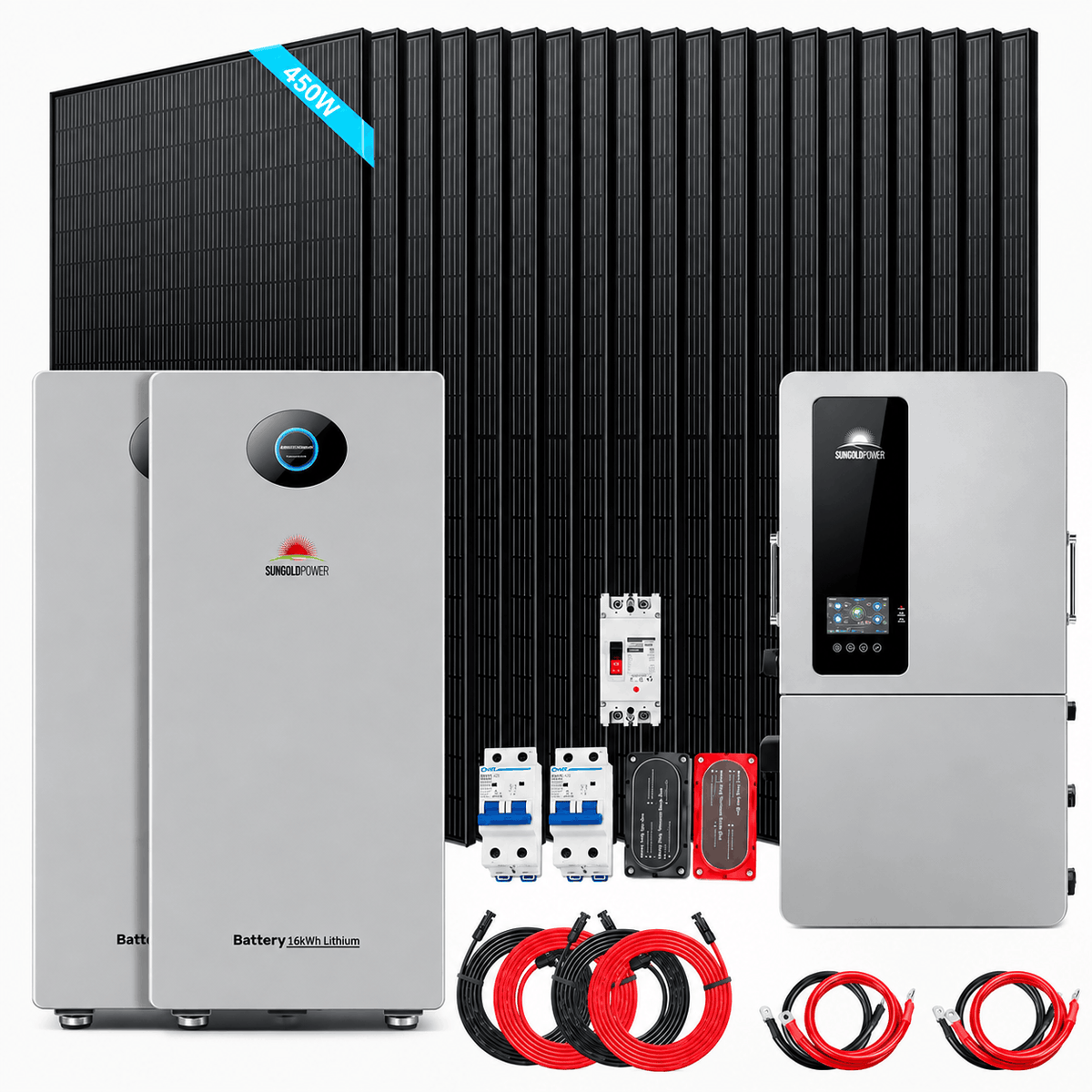

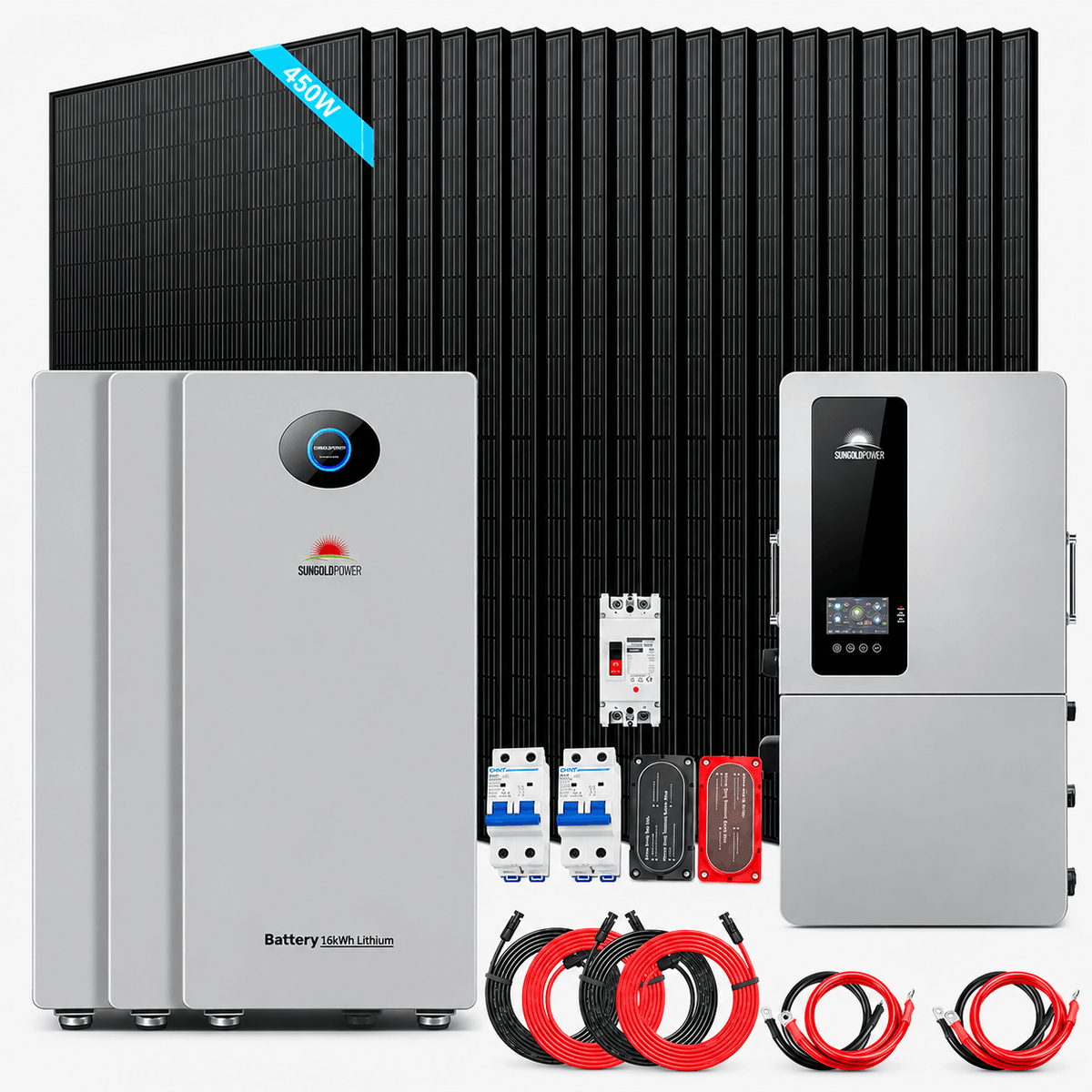

Request a Free Solar ProposalGenerate and store solar energy with the SunGold Power 12kW Hybrid Solar Kit. This system combines a SGS-12K18MAX hybrid inverter, 20 × 450W bifacial solar panels, and your choice of 16.07kWh, 32.14kWh, or 48.21kWh PowerMax battery storage. Designed for home backup, solar energy storage, and off-grid applications, it provides 9,000W of rated solar array capacity and 120/240V split-phase output.

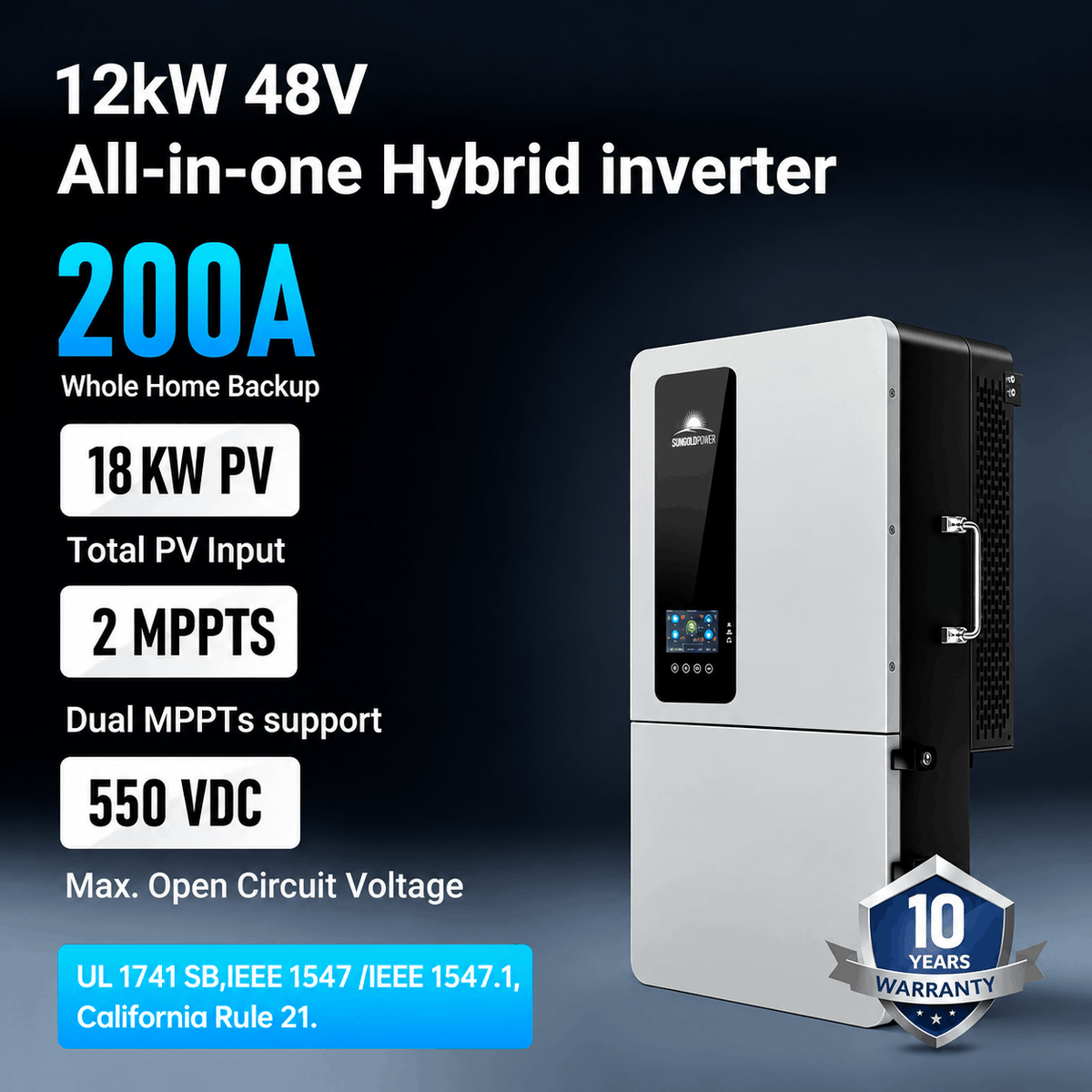

12kW Hybrid Inverter - Provides 12,000W rated output at 240V for compatible household appliances. Available power depends on battery discharge limits and solar production.

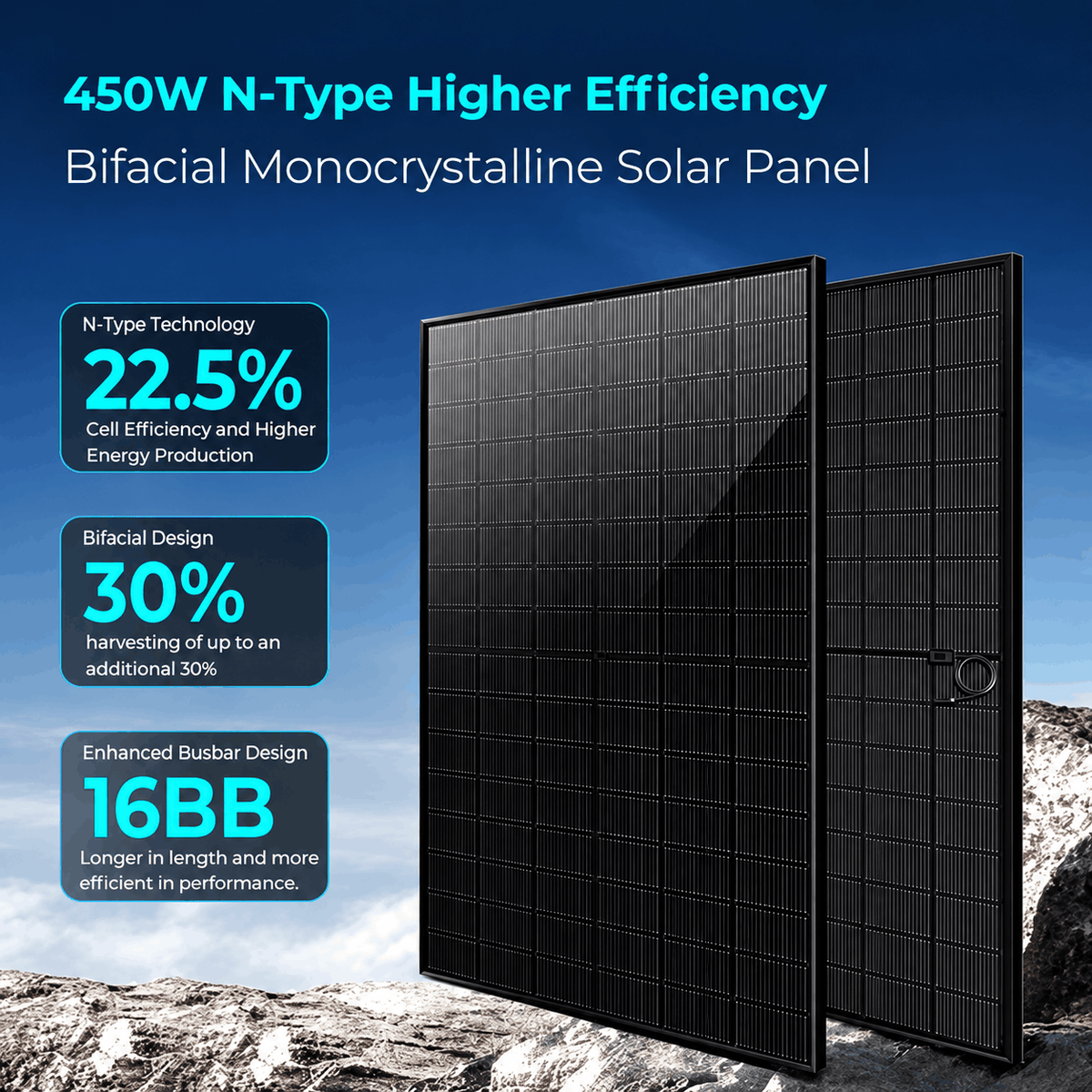

9kW Bifacial Solar Array - Includes 20 × 450W N-Type bifacial panels, capturing sunlight from the front and reflected light from the rear. Actual production depends on sunlight and installation conditions.
Your Choice of Battery Storage - Select one, two, or three PowerMax batteries for 16.07–48.21kWh nominal storage, helping power appliances after sunset or during outages.
200A Grid Pass-Through - Supports 200A continuous utility pasthrough in bypass mode. This is separate from the inverter’s rated solar and battery output.
Outdoor-Rated Components - The inverter and batteries feature IP65-rated enclosures for suitable indoor or outdoor installations, following manufacturer requirements.

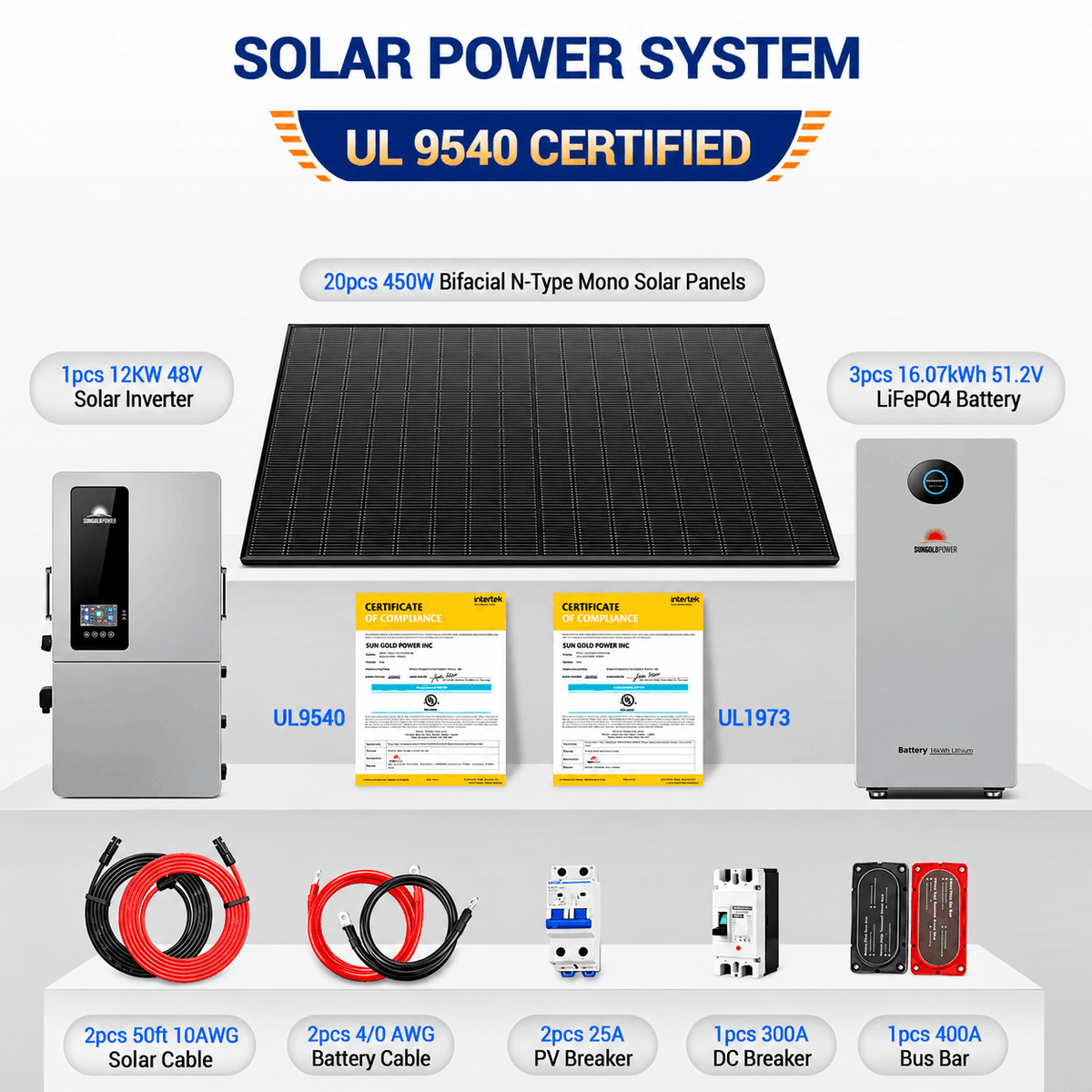

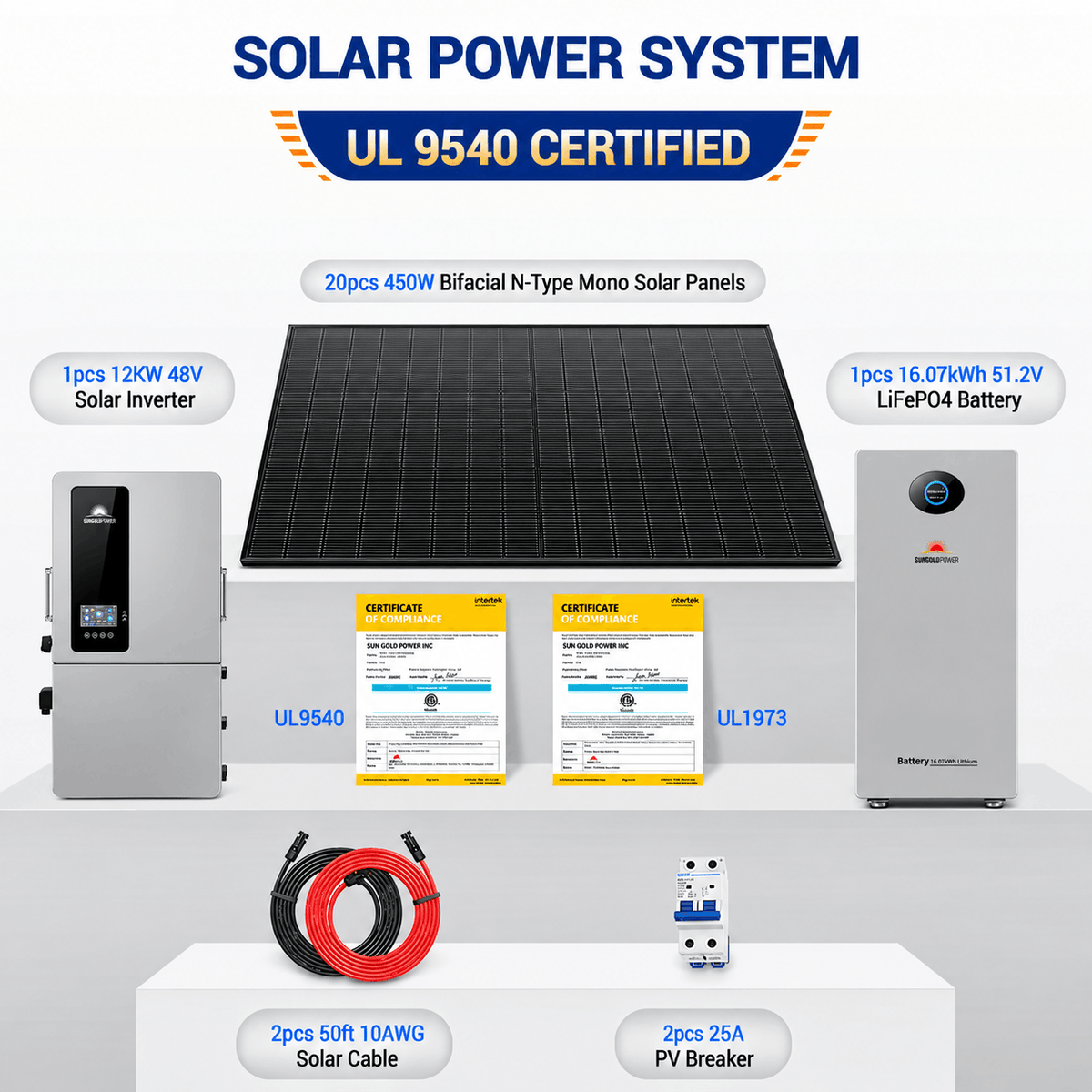

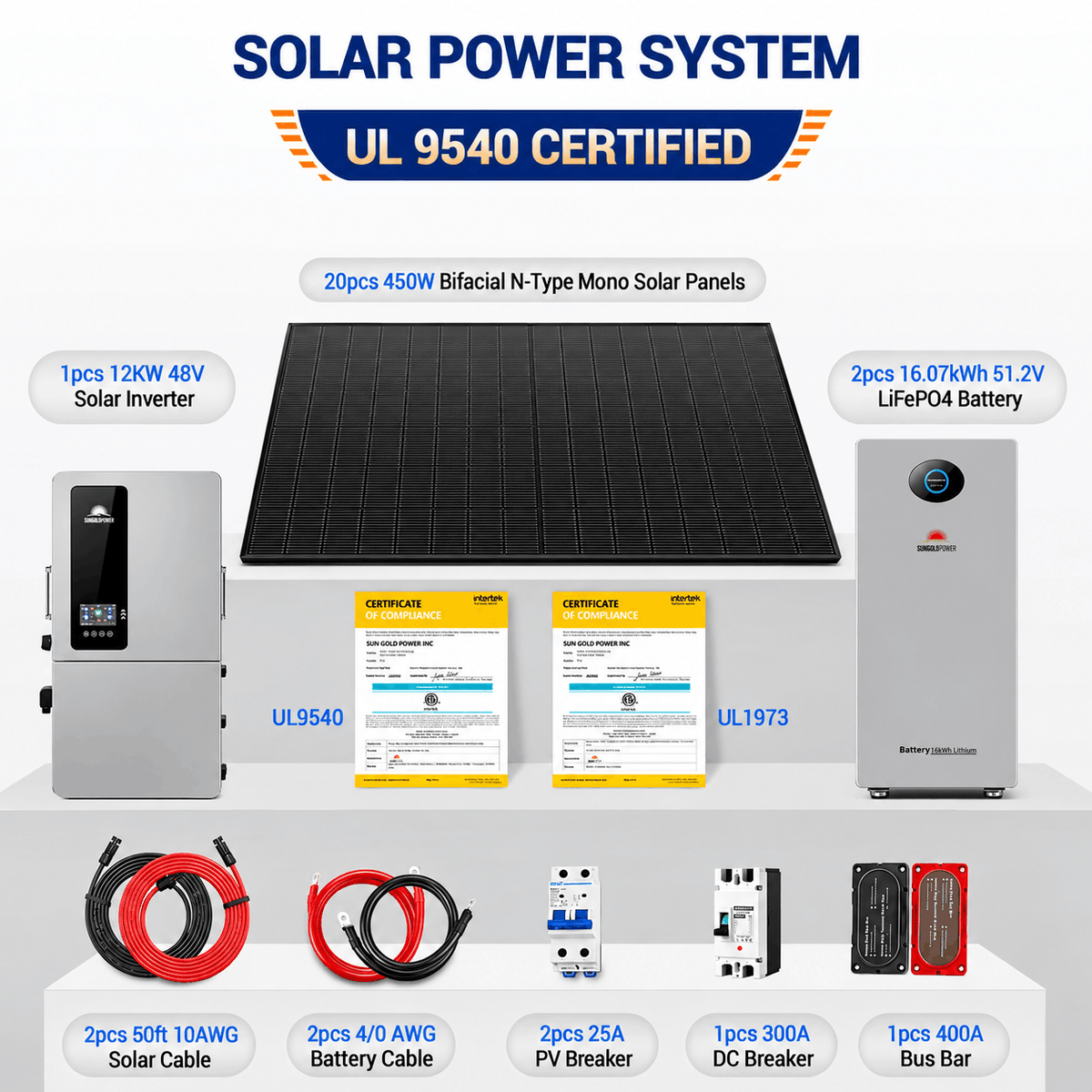

Everything you need is included with your product.
SGS12K-PM1-450
SGS12K-PM2-450
SGS12K-PM3-450

Inverter (PV)
| Specification | Details |
| Rated Output Power | @240V 12000W, @208V 10400W |
| Max. Peak Power | 1.5 times rated power (10s) |
| Rated Output Voltage | 120/240Vac (Split-phase), 120/208V (Three-phase) |
| Output Voltage Error | 50A |
| Load Motor Capacity | 6HP |
| Rated AC Frequency | 50/60Hz |
| Waveform | Pure Sine Wave |
| Parallel Capacity | 6 |
Battery
| Specification | Details |
| Battery Type | Li-ion Battery / Lead-Acid Battery / User Defined |
| Rated Battery Voltage | 48Vdc |
| Voltage Range | 40-60Vdc |
| Max. Grid Charging Current | 200A |
| Max. Generator Charging Current | 200A |
| Max. Hybrid Charging Current | 240A |
PV Input
| Specification | Details |
| Num. of MPP Trackers | 2 |
| Max. PV array power | 9000W/9000W |
| Max. input current | 32A/32A |
| Short Circuit (Isc) | 40A/40A |
| Max. Open Circuit Voltage | 550Vdc/550Vdc |
| MPPT Voltage Range | 125–450Vdc/125–450Vdc |
| MPPT Tracking Efficiency | 99.9% |
Grid / Generator Input
| Specification | Details |
| Input Voltage Range | 90–140Vac |
| Frequency Range | 50/60Hz |
| Continuous Grid Passthrough Current | 200A |
Protection
| Specification | Details |
| Integrated Protection | Reverse polarity protection, DC switch rating for each MPPT, Output over-voltage protection varistor, Output over current protection, Ground fault monitoring, Grid monitoring, Pole sensitive leakage current monitoring unit AFCI, RSD |
Interface
| Specification | Details |
| Communication Port | RS485 / CAN / USB / Dry contact |
| External Modules (Optional) | Wi-Fi / GPRS |
General Data
| Specification | Details |
| Dimensions (W×H×D) | 33.07 × 17.32 × 10.24 in (840 × 440 × 260 mm) |
| Weight | 105.82 lbs (48 kg) |
| Protection Degree | IP65 |
| Operating Temperature Range | 13°F to 140°F, >113°F derated (-25°C to +60°C, >45°C derated) |
| Noise | <60 dB |
| Self-consumption | <100W |
| Cooling Method | Heat sink + intelligent fan cooling |
Certified Specifications
| Specification | Details |
| Safety Standards | UL1741 & IEEE1547.1-2020, CEC, RULE 21, HECO, CEC Listed |
| EMC | FCC 15 Class B |
| RoHS | Yes |

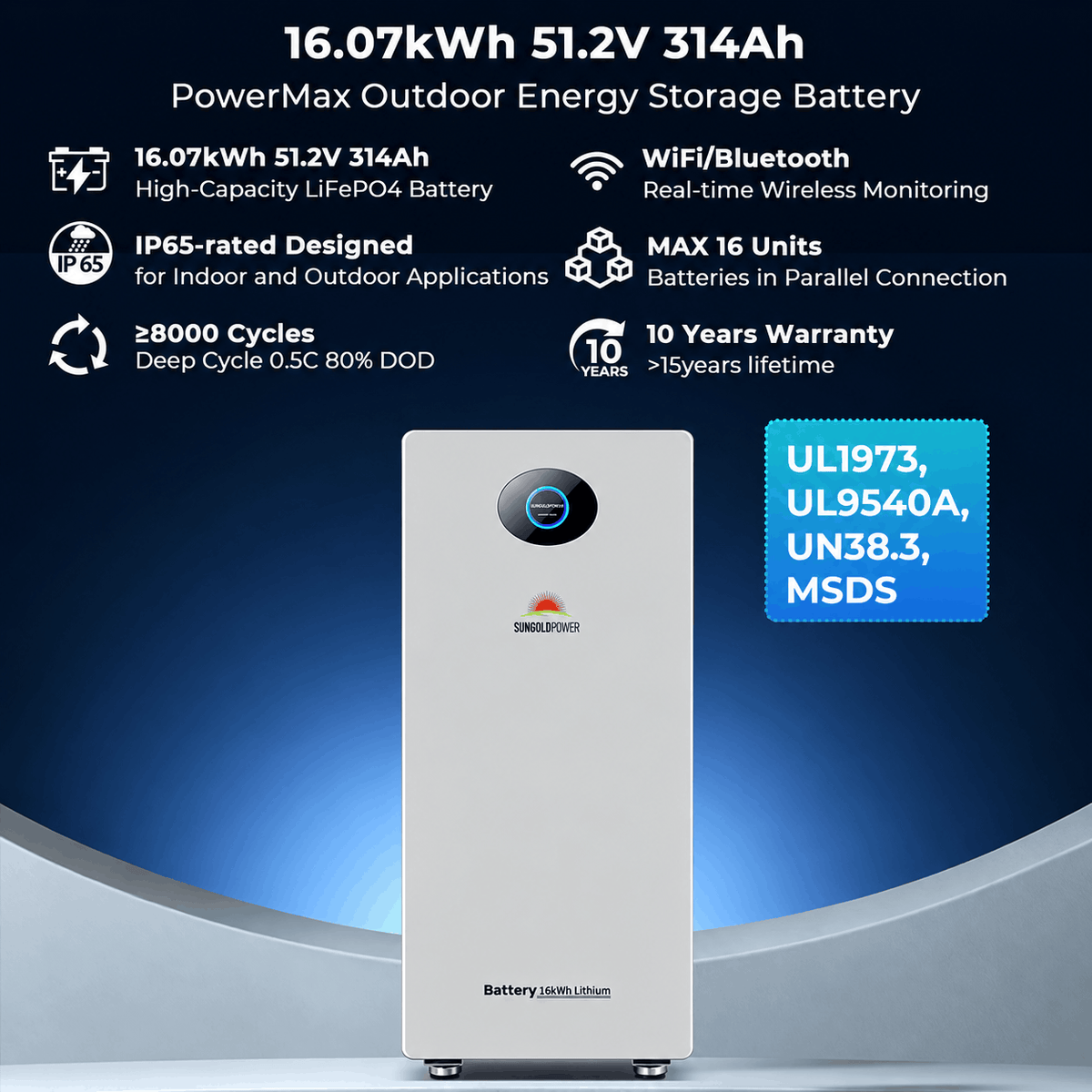

| Specification | Details |
| Rated voltage | 51.2V |
| Voltage Range | 44.8~57.6Vdc |
| Rated capacity | 314Ah |
| Rated energy | 16.07kWh |
| Usable Energy | 15.42kWh |
| Max.Depth of discharge | >96% |
| Rated DC power | 7.68kW |
| Weight | 271.17lbs(123kg) |
| Dimensions(L*W*H) | 41.26*18.11*10.67inches(1048*460*271mm) |
| Standard charge current | 150A |
| Standard discharge current | 150A |
| Max. charging current | 190A |
| Max. discharging current | 190A |
| Peak charging current | 220A(3S) |
| Peak discharging current | 220A(3S) |
| Breaker Current | 240A |
| Screen | Touch Screen |
| Life cycle(80% DOD,0.5C,25°C) | 8000 Cycles |
| Max. charging voltage | 57.6V |
| Over discharge voltage | 44.8V |
| Max. number of parallel | 16 |
| Communication interfaces | CAN/RS485/USB/WIFI/Bluetooth |
| Lithium Battery Standard | UL1973,UL9540A,UN38.3, MSDS |
| Storage time /temperature | 6 months @25°C;3 months @35°C;1 months @45°C; |
| Charging temperature range | 32°F to 131°F (0~55°C) |
| Discharging temperature range | 14°F to 131°F (-10~55°C) |
| Cooling method | Natural cooling |
| Enclosure protection rating | IP65 |
| Operation Environment | Indoor & Outdoor |
| Specification | Details |
| Peak Power (Pmax) | 450W |
| Production tolerance | ±3% |
| Maximum Power Current (Imp) | 14.97A |
| Maximum Power Voltage (Vmp) | 30.08V |
| Short Circuit Current (Isc) | 16.05A |
| Open Circuit Voltage (Voc) | 35.03V |
| Maximum System Voltage | 1500V |
| Wind Resistance | 2400Pa |
| Output Cables | 12 AWG (1ft per cable) |
| Number of Cells | 96 cells |
| Cell Type | N-type monocrystalline ( 7.17 X 8.27 inch) |
| Certifications | UL61730 Certified by ETL,CEC Listed,ISO 9001, ISO 14001, ISO 45001 |
| Product Weight | 53.35 lbs |
| Product Dimension | 69.37 x 44.65 x 1.38 inch |
| Package Weight | 120.8lbs(2PCS) |
| Package Dimension | 70.9*46.1*3.7inch(2PCS) |
| Warranty | 12 years material and workmanship warranty,30 years Linear power warranty |
| Operating Temperature Range | -40℉ to 185℉(-40℃~+85℃) |
| Maximum Permissible Module Temperature (T28 max): | 185℉(85°C) |
| Module Fire Performance | Type 29 according to ANSI/UL 61730 |
| Safety Class | Class II |
Are solar panels included?
Yes. These 450W kit configurations include 20 panels, totaling 9,000W of rated solar capacity.
Which battery size should I choose?
Choose 16.07kWh, 32.14kWh, or 48.21kWh based on your daily energy use and desired backup time.
Can one battery supply the full 12kW continuously?
No. One battery is rated for 7.68kW continuous DC discharge, before inverter losses.
How long will the backup power last?
Runtime depends on battery quantity, charge level, appliance consumption, and available solar power.
Can I expand the system later?
Yes. Compatible batteries and inverters can be added with proper system design.
Is professional installation required?
Yes. Qualified electrical personnel must complete the electrical connections according to the manuals and local requirements.
