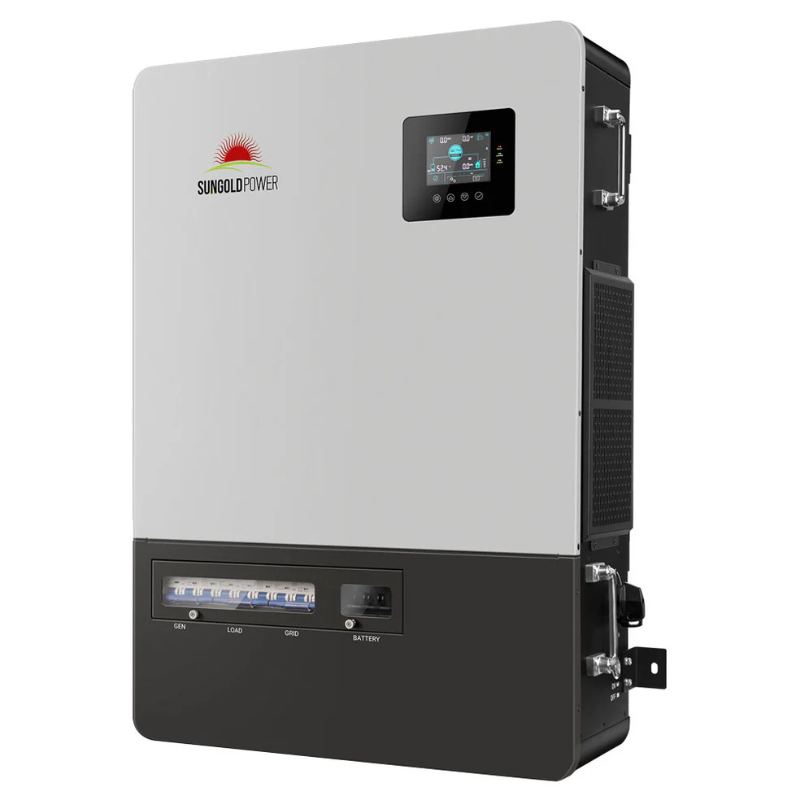

The Sungold Power 18kW 48V Commercial Three-Phase All-in-One Solar Charge Inverter is a commercial all-in-one solar inverter charger designed for 48V battery systems and three-phase output. It delivers 18,000W rated output power, supports dual MPPT PV input, and provides a 120/208VAC three-phase output for compatible commercial and backup power applications. The unit also includes built-in AC and DC circuit breakers, LCD display, WiFi remote monitoring support, and multiple working modes for solar, grid, and battery operation.

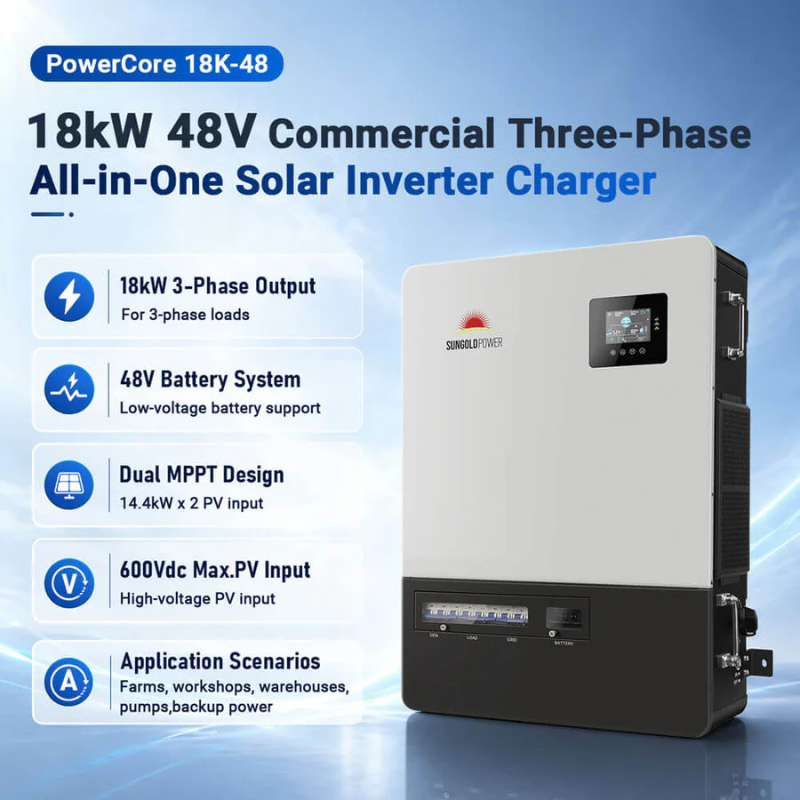

18kW Three-Phase Output - Provides 18,000W rated output power for compatible three-phase load applications.
48V Battery System - Designed for 48VDC battery systems with a battery voltage range of 40-60VDC.
Dual MPPT Solar Input - Built with 2 MPPT trackers and supports 14.4kW + 14.4kW max PV array power.
600VDC Max PV Input - Supports high-voltage PV input with a 600VDC maximum PV input voltage and 120-550VDC MPPT operating voltage range.

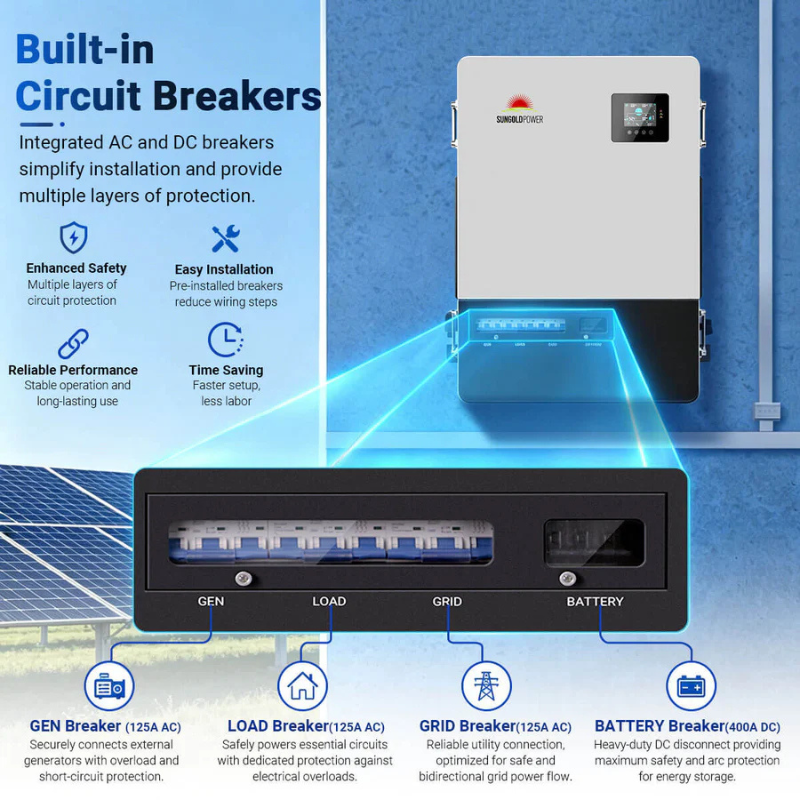

Built-In Circuit Breakers - Integrated GEN, LOAD, GRID, and BATTERY breakers help simplify installation and provide multiple layers of circuit protection.

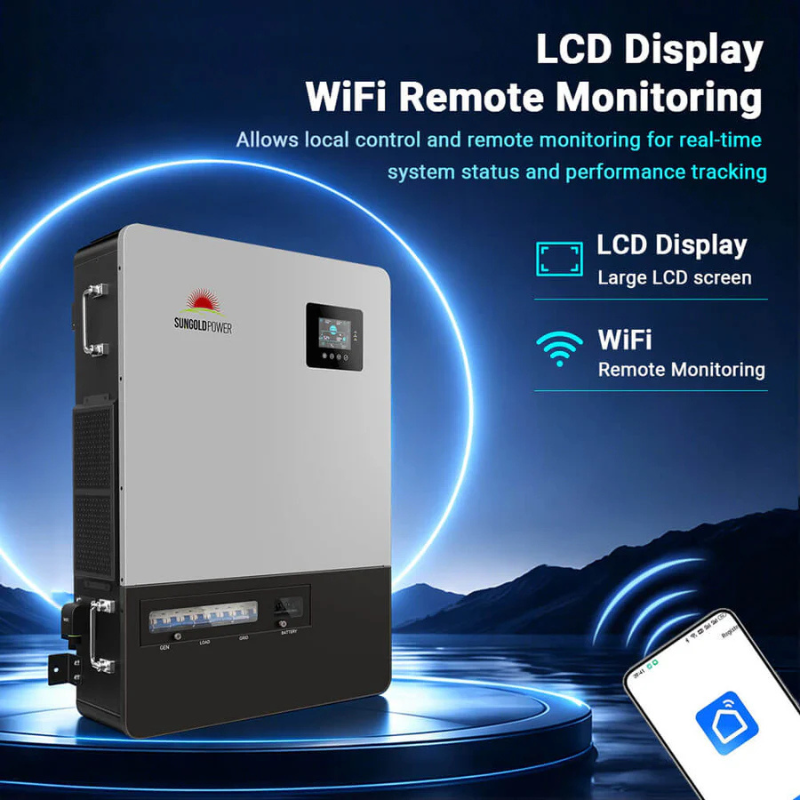

LCD Display and WiFi Remote Monitoring - Includes a large LCD display and supports WiFi remote monitoring for system status and performance tracking.

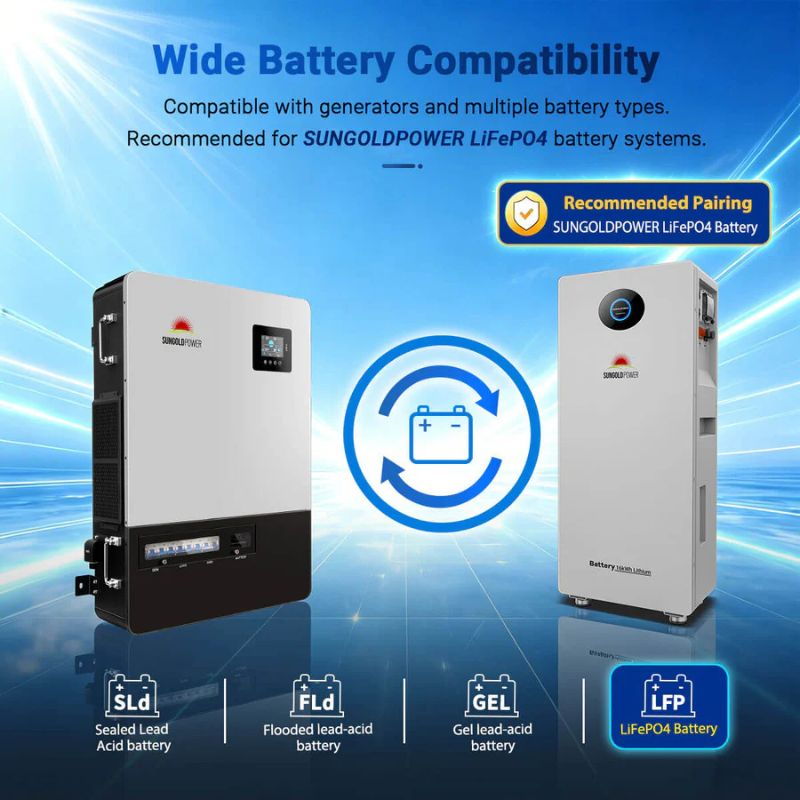

Wide Battery Compatibility - Compatible with Li-ion battery, lead-acid battery, and user-defined battery settings.

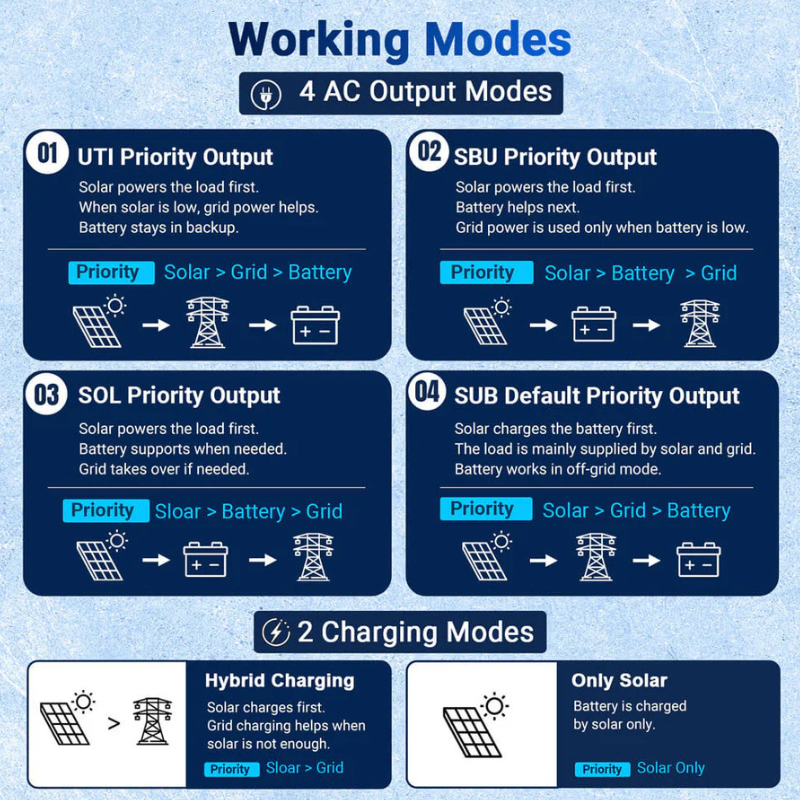

Multiple Working Modes - Supports UTL Priority Output, SBU Priority Output, SOL Priority Output, and SUB Default Priority Output, along with hybrid charging and solar-only charging modes.
Parallel Capacity - Supports parallel operation from 1 to 6 units.
Commercial Application Support - Designed for use in compatible commercial applications such as farms, workshops, warehouses, pumps, and backup power setups.




Everything you need is included with your product.


Inverter Output
| Specification | Details |
| Rated Output Power | 18,000W |
| Max. Peak Power | 2 times rated power, 10s |
| Max. AC Output Power | 19,800VA |
| Rated AC Output Current | 50.0Aac |
| Rated Output Frequency | 50/60Hz |
| Rated Output Voltage | 120/208Vac (L1+L2+L3+N+PE) |
| Output Voltage Range | 120/208Vac ± 5% |
| Specification | Details |
| Battery Type | Li-ion Battery / Lead-Acid Battery / User Defined |
| Rated Battery Voltage | 48Vdc |
| Battery Voltage Range | 40–60Vdc |
| Max. PV Charging Current | 360Adc |
| Max. Grid/Generator Charging Current | 360Adc |
| Max. Charging/Discharging Current | 360Adc |
| Charging Curve | 3 Stages / Equalization |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
PV Input
| Specification | Details |
| No. of MPPT Trackers | 2 |
| Max. PV Array Power | 14.4kW + 14.4kW |
| Max. Input Current | 36Adc + 36Adc |
| Min. PV Input Voltage / Start-up Voltage | 100Vdc |
| Max. PV Input Voltage | 600Vdc |
| MPPT Operating Voltage Range | 120–550Vdc |
Grid / Generator Input
| Specification | Details |
| Frequency Range | 50/60Hz |
| Input Voltage Range | 120/208Vac (L1+L2+L3+N+PE) |
| AC Voltage Range | Phase Voltage 90–140Vac; Line Voltage 156–242Vac |
| Continuous Grid Passthrough Current | 100A |
Interface
| Specification | Details |
| Communication Port | RS485 / CAN / USB / Dry Contact |
| External Modules (Optional) | Wi-Fi / GPRS |
General Data
| Specification | Details |
| Parallel Capacity | 1–6 Units |

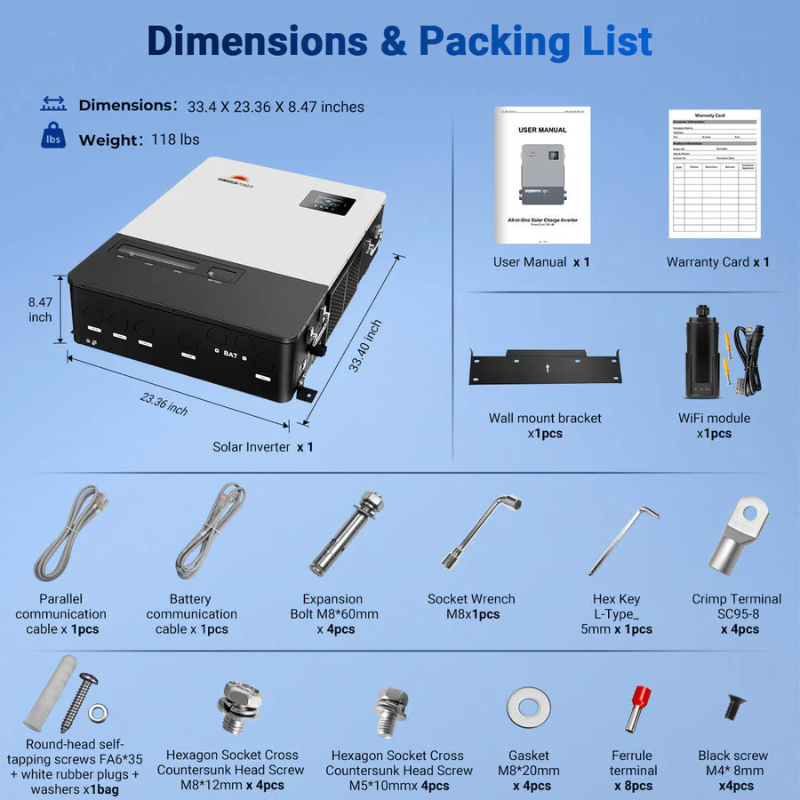

| Parallel Capacity | 23.36 × 33.40 × 8.47 inches |
| Weight | 118 lbs |
| Protection Degree | IP20, indoor use only |
| Operating Temperature Range | 14 ~ 131°F, >113°F Derated |
| Noise | <60dB |
| Cooling Method | Intelligent Air Cooling |
Communication
| Specification | Details |
| Internal Interface | RS485 / CAN / WiFi |
| External Module (Optional) | WiFi / 4G Stick |
Certified Specifications
| Specification | Details |
| Safety Standards | IEC62109-1, IEC62109-2 |
| EMC | EN61000-6-1, EN61000-6-3, FCC 15 Class B |
| RoHS | Yes |



What is the rated output power of this inverter?
The Sungold Power 18kW 48V Commercial Three-Phase All-in-One Solar Charge Inverter has a rated output power of 18,000W.
What battery voltage does this inverter support?
It is designed for 48VDC battery systems with a battery voltage range of 40-60VDC.
What battery types are compatible?
The inverter supports Li-ion batteries, lead-acid batteries, and user-defined battery settings.
How many MPPT trackers does it have?
It has 2 MPPT trackers.
What is the maximum PV array power?
The maximum PV array power is 14.4kW + 14.4kW.
What is the maximum PV input voltage?
The maximum PV input voltage is 600VDC.
Does this inverter support WiFi monitoring?
Yes. The inverter supports WiFi remote monitoring and includes a WiFi module in the packing list.
Does it have built-in breakers?
Yes. It includes built-in breakers for GEN, LOAD, GRID, and BATTERY.
Can multiple units be connected in parallel?
Yes. The inverter supports parallel capacity from 1 to 6 units.
Is this inverter for indoor or outdoor use?
The protection degree is IP20, and the specification states indoor use only.
