SunGold Power 22.8kW Hybrid Solar Kit, 51.2kWh Battery | 120/240V | SGH-11N5E-S

The SunGold Power 22.8kW Hybrid Solar Kit is a high-capacity energy storage solution designed for residential backup power, off-grid living, and hybrid solar applications. Featuring two 11.4kW hybrid solar inverters and 51.2kWh of LiFePO4 battery storage, the system provides substantial power capacity for homes with demanding electrical requirements.

Each hybrid inverter supports 120/240V split-phase pure sine wave output, a maximum 15,000W PV input, and three MPPT solar charge controllers. Together, the two inverters provide 22,800W of combined rated AC output, subject to the manufacturer's approved parallel configuration.

SunGold Power 22.8kW Hybrid Solar Kit Features

22.8KW Hybrid Inverter System (Dual 11.4KW) - Two hybrid inverters support grid-tied, off-grid, and backup functions with split-phase output for ultimate flexibility.

36 High-Efficiency 450W Solar Panels - Bifacial N-Type monocrystalline panels capture energy from both sides, producing maximum output even in variable lighting.

51.2KWh LiFePO4 Battery Storage - Ten 100AH 51.2V lithium batteries provide extensive energy storage for long-term energy security and can support large power demands.

Split Phase 120V/240V Output - Easily powers residential and commercial appliances, tools, and heavy-duty systems.

Complete Kit with Premium Components - Includes enclosed battery cabinets, solar extension cables, and high-quality wiring for safe, professional-grade installation.

Advanced Energy Management - Hybrid inverters intelligently manage energy from solar panels, battery bank, and the grid or generators to ensure continuous power.

SunGold Power 22.8kW Hybrid Solar Kit Applications

Whole-Home Backup Power – Supports compatible household circuits and appliances during utility outages when properly sized and installed.
Off-Grid Residential Systems – Provides high-capacity inverter power and battery storage for homes operating independently of the electrical grid.
Large Residential Properties – Supports homes with higher electrical demands, subject to load calculations and inverter limits.
Rural Homes and Farms – Provides stored energy for compatible equipment and essential electrical systems where utility power is unreliable.
Emergency Preparedness – Stores electricity for refrigerators, lighting, communication equipment, and other important household loads.
Solar Energy Storage – Stores electricity generated by compatible solar panels for use when sunlight is unavailable.

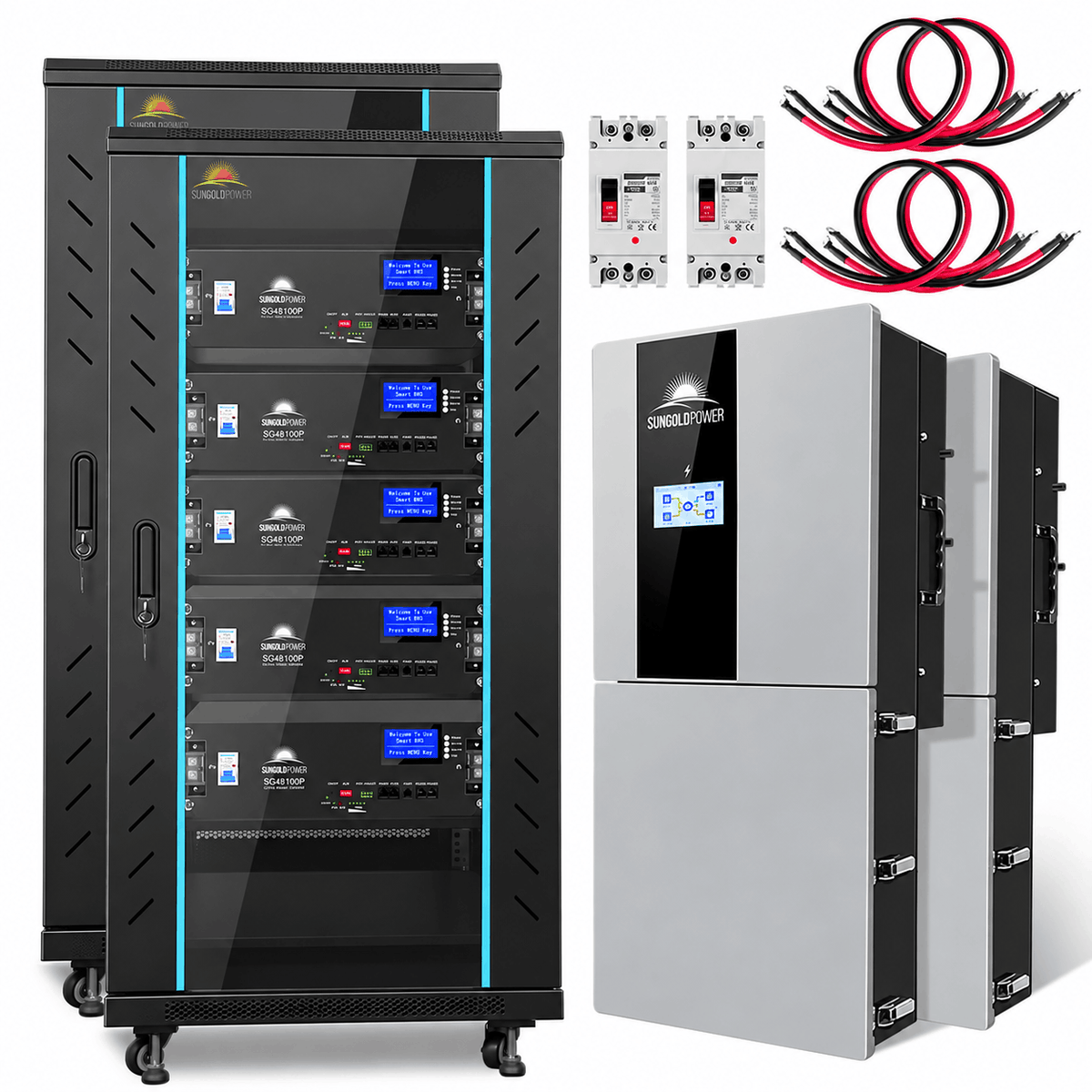

What's Included

Everything you need is included with your product.

2 X 11.4KW 48V Split Phase Hybrid Solar Inverter
10 X 100AH 51.2V LiFePO4 Battery

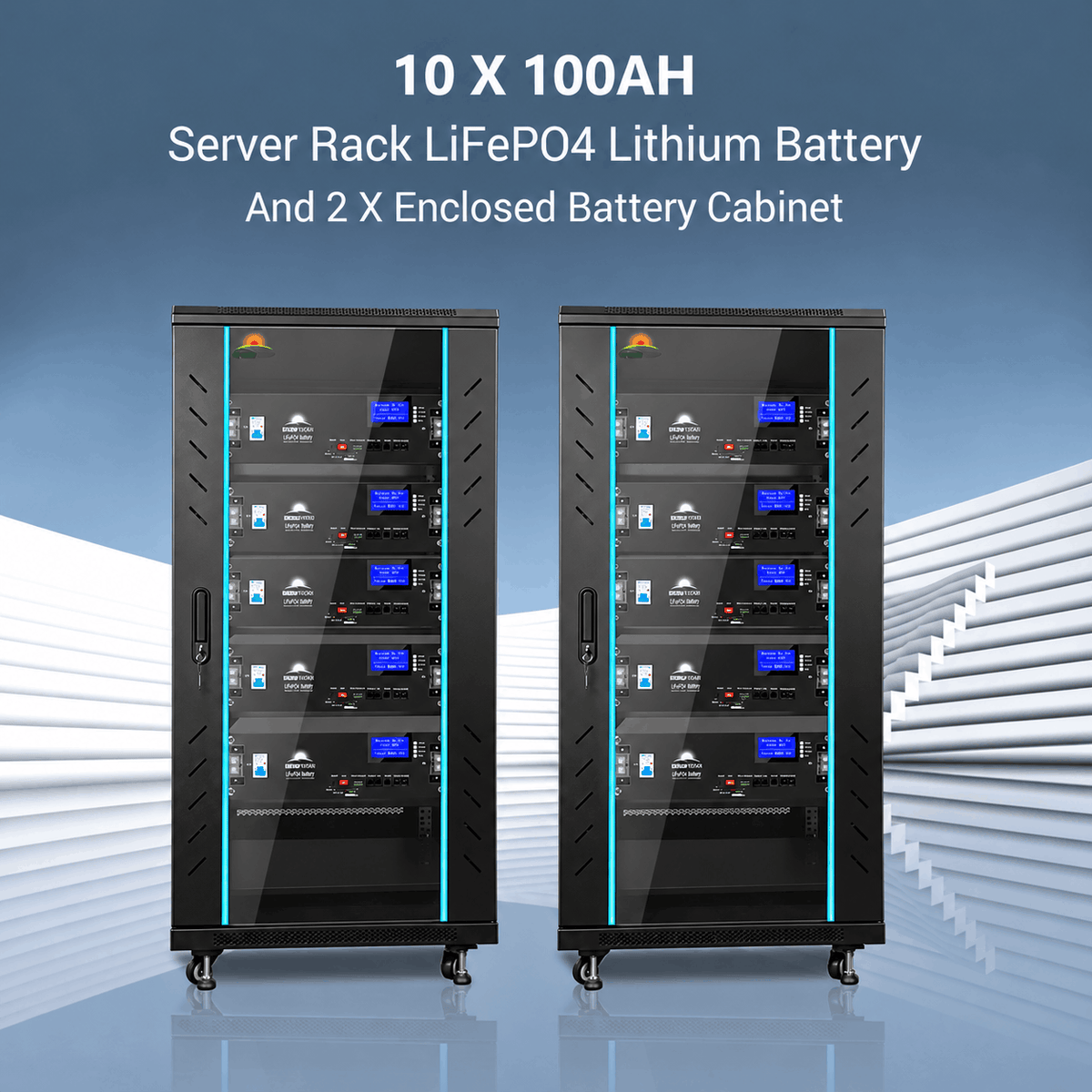

2 X Enclosed Battery Cabinet for 10X 100AH 51.2V LiFePO4 Batteries

4 Sets X 2/0 AWG Cables (Breaker to Battery or Inverter Connection)
2 X 200A DC Breakers
User Manual

SunGold Power 22.8kW Hybrid Solar Kit, 16.2kW Solar, 51.2kWh Battery Specifications

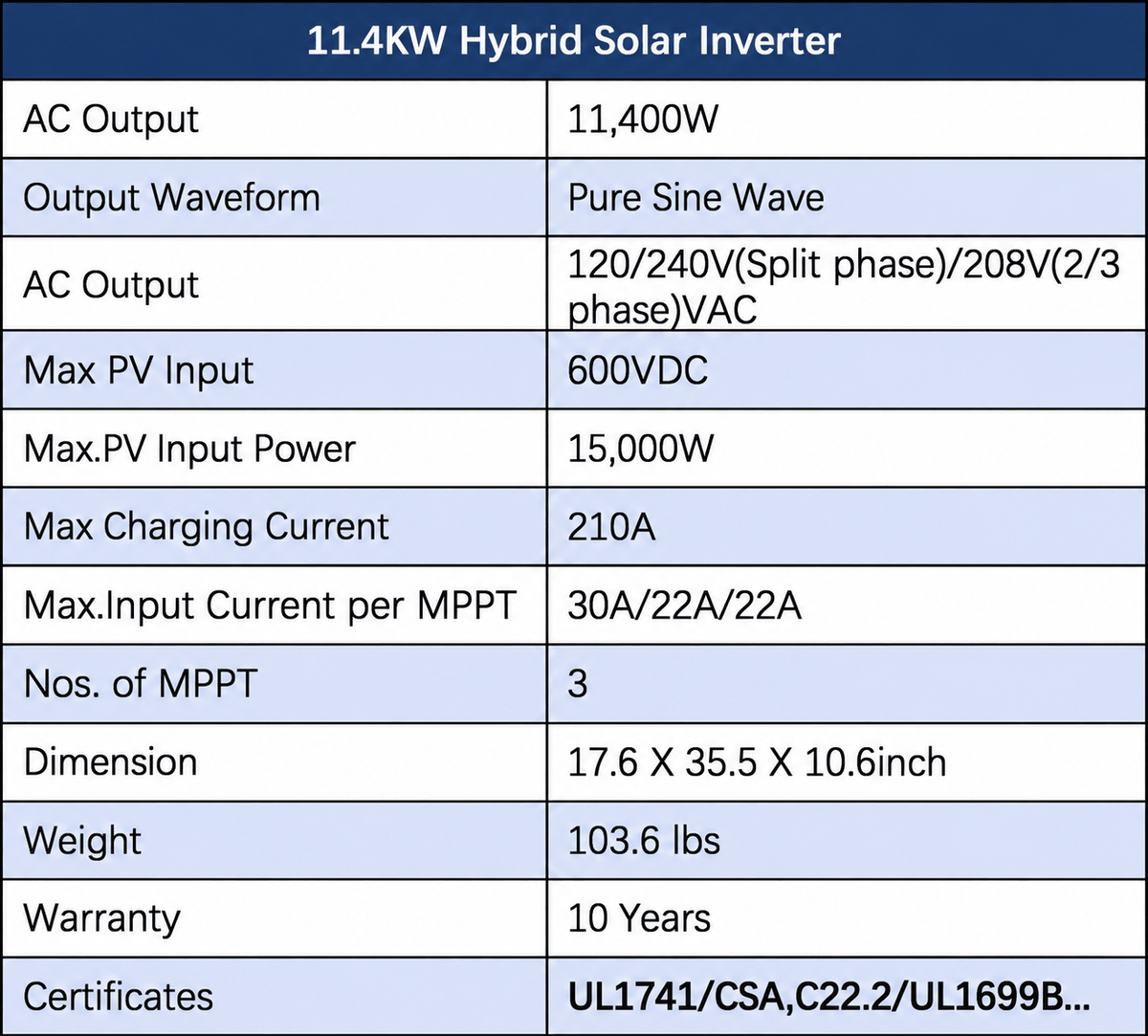

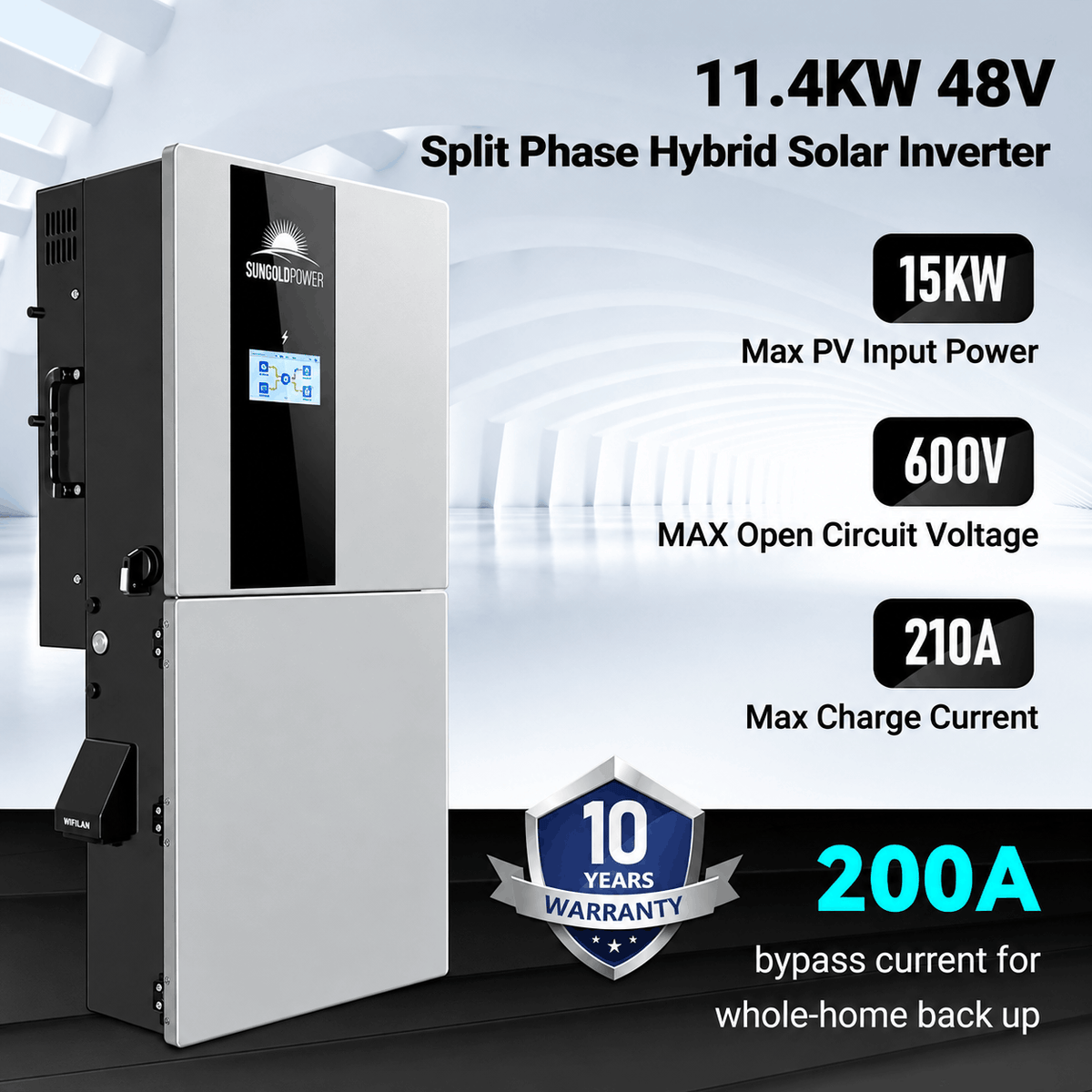

11.4KW Hybrid Solar Inverter

Specification	Details
AC Output	11,400W
Output Waveform	Pure Sine Wave
AC Output	120/240V (Split phase) / 208V (2/3 phase) VAC
Max PV Input	600VDC
Max PV Input Power	15,000W
Max Charging Current	210A
Max. Input Current per MPPT	30A / 22A / 22A
Nos. of MPPT	3
Dimension	17.6 × 35.5 × 10.6 inches
Weight	103.6 lbs
Warranty	10 Years
Certificate	UL1741 / CSA, C22.2 / UL1699B...

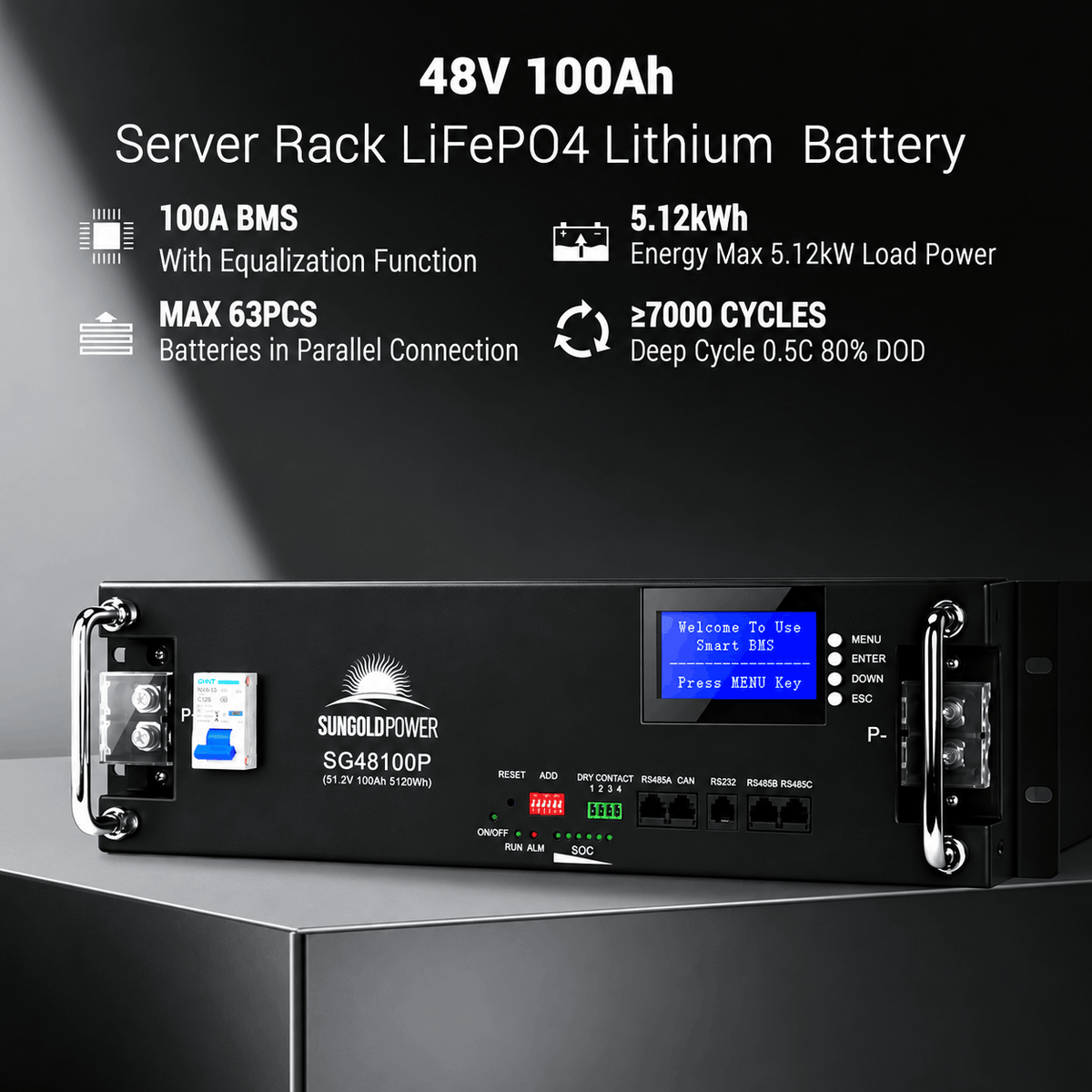

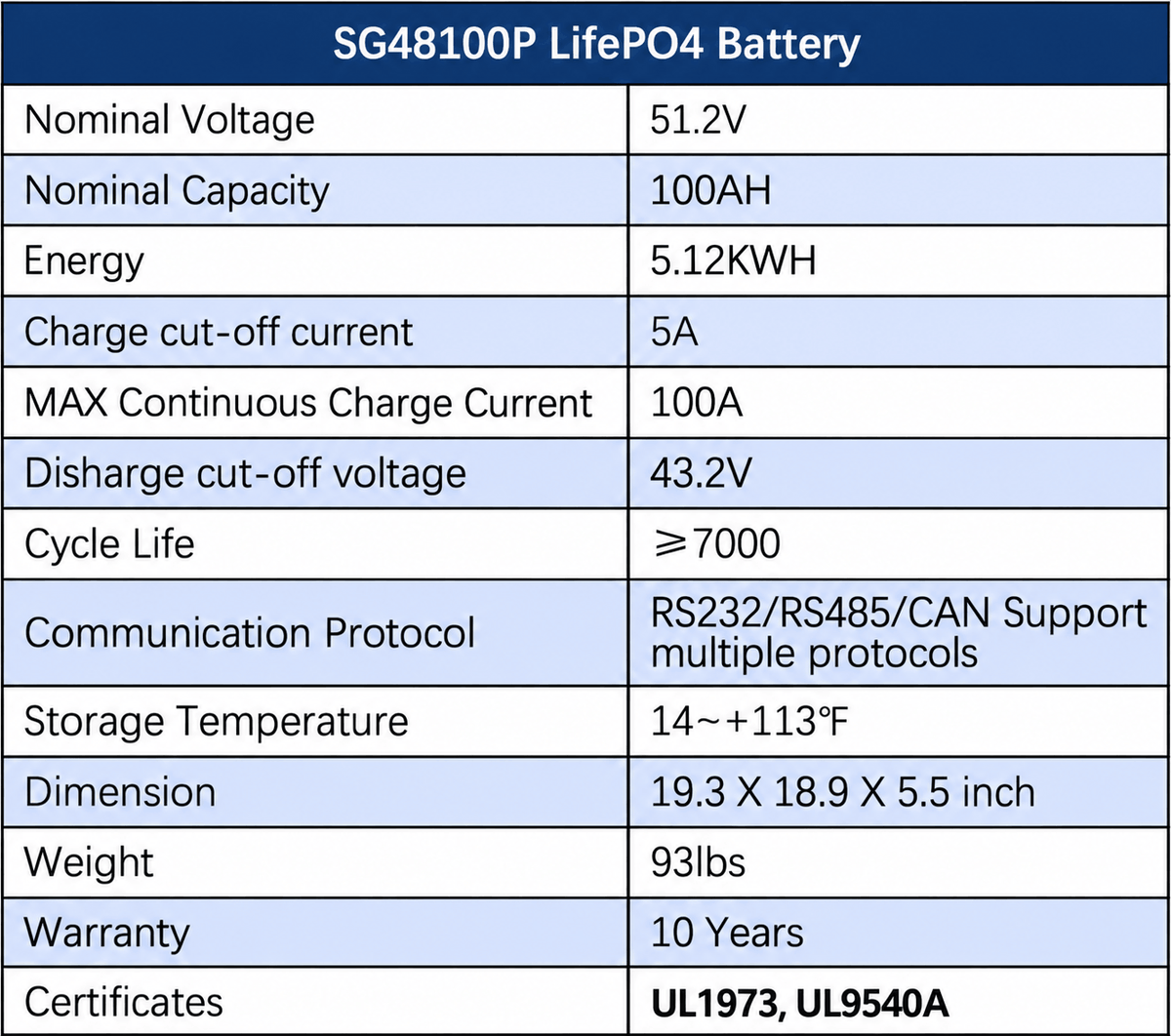

SG48100P LifePO4 Battery

Specification	Details
Nominal Voltage	51.2V
Nominal Capacity	100AH
Energy	5.12KWH
Charge cut-off current	5A
MAX Continuous Charge Current	100A
Discharge cut-off voltage	43.2V
Cycle Life	>7000
Communication Protocol	RS232/RS485/CAN Support multiple protocols
Storage Temperature	14~+113°F
Dimension	19.3 × 18.9 × 5.5 inches
Weight	93lbs
Warranty	10 Years
Certificates	UL1973, UL9540A

Frequently-Asked Questions

How much battery storage does this kit provide?

The kit includes ten 51.2V 100Ah LiFePO4 batteries, each providing 5.12kWh of nominal energy. Together, they provide 51.2kWh of battery storage.

How much power can the system deliver?

The system includes two 11.4kW hybrid inverters, providing a combined rated output of 22.8kW when installed and configured for manufacturer-approved parallel operation.

Can I add solar panels later?

Yes. Each inverter supports up to 15,000W of PV input. A qualified solar installer should design the array to meet the individual inverter's voltage, current, and MPPT requirements.

Can this system power an entire house?

It can support substantial residential electrical loads, including compatible 120V and 240V appliances. Actual whole-home capability depends on simultaneous power demand, startup loads, electrical distribution, and installation design.

How long will the 51.2kWh battery last?

The following illustrative estimates assume 85% of nominal battery capacity is available as usable AC energy, accounting approximately for inverter losses and battery reserve.
