SunGold Power 250A Bus Bar with Cover 48VDC | 1 Pair
The SunGold Power 250A Bus Bar with Cover 48VDC | 1 Pair provides a safe, reliable, and organized solution for high-current DC power distribution in solar energy systems, battery banks, RVs, marine applications, and off-grid installations.
Designed to serve as a centralized connection point, this bus bar allows multiple batteries, inverters, charge controllers, and other DC components to connect efficiently while minimizing wiring clutter. Its tin-plated solid copper construction ensures excellent electrical conductivity and corrosion resistance, while the protective covers help prevent accidental contact with exposed terminals.
SunGold Power 250A Bus Bar with Cover Features
250A Continuous Current Capacity - Supports up to 250 amperes DC for reliable high-current power distribution, making it suitable for battery banks, solar energy storage systems, and inverter installations.

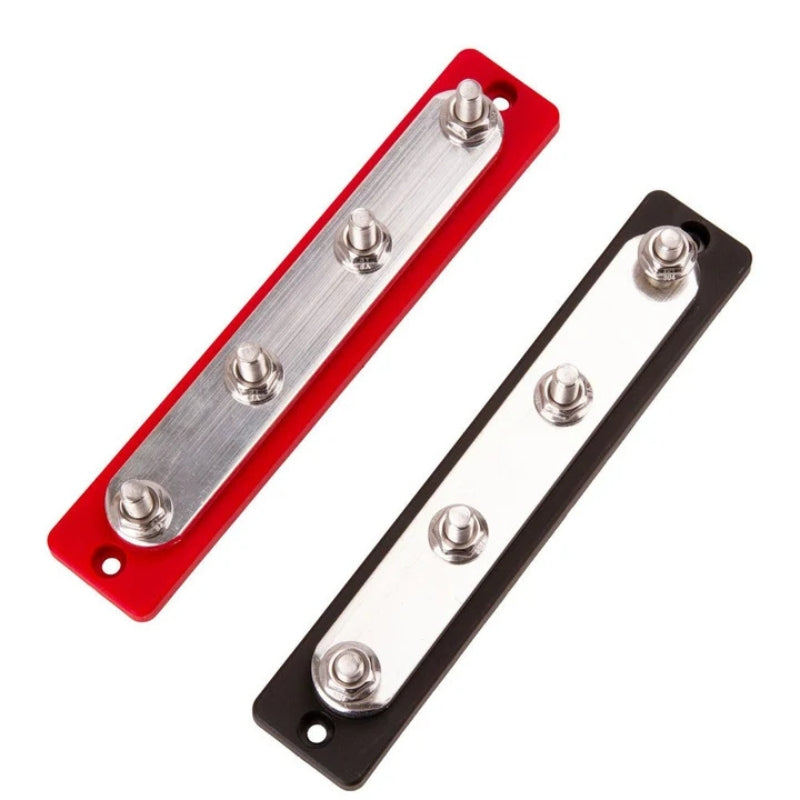

Tin-Plated Solid Copper Construction - Built with tin-plated solid copper bus bars to provide excellent electrical conductivity, efficient current transfer, and corrosion resistance for long-term performance.

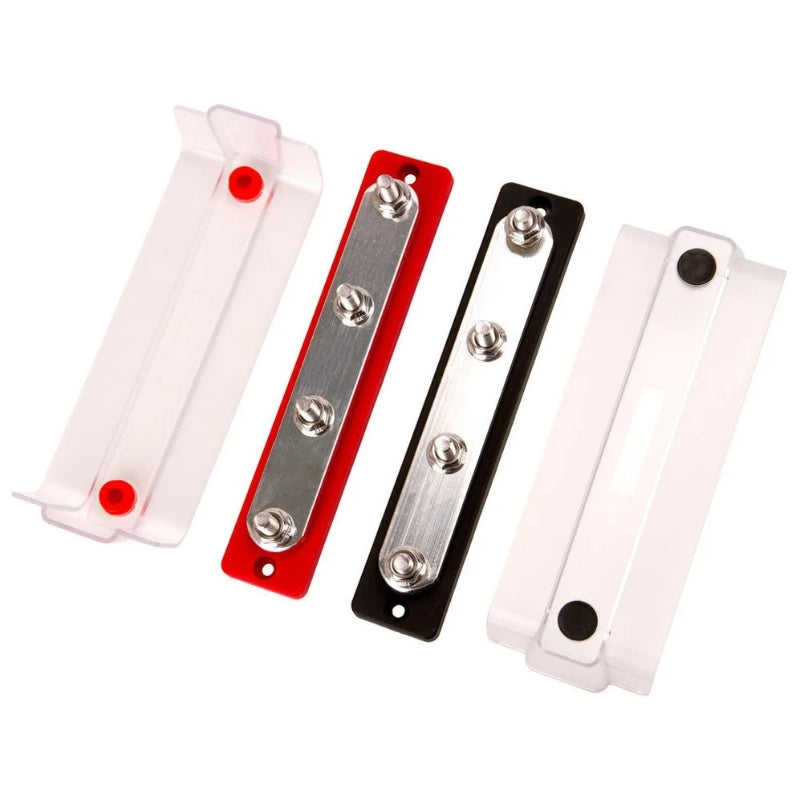

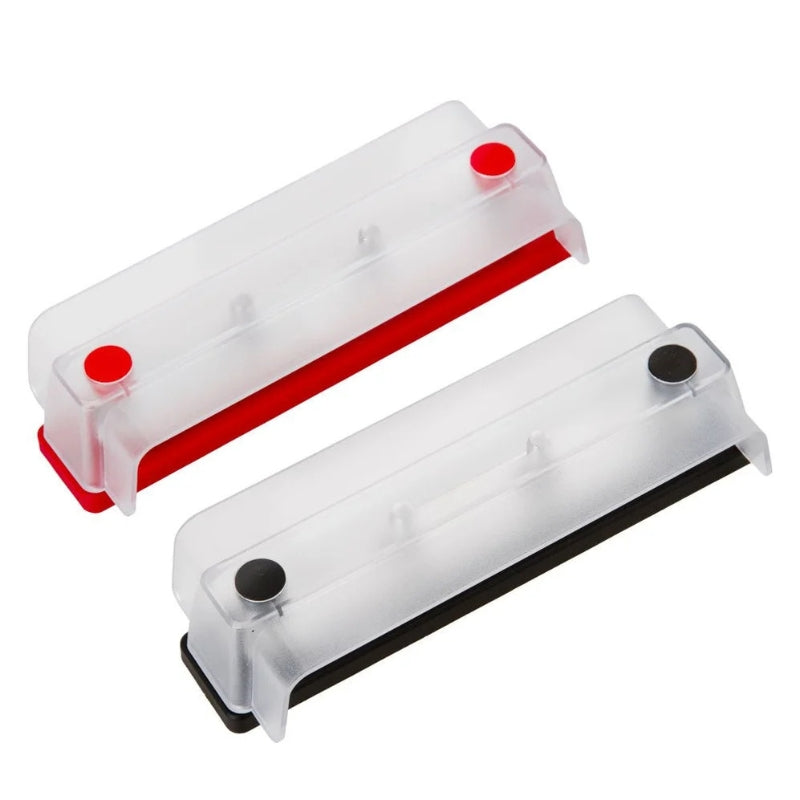

Protective Covers for Enhanced Safety - Each bus bar features a protective cover that helps shield exposed terminals from accidental contact, promoting a safer and more organized electrical installation.
Multiple Connection Points - Equipped with 4 × M8 (5/16") terminal studs, allowing multiple DC components, including batteries, inverters, and charge controllers, to connect through a centralized distribution point.
48V DC System Compatibility - Designed for DC electrical systems with a maximum voltage rating of 48V DC, making it suitable for compatible low-voltage solar and battery applications.
Compact and Easy-to-Install Design - With dimensions of 7.76 × 2.68 × 1.73 inches, the bus bar offers a space-efficient solution for organizing electrical connections in battery compartments, power distribution enclosures, and off-grid systems.
Durable and Corrosion-Resistant Design - Combines high conductivity, corrosion resistance, and temperature-resistant construction to support dependable performance in a variety of DC power applications.
SunGold Power 250A Bus Bar with Cover Applications
-
Solar Energy Storage Systems – Provides a centralized connection point for distributing DC power between batteries, charge controllers, and compatible inverters.
-
Off-Grid Power Systems – Helps organize high-current DC wiring for off-grid cabins, remote installations, and independent energy systems.
-
Battery Banks – Simplifies connections between multiple batteries and connected DC equipment while reducing wiring clutter.
-
RV and Camper Electrical Systems – Supports organized DC power distribution for compatible RV battery and solar setups.
-
Marine Electrical Systems – Offers a centralized distribution point for compatible DC battery systems and onboard electrical equipment.
-
Backup Power Systems – Helps manage DC connections between battery storage and compatible backup power equipment.

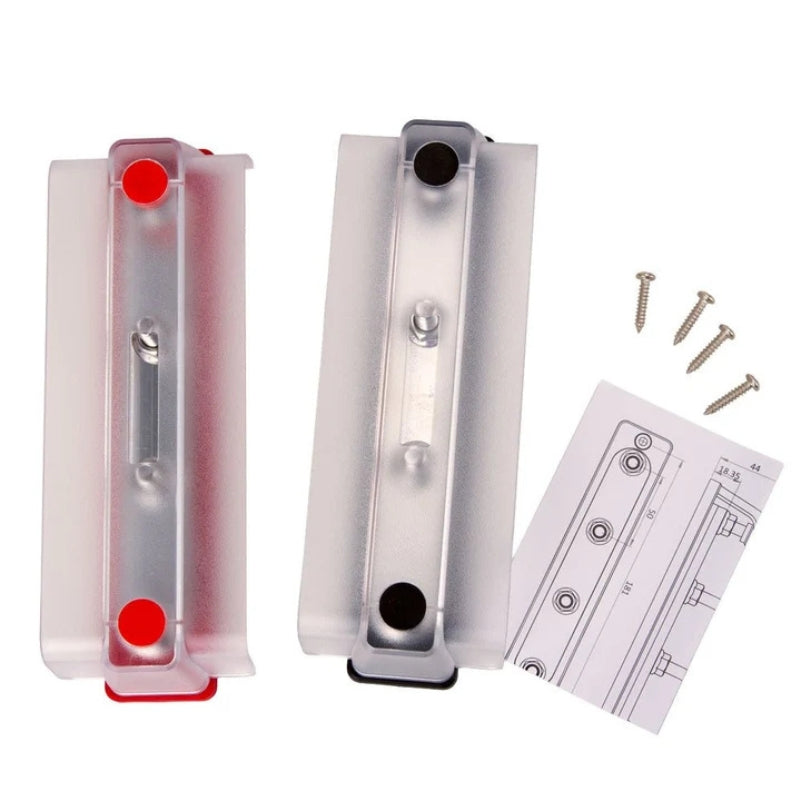

What's Included?
-
1 × SunGold Power 250A Bus Bar with Cover 48VDC| 1 Pair

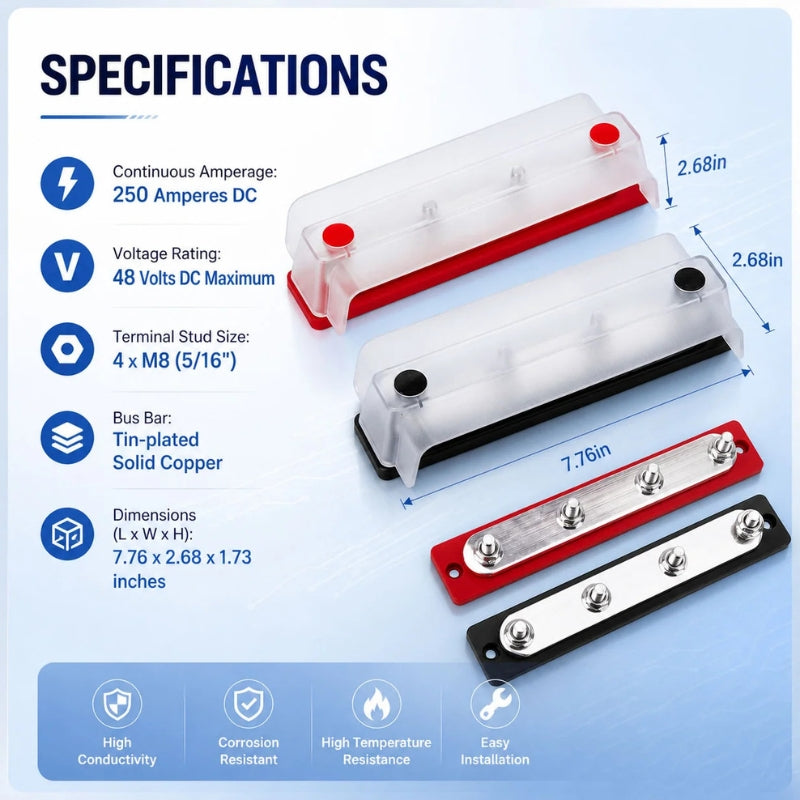

SunGold Power 250A Bus Bar with Cover Specifications
|
Specification
|
Details
|
|
Continuous Amperage
|
250 Amperes DC
|
|
Voltage Rating
|
48 Volts DC Maximum
|
|
Terminal Stud Size
|
4 × M8 (5/16")
|
|
Bus Bar
|
Tin-plated Solid Copper
|
|
Dimensions (L × W × H)
|
7.76 × 2.68 × 1.73 inches
|
Frequently-Asked Questions
What is the maximum current capacity of the SunGold Power 250A Bus Bar?
The SunGold Power 250A Bus Bar supports a continuous current of 250 amperes DC, making it suitable for high-current DC distribution in compatible battery storage and solar energy systems.
Is the SunGold Power 250A Bus Bar compatible with 48V battery systems?
Yes. The bus bar has a maximum voltage rating of 48V DC and can be used with compatible systems that operate within its specified voltage and current limits. Verify the actual maximum voltage of the battery system before installation.
What material is the bus bar made from?
The bus bar is constructed from tin-plated solid copper, providing reliable electrical conductivity and corrosion resistance for efficient DC power distribution.
How many connection points does each bus bar have?
Each bus bar features four M8 (5/16") terminal studs, allowing multiple compatible DC electrical components to connect at a centralized point.
Does the SunGold Power 250A Bus Bar come with protective covers?
Yes. The pair includes protective covers that help prevent accidental contact with exposed electrical terminals while keeping the installation neat and organized.
Can this bus bar be used for RV and marine applications?
Yes. The bus bar is suitable for compatible RV, marine, solar energy storage, and off-grid electrical systems, provided the installation meets the product's electrical ratings and applicable safety requirements.
Does the package include both positive and negative bus bars?
Yes. The product is sold as one pair, consisting of a red positive bus bar and a black negative bus bar, each with a protective cover.
Can the SunGold Power 250A Bus Bar be used to connect multiple batteries?
Yes. It can provide a centralized connection point for multiple batteries and DC equipment. Proper cable sizing, circuit protection, and system compatibility are essential for safe operation.
