Sungold Power 3000W 24V Solar Inverter Charger [PV120-450V / MPPT120-400V]

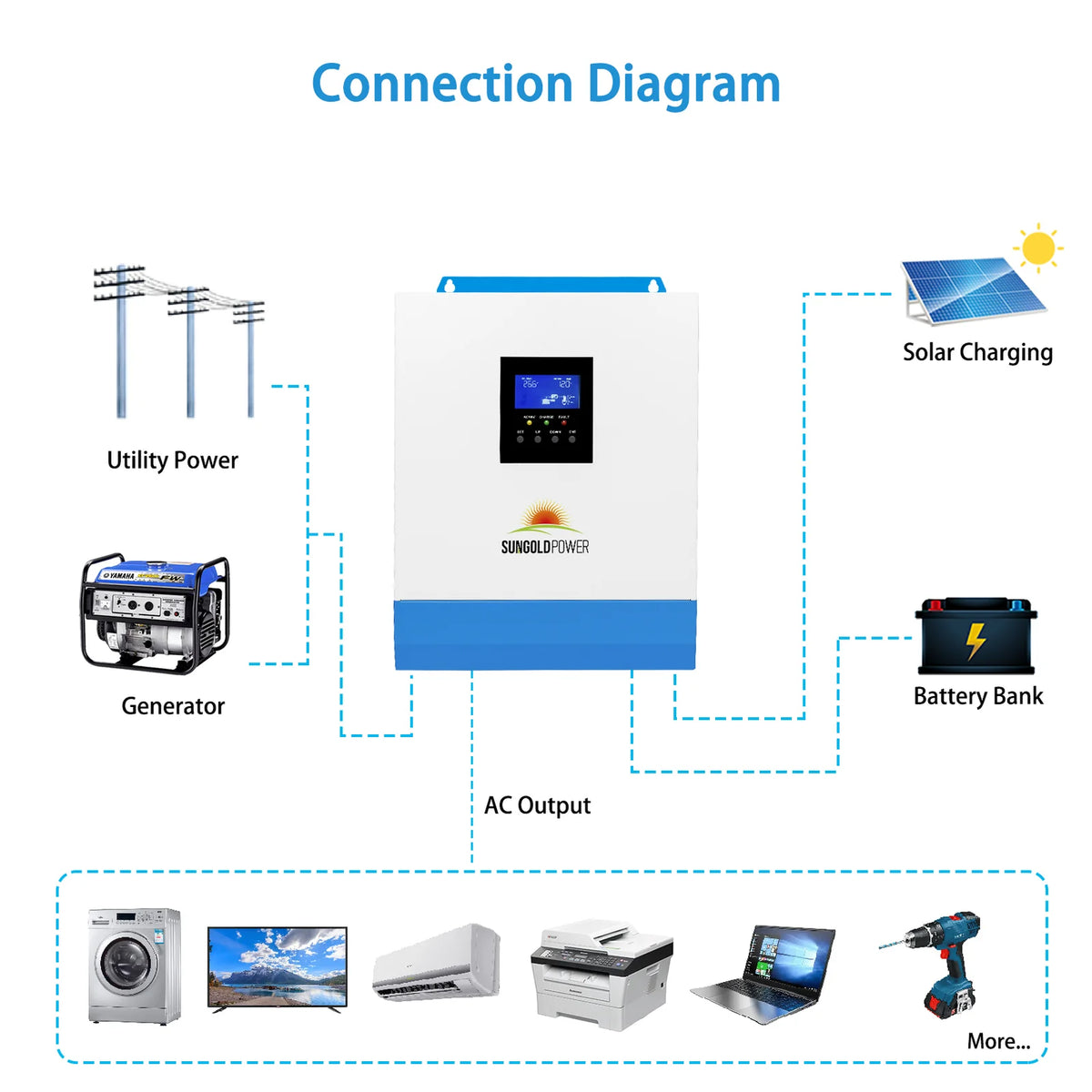

The Sungold Power 3000W 24V Solar Inverter Charger [PV120-450V / MPPT120-400V] combines solar charging, AC/generator battery charging, and battery inverter functions into one unit. This model is compatible with 24V battery packs and features a 3000W pure sine wave inverter, built-in 80A MPPT solar charge controller, and 40A smart AC charger. It supports user-configurable AC/solar charging modes and load output modes, with a 10ms conversion time for UPS-style backup operation.

Sungold Power 3000W 24V Solar Inverter Charger [PV120-450V / MPPT120-400V] Features

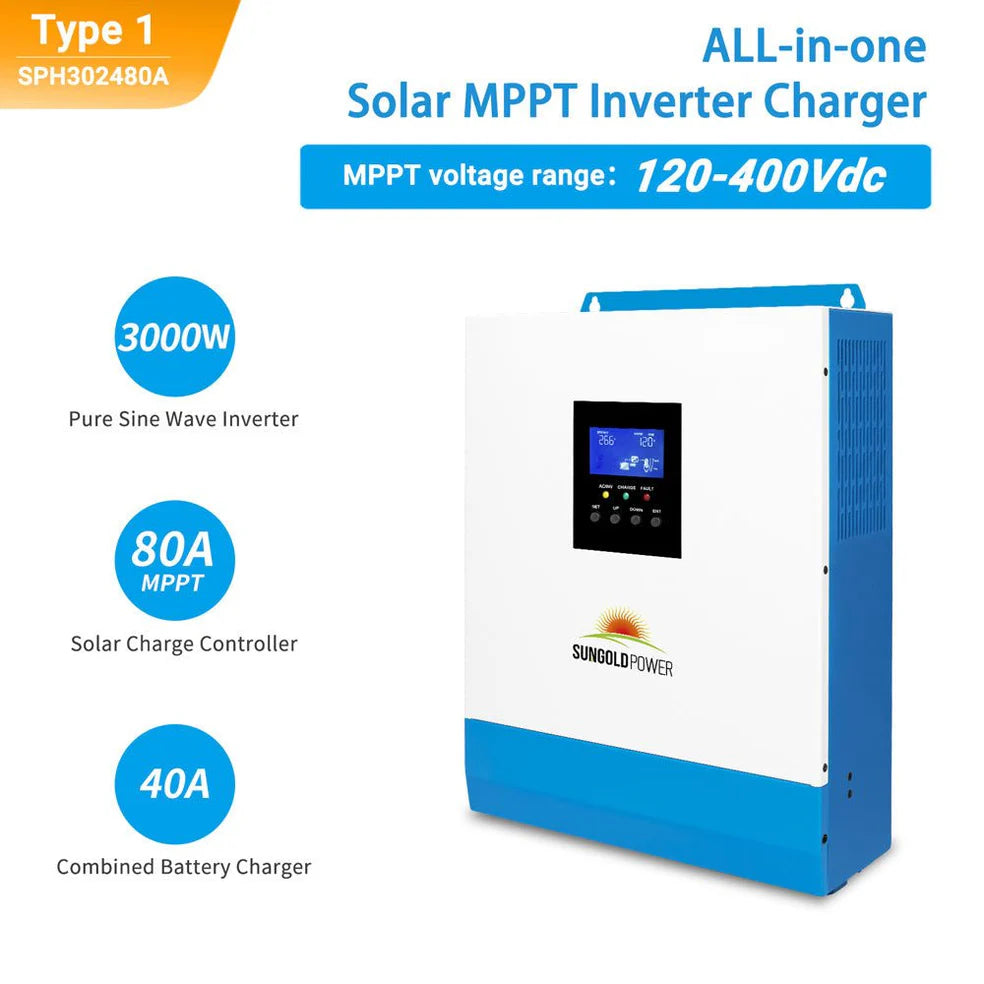

All-in-One Solar Inverter Charger - Combines solar charging, AC/generator battery charging, and battery inverter functions into one complete unit.

3000W Pure Sine Wave Output - Provides 3000W pure sine wave output with 120VAC, 50Hz/60Hz AC output.

80A MPPT Solar Charge Controller - Built with an 80A MPPT solar charge controller and supports up to 4000W maximum PV input power.

40A Smart AC Charger - Includes a 40A smart AC charger with a rated AC input of 110V, 50Hz/60Hz.

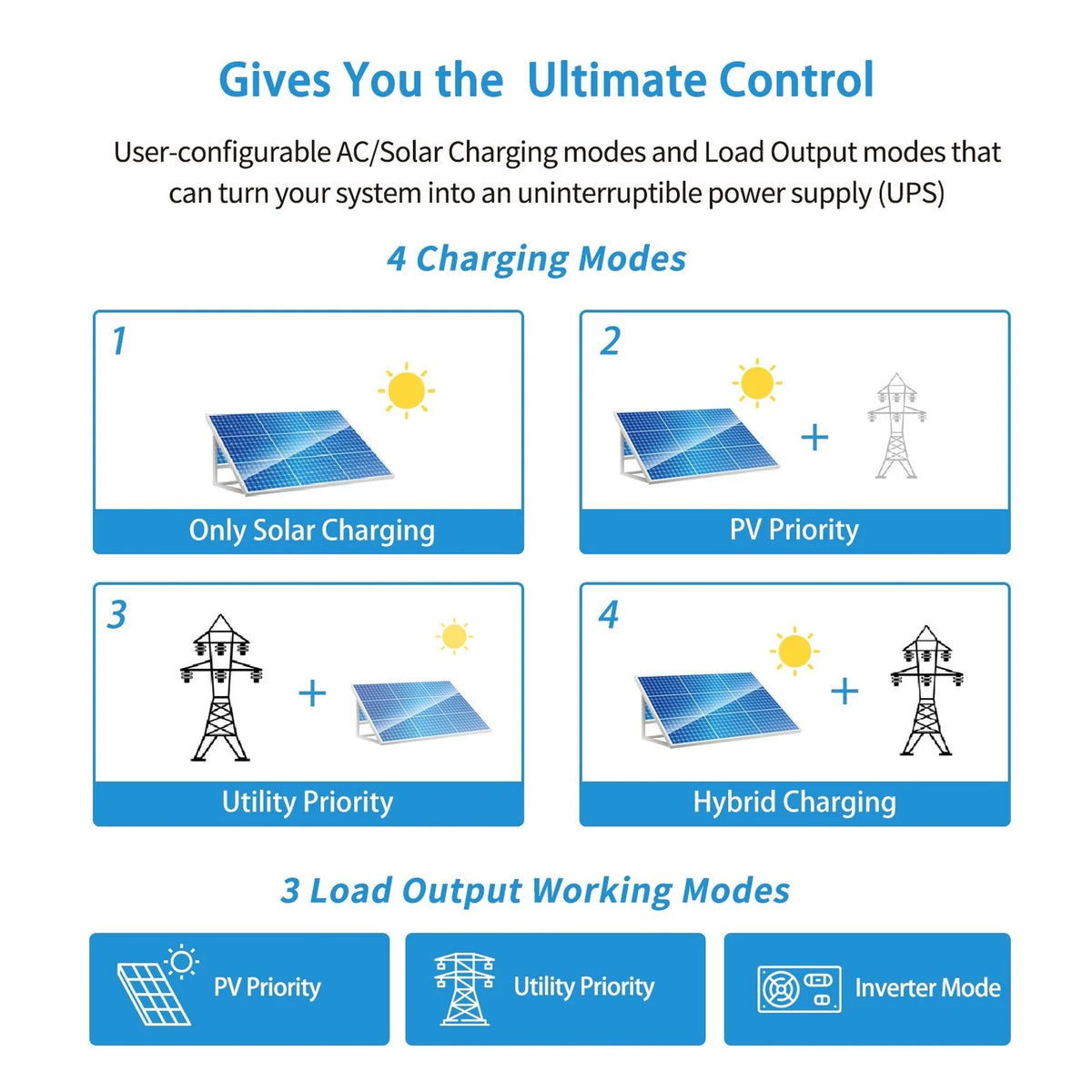

Four Charging Modes - Supports AC Priority, Solar Priority, Only Solar, and Mains & Solar hybrid charging modes.

Three Load Output Working Modes - Includes PV Priority, Utility Priority, and Inverter Mode load output working modes.

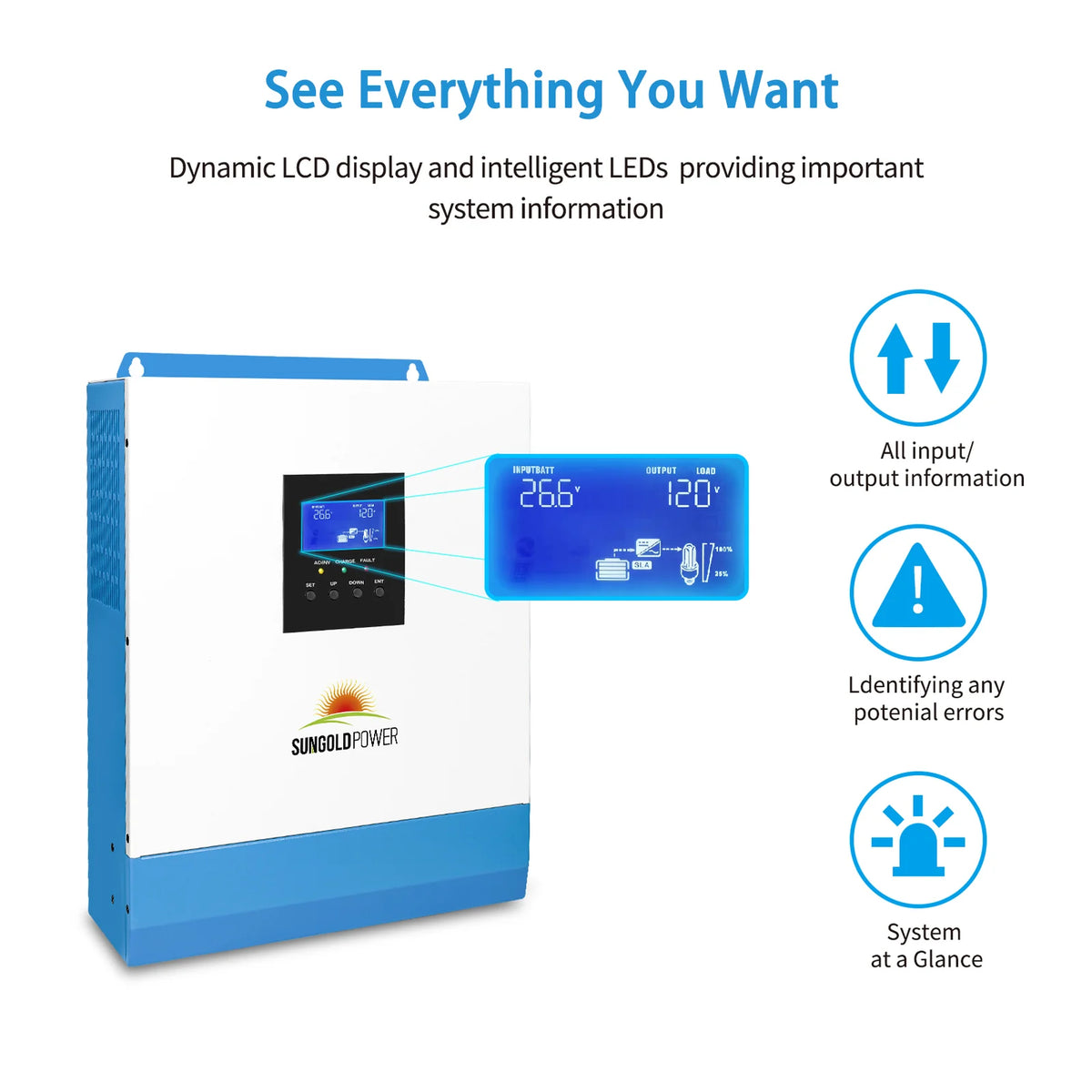

Dynamic LCD and LED Display - The LCD display and intelligent LEDs show system information, including input/output information, potential errors, and system status.

Battery Compatibility - Compatible with 24V AGM/Sealed, Gel, Flooded, Lithium batteries, and includes a User Mode for custom inputs.

Protection Functions - Includes overload protection, short circuit protection, and over-discharge protection.

Generator Auto-Start Support - Supports auto-start the generator through dry contacts for delivering signal.

Sungold Power 3000W 24V Solar Inverter Charger [PV120-450V / MPPT120-400V] Applications

Solar Charging – Supports solar charging through the built-in 80A MPPT solar charge controller.
AC/Generator Battery Charging – Supports AC/generator battery charging with a 40A smart AC charger.
Battery Inverter Use – Converts power from a 24V battery pack to 120VAC pure sine wave output.
UPS Backup Operation – Can switch to battery supply within 10ms when main/generator power is disconnected or solar charging is insufficient.
24V Battery System Use – Compatible with 24V AGM/Sealed, Gel, Flooded, Lithium batteries, and User Mode battery settings.
Load Output Mode Control – Supports PV Priority, Utility Priority, and Inverter Mode load output working modes.

What's Included

Everything you need is included with your product.

Sungold Power 3000W 24V Solar Inverter Charger [PV120-450V / MPPT120-400V]

User Manual

Sungold Power 3000W 24V Solar Inverter Charger Specifications

Inverter Mode

Specification	Details
Output	Pure Sine Wave
Peak Power	6000VA
AC Output	120VAC ,50HZ/60HZ
Input Voltage / Rated Battery	24VDC (minimum start-up voltage:22V)
Bypass Breaker Current	40A
Idle Power	50W
Power Saver Mode Idle Consumption	25W

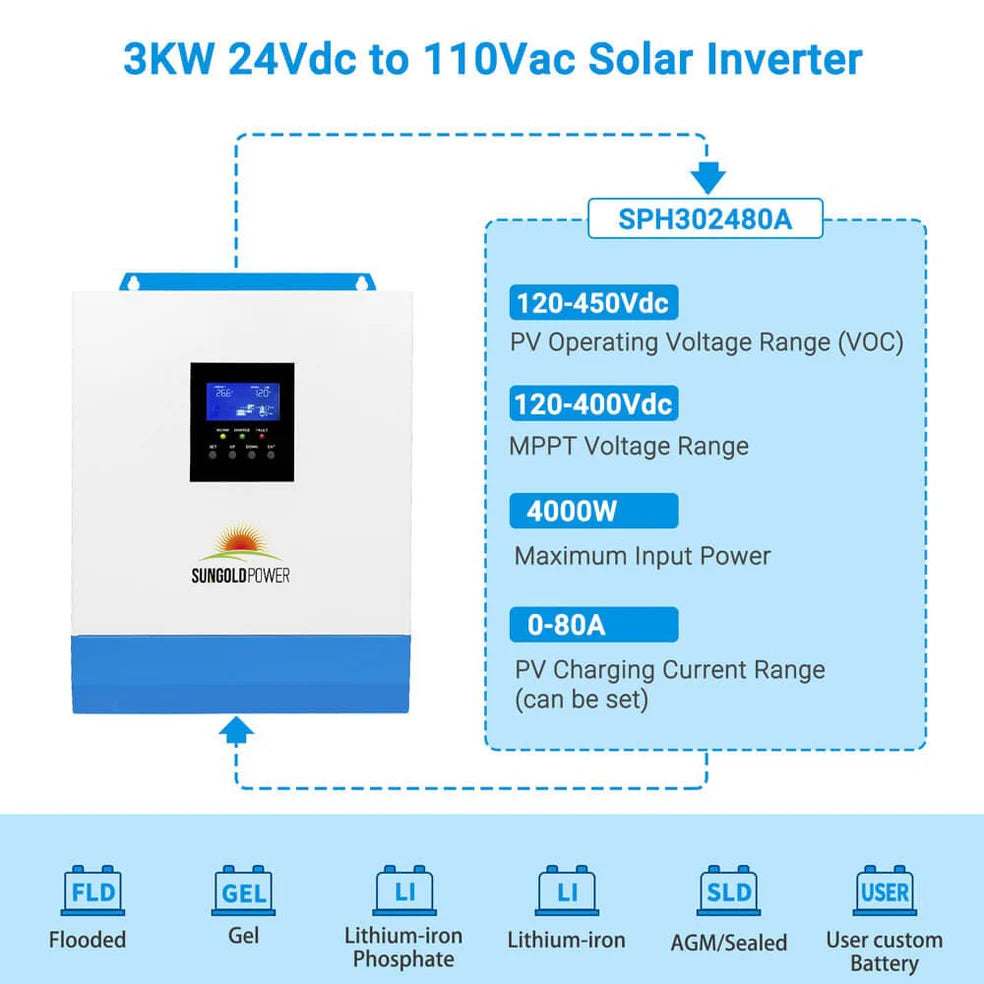

SPH302480A MPPT Solar Charging Mode

Specification	Details
Maximum Input Power	4000W
PV Charging Current	0-80A
Max.PV Open Circuit Voltage	450V
PV operation voltage range	120-450VDC
Mppt Voltage Range	120-400VDC
Recommended wire	12 AWG

AC Charging Mode

Specification	Details
Rated AC input	110V, 50HZ/60HZ
Input Voltage Range	90VAC-140VAC
Conversion Time	10ms
Battery Type	Lead Acid and Lithium Battery
Maximum Charging Current	40A
Charging Voltage Range	20-33VDC
Short-Circuit Protection	Breakers and fuses
Overcharge Protection	Yes. Automatically alerts and turns off charging after 1 min

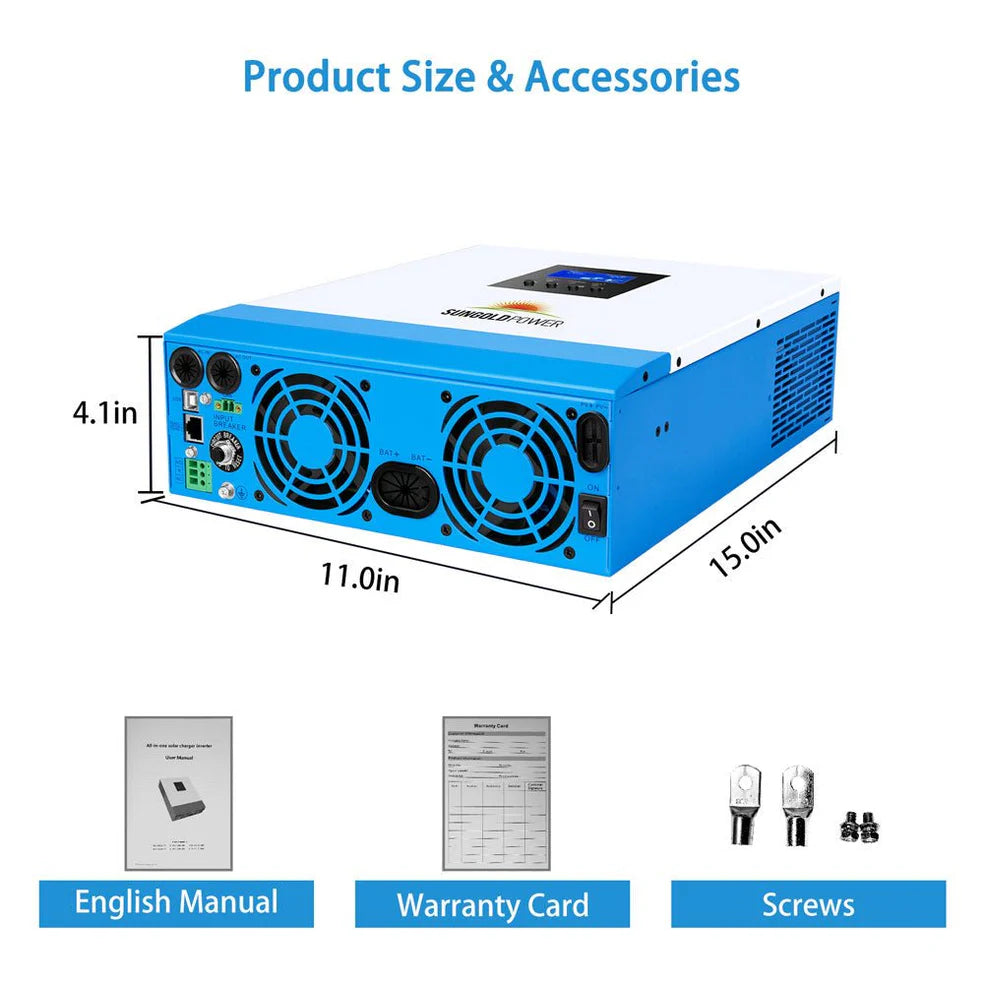

Mechanical Specification

Specification	Details
Size	15.0 x 11.0 x 4.0 inch
Net Weight	16.8lbs
Noise	≤60dB
Operating Temperature Range	5°F ~ 131°F/ -15°C ~ 55°C
Cooling Fan	Yes

Frequently-Asked Questions

What battery voltage is this inverter charger compatible with?

This inverter charger is compatible with 24V battery packs.

What is the maximum PV input power for this model?

The SPH302480A model supports up to 4000W maximum PV input power.

What is the MPPT voltage range?

The MPPT voltage range is 120-400VDC.

What is the PV operating voltage range?

The PV operating voltage range is 120-450VDC.

What battery types can be used with this inverter charger?

It supports 24V AGM/Sealed, Gel, Flooded, Lithium batteries, and also includes a User Mode for custom battery settings.

Does this inverter charger support UPS-style backup operation?

Yes. If the main/generator power is disconnected or solar charging is insufficient, the inverter charger can switch to battery supply within 10ms.

What charging modes are available?

The inverter charger supports AC Priority, Solar Priority, Only Solar, and Mains & Solar hybrid charging modes.

What load output modes are available?

The load output working modes are PV Priority, Utility Priority, and Inverter Mode.

Does it have a display?

Yes. It has a dynamic LCD display and intelligent LEDs that show system information, input/output information, potential errors, and system status.

What comes with the inverter charger?

The package includes the inverter charger, English manual, warranty card, and screws.

Manual

Sungold Power 3000w SPH302480A Solar Inverter User's Manual
