Sungold Power 3000W 24V Solar Inverter Charger [PV30-108V / MPPT30-90V]

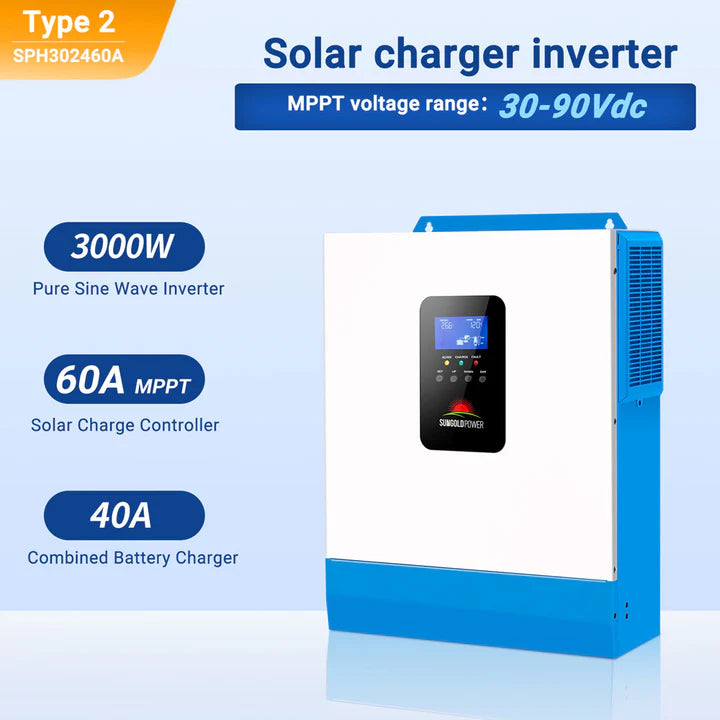

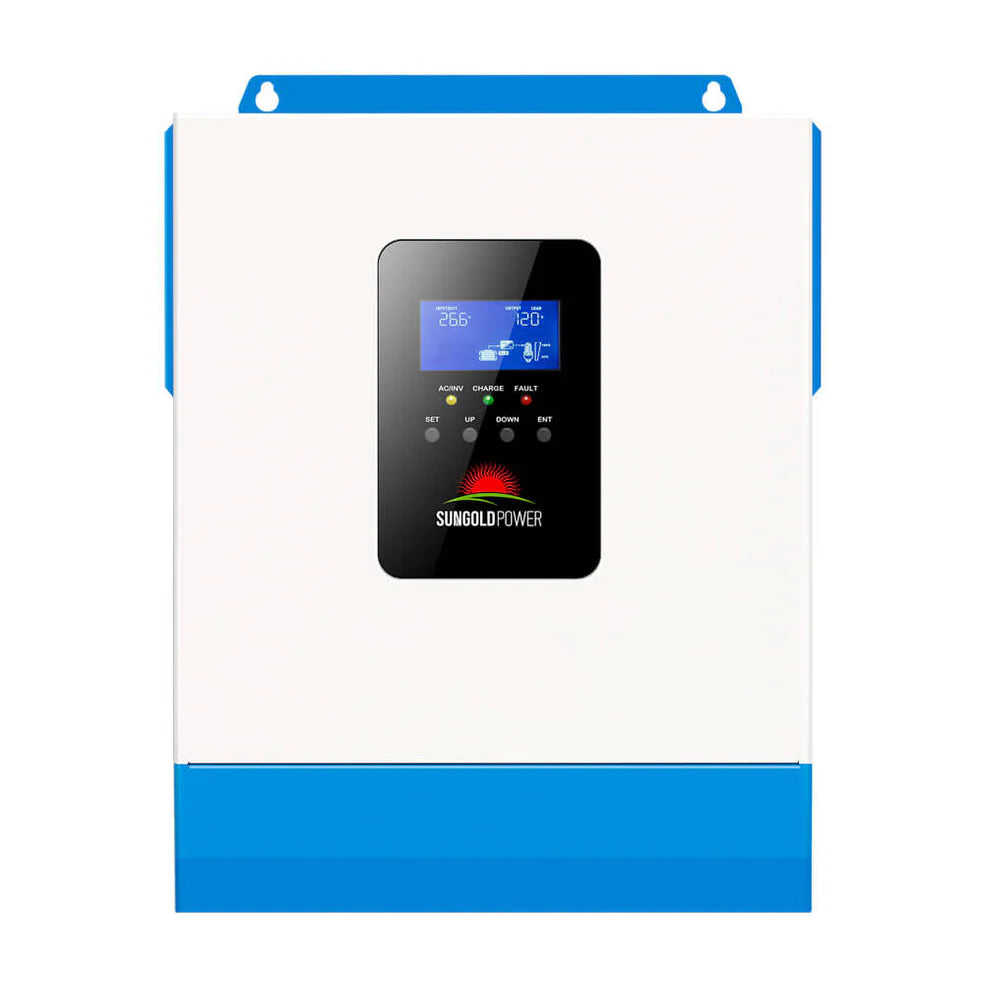

The Sungold Power 3000W 24V Solar Inverter Charger [PV30-108V / MPPT30-90V] is a 24V solar inverter charger with a 3000W pure sine wave inverter, built-in 60A MPPT solar charge controller, and 40A smart AC charger. It supports AC/solar charging modes and load output working modes, and is designed for use with lead acid and lithium batteries.

Sungold Power 3000W 24V Solar Inverter Charger [PV30-108V / MPPT30-90V] Features

3000W Pure Sine Wave Inverter - Provides 3000W pure sine wave output with 120VAC, 50Hz/60Hz AC output.

60A MPPT Solar Charge Controller - Built with a 60A MPPT solar charge controller and supports up to 1600W maximum PV input power.

40A Smart AC Charger - Includes a 40A smart AC charger with a rated AC input of 110V, 50Hz/60Hz.

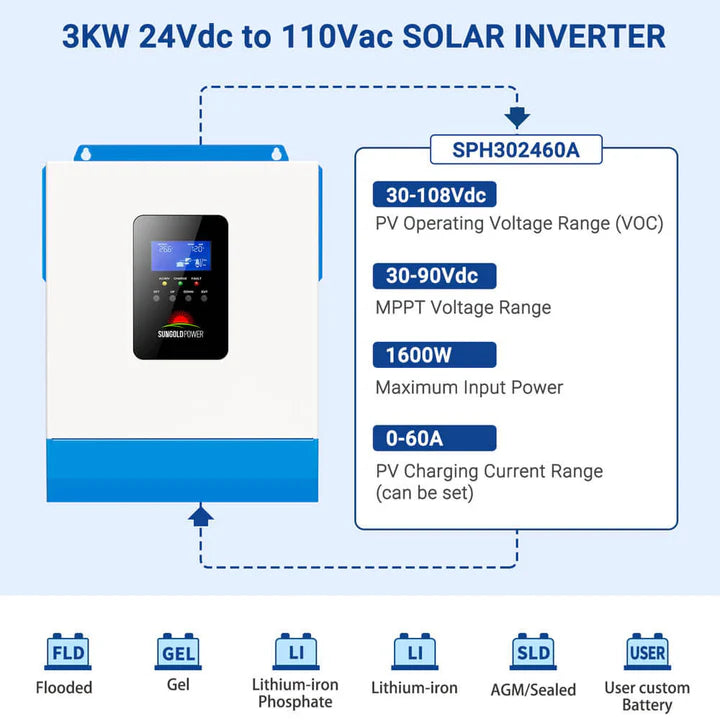

PV30-108V Operating Voltage Range - Supports a PV operating voltage range of 30-108VDC and an MPPT voltage range of 30-90VDC.

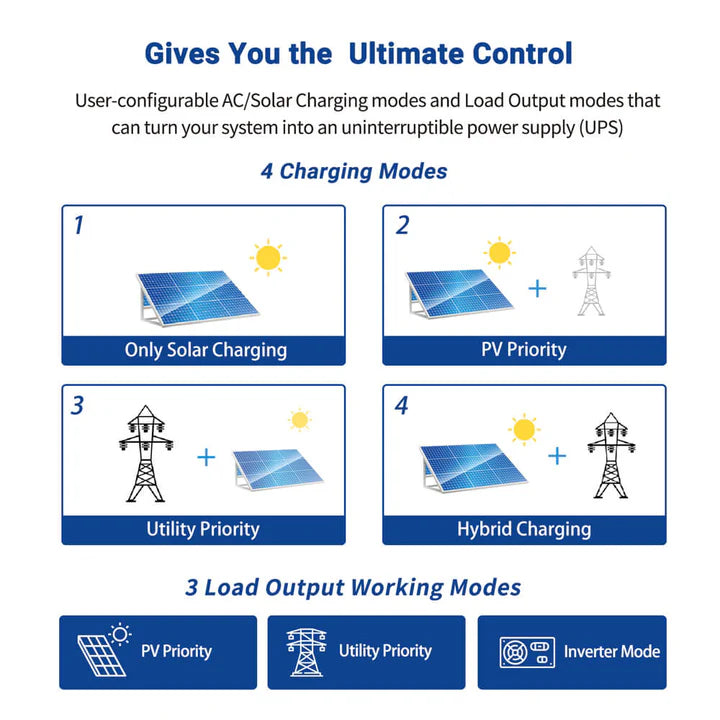

User-Configurable Charging Modes - Supports Only Solar Charging, PV Priority, Utility Priority, and Hybrid Charging modes.

Load Output Working Modes - Includes PV Priority, Utility Priority, and Inverter Mode load output working modes.

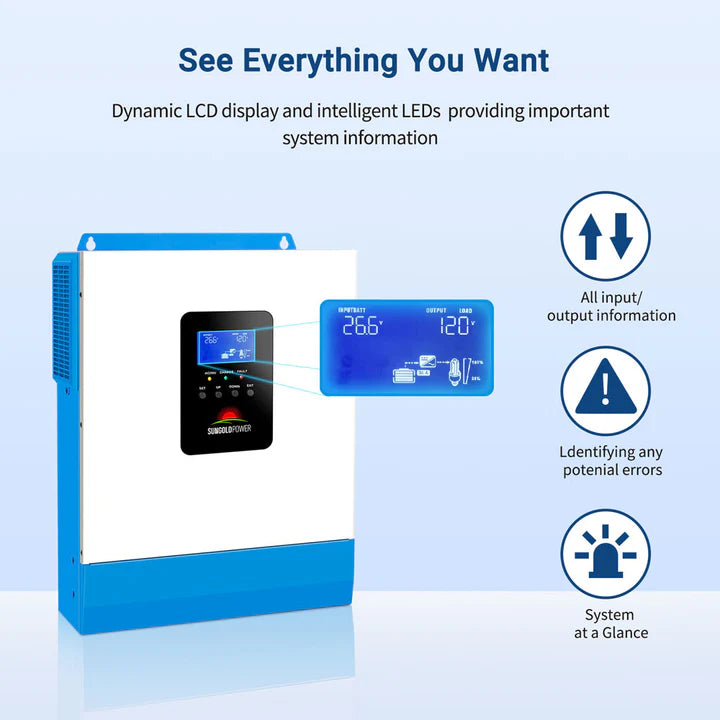

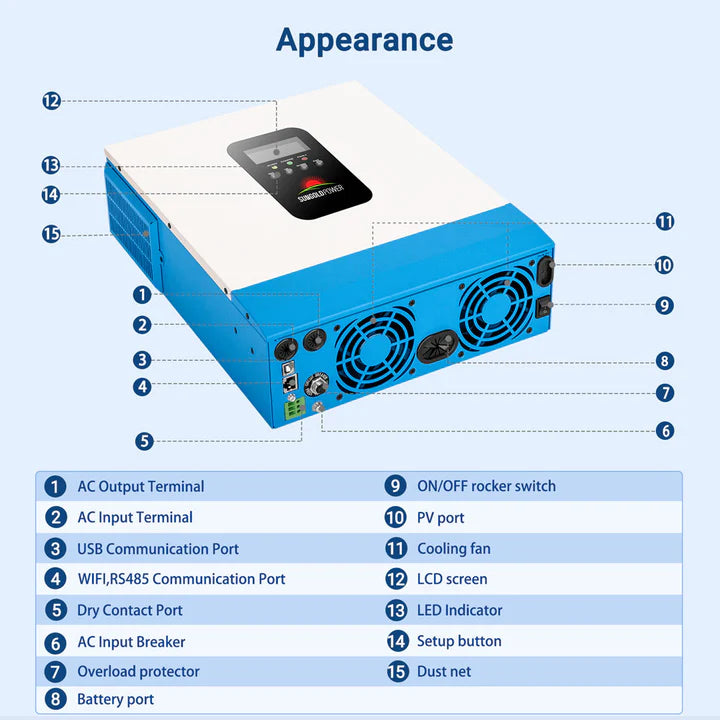

LCD Display and LED Indicators - The dynamic LCD display and intelligent LEDs provide system information, including input/output information, potential errors, and system status.

Battery Compatibility - Supports lead acid and lithium batteries, including Flooded, Gel, Lithium-iron Phosphate, AGM/Sealed, and User custom battery settings.

Protection Functions - Includes overload protection, short circuit protection, and over-discharge protection.

Generator Auto-Start Support - Supports auto-start the generator through dry contacts for delivering signal.

Sungold Power 3000W 24V Solar Inverter Charger [PV30-108V / MPPT30-90V] Applications

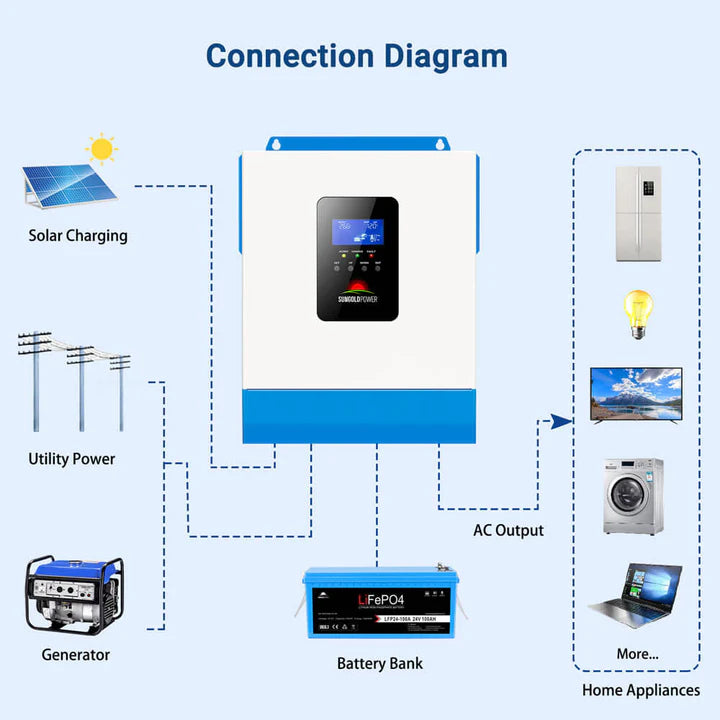

Solar Charging – Supports solar charging through the built-in 60A MPPT solar charge controller.
AC/Generator Battery Charging – Supports AC/generator battery charging with a 40A smart AC charger.
Battery Inverter Use – Converts power from a 24V battery pack to 120VAC pure sine wave output.
UPS Backup Operation – Supports user-configurable AC/solar charging modes and load output modes that can turn the system into an uninterruptible power supply (UPS).
24V Battery System Use – Designed for 24VDC battery systems using lead acid or lithium batteries.
Load Output Mode Control – Supports PV Priority, Utility Priority, and Inverter Mode load output working modes.

What's Included

Everything you need is included with your product.

1 x Sungold Power 3000W 24V Solar Inverter Charger [PV30-108V / MPPT30-90V]

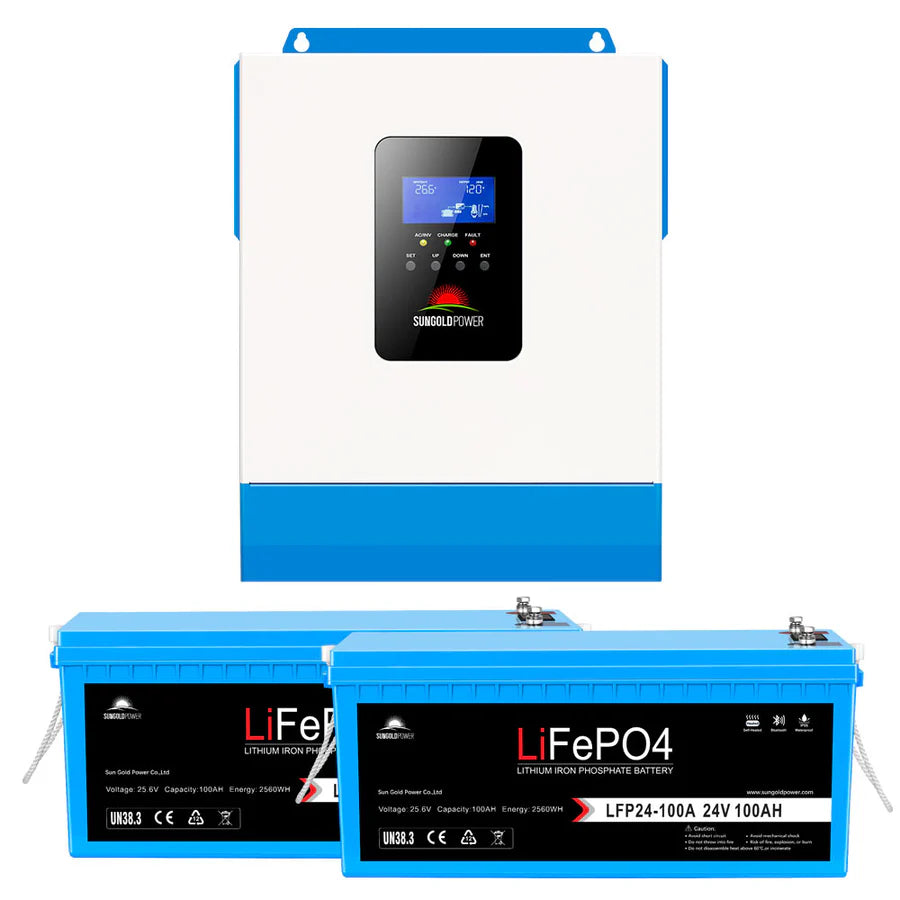

2 x Sungold Power 24V 100Ah LiFePo4 Deep Cycle Lithium Battery Bluetooth / Self-Heating / IP65 (Optional)

User Manual

Sungold Power 3000W 24V Solar Inverter Charger Specifications

Inverter Mode

Specification	Details
Output	Pure Sine Wave
Peak Power	6000VA
AC Output	120VAC ,50HZ/60HZ
Input Voltage / Rated Battery	24VDC (minimum start-up voltage:22V)
Bypass Breaker Current	40A
Idle Power	50W
Power Saver Mode Idle Consumption	25W

SPH302460A MPPT Solar Charging Mode

Specification	Details
Maximum Input Power	1600W
PV Charging Current	0-60A
Max.PV Open Circuit Voltage	108V
PV operation voltage range	30-108Vdc
Mppt Voltage Range	30-90Vdc
Recommended wire	12 AWG

AC Charging Mode

Specification	Details
Rated AC input	110V, 50HZ/60HZ
Input Voltage Range	90VAC-140VAC
Conversion Time	10ms
Battery Type	Lead Acid and Lithium Battery
Maximum Charging Current	40A
Charging Voltage Range	20-33VDC
Short-Circuit Protection	Breakers and fuses
Overcharge Protection	Yes. Automatically alerts and turns off charging after 1 min

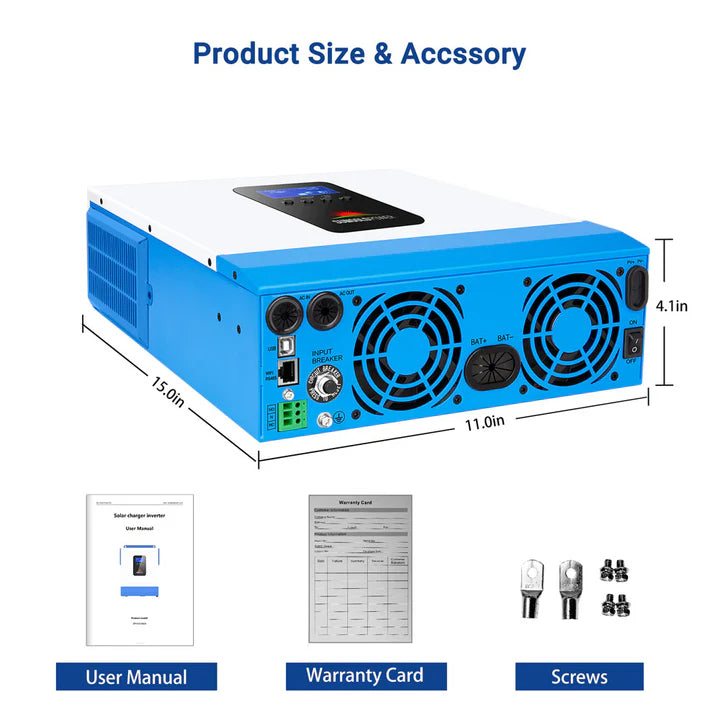

Mechanical Specification

Specification	Details
Size	15.0 x 11.0 x 4.0 inch
Net Weight	16.8lbs
Noise	≤60dB
Operating Temperature Range	5°F ~ 131°F/ -15°C ~ 55°C
Cooling Fan	Yes

Frequently-Asked Questions

What battery voltage is this inverter charger compatible with?

This inverter charger is designed for 24VDC battery systems.

What is the maximum PV input power?

The SPH302460A model supports up to 1600W maximum PV input power.

What is the MPPT voltage range?

The MPPT voltage range is 30-90VDC.

What is the PV operating voltage range?

The PV operating voltage range is 30-108VDC.

What is the maximum PV open circuit voltage?

The maximum PV open circuit voltage is 108V.

What battery types can be used with this inverter charger?

It supports lead acid and lithium batteries, including Flooded, Gel, Lithium-iron Phosphate, AGM/Sealed, and User custom battery settings.

What charging modes are available?

The inverter charger supports Only Solar Charging, PV Priority, Utility Priority, and Hybrid Charging modes.

What load output modes are available?

The load output working modes are PV Priority, Utility Priority, and Inverter Mode

Does this inverter charger have a display?

Yes. It has a dynamic LCD display and LED indicators for system information, input/output information, potential errors, and system status.

What comes with the inverter charger?

The package includes the inverter charger, user manual, warranty card, and screws.

Manual

Sungold Power 3000w SPH302460A Solar Inverter User's Manual
