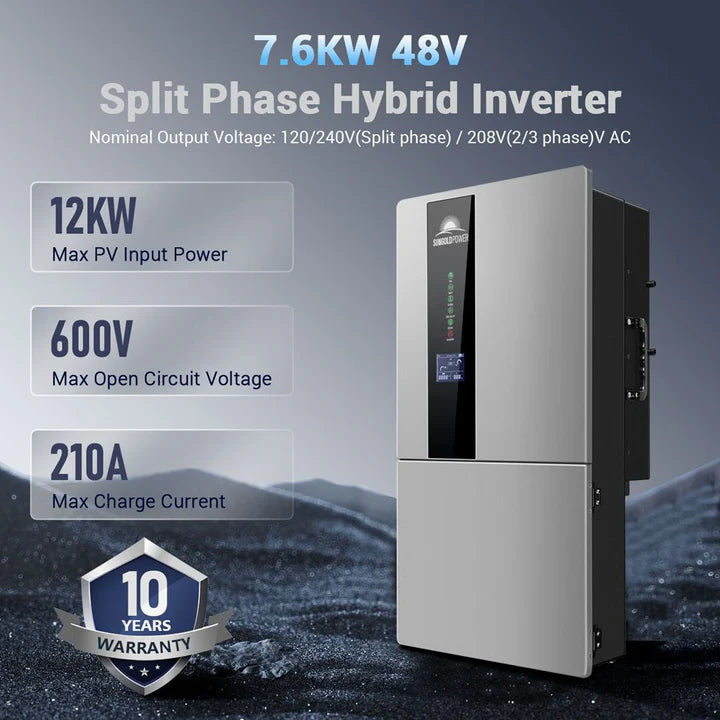

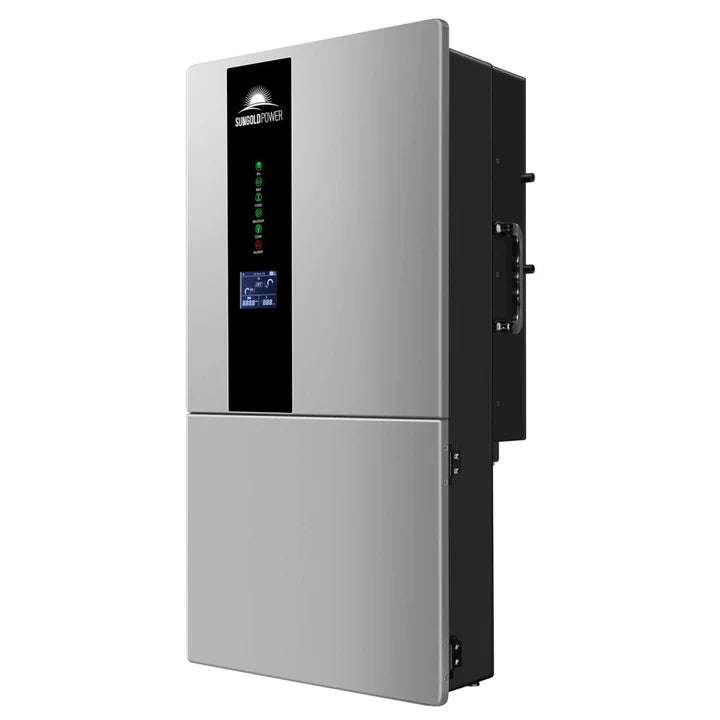

SunGold Power | 7.6KW Hybrid Inverter | 48V Split Phase | SGN7.6K1HB-48

The SunGold Power 7.6KW Hybrid Inverter 48V Split Phase is a high-performance energy management solution designed for residential and light commercial solar installations. This advanced hybrid inverter converts solar energy into usable AC power, stores excess energy in battery systems, and can export surplus power back to the utility grid when permitted. Featuring 7,600W continuous output, 12,000W PV input capacity, and support for both 120V/240V split-phase and 208V three-phase output, this inverter offers exceptional flexibility for grid-tied, hybrid, and backup power applications.

SunGold Power | 7.6kW 48V Split Phase Hybrid Inverter Features

7,600W Continuous Output Power - Delivers reliable split-phase power for residential and light commercial applications, supporting a wide range of household appliances and electrical loads.
12,000W Solar Input Capacity - Supports up to 12kW of solar panels, allowing users to maximize solar production and improve overall system efficiency.

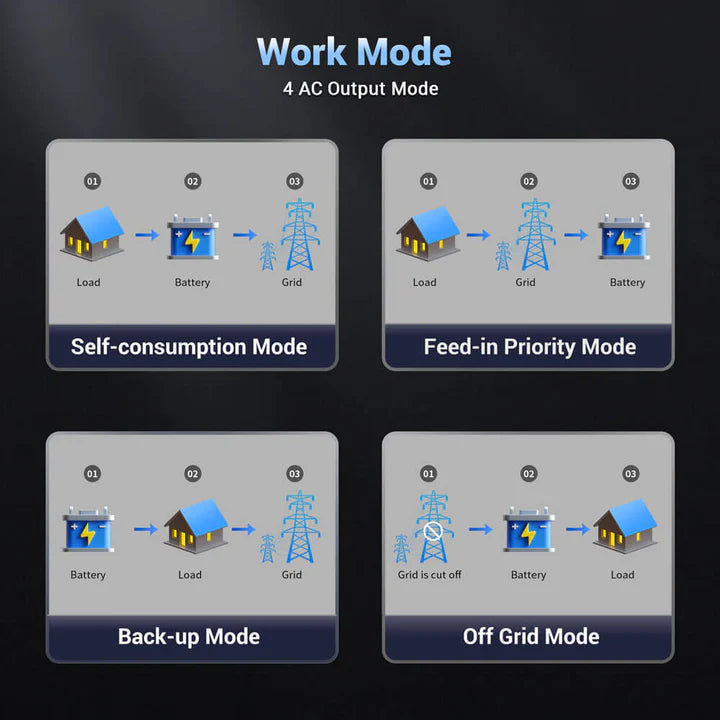

Advanced Hybrid Functionality - Operate as a grid-tied, hybrid, or backup power system while intelligently managing solar production, battery storage, and utility power.
Three MPPT Solar Charge Controllers - Equipped with three independent MPPT trackers to optimize solar harvesting and maximize energy production from multiple panel arrays.
48V Battery Compatibility - Supports lithium-ion and lead-acid battery systems operating between 40V and 64V, providing flexibility for a variety of energy storage solutions.
Rapid Backup Power Transfer - Features a transfer time of less than 10 milliseconds, helping maintain power to critical loads during grid outages.

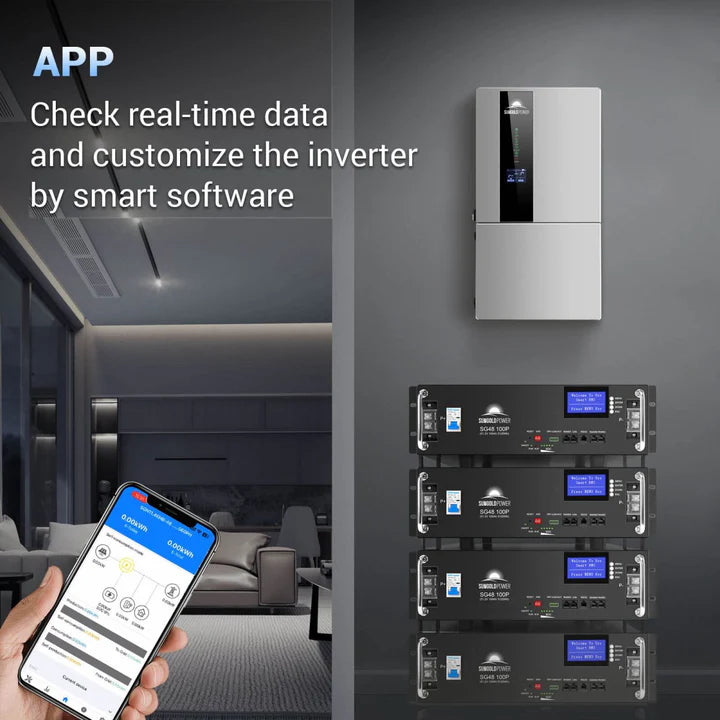

Remote Monitoring Capability - Supports wireless monitoring via app, RS485, CAN communication, WiFi, and optional LAN connectivity for convenient system management.

SunGold Power | 7.6kW 48V Split Phase Hybrid Inverter Applications

Residential solar energy systems – Converts solar energy into usable household electricity while managing battery storage and utility power.
Whole-home backup power systems – Provides seamless backup operation during utility outages.
Grid-tied solar installations – Supports net metering and energy export where permitted by local utilities.
Hybrid solar systems – Balances solar production, battery storage, and grid power automatically.
Off-grid energy systems – Can be configured for independent energy applications with battery storage.
Small businesses and offices – Provides reliable energy management and backup power protection.
Agricultural properties – Supports irrigation systems, barns, workshops, and remote buildings.
Energy storage projects – Optimizes battery charging and discharging for improved energy utilization.
Remote monitoring applications – Enables real-time performance tracking and system management.
Energy resilience planning – Enhances protection against utility outages and power disruptions.

What's Included

Everything you need is included with your product.

SunGold Power 7.6kW 48V Split Phase Hybrid Inverter

User Manual

SunGold Power 7.6kW 48V Split Phase Hybrid Inverter Specifications

Input (PV)

Specification	Details
Max. PV Input Power	12,000 W
Max. PV Voltage	600V
Start-up Voltage	90V
MPPT Operating Voltage Range	70V to 540V
Max. Input Current per MPPT	30A/22 A/22 A
Nos. Of MPPT	3

Input /Output(BAT)

Specification	Details
Compatible Battery Type	Lithium-ion/Lead-acid
Battery Voltage Range	40V to 64V
Max. Charge/Discharge Current	210A/180A
Max. Charge/Discharge Power	10,000W/7,600W

Output (Grid)

Specification	Details
Max. AC Output Power(PF=1)	7,600W
Nominal AC Output Current	31.7A
Max. AC Output Current	31.7A
Nominal Grid Voltage	120/240V(Split phase)/208V(2/3 phase)V AC
Nominal Grid Frequency	50/60 Hz
Power Factor	>0.99@rated power (Adjustable 0.8LD~0.8LG)

Output (Back up)

Specification	Details
Max. AC Output Power(PF=1)	7,600W
Nominal Output Current	31.7A
Peak Power	15,200VA
Nominal Output Voltage	120/240V(Split phase) / 208V(2/3 phase)V AC
Nominal Output Frequency	50Hz/60Hz
Transfer Time	<10ms (typical)
THDV	<3% @100% R Load

Protection

Specification	Details
Protection Category	Class I
AC Overcurrent Protection	Yes
DC/AC Overvoltage Protection	DC Type II, AC Type III
AC Short Circuit Protection	Yes
DC Reverse Protection	Yes
Surge Arrester	DC Type II, AC Type III
RSD	Yes

General

Specification	Details
Ingress Protection Degree	IP65/NEMA 3R
Operating Temperature Range	-25 ~60°C ( >45°C derating)

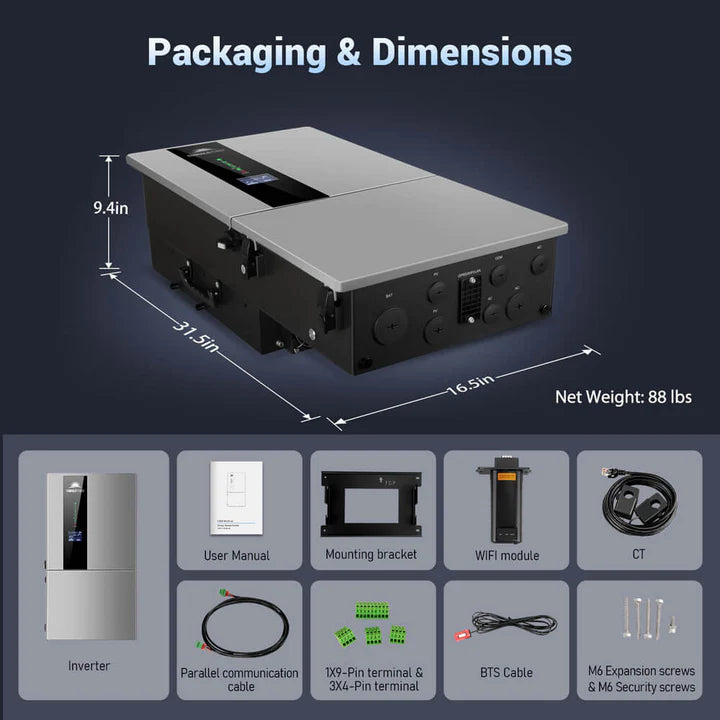

Dimensions (WHD)	16.531.59.4 inch(420800240mm)
Weight	88lb/40Kg

HMI & COM

Specification	Details

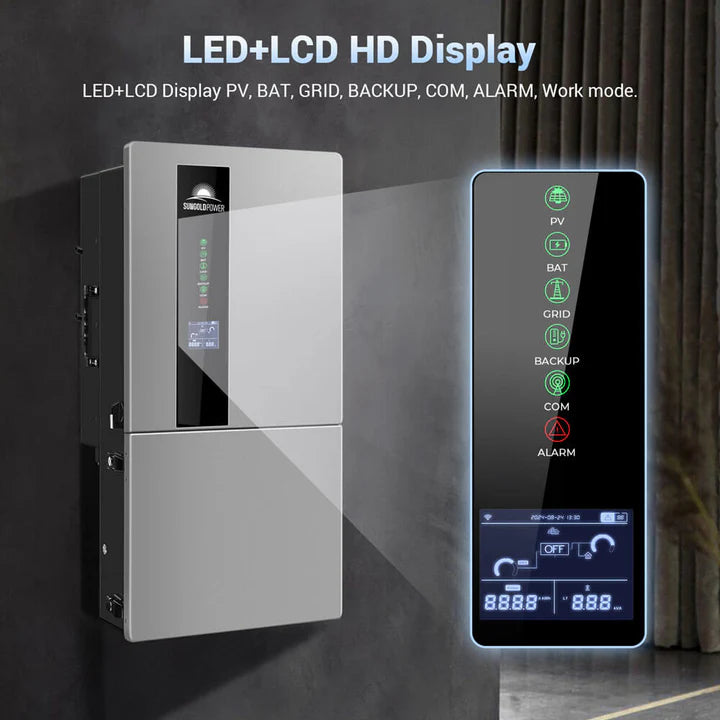

Display	Wireless & APP + LED+ LCD(optional)
Communication interface	RS485/CAN(for BMS), DRM/RS485(for meter), RS485, Optional:Wi-Fi/LAN

Certification

Specification	Details
Compliance	UL 1741/CSA C22.2/UL 1699B, FCC Part 15 ClassB,CEC Listed.
Warranty	10 Years

SunGold Power | 7.6kW 48V Split Phase Hybrid Inverter Video

Frequently Asked Questions

What type of solar systems is this inverter compatible with?

This inverter supports hybrid, grid-tied, backup power, and certain off-grid applications when paired with compatible battery storage systems.

How many solar panels can be connected?

The inverter supports up to 12,000W of total PV input power, allowing for large residential solar arrays with multiple panel configurations.

What battery types are compatible?

The inverter supports both Lithium-Ion and Lead-Acid battery systems operating between 40V and 64V.

Can the inverter provide backup power during outages?

Yes. The inverter includes backup output functionality with transfer times below 10 milliseconds, helping maintain power to critical loads.

Does the inverter support remote monitoring?

Yes. Users can monitor system performance through wireless monitoring, RS485, CAN communication, WiFi, and optional LAN connectivity.

Is the inverter suitable for outdoor installation?

Yes. With an IP65/NEMA 3R enclosure rating, the inverter is designed to withstand outdoor environmental conditions when installed according to manufacturer guidelines.

Manual

SunGold Power | 7.6kW 48V Split Phase Hybrid Inverter
