What is the difference between the FR-12K20CP and the FR-12K20CE?

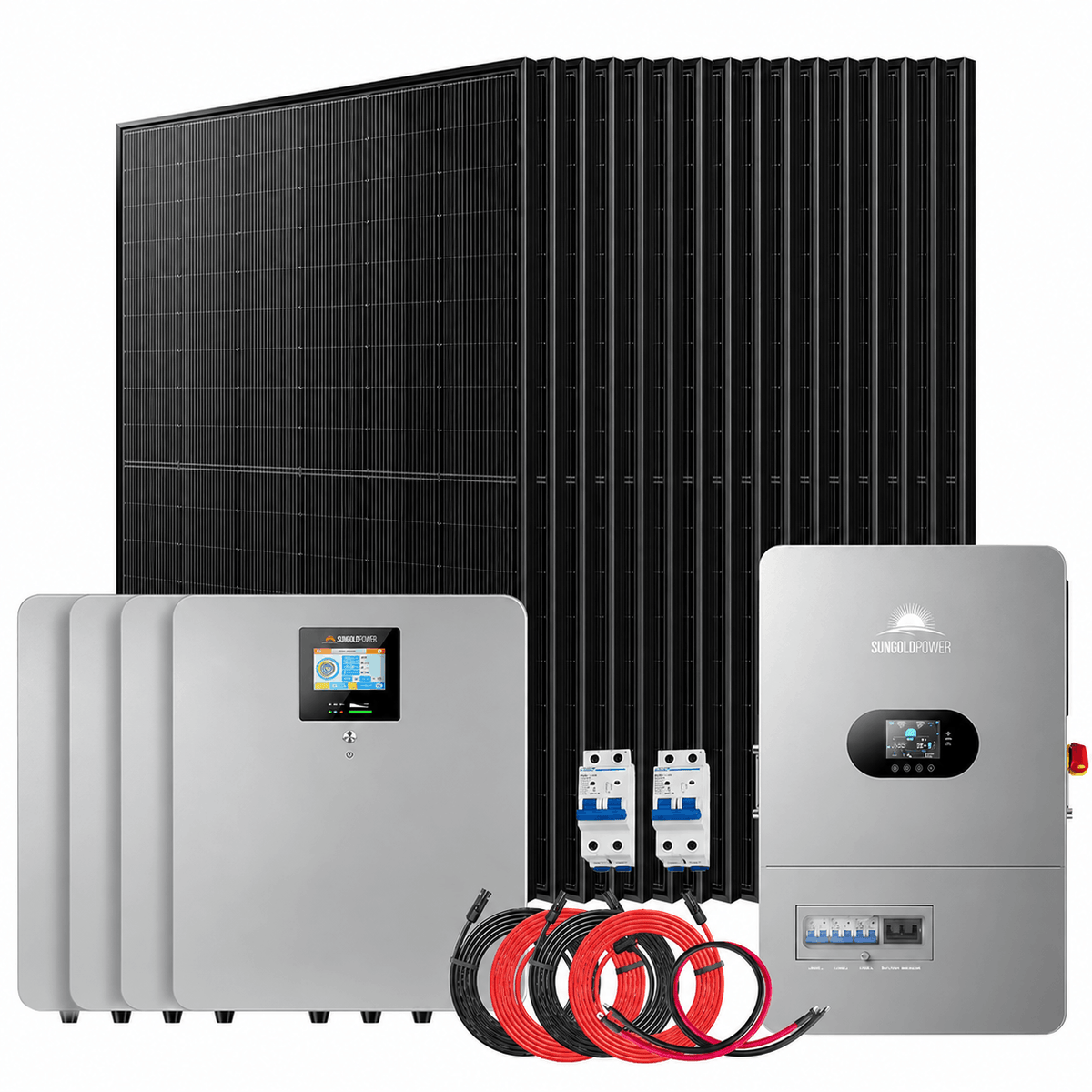

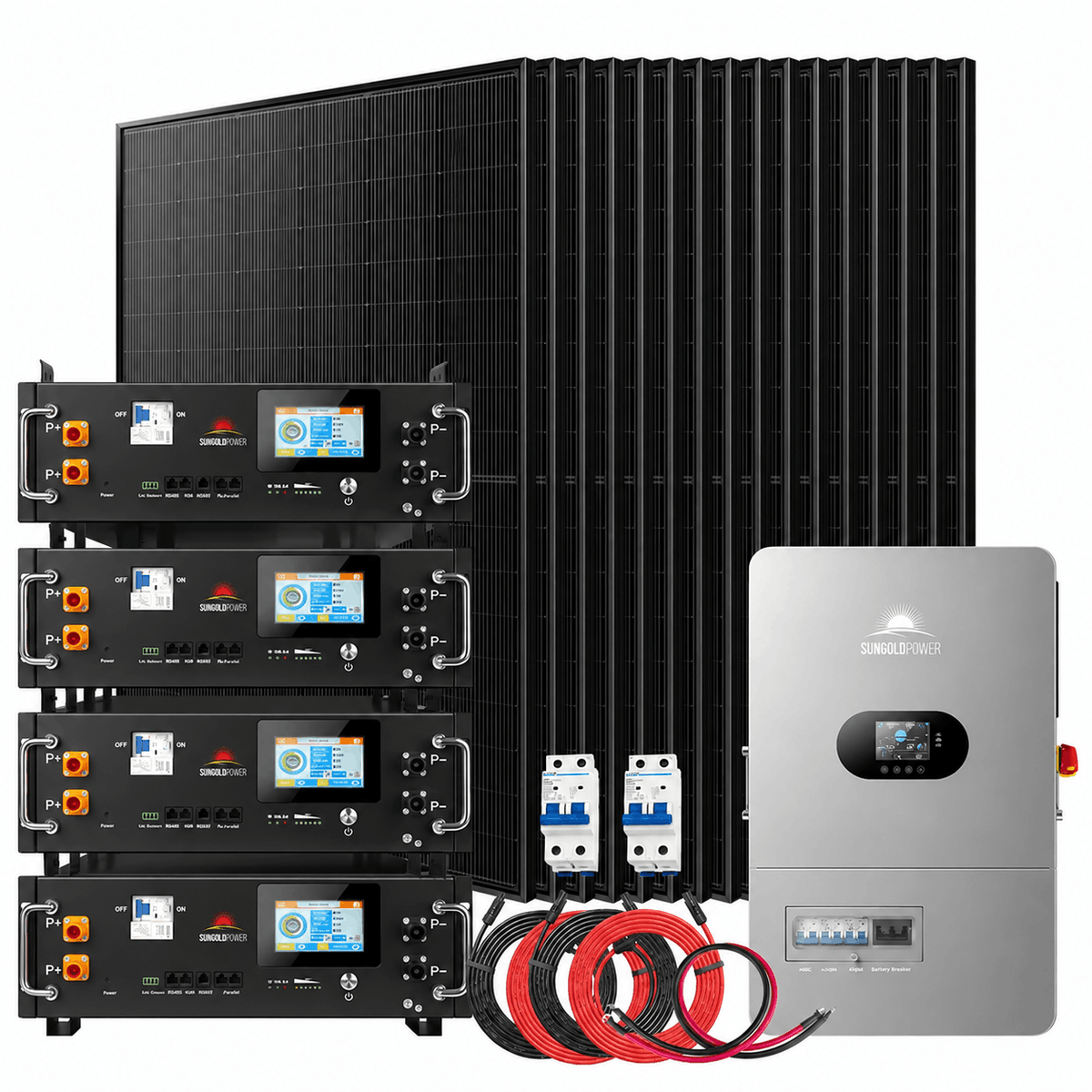

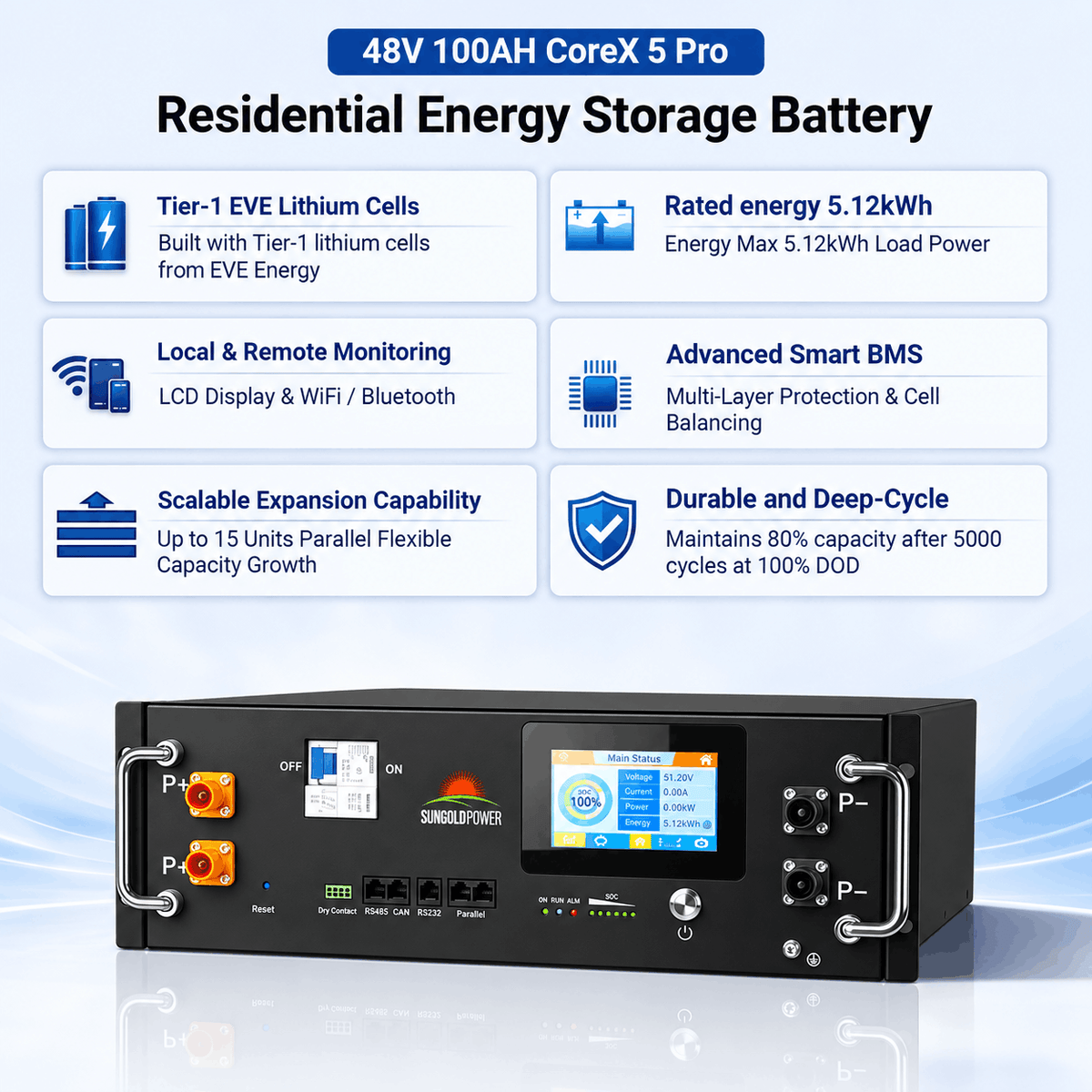

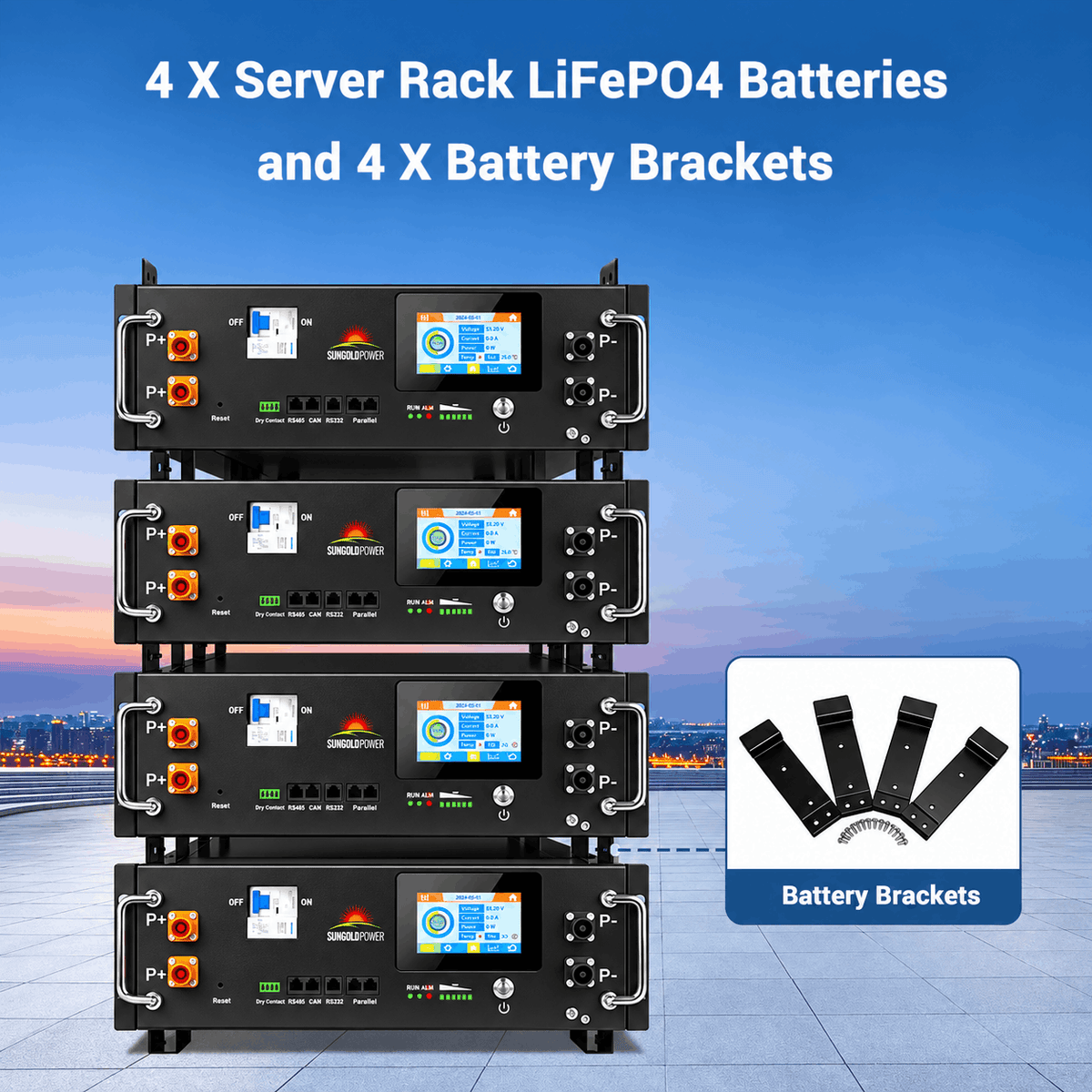

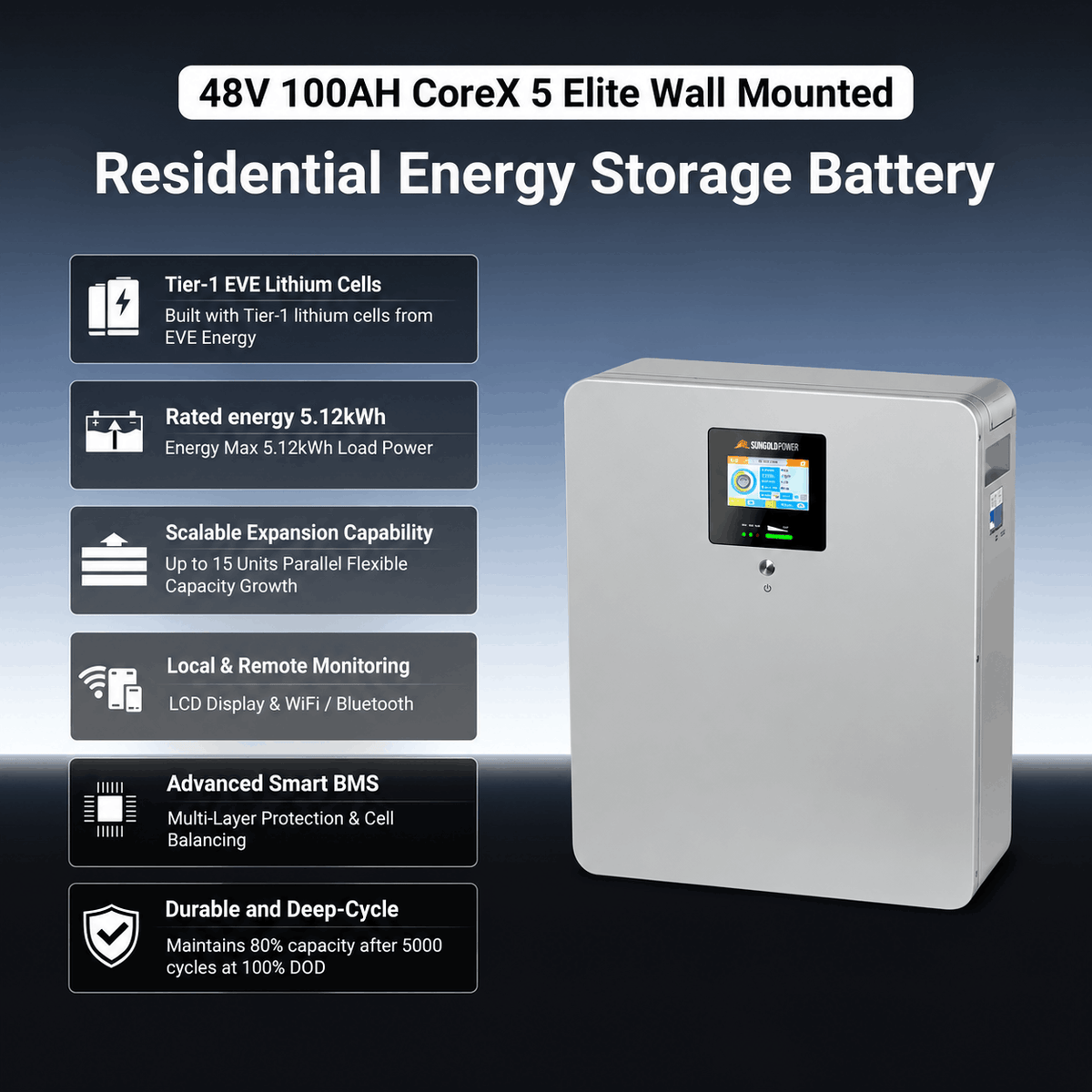

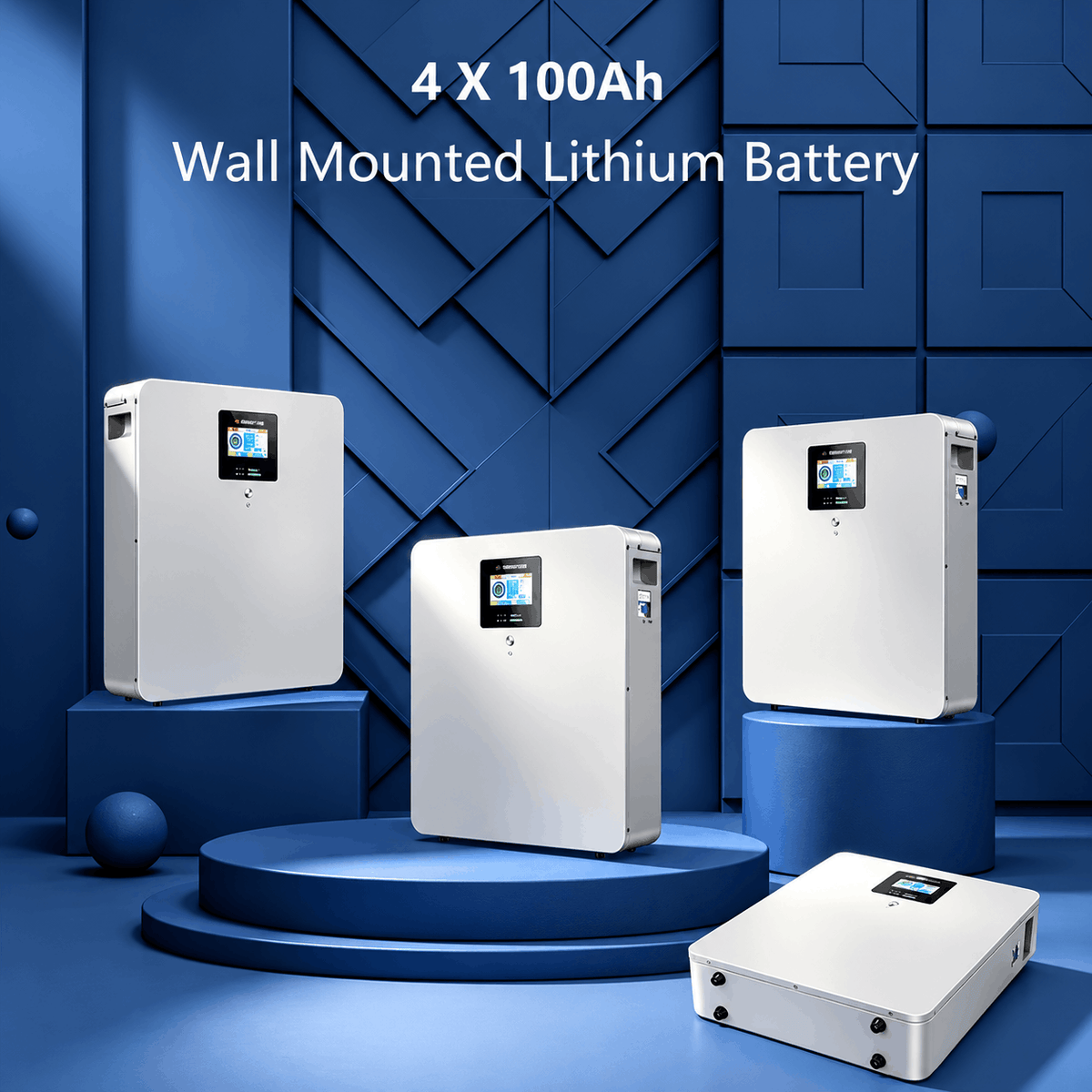

The batteries, and only the batteries. Both kits have the same inverter, the same sixteen panels, the same 20.48kWh and the same performance. The CP uses four CoreX 5 Pro server rack units and includes four mounting brackets. The CE uses four CoreX 5 Elite wall-mounted units, each with its own LCD display and Wi-Fi and Bluetooth monitoring. Choose on where the batteries are going: a floor or a rack takes the CP, a wall takes the CE. The Elite is 11 lbs heavier per unit, which matters when four of them hang on the same wall.
Why so much solar for a 20.48kWh battery?
Because generating energy is cheaper than storing it. 7,200W of array produces roughly 29 to 36kWh on a good day against a bank that usefully holds 18.4kWh, so the array covers a household's daily consumption and refills the battery in the same day. A system with more battery and less array survives a long stretch of bad weather better. This one runs on sunlight more of the year and costs less per kilowatt-hour generated. If you are in a climate with long dark spells, the SGR-10K25S or the SGR-12K20E is the better shape.
Can this kit really hold 12,000W, or does the battery cap it?
It holds it. Four batteries each sustain 100A, so the bank supplies 400A while the inverter draws about 255A at full output. There is no battery-side ceiling here, which is not true of every kit at this size. What runs out is stored energy: held at a full 12,000W this bank lasts a little over an hour.
Why does the battery bank need a busbar?
Because a 12,000W inverter draws about 255A from a 48V bank, and the CoreX manual limits a standard parallel battery connection to 100A total. Without a busbar the current has nowhere sensible to go and the first battery in the chain carries far more than its share. With one, all four batteries share the load evenly and each stays well inside its 100A rating. This is normal practice at this system size and it is a cheap part, but it has to be planned rather than discovered. Call us and we will spec it with your order, along with the battery-to-busbar cabling that is not in the box.
How should the panels be wired?

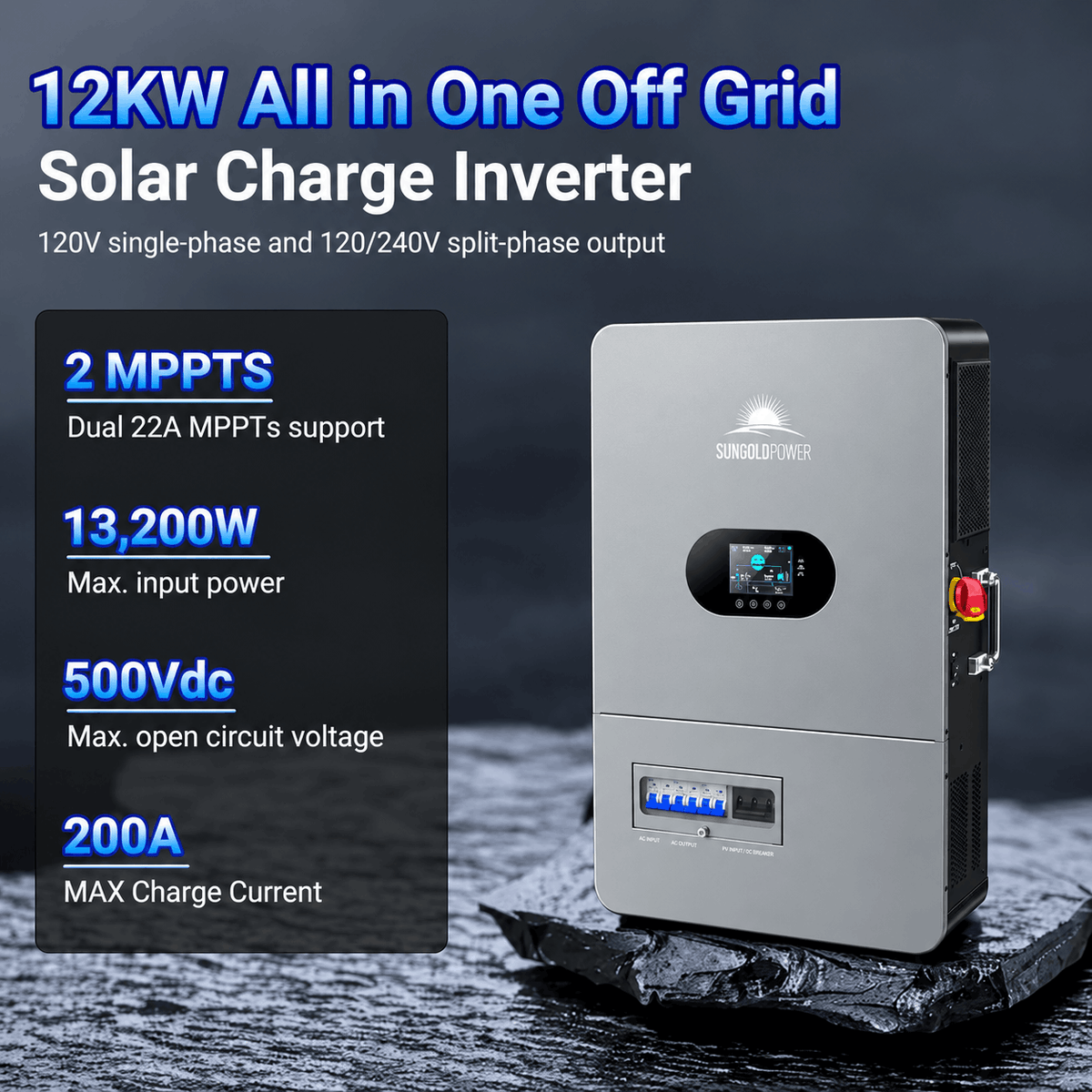

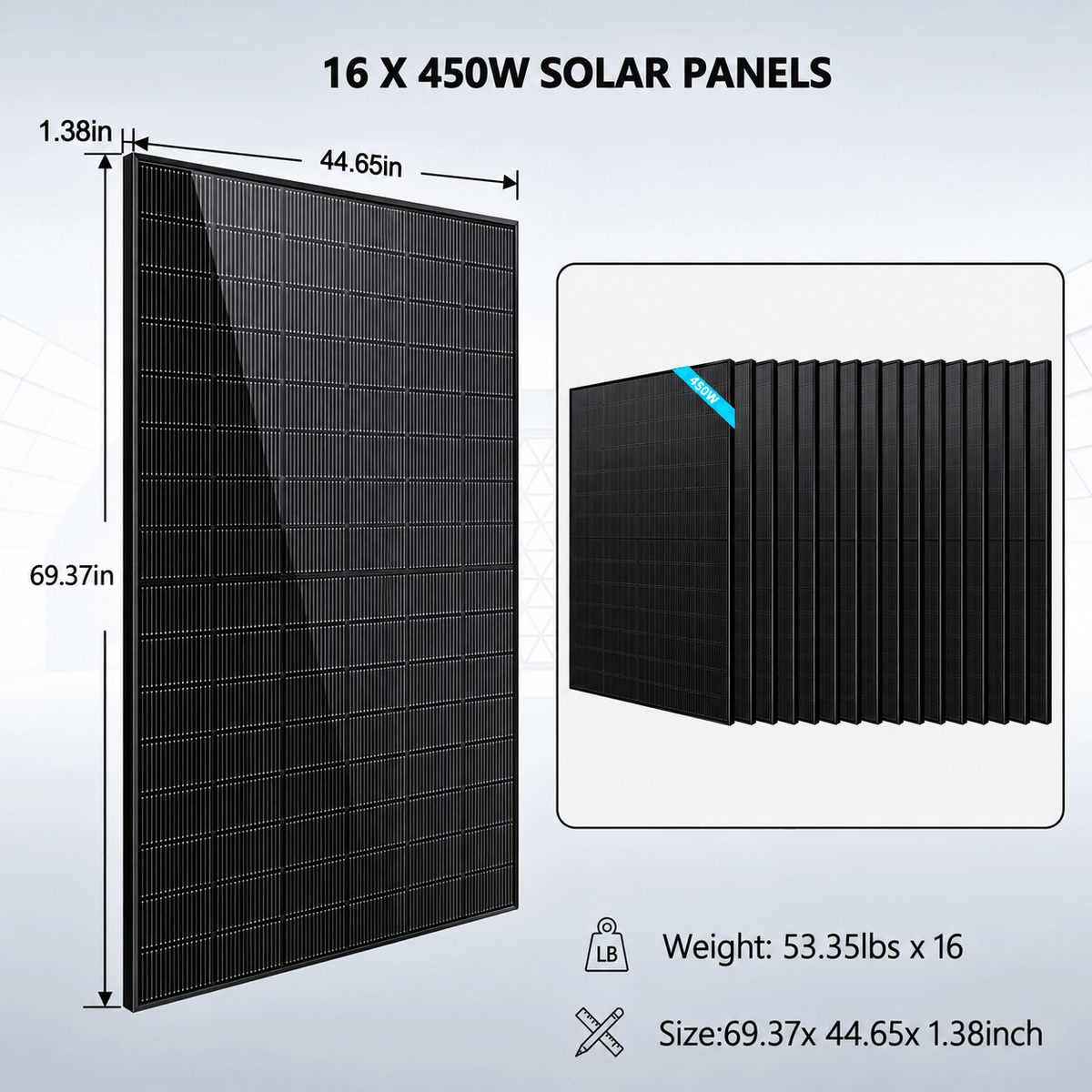

Two strings of eight, one to each MPPT tracker. Eight of these panels in series operate near 241V and reach 280V open circuit, which sits in the middle of the 125 to 425V tracking window and well under the 500V ceiling even on a cold morning when panel voltage rises, and each string draws 16A against a 22A tracker limit. Each tracker then handles 3,600W of the 7,200W array against a 6,600W capacity.
Can I add panels or batteries later?
Both. On the solar side, extra panels go into the existing strings rather than into new ones, because the trackers' 22A input limit rules out paralleling two 16A strings. Up to ten panels per string keeps cold-weather voltage inside the tracking window and takes the array to 9,000W. On the battery side, CoreX units parallel up to fifteen. Batteries work best when they match the originals in age and state of health, so if you expect to grow the bank it is worth buying the capacity up front.
How much energy will this generate daily?

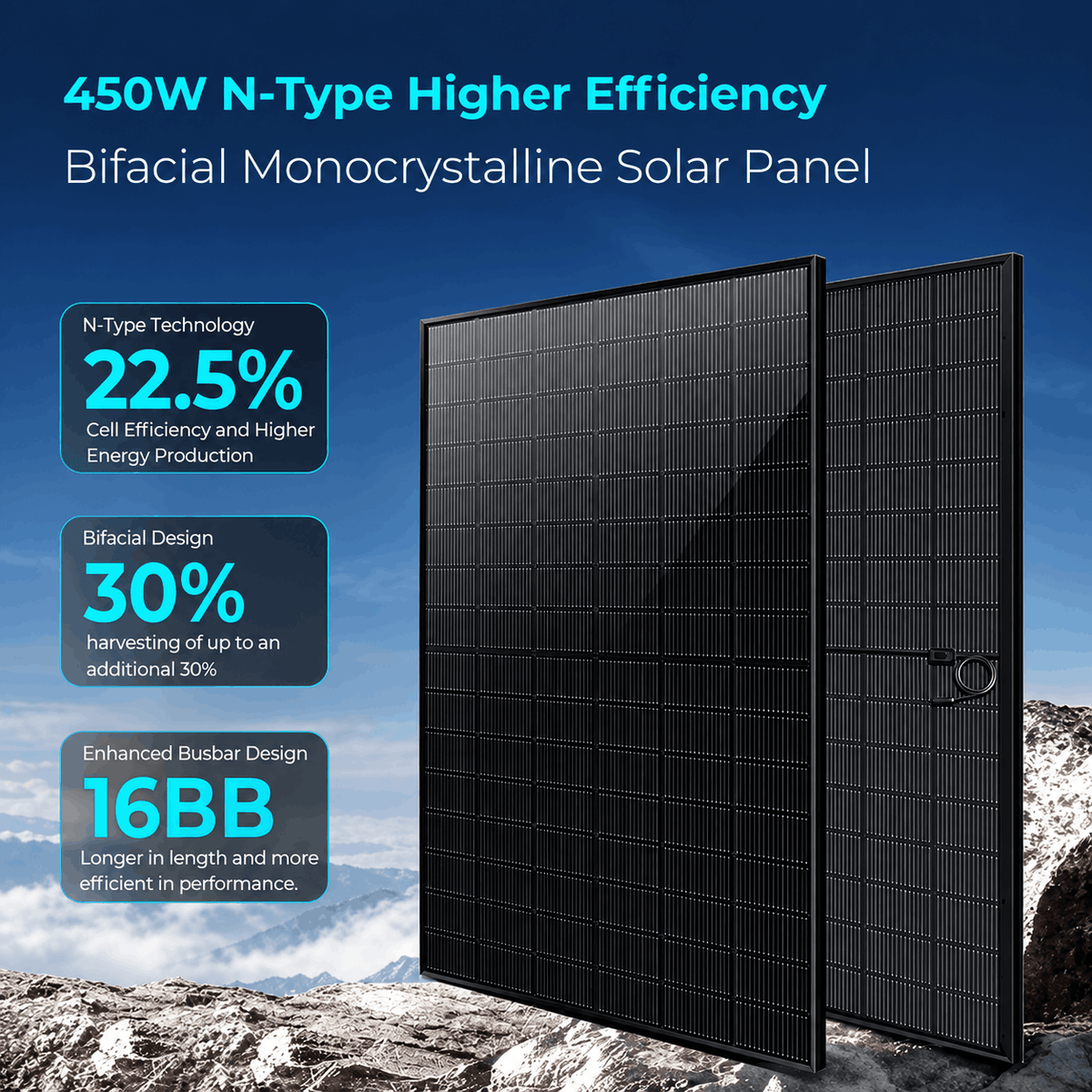

The 7.2kW array produces roughly 29 to 36kWh per day at 4 to 5 peak sun hours, plus whatever the rear faces of the panels add. Actual output depends on your location, season, panel angle and shading.
Can I run a generator with this?
Yes. The inverter charges from mains or generator at up to 120A, which is roughly 6.1kW into the battery and takes an empty bank to full in about three hours of run time. Tell us what generator you have when you call, and we will confirm the input configuration against SunGold's specification before you order.
How cold can the batteries get?
They discharge down to -4°F, so a cold night never leaves you without power. Charging is the narrower window: 39.2°F to 131°F. In practice that means an unheated battery room in a real winter will discharge normally but refuse to take a charge until it warms. Neither battery in this kit is self-heating. If that describes your install, call us before ordering and we will point you at a kit that handles it.
Can I install this myself?
Parts of it. Running PV, setting the inverter and wiring the DC side are within reach for someone with real electrical experience, and at 61.7 lbs the inverter is a manageable lift. Tying into a house panel at 12,000W is work for a licensed electrician, hanging four 105 lb batteries on a wall needs the fixings sized properly, and the battery busbar should be specified by someone who has done it before.
Is LiFePO4 safe?
It's the safest widely available lithium chemistry, with strong thermal stability, long service life and minimal maintenance. Every battery includes BMS protection against overcharge, deep discharge, overheating, overload and short circuit.
